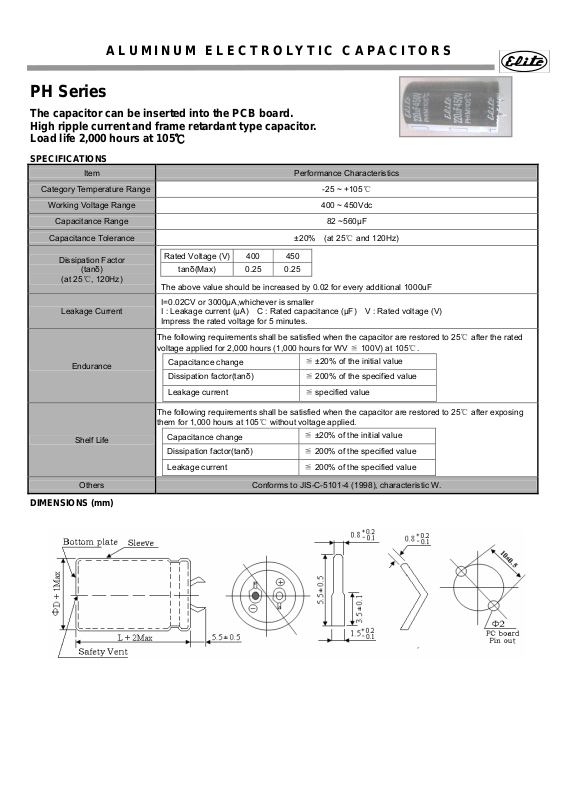

ALUMINUM ELECTROLYTIC CAPACITORS
PH Series
The capacitor can be inserted into the PCB board.
High ripple current and frame retardant type capacitor.
Load life 2,000 hours at 105℃
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range
Working Voltage Range 400 ~ 450Vdc
Capacitance Range 82 ~560μF
Capacitance Tolerance
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Rated Voltage (V) 400 450
tanδ(Max) 0.25 0.25
The above value should be increased by 0.02 for every additional 1000uF
I=0.02CV or 3000μA,whichever is smaller
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 5 minutes.
-25 ~ +105℃
±20% (at 25℃ and 120Hz)
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.

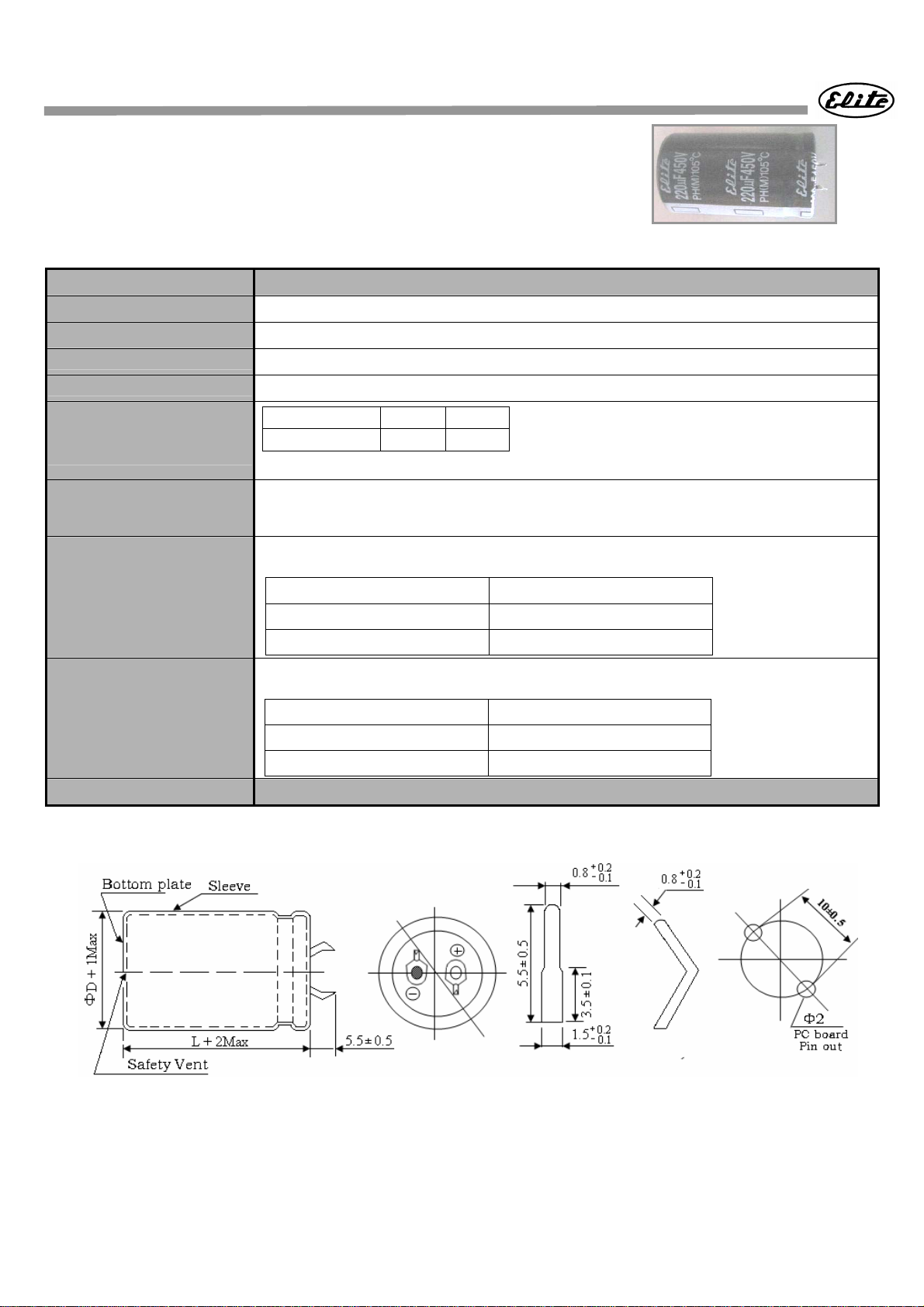

DIMENSIONS (mm)
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 2,000 hours (1,000 hours for WV ≦ 100V) at 105℃.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after exposing
them for 1,000 hours at 105℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
≦ ±20% of the initial value
≦ ±20% of the initial value
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
PH Series
Case size & Permissible rated ripple current (mA rms) 120Hz / 105℃:
Vdc
ФD Ф 22 Ф 25 Ф30 Ф35 ФD Ф 22 Ф 25 Ф30 Ф35
uF ФD×L RC ФD×L RC ФD×L RC ФD×L RC uF ФD×L RC ФD×L RC ФD×L RC ФD×L RC
82 22×31 580 82 22×35 670 25×31 650 30×25 620
100 22×31 640 25×25 640 100 22×41 780 25×35 760 30×25 690
120 22×35 670 25×31 690 30×25 730 120 22×45 900 25×41 890 30×31 810 35×25 720
150 22×41 770 25×35 780 30×31 760 150 25×45 1040 30×35 970 35×31 860
180 22×45 920 25×41 810 30×31 820 35×25 900 180 25×51 1200 30×41 1120 35×35 1000
220 25×45 930 30×35 910 35×31 1080 220 30×45 1300 35×35 1100
270 25×51 1210 30×41 1100 35×35 1120 270 30×51 1510 35×45 1360
400
Vdc
450
330 30×45 1390 35×35 1180 330 35×51 1580
390 30×51 1550 35×41 1270 390
470 35×45 1620 470
560 35×51 1720 560
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc
Frequency (Hz)
60 120 1K 10K 100K
400 ~ 450 0.70 1.00 1.10 1.12 1.15
