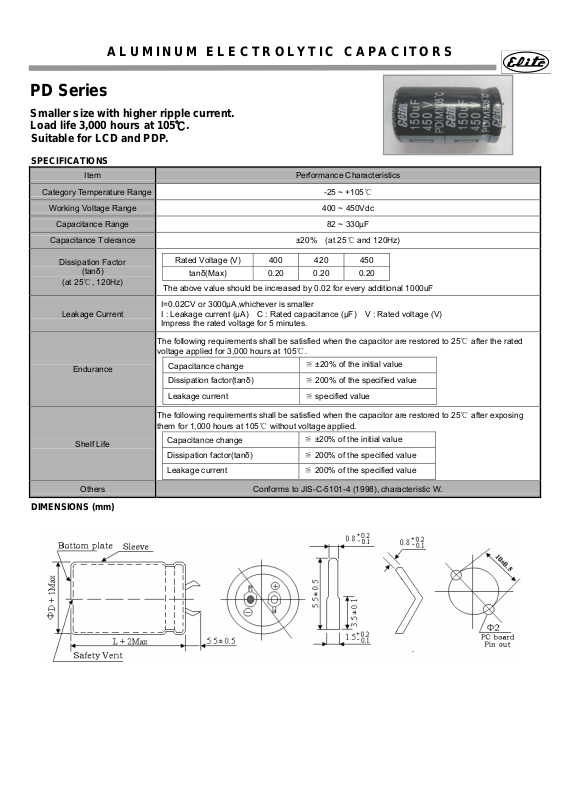

ALUMINUM ELECTROLYTIC CAPACITORS
PD Series
Smaller size with higher ripple current.
Load life 3,000 hours at 105
Suitable for LCD and PDP.
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range
Working Voltage Range 400 ~ 450Vdc
Capacitance Range 82 ~ 330μF
Capacitance Tolerance
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
℃.
Rated Voltage (V) 400 420 450
tanδ(Max) 0.20 0.20 0.20
The above value should be increased by 0.02 for every additional 1000uF
I=0.02CV or 3000μA,whichever is smaller
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 5 minutes.
-25 ~ +105℃
±20% (at 25℃ and 120Hz)
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 3,000 hours at 105℃.
Endurance
The following requirements shall be satisfied when the capacitor are restored to 25℃ after exposing
them for 1,000 hours at 105℃ without voltage applied.
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.

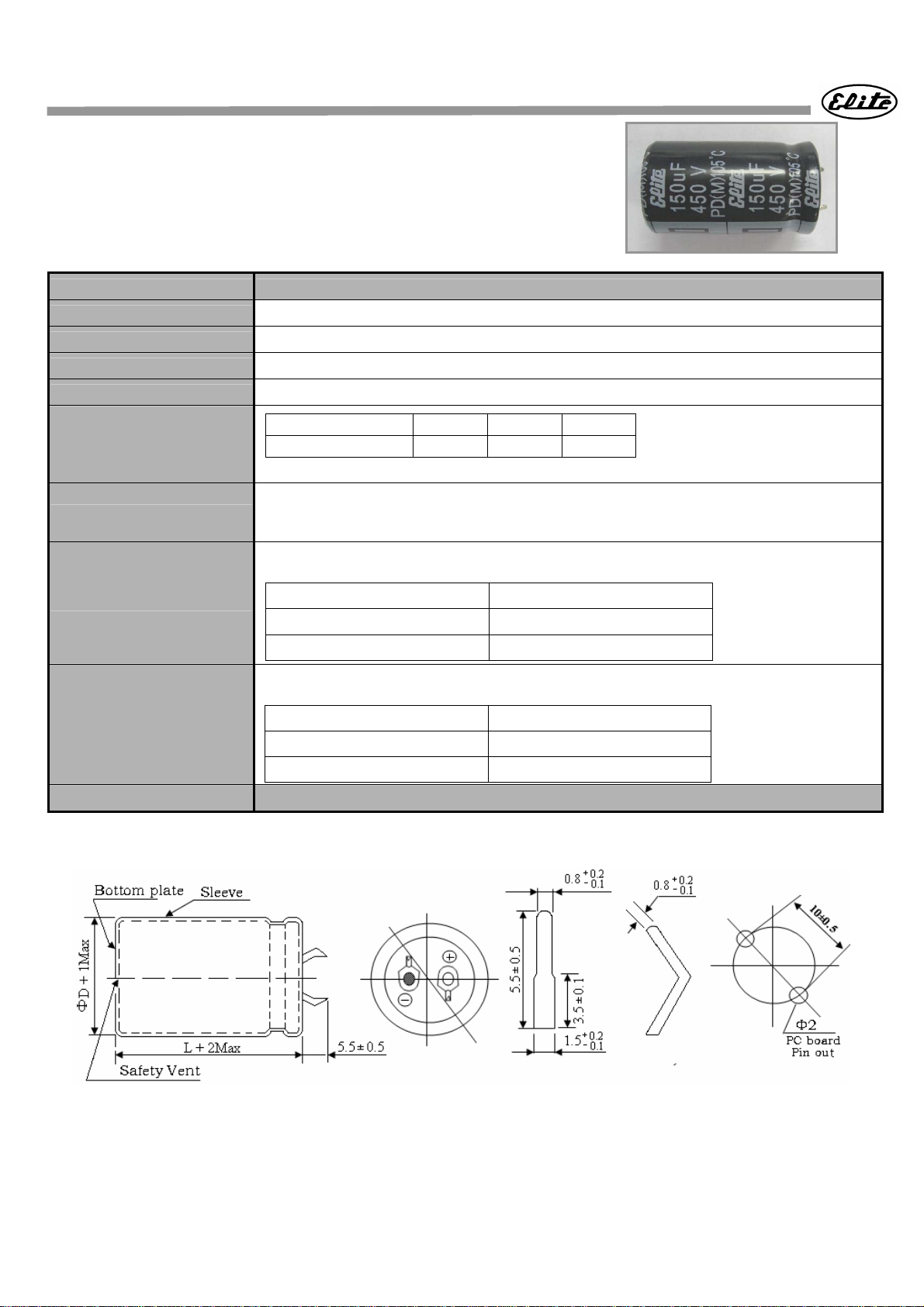

DIMENSIONS (mm)
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
≦ ±20% of the initial value
≦ ±20% of the initial value
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
PD Series
Case size & Permissible rated ripple current (mA rms) at 105℃/120Hz:
Vdc
ФD Ф 25 Ф 30 Ф35 ФD Ф 25 Ф30 Ф35
uF ФD×L RC ФD×L RC ФD×L RC uF ФD×L RC ФD×L RC ФD×L RC
100 25×25 700 30×20 620 100 25×25 700 30×20 590
120 25×25 780 30×25 730 35×20 710 120 25×30 750 30×25 730 35×20 690
150 25×30 880 30×25 880 35×20 800 150 25×30 860 30×25 830 35×20 750
180 30×30 980 35×25 940 180 30×30 910 35×25 900
220 30×30 1100 35×25 1050 220 30×30 1050 35×25 1000
270 35×30 1220 270 35×30 1150
330 35×35 1440 330 35×35 1400
400
Vdc
Vdc
ФD
uF
82 25×25 620 30×20 580
100 25×30 680 30×25 600
120 25×30 780 30×25 750 35×20 730
150 25×35 840 30×30 820 35×25 750
180 35×30 860
220 35×30 1010
270 35×35 1200
ФD×L
Ф 25 Ф 30 Ф35
RC ФD×L RC ФD×L RC
450
420
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc
50/60 120 1K 10K 100K
Frequency (Hz)
400 ~ 450 0.80 1.00 1.10 1.12 1.15
