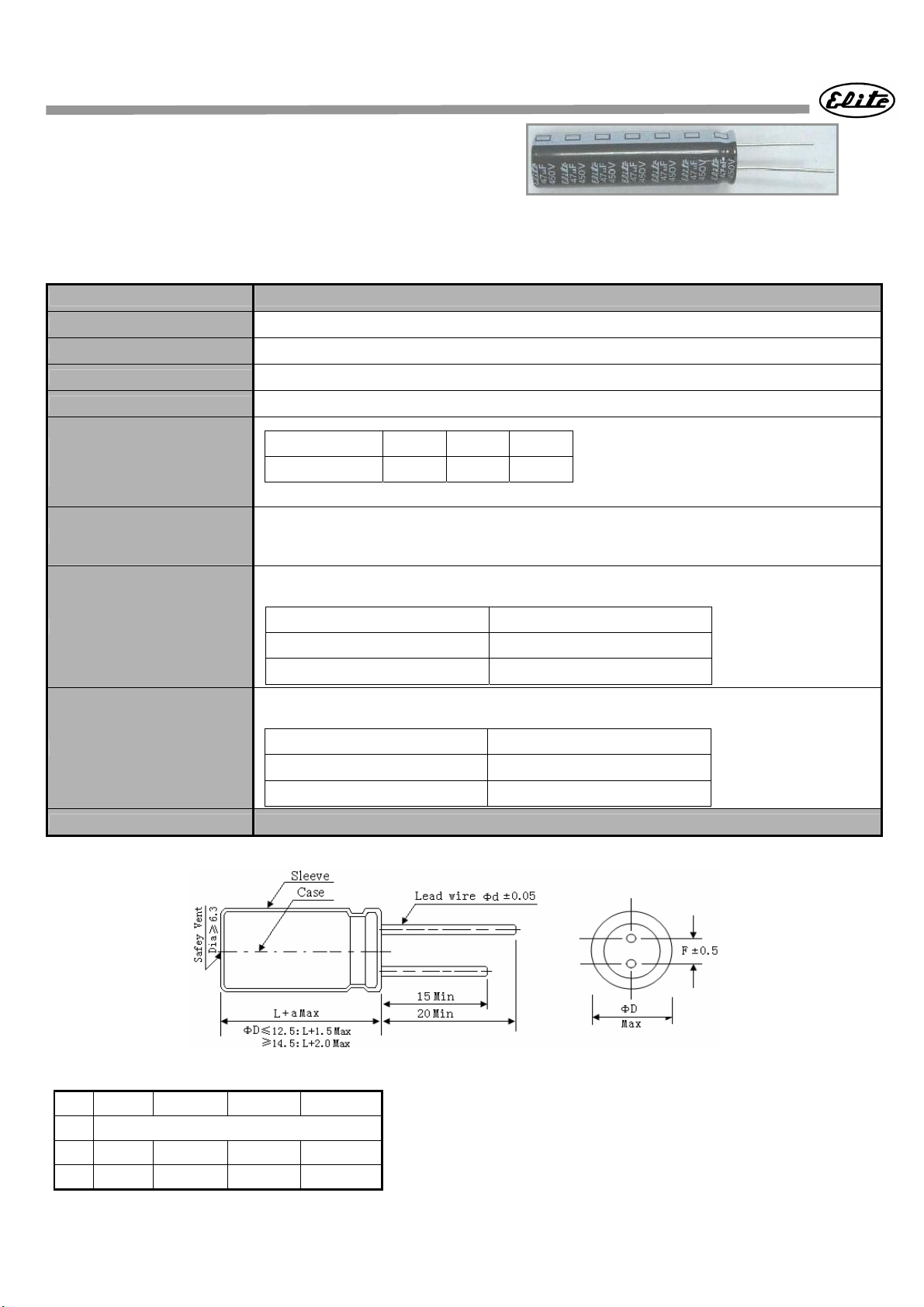

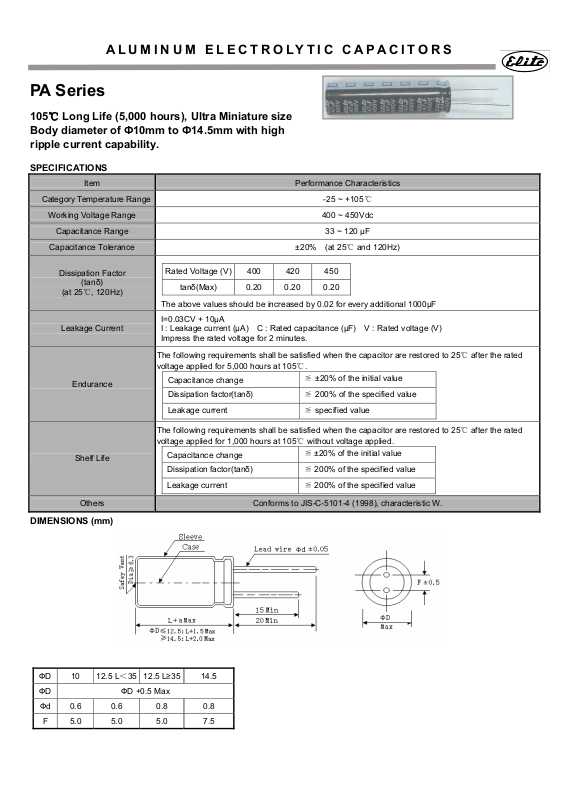

ALUMINUM ELECTROLYTIC CAPACITORS
PA Series
105℃ Long Life (5,000 hours), Ultra Miniature size
Body diameter of Ф10mm to Ф14.5mm with high
ripple current capability.
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range
Working Voltage Range 400 ~ 450Vdc
Capacitance Range 33 ~ 120 μF
Capacitance Tolerance
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.
Rated Voltage (V) 400 420 450
tanδ(Max) 0.20 0.20 0.20
The above values should be increased by 0.02 for every additional 1000μF
I=0.03CV + 10μA
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 2 minutes.
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 5,000 hours at 105℃.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 1,000 hours at 105℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
-25 ~ +105℃
±20% (at 25℃ and 120Hz)
≦ ±20% of the initial value
≦ ±20% of the initial value
DIMENSIONS (mm)
ФD 10
ФD ФD +0.5 Max
Фd 0.6 0.6 0.8 0.8
F 5.0 5.0 5.0 7.5
12.5 L＜35
12.5 L≥35 14.5
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
PA Series
Case size & Permissible rated ripple current: (mA rms) at 105℃ / 120Hz
Vdc
uF
33 10×40 340
39 10×40 370 10×45 360 10×45 380
47 10×45 420 10×50 430 12.5×40 440
56 10×50 470 12.5×40 480 12.5×40 490
68 12.5 ×40 540 14.5×35 520
82
ФD × L RC ФD × L RC ФD × L RC
12.5×50 610 12.5×50 590
14.5×40 570 14.5×40 590
400 420 450
12.5×50 550
14.5×35 520
14.5×45 630
100 14.5×45 690 14.5×50 670 14.5×50 710
120 14.5×50 790
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc
60(50) 120 500 1k 10k≤
400 ~ 450 0.80 1.00 1.25 1.40 1.50
Frequency (Hz)
