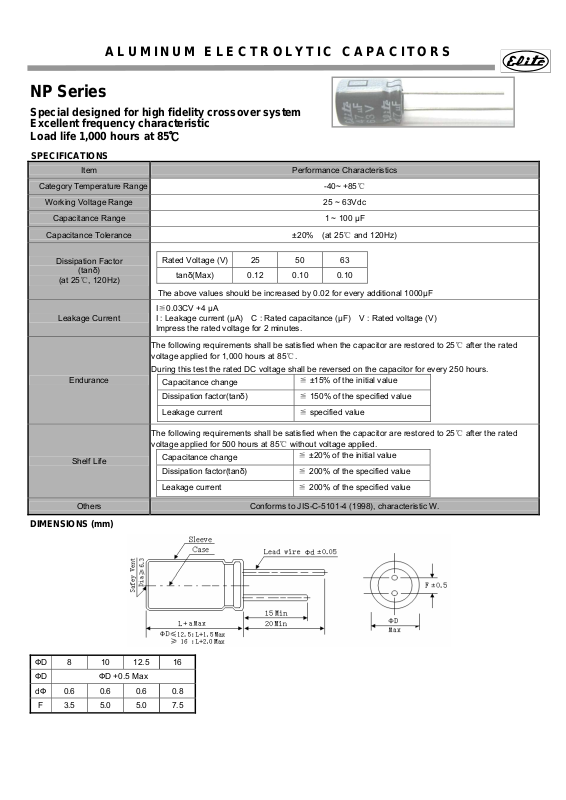

ALUMINUM ELECTROLYTIC CAPACITORS
NP Series
Special designed for high fidelity crossover system
Excellent frequency characteristic
Load life 1,000 hours at 85
SPECIFICATIONS
Category Temperature Range
Working Voltage Range 25 ~ 63Vdc
Capacitance Range 1 ~ 100 μF
Capacitance Tolerance
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Item Performance Characteristics
℃
Rated Voltage (V) 25 50 63
tanδ(Max) 0.12 0.10 0.10
The above values should be increased by 0.02 for every additional 1000μF
I≦0.03CV +4 μA
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 2 minutes.
-40~ +85℃
±20% (at 25℃ and 120Hz)
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.
DIMENSIONS (mm)
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 1,000 hours at 85℃.
During this test the rated DC voltage shall be reversed on the capacitor for every 250 hours.
Capacitance change
Dissipation factor(tanδ) ≦ 150% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 500 hours at 85℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
≦ ±15% of the initial value
≦ ±20% of the initial value
ФD 8 10 12.5 16
ФD ФD +0.5 Max
dФ 0.6 0.6 0.6 0.8
F 3.5 5.0 5.0 7.5
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
NP Series
Case size & Permissible rated ripple current: (mA rms) at 85℃ / 1KHz
Vdc
uF
1 8×12 70 10×12 75
1.5 8×12 80 10×12 90
2.2 10×12 98 10×12 110
3.3 10×12 120 10×12 135
4.7 10×12 160 10×16 180
6.8 10×12 170 10×16 215 10×20 240
10 10×16 234 10×16 260 12.5×20 335
15 10×16 285 10×20 350 12.5×20 410
ФD × L RC ФD × L RC ФD × L RC
25 50 63
22 10×20 380 10×20 425 12.5×25 545
33 10×20 465 12.5×20 605 16×25 750
47 10×20 555 12.5×20 725 16×25 900
68 12.5×20 780 12.5×25 960 16×32 1205
100 12.5×25 1040
16×25 1310
16×36 1540
