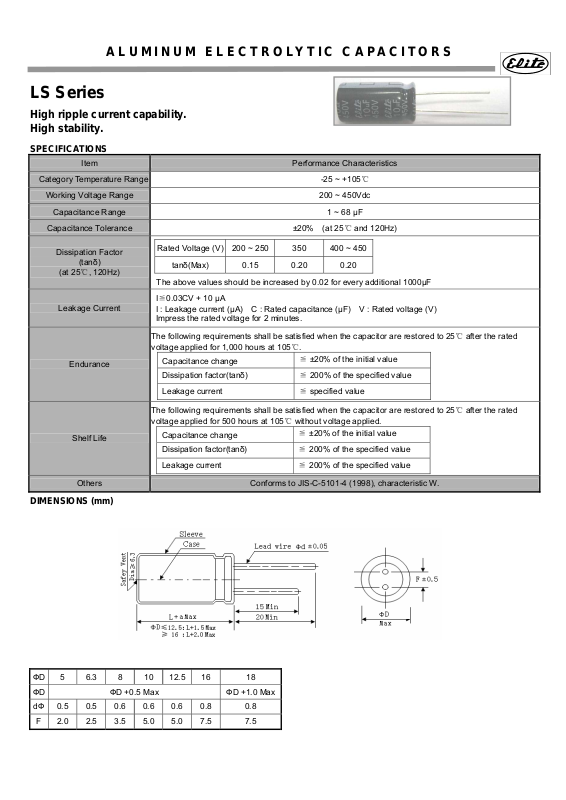

ALUMINUM ELECTROLYTIC CAPACITORS
LS Series
High ripple current capability.
High stability.
SPECIFICATIONS
Category Temperature Range -25 ~ +105℃
Working Voltage Range 200 ~ 450Vdc
Capacitance Range 1 ~ 68 μF
Capacitance Tolerance
Dissipation Factor
(at 25℃, 120Hz)
Leakage Current
Item Performance Characteristics
±20% (at 25℃ and 120Hz)
Rated Voltage (V) 200 ~ 250 350 400 ~ 450
(tanδ)
tanδ(Max) 0.15 0.20 0.20
The above values should be increased by 0.02 for every additional 1000μF
I≦0.03CV + 10 μA
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 2 minutes.
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.

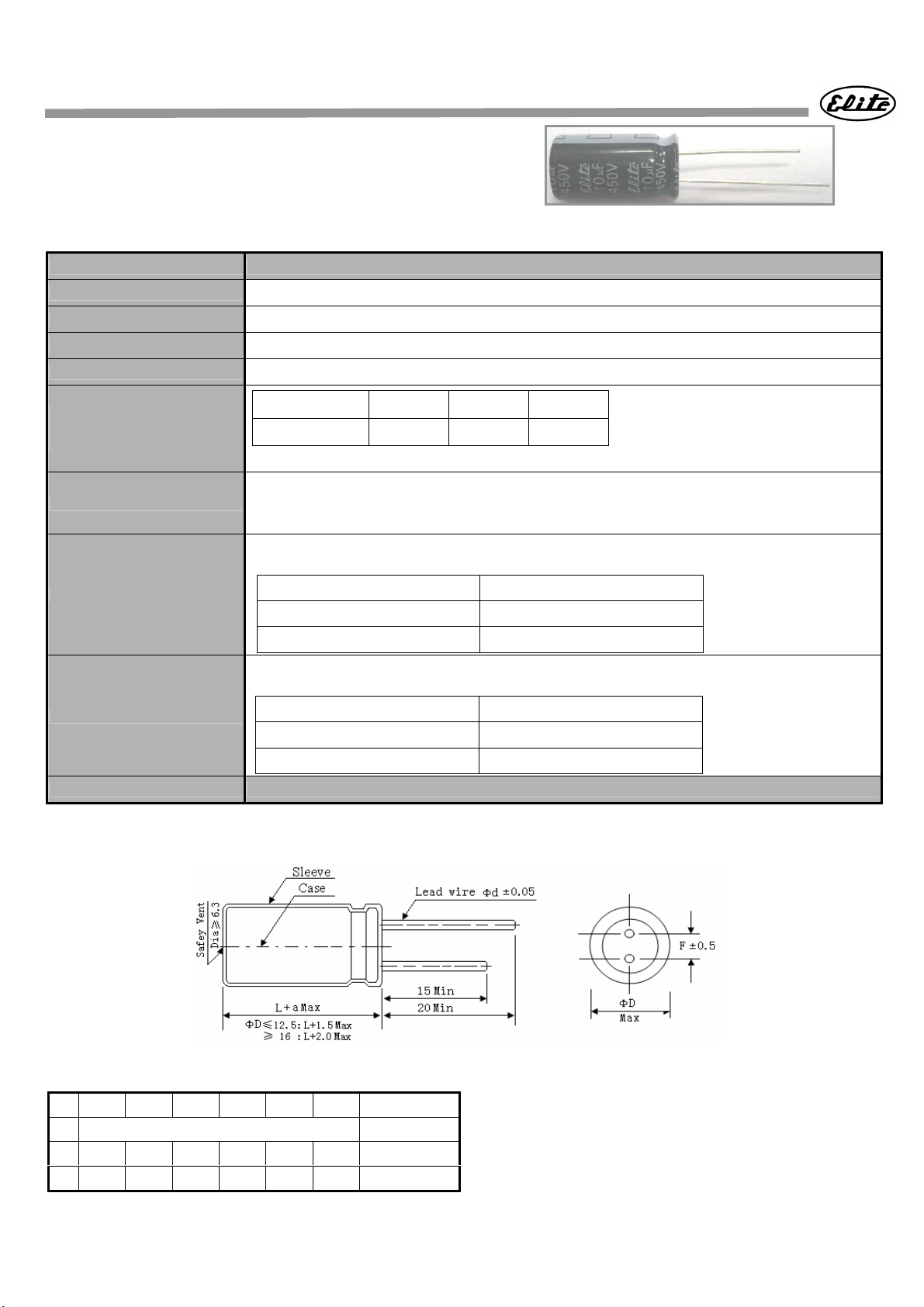

DIMENSIONS (mm)
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 1,000 hours at 105℃.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 500 hours at 105℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
≦ ±20% of the initial value
≦ ±20% of the initial value
ФD 5 6.3 8 10 12.5 16 18
ФD ФD +0.5 Max ФD +1.0 Max
dФ 0.5 0.5 0.6 0.6 0.6 0.8 0.8
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
LS Series
Case size & Permissible rated ripple current (mA rms) at 105℃/ 120Hz
Vdc
uF
1 5 x 11 15 5 x 11 16 6.3 x 11 16 6.3 x 11 16 6.3 x 11 14
2.2 5 x 11 22 6.3 x 11 24 6.3 x 11 23 8 x 12 26 8 x 12 24
2.7 6.3 x 11 25 6.3 x11 30 8 x 12 28 8 x 12 30 10×12 28
3.3 6.3 x 11 27 6.3 x 11 33 10×12 31 8×12 32 10×12 30
4.7 6.3 x 11 36 8 x 12 40 10×12 37 10×12 42 10×16 40
5.6 8×12 40 8 x 12 45 10×16 48 10×16 50 10×20 48
6.8 8×12 42 8 x 12 50 10×16 55 10×16 58 10×20 52
8.2 8×12 48 8×12 55 10×16 58 10×20 65 12.5×20 60
ФD × L RC ФD × L RC ФD × L RC ФD × L RC ФD × L RC
200 250 350 400 450
10 8×12 50 10×12 60 10×20 60 12.5×20 76 12.5×20 70
15 10×12 70 10×16 85 12.5×20 90 12.5×20 100 12.5×25 85
22 10×16 110 10×20 132 12.5×20 120 12.5×25 125 16×25 105
33 12.5×20 140 12.5×20 150 16×20 140 16×25 166 16×32 145
47 12.5×20 170 12.5×25 190 16×25 190 16×32 200 16×36 180
68 12.5×25 210 16×25 235
16×32 225
16×36 240 18×32 210
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc Cap.(uF)
50/60 120 1K 10K 100K
200 ~ 450 1 ~ 68 0.80 1.00 1.40 1.60 1.60
Frequency (Hz)
