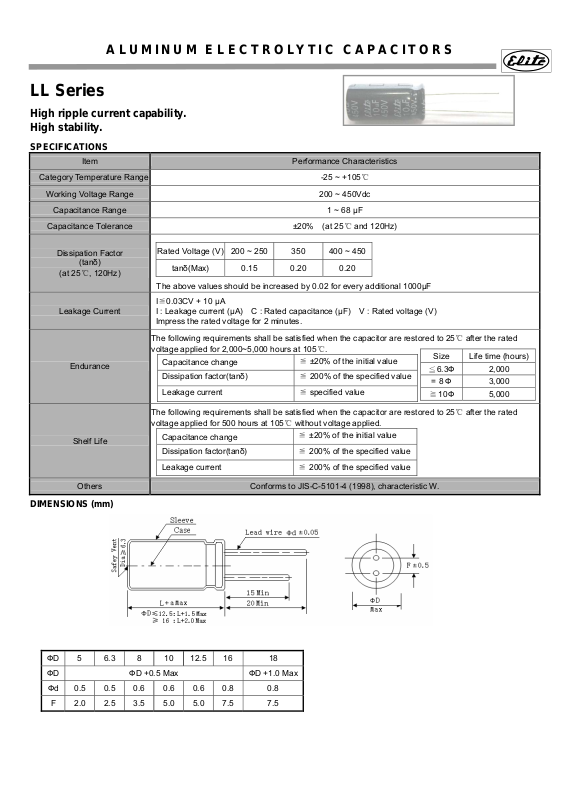

ALUMINUM ELECTROLYTIC CAPACITORS
LL Series
High ripple current capability.
High stability.
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range
Working Voltage Range 200 ~ 450Vdc
Capacitance Range 1 ~ 68 μF
Capacitance Tolerance
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Rated Voltage (V) 200 ~ 250 350 400 ~ 450
tanδ(Max) 0.15 0.20 0.20
The above values should be increased by 0.02 for every additional 1000μF
I≦0.03CV + 10 μA
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 2 minutes.
-25 ~ +105℃
±20% (at 25℃ and 120Hz)
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.

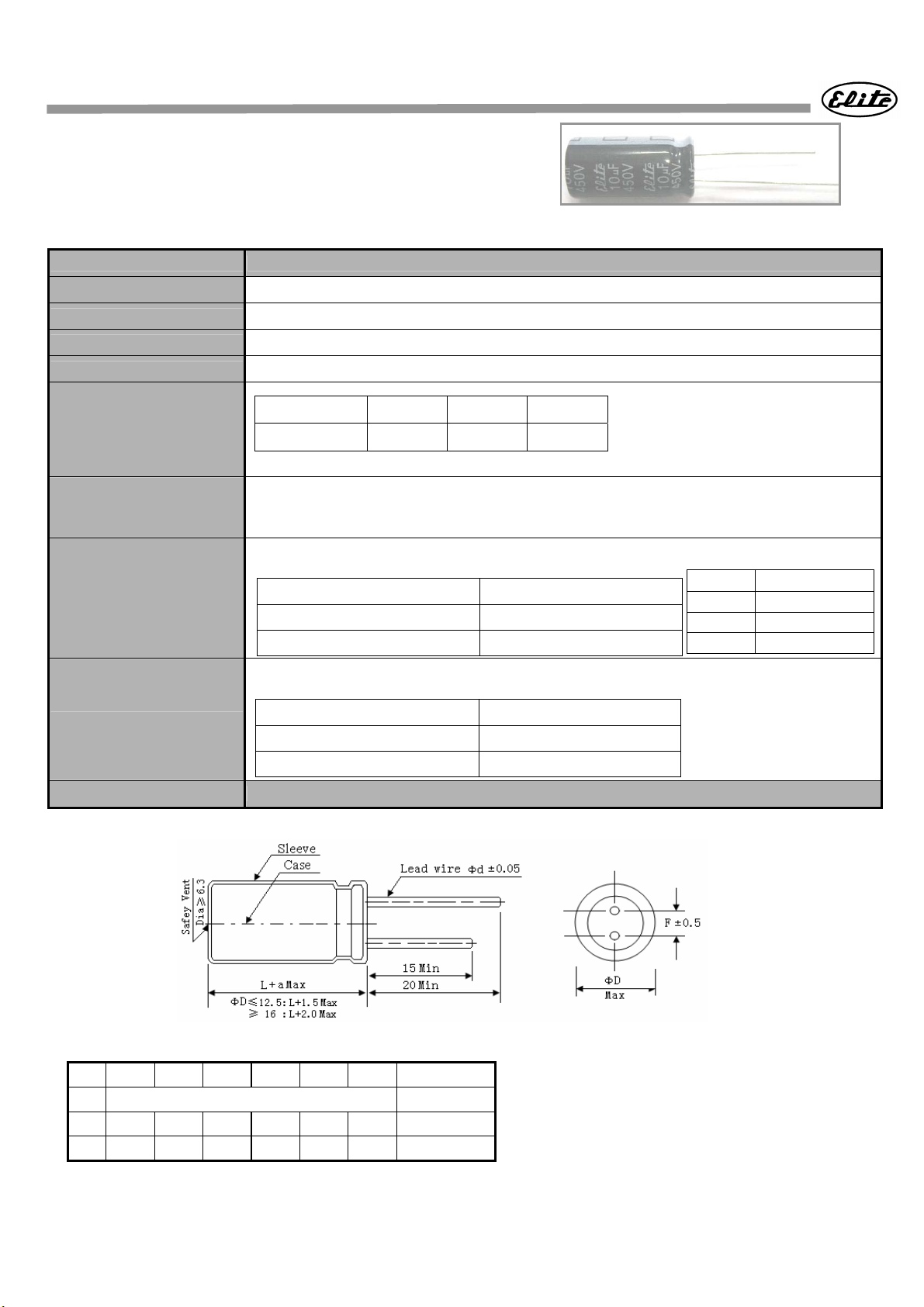

DIMENSIONS (mm)
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 2,000~5,000 hours at 105℃.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 500 hours at 105℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
≦ ±20% of the initial value
≦ ±20% of the initial value
Size Life time (hours)
≦6.3Ф 2,000
= 8 Ф 3,000
≧ 10Ф 5,000
ФD 5 6.3 8 10 12.5 16 18
ФD ФD +0.5 Max ФD +1.0 Max
Фd 0.5 0.5 0.6 0.6 0.6 0.8 0.8
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
LL Series
Case size & Permissible rated ripple current (mA rms) at 105℃/ 120Hz
Vdc
uF
1 5 x 11 16 5 x 11 15 6.3 x 11 15 6.3 x 11 17 6.3 x 11 14
2.2 6.3 x 11 25 6.3 x 11 23 6.3 x 11 26 8×12 30 10 x 12 24
2.7 6.3 x 11 28 6.3 x 11 28 8 x 12 32 10×12 35 10×12 30
3.3 8 x 12 30 8 x 12 32 10×12 38 10×12 38 10×16 32
4.7 8 x 12 39 8 x 12 39 10×16 45 10×16 50 10×20 41
5.6 8×12 42 10×12 45 10×16 50 10×20 55 10×20 46
6.8 10×12 55 10×12 60 10×16 55 10×20 60 12.5×20 55
8.2 10×12 60 10×12 65 10×20 65 12.5×20 75 12.5×20 60
ФD × L RC ФD × L RC ФD × L RC ФD × L RC ФD × L RC
200 250 350 400 450
10 10×16 65 10×16 74 10×20 80 12.5×20 90 12.5×25 75
15 10×20 80 10×20 95 12.5×20 100 12.5×25 130 12.5×25 95
22 12.5×20 120 12.5×20 130 12.5×20 115 16×25 165 16×25 125
33 12.5×20 160 12.5×25 160 16×20 195 16×32 215 16×32 175
47 12.5×25 195 12.5×25 210 16×25 270 16×36 270 16×36 205
68 16×25 210 16×25 250 16×32 280 18×36 310 18×36 230
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc Cap.(uF)
50/60 120 1K 10K 100K
200 ~ 450 1 ~ 68 0.80 1.00 1.40 1.60 1.60
Frequency (Hz)
