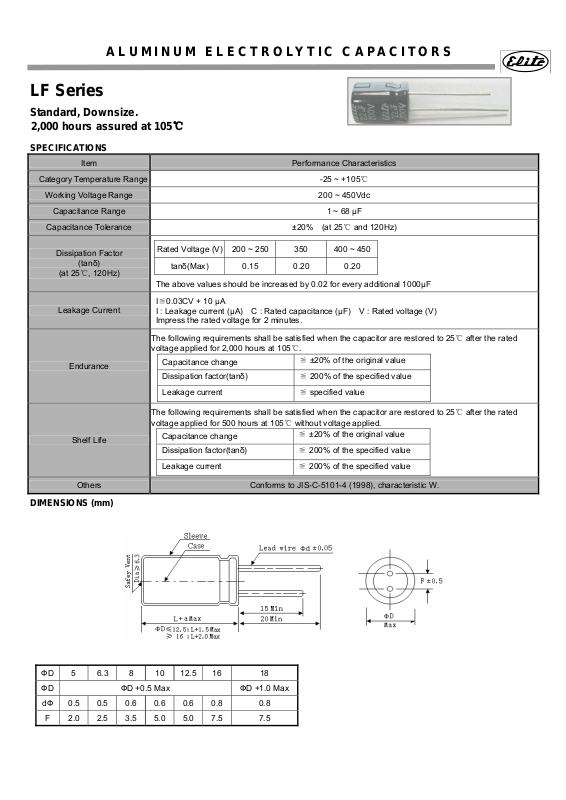

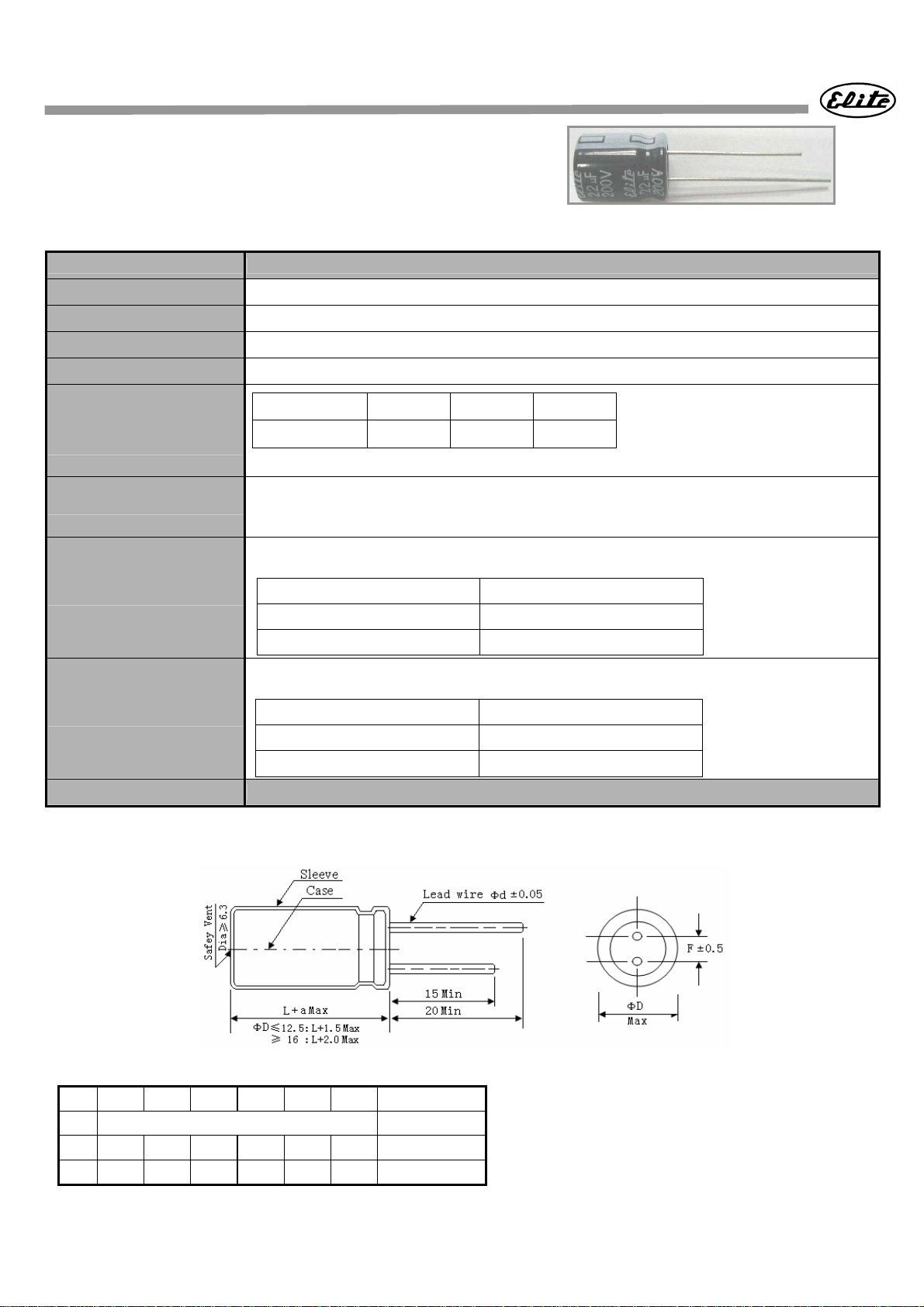

Page 1
ALUMINUM ELECTROLYTIC CAPACITORS
LF Series
Standard, Downsize.
2,000 hours assured at 105℃
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range
Working Voltage Range 200 ~ 450Vdc
Capacitance Range 1 ~ 68 μF
Capacitance Tolerance
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.
Rated Voltage (V) 200 ~ 250 350 400 ~ 450
tanδ(Max) 0.15 0.20 0.20
The above values should be increased by 0.02 for every additional 1000μF
I≦0.03CV + 10 μA
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 2 minutes.
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 2,000 hours at 105℃.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 500 hours at 105℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
-25 ~ +105℃
±20% (at 25℃ and 120Hz)
≦ ±20% of the original value
≦ ±20% of the original value
DIMENSIONS (mm)
ФD 5 6.3 8 10 12.5 16 18
ФD ФD +0.5 Max ФD +1.0 Max
dФ 0.5 0.5 0.6 0.6 0.6 0.8 0.8
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
LF Series
Case size & Permissible rated ripple current (mA rms) at 105℃/ 120Hz
Vdc
uF
1 5 x 11 18 5 x 11 16 6.3 x 11 16 6.3 x 11 18 6.3 x 11 15
2.2 6.3 x 11 27 6.3 x 11 26 6.3 x 11 28 8×12 33 10 x 12 28
2.7 6.3 x 11 30 6.3 x 11 30 8 x 12 35 8×12 38 10×12 35
3.3 6.3 x 11 33 8 x 12 35 10×12 41 10×12 41 10×16 38
4.7 8 x 12 43 8 x 12 41 10×16 49 10×16 55 10×20 41
5.6 8×12 46 8 x 12 49 10×16 55 10×16 60 10×20 48
6.8 8×12 61 8×12 66 10×16 60 10×20 62 12.5×20 51
8.2 8×12 66 10×12 71 10×16 71 12.5×20 82 12.5×20 62
ФD × L RC ФD × L RC ФD × L RC ФD × L RC ФD × L RC
200 250 350 400 450
10 10×12 82 10×16 81 10×20 88 12.5×20 100 12.5×25 78
15 10×16 88 10×20 104 12.5×20 110 12.5×20 145 12.5×25 104
22 10×20 132 12.5×20 143 12.5×20 126 12.5×25 180 16×25 130
33 12.5×20 175 12.5×20 171 16×20 215 16×25 235 16×32 185
47 12.5×25 215 12.5×25 230 16×25 290 16×32 290 16×36 215
68 16×25 230 16×25 275
16×32 300
18×36 340 18×36 245
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc Cap.(uF)
50/60 120 1K 10K 100K
200 ~ 450 1 ~ 68 0.80 1.00 1.40 1.60 1.60
Frequency (Hz)
