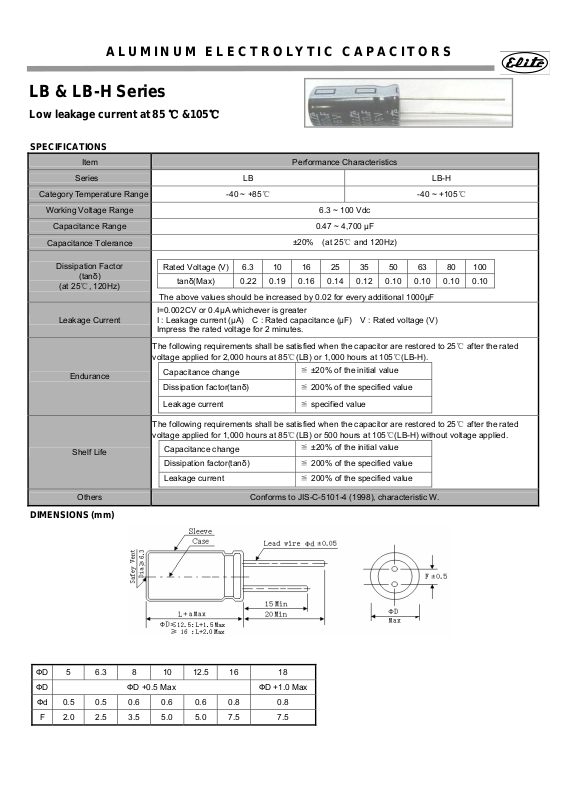

Page 1
ALUMINUM ELECTROLYTIC CAPACITORS
LB & LB-H Series
Low leakage current at 85 ℃ &105℃
SPECIFICATIONS
Item Performance Characteristics
Series LB LB-H
Category Temperature Range
Working Voltage Range 6.3 ~ 100 Vdc
Capacitance Range 0.47 ~ 4,700 μF
Capacitance Tolerance
-40 ~ +85℃ -40 ~ +105℃
±20% (at 25℃ and 120Hz)
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.
DIMENSIONS (mm)
Rated Voltage (V) 6.3 10 16 25 35 50 63 80 100
tanδ(Max) 0.22 0.19 0.16 0.14 0.12 0.10 0.10 0.10 0.10
The above values should be increased by 0.02 for every additional 1000μF
I=0.002CV or 0.4μA whichever is greater
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 2 minutes.
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 2,000 hours at 85℃(LB) or 1,000 hours at 105℃(LB-H).
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 1,000 hours at 85℃(LB) or 500 hours at 105℃(LB-H) without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
≦ ±20% of the initial value
≦ ±20% of the initial value
ФD 5 6.3 8 10 12.5 16 18
ФD ФD +0.5 Max ФD +1.0 Max
Фd 0.5 0.5 0.6 0.6 0.6 0.8 0.8
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
LB Series
Case size & Permissible rated ripple current (mA rms) at 85℃ / 120Hz:
Vdc
uF
15
22 5×11
33 5×11
47 5×11
68 5×11
100 5×11
150 6.3×11
220 6.3×11
330 8×12
470 10×12
680 10×16
1000 10×20
1500 12.5×20
2200 12.5×20
3300 16×25
4700 16×32
Vdc
uF
0.47
1.0
2.2 5×11
3.3 5×11
4.7 5×11
6.8 5×11
10 5×11
15 5×11
22 5×11
33 6.3×11
47 6.3×11
68 8×12
100 8×12
150 10×12
220 10×16
330 10×20
470 12.5×20
680 16×25
1000 16×25
1500 16×32
2200 18×40
3300 18×40
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc
0.47 ~ 68 0.75 1.00 1.57 1.75 2.00
100 ~ 680 0.80 1.00 1.34 1.40 1.50
1000 ~ 4700 0.85 1.00 1.13 1.13 1.13
6.3 10 16 25 35
ФD×L RC ФD×L RC ФD×L RC ФD×L RC ФD×L RC
66
72
86
114
146
180
270
318
384
554
720
948
1240
1530
50 63 80 100
6.3×11
6.3×11
8×12
8×12
10×12
10×16
10×20
10×20
12.5×20
12.5×25
16×25
16×32
104
120
160
204
294
396
504
684
904
1152
1434
1700
6.3×11
6.3×11
8×12
8×12
10×12
10×16
10×16
12.5×20
12.5×20
12.5×25
16×25
16×32
18×36
90
122
156
210
270
360
468
636
810
1032
1260
1902
2268
6.3×11
6.3×11
8×12
8×12
10×12
10×16
10×20
12.5×20
12.5×20
12.5×25
16×32
16×32
18×40
18×40
ФD×L RC ФD×L RC ФD×L RC ФD×L RC
15
22
26
32
36
48
60
78
112
134
192
248
348
444
546
782
1032
1224
1584
1896
Frequency (Hz)
50/60 120 1K 10K 100K
5×11
5×11
5×11
5×11
5×11
6.3×11
8×12
8×12
8×12
10×12
10×16
10×20
12.5×20
12.5×20
12.5×25
16×25
16×32
18×36
15
24
29
36
44
60
78
102
126
174
240
302
396
497
660
870
1200
1464
5×11
5×11
5×11
5×11
6.3×11
8×12
8×12
10×12
10×12
10×16
10×20
12.5×20
12.5×20
12.5×25
16×32
16×36
18×36
15
25
30
38
50
66
90
114
160
186
264
336
437
540
780
966
1296
5×11
5×11
5×11
5×11
6.3×11
6.3×11
8×12
10×12
10×12
10×16
10×20
12.5×20
12.5×20
12.5×25
16×25
16×32
18×36
60
82
96
132
162
238
312
414
552
780
900
1218
1482
1956
2568
12
18
26
32
43
54
73
98
127
170
220
288
360
497
640
842
1068
5×11
6.3×11
6.3×11
8×12
8×12
10×12
10×16
10×20
12.5×20
12.5×25
12.5×25
16×25
16×36
18×36
18×40
48
72
88
120
162
204
285
366
498
642
864
1044
1338
1632
2160
