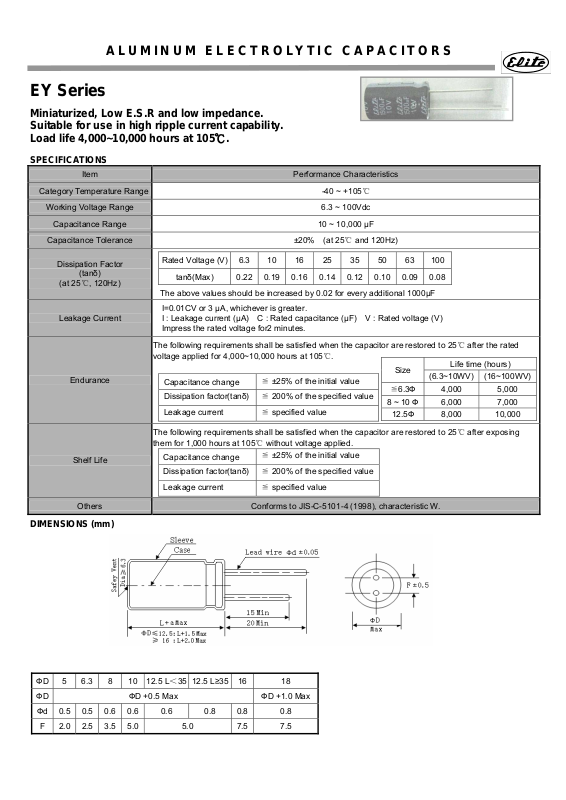

ALUMINUM ELECTROLYTIC CAPACITORS
EY Series
Miniaturized, Low E.S.R and low impedance.
Suitable for use in high ripple current capability.
Load life 4,000~10,000 hours at 105℃.
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range -40 ~ +105℃
Working Voltage Range 6.3 ~ 100Vdc
Capacitance Range 10 ~ 10,000 μF
Capacitance Tolerance ±20% (at 25℃ and 120Hz)
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Rated Voltage (V) 6.3 10 16 25 35 50 63 100
tanδ(Max) 0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08
The above values should be increased by 0.02 for every additional 1000μF
I=0.01CV or 3 μA, whichever is greater.
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for2 minutes.
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.
DIMENSIONS (mm)
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 4,000~10,000 hours at 105℃.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after exposing
them for 1,000 hours at 105℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
≦ ±25% of the initial value
≦ ±25% of the initial value
Size
≦6.3Ф 4,000 5,000
8 ~ 10 Ф 6,000 7,000
12.5Ф 8,000 10,000
Life time (hours)
(6.3~10WV) (16~100WV)
ФD 5 6.3 8 10
ФD ФD +0.5 Max ФD +1.0 Max
Фd 0.5 0.5 0.6 0.6 0.6 0.8 0.8 0.8
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
12.5 L＜35
12.5 L≥35 16 18
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
EY Series
Case size & Permissible rated ripple current:
6.3V 10V
Nominal
capacitance
(uF)
100 5×11 0.580 2.300 215
150 5×11 0.570 2.300 210 5×11 0.580 2.300 230
220 6.3×11 0.250 0.900 320 6.3×11 0.220 0.870 340
330 6.3×11 0.210 0.870 340 6.3×11 0.220 0.870 380
470 8×12 0.150 0.580 345 8×12 0.130 0.520 640
680 8×12
820 10×13 0.080 0.320 865 10×16 0.070 0.280 1015
1000 8×16 0.085 0.350 870
1200
1500 10×20 0.045 0.180 1410
1800 12.5×16 0.048 0.160 1460 12.5×20 0.039 0.150 1710
2200 10×25
2700
3300 12.5×20 0.034 0.120 1900 12.5×25 0.026 0.089 2230
3900
4700 12.5×30 0.023 0.078 2650 12.5×35 0.020 0.065 2890
5600
6800
8200 16×32 0.016 0.050 3450
10000
12000
15000 18×35 0.013 0.038 4230
18000 18×40 0.012 0.032 4290
Case
size
DФ×L
(mm)
8×20 0.071 0.260 1050
10×16 0.062 0.240 1215
10×30 0.030 0.120 1900
16×15 0.041 0.120 1945
12.5×25 0.026 0.088 2240 12.5×30 0.023 0.078 2660
18×15 0.042 0.11 2210 16×22 0.026 0.078 2540
12.5×35 0.020 0.065 2890 12.5×40 0.016 0.055 3360
16×22 0.026 0.077 2540
12.5×40 0.016 0.055 3350 16×32 0.016 0.050 3460
16×25 0.020 0.060 2940
18×20 0.025 0.066 2870
16×35 0.014 0.044 3620 16×40 0.013 0.038 4090
18×25 0.018 0.049 3150 18×35 0.012 0.038 4150
16×40 0.012 0.038 4090
18×32 0.014 0.040 4180
Max impd
@25℃
100kHz
(Ω)
0.130 8×16 0.086 0.350 845
0.080
0.042 10×30 0.030 0.120 1920
0.030
Max impd.
@-10℃
100kHz
(Ω)
0.520 645
0.170 1650
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
Case
size
DФ×L
(mm)
10×13 0.080 0.310 865
8×20 0.068 0.270 1050
10×16 0.060 0.240 1215
10×20 0.045 0.180 1410
10×25 0.041 0.170 1610
12.5×16 0.049 0.160 1450
12.5×20 0.035 0.120 1910
16×15 0.042 0.120 1900
18×15 0.042 0.110 2220
16×25 0.020 0.060 2940
18×20 0.025 0.066 2870
18×25 0.018 0.049 3150
16×35 0.015 0.044 3610
18×32 0.015 0.040 4180
18×40 0.011 0.032 4290
Max impd.
@25℃
100kHz
(Ω)
Max impd.
@-10℃
100kHz
(Ω)
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
Page 3
ALUMINUM ELECTROLYTIC CAPACITORS
EY Series
Case size & Permissible rated ripple current:
16V 25V
Nominal
capacitance
(uF)
10 5×11 1.100 3.02 96 5×11 1.100 3.02 100
22 5×11 0.750 2.80 120 5×11 0.700 2.80 140
47 5×11 0.600 2.60 100 5×11 0.570 2.30 120
56 5×11 0.570 2.30 220 5×11 0.570 2.30 240
100
120 6.3×11 0.210 0.87 340
220
330 8×12 0.120 0.52 650
470
680
820 10×20 0.052 0.22 1310 10×25 0.041 0.17 1660
1000
1200 10×25 0.043 0.17 1650 18×15 0.043 0.11 2220
1500
1800 12.5×25 0.028 0.095 2140
2200
2700
3300 12.5×35 0.020 0.066 2890
3900
4700
5600
6800 16×40 0.012 0.038 4080
8200 18×35 0.014 0.038 4230
18000 18×40 0.011 0.032 4290
Case
size
DФ×L
(mm)
5×11 0.350 0.76 260
6.3×11 0.210 0.82 310
6.3×11 0.150 0.65 450
8×12 0.190 0.85 760
8×16 0.086 0.35 840 8×20 0.070 0.27 1050
10×13 0.080 0.32 865 10×16 0.060 0.24 1210
8×20 0.069 0.27 1060 10×20 0.045 0.18 1410
10×16 0.060 0.24 1210 12.5×16 0.049 0.16 1460
10×20 0.045 0.18 1410 10×30 0.030 0.12 1920
12.5×16 0.050 0.16 1450
10×30 0.030 0.12 1920
12.5×20 0.035 0.12 1910
16×15 0.042 0.12 1940
12.5×25 0.026 0.089 2240 12.5×35 0.020 0.065 2890
18×15 0.042 0.11 2220 18×20 0.025 0.066 2870
12.5×30 0.023 0.077 2650 12.5×40 0.016 0.056 3360
16×22 0.026 0.078 2540 16×25 0.021 0.060 2940
12.5×40 0.016 0.056 3350 16×35 0.014 0.043 3620
16×25 0.021 0.060 2930
16×22 0.025 0.067 2860
16×32 0.016 0.050 3450 16×40 0.012 0.038 4090
18×25 0.018 0.049 3150 18×35 0.013 0.038 4230
16×35 0.015 0.044 3620
18×32 0.015 0.040 4180
Max impd.
@25℃
100kHz
(Ω)
Max impd.
@-10℃
100kHz
(Ω)
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
Case
size
DФ×L
(mm)
6.3×11 0.210 0.87 340
8×12 0.120 0.52 650
8×16 0.087 0.35 850
10×13 0.081 0.32 870
12.5×20 0.034 0.12 1910
16×15 0.042 0.12 1940
12.5×25 0.026 0.089 2240
12.5×30 0.024 0.078 2660
16×22 0.026 0.078 2540
16×30 0.016 0.050 3460
18×25 0.018 0.048 3150
18×32 0.015 0.040 4180
18×40 0.011 0.032 4290
Max impd.
@25℃
100kHz
(Ω)
Max imapd
@-10℃
100kHz
(Ω)
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
Page 4
ALUMINUM ELECTROLYTIC CAPACITORS
EY Series
Case size & Permissible rated ripple current:
35V 50V
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
Case
size
DФ×L
(mm)
Case
size
DФ×L
(mm)
Nominal
capacitance
(uF)
10 5×11 1.300 2.800 135
22 5×11 0.700 2.500 180
33 5×11 0.560 2.300 220 6.3×11 0.600 1.900 205
47 6.3×11 0.350 1.400 280 6.3×11 0.380 1.500 220
56 6.3×11 0.210 0.860 340 8×12 0.300 1.200 300
100 8×12 0.150 0.560 510 8×12 0.160 0.670 560
150 8×12 0.130 0.520 650 8×16 0.120 0.480 740
220 8×16 0.086 0.350 850 10×16 0.083 0.340 1050
330 10×16 0.060 0.240 1210 10×25 0.053 0.220 1450
470 10×20 0.045 0.180 1410 12.5×20 0.044 0.150 1670
560 10×25 0.041 0.160 1650 12.5×25 0.033 0.110 1950
680 10×30 0.030 0.120 1920 12.5×30 0.030 0.100 2320
820 12.5×25 0.029 0.095 2050 12.5×35 0.023 0.081 2520
1000 12.5×25 0.028 0.088 2230 16×25 0.025 0.075 2555
1200 12.5×30 0.023 0.078 2660 16×32 0.021 0.066 3020
1500 125×35 0.020 0.065 2880 16×36 0.018 0.056 3150
2200 16×32 0.016 0.056 3350 18×36 0.017 0.046 3690
2700 16×36 0.015 0.044 3620 18×40 0.014 0.038 3810
3300 16×40 0.013 0.038 4090
3900 18×40 0.012 0.033 4290
Nominal
capacitance
(uF)
6.8 5×11 2.200 9.200 56
15 5×11 2.200 9.200 56 6.3×11 1.200 5.000 120
33 6.3×11 1.200 5.000 120 8×16 0.580 3.200 160
47 8×12 0.680 3.100 190 10×12 0.430 1.800 290
68 8×12 0.600 2.900 245 10×16 0.300 1.500 350
100 10×16 0.350 1.800 320 10×25 0.200 0.840 535
120 10×16 0.300 1.500 355 10×30 0.150 0.710 665
180 10×20 0.200 0.940 470 12.5×25 0.120 0.450 790
220 10×25 0.200 0.840 535 12.5×30 0.100 0.420 905
330 12.5×25 0.120 0.450 790 12.5×40 0.070 0.300 1190
470 12.5×30 0.100 0.420 910 16×36 0.045 0.170 1790
560 12.5×35 0.082 0.350 1050 16×40 0.040 0.150 2030
680 12.5×40 0.070 0.300 1190 18×36 0.040 0.150 1790
820 16×32 0.053 0.200 1580 18×40 0.036 0.130 2340
1000 16×36 0.045 0.170 1790
1200 16×40 0.040 0.150 2020
1500 18×40 0.035 0.130 2340
Case
size
DФ×L
(mm)
Case
size
DФ×L
(mm)
Max impd
@25℃
100kHz
(Ω)
Max impd
@25℃
100kHz
(Ω)
Max impd
@-10℃
100kHz
(Ω)
63V 100V
Max impd
@-10℃
100kHz
(Ω)
Max impd
@25℃
100kHz
(Ω)
Max impd
@25℃
100kHz
(Ω)
Max impd
@-10℃
100kHz
(Ω)
Max impd
@-10℃
100kHz
(Ω)
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc Cap.(uF)
10 ~ 68 0.30 0.55 0.80 1.00
6.3 ~ 100
82 ~ 220 0.40 0.60 0.85 1.00
330 ~ 820 0.50 0.65 0.90 1.00
1000 ~ 10000 0.60 0.70 0.95 1.00
Frequency (Hz)
120 1K 10K 100K
