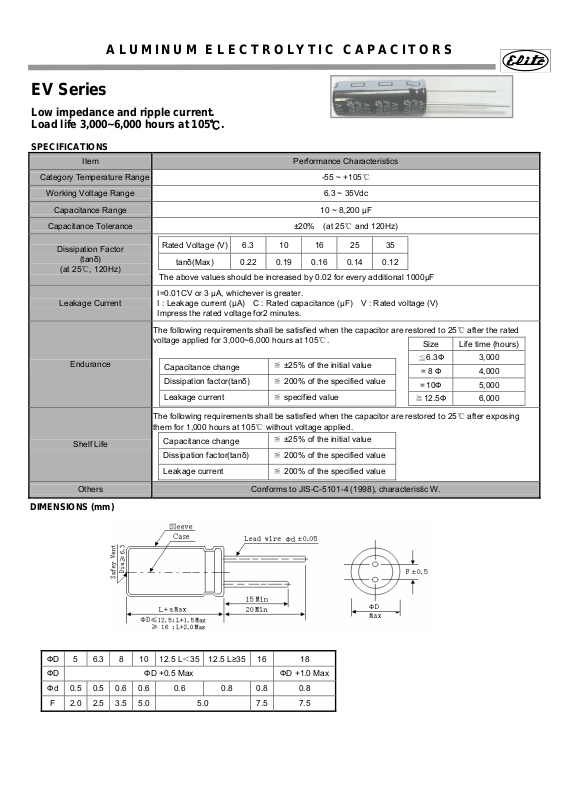

Page 1
ALUMINUM ELECTROLYTIC CAPACITORS
EV Series
Low impedance and ripple current.
Load life 3,000~6,000 hours at 105
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range
Working Voltage Range 6.3 ~ 35Vdc
Capacitance Range 10 ~ 8,200 μF
Capacitance Tolerance
℃.
-55 ~ +105℃
±20% (at 25℃ and 120Hz)
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.
Rated Voltage (V) 6.3 10 16 25 35
tanδ(Max) 0.22 0.19 0.16 0.14 0.12
The above values should be increased by 0.02 for every additional 1000μF
I=0.01CV or 3 μA, whichever is greater.
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for2 minutes.
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 3,000~6,000 hours at 105℃.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after exposing
them for 1,000 hours at 105℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
DIMENSIONS (mm)
≦ ±25% of the initial value
≦ ±25% of the initial value
Size Life time (hours)
≦6.3Ф 3,000
= 8 Ф 4,000
= 10Ф 5,000
≧12.5Ф 6,000
ФD 5 6.3 8 10
ФD ФD +0.5 Max ФD +1.0 Max
Фd 0.5 0.5 0.6 0.6 0.6 0.8 0.8 0.8
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
12.5 L＜35
12.5 L≥35 16 18
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
EV Series
Case size & Permissible rated ripple current:
6.3V 10V 16 V
Nominal
Capacitance
(uF)
100 5×11 0.230 0.760 360
150 5×11 0.230 0.760 360 6.3×11 0.100 0.330 450
220 5×11 0.230 0.76 360 6.3×11 0.100 0.330 450 6.3×11 0.100 0.330 550
330 6.3×11 0.100 0.33 460 6.3×11 0.100 0.330 550 8×12 0.059 0.181 830
470 6.3×11 0.100 0.33 550 8×12 0.059 0.181 820 8×12 0.059 0.181 990
680 8×12 0.059 0.181 300 8×12 0.059 0.181 990
820 8×12 0.059 0.181 990 10×13 0.043 0.133 1250 10×16 0.030 0.095 1650
1000 10×13 0.043 0.133 1250 10×16 0.039 0.128 1450
1200
1500 8×16 0.031 0.105 1550
1800 10×16 0.030 0.095 1815 10×20 0.019 0.057 2160 10×25 0.017 0.051 2475
2200 10×20 0.019 0.057 2160 10×25 0.017 0.051 2475 12.5×20 0.016 0.041 2725
2700 10×25 0.017 0.051 2475 12.5×20 0.016 0.041 2450 12.5×36 0.014 0.036 3190
3300 12.5×20 0.016 0.041 2500 12.5×20 0.016 0.041 2725
3900 12.5×20 0.016 0.041 2725 12.5×25 0.014 0.036 3190 12.5×36 0.011 0.029 3925
4700 12.5×25 0.014 0.036 3190
5600 12.5×30 0.012 0.031 3795 12.5×36 0.011 0.029 3925
6800
8200 16×26 0.012 0.033 3990
Case
Size
DΦ×L
(mm)
10×13 0.043 0.133 1360
8×16 0.046 0.143 1330
12.5×36 0.011 0.029 3925
16×20 0.014 0.036 3575
Max.
impd
@25℃
100kHz
(Ω)
Max.
impd
@-10℃
100kHz
(Ω)
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
Case
Size
DΦ×L
(mm)
10×16 0.030 0.095 1650 10×20 0.019 0.057 1930
10×16 0.030 0.095 1815
8×20 0.031 0.105 1550
12.5×30 0.012
16×20 0.014 0.036 3575
16×26 0.012 0.033 3990
Max.
impd
@25℃
100kHz
(Ω)
Max.
impd
@-10℃
100kHz
(Ω)
0.031
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
3795
Case
Size
DΦ×L
(mm)
8×16 0.046 0.143 1330
10×13 0.043 0.133 1360
8×20 0.031 0.105 1550
10×16 0.030 0.095 1815
10×20 0.019 0.057 2160
12.5×30 0.012 0.031 3795
16×20 0.014 0.036 3575
16×26 0.012 0.033 3990
Max.
impd
@25℃
100kHz
(Ω)
Max.
impd
@-10℃
100kHz
(Ω)
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
Page 3
ALUMINUM ELECTROLYTIC CAPACITORS
EV Series
Case size & Permissible rated ripple current:
25 V 35 V
Nominal
Capacitance
(uF)
10 5×11 0.650 1.320 300 5×11 0.840 2.420 360
47 5×11 0.230 0.760 360
68 5×11 0.230 0.760 360 6.3×11 0.100 0.330 450
100 6.3×11 0.100 0.330 450 6.3×11 0.100 0.330 550
150 8×12 0.100 0.330 550 8×12 0.059 0.181 820
220 8×12 0.059 0.181 810
270 8×12 0.059 0.181 900 8×16 0.046 0.143 1330
330 8×12 0.059 0.181 990 10×13 0.043 0.133 1360
390 8×16 0.046 0.143 1330 8×20 0.031 0.105 1550
470 10×13 0.043 0.133 1360 10×16 0.030 0.095 1815
560 8×20 0.031 0.105 1550 10×20 0.019 0.057 2160
680 10×16 0.030 0.095 1815 10×25 0.017 0.051 2475
820 10×20 0.019 0.057 2160 12.5×20 0.016 0.041 2725
1000 10×25 0.017 0.051 2475 12.5×20 0.016 0.041 2920
1200 12.5×20 0.016 0.041 2180 12.5×25 0.014 0.041 3190
1500 12.5×20 0.016 0.041 2725
1800 12.5×35 0.014 0.036 3190 12.5×36 0.011 0.029 3925
2200
2700 12.5×36 0.011 0.029 3925
3300 16×26 0.012 0.033 3990
Case
Size
DΦ×L
(mm)
12.5×30 0.012 0.031 3795
16×20 0.014 0.036 3575
Max. impd
@25℃
100kHz
(Ω)
Max .impd
@-10℃
100kHz
(Ω)
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
Case
Size
DΦ×L
(mm)
8×12 0.059 0.181 990
8×16 0.048 0.150 1200
12.5×32 0.012 0.031 3795
16×20 0.014 0.036 3575
16×26 0.012 0.033 3990
Max. impd
@25℃
100kHz
(Ω)
Max. impd
@-10℃
100kHz
(Ω)
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc Cap.(uF)
10 ~ 68 0.30 0.55 0.80 1.00
6.3 ~ 63
82 ~ 220 0.40 0.60 0.85 1.00
330 ~ 820 0.50 0.65 0.90 1.00
1000 ~ 10000 0.60 0.70 0.95 1.00
Frequency (Hz)
120 1K 10K 100K
