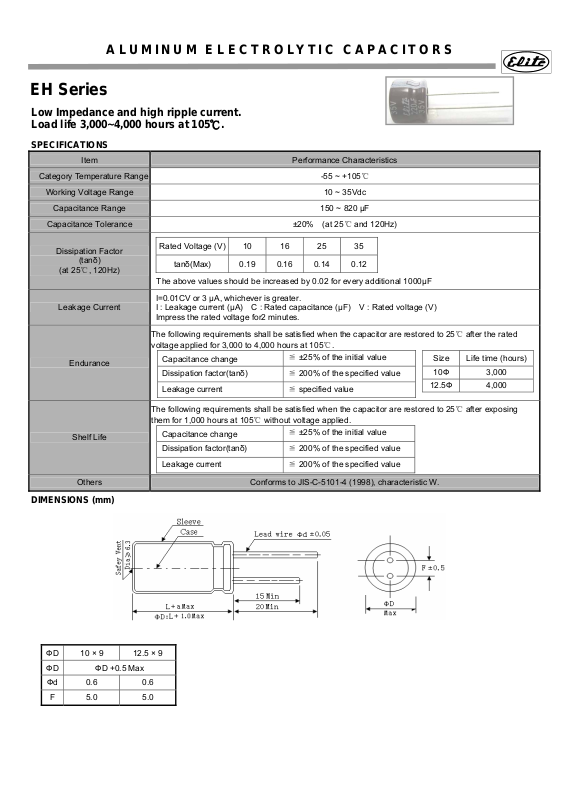

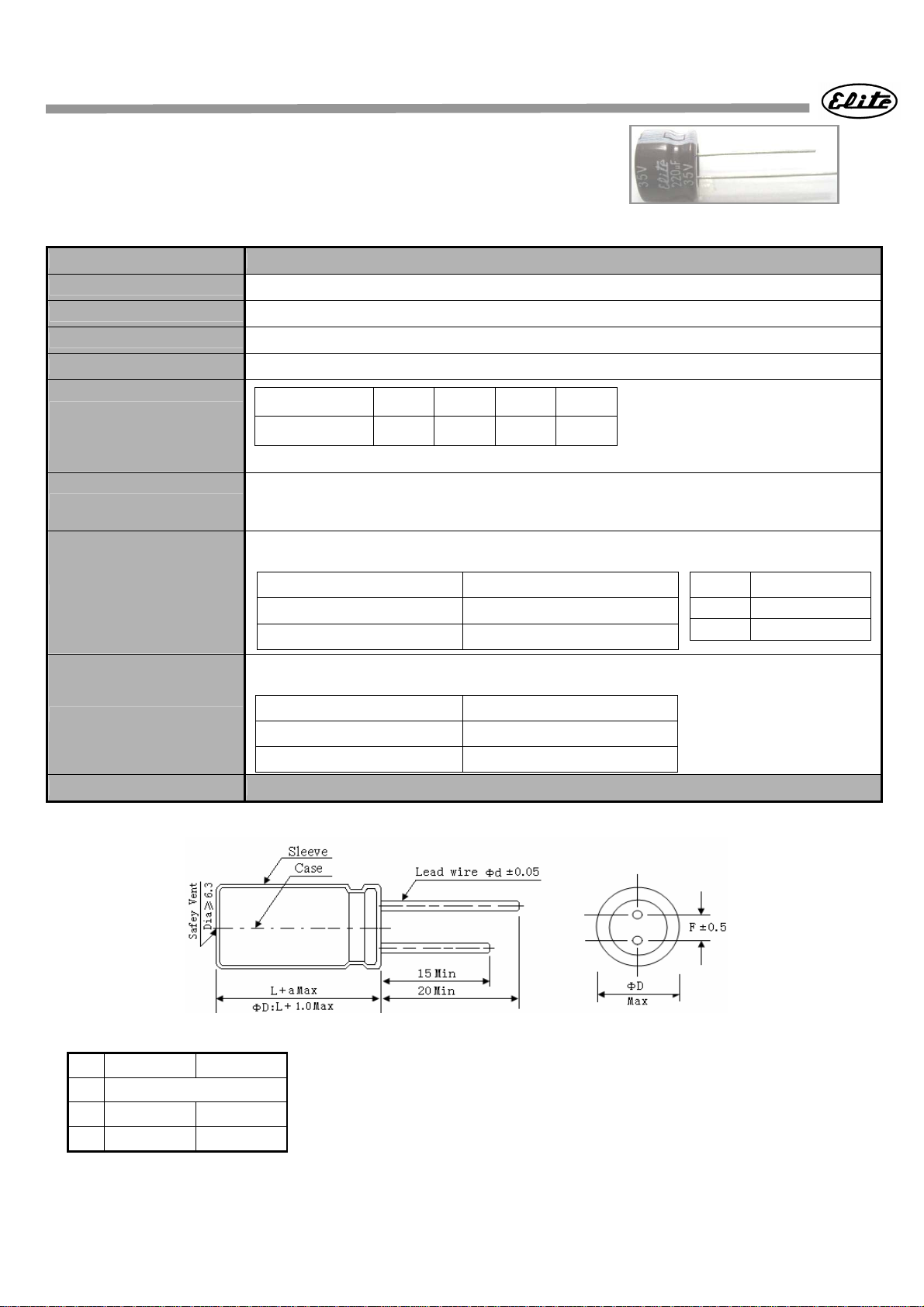

ALUMINUM ELECTROLYTIC CAPACITORS
EH Series
Low Impedance and high ri pp le curren t .
Load life 3,000~4,000 hours at 105
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range
Working Voltage Range 10 ~ 35Vdc
Capacitance Range 150 ~ 820 μF
Capacitance Tolerance
℃.
-55 ~ +105℃
±20% (at 25℃ and 120Hz)
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.
Rated Voltage (V) 10 16 25 35
tanδ(Max) 0.19 0.16 0.14 0.12
The above values should be increased by 0.02 for every additional 1000μF
I=0.01CV or 3 μA, whichever is greater.
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for2 minutes.
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 3,000 to 4,000 hours at 105℃.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after exposing
them for 1,000 hours at 105℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
DIMENSIONS (mm)
≦ ±25% of the initial value
≦ ±25% of the initial value
Size Life time (hours)
10Ф 3,000
12.5Ф 4,000
ФD 10 × 9 12.5 × 9
ФD ФD +0.5 Max
Фd 0.6 0.6
F 5.0 5.0
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
EH Series
Case size & Permissible rated ripple current:
Nominal
capacitance
(uF)
150 10×9 630
220 12.5×9 750
270 10×9 630
390 10×9 640 12.5×9 700
560 10×9 600 12.5×9 720
820 12.5×9 750
Case
DФ×L
(mm)
10V 16V 25V 35V
size
Max. Rated
ripple current
@105℃
100kHz
Case
size
DФ×L
(mm)
Max. Rated
ripple current
@105℃
100kHz
Case
size
DФ×L
(mm)
Max. Rated
ripple current
@105℃
100kHz
Case
size
DФ×L
(mm)
Max. Rated
ripple current
@105℃
100kHz
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc Cap.(uF)
50/60 120 1K 10K 100K
150 ~ 270 0.30 0.50 0.80 0.95 1.00
10 ~ 35
390 ~ 820 0.57 0.71 0.90 0.98 1.00
Frequency (Hz)
