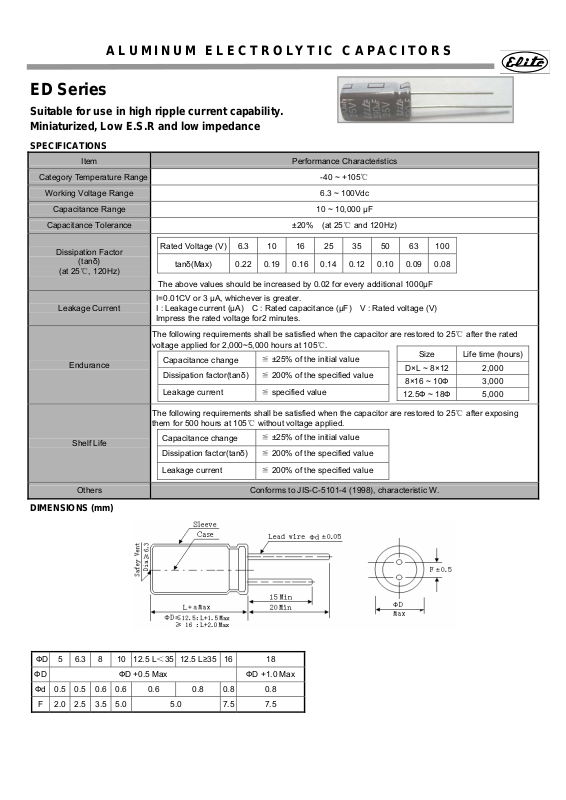

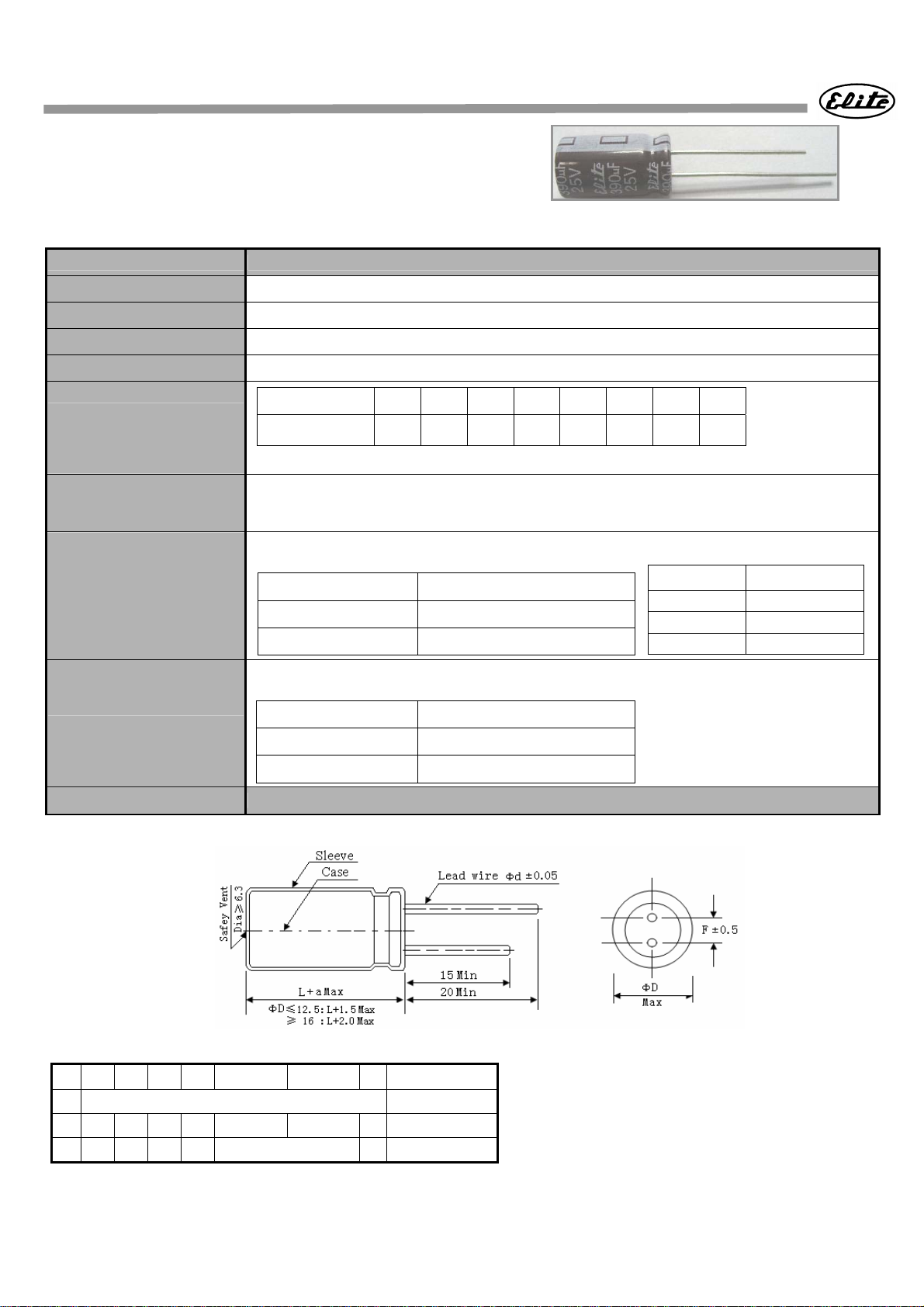

Page 1
ALUMINUM ELECTROLYTIC CAPACITORS
ED Series
Suitable for use in high ripple current capability.
Miniaturized, Low E.S.R and low impedance
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range
Working Voltage Range 6.3 ~ 100Vdc
Capacitance Range 10 ~ 10,000 μF
Capacitance Tolerance
-40 ~ +105℃
±20% (at 25℃ and 120Hz)
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.
Rated Voltage (V) 6.3 10 16 25 35 50 63 100
tanδ(Max) 0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08
The above values should be increased by 0.02 for every additional 1000μF
I=0.01CV or 3 μA, whichever is greater.
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for2 minutes.
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 2,000~5,000 hours at 105℃.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after exposing
them for 500 hours at 105℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
DIMENSIONS (mm)
≦ ±25% of the initial value
≦ ±25% of the initial value
Size Life time (hours)
D×L ~ 8×12 2,000
8×16 ~ 10Ф 3,000
12.5Ф ~ 18Ф 5,000
ФD 5 6.3 8 10
ФD ФD +0.5 Max ФD +1.0 Max
Фd 0.5 0.5 0.6 0.6 0.6 0.8 0.8 0.8
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
12.5 L＜35
12.5 L≥35 16 18
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
ED Series
Case size & Permissible rated ripple current:
6.3V 10V
Nominal
capacitance
(uF)
100 5×11 0.65 3.6 155 5×11 0.58 2.3 210
220 6.3×11 0.40 1.6 255 6.3×11 0.22 0.87 340
330 6.3×11 0.22 0.87 340 8×12 0.21 0.85 410
470 8×12 0.18 0.80 400 8×12 0.13 0.52 640
560 8×12 0.17 0.75 460 8×16 0.12 0.48 675
680 8×12 0.13 0.52 640 8×16 0.087 0.35 840
820 8×16 0.095 0.48 730 8×20 0.085 0.33 875
1000 8×16 0.087 0.35 840 10×16 0.060 0.24 1210
1200 8×20 0.069 0.27 1050 10×20 0.046 0.18 1400
1500 10×20 0.046 0.18 1400 10×20 0.045 0.18 1440
2200 10×20 0.045 0.18 1440 12.5×20 0.035 0.12 1900
2700 10×25 0.042 0.17 1700 12.5×20 0.034 0.11 1945
3300 12.5×20 0.035 0.12 1900 12.5×25 0.027 0.089 2230
3900 12.5×25 0.027 0.089 2230 12.5×30 0.024 0.078 2650
4700 12.5×30 0.024 0.078 2650 12.5×35 0.020 0.065 2880
5600 12.5×35 0.020 0.065 2880 12.5×35 0.019 0.060 2930
6800 12.5×35 0.019 0.060 2930 16×32 0.017 0.050 3450
8200 16×32 0.017 0.050 3450 16×36 0.015 0.044 3610
10000 16×36 0.015 0.044 3610 16×40 0.013 0.038 4080
Nominal
capacitance
(uF)
47 5×11 0.80 2.8 120 5×11 0.58 2.3 210
68 6.3×11 0.56 2.2 220 6.3×11 0.36 1.8 230
100 6.3×11 0.52 1.5 255 6.3×11 0.22 0.87 340
150 8×12 0.21 0.86 350 8×12 0.20 0.69 405
220 8×12 0.20 0.79 405 8×12 0.13 0.52 640
330 8×12 0.13 0.52 640 8×16 0.087 0.35 840
470 8×16 0.087 0.35 840 10×16 0.060 0.24 1210
560 8×20 0.085 0.34 865 10×20 0.058 0.23 1220
680 8×20 0.069 0.27 1050 10×20 0.046 0.18 1400
820 10×20 0.058 0.23 1220 10×20 0.042 0.17 1450
1000 10×20 0.046 0.18 1400 12.5×20 0.035 0.12 1900
1200 10×25 0.042 0.17 1650 12.5×25 0.034 0.11 1936
1500 12.5×20 0.035 0.12 1900 12.5×25 0.027 0.089 2230
2200 12.5×25 0.027 0.089 2230 12.5×35 0.020 0.065 2880
2700 12.5×30 0.024 0.078 2650 12.5×35 0.019 0.060 2930
3300 12.5×35 0.020 0.065 2880 16×32 0.017 0.050 3450
3900 12.5×40 0.017 0.056 3350 16×36 0.015 0.044 3610
4700 16×32 0.017 0.050 3450 16×40 0.013 0.038 4080
5600 16×36 0.015 0.044 3610
6800 16×40 0.013 0.038 4080
Case
size
DФ×L
(mm)
Case
size
DФ×L
(mm)
Max impd
@25℃
100kHz
(Ω)
Max impd.
@25℃
100kHz
(Ω)
Max impd.
@-10℃
100kHz
(Ω)
16V 25V
Max impd.
@-10℃
100kHz
(Ω)
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
Case
size
DФ×L
(mm)
Case
size
DФ×L
(mm)
Max impd.
@25℃
100kHz
(Ω)
Max impd.
@25℃
100kHz
(Ω)
Max impd.
@-10℃
100kHz
(Ω)
Max impd.
@-10℃
100kHz
(Ω)
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
Page 3
ALUMINUM ELECTROLYTIC CAPACITORS
ED Series
Case size & Permissible rated ripple current:
35V 50V
Nominal
capacitance
(uF)
10 5×11 1.5 3.8 100 5×11 1.45 3.5 105
22 5×11 0.75 3.2 160 5×11 0.7 2.8 180
33 5×11 0.58 2.3 210 6.3×11 0.48 1.70 215
47 6.3×11 0.49 1.8 215 6.3×11 0.40 1.60 220
68 8×12 0.21 0.87 350 8×12 0.28 1.10 355
100 8×12 0.20 0.85 405 8×12 0.17 0.68 555
150 8×12 0.13 0.52 640 8×16 0.12 0.48 730
220 8×16 0.087 0.35 840 10×16 0.084 0.34 1050
330 10×16 0.060 0.24 1210 10×25 0.055 0.22 1440
470 10×20 0.046 0.18 1400 12.5×20 0.045 0.15 1660
560 10×25 0.042 0.17 1650 12.5×25 0.034 0.11 1950
680 10×30 0.031 0.12 1910 12.5×30 0.030 0.10 2310
820 12.5×25 0.030 0.11 1938 12.5×35 0.025 0.083 2510
1000 12.5×25 0.027 0.089 2230 16×25 0.025 0.075 2555
1200 12.5×30 0.024 0.078 2650 16×32 0.022 0.066 3010
1500 12.5×35 0.020 0.065 2880 16×36 0.019 0.057 3150
2200 16×32 0.017 0.050 3450 18×36 0.017 0.046 3680
2700 16×36 0.015 0.044 3610 18×40 0.014 0.038 3800
3300 16×40 0.013 0.038 4080
3900 18×40 0.012 0.032 4280
Nominal
capacitance
(uF)
10 5×11 2.85 9.3 30 6.3×11 2.2 9.3 60
22 6.3×11 1.85 7.2 60 8×12 1.1 5.0 120
33 6.3×11 1.20 5.0 115 8×16 0.62 2.8 242
47 8×12 1.0 4.5 170 10×12 0.43 1.8 288
68 8×12 0.61 2.5 245 10×16 0.31 1.5 357
100 8×16 0.43 1.9 305 10×25 0.20 0.84 531
220 10×20 0.21 0.92 470 12.5×30 0.10 0.42 905
330 12.5×25 0.12 0.45 784 12.5×40 0.071 0.30 1180
470 12.5×30 0.10 0.42 905 16×36 0.045 0.17 1790
560 12.5×35 0.083 0.35 1050 16×40 0.04 0.15 2020
680 12.5×40 0.071 0.30 1180 18×36 0.04 0.15 1790
820 16×32 0.054 0.20 1570 18×40 0.036 0.13 2330
1000 16×36 0.045 0.17 1790
1200 16×40 0.040 0.15 2020
1500 18×40 0.036 0.13 2330
Case
size
DФ×L
(mm)
Case
size
DФ×L
(mm)
Max impd.
@25℃
100kHz
(Ω)
Max impd
@25℃
100kHz
(Ω)
Max impd.
@-10℃
100kHz
(Ω)
63V 100V
Max impd
@-10℃
100kHz
(Ω)
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
Case
size
DФ×L
(mm)
Case
size
DФ×L
(mm)
Max impd.
@25℃
100kHz
(Ω)
Max impd
@25℃
100kHz
(Ω)
Max imapd
@-10℃
100kHz
(Ω)
Max impd
@-10℃
100kHz
(Ω)
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
Max. Rated
ripple current
@105℃
100kHz
(mA rms)
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc Cap.(uF)
10 ~ 68 0.30 0.65 0.85 1.00
6.3 ~ 100
82 ~ 220 0.50 0.70 0.90 1.00
330 ~ 820 0.60 0.75 0.95 1.00
1000 ~ 10000 0.70 0.80 0.98 1.00
Frequency (Hz)
120 1K 10K 100K
