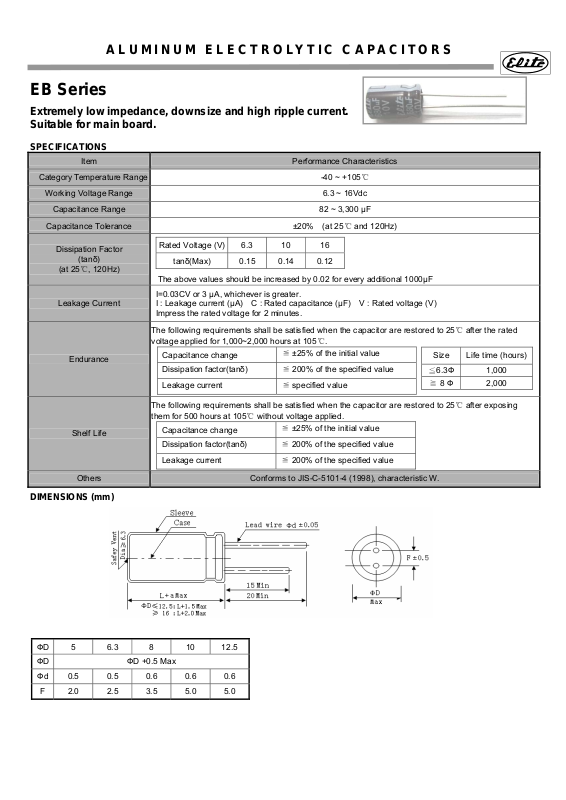

Page 1
ALUMINUM ELECTROLYTIC CAPACITORS
EB Series
Extremely low impedance, downsize and high ripple current.
Suitable for main board.
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range
Working Voltage Range 6.3 ~ 16Vdc
Capacitance Range 82 ~ 3,300 μF
Capacitance Tolerance ±20% (at 25℃ and 120Hz)
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.
Rated Voltage (V) 6.3 10 16
tanδ(Max) 0.15 0.14 0.12
The above values should be increased by 0.02 for every additional 1000μF
I=0.03CV or 3 μA, whichever is greater.
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 2 minutes.
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 1,000~2,000 hours at 105℃.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after exposing
them for 500 hours at 105℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
≦ ±25% of the initial value
≦ ±25% of the initial value
-40 ~ +105℃
Size Life time (hours)
≦6.3Ф 1,000
≧ 8 Ф 2,000

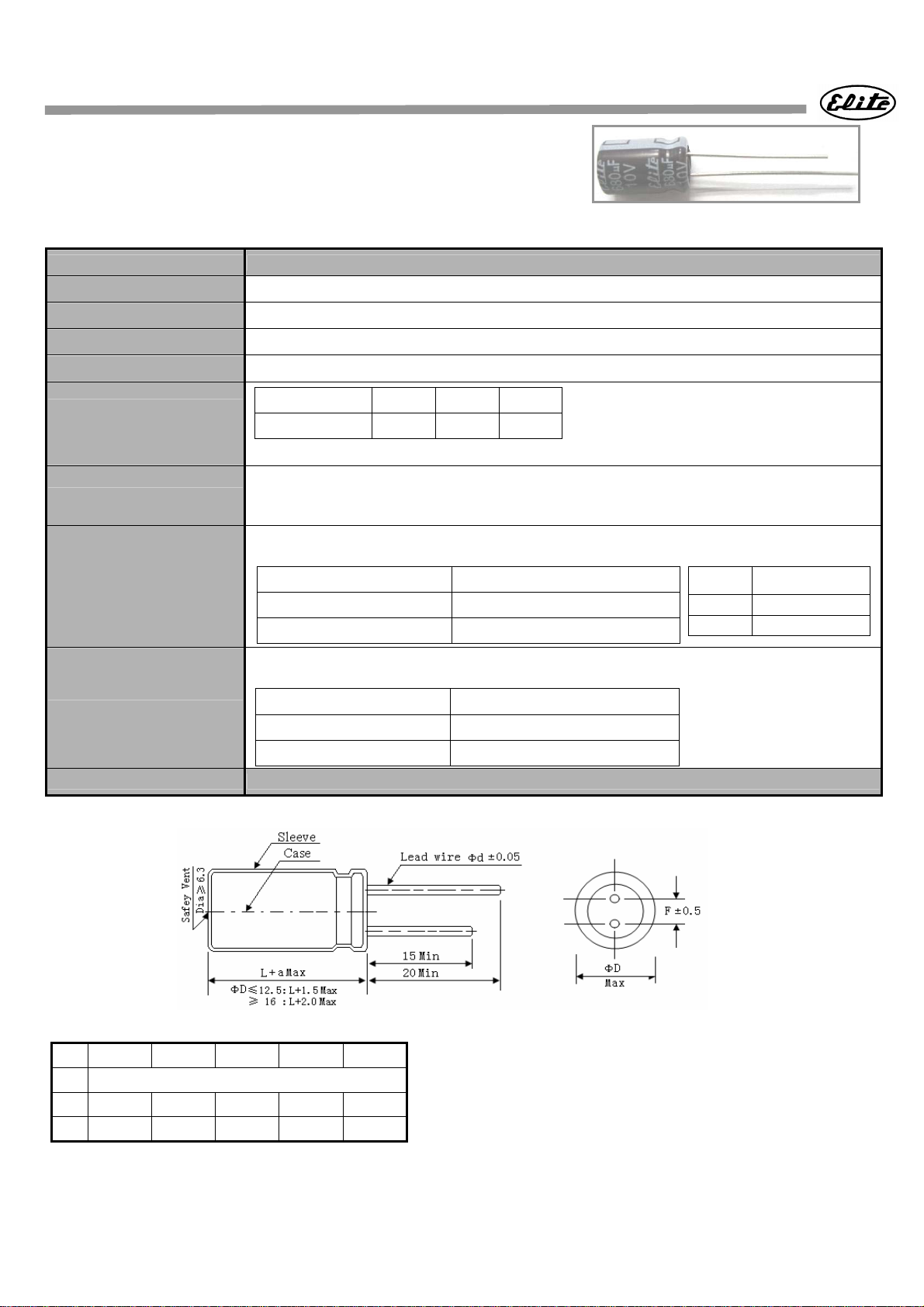

DIMENSIONS (mm)
ФD 5 6.3 8 10 12.5
ФD ФD +0.5 Max
Фd 0.5 0.5 0.6 0.6 0.6
F 2.0 2.5 3.5 5.0 5.0
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
EB Series
Case size & Permissible rated ripple current:
Nominal
Capacitance
(uF)
82 5×11 1.850 165 5×11 1.350 200 6.3×11 1.200 250
100 5×11 1.650 180 5×11 1.180 260 6.3×11 0.980 300
150 6.3×11 1.320 215 6.3×11 0.960 340 6.3×11 0.880 350
220 6.3×11 0.680 295 6.3×11 0.480 425 8×12 0.420 430
330 6.3×11 0.320 425 8×12 0.250 525 8×12 0.180 795
470 8×12 0.078 605 8×12 0.052 805 8×12 0.036 1140
680 8×12 0.052 805 8×12 0.036 1140
820 8×16 0.036 1140 8×16 0.033 1200 10×16 0.024 1605
1000 8×16 0.032 1210
1200 8×16 0.028 1490 10×16 0.024 1605 10×20 0.017 2110
1500
1800
2200 10×20 0.013 2550 10×25 0.012 2800 10×25 0.012 2950
3300 10×25 0.012 2800 10×25 0.012 2950 12.5×2 0.012 3050
Case
Size
DΦ×L
(mm)
8×20 0.016 1870 8×20 0.019 1870
10×12 0.026 1540 10×16 0.019 2000
8×20 0.021 1870
10×16 0.019 2000
6.3V 10V 16V
Max. impd
@25℃
100kHz
(Ω)
Max. Rated
ripple current
@105 100kHz
(mA rms)
Case
Size
DΦ×L
(mm)
8×16 0.028 1490 8×20 0.019 1870
10×12 0.026 1540 10×16 0.019 2000
10×20 0.013 2550 10×25 0.012 2800
Max. impd
@25℃
100kHz
(Ω)
Max. Rated
ripple current
@105 100kHz
(mA rms)
Case
Size
DΦ×L
(mm)
8×16 0.028 1490
10×12 0.026 1540
10×20 0.013 2550
Max. impd
@25℃
100kHz
(Ω)
Max. Rated
ripple current
@105 100kHz
(mA rms)
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Cap.(uF)
6.3 ~ 16 0.60 0.75 0.90 0.98 1.00
50/60 120 1K 10K 100K
Frequency (Hz)
