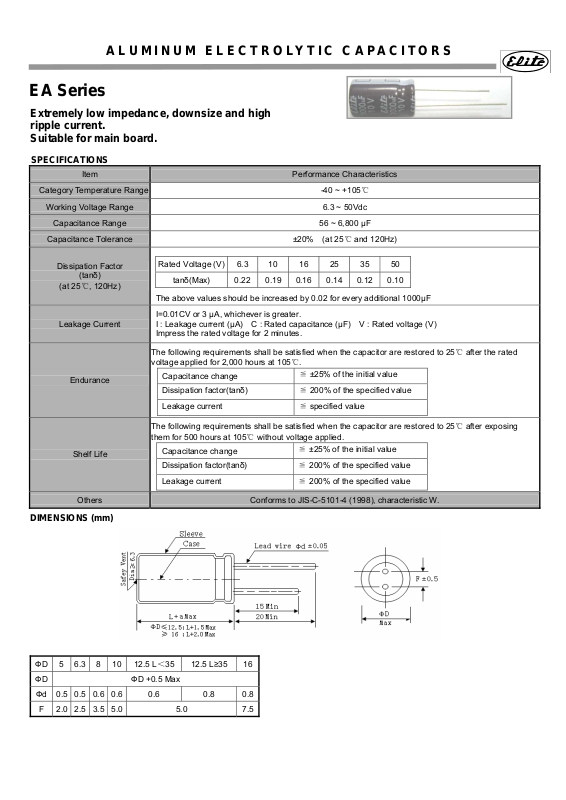

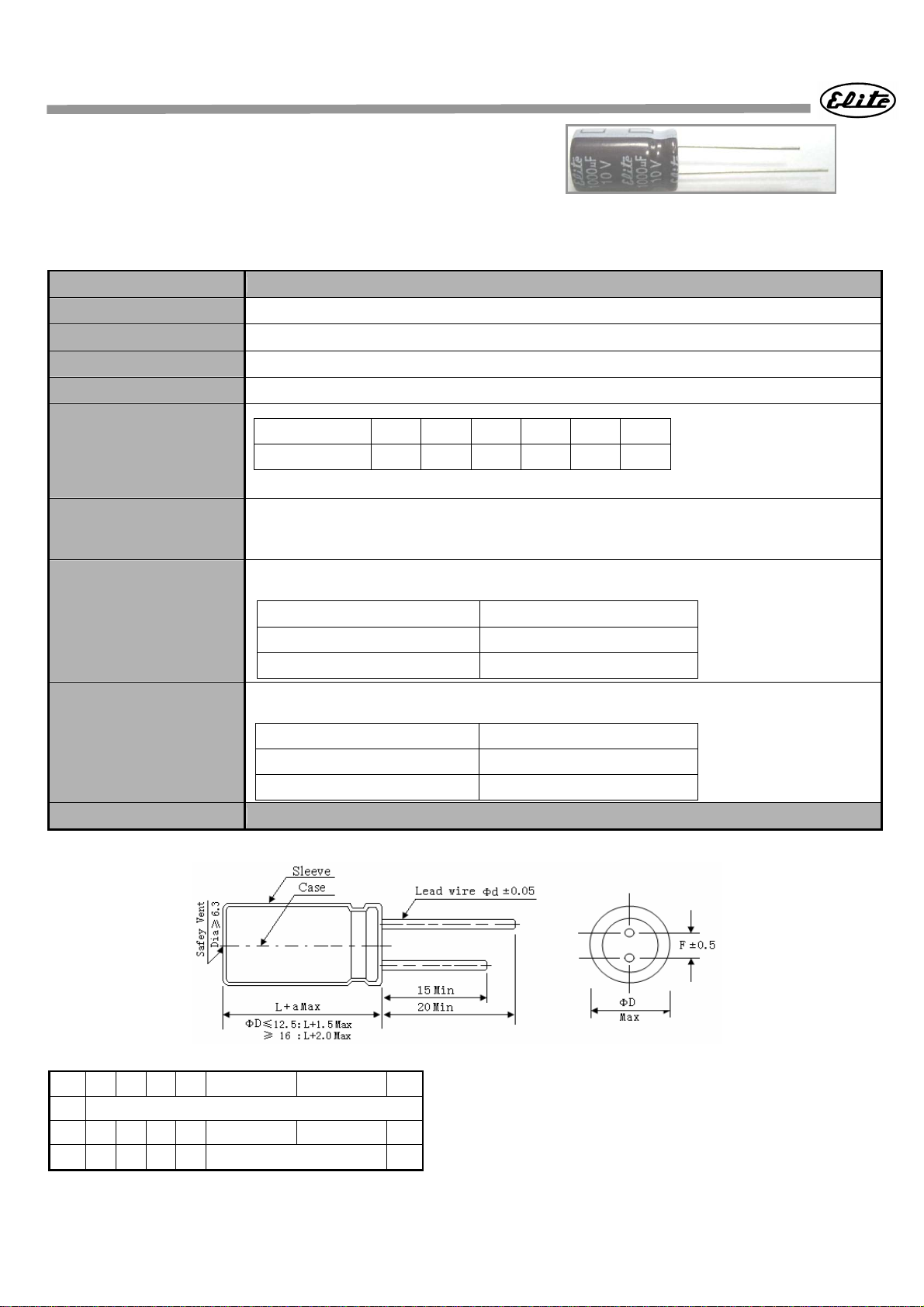

Elite EA Series Datasheet

ALUMINUM ELECTROLYTIC CAPACITORS

EA Ser ies

Extremely low impedance, downsize and high
ripple current.
Suitable for main board.

SPECIFICATIONS

Item Performance Characteristics

Category Temperature Range

Working Voltage Range 6.3 ~ 50Vdc

Capacitance Range 56 ~ 6,800 μF

Capacitance Tolerance

-40 ~ +105℃

±20% (at 25℃ and 120Hz)

Dissipation Factor

(tanδ)

(at 25℃, 120Hz)

Leakage Current

Endurance

Shelf Life

Others Conforms to JIS-C-5101-4 (1998), characteristic W.

DIMENSIONS (mm)

Rated Voltage (V) 6.3 10 16 25 35 50

tanδ(Max) 0.22 0.19 0.16 0.14 0.12 0.10

The above values should be increased by 0.02 for every additional 1000μF

I=0.01CV or 3 μA, whichever is greater.

I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)

Impress the rated voltage for 2 minutes.

The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 2,000 hours at 105℃.

Capacitance change

Dissipation factor(tanδ) ≦ 200% of the specified value

Leakage current ≦ specified value

The following requirements shall be satisfied when the capacitor are restored to 25℃ after exposing
them for 500 hours at 105℃ without voltage applied.

Capacitance change

Dissipation factor(tanδ) ≦ 200% of the specified value

Leakage current ≦ 200% of the specified value

≦ ±25% of the initial value

≦ ±25% of the initial value

ФD 5 6.3 8 10

ФD ФD +0.5 Max

Фd 0.5 0.5 0.6 0.6 0.6 0.8 0.8

F 2.0 2.5 3.5 5.0 5.0 7.5

12.5 L＜35

12.5 L≥35 16

ALUMINUM ELECTROLYTIC CAPACITORS

EA Series

Case size & Permissible rated ripple current:

6.3V 10V 16 V

Nominal

Capacitance

(uF)

100 5×11 1.780 2.690 175 5×11 1.480 2.480 250 6.3×11 1.280 2.160 290
220 6.3×11 0.880 1.760 280 6.3×11 0.580 1.660 405 8×12 0.460 1.560 410

330 6.3×11 0.450 1.320 405 8×12 0.380 1.280 500 8×12 0.280 1.080 760
470 8×12 0.110 0.380 560 8×12 0.072 0.220 760 8×16 0.056 0.170 995
560 8×12 0.072 0.220 760 8×16 0.069 0.200 805 8×20 0.052 0.160 1050

680 8×12 0.068 0.210 800 8×16 0.056 0.170 995 10×16 0.038 0.120 1430

820 8×16 0.056 0.170 995 8×20 0.052 0.160 1050 10×20 0.035 0.110 1520
1000 8×16 0.053 0.160 1030 8×20 0.041 0.130 1250 10×20 0.023 0.069 1820

1200 8×20 0.041 0.130 1250 10×20 0.023 0.069 1820 10×25 0.022 0.066 2150
1500 10×20 0.023 0.069 1820 10×25 0.022 0.066 2150 12.5×20 0.021 0.053 2360
2200 10×25 0.022 0.066 2150 12.5×20 0.021 0.053 2360 12.5×25 0.018 0.045 2770

2700 10×30 0.022 0.066 2200 12.5×20 0.021 0.053 2395 12.5×30 0.016 0.041 3290
3300 12.5×20 0.021 0.053 2360 12.5×25 0.018 0.045 2770 12.5×35 0.015 0.039 3400
3900 12.5×25 0.018 0.045 2770 12.5×30 0.016 0.041 3290 16×25 0.016 0.043 3460

4700 12.5×30 0.016 0.041 3290 12.5×35 0.015 0.039 3400 16×32 0.016 0.043 3500
5600 12.5×35 0.015 0.039 3400 12.5×40 0.016 0.043 3460 16×36 0.015 0.042 3540
6800 12.5×40 0.016 0.043 3460 16×32 0.017 0.040 3500 16×40 0.015 0.040 3585

Nominal

Capacitance

(uF)

56 6.3×11 0.880 0.900 270 6.3×11 0.760 1.240 405 8×12 0.640 1.400 385
68 6.3×11 0.660 0.850 290 8×12 0.560 0.760 430 8×12 0.480 0.900 405

100 6.3×11 0.430 0.500 405 8×12 0.380 0.560 450 8×12 0.220 0.630 724

150 8×12 0.120 0.400 415 8×12 0.072 0.220 760 8×16 0.061 0.180 979

220 8×12 0.072 0.220 760 8×16 0.056 0.170 995 10×16 0.042 0.120 1370

330 8×16 0.056 0.170 995 10×16 0.038 0.120 1430 10×25 0.028 0.085 1870

470 10×16 0.038 0.120 1430 10×20 0.023 0.069 1820 12.5×20 0.027 0.068 2050

560 10×20 0.035 0.110 1505 10×25 0.022 0.066 2150 12.5×25 0.023 0.059 2410

680 10×20 0.023 0.069 1820 12.5×20 0.021 0.053 2360 12.5×30 0.021 0.052 2860

820 10×25 0.022 0.066 2150 12.5×20 0.020 0.052 2410 12.5×35 0.019 0.051 2960

1000 12.5×20 0.021 0.053 2360 12.5×20 0.018 0.045 2770 16×25 0.021 0.056 3010

1200 12.5×25 0.021 0.053 2400 12.5×30 0.016 0.041 3290

1500 12.5×25 0.018 0.045 2770 12.5×35 0.015 0.039 3400

2200 12.5×35 0.015 0.039 3400 16×32 0.015 0.039 3500

2700 16×25 0.016 0.043 3460

Case

Size

DΦ×L

(mm)

Case

Size

DΦ×L

(mm)

Max.
impd

@25℃

100kHz

(Ω)

Max.
impd

@25℃

100kHz

(Ω)

Max.
impd

@-10℃
100kHz

25 V 35 V 50V

Max.
impd

@-10℃
100kHz

(Ω)

(Ω)

Max. Rated

ripple current

@105℃

100kHz

(mA rms)

Max. Rated

ripple current

@105℃

100kHz

(mA rms)

Case

Size

DΦ×L

(mm)

Case

Size

DΦ×L

(mm)

Max.
impd

@25℃

100kHz

(Ω)

Max.
impd

@25℃

100kHz

(Ω)

Max.
impd

@-10℃
100kHz

(Ω)

Max.
impd

@-10℃
100kHz

(Ω)

Max. Rated

ripple current

@105℃

100kHz

(mA rms)

Max. Rated

ripple current

@105℃

100kHz

(mA rms)

Case

Size

DΦ×L

(mm)

Case

Size

DΦ×L

(mm)

Max.
impd

@25℃

100kHz

(Ω)

Max.
impd

@25℃

100kHz

(Ω)

Max.
impd

@-10℃
100kHz

(Ω)

Max.
impd

@-10℃
100kHz

(Ω)

ripple current

ripple current

Max. Rated

@105℃

100kHz

(mA rms)

Max. Rated

@105℃

100kHz

(mA rms)

RIPPLE CURRENT MULTIPLIERS

Frequency Multipliers

Vdc Cap.(uF)

56~ 68 0.30 0.55 0.80 1.00

6.3 ~ 50

82 ~ 220 0.40 0.60 0.85 1.00

330 ~ 820 0.50 0.65 0.90 1.00

1000 ~ 6800 0.60 0.70 0.95 1.00

Frequency (Hz)

120 1K 10K 100K
