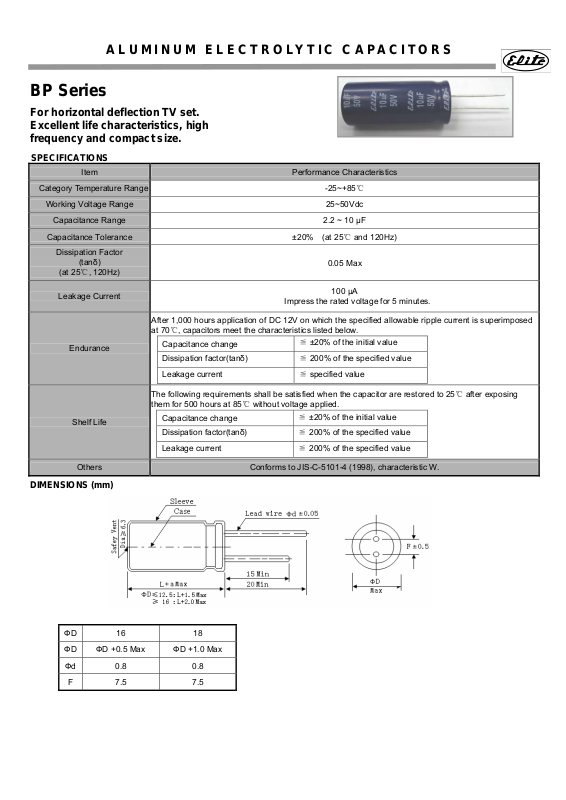

ALUMINUM ELECTROLYTIC CAPACITORS
BP Series
For horizontal deflection TV set.
Excellent life characteristics, high
frequency and compact size.
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range
Working Voltage Range 25~50Vdc
Capacitance Range 2.2 ~ 10 μF
Capacitance Tolerance
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.
After 1,000 hours application of DC 12V on which the specified allowable ripple current is superimposed
at 70℃, capacitors meet the characteristics listed below.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after exposing
them for 500 hours at 85℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
±20% (at 25℃ and 120Hz)
Impress the rated voltage for 5 minutes.
≦ ±20% of the initial value
≦ ±20% of the initial value
-25~+85℃
0.05 Max
100 μA

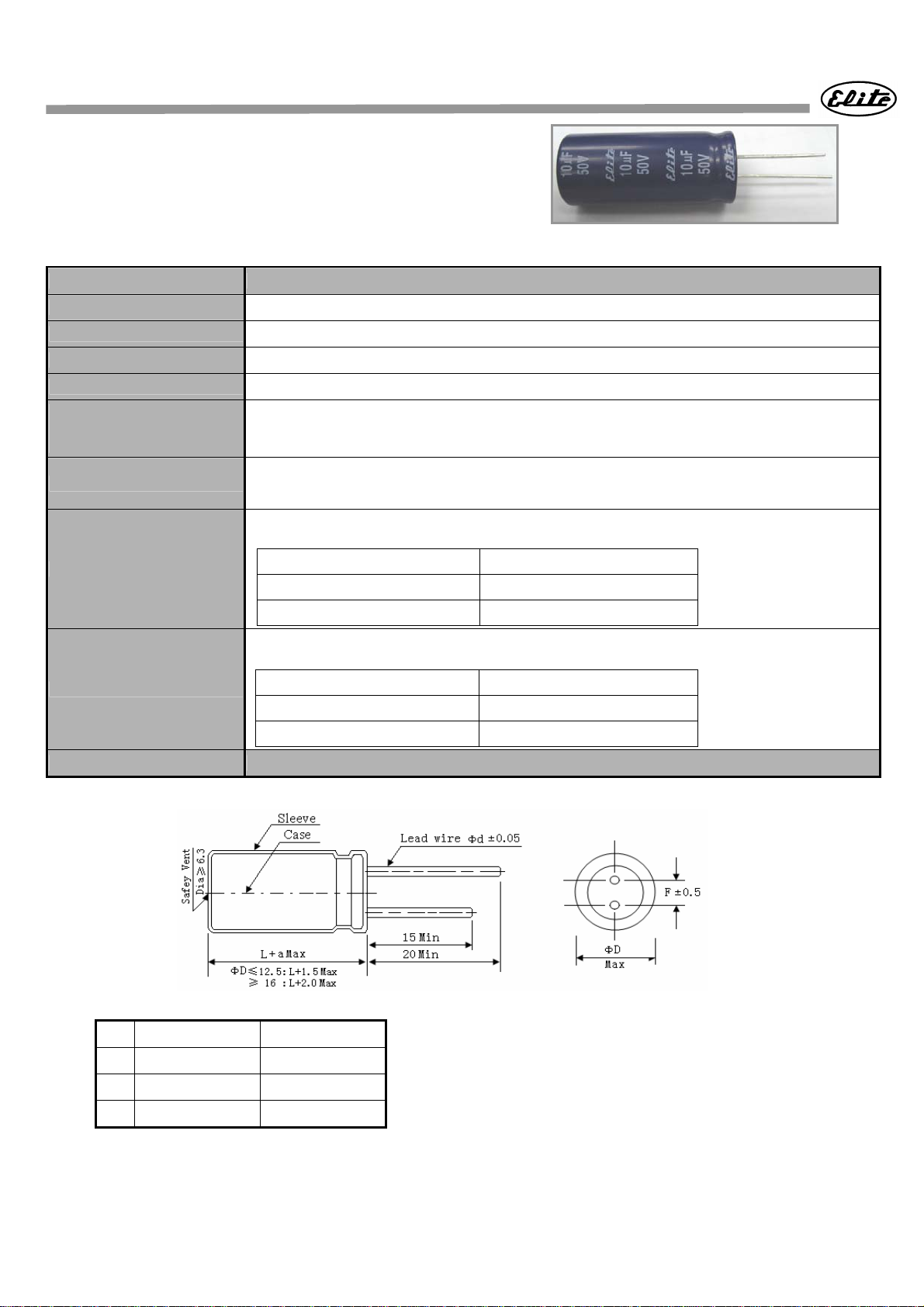

DIMENSIONS (mm)
ФD 16 18
ФD ФD +0.5 Max ФD +1.0 Max
Фd 0.8 0.8
F 7.5 7.5
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
BP Series
Case size Permissible rated ripple current Ap-p at 70℃ 15.75KHz
uF
Vdc
D×L RC D×L RC
2.2 16×25 5 16×25 5
3.3 16×25 6 16×25 6
4.7 16×25 7 16×25 7
5.6 16×25 7 16×25 7
6.8 16×36 8 16×36 8
10 18×40 10 18×40 10
25 50
