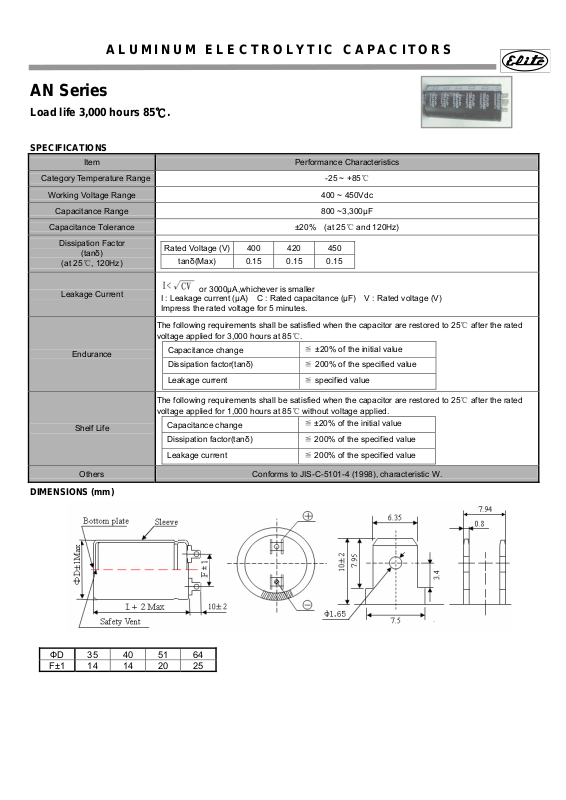

ALUMINUM ELECTROLYTIC CAPACITORS
AN Series
Load life 3,000 hours 85℃.

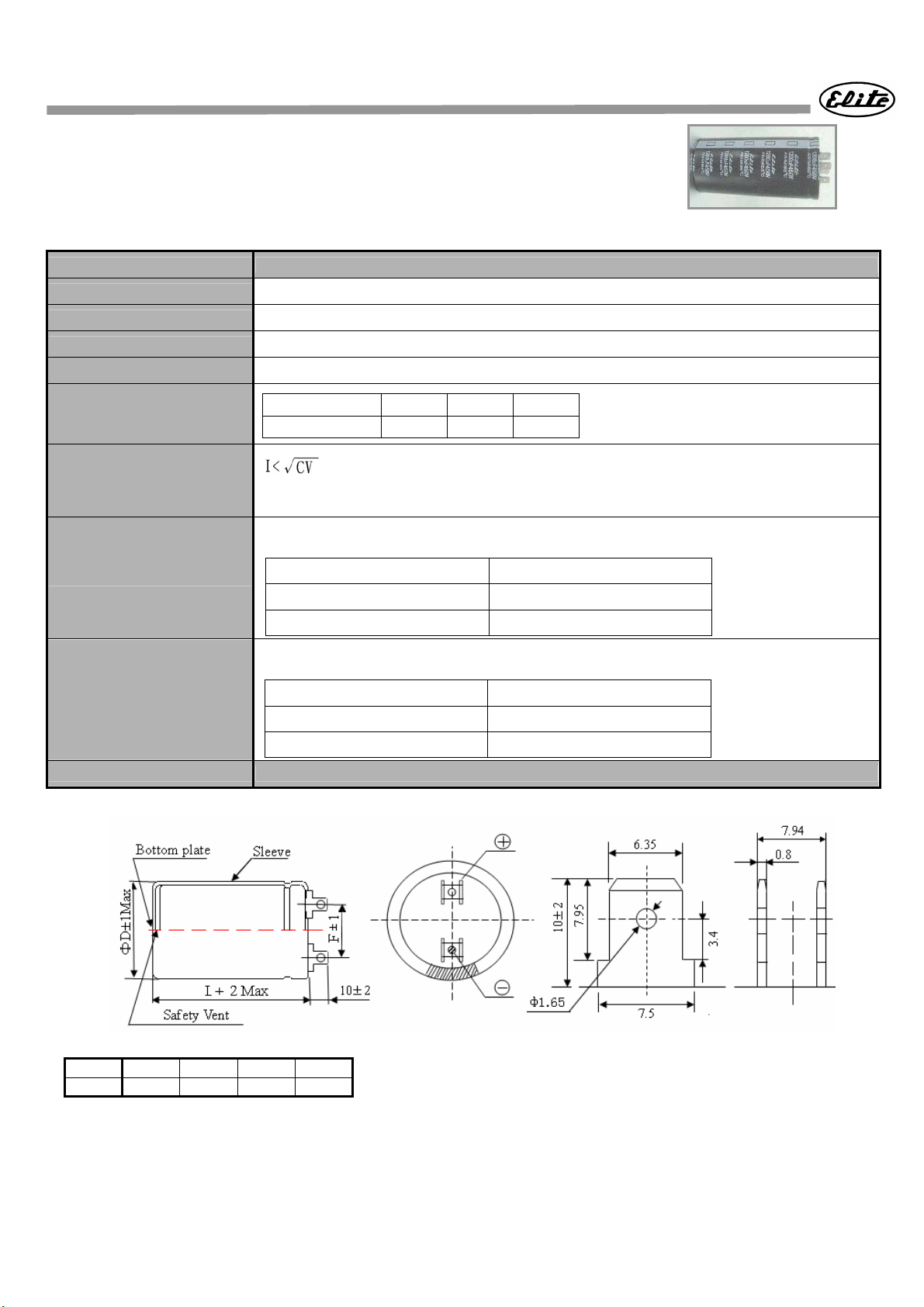

SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range
Working Voltage Range 400 ~ 450Vdc
Capacitance Range 800 ~3,300μF
Capacitance Tolerance
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
-25 ~ +85℃
±20% (at 25℃ and 120Hz)
Rated Voltage (V) 400 420 450
tanδ(Max) 0.15 0.15 0.15
Leakage Current
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.
DIMENSIONS (mm)
or 3000μA,whichever is smaller
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 5 minutes.
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 3,000 hours at 85℃.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 1,000 hours at 85℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
≦ ±20% of the initial value
≦ ±20% of the initial value
ФD 35 40 51 64
F±1 14 14 20 25
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
AN Series
Case size & Permissible rated ripple current (mA rms) 120Hz / 85℃:
Vdc
ФD
uF
Vdc
ФD
uF
Vdc
ФD
uF
Ф35 Ф40 Ф51 Ф64
ФD×L RC ФD×L RC ФD×L RC ФD×L RC
800 35×80 3200
900 35×90 3600
1000 35×100 4000
1200 40×100 4200
1300 40×100 4900
1500 40×120 5600
1800 51×90 6050
2000 51×100 6200
2200 51×120 6500
2500 51×120 6800 64×100 6800
2700 64×100 7300
2900 64×100 7850
3300 64×120 8100
Ф35 Ф40 Ф51 Ф64
ФD×L RC ФD×L RC ФD×L RC ФD×L RC
800 35×90 3350
900 35×100 3750
1000 35×100 4200
1200 40×120 4400
1300 40×120 5100
1500 51×100 5850
1800 51×100 6350
2000 51×120 6500
2200 51×120 6800 64×100 6800
2500 64×100 7150
2700 64×120 7650
2900 64×120 8200
Ф35 Ф40 Ф51 Ф64
ФD×L RC ФD×L RC ФD×L RC ФD×L RC
800 35×90 3000
900 35×100 3400
1000 40×100 3750
1200 40×120 3950
1300 51×90 4600
1500 51×100 5250
1800 51×100 5700
2000 51×120 5850 64×100 5850
2200 64×100 6100
2500 64×100 6400
2700 64×120 6850
400
420
450
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc
60 120 360 1K 10K
Frequency (Hz)
400 ~ 450 0.82 1.00 1.20 1.35 1.40
