E-Lins H980 Series User Manual

H980 Series 3G Router
User Manual
Industrialgrade RFModulebuiltin 
E-Lins Technology Co., Ltd
ADDRESS: 1007A, MinTai Bld., Minkang Road, Minzhi Street, Bao'an District,
ShenZhen, 518000, China
PHONE: +86 (755) 33231620
WEB: http://www.szelins.com
Manual Declaration
Copyright
All information in this user manual is protected by copyright law. Whereby, no organization or individual shall copy or reproduce the whole or part of this user manual by any means without written authorization from E-Lins Technology Co.,Limited.
H980 Series 3G Router User Manual
CONTENTS
CHAPTER 1 ABOUT THIS MANUAL ..............................................................4
1.1 Purpose....................................................................................................4
1.2 Applicable scope.....................................................................................4
1.3 Version information................................................................................4
1.4 Convention ..............................................................................................5
1.5 Technical support...................................................................................5
1.6 Acronym and term .................................................................................6
CHAPTER 2 Product Introduction ..................................................................9
2.1 3G overview ...............................................................................................9
2.1.1 Product appearance........................................................................9
2.1.2 Other Accessories..........................................................................11
2.1.3 Device installation .........................................................................11
2.2 Function and features.............................................................................12
2.2.1 Hardware function.........................................................................12
2.2.2 Software function..........................................................................12
2.3 System application ..................................................................................13
CHAPTER 3 ROUTER CONFIGURATION .....................................................15
3.1 Overview...................................................................................................15
3.2 Connection settings.................................................................................16
3.2.1 Environment requirements ..........................................................16
3.2.2 Connection method.......................................................................16
3.2.3 Network configuration ..................................................................18
3.2.4 System login...................................................................................22
3.3 WEB-based configuration.......................................................................23
3.3.1 General..............................................................................................23
3.3.2 Internet..............................................................................................24
3.3.3 Local network.................................................................................32
3.3.4 Applications....................................................................................35
3.3.6 VPN..................................................................................................42
3.3.7 Forward...........................................................................................47
3.3.8 System tools...................................................................................51
3.3.9 Status display.................................................................................56
CHAPTER 4 FREQUENTLY ASKED QUESTIONS (FAQ)................................57
4.1 Fault analysis ...........................................................................................57
APPENDIX: SOFTWARE UPGRADE DESCRIPTION......................................59
H980 Series 3G Router User Manual
Chapter 1 About This Manual
This chapter briefly describes the function and role the this user manual has had, and gives the readers the information on how to read this user manual as the
best guideline while E-Lins operated.
1. Purpose
2. Applicable scope
3. version information
4. Convention
5. Technical support
6. Acronyms and terms
1.1 Purpose
®
H980 Series series products are installed and
This user manual is developed mainly on the basis of H980 Series V1.0, and is
used as the guideline while E-Lins and tested.
®
H980 Series series products are installed
1.2 Applicable scope
This user manual is applicable to those who have certain knowledge and skills on the computer communication network, electronic technology, and network device management and other relevant personnel that need to use E-Lins H980 Series Router.
Applicable product version: H980 Series V1.0 version
1.3 Version information
E-Lins® H980 Series Router may be adjusted functionally and updated technically from time to time according to the needs of the market and users. Meanwhile, the developers may not find out the incorrect content in this user manual in time due to various reasons. The above cases may cause change of the version of this user manual. The table below records the version information and revision reason of this user manual in different periods for the reader’s reference.
®
Table -1.1: Revision History
Version Revised by Involved dept. Revised on Description
V1.0.0 Jason Zou 2010-4-22 Beta
H980 Series 3G Router User Manual
1.4 Convention
For reading and using this user manual fast and conveniently, the following conventions are reached for some abbreviations, icons, notes, security warnings and tips that appear in this user manual:
Item Description Note
Means tips or experiences that can save time in the installation and testing process
Prompts the users or relevant readers to remember some important information or parameters descriptions
Table -1.2: Convention Table
Appears in the installation and testing process in this user manual
Appears in the use and operation process in the this user manual
Warning: e.g. improper temperature, unstable voltage etc.
Caution: informs the users of the invalid or improper operation in the operation and testing process.
1.5 Technical support
To help the users fast resolve the problem occurring in their operation process and obtain the correct solution of the problems on the hardware, operating system, installation and testing, we are available anytime in the following manner:
Call service:
Tel +86 (755) 33231620
Generally appears in the product introduction and installation description process in this user manual
Appears in the description process beyond Chapter 1 in user manual
E-mail service: sales@szelins.com
Website service:
Website: www.szelins.com
5
H980 Series 3G Router User Manual
1.6 Acronym and term
In this user manual, the following acronyms and terms are used:
APN Access Point Name
APP Application
ATM Asynchronous Transfer Mode
ATM Auto Table Machine
AuC Authentication Centre
BG Border Gateway
BGP Border Gateway Protocol
BSC Base Station Controller
BSCC Base Station Control Connection
BSS Base Station System
BSSGP BSS GPRS Protocol
BTS Base Transceiver System
CDMA Code Division Multiple Access
CDR Call Detail Record
CGF Charging Gateway Function
CSD Circuit Switch Data
DDN Digital Data Network
DDP DTU DSC Protocol
DHCP Dynamic Host Configuration Protocol
DNS Domain Name System
DSC Data Service Center
DTU Data Terminal Unit
EGP External/Exterior Gateway Protocol
EIGRP External/Exterior Internet Group Routing Protocol
EMC Electro Magnetic Compatibility
ESP Electro Static Precautions
ETSI European Telecommunications Standards Institute
GGSN Gateway GPRS Support Node
GMSC Gateway MSC
GPRS General Packet Radio Service
GSM Global System for Mobile Communications
GSN GPRS Support Node
GTP GPRS Tunneling Protocol
GTP-id GTP Identity
6
H980 Series 3G Router User Manual
HLR Home Location Register
HSCSD High Speed Circuit Switch Data
IGMP Internet Group Management Protocol
IGRP Internet Gateway Routing Protocol
IN Intelligent Network
IP Internet Protocol
IPv4 IP version 4
IPv6 IP version 6
IPSEC IP Secure Protocol
ISDN Integrated Services Digital Network
ISP Internet Service Provider
L2TP Layer 2 Tunneling Protocol
LA Location Area
LLC Logical Link Control
MAP Mobile Application Part
MDNS Mobile Domain Name System
MDTU Mobile Data Terminal Unit
MIB Management Information Base
MS Mobile Station
MSC Mobile Switching Center
MT Mobile Terminal
MTBF Mean Time Between Failure
MTTR Mean Time To Recovery
N/A Not Applicable
NAS Network Access Server
NAT Network Address Translation
NTP Network Time Protocol
O&M Operations & Maintenance
PAP Password Authentication Protocol
PCF Packet Control Function
PDP Packet Data Protocol
PDN Packet Data Network
PDSN Packet Data Service Node
PLMN Public Land Mobile Network
POS Point of Sales
PTM-G Point-to-Multipoint Group Call
PTM-M Point-to-Multipoint Multicast
7
H980 Series 3G Router User Manual
QoS Quality of Service
RA Routing Area
RADIUS Remote Authentication Dial In User Service
RIP Routing Information Protocol
RSC Register Service Center
RTOS Real Time Operating System
RTP Real-time Transport Protocol
RTU Remote Terminal Unit
RSVP Resource reSerVation Protocol
SCADA Supervisory Control and Data Acquisition
SGSN Serving GPRS Support Node
SIM Subscriber Identify Module
SMS Short Message Service
SMSC Short Message Service Center
SNMP Simple Network Management Protocol
STK SIM Tool Kits
TCP Transmission Control Protocol
TDMA Time Division Multiple Access
TMN Telecommunication Managed Network
UDP User Datagram Protocol
UIM User Identify Module
UMTS Universal Mobile Telecommunication System
USSD Unstructured Supplementary Service Data
UTK UIM Tool Kits
VLR Visitor Location Register
WAN Wide Area Network
WAP Wireless Application Protocol
WDDN Wireless Digital Data Network
3G 3rd-Generation
TD-SCDMA Time Division-Synchronous Code Division Multiple Access
EVDO CDMA2000 1x EvolutionData Only
WCDMA Wideband Code Division Multiple Access
HSDPA High Speed Downlink Packet Access
HSUPA High speed uplink packet access
LTE Long Term Evolution
8
H980 Series 3G Router User Manual
CHAPTER 2 Product Introduction
2.1 3G overview
Combining with the third generation of mobile communication technology and WLAN technology, 3G mobile network data communication terminal product is designed as a high-tech 3G product upon the needs of users. It can provide data communication service for these users at any time and in any place.
H980 Series 3G Router is characterized with excellent transmission reliability and a wide range of applicability. It is the ideal choice for various sectors as a special data communication system.
H980 Series 3G router series includes H980 Series-RHH (HSDPA or HSUPA), H980-RVH, H980 Series-RVN (CDMA 1X and EVDO), configuration have few different.
According to customers’ demand, H980 Series used multiple kinds of modules. Include HUAWEI EM730, HUAWEI EM770, HUAWEI EM660, Serria module, ZTE module. Please do not change embedded module without authorization.
2.1.1 Product appearance
The appearance, installation position and dimension of the router are shown below. In consideration of different application sites, the installation accessories are provided on both sides. You can put it on table directly without using these accessories; while in industry, finance, public utilities and other related application sites, it is generally required to fix it with the installation accessories to comply with the industrial application requirements.
Fig. 2.1.1-1: Front Panel
9
H980 Series 3G Router User Manual
The indicators on the front panel are described as the table below:
Indicator State Description
LAN: It lights shows there is a LAN connect, flash shows
it has data communication.
NET: Indicate the status of module.
SYSTEM: It lights when router works normally.
Back panel interface
H980 Series 3G Router’s all interfaces are designed on the back panel as shown below:
3G ANT DEF LAN WAN CONSOLE USB POWER Wi-Fi ANT
Fig. 2.1.1-2: Back Panel
The interfaces on the back panel are described as below:
3G ANT: Antenna (SMA negative terminal) interface, which is able to match with
standard short antenna, vehicular antenna or directional antenna;
DEF: Reset button used for restoring the default parameters.
LAN:10/100BaseT self-adapting Ethernet interface;
WAN: used to connect wired network like ADSL modem.
CONSOLE: Serial interface used for repair the device.
USB: used for write ESN and other info into the router so it could support NON-RUIM.
POWER: DC power supply interface. (Be sure to check if the voltage of power supply is
consistent with the label on the router)
WIFI ANT: Antenna (SMA negative terminal) interface, which is able to match with
standard short antenna, vehicular antenna or directional antenna;
10
H980 Series 3G Router User Manual
2.1.2 Other Accessories
For safe transportation purpose, H980 Series 3G Router should be packaged properly. Pease keep the packaging materials well after the package is opened for future use in case of re-transportation.
Standard fittings
H980 Series 3G device 1 (packaged upon the order conditions) 3G antenna 1 WIFI antenna 1 +12V power adapter 1 User manual 1 (CD-ROM) Certificate of conformity and warranty card 1 Mounting and securing fittings 1 pair
Optional accessories
1.5m RJ45 cable High gain antenna
Check the amount of articles after open-package. Any questions, please contact us.
2.1.3 Device installation
Note: Please don’t install H980 Series 3G Router while it is powered.
2.1.3.1 Environment requirements
The system can be used under the following conditions:
Voltage : +5VDC~26VDC Power Consumption: Peak working Current: 280mA@+12VDC In time of idling: 40mA@+12VDC Operating Ambient Temperature: -30~+70ºC Storage Temperature: -40~+80ºC Relative Humidity: <95% (no condensation)
H980 Series 3G Router can be placed in office, on wall or installed or fixed in any places, without special wiring and heat radiating requirements.
To ensure the long-term and stable operation of system, grounding measures and dust-proof measures should be taken on power supply, keep ventilation and a proper room temperature.
Caution:
1. This system cannot be used under severe condition, such as acid/alkali
environment, strong magnetic field etc. In such environments, the normal operation of this system cannot be ensured. Any physical damage will not be included in the quality guarantee;
11
H980 Series 3G Router User Manual
2. This product is a Class-A information product, which may cause radio interference
in living environment when being used. In this case, the users are required to take some proper measures.
2.1.3.2 Wiring
RJ-45 - Ethernet interface
Standard 10/100BaseT Ethernet switch port, self-adaptive
DC - power supply interface, H980 Series 3G router’s power supply is generally +12VDC
ANT - antenna interface
The standard 5O/SMA RF connector (female) is applied. In the environment of some industrial applications, the lightning protection measures should be taken. You can install the lightning protection device between this connector and antenna.
Note:
1. Keep this product away from any heating source;
2. Don’t place this product in dusty or humid environment;
3. Keep it away from some possible interference sources such as metal wall,
microwave oven etc;
4. To ensure that Wi-Fi network signal is received well, please pay attention to the
position and the angle of antenna. Don’t place antenna inside the shielded metal case.
2.2 Function and features
H980 series 3G mobile data communication terminal product features platform and modularization design. Upon the different demand from the users, the platform extension, modem combination and clipping are carried out to comply with various application demands of different clients. Combination of Broadcom hardware platform with Linux-based software platform is its core advantage.
The features of full-function 3G mobile data communication terminal product include:
2.2.1 Hardware function
z SYSTEM, WLAN, WAN, LAN, RF, NET, SIGNAL indicators z Factory default configuration restoration button z Antenna interface: 50/SMA negative end z Ethernet interface: one 10/100BaseT/RJ45 self-adapting z Configuration interface: WEB
2.2.2 Software function
Supporting HSUPA/HSDPA/EDGE/GPRS or EVDO/CDMA 1x Built-in DHCP Service
12
H980 Series 3G Router User Manual
Supporting DMZ host computer Supporting DDNS Supporting static routing list Supporting IP address and port filtration Supporting monitor mobile network traffic quality. WEB/Telnet Management Local Firmware Upgrading/ Configuration Backup System Log Server
2.3 System application
Multiple application modes for H980 Series 3G Router are described as follows:
z Application Mode One: Application in video monitoring
The center-to-multipoint network generally needs to be adopted for the application mode of video monitoring. Please connect and install the router and network camera according to the following schematic diagram. Furthermore, other Ethernet interface equipment can be also connected at the video monitoring site for built-in Ethernet exchangers:
Diagram 2.3-1: Schematic diagram for video application
13
H980 Series 3G Router User Manual
z Application Mode Two: Application in SoHo
There is one built-in 10M/100M self-adapting fast Ethernet port within H980 Series 3G Router, which greatly facilitates SoHo user getting access to the internet.
Diagram 2.3-2: Schematic diagram for application in SOHO
z Application Mode Three: Application in banking business
H980 Series 3G Router is able to be connected to the target machine and other network devices at the same time. Take ATM network in the banking business for example. ATM machine needs to be connected to the host computer of bank, and at the same time, it is also connected to the video camera, and thereby monitoring the conditions around ATM machine.
14
H980 Series 3G Router User Manual
Diagram 2.3-3: Schematic diagram for application in banking business
Chapter 3 Router Configuration
3.1 Overview
H980 Series 3G Router features built-in WEB interface configuration, management and debugging tools. Before using H980 Series 3G Router, users should configure relate parameters; during using, you can freely change related parameters and perform software upgrade and simple test etc.
When you enter H980 Series 3G Router built-in WEB configuration interface, you can set and manage its parameters as described below.
15
H980 Series 3G Router User Manual
3.2 Connection settings
3.2.1 Environment requirements
When you want to use be prepared according to the following requirements:
Computer with Ethernet card and TCP/IP protocol
1. IE8.0 or higher
2. Support 1024x768 resolution display
3.2.2 Connection method
For your convenient use, we recommend you plug your SIM/UIM card into H980 Series’s card slot before your configuration. Then power on H980 Series and begin your configuration. Upon the actual conditions, connect and configure H980 Series 3G Router by the following two methods:
H980 Series 3G Router, a computer and a UIM/SIM card should
Note:
You can configure H980 Series without any card, but you may not connect to the internet until you insert a SIM/UIM card.
Warning:
Never pull or plug your SIM/UIM card when H980 Series is power on. Your card may be damaged.
Warning:
The metal casing of H980 Series 3G Router has to be well connected to the ground so as to ensure the router a safe, stable and reliable operation.
3.2.2.1 Ethernet direct connection method
Using Ethernet cable with RJ-45 connector, directly connect the computer to one of LAN ports on H980 Series 3G Router as shown in the figure below:
16
H980 Series 3G Router User Manual
Fig. 3.2.2.1: Wiring Method 1
Note: H980 Series 3G Router’s LAN port is designed with self-adaptive cross connect technology, so the straight-through cable or cross cable can be both applied to connect devices for communication.
3.2.2.2 LAN connection method
When it is required to connect H980 Series 3G Router to local network through HUB or switch, connect the hub or switch out-link port with any one of its switch ports as shown in the figure below.
Fig. 3.2.2.2: Wiring Method 2
3.2.2.3 Port connect
RJ-45 – Ethernet Interface
Self-adapting (Version 2.0 or above) standard 10/100BaseT Ethernet switching interface
ANT – antenna interface
The standard 5O/SMA radio-frequency connector (negative terminal) is adopted for use. In addition, the lightning-proof measures need to be
17
H980 Series 3G Router User Manual
adopted for some operating conditions, so you may place a lightning protection device between the connector and the antenna.
Attention:
1. The products shall be far away from any heating device;
2. Don’t place the products in the dusty or wet environment;
3. The products shall be far away from some potential interference sources, like the metal wall, and
micro-wave oven, etc;
4. Pay attention to the position and angle of antenna to ensure it works well. Don’t place the
antenna in the shielding metal box.
3.2.3 Network configuration
After the configuration environment is connected well as one of the connection methods, the local configuration computer IP address and other parameters should be set. Take the LAN connection method as an example to describe the network configuration procedure shown as below.
1. Configuration computer setting
First, enter the computer control panel of the selected computer, find “Network Connections” icon and double click it to enter, select “Local Area Connection” corresponding to the network card on this page. Refer to the figure below.
Fig. 3.2.3-1: Computer Local Connection Configuration
Enter (double click or right click) the “Local Area Connection”Æ“Property (R)” and enter the interface shown in the figure below:
18
H980 Series 3G Router User Manual
Fig. 3.2.3-2: Computer Local Connection Configuration
Select the “Internet Protocol (TCP/IP)”, click the “Properties”, and enter the interface as below:
19
H980 Series 3G Router User Manual
Fig. 3.2.3-3: TCP/IP Properties Configuration
Method 1: general configuration
This method will temporarily interrupts the communication between the computer under configuration and LAN, and the specific parameter configuration is shown as below:
IP address: 192.168.8.* (*indicates any integral between 2 to 254) Subnet mask: 255.255.255.0 Default gateway: 192.168.8.1
Remember: H980 Series 3G Router LAN port factory default parameter: IP address: 192.168.8.1; Subnet mask: 255.255.255.0 H980 Series 3G Router factory default login parameter: Management interface login IP address: 192.168.8.1 Login name: admin Login password: admin
Method 2: advanced configuration
If you don’t want to interrupt local PC LAN communication and configure H980 Series 3G Router when the former network configuration exists, it is required add route (IP).
20
H980 Series 3G Router User Manual
The configuration operation is shown as below:
Click the “Advanced (V)…”button in Fig. 3.2-5 to enter the interface as below:
Fig. 3.2.3-4: Advanced TCP/IP Properties Configuration
Click the “Add (A)”button under the “IP address (R)”, and fill in the IP address that you want to add:
Fig. 3.2.3-5: Add TCP/IP Address
After the configuration is completed, click the “Add”. By now the computer has a route to H980 Series.
21
H980 Series 3G Router User Manual
Note:
As shown in Fig. 3.2-3, “Default gateway” depends on whether the configuration computer connects with Internet through original local network configuration. If Internet is accessed through original local network, the default gateway setting does not need to be modified; if H980 Series 3G Router + is used, you need to modify the default gateway and configure it as H980 Series 3G Router’s default LAN IP address
192.168.8.1.
2. Network check
Step 1: IP configuration check
Use the command of ipconfig to check whether the IP address is correctly set or added. You can enter DOS mode and key-in command: ipconfig, for instance:
C:\>ipconfig
Windows IP Configuration
Ethernet adapter local connection:
Connection-specific DNS Suffix. : Auto configuration IP Address . . .: 192.168.8.7
Subnet Mask . . . . . . . . . . .: 255.255.255.0
Default Gateway . . . . . . . . . : 192.168.8.1
Step 2: connectivity check
After the configuration is completed, you can check the connectivity between it and H980 Series 3G Router by ping command. Key-in ping command in system command line:
Ping 192.168.8.1
If the following information appears:
Pinging 192.168.8.1 with 32 bytes of data: Reply from 192.168.8.1: bytes=32 time=2ms TTL=64 Reply from 192.168.8.1: bytes=32 time=2ms TTL=64
By now, it means that the configuration computer has been connected to the router. You can carry out configuration operation on it.
3.2.4 System login
Open the IE browser, and input http://192.168.8.1/ in address bar, as shown below:
Fig. 3.2.4-1: Web Login
22
H980 Series 3G Router User Manual
And then you can enter user login identity authentication interface as shown below:
Fig. 3.2.4-2: User Login Verification
User should use default user name and password when log in for the first time:
User name: admin Password: admin
Input correct user name and password, and enter the WEB configuration interface.
3.3 WEB-based configuration
H980 Series 3G Routers can be configured in WEB mode. The WEB-based operation features visualization and simplicity, so it is recommended to perform parameter configuration and operation in WEB mode. Connect the PC and router according to the description in the previous section. Start up IE (6.0 or higher) browser on your PC to carry out the configuration.
3.3.1 General
23
H980 Series 3G Router User Manual
Drawing 3.3.1-1: System Configuration Window
You can select the function and display the configuration window for the function after clicking on the related option on the top left corner of configuration window. Please see the following drawing:
Menu Descriptions
Drawing 3.3.1-2: Main Option Bar
The options on the main option bar are as follows:
z Internet z Local Network z Applications z Security z VPN z Forward z System Tools z Status
Move the mouse pointer onto any option, and click on it to display the related sub-options or configuration window. The functions about each sub-option and configuration window will be in detail described in the following sections.
The functions of the most common buttons are as follow:
Save: used to save the current configuration; Cancel: used for canceling the current configuration without saving; Refresh: used for refreshing the messages on the window; Return: used for returning to last window;
3.3.2 Internet
24
H980 Series 3G Router User Manual
When you click the “Internet” tab, the following sub-tabs appear on the page:
Mobile Network(Embedded Modem) Internet Connection Type
Fig. 3.3.2: Internet Configuration Tab
3.3.2.1 Mobile Network configuration
In the “Internet” main tab, click the “Mobile Network (Embedded Modem)” sub-tab to set the modem parameters and go to the following configuration interface:
Fig. 3.3.2.1-1: Mobile Network
Auto-Dialup: Set the account number of 3G network service provided by ISP. Module Modem Chat Script: Set the dial-up script chatting with Module Modem.
Select the “Customize”, and enter the dial-up script chatting with Module Modem in the input box. Normally you may select”Default”.
Service Code: Set the name of 3G network service provided by ISP. APN: Set the APN of the internet access service provided by ISP. User Name: Set the account number of 3G network service provided by ISP. Password: Set the password of account number of 3G network service provided by
ISP. Module Modem Initial Script: Set the initial script of Module Modem dial-up. Select the “Customize”, and enter the initial script of Module Modem dial-up in the input box. Normally you may select” Default”. Advanced setting: Configure advanced parameter by dialing protocol.
25
H980 Series 3G Router User Manual
Note:
“Embedded Modem” & “Module Modem” both mean the Modem embedded in H980 Series.
In the “Advanced setting” tab, it contains “PPP Advanced Settings” & “Internet Connection Type Settings”, the interface of “PPP Advanced Settings” is as below:
26
H980 Series 3G Router User Manual
Fig. 3.3.2.1-2: PPP Advanced Settings
The Net Type of ModuleDEFAULT means router will obey default option to choose network; AUTO means router will choose available network automatically; other options mean router will use certain network only.
Considering the difference of mobile network authorization, the Point to Point Protocol connection should be compatible with different network. Advanced setting is used for the PPP special setting. Click “PPP Advanced Setting” button to start settings.
Normally, it is not required to change the setting for most of networks and applications. If it is necessary, you need to be cautious in setting PPP Advanced based on the network environment. For detailed configuration, consult the local mobile operator and carry out multiple trials to achieve the best suitability.
CHAP, PAP, MS-CHAP, MS-CHAPv2are negotiation protocol types while PPP dialing. Compression Control Protocol negotiation: Set whether disable Compression Control
Protocol negotiation. 0: disable; 1: enable.
Address/Control compression: Set whether disable Address /Control compression. Protocol field compression negotiation: Set whether disable protocol field
compression negotiation VJ style TCP/IP header compress: Set whether disable Van Jacobson style TCP/IP header compress. Connection-ID compression: Set whether disable the connection-ID compression option in VJ.
Debug: Set whether enable the debug log function. Use Peer's DNS: Set whether disable Use Peer's DNS.
27
H980 Series 3G Router User Manual
LCP Echo Interval: Set LCP’s maximum interval time, in second. LCP Echo Failure: Set LCP’s maximum request times. MTU: Set the number of bytes of the maximum transfer unit. MRU: Set the number of bytes of the maximum receive unit. local IP: Set the local IP address. Remote IP: Set the remote terminal’s IP address. Other Options: Users can define their own options here.
3.3.2.2 WAN port configuration
In the “Interface” main tab, click “WAN” sub-tab and enter WAN port setting, and select internet connection method from “Mode Type” pull-down menu. The WAN port connection method is “Disable “Static IP”, “Automatic Configuration—DHCP” and “PPPoE”. Default is “Disable” that means the WAN port route function is not started. The different modes of WAN port configuration are described as shown below:
1. Static IP configuration
When the H980 and external network are connected by fixed line, select “Static IP” option, and enter the following configuration interface:
Fig. 3.3-4: static IP configuration interface
WAN port support three static IP addresses setting:
【WAN IP Address: set the primary IP address, generally depending on ISP or
the interface of the directly linked equipment.
Subnet Mask: set the subnet mask of the primary IP address. Gateway: set the gateway. it is in the same network segment as IP address,
generally provided by ISP or the interface IP address of the directly linked equipment.
【Primary DNS: set the main DNS server’s address, which can be empty.
28
H980 Series 3G Router User Manual
【Secondary DNS: set the first backup DNS server’s address, which can be
empty.
2. DHCP configuration
When select “Automatic Configuration—DHCP”, enter the following configuration interface:
Fig. 3.3-5: DHCP configuration interface
Basically this do not need configuration, router will get IP address by DHCP service.
3. PPPoE configuration
Select “PPPoE” and enter the following configuration interface:
Fig. 3.3-6: PPPoE dialing configuration
The PPPoE is the most common dialing link type provided by ISP, and the detailed configuration parameters are shown as below:
【User Name: set the account name of PPPoE service provided by ISP.
29
H980 Series 3G Router User Manual
Password: set the password of PPPoE service provided by ISP. Service Name: set the service name of PPPoE service provided by ISP. Advanced Setting: configure advanced parameters of dialing protocol.
3.3.2.3 Internet Connection Type configuration
In the “Internet” main tab, click the “Internet Connection Type” sub-tab to set the internet connection type. Some pages also have button to link to this page. Select the internet connection type from the “Connection Type” drop-down menu: “WAN”, “Modem” and “Custom”. Below, we will describe the configuration in different modes:
1. WAN configuration
2. Modem configuration
When internet access is realized by Embedded Modem, you need to select the “Modem” option and go to the following configuration interface:
30
H980 Series 3G Router User Manual
Fig. 3.3.2.2: Modem configuration Interface
DNS Customize: Set whether configure the DNS server address manually: Enable/Disable.
DNS1: Set IP address of the primary DNS server. DNS2: Set IP address of the standby DNS server. VPN Route Type: Set whether all the packets will pass through VPN even the access
to the Internet.
3. Custom configuration
This mode is used for debugging; customers do not need it normally.
3.3.2.4 Link-backup
Click the “Link-backup” sub-tab to set the Link-backup.
Fig. 3.3.2.3: Link-backup
Link-backup Status: set whether enable link-backup function. Enable VPN as Backup Link: when use backup link, also use VPN setting. ICMP Check Rule: set the parameters of ICMP check, only useful when use ICMP to
check the link availability. Link Switch Rule: There are two modes to judge the link availability, NONE means router will use PPP check, Timeout means use ICMP check. ICMP check is better but may cause extra flow fee.
31
H980 Series 3G Router User Manual
3.3.3 Local network
When you click the “Local Network” tab, the following sub-tabs appear on the page:
LAN WIFI Basic WIFI Security DHCP Server Static DHCP
Fig. 3.3.3: Local Network Configuration Interface
3.3.3.1 LAN configuration
In the “Local Network” main tab, click the “LAN” sub-tab to set the LAN port and enter the following configuration interface:
Fig. 3.3.3.1: Local LAN Configuration
In this interface, you can set the host name, local IP address and its subnet mask:
Host Name: Set the router’s host name. Local IP Address: Set the local IP address. Subnet Mask: Set the subnet mask of the local IP address.
3.3.3.2 WIFI Basic configuration
Click “WIFI Basic” sub-tab to set the basic parameter, and enter the following configuration interface:
32
H980 Series 3G Router User Manual
Fig. 3.3.3.2: Wireless configuration interface
Wireless Status: set whether wireless network function is enabled. Wireless Mode: Right now could only work as a AP. Wireless Network Mode: set which protocols will be use, Could select only use
802.11b or 802.11g. Wireless Network Name: set the name of your WIFI network. It must be unique in wireless network. wireless channel: select the wireless channel. Select a proper wireless channel from pull-down list and the router will broadcast upon selected channel. Wireless Broadcast Status: set whether enable wireless broadcast. If disable broadcast, you could not find the AP.
3.3.3.3 WIFI security configuration
Click “WIFI Security” sub-tab to set the security parameter, and enter the following configuration interface:
Fig. 3.3.3.3: WIFI Basic
Security Mode: select security mode, to connect an AP, one must use the same security mode as the AP. Encryption: Choose which way of encryption to use..
33
H980 Series 3G Router User Manual
WEP Shared Key: set the keyword of WIFI.
3.3.3.4 DHCP server configuration
In the “Local Network” main tab, click the “DHCP Server” sub-tab to set the DHCP server parameters and go to the following configuration interface:
Fig. 3.3.3.4: DHCP Configuration Interface
The configuration parameters include:
DHCP Server: Set whether enable the DHCP server function: Enable/Disable. IP Address Range: Set the range of the DHCP dynamic address pool. DHCP Reservation: Set the IP address assigned to the client manually. Click the
“IP-MAC Mapping” button to link to the Static DHCP page. Client Lease Time: Set the lease time, namely the time that the client uses the assigned IP address.
Subnet Mask: Set the subnet mask of the IP address assigned by DHCP dynamically. Gateway: Set the gateway to client assigned by DHCP: Default, Static, as same as
router’s gateway. DNS: Set the DNS server’s address: Default, Static, as same as router’s DNS.
3.3.3.5 Static DHCP configuration
In the “Local Network” main tab, click the “Static DHCP” sub-tab to set the DHCP server parameters and go to the following configuration interface:
34
H980 Series 3G Router User Manual
Fig. 3.3.3.3-1: DHCP Configuration Interface
The configuration parameters include:
Add: Map the DHCP client’s MAC address with IP. Del: Delete or release the mapping of MAC and IP. Refresh: Refresh the information on the page.
If you want to perform IP-MAC mapping, click the “Add” button to go to the following configuration interface:
Fig. 3.3.3.3-2: Static mapping Configuration Interface
MAC Address: Set the MAC address. IP Address: Set the IP address.
3.3.4 Applications
When you click the “Applications” tab, the following sub-tabs appear on the page:
DDNS Timing Operation Trigger On-line Data ICMP Check DTU Interface Check
35
H980 Series 3G Router User Manual
Fig. 3.3.4: Applications Configuration Tab
3.3.4.1 DDNS configuration
The router is designed with DDNS (Dynamic Domain System) function which can make others to search the dynamic IP address by internet domain.
In the “Application” main tab, click the “DDNS” sub-tab to set DDNS parameters and go to the following configuration interface:
Fig. 3.3.4.1: DDNS Configuration Interface
DDNS configuration parameters include:
DDNS Server: Set whether enable DDNS service function: Enable/Disable. Service Provider: Select the DDNS service provider that router currently supports.
Domestic DDNS service provider: 88IP (www.88ip.net), 3322 (www.3322.org); oversea DDNS service provider: DNSEXIT (www.dnsexit.com), ZONEEDIT (www.zoneedti.com), CHANGEIP (www.changeip.com), Dyndns (members.dyndns.org); you can also select”custom” and choose your own DDNS service provider if it is not listed above. Server Port: Set the port number of the DDNS server provided by the service provider. The default port number is 80. User Name: Set the legal user name of the DDNS service registered in the service provider. Password: Set the password of the legal user name of the DDNS service registered in the service provider.
User Domain: Set the domain of the DDNS service provided by the service provider. Update Interval: Set the interval of the DDNS client obtains new IP, in second.
3.3.4.2 Timing Operation configuration
In the “Applications” main tab, click the “Timing Operation” sub-tab to set the Timing Operation parameters and go to the following configuration interface:
36
H980 Series 3G Router User Manual
Fig. 3.3.4.2-1: Time Operation Interface
The configuration parameters include:
Add: Add the Timing Operation operated at certain time. Refresh: Refresh the information on the page. Edit: Edit selected Timing Operation. Del: Delete Timing Operation.
If you want to add the Timing Operation, click the “Add” button to go to the following configuration interface:
Fig. 3.3.4.2-2: Timing Operation Configuration Interface
Timing Operation configuration parameters include:
Name: Set the name of new Timing Operation. Status: Set whether enable the Timing Operation. Action: Decide execute which type of operation. There are three kinds: online,
offline, reboot. (Command is unviable temporarily).
37
H980 Series 3G Router User Manual
Set Time: We have five types of time: minute, hour, day, month and week. All you
need processing the time is to fill each type with valid value. When setting, for each type of time, you need to split the different value with ",", and you can use "xx-xx" to represent a period of time. For instance, you can input the minute like this: 1, 2, 5, 10-59. Other types are as the same.
3.3.4.3 ICMP Check configuration
In the “Applications” main tab, click the “ICMP Check” sub-tab to set the ICMP Check parameters and go to the following configuration interface:
Fig. 3.3.4.4:
Trigger On-line Data parameters include:
ICMP Check Interface
ICMP Check Service: Set whether enable the ICMP Check Service. ICMP Check Address: Set the address used to send ICMP pack to. ICMP Max Send Times: Set how many times ICMP pack will be send. Interval: Set the interval of ICMP packs. ICMP Check Timeout: Set how many seconds ICMP check will fail if no response.
3.3.4.4 Interface Check
In the “Applications” main tab, click the “Interface Check” sub-tab to set the interface parameters and go to the following configuration interface:
38
H980 Series 3G Router User Manual
Fig. 3.3.4.5: Interface Check
Interface Inspecting: Set whether enable the Interface Inspecting. Interface Name: Set which interface will be check. Flow Direction: the way to check data flow. Inspect Interval Time: Set the interval of check.
Caution:
This function is used for avoid false connection. If enable it, when there is no data flow after a certain time, router will reboot itself. This certain time is 5 times of Inspect Interval Time. So if your application does not have data flow frequently, do not enable this function. (ICMP send by router will not be checked, but received data could be checked.)
3.3.5 Security
When you click the “Security” tab, the following sub-tabs appear on the page:
39
H980 Series 3G Router User Manual
Fig. 3.3.5-1: Security Setting Interface
The configuration parameters include:
Firewall Service: Set whether enable firewall function: Enable/Disable. Default Action: Set the default action of the firewall: “Accept” means the router
accepts other packets by default; “Drop” means the router drops other packets by default.
PING Accept: Set whether allow PING router from outside. Remote HTTP Access: Set whether enable the remote WEB management function.
The following buttons can be used to add or delete the firewall rules:
Edit: Edit the set firewall rules. Del: Delete the set firewall rules.
Click the “Add” to go to the following configuration interface:
Fig. 3.3.5-2: Filter Setting Interface
40
H980 Series 3G Router User Manual
You can choose filter type here: IP filter rules or MAC filter rules. Select the “IP Filter” to go to the following configuration interface:
Fig. 3.3.5-3: Firewall Setting Interface
The configuration parameters include:
ID: Set the identification of the firewall rule, generally using a name with meanings. Protocol: Select the protocol of the firewall rule. Source IP/Mask: Set the source IP address of the firewall rule, may be one IP
address or one network segment, e.g.: 192.168.0.0/24. Source Port: Set the source port number of the firewall rule. More than one port number may be set, e.g. 13, 15, 100-150. Destination IP: Set the destination IP address of the firewall rule. It must be one unique IP address. Destination Port: Set the destination port number of the firewall rule. More than one port number may be set, e.g. 50, 75-90.
Action: Select the actions to this rule of the firewall: Accept, Drop, Reject. Status: Set whether enable this filter rule: Enable/Disable.
Select the “MAC Filter” to go to the following configuration interface:
41
H980 Series 3G Router User Manual
Fig. 3.3.5-4: Firewall Setting Interface
MAC Address: Set the MAC address. Action: Select the actions to this rule of the firewall: Accept, Drop, Reject. Status: Set whether enable this filter rule: Enable/Disable.
3.3.6 VPN
If you click the VPN tab, the following sub-tabs appear on the page:
L2TP PPTP GRE IPsec
Fig. 3.3.6: VPN Setting Interface
3.3.6.1 L2TP configuration
Fig. 3.3.6.1-1: L2TP Setting Interface
Edit: Edit the L2TP setting. Del: Delete the L2TP setting. View: view the status of L2TP, including Received Packets(TX), Received Errors
Packets, Received Drops Packets, Received Bytes(RX), Send Packets(STX), Send Errors Packets, Send Drops Packet, Send Bytes(SRX). VPN Route Type: Link to the sub-page: Internet Connection Type.
Click the “Add” tab; the following sub-tabs appear on the page:
42
H980 Series 3G Router User Manual
Fig. 3.3.6.1-2: L2TP Setting Interface
L2TP configuration parameters include:
Name: Set a name for this L2TP connect. Status: Set whether enable this L2TP: Enable/Disable. Server IP or Domain: Input Server IP or Domain of the VPN service provider. User Name: Set the user name provided by the VPN SP. Password: Set the password provided by the VPN SP. PPP Configures: Please see Chapter 3.3.2.1 as a reference.
3.3.6.2 PPTP configuration
Fig. 3.3.6.2-1: PPTP Setting Interface
Edit: Edit the PPTP setting. Del: Delete the PPTP setting.
43
H980 Series 3G Router User Manual
View: View the status of PPTP, including Received Packets (TX), Received Errors
Packets, Received Drops Packets, Received Bytes (RX), Send Packets (STX), Send Errors Packets, Send Drops Packet, and Send Bytes (SRX). VPN Route Type: Link to the sub-page: Internet Connection Type.
Click the “Add” tab; the following sub-tabs appear on the page:
Fig. 3.3.6.2-2: PPTP Setting Interface
PPTP configuration parameters include:
Name: Set a name for this PPTP connect. Status: Set whether enable this PPTP: Enable/Disable. Server IP or Domain: Input Server IP or Domain of the VPN service provider. User Name: Set the user name provided by the VPN SP. Password: Set the password provided by the VPN SP. PPP Configures: Please see Chapter 3.3.2.1 as a reference.
44
H980 Series 3G Router User Manual
3.3.6.3 GRE configuration
Fig. 3.3.6.3-1: GRE Setting Interface
Edit: Edit the PPTP setting. Del: Delete the PPTP setting. View: View the status of PPTP, including Received Packets (TX), Received Errors
Packets, Received Drops Packets, Received Bytes (RX), Send Packets (STX), Send Errors Packets, Send Drops Packet, and Send Bytes (SRX). VPN Route Type: Link to the sub-page: Internet Connection Type.
Click “Add”, and enter link GRE tunneling configuration interface.
Fig. 3.3.6.3-2: GRE Setting Interface
Status: Set whether the GRE is enabled. Two statuses are available: Enable
(enable), Disable (disable).
Peer Extern IP: Set the peer IP address.Peer Inner IP: Set the peer subnet
45
H980 Series 3G Router User Manual
3.3.6.4 IPsec configuration
Fig. 3.3.6.4-1: IPsec Setting Interface
Edit: Edit the PPTP setting. Del: Delete the PPTP setting. View: View the status of PPTP, including Received Packets (TX), Received Errors
Packets, Received Drops Packets, Received Bytes (RX), Send Packets (STX), Send Errors Packets, Send Drops Packet, and Send Bytes (SRX).
Click “Add”, and enter link GRE tunneling configuration interface.
Fig. 3.3.6.4-2: IPsec Setting Interface
Please configure these parameters according to your demand and
46
H980 Series 3G Router User Manual
circumstance to constitution Interface, Local Subnet, Peer Subnet, the Encrypt Type, Authorization, the related parameter of Password etc., be you usage static state ip address, Local ID and Peer ID don't fill.
3.3.7 Forward
When you click the “Forward” tab, the following sub-tabs appear on the page:
NAT & DMZ Static Route
Fig. 3.3.7: Forward Tab
3.3.7.1 Nat & DMZ configuration
In the “Forward” main tab, click the “NAT&DMZ” sub-tab to set the route mode, NAT and DMZ functions and go to the following configuration interface:

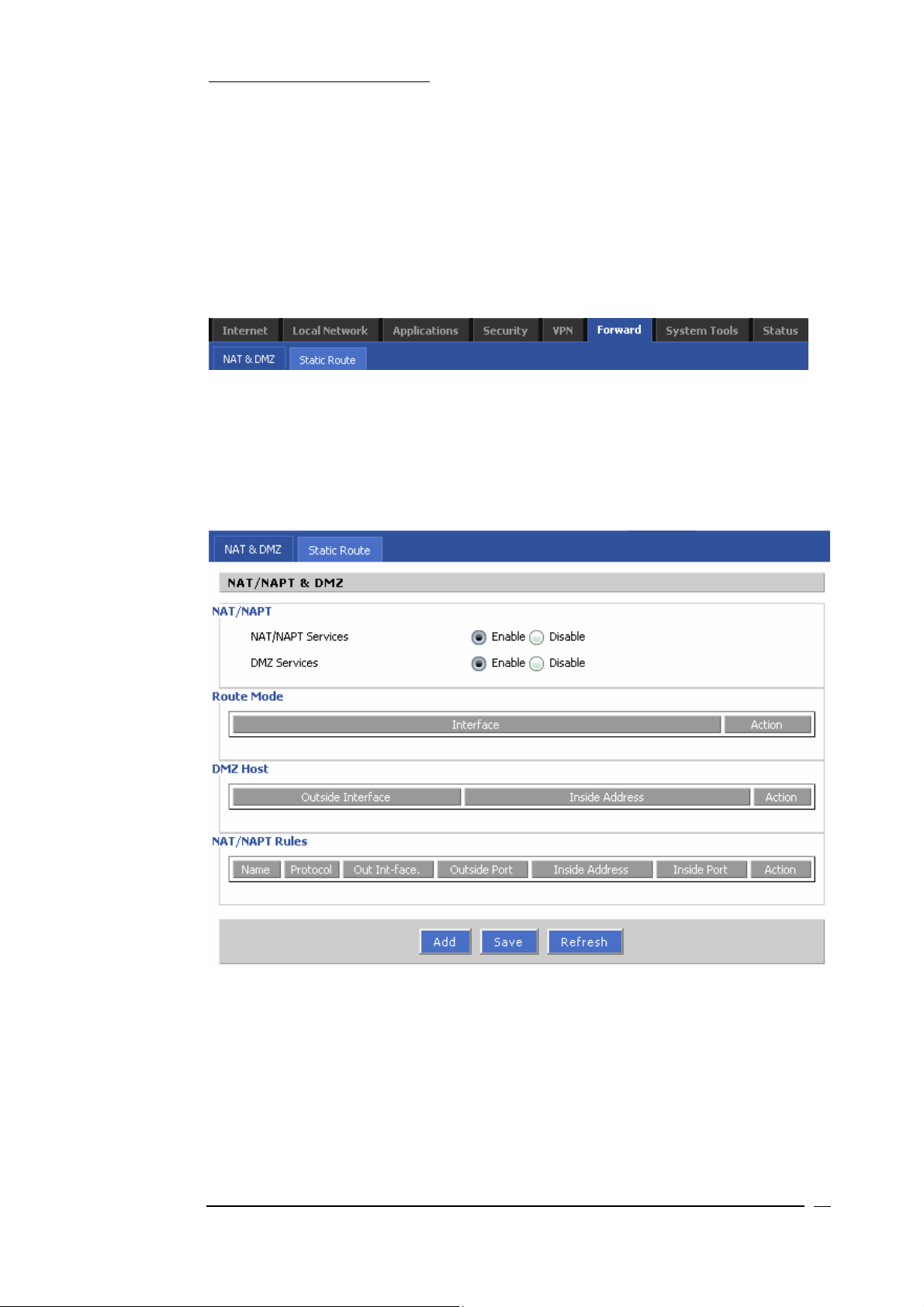

Fig. 3.3.7.1-1: NAT&DMZ Setting Interface
NAT&DMZ configuration parameters include:
NAT/NAPT Services】 【DMZ Services
: Set whether enable NAT/NAPT function: Enable/Disable.
: Set whether enable DMZ function: Enable/Disable.
Click the “Add” to go to the following configuration interface:
47
H980 Series 3G Router User Manual
Fig. 3.3.7.1-2: NAT&DMZ Setting Interface
Select: Select which data forward rule to be added.
1. Route mode setting
Select the “Route Mode” option to go to the following configuration interface:
Fig. 3.3.7.1-3: NAT&DMZ Setting Interface
Route Mode configuration parameters include:
Interface:On selected interface, the source IP of packets pass through H980 Series would not be replaced to H980 Series’s IP, the destination machine can see the source IP directly.
Note:
Normally you may not need this option except for some certain application.
2. DMZ setting
Select the “DMZ” option to go to the following configuration interface:
48
H980 Series 3G Router User Manual
Fig. 3.3.7.1-4: DMZ Setting Interface
DMZ configuration parameters include:
Outside Interface】 【Inside Address
: Set the interface on which the DMZ function acts.
: Set the IP address of the host assigned by DMZ record.
3. NAT setting
To configure the NAT function, you need to go to the following configuration interface:
Fig. 3.3.7.1-5: NAT Setting Interface
NAT configuration parameters include:
Name: Set the name mapped by NAT port. Protocol: Set the protocol mapped by NAT port. Outside Interface: Select the interface on which NAT function acts. Outside Port: Set the outside port number mapped by NAT port. Inside Address: Set the IP address of LAN host mapped by NAT port. Inside Port: Set the port number of LAN host mapped by NAT port.
49
H980 Series 3G Router User Manual
3.3.7.2 Static route configuration
In the “Forward” main tab, click the “Static Route” sub-tab to set the static route parameters and go to the following configuration interface:
Fig. 3.3.7.2-1: Static Route Configuration Interface
The configuration parameters include:
View Route Table: View the current system’s route table. Add: Add new static routes. Refresh: Refresh the information on the page.
To add the static route, click the “Add” button and go to the following configuration interface:
Fig. 3.3.7.2-2: Static Route Configuration Interface
The static route’s configuration parameters include:
Destination IP: Configure the destination network address of this static route. Subnet Mask: Configure the subnet mask of the destination address of this static
route.
50
H980 Series 3G Router User Manual
Gateway: Configure the next IP address of this static route, namely the port address of the neighboring router. Interface: Specify the interface on which the static route acts.
3.3.8 System tools
When you click the “System Tools” tab, the following sub-tabs appear on the page:
Local Log System Log Clock Account Backup Firmware Upgrade
System Reboot
Fig. 3.3.8: System Tools Tab
3.3.8.1 Local Log information
In the “System Tools” main tab, click the “Local Log” sub-tab to view the log information and go to the following configuration interface:
Fig. 3.3.8.1: Log View Interface
Log view settings include:
System Log: Set the type of log to be displayed.
After selecting the log type, you can make the following operations:
51
H980 Series 3G Router User Manual
Show: Display log in the Log Table. Clear: Clear the log in the Log Table.
Log display:
Log Table: Display the system log information in the table.
3.3.8.2 System Log function
In the “System Tools” main tab, click the “System Log” sub-tab to set the log function and go to the following configuration interface:
Fig. 3.3.8.2: System Log Management Interface
The system log configuration parameters include:
Local Log Status: Set whether enable local log function: Enable/Disable. Remote Log Status: Set whether enable remote log function: Enable/Disable. After
this function is enabled, the router will send the log information to the configured remote PC. Remote IP: Set the IP address of the remote server, generally the IP address of the PC that receives the log information. Remote Port: Set the port number of the remote server.
Note:
For the success of remote log receive, the remote log server must be started.
3.3.8.3 System clock
In the “System Tools” main tab, click the “Clock” sub-tab to set the system’s clock function. Time Synch. Type option is the method to synchronize the system time: NTP and Manual.
52
H980 Series 3G Router User Manual
Select the Manual to set the time manually.
Select the NTP to go to the following configuration interface:
Fig. 3.3.8.3: Clock Configuration Interface
The system clock configuration parameters include:
NTP Server IP: Set the domain or IP address of the NTP server. NTP Synch. Interval: Set the interval of the router making NTP synchronization in
successive two times. Time Zone: Set the time zone.
3.3.8.4 Account setting
The router provides the user with the power to modify the password, In the “System Tools” main tab, click the “Account” sub-tab to set the account management function and go to the following configuration interface:
Fig. 3.3.8.4: Account Interface
The system clock configuration parameters include:
Input New Password: Input your new password. Please Input New Password Again:Input your new password again
Then you need to log in to the router again.
53
H980 Series 3G Router User Manual
3.3.8.5 Backup
In the “System Tools” main tab, click the “Backup” sub-tab to set the backup function. The configuration interface consists of two parts: the first part is parameters backup, namely send the parameters configuration information from the router to PC; the second part is parameters restoration, namely send the parameters configuration information from PC to the router.
1. Backup configuration
See the figure below:
Fig. 3.3.8.5-1: Backup Configuration Interface
Select the parameter type to backup in the selection box. The backup configuration parameters include:
Backup All: Set the backup all operation. Backup: Select parameter items to backup from the “Please choose the item to
backup” drop-down list, and select the storage path to back up the configured parameters information. Cancel: Cancel the operation in the selection box.
2. Restore configuration
See the figure below:
Fig. 3.3.8.5-2: Restoration Configuration Interface
The configuration file restoration operations include:
Select: Select the location where the parameters file to be imported is located.
54
H980 Series 3G Router User Manual
Restore: Import the parameters. Cancel: Cancel the information in the address input box.
3.3.8.6 Firmware upgrade
In the “System Tools” main tab, click the “Firmware Upgrade” sub-tab to use the software upgrade function and go to the following interface:
Fig. 3.3.8.6: Upgrade Management Interface
The upgrade configuration parameters include:
Select: Select the location of the upgrade software. upgrade: Start firmware upgrade. Cancel: Cancel the unsaved configuration. Refresh: Refresh the information on the page.
Note: In the upgrade process, don’t cut off the power supply or disconnect the communication connection between PC and router! After the upgrade succeeds, please reboot IE browser and router.
3.3.8.7 System reboot
In the “System Tools” main tab, click the “System Reboot” sub-tab to use the system reboot function and go to the following interface:
Fig. 3.3.8.7: System Reboot Interface
The reboot configuration parameters include:
55
H980 Series 3G Router User Manual
Reboot: Reboot the system.
After reboot the router, please reboot the browser.
3.3.9 Status display
When you click the “Status” tab, the following sub-tabs appear on the page:
Base Information LAN WAN Embedded Modem Route Table DHCP Client
Fig. 3.3.9: Status Information Tab
Tab description:
Base Information: Display the system information. LAN: Display LAN port’s running information. WAN: Display WAN port’s running information. Embedded Modem: Display USB wireless network’s running information. Route Table: Display the route table information. DHCP Client: Display the DHCP Client information.
56
H980 Series 3G Router User Manual
Chapter 4 Frequently Asked Questions (FAQ)
4.1 Fault analysis
Fault 1: All indicators are off.
Check whether the cables are connected correctly. Meanwhile, check whether the power supply complies with the requirements. H980 Series 3G Router’s label indicates the detailed requirements regarding the power supply voltage. Check whether the power supply voltage is identical with that specified in the label.
If the input voltage is correct, but all indicators are off, maybe the device fails. Please contact your sales representative.
Fault 2: Unstable phenomenon appears after working for a long time.
Check whether the device is overheated. If it is overheated, put the device in a ventilated place.
Fault 3: The device doesn’t execute self-checking.
Make sure the power supply is correct.
Fault 4: How to resolve the problem if the following information appears when you ping the router?
Pinging 192.168.8.1 with 32 bytes of data: Request timed out.
Such information indicates that error occurs in the installation process. You must check the followings in sequence:
9 Whether PC is connected with H980 Series 3G Router correctly by Ethernet
cable? (Note: H980 Series Router’s LINK indicator and PC’s Link indicator must be on).
9 Whether PC’s TCP/IP environment is configured correctly?
(Note: If H980 Series Router’s IP address is 192.168.8.1, PC’s IP address
For more check, click the relevant menu and enter the DOS interface. Type the command: ipconfig, and press the Enter key, for example:
must be 192.168.8.xxx).
H980 Series 3G Router User Manual
C:\>ipconfig
Windows IP Configuration
Ethernet adapter local connection:
Connection-specific DNS Suffix. . . . :
IP Address . . . . . . . . . . . . . . . . . . . : 192.168.8.48
Subnet Mask . . . . . . . . . . . . . . . . . : 255.255.255.0
IP Address . . . . . . . . . . . . . . . . . . : 192.168.0.48
Subnet Mask . . . . . . . . . . . . . . . . . : 255.255.255.0
Default Gateway . . . . . . . . . . . . . . : 192.168.0.254
(Type the command: ipconfig? to get more operation help regarding ipconfig command).
H980 Series 3G Router User Manual
Appendix: Software Upgrade Description
Upgrade tool description and operating instructions
H980 Series 3G Router is designed with the platform technology, whose software can be upgraded with the development of the communication and network technology.
WEB upgrade:
H980 Series 3G Router supports the function of upgrading the firmware directly by importing the upgrade file via the WEB configuration interface. Log in the WEB configuration page by means of entering the router’s IP address (LAN port or WAN port) in the browser’s address bar. Click System Tools -> Firmware Upgrade, to go to the Web firmware upgrade interface. Click the Browse key to find the corresponding upgrade file. Click the Save button to upgrade the firmware.
In the process of upgrade, don’t make any other operation to the Web configuration page. Otherwise, the upgrade may fail, which may make the router fails. After the upgrade, this Web page will prompt that the upgrade succeeds or fails. If upgrade fails, you can repeat the above operations again to upgrade the firmware.
Note:
1. In the software upgrade process never cut off the power supply or disconnect the communication between the PC and the router.
59
Loading...
