About this document
Purpose
This document is for Network Video Recorders, including the product features,
hardware installation, network access, network configuration, daily maintenance, and
troubleshooting.
Intended Audience
This document is intended for:
Technical support engineer
Maintenance engineer
Symbol Conventions
This symbol may be founded in this document are defined as follows:
Symbol description
Alerts you to a high risk hazard that could, if not avoided.
Alerts you to a medium or low hazard that could, if not
avoid, result in moderate or minor in injury.
Alerts you to a potentially hazard situation that could, if not
avoid, result in damage, data loss, performance
deterioration, or unanticipated results.
Provide a tip that may help you solve a problem or save
time.
Provides additional information to emphasize or
supplement important points in the main text.
Special Notices
When using video surveillance products, comply with applicable statutory and
regulatory requirement to enable and maintain legal surveillance device. It is illegal for
company or person to install surveillance devices in an office to monitor employees
outside scope of local law, or use surveillance devices to invade other people’s privacy
with illegal purposes.
Contents
About this document .................................................................................................. 2
Contents ........................................................................................................................ 3
1 Preface ........................................................................................................................ 5
1.1 Important note ................................................................................................................ 5
1.2 About this manual........................................................................................................... 5
1.3 Check the installation environment ................................................................................ 6
2 Specification ............................................................................................................. 7
3 Operation instruction .............................................................................................. 9
3.1 Front panel description ................................................................................................... 9
3.2 Rear panel description ................................................................ .................................. 10
3.3 First boot ....................................................................................................................... 11
3.4 Shutdown ..................................................................................................................... 12
3.5 Displayer resolution adjustment ................................................................................... 12
3.6 Add Network cameras .................................................................................................. 14
3.7 Login ............................................................................................................................ 15
3.8 Web access ................................................................................................................... 16
4 Quick configuration .............................................................................................. 18
5 Live video ................................................................................................................ 24
6 Playback................................................................................................................... 28
6.1 Recording playback ...................................................................................................... 28
6.2 Recording backup ......................................................................................................... 29
7 Alarm searching ..................................................................................................... 33
8 Setup ........................................................................................................................ 35
8.1 NVR setup .................................................................................................................... 35
8.2 Camera management .................................................................................................... 48
9 Web Browser Access NVR ................................................................................... 49
9.1 Login ............................................................................................................................ 49
9.2 Operation Read ............................................................................................................. 50
9.3 Live Video .................................................................................................................... 52
9.4 Playback ....................................................................................................................... 53
eLineTechnology.com
-4- -5-
9.5 Alarm Search ................................................................................................................ 55
9.6 NVR setup .................................................................................................................... 55
9.7 Network Camera setup ................................................................................................. 56
10 NVMS Access NVR ............................................................................................. 57
10.1 Start and Run .............................................................................................................. 57
10.2 Login .......................................................................................................................... 57
10.3 System main interface ................................................................................................ 58
10.4 NVR management ...................................................................................................... 58
10.5 Playback ..................................................................................................................... 66
1 Preface
1.1 Important note
Thank you for choosing our Network Video Recorder (NVR). Please read this user
manual carefully before using NVR.
Network Video Recorder (NVR) is a complicated system equipment. For avoid any
fault caused by installation, debugging, operation and environment causes, please read
below important note:
Read this manual carefully before installation.
In view of the different brands and models of hard disk in the current market, we
recommend using SEAGATE and WESTERN Digital with high stability and high
performance-price ratio.
Never open the device cover and dissemble the device by nonprofessional person,
otherwise may cause damaging and electric shocking.
Video data lost caused by installation, configuration, improper operations, and hard
disk error is born by the buyer.
1.2 About this manual
Before you use this manual, please read below declarations carefully:
This manual is intended for NVR user.
This manual content is suitable for NVR.
This manual gives example to explain NVR operation details and performance
index.
Before using NVR, please read this manual carefully and follow the steps to install
and use.
For any questions during using the NVR, contact service center. The device may be
upgraded without prior notice.
eLineTechnology.com
-6- -7-
1.3 Check the installation environment
Installation environment
Before installing the device, checking the environment according to the
Table 1-1 Installation environment check items
Check item standard
Moisture-resistant The relative environment humidity must be in the range from
5% to 95%. If the humidity is higher than 95%, a dehumidifier
must be installed, such as an air conditioner with the
dehumidification function or a dedicated.
Dehumidifier. In addition, water seepage, water dropping, and
dew forming and not allowed.
Dustproof If the office block is near the source of dust, such as the
colliery, country install for the offices, and anti-burglary and
fireproofing doors must be installed for the equipment room.
Lightproof The device must be installed in the environment that is not
shined by a strong light, delaying the aging of the device
enclosure.
Installation notice
During the installation, please notice:
NVR power input voltage is DC12V（±5%）. The supply voltage must meet the
input voltage, can’t be higher or lower.
NVR installation should be kept horizontal.
NVR installation should avoid direct sunlight, and keep away from heat and high
temperature environment.
Make sure connects NVR with other equipment’s normally.
Install the Hard Disk when use NVR first time.
NVR can automatically identify the hard drive capacity, support current market
mainly models. But for NVR work stable we advise to use good brand hard disk.
Others
Please use a soft and dry cloth to clean NVR, do not use chemical solvents.
Don’t put other things on NVR.
NVR is standard of electromagnetic radiation, no harm to human body.
2 Specification
System
CPU
SOC (System-on-chip)
Operating
system
Embedded Linux 2.6
Features Watchdog technology, automatic fault reset; quickly configure, easy to use
Vide o
Record
4 x 1080P Network Camera (average stream 6Mbps)
Or 6-channel 720P Network Camera (average stream 4Mbps)
Or 12-channel D1 Network Camera (average stream 2Mbps)
Largest video capacity does not exceed the total bandwidth of 24Mbps
Ability to
decode
H.264 (ISO / IEC 14496-10) high profile 4.2
Can decode 1080P video streaming
Real-time
video
Single screen: 1x1080P/720P/D1
Four pictures: 4xD1
Six screen: 6xD1
Graphical
interface
Resolution
VGA: resolution including 1024x768/1280x1024/1600x1200
HDMI: Resolution including 1920x1080P/1280x720P
Storage
HDD Two external-swappable hard disk , maximum 2x2TB hard drive supported
eLineTechnology.com
-8- -9-
Recording
time
D1: stream 2 Mbit / s 2M x 3600s / 8 = 900MB / H (1 hour using 900MB of
disk space)
720P: stream 4Mbit / s, 4M x 3600s / 8 = 1.8GB / H
1080P: Maximum stream 6Mbit / s, 6M x 3600s / 8 = 2.7GB / H
2 2T Hard Drive: 4 x 1080P can be kept for 15 days; 6 x 720P can be kept for
15 days; 12-channel D1 can be kept for 15 days
Audio
Audio output
Line Out, Audio interface output from the rear panel.
Audio
formats
G711，G723.1，8K，16bits Sampling
Network
Transmission
control
Embedded network bandwidth adaptive flow control technology.
Web
Web server supported with Flash technology for and popular browsers in
real-time monitoring and video playback, and system configuration.
Network
protocol
RTP/RTCP, TCP/UDP, HTTP, DHCP, DNS Client
Characteristic
Temperature
Ambient temperature: -10 ° C -45 ° C, using industrial grade microprocessor,
intelligent heating and cooling
Humidity: 20% to 80%
Power
consumption
With two 2T hard drive to increase 18W low-power design, the motherboard's
maximum power consumption of 6W;
Power input DC 12V±5% 5A
Thermal The main chip heat sink, plus intelligent temperature controlled fans.
Size
Chassis：220mm x 150mm x 100mm（L x W x H）
3 Operation instruction
3.1 Front panel description
Figure 3-1 shows the front panel of the Network Video recorders. Table 3-1 shows the
description of front panel.
Figure 3-1 Front panel
Table 3-1 Front panel description
No. Name Description
1 HDD Enclosure For fixed hard
2 HDD LED Hard normal solid red status.
3
The key to open
/ power
indicator
Open, close, NVR, NVR is turned on the power light is
solid red power light flashes red NVR Close.
4
Network
indicator
Flashing green network connection is normal.
5 Alarm indicator Reserved for future use.
6 USB interface External mouse, keyboard, mobile hard disk.
eLineTechnology.com
-10- -11-
3.2 Rear panel description
Figure 3-2 shows the rear panel of the Network Video recorders. Table 3-2 shows the
interface of rear panel.
Figure 3-2 Rear panel
Table 3-2 Real panel description
No. Name Description
1
Cooling fan
Start automatically when the temperature is too
high.
2 Power switch Turn on or turn off the power.
3
Power Interface DV12V, 5A power.
4 Audio output 3.5mm Mono audio.
5
HDMI output HDMI video output interface.
6 VGA output VGA DB15 video output interface.
7
RST button Restores the factory default settings. 5 second holds.
8 Network Interface RJ45 100Mbps network interface.
3.3 First boot
Make sure that the right of access to power NVR.
Ensure correct display HDMI or VGA interface connection.
If the front panel of the power indicator lamp does not flash please plug in the power
cable .Enable the power switch, NVR start running. If the front panel power indicator
lamp flashing Red light, please put the switch at front panel to start device.
After the device starts, the power light is solid red device starts after the self-test, and
the test results are displayed on the screen. Show in Figure 3-3. Entire boot process
takes about two minutes.
Figure 3-3 Device power on
When an exception occurs when the device self-test, this interface will stay in the lower
right of the screen, you can choose to continue or shutdown. If you choose to continue,
the device will continue to start, until the device login screen is shown.
NVR hard drive has rigorous testing, if fails, the reasons may include the following：
Unformatted new hard disk. Go to quickly configure the hard disk is formatted。
Formatted hard drive, the NVR supported file systems do not match。
Hard disk is damaged。
eLineTechnology.com
-12- -13-
3.4 Shutdown
If the equipment is not load, long press the PWR button on the front panel for more
than three seconds, the device will shut down, solid red becomes red flashing power
indicator panel after a successfully shut down.
Shutdown process, the system prompts are off, do not cut off the power。
Equipment running directly through the rear panel power off switch, cut off the
power or unplug the power cord should be avoided.
In some circumstances, the power supply is not normal, will lead to the NVR not to
work properly, serious damage can occur to the NVR. In this environment, it is
recommended to use regulated power supply, or a backup AC source.
If the device is logged into the main interface, you can click the top right
Button or long press the PWR button on the front panel for more than three seconds
will bring up the shutdown interface, shown in Figure 3-4Interface.
Figure 3-4 Shutdown interface
3.5 Displayer resolution adjustment
NVR support resolutions with VGA 1024*768, VGA 1280*1024, VGA1600*1200,
HDMI720P, HDMI1080P, you can select the proper resolution according your
displayer.
For display using VGA set to 1024*768 or VGA 12 80*1024. When using HDMI input we
advise to use HDMI 1080P.
Adjustment Steps:
Step 1 Click Change on login interface and find the adjustment interface shown in Figure 3-5.
Figure 3-5 Adjust displayer
Step 2 Choose the type of resolution in the resolution of the drop-down box.
Device will automatically switch to the selected resolution and show the dialog for Yes
or Cancel.
If no operate in 10 seconds, displayer will back to previous resolution.
If select Yes then will switch to the selected resolution.
If select cancel display will not save the configuration and back to previous
resolution.
Step 3 Adjust display.
If displayer couldn’t show the full screen (at the corners can’t see
) then we need to
adjust the displayer (we advise to auto adjust first )
1. Click Adjustment button at lower right corner.
2. In the step of the drop-down box to choose the adjustment step.
Step: The moving distance when adjust screen each times , the greater number the
more moving distance, you can select the larger step sizes to adjust sketchy, and
then select the smaller step tuning.
3. Use UP, DOWN, LEFTRIGHT button to adjust the screen.
Step 4 Click the configuration interface
to close.
Exist displayer interface
eLineTechnology.com
-14- -15-
Back to Login interface
----END
3.6 Add Network cameras
This NVR allow to connect maximum12 pcs network cameras. Recording baud rate
totally is 24Mbps and live video total baud rate is 12bps.
NVR maximum support to connect 12 pcs D1 resolution with average bard rate is
2Mbps network camera, If total baud rate more than 24Mbps it may cause NVR to
lose video and not run stable.
When Add HD IP camera, it can be added by reduction the number of channel or
the camera baud rate.
Detail Specifications please refer to 2 Specifications
Add Network camera
Option One：Private Network Setup
Method 1: NVR will discover the network camera automatically.
Camcorder network is a network exists only network cameras and NVR, there is no other
network equipment, and this network is dedicated to th e NVR and network cameras, audio
and video transm ission. Dedicat ed camera network mu st be connected with t he NVR LAN2,
and ensure that the LAN2 camera network functions are enabled (factory default enabled
detailed configuration, see "Network Video Recorder User Manual quick configuration
through LAN1 access NVR.
LAN2 Camera dedicated network function is enabled，NVR functions as：
Enable DHCP service automatically assigns IP addresses to network cameras (network
cameras enable DHCP function).
Automatic network search network camera.
Search to automatically add network cameras, and enable 24 * 7 hours of video
Private Network Setup is default open.
The camera dedicated network topology shown in Figure 3-6.
Figure 3-6 Camera dedicated net work
Method 2: Add the camera manually.
Discover the net work camera we can discover by broad cast, IP segment search, and pointed
IP search. Network camera have to be pointed IP first and stay with a same sub network
segment.
3.7 Login
Login to the equipment using the following steps：
Step 1 In the login screen shown in Figure 3-1, enter a user name, password.
eLineTechnology.com
-16- -17-
Figure 3-1 Login screen
Step 2 Click Login.
Enter the main interface.
---- End
3.8 Web access
NVR Web Server, built-in Flash technology supports IE, Chrome, Firefox, Safari and
other popular browsers. Can be quickly be configured through the Web, live preview,
video playback, alarm retrieval, NVR configuration, camera configuration and other
operations.
The NVR default IP address is: network port 1 is 192.168.0.120, network port 2:
192.168.1.120. You can use a Web browser to access the IP address in the address bar
input device, such as: connection through the Ethernet port 1, enter：
http://192.168.0.120
Web access, please confirm that the network is properly connected, and the
network is unobstructed, and you use the correct IP address
The system must have the flash player installed before main system can be used.

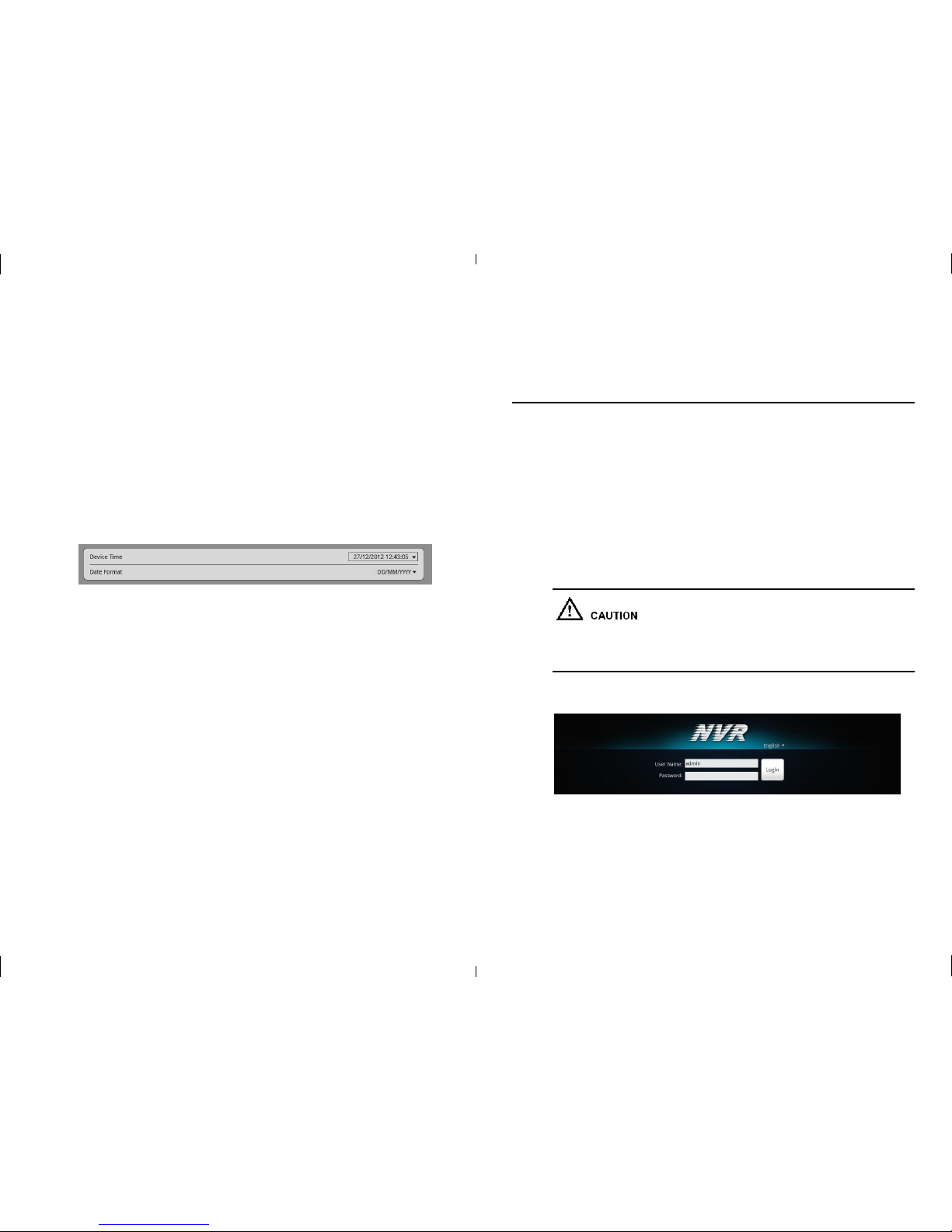

Into the NVR Web login screen shown in Figure 3-2.
Figure 3-2 NVR login interface
Enter a user name and password into the login screen to enter the main page.
Super user: admin, super user password: admin. User names and passwords are
case-sensitive. Please modify the password after the first login. After three tries the user will
be locked, and will no longer be able to con tinue to log in until the administrat or can unlock
the user, how to unlock Check Network Video Recorder User's Manual " management.
eLineTechnology.com
-18- -19-
4 Quick configuration
Quickly configure some common functions together to facilitate the configuration
management of the NVR. It provides:
The NVR network configuration, disk management, date and time configuration, the
search network camera, video configuration; fast configuration of the features of the
camera network configuration stream configuration, motion detection configuration.
Enter the rapid configuration interface, as shown in Figure 4-1
Figure 4-1 Fast configuration interface
The rapid configuration interface description.
Area 1：NVR Basic information and time synchronization functions.
NVR Basic information configuration.
The NVR can set the name, date and time.
Synchronization time of the network cameras. You can select the manual mode or
automatic mode.
When the manual mode is selected, click Button for time synchronization.
Select automatic synchronization mode, time synchronization automatically by
NVR, this means all cameras will have internal times set to match NVR time.
Area 2：NVR network configuration。
NVR default factory IP address: network 1:192.168.0.120, network 2:
192.168.1.120.
The basic network configuration can configure the IP address, subnet mask, default
gateway, DNS address and other parameters. Real-time display of the network
connection status and speed. 8.1.5 Network specific parameters, see "Network
Video Recorder User Manual.
Network support the cameras dedicated network function, factory default enables
this feature.
The Camera network is the only network cameras and NVR, there is no other network
equipment network。
Private network enabled camera, see Chapter 2 for deta iled explanation of the operation.
Camera private n etwork means in such a network there exist Network camera an d NVR only
without any other network devices.
When the private network enabled, then NVR will do following operations:
When DHCP function enabled, the IP address will be arranged to network cameras
automatically.
Auto discover the network cameras.
Auto discovered the network cameras and enable 7*24H recording schedule.
When it’s using the camera private network, then the topological graph
like Figure 2-2.
Figure 4-2 Camera dedicated network topology
eLineTechnology.com
-20- -21-

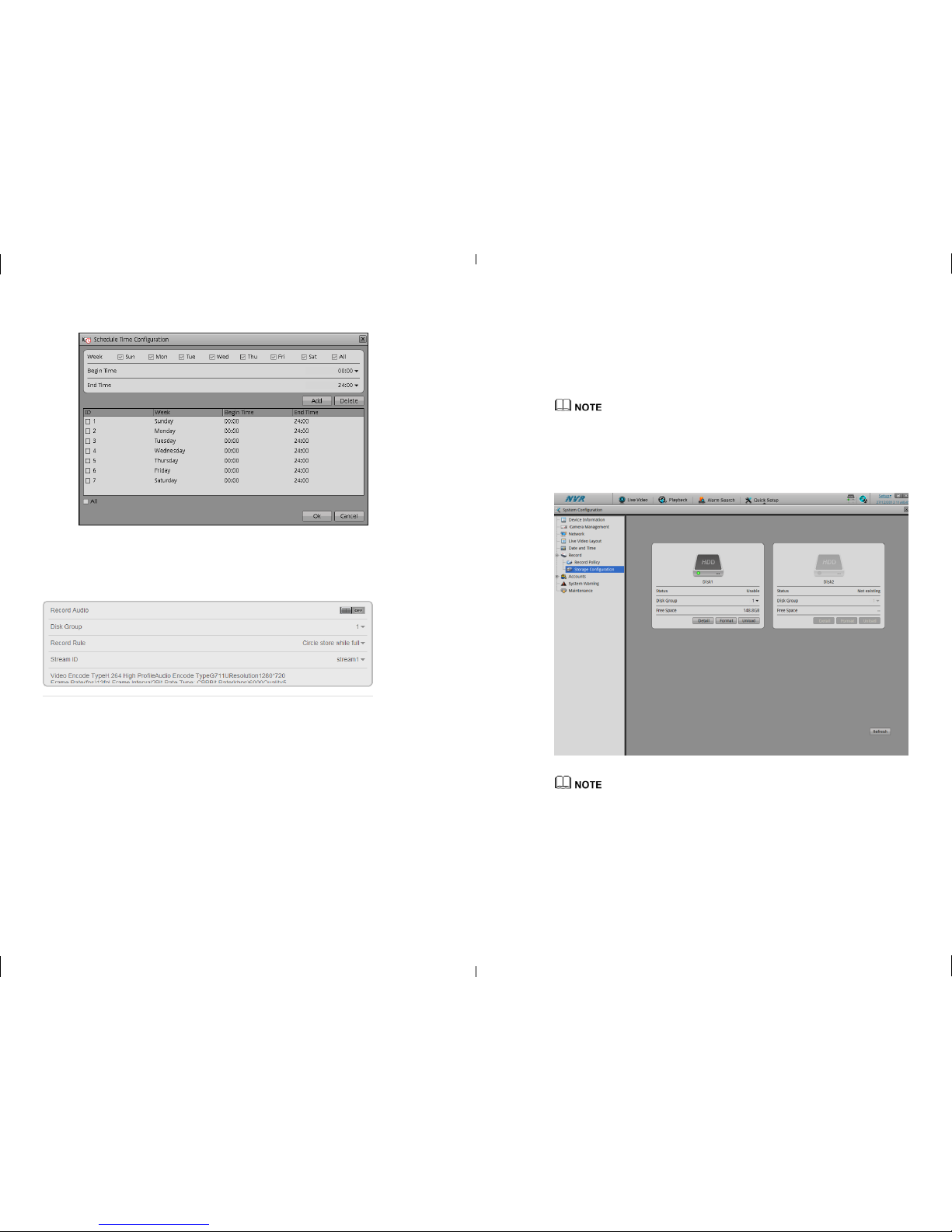

Area 3：Hard disk management。
Format the hard disk will cause video loss, please use this feature with caution。
Power unit off to remove the hard drive, use the software to control this process as
below otherwise it may cause damage to the hard disk recordings.
Hard disk management for hard disk management NVR：
Format hard disk. Click the Format button, pop-up prompts, choose to format.
Capacity. Note: 2T formatted hard disk takes about 10 minutes to complete.
Load or unload HDD. Please uninstall the need to pull out the hard disk, hard disk.
Modify hard disk group.
(Normal, abnormal, unformatted drive or does not exist) to view the status of the
disk.
View the disk space and the total space.
Area 4：Select Network Camera
When enabled private network cameras, NVR will automatically search for the
network cameras.
When the number of network cameras is not more than 12 units, NVR
automatically add the management list.
When the number of network cameras of more than 12 units, NVR automatically
randomly add 12 units to manage, and prompted a warning, as shown in Figure 4-3.
Figure 4-3 Device Discovery Tips
You must on the NVR management of equipment selection, click ignore NVR
management network camera, click, pop-up camera selection screen shown in Figure
4-4。
Figure 4-4 Device Discovery Tips
Click the Apply button to complete the network camera selection.
Area 5：Search cameras, delete cameras.
Private network using the camera function, you need to manually search for network
cameras, network cameras click Search pop-up the camera search interface sho wn in
Figure 4-5 shows the.
Figure 4-5 Camera search interface
eLineTechnology.com
Loading...
