e-Line Technology HDCVI Series User Manual

HDCVI Series DVR User’s Manual

Version 1.0.0

‐1‐

Welcome

Thank y

ou for purchasing your HDCVI DVR from eLine Technology!
This user’s manual is designed to be a reference tool for the installation and
operation of your system.
Here you can find information about the HDCVI DVR features and functions,
as well as a detailed menu tree.
Before installation and operation please read the following safeguards and
warnings carefully!

‐2‐

Important Safeguards and Warnings

1．Electrical safety

All installation and operation should conform to your local electrical safety
codes. The DVR must be grounded to reduce the risk of electric shock. We
assume no liability or responsibility for fire or electrical shock caused by
improper handling or installation.

2．Equipment Security

Heavy stress, violent vibration or water splash are not allowed during
transportation, storage and

installation.

3．Installation

Keep upwards. Handle with care.
Do not apply power to the DVR before completing installation.
Do not place objects on the DVR.

4．Qualified engineers needed

All the examination and repair work sh

ould be done by qualified service
engineers.
We are not liable for any problems caused by unauthorized modifications or
attempted repair.

5．Environment

The DVR should be installed in a cool, dry place away from direct sunlight,
inflammable, explosive substances, etc.
The HDCVI DVR shall be transported, storaged and used at room

tempreature

.

6. Accessories

Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components
that are

included.

Contact your local retailer ASAP if something is broken in your package.

7. Lithium battery

Improper battery use may result in fire, explosion, or personal injury! When
replaceing the battery, please

make sure you are using the same model!

Contact your local retailer.

‐3‐

MENU

1. Features and Specifications......................................................................‐4‐

2. Overview and Controls...............................................................................‐5‐

3. Boot up and Shutdown...............................................................................‐9‐

4. WEB Operation..........................................................................................‐71‐

5. Professional Surveillance System........................................................‐126‐

6. FAQ...........................................................................................................‐126‐

Appendix A HDD Capacity Calculation.............................................‐  132‐

Appendix B Compatible Backup Device List....................................‐  133‐

Appendix C Compatible CD/DVD Device List...................................‐  139‐

Appendix D Compatible Displayer List.............................................‐  139‐

Appendix E Compatible Switcher List...............................................‐  140‐

Appendix F Compatible Wireless Mouse List..................................‐  141‐

Appendix G Specifications..................................................................‐  141‐

Appendix H Toxic or Hazardous Materials or Elements.................‐  145‐

‐4‐

1. Features and Specifications

1.1 Overview

This HDCVI DVR is a Profes

sional grade digital monitoring product designed
for the security field. It adopts an embedded Linux OS to maintain reliable
operation. It is easy to use and can realize surveillance function after some
simple setups. It has various functions such as record, playback, muti­monitoring and can guarantee audio video synchronization. The HDCVI DVR
has advanced technology and strong network data transmission functions.

The HDCVI DVR adopts embedded design to achieve high security and
reliability. It can work in the local end, and simultaneously, when connected to
the professional surveillance software (PSS), can realize strong network and
remote monitor functions. It can realize HD monitoring without changing the
current cable layout.

The HDCVI DVR can be widely used in various areas such as banking,
telecommunication, electric power, interrogation, transportation, intelligent
resident zone, factory, warehouse, resources, and water conservancy.

1.2 Features

 Real-time monitoring

It has analog output port, VGA port and HDMI port. You can use monitor or
displayer to realize surveillance function.
System supports VGA/HDMI output at the s

ame time.

 Storage function

Special data format to guarantee data security and can avoid vicious data
modification.

 Compression format

Support multiple-channel audio and video. An independent hardware decodes
the audio and video signal from each channel to maintain video and audio
synchronization.

 Backup function

Support backup operation via USB port (such as flash disk, portable HDD,
burner).Client-end user can download the file to local HDD to backup via
network.

 Record playback function

Support each channel real-time record independently, and at the same time it
can support search, forward play, network monitor, record search, download
and etc.
Support various playback modes: slow play, fast play, backward play and

‐5‐

frame by frame play.

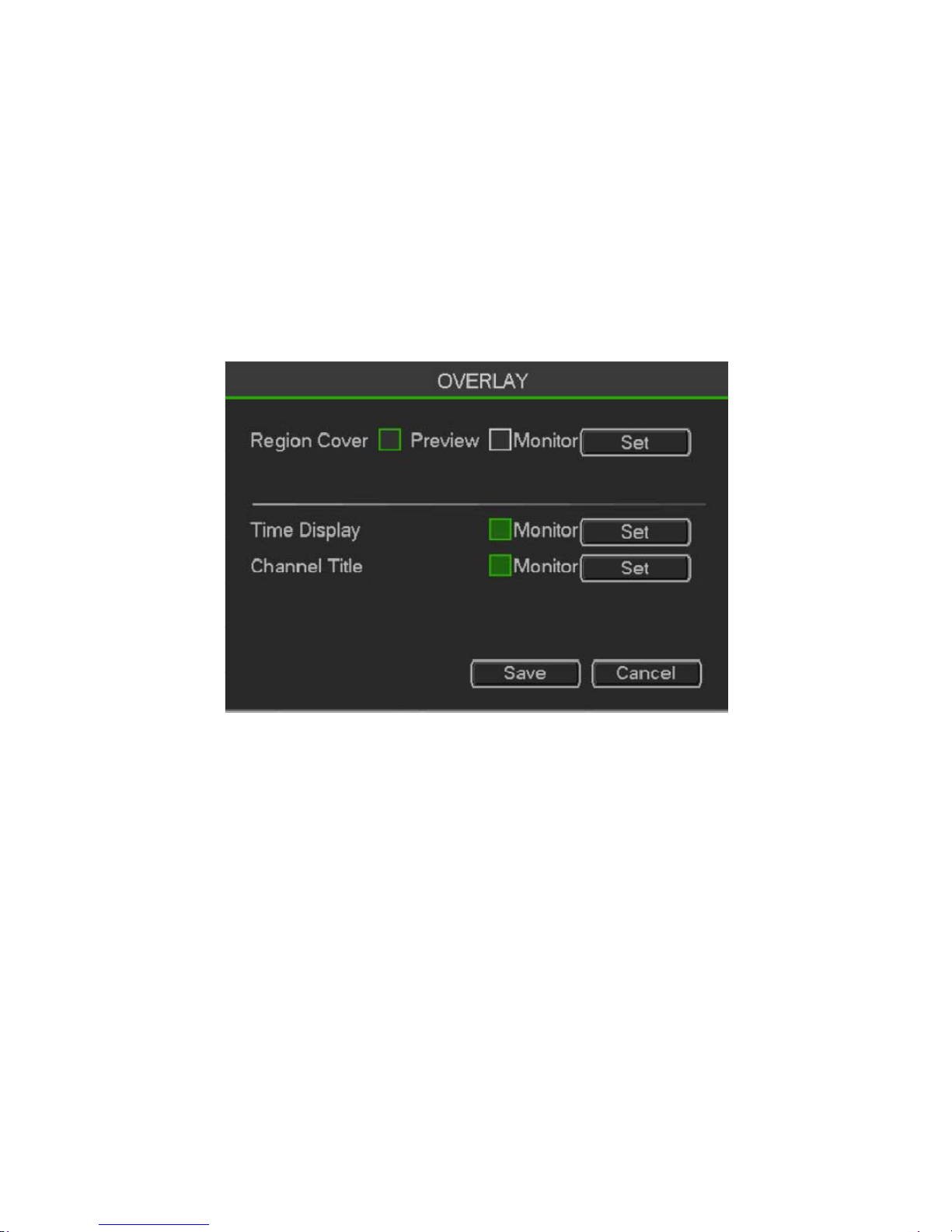

Support time title overlay so that you can view event accurate occurred time
Support specified zone enlargement.

 Network operation

Support network remote real-time monitor, remote record search and remote
PTZ control.

 Alarm activation function

Several relay alarm outputs to realize alarm activation and on-site light control.
The alarm input port and output has the protection circuit to guarantee device
safety.

 Communication port

RS485 port can realize alarm input and PTZ control.
RS232 port can connect to keyboard to realize central control, and can also
connect to PC COM to upgrade system and realize maintenance, and matrix
control. Standard Ethernet port can realize network access function.

 PTZ control

Support PTZ decoder via RS485.
Support various decode protocols to allow the PTZ to control the speed dome.

 Intelligent operation

Mouse operation function

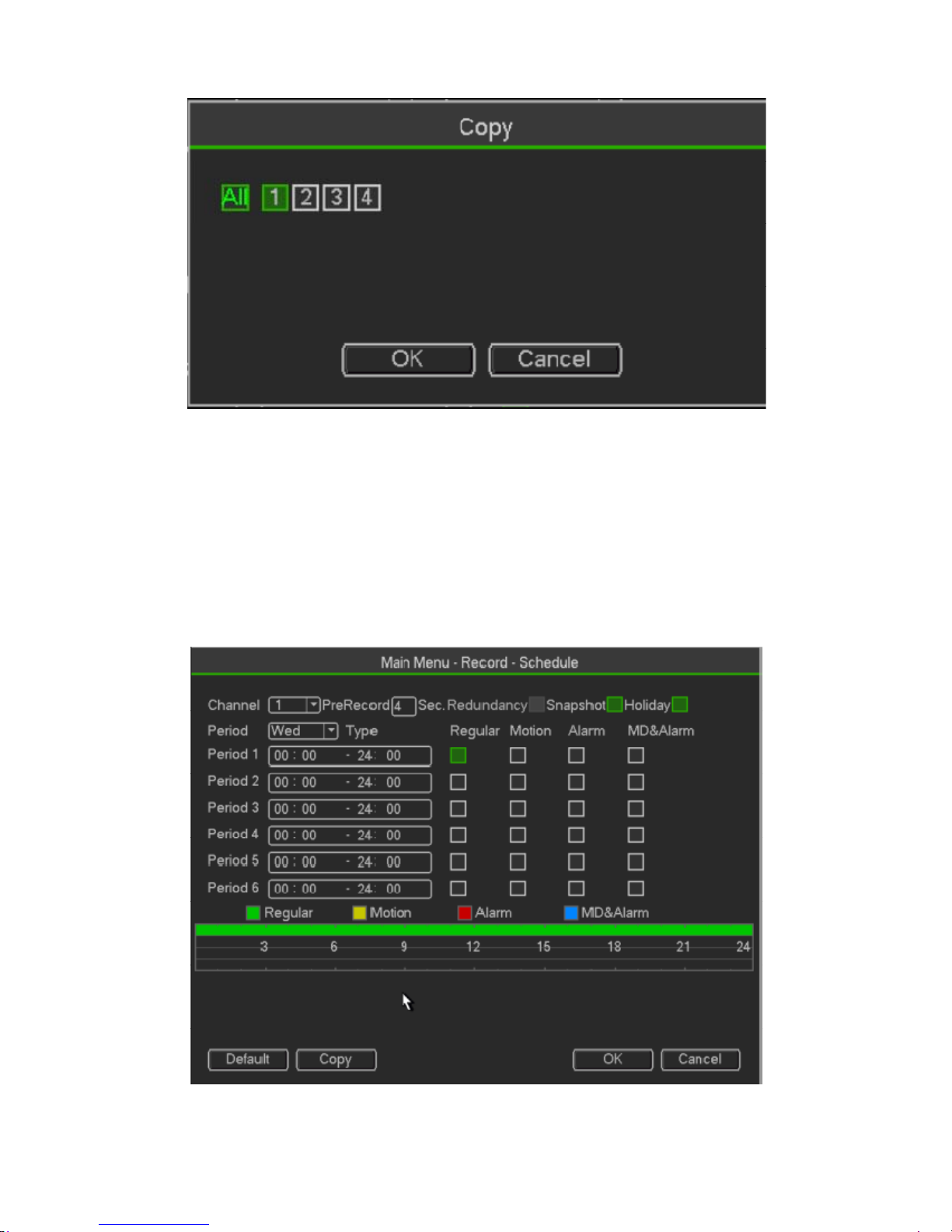

In the menu, support copy and paste setup function

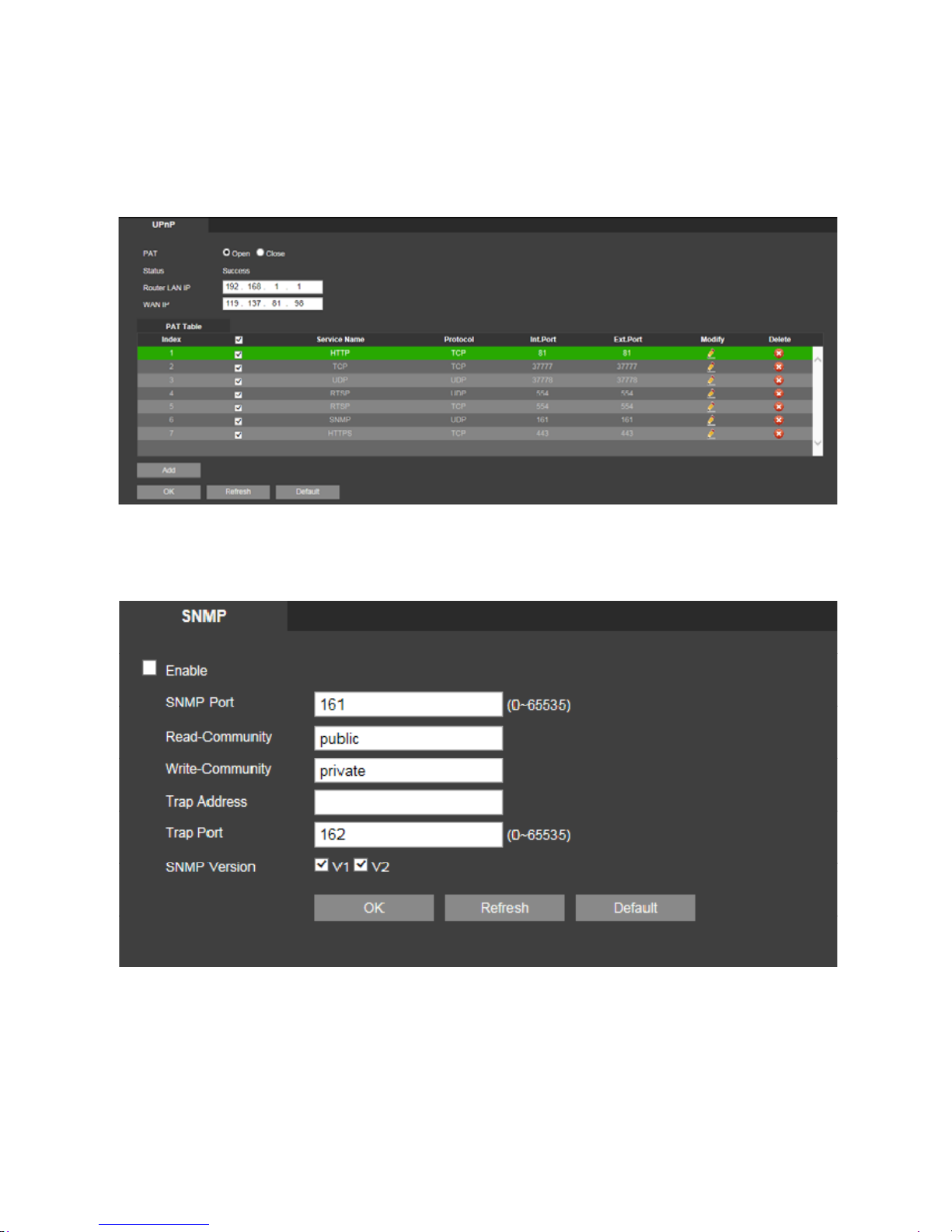

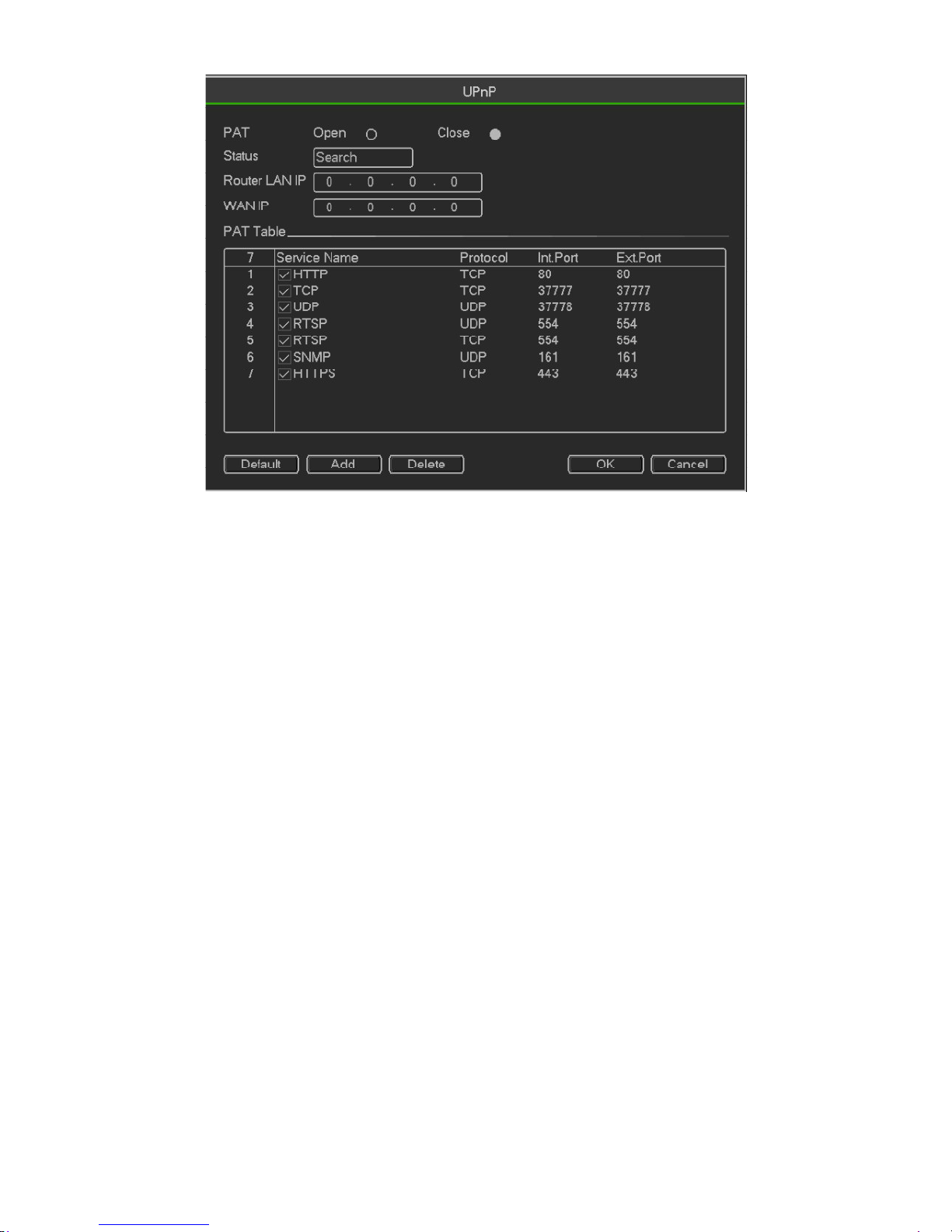

 UPnP

It is to establish the mapping relationship between the LAN and the WAN via
the UPnP protocol.

Slight function differences may be found due to different series.

2. Overview and Controls

2.1 HDD Installation

This HDCVI DVR has only one SATA HDD. Please use HDD

of 7200rpm
or higher. You can refer to the User’s Manual for recommended HDD
brand. Please follow the instructions below to install hard disk.

‐6‐

Note:

 You can connect the HDD data cable and the power cable first and then

fix the HDD in the device.

 Please pay attention to the front cover. It adopts the vertical sliding design.

1. Loosen the screws of the
upper cover and side panel.

2. Fix four screws in the HDD

3. Place the HDD in

accordance with the four holes
in the bottom.

4. Turn the device upside
down and then turn the
screws in firmly.

5.Fix the HDD firmly.

6. Connect the HDD cable and
power cable.

7. Put the cover in accordance
with the clip and then place the
upper cover back.

8. Secure the screws in the
rear panel and the side panel.

‐7‐

You need to push the clip first

and then put down.

2.2 Rear Panel

4CH and 8CH CVI DVR

Here we take the 4-channel series product rear panel as an example

The 8-channel series rear panel is shown as below

Please

refer to the following sheet for detailed information.

SN Name SN Name SN NAME

1 Video input 2 Audio output 3 Audio input
4 Video VGA output 5 HDMI port 6 USB port
7 Network port 8 RS-485 input port 9 Power socket

10 NC 11 GND port

2.3 Connection Sample

2.3.1 4CH/8CH CVI DVR

Please note the following contents are based on our 1U 720P series product.
For detailed operation instruction of other series products, please refer to the

‐8‐

User’s Manual included in the resources CD.
The following figure is based on the 4-channel series product.

2.4 Connecting Audio Input & Output, Bidirectional
Audio

2.4.1 Audio Input

These HDCVI DVRs audio input port adopt BNC port. Due to high impedance
of audio input, please use active sound pick -up. Audio transmission is similar
to video transmiss

ion. Try to avoid interference, dry joint, loose contact. And it

shall be away from high tension current.

2.4.2 Audio Output

The audio output signal parameter is usually over 200mv 1KΩ (BNC or RCA). It
can directly connect to low impedance earphone, active sound box or
amplifier-drive audio output device. If the sound box and the pick-up cannot be
separated spatially, it is easy to arouse squeaking. In this case you can adopt
the following measures:

 Use better sound pick-up with better directing property
 Reduce the volume of the sound box.
 Using more sound-absorbing materials in decoration can reduce voice

echo and improve acoustics Environment.

 Adjust the layout to reduce happening of the squeaking.

‐9‐

2.5 RS485

When the DVR receives a camera control command, it transmits that
command up the coaxial cable to the PTZ device. RS485 is a single-direction
protocol; the PTZ device can’t return any data to the unit. To enable

X289

H289H289H X

Since RS485 is disabled by default for each camera, you must
enable the PTZ settings first. This series DVRs support multiple protocols such
as Pelco-D, Pelco-P. To connect PTZ devices to the DVR:

1. Conn

ect RS485 A,B on the DVR rear panel.

2. Con

nect the other end of the cable to the proper pins in the connector on the

camera.

3. Please foll

ow the instructions to configure a camera to enable ea

ch PTZ

device o

n the DVR.

3. Boot up and Shutdown

3.1.1 Boot up and Shutdown

Boot up

Before the boot up, please make sure:
 The rated input voltage matches the device power on-off button. Please

make sure the power Wire connection is OK. Then click the power on-off
button.

 Always use the stable current, if necessary UPS is a best alternative

measure. Please follow the steps listed below to boot up the device

 Connect the device to the monitor and then connect a mouse.
 Connect power cable
 Click the power button at the front or rear panel and then boot up the

device. After device booted up, the system is in multiple-channel display
mode by default.

Shutdown

Note

When you see corresponding dialogue box “System is shutting down…” Do not
click power on –off button directly.

 Do not unplug the power cable or click power on-off button to shutdown

device directly when Device is running (especially when it is recording.)

There are three ways for you to log out.

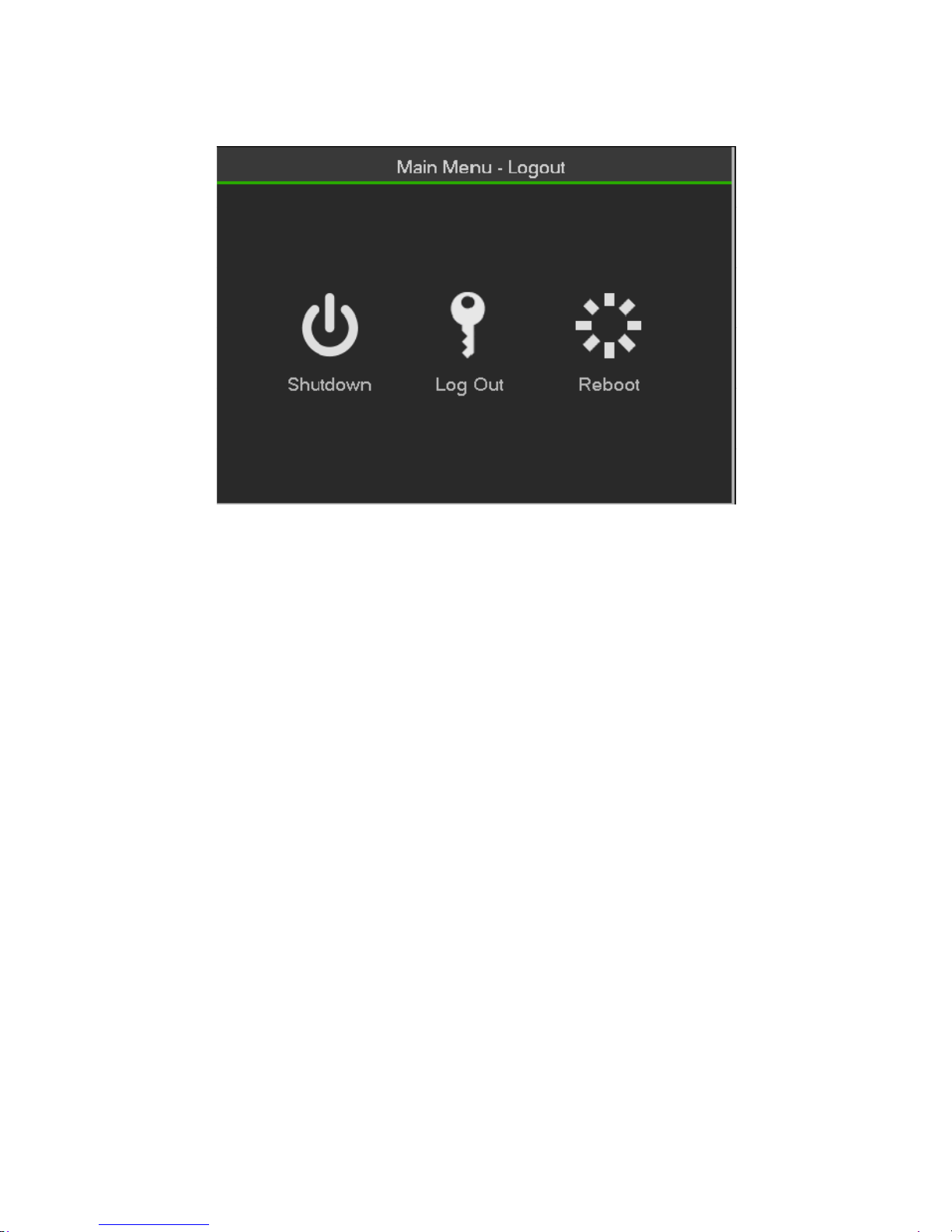

a)Main menu (RECOMMENDED

)

From Mai

n Menu->Shutdown, select shutdown from dropdown list.

‐10‐

Click the OK button, the device will shut down.
b)

The power (on-off) button on the front panel or remote control
Press the power (on-off) button on the DVR front panel or remote control
for more than 3 seconds to shutdown the device.

c)

From the power (on-off) button on the rear panel

Replace Button Battery

Please mak

e sure to use the same battery model if possible.
We recommend replace battery regularly (such as one-year) to
guarantee system time accuracy. Contact local retailer.

Note:

Before replacement, please save the system setup, otherwise, you may lose
the data completely!

3.1.2 Startup Wizard

After device successfully booted up, it goes to startup wizard.
Click Cancel/Next button, you can see system goes to login interface.

Tips

Check the box Startup button here, system goes to startup wizard again when
it boots up the next time. Cancel the Startup button, system goes to the login
interface directly when it boots up the next time.

Click Cancel button or Next Step button, system goes to login interface.

‐11‐

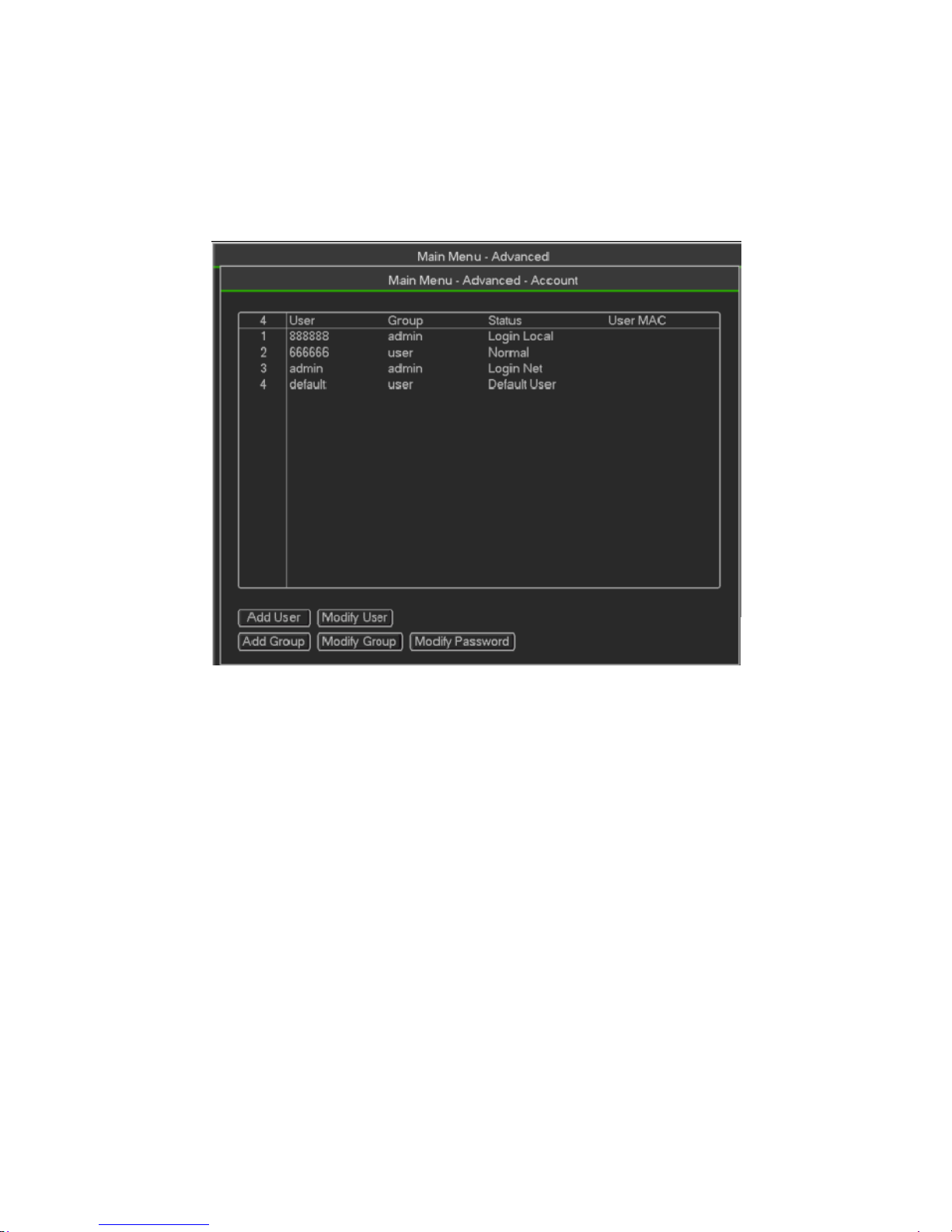

System consists of four accounts:

 Username: admin. Password: admin. (administrator, local and network)
 Username: 888888. Password: 888888. (administrator, local only)
 Username: 666666. Password: 666666(Lower authority user who can

only monitor, playback, backup and etc.)

 Username: default. Password: default (hidden user). Hidden user

“default” is for system interior use only and can not be deleted. When
there is no login user, hidden user “default” automatically login. You can
set some rights such as monitor for this user so that you can view some
channel view without login.

Note:

For security reason, please modify password after you first login.
Within 30 minutes, three times login failure will result in system alarm and five
times login failure will result in account lock!

3.2 Right-Click Menu

On the preview interface, right click mouse, you can view menu interface
Tips. After you go to the corresponding interface, right click mouse to go back
to the upper-level

‐12‐

3.2.1 Preview

After you logged in, the system is in live viewing mode by default. You c

an

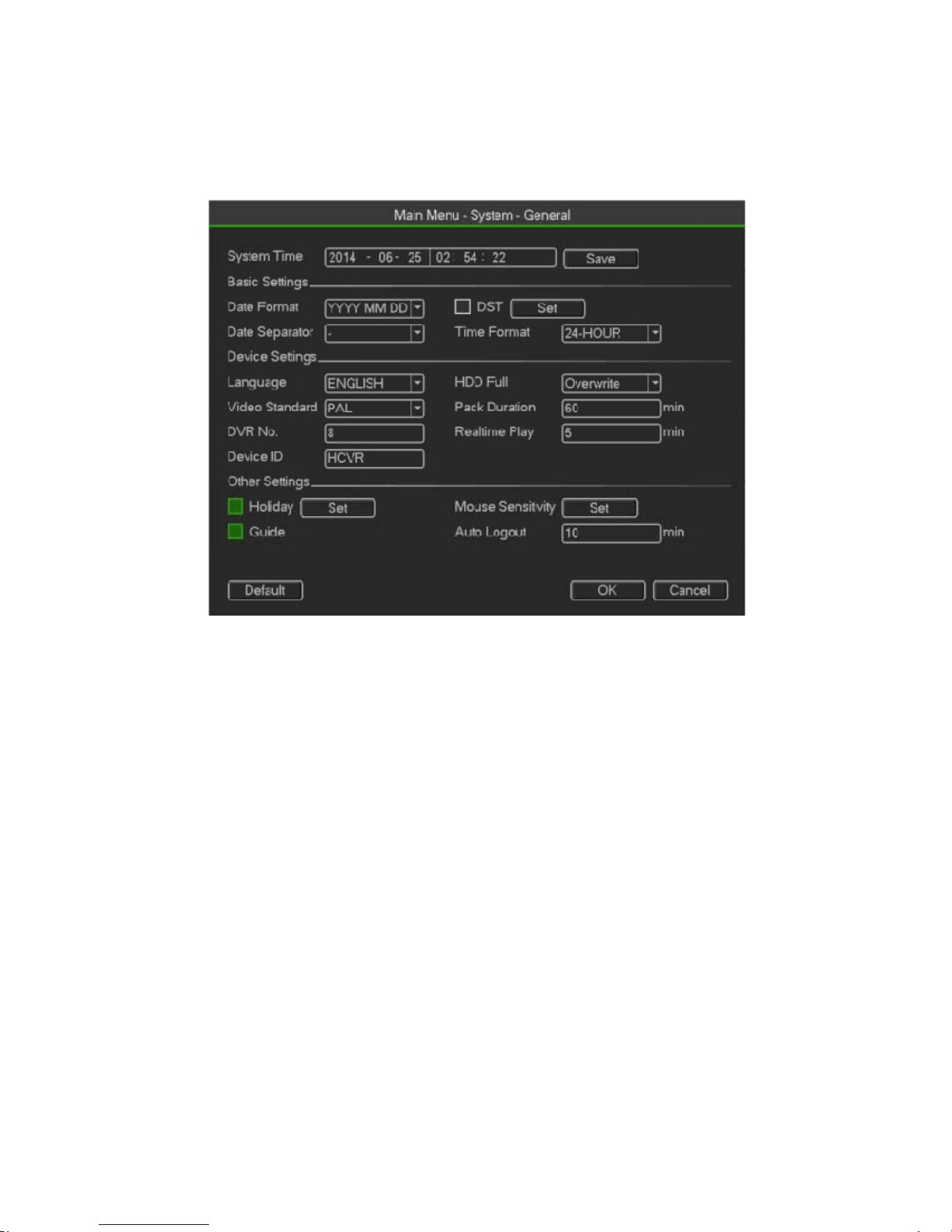

see system date, time and channel name. If you want to change the system
date and time, you can refer to general settings (Main
Menu->Setting->System->General). If you want to modify the channel name,
please refer to the display settings (Main Menu->Setting->Camera->CAM
Name)。

1

Recording status

3

Video loss

2

Motion detection

4

Camera lock

Ti ps

 Preview drag: If you want to change position of channel 1 and channel 4

when you are previewing, you can left click mouse in the channel 1 and
then drag to channel 4, release mouse you can switch channel 1 and
channel 4 positions.

 Use mouse middle button to control window split: You can use mouse

middle button to switch window split amount.

Preview Control

The preview control function has the following features.
 Support preview playback. In the preview desktop, system can playback

previous 5-60 minutes record of current channel.
Please go to the Main Menu->Setting->->System->General to set
real-time playback time.

 Support drag and play function. You can use your mouse to select any

playback start time.

 Support playback, pause and exit function. Right now, system does not

support slow playback and backward playback function.

 Support digital zoom function.
 Support real-time backup function.

You can follow the contents listed below for the operation instruction.

Preview control interface

Move your mouse to the top centre of the video of current channel, you can see
system pops up the preview control interface. If your mouse stays in this area
for more than 6 seconds and has no operation, the control bar automatically
hides.

‐13‐

You can refer to the following sheet for detailed information.

SN Name Function

1

Real time
playback

It is to playback the previous 5-60 minutes record
of current channel. Please go to the Main
Menu->Setting->->System- >General to set
real-time playback time. System may pop up a
dialogue box if there is no such record in current
channel.

2

Digital zoom

I

t is to zoom in specified zone of current channel. It

supports zoom in function of multiple-channel.

Click button

, the button is shown as Drag the

mouse or use the middle button to select a zone,
you can view. Right click mouse to cancel zoom
and go back to the

original interface.

3

Real-time
backup
function

It is to backup the video of current channel to the
USB device.

System can not backup the video of

multiple-channel at the same time. Click button

,system begins recording. Click it again,

system stops recording. You can find the record
file on the flash disk.

playback control

The playback control has the following features.

 Support play, pause, and exit and drag function.
 During the preview playback process, you can not see the channel title

and record status of current channel. It will display the channel title and

the record status once you exit the preview playback.

 During the preview playback, you can not switch the displayed channel or

change current window-display mode.

 System closes preview control interface when you are switching split

mode.

 Please note the tour function has the higher priority than the preview

playback. You can not control the preview playback until the tour function

ended.

3.2.2 PTZ Control

‐14‐

Please note the commend name is grey once device does not support this
function. The PTZ operation is only valid in one-window mode.

PTZ Setup

In the main menu, from Setting->System->PTZ, you can see the following
interface. The pan/tilt/zoom setup includes the following items. Please select
channel first.

 Protocol: Select corresponding PTZ protocol such as PELCOD.
 Address: Input corresponding PTZ address.
 Baud rate: Select baud rate.
 Data bit: Select data bit. Default value is 8.
 Stop bit: Select stop bit. Default value is 1.
 Parity: There are three choices: none/odd/even. Default value is none.

In one window display mode, right click mouse (click “Fn” Button in the front
panel

or click “Fn” key in the remote control). Click Pan/Tilt/Zoom, the interface
is shown as below. Here you can set the following items: Step: value ranges
from 1 to 8.Zoom.Focus .Iris

‐15‐

PTZ set

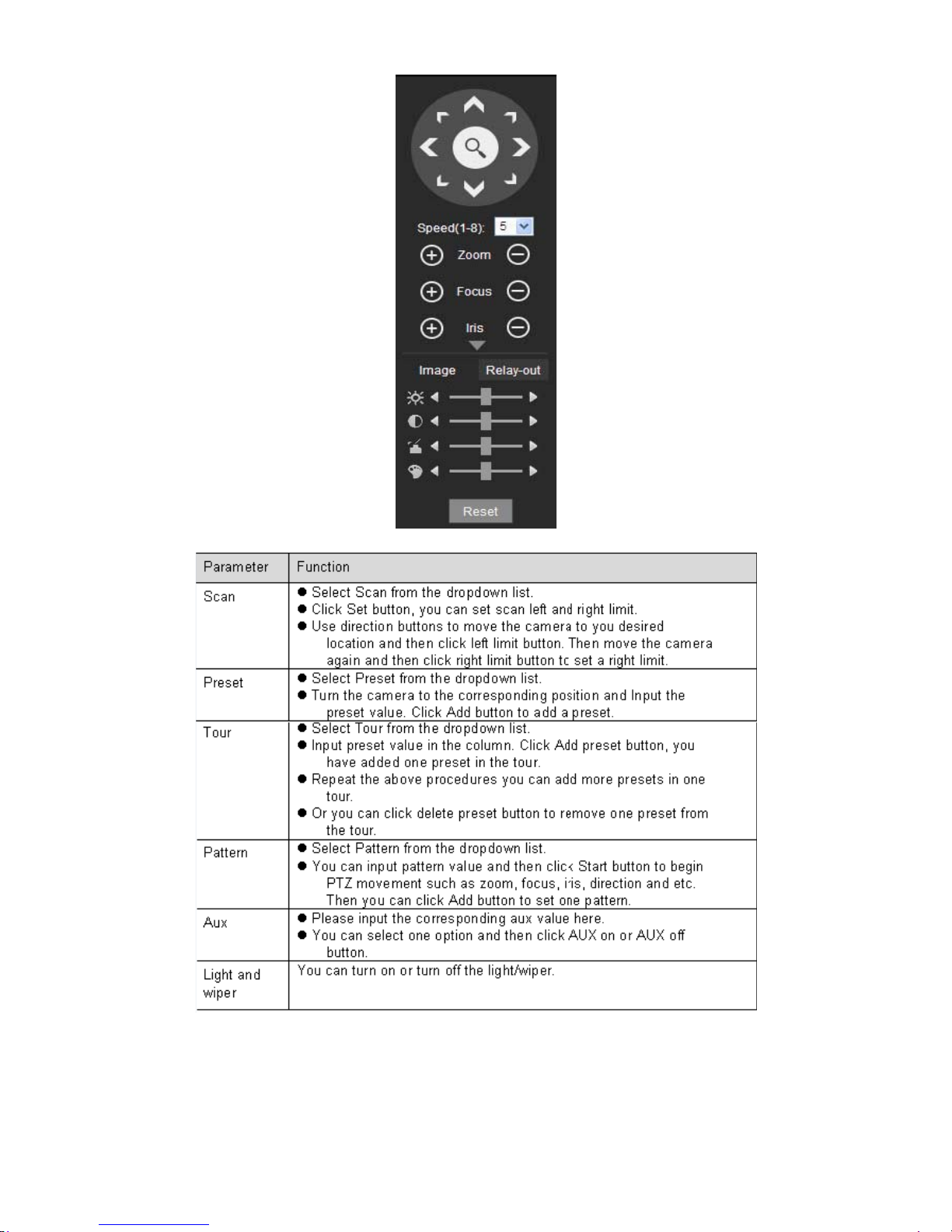

Here you can control PTZ direction, speed, zoom, focus, iris, preset, tour, scan,
pattern aux function, light and wiper, rotation and etc
Speed is to control PTZ movement speed. The value ranges from 1 to 8.The
speed 8 is faster than speed 1. You can use the remote control to click the

small keyboard to set. You can click and of the zoom, focus and iris
to zoom in/out, definition and brightness.
The PTZ rotation supports 8 directions. If you are using direction buttons on the
front panel, there are only four directions: up/down/left/right.
Here is a sheet for you reference.

Name Function

key

function Shortcut

key

Function
key

function Shortcut

Key

Zoom Near ► Far

▶▶

Focus

Near

◀

Far

►

Iris

close

▌▌◀

Open

▶▌▌

In the middle of the eight direction arrows, there is a 3D intelligent positioning
key. .
Please make sure your protocol supports this function and you need to use
mouse to control. Click this key, system goes back to the single screen mode.
Drag the mouse in the screen to adjust section size. The dragged zone
supports 4X to 16X speeds . It can realize PTZ automatically. The smaller zone
you dragged, the higher the speed.

PTZ Functio

n Setup

‐16‐

Click you can go to the following interface to set p Click reset,
tour, pattern, and scan

Preset Setup

click the preset button and use eight direction arrows to adjust camera to the
proper position.
Click Set button and then input preset number.
Click Set button to save current preset.

Tour Setup

Click tour button. Input tour value and preset No. Click Add preset button to
add current preset to the tour.

Tips

Repeat the above steps to add more presets to the tour. Click Del preset button
to remove it from the tour. Please note some protocols do not support delete
preset function.

Pattern Setup

Click Pattern button and input pattern number.
Click Begin button to start direction operation. Or you can go to operate
zoom/focus/iris/direction operation. Click End button

Scan Setup

Click Scan button.
Use direction buttons to set camera left limit and then click Left button.
Use direction buttons to set camera right limit and then click Right button. Now
the scan setup process is complete.

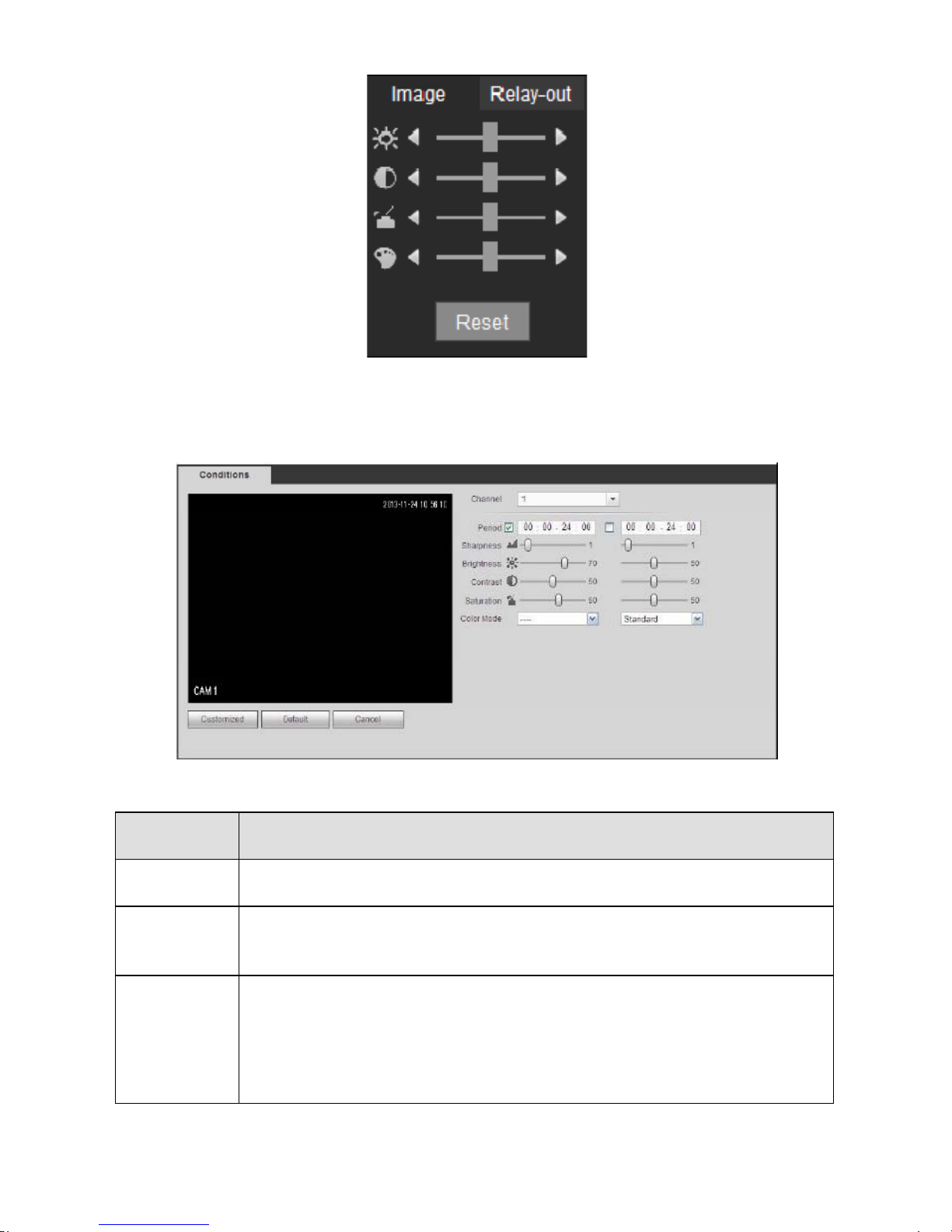

3.2.3 Figure Color

Here you can set hue, brightness, contrast, saturation, gain, white level, color
mode and etc

‐17‐

Please refer to the following sheet for detailed information.

Item Note

Period There are two periods in one day. You can set different

sharpness, brightness, and contrast setup for different
periods.

Effective
Time

Check the box here to enable this function and then set
period time.

Contrast The value here is to adjust the edge of the video. The value

ranges from 0 to 100. The larger the value is, the clear the
edge is and vice versa. Please note there is noise if the
value here is too high. The default value is 50 and the
recommended value ranges from 40 to 60.

Brightness It is to adjust monitor window bright. The value ranges from 0

to 100. The default value is 50. The larger the number, the
bright the video is. When you input the value here, the bright
section and the dark section of the video will be adjusted
accordingly. You can use this function when the whole video
is too dark or too bright. Please note the video may become
hazy if the value is too high. The recommended value
ranges from 40 to 60.

3.2.4 Pla

yback

‐18‐

1

Display

2

Search type

3

Calendar

4

Channel selection

5

Playback

window control

6 Clip 7 Smart search 8 Time bar 9 Record type 10 Time bar unit

Display window

Here is to display the searched picture or file.
Support 1/4/8-window playback.

Search type

Here you can select to search the picture or the recorded file”

Record search

You can select to play from the read-write HDD, from peripheral device or from
redundancy HDD

Important
Redundancy HDD does not support picture backu p function, but it
supports picture playback function. You can select to play from
redundancy
HDD if there are pictures on the redundancy HDD.

Figure search

Before you select to play from the peripheral device, please connect the
corresponding peripheral device. You can view all record files of the root
directory of the peripheral device. Click the Browse button; you can select the
file you want

‐19‐

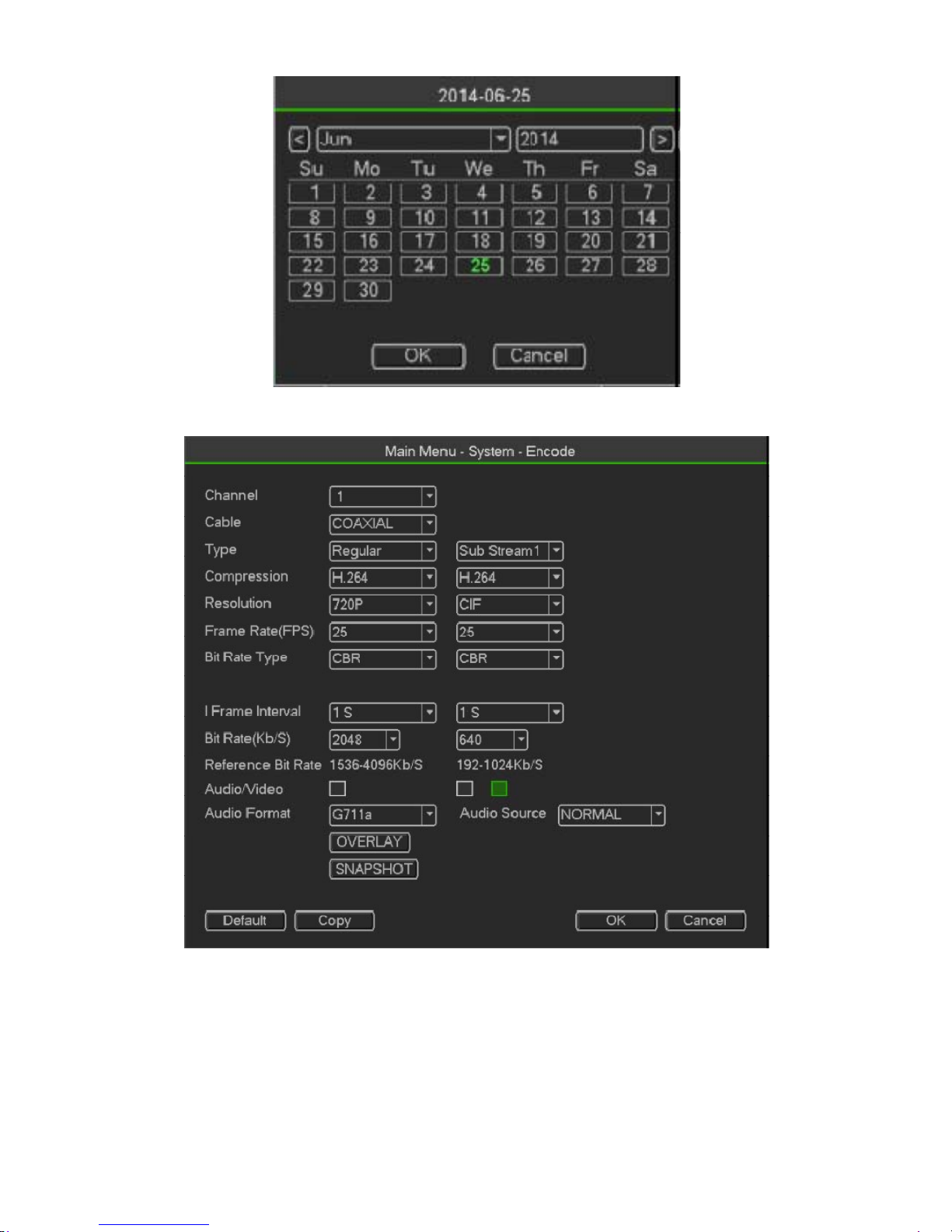

Calendar

The blue highlighted date means there is picture or file. Otherwise, there is no
picture or file. In any play mode, click the date you want to see, you can see the
corresponding record file trace in the time bar.

Channel selection

Playback mode：1/4/9. (It may vary due to different series.)
In 1-window playback mode: you can select 1-16 channels.
In 4-window playback mode: you can select 4 channels according to your
requirement.
In 9-window playback mode, you can switch between 1-8 and 9-16 channels.
The time bar will change once you modify the playback mode or the channel

Playback control

Smart Search

 When system is playing, you can select a zone in the window to begin

smart search. Click the motion detect button to begin play.

 Once the motion detect play has begun, click button again will terminate

current motion detect file play. There is no motion detect zone by default.

 If you select to play other file in the file list, system switches to motion

detect play of other file.

 During the motion detect play process, you can not implement operations

such as change time bar, begin backward playback or frame by frame
playback.

Smart search step

During the multiple-channel playback mode, double click one channel and then

click ，system begins smart search. System supports 396(22*18 PAL)
and 330(22*15 NTSC) zones. Please left click mouse to select smart search

zones.

Click the ，you can go to the smart search playback. Click it again,

system stops smart search playback

。

Important
System does not support motion detect zon e setup during th e full-screen
mode.
During the multiple-channel playback, system stops playback of rest
channels if you implement one-channel smart search.

‐20‐

Clip

1,

Please play the file you want to edit and then click this button when you want

to edit. You can see the corresponding slide bars in the time bar of the
corresponding channel. You can adjust the slide bar or input the accurate
time to set the file end time.

2,After you set, you can click Clip button again to edit the second period. You

can see the slide bar restore its previous position.
3,Click Backup button after clip, you can save current contents in a new file.
4, You can clip for one channel or multiple-channel. The multiple-channel click

operation is similar with the one-channel operation.

Please note:

 System max supports 1024 files backup at the same time.
 You can not operate clip operation if there is any file has been check

ending the file

Smart search

Select records from one day, click the list, you can go to the file list interface.
You can input time at the top right corner to search records by time. input time
11:00.00 and then click Search button you can view all the record files after
11:00.00(The records includes current time.) Double click a filename to
playback

Note

After you searched files, system implement accurate playback once you click
Play for the first time. System does not support accurate playback for picture

‐21‐

System supports synchronization playback and non-synchronous playback.
The synchronization playback supports all channels and non-synchronous
playback only supports accurately
playback of current select channel.

Time bar



It is to display the record type and its period in current search criteria .In
4-window playback mode, there are corresponding four time bars. In other
playback mode, there is only one time bar.

 Use the mouse to click one point of the color zone in the time bar, system

begins playback. The time bar is beginning with 0 o'clock when you are
setting the configuration.

 The time bar zooms in the period of the current playback time when you

are playing the file.

 The green color stands for the regular record file. The red color stands for

the external alarm record file.

 The yellow stands for the motion detect record file

File type

File type： R—regular record； A—external alarm record； M—Motion
detect record.

Time bar unit

The option in

cludes: 24H, 12H, 1H and 30M. The smaller the unit, the larger
the zoom rate. You can accurately set the time in the time bar to playback the
record. The time bar is beginning with 0 o'clock when you are setting the
configuration. The time bar zooms in the period of the current playback time
when you are playing the file

‐22‐

3.3 Main Menu

3.3.1Main Menu

The main menu interface is shown as below 。

3.3.2 Record
Record

Note:

You need to have proper rights to implement the following operations. Please
make sure the HDD

shave b

een properly installed. After the system booted up, it is in default

24-hour regular mode. You can set record type and time on schedule interface.

‐23‐

 Channel: Please select the channel number first. You can select “all” if

you want to set for the whole channels.

 Record Type: Please check the box to select corresponding record type.

There are four types:

 Regular/MD (motion detect)/Alarm/MD&Alarm.
 Week day: There are eight options: ranges from Saturday to Sunday and

all.

 Holiday: It is to set holiday setup. Please note you need to go to the

General interface (Main Menu ->System->General) to add holiday first.
Otherwise you can not see this item.

 Pre-record: System can pre-record the video before the event occurs into

the file. The value ranges from 1 to 30 seconds depending on the bit
stream .

 Redundancy: System supports redundancy backup function. You can

highlight Redundancy button to activate this function. Please note, before
enable this function, please set at least one HDD as redundant. (Main
menu->Setting->Storage->HDD Manager).

Please note this function is null if there is only one HDD.

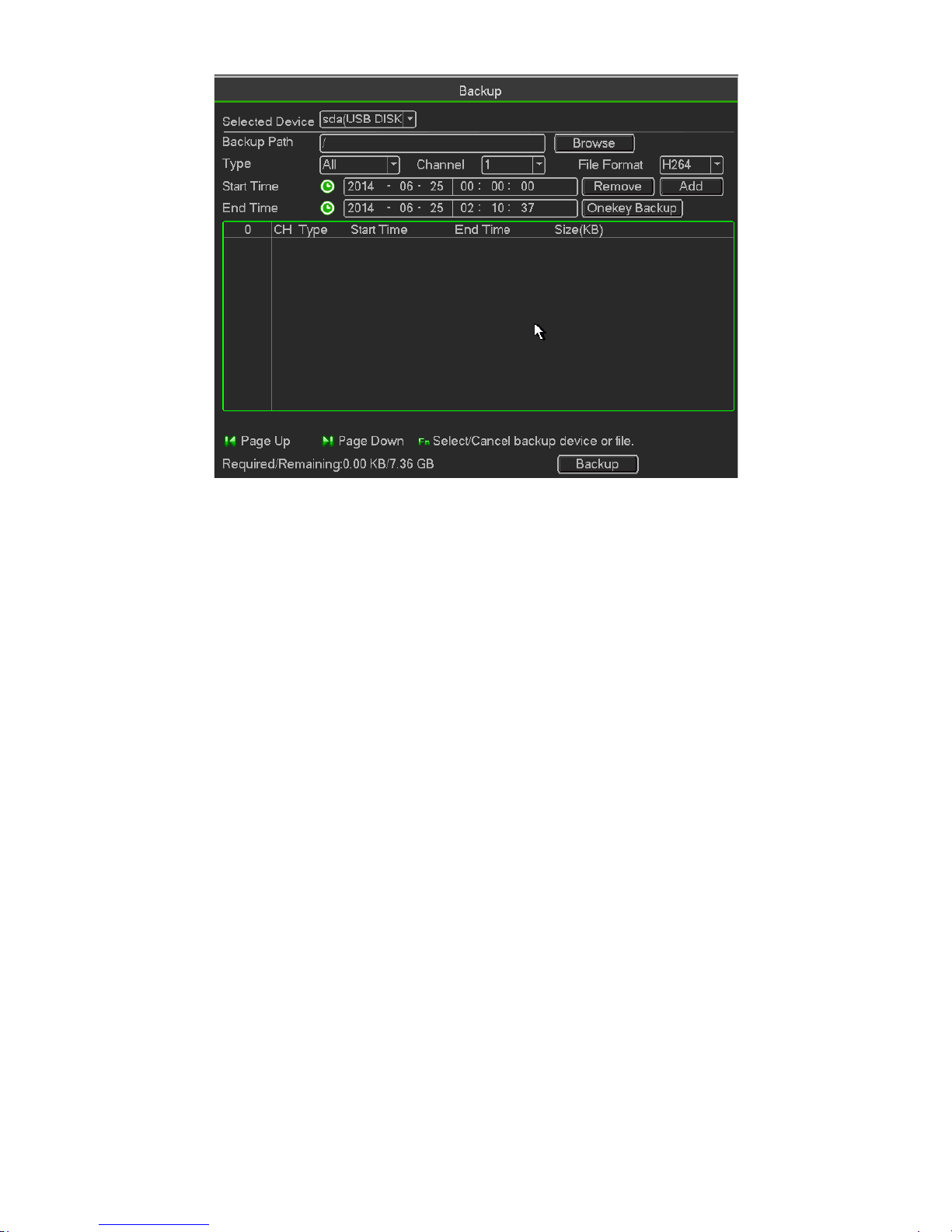

Backup

DVR support CD-RW, DVD burner, USB device backup, network
download and eSATA. Here we introduce USB, eSATA backup. You can
refer to Chapter 5 Web Operation for network download backup operation.
Click backup button, you can see an interface is shown as in Figure 3-21.
Here is for you to view devices information. You can view backup device
name and its total space and free space. The device includes CD

‐24‐

-RW ,DVD burner, USB device, flash disk, eSATA backup.

Select backup device and then set channel, file start time and end time.
Click add button, system begins search. All matched files are listed below.
System automatically calculates the capacity needed and remained. System
only backup files with a √ before channel name. You can use Fn or cancel
button to delete√ after file serial number. Click Start button, system begins
copy. At the same time, the backup button becomes stop button. You can view
the remaining time and process bar at the left bottom

When the system completes backup, you can see a dialogue box prompting
successful backup file format: Click the file format; you can see there are two
options: DAV/ASF. The file name format usually is: Channel number+Record
type+Time. In the file name, the YDM format is Y+M+D+H+M+S. File extension
name is .dav.

‐25‐

Tips:

During backup process, you can click ESC to exit current interface for other
operation. The system will not terminate backup process

Note:

When you click stop button during the burning process, the stop function
becomes activated immediately. For example, if there are ten files, when you
click stop system just backup five files, system only save the previous 5 files in
the device (But you can view ten file names).

Alarm Detect

In the main menu, from Manu->Alarm->Detect, you can see motion detect
interface. There is three detection types: motion detection, video loss,
tampering
 The video loss has no detection region and sensitivity setup and

tampering has no detection region setup.

 You can see motion detect icon if current channel has enabled motion

detect alarm.

 You can drag you mouse to set motion detect region. Please click OK

button to save current .region setup. Right click mouse to exit current
interface.

3.3.2.4.1Motion Detect

After analysis video, system can generate a video loss alarm when the
detected moving signal reached the sensitivity you set here.

 Event type: From the dropdown list you can select motion detection type.
 Channel: Select a channel from the dropdown list to set motion detect

function.

 Enable: Check the box here to enable motion detect function.
 Region: Click select button, the interface is shown as in Figure 3-25. Here

you can set motion detection zone. There are four zones for you to set.
Please select a zone first and then left drag the mouse to select a zone.
The corresponding color zone displays different detection zone. You can
click Fn button to switch between the arm mode and disarm mode. In arm
mode, you can click the direction buttons to move the green rectangle to
set the mot ion detection zone. After you completed the setup, please click
ENTER button to exit current setup. Do remember click save button to
save current setup. If you click ESC button to exit the region setup
interface system will not save your zone setup. Sensitivity: System
supports 6 levels. The sixth level has the highest sensitivity.

‐26‐

 Anti-dither: Here you can set anti-dither time. The value ranges from 5 to

600s. The anti-dither time refers to the alarm signal lasts time. It can be
seem as the alarm signal activation stays such as the buzzer, tour, PTZ
activation, snapshot, channel record. The stay time her e does not include
the latch time. During the alarm process, the alarm signal can begin an
anti -dither time if system detects the local alarm again. The screen
prompt, alarm upload, email and etc will not be activated. For example, if
you set the anti-dither time as 10 second, you can see the each activation
may last 10sif the local alarm is activated. During the process, if system
detects another local alarm signal at the fifth second, the buzzer, tour,
PTZ activation, snapshot, record channel will begin another 10swhile the
screen prompt, alarm upload, email will not be activated again. After 10s,
if system detect san other alarm signal, it can generate an alarm since the
anti -dither time is out.

 Period: Click set button, you can see an interface. Here you can set

motion detect period. System only enables motion detect operation in the
specified periods. It is not for video loss or the tampering. There are two
ways for you to set periods. Please note system only supports 6 periods
in one day

‐27‐

There are four record types: regular, motion detection (MD), Alarm, MD &
alarm.
 Alarm output: when an alarm occurs, system enables peripheral alarm

devices.

 Latch: when motion detection complete, system auto delays detecting for

a specified time. The value ranges from 1-300(Unit: second)Show
message: System can pop up a message to alarm you in the local host
screen if you enabled this function.

 Alarm upload: System can upload the alarm signal to the network

(including alarm centre) if you enabled current function.

 Send email: System can send out email to alert you when an alarm

occurs.

 Record channel: System auto activates motion detection channel(s) to

record once an alarm occurs. Please make sure you have set MD record
in Schedule interface(Main Menu ->Setting->Schedule)and schedule
record in manual record interface(Main Menu->Advanced->Manual
Record) PTZ activation: Here you can set PTZ movement when an alarm
occurs. Such as go to preset, tour& pattern when there is an alarm. Click
“select” button, you can see an interface is shown as in

 Record Delay: System can delay the record for specified time after alarm

ended. The value ranges from 10s to 300s.

 Tour: Here you can enable tour function when alarm occurs. System

one-window tour.

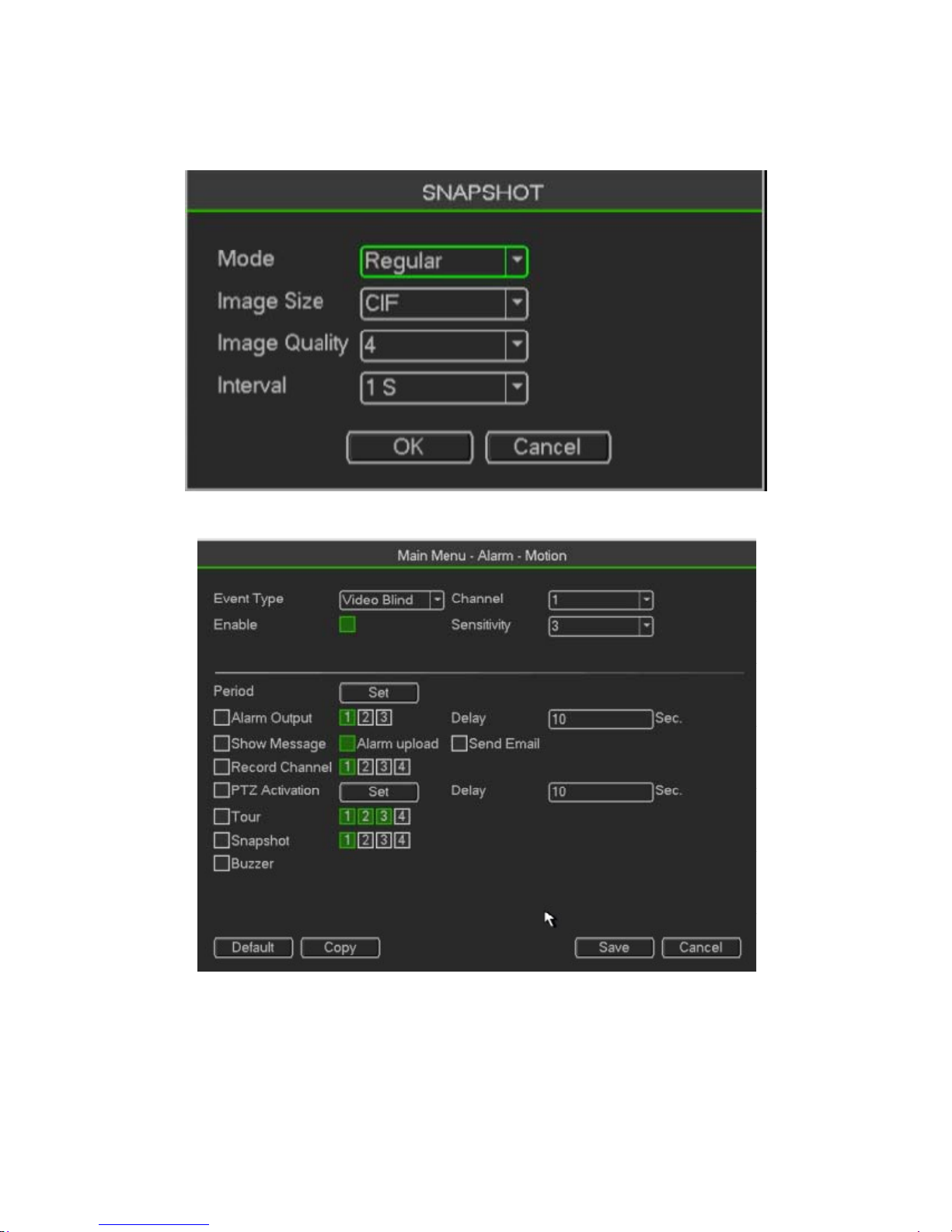

 Snapshot: You can enable this function to snapshoot image when a

‐28‐

motion detect alarm occurs. Video matrix Check the box here to enable
this function. When an alarm occurs, SPOT OUT port displays device
video output. It displays video (1-window tour) from alarm activation
channel you select at the record channel item.

 Buzzer: Highlight the icon to enable this function. The buzzer beeps when

alarm occurs.

 Test: Click it to test current motion detect setup (do not need to save).

Click Select button after
Please highlight icon to select the corresponding function. After all the setups
please click save button, system goes back to the previous menu.

Note:

may not be the same, you can left click mouse and then drag it to set a region
for motion detection. Click Fn to switch between arm/withdraw motion detection.
After setting, click enter button to exit Motion detect here only has relationship
with the sensitivity and region setup. It has no relationship with other setups.

‐29‐

Video Loss

Select video loss from the type list. You can

see the interface is shown This
function allows you to be informed when video loss phenomenon occurred.
You can enable alarm output channel and the n enable show message
function.

Tips:

You can enable preset/tour/pattern activation operation when video loss
occurs.

‐30‐

Please refer to chapter 4.10.3.1.1 motion detection for detailed information.

Tampering

When someone viciously masks the lens, or the output video is in one-color
due to the environments light change, the system can alert you to guarantee
video continuity. Tampering interface is shown You can enable
Sensitivity: The value ranges from 1 to 6. It mainly concerns the brightness.
The level 6 has the higher sensitivity than level 1. The default setup is 3

Tips:

You can enable preset/tour/pattern activation operation when video loss occurs.
Please refer to chapter 4.10.3.1.1 motion detection for detailed information.

Note:

In Detect interface, copy/paste function is only valid for the same type, which
means you cannot copy a channel setup in video loss mode to tampering mode.
About Default function. Since detection channel and detection type may not be
the same, system can only restore default setup of current detect type. For
example, if you click Default button at the tampering interface, you can only
restore default tampering setup. It is null for other detect types. System only
enables tampering function during the period you set here. It is null for motion
detect or video loss type.

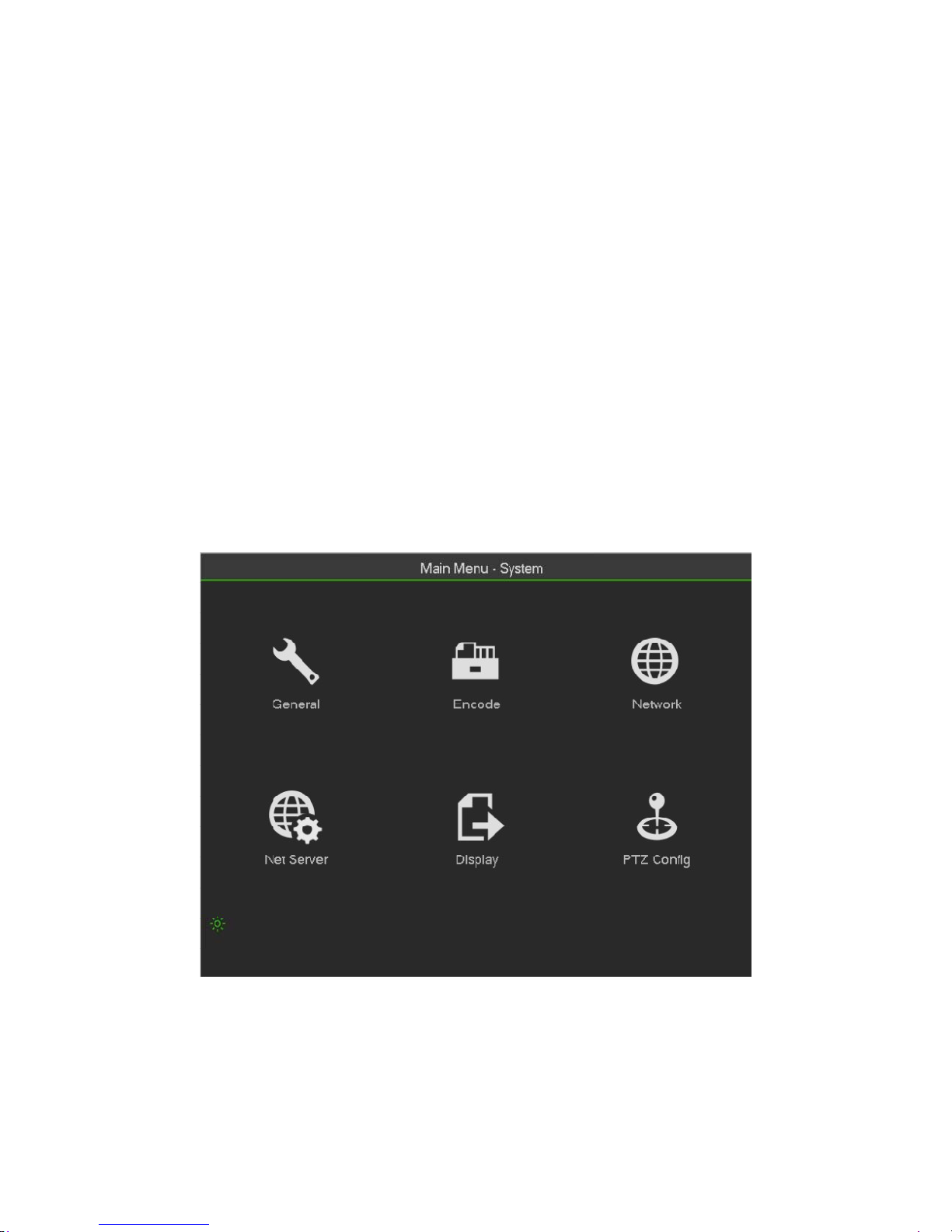

3.3.3 System

‐31‐

General

 Device ID: Please input a corresponding device name here.
 Device No: Here you can set device number.
 Language: System supports various languages: Chinese (simplified),

Chinese (Traditional), English, Italian Japanese, French, Spanish (All
languages listed here are optional. Slight difference may be found in
various series.)

 Video standard: There are two formats: NTSC and PAL.
 HDD full: Here is for you to select working mode when hard disk is full.

There are two options: stop recording or rewrite. If current working HDD is
overwritten or the current HDD is full while the next HDD is no empty, then
system stops recording, If the current HDD is full and then next HDD is not
empty, then system overwrites the previous files.

 Pack duration: Here is for you to specify record duration. The value ranges

from 1 to 120 minutes. Default value is 60 minutes.

 Real-time playback: It is to set playback time you can view in the preview

interface. The value ranges from 5 to 60 minutes.

 Auto logout: Here is for you to set auto logout interval once login user

remains inactive for a specified time. Value ranges from 0 to 60 minutes.

 Navigation bar: Check the box here, system displays the navigation bar on

the interface.

‐32‐



 Startup wizard: Once you check the box here, system will go to the startup

wizard directly when the system restarts the next time. Otherwise, it will go
to the login interface.

 Mouse property: You can set double click speed via dragging the slide

bard. You can Click Default button to restore default setup. Date and time:

 Date format: There are three types: YYYYY-MM-DD: MM-DD-YYYYY or

DD-MM-YYYY.

 Date separator: There are three denotations to separate date: dot, beeline

and solidus.

 DST: Here you can set DST time and date. Here you can set start time

and end time by setting corresponding week setup or by setting
corresponding date setup.

 NTP: It is to set  NTP server information

Holiday:
Holiday setup interface is shown as in Figure 4-100. Click Add new holiday
button, you can input new holiday information. See Figure 4-101. Here you can
set holiday name, repeat mode and start/end time

Note

 When you enable Holiday settings and schedule setup at the same time,

holiday setting has the priority. If the selected day is a holiday, then
system records as you set in holiday setting. If it is nota holiday, system
records as you set in Schedule interface.

 Please note Please note, there is no year setup on the holiday setup. For

example, if you set 30th Oct, 2012 as a holiday, then the date of 30th Oct
in each year will be set as a holiday.

‐33‐



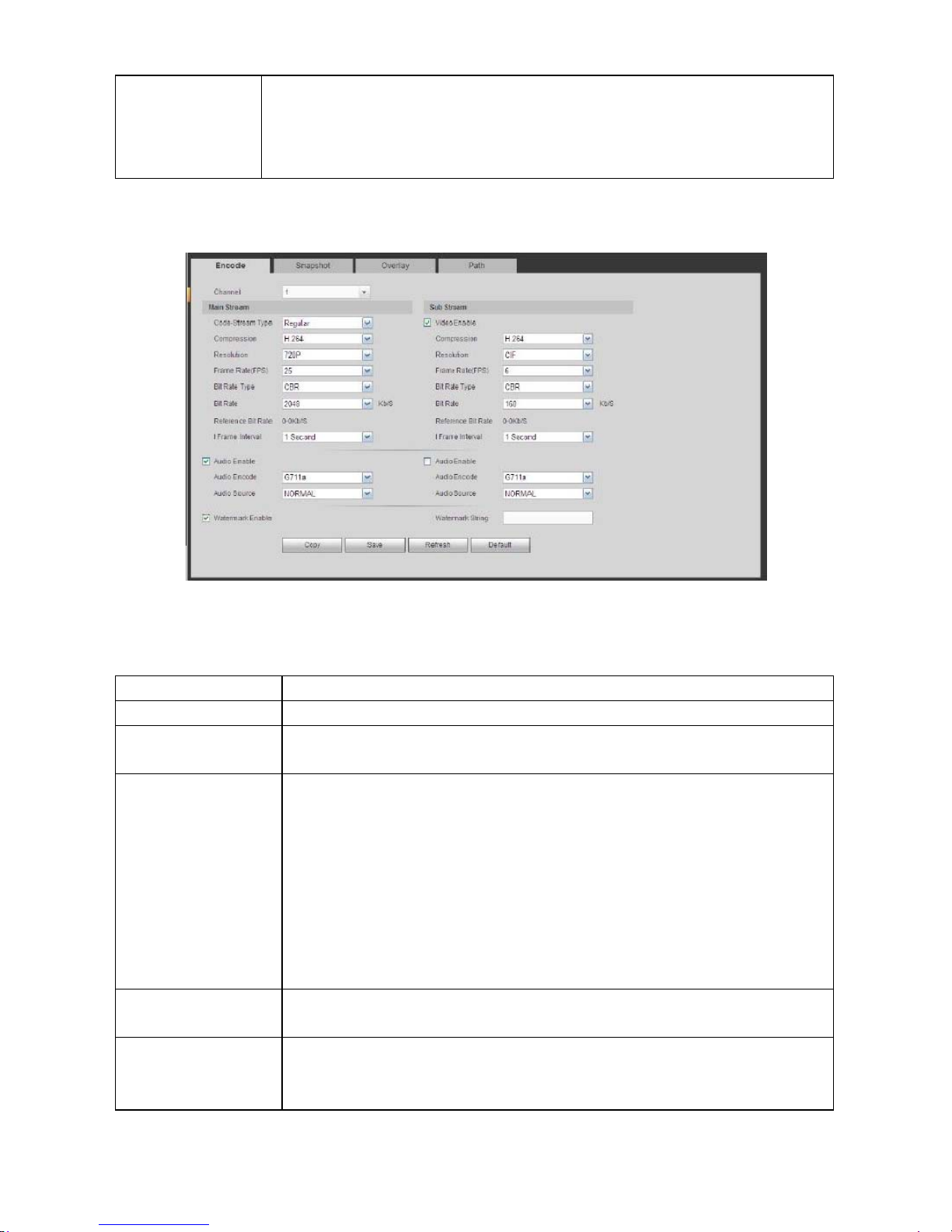

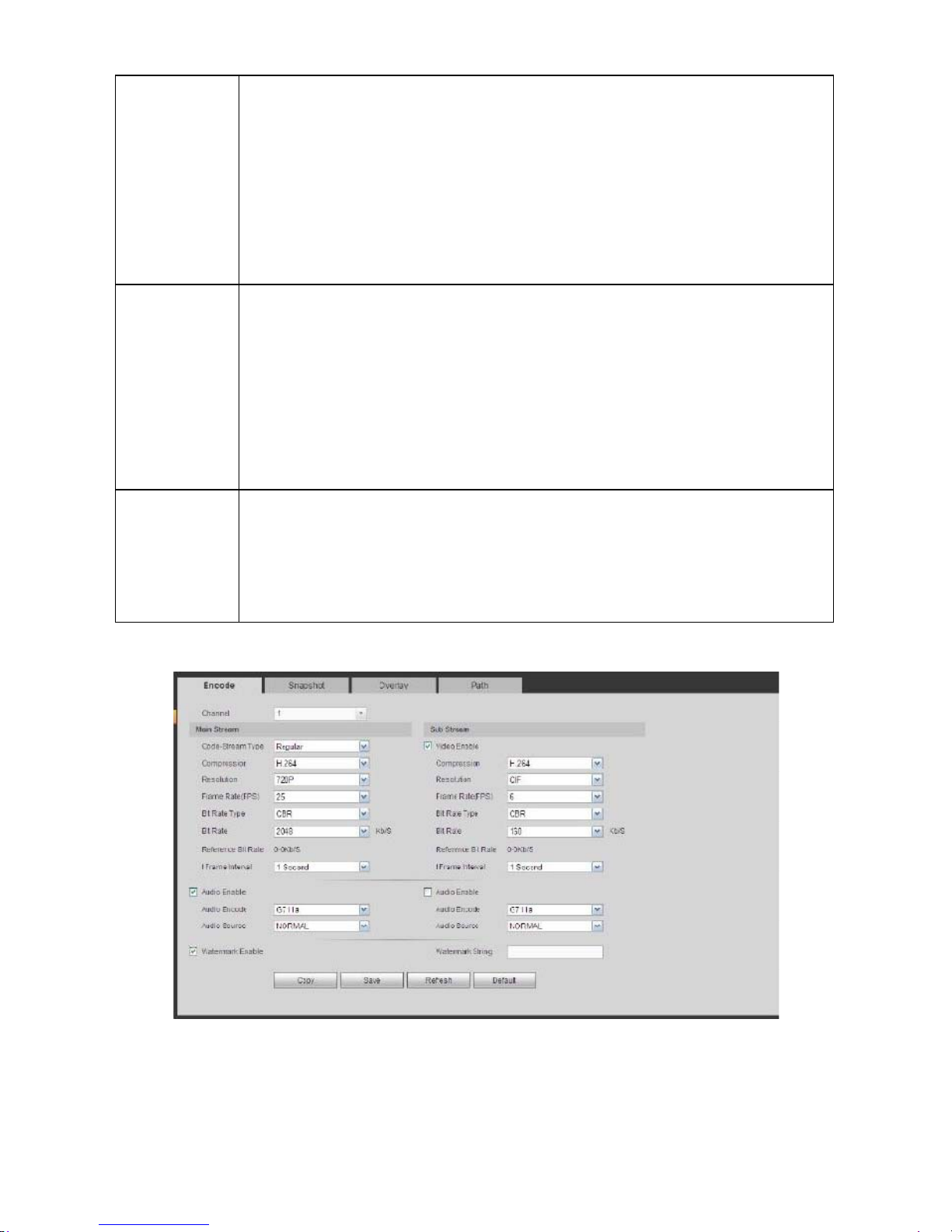

Encode

It is to set video bit stream, picture bit stream, video overlay parameter and etc

 Channel: Select the channel you want.
 Type: Please select from the dropdown list. There are three options:

regular/motion detect/alarm. You can set the various encode parameters
for different record types Compression: System supports H.264 and
MJPEG.

‐34‐



 Resolution: System supports various resolutions, you can select from the

dropdown list. Please Note the option may vary due to different series.

 Frame rate: It ranges from 1f/s to 25f/s in NTSC mode and 1f/s to 30f/s in

PAL mode.

 Bit rate type: System supports two types: CBR and VBR. In VBR mode,

you can set video quality.

 Quality: There are six levels ranging from 1 to 6. The sixth level has the

highest image quality.

 Video/audio: You can enable or disable the video/audio.
 Audio: Please select from the dropdown list.

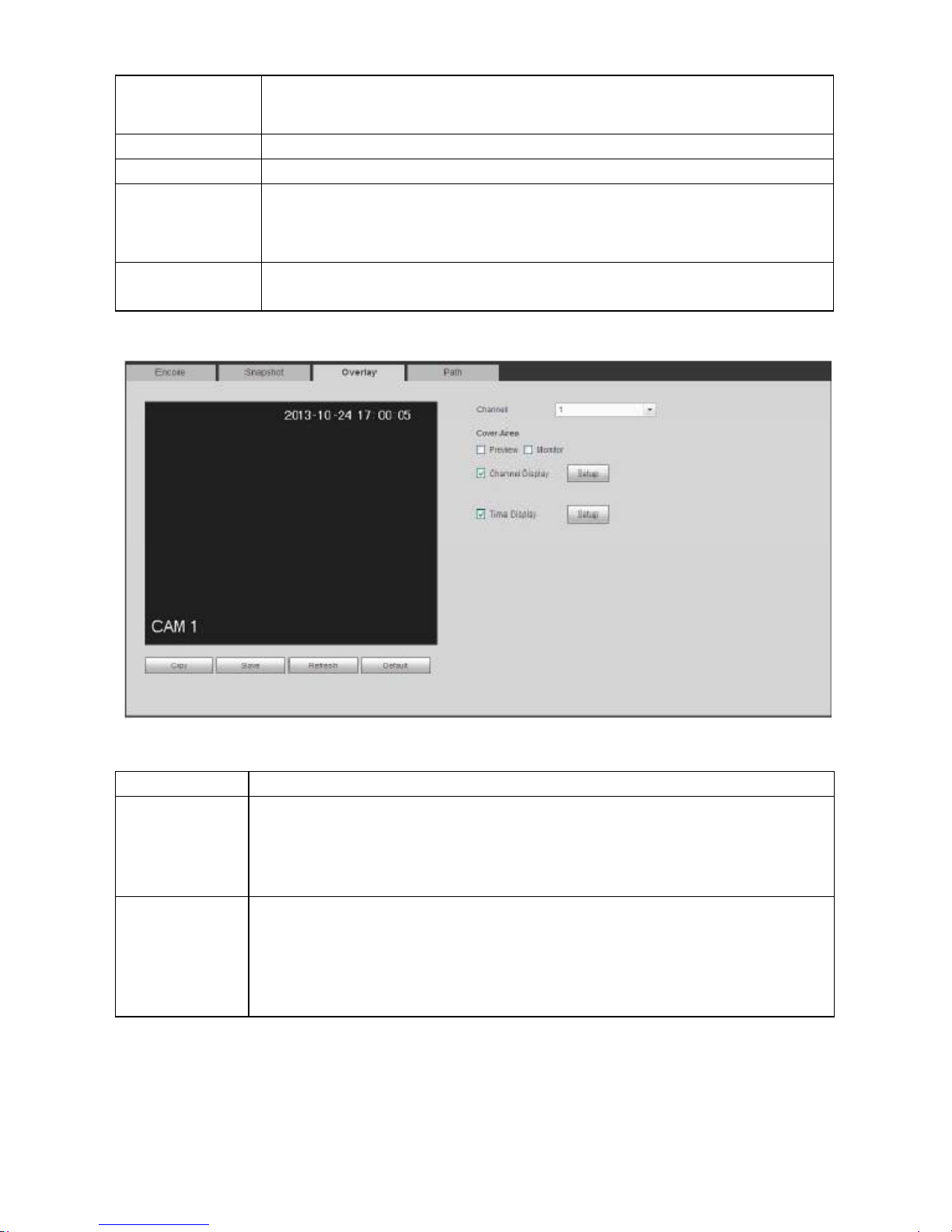

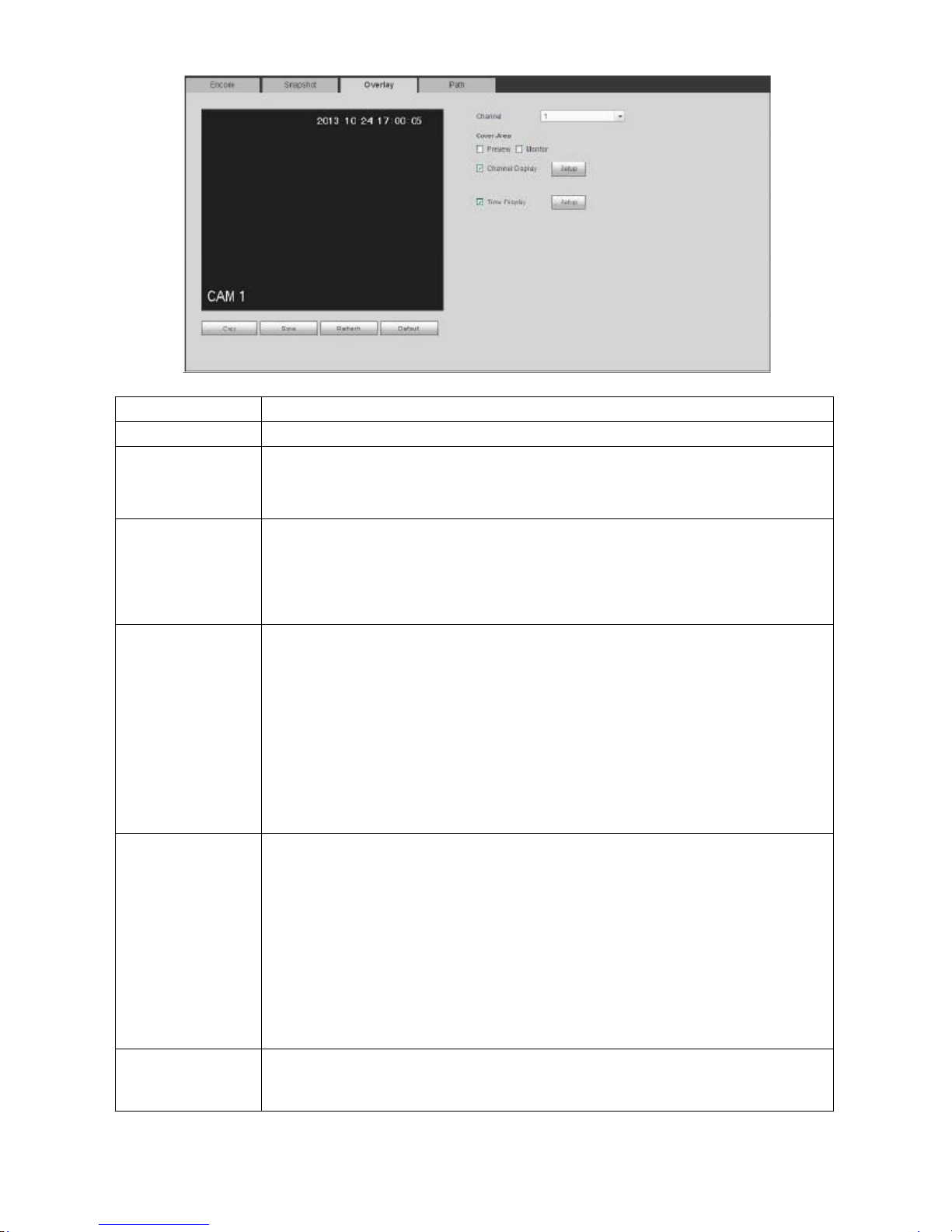

3.3.3.4.1Overlay

 Cover area: Here is for you to set cover area. You can drag you mouse to

set proper section size. In channel video, system max supports 4 zones in
one channel. Preview/monitor: privacy mask has two types. Preview and
Monitor. Preview means the privacy mask zone can not be viewed by user
when system is in preview status. Monitor means the privacy mask zone
can not be view by the user when system is in monitor status.

 Time display: You can select system displays time or not when you

playback. Please click set button and then drag the title to the
corresponding position in the screen. Channel display: You can select
system displays channel number or not when you playback. Please
click set button and then drag the title to the corresponding position in the
screen.

 Copy ：After you complete the setup, you can click Copy button to copy

current setup to other channel(s) . You can see an interface is shown as in
Figure 3-43. You can see current channel number is grey.

 Please check the number to select the channel or you can check the box

‐35‐



ALL.

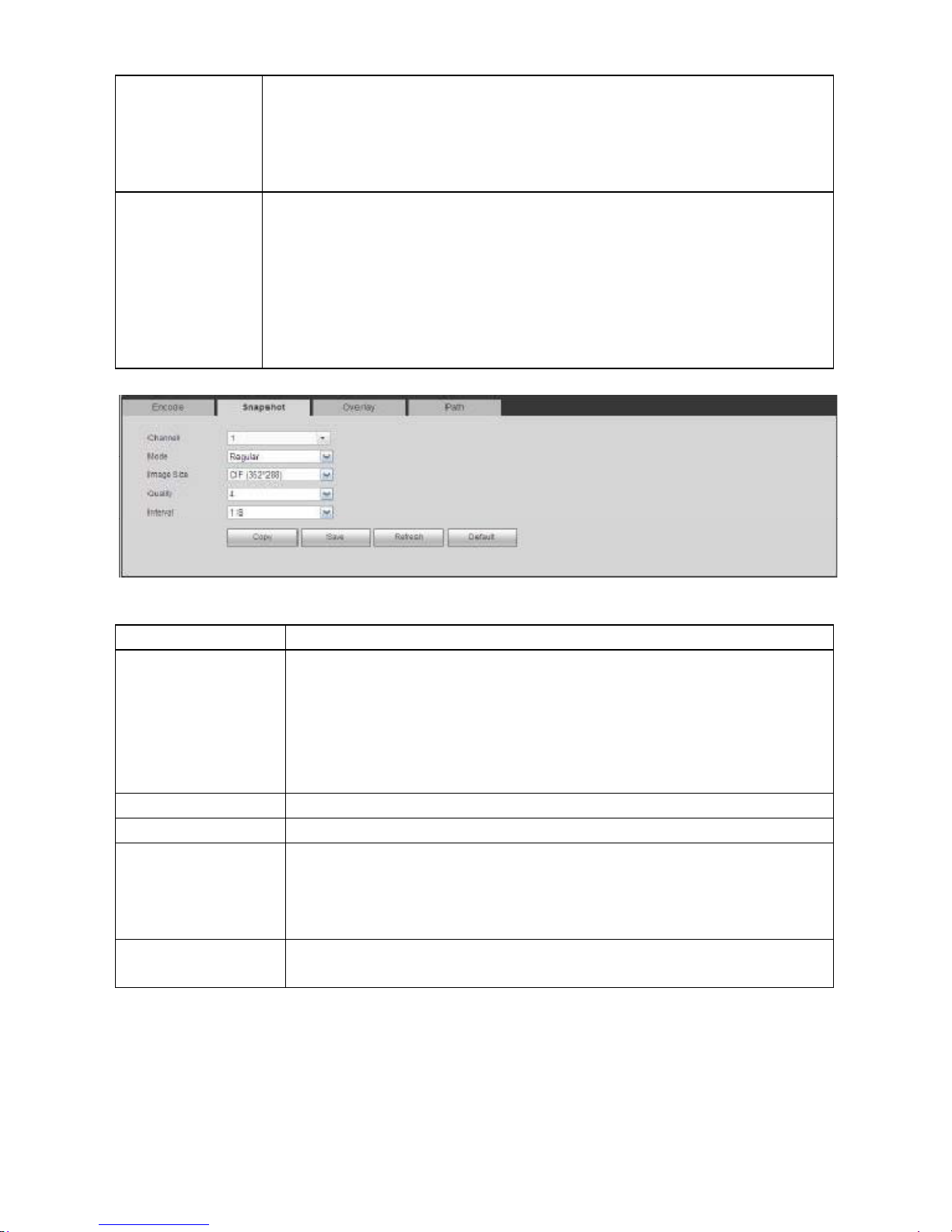

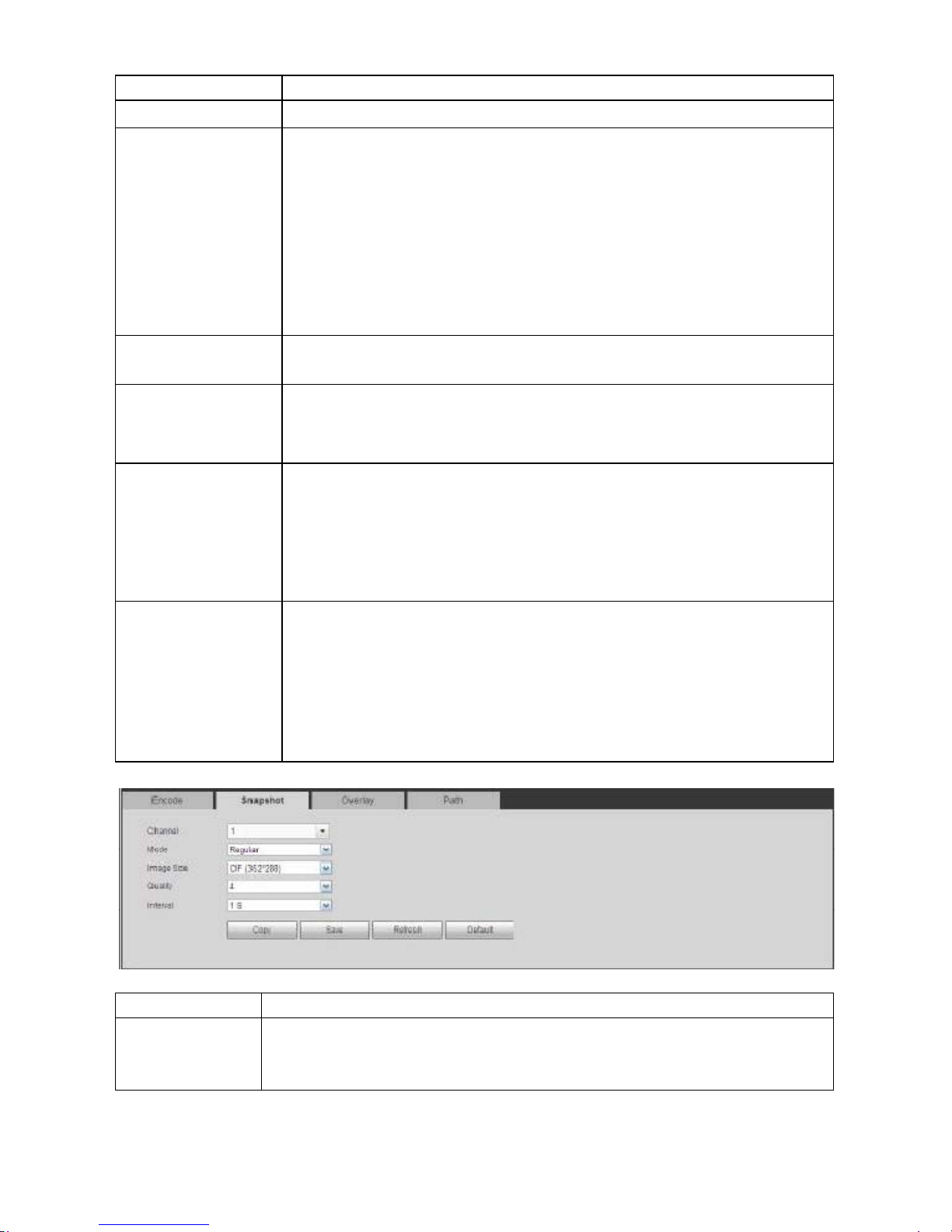

Snapshot

Here you can set snapshot mode, picture size, quality and frequency.
 Snapshot mode: There are two modes: regular and trigger. If you set

timing mode, you need to set snapshot frequency. If you set trigger
snapshot, you need to set snapshot activation

 Operation. Image size: Here you can set snapshot picture size.
 Image quality: Here you can set snapshot quality. The value ranges from 1

to 6.
 Interval: It is for you to set timing (schedule) snapshot interval.
“Menu > Record > Record Set”,Open “Snapshot”.

Trigger Snapshot

‐36‐



Please follow the steps listed below to enable the activation snapshot function.
After you enabled this function, system can snapshot when the corresponding
alarm occurred In main menu, from Menu->Record->Record set, here you can
input snapshot mode as regular, size,

In main menu, from Menu->Alarm->Detect, please enable snapshot function
for specified channels

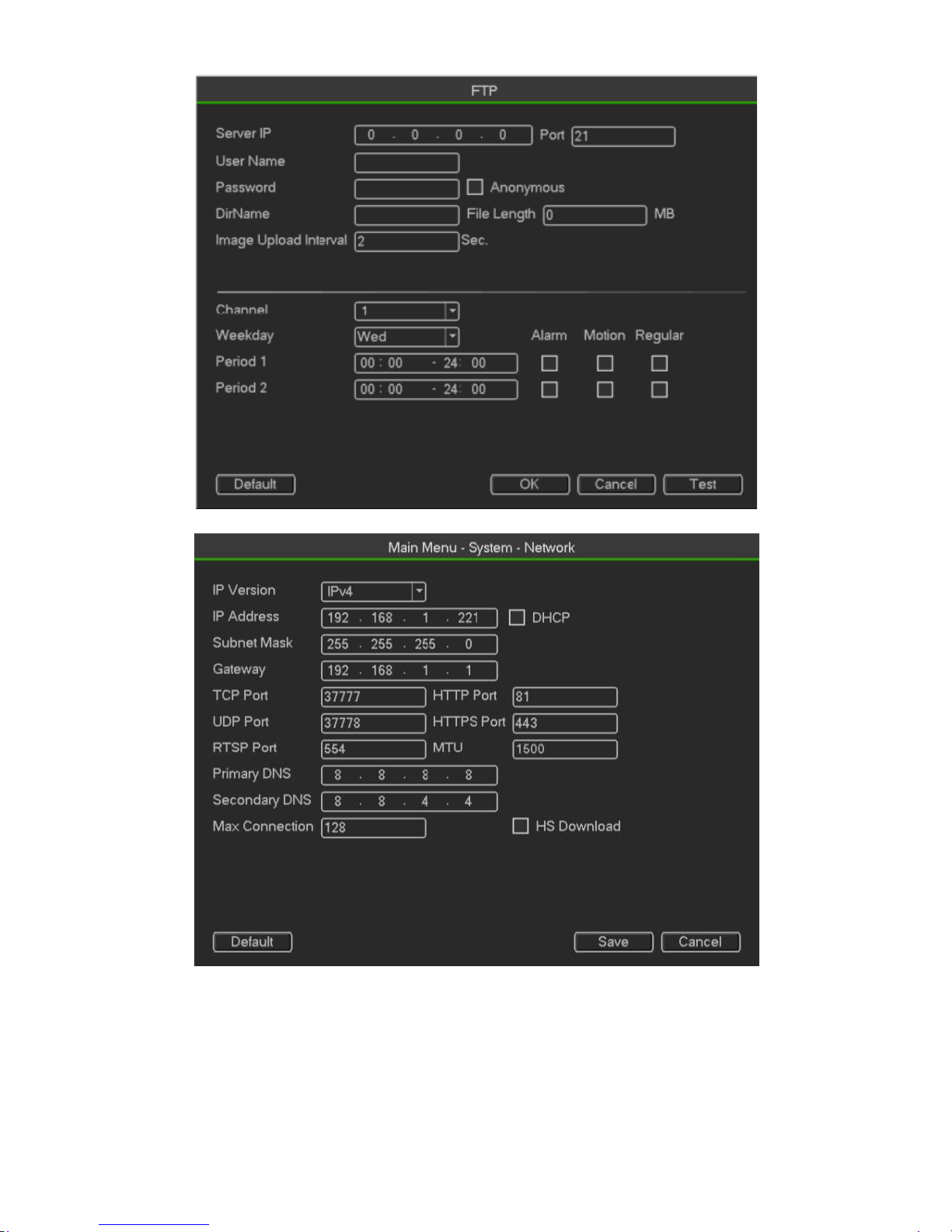

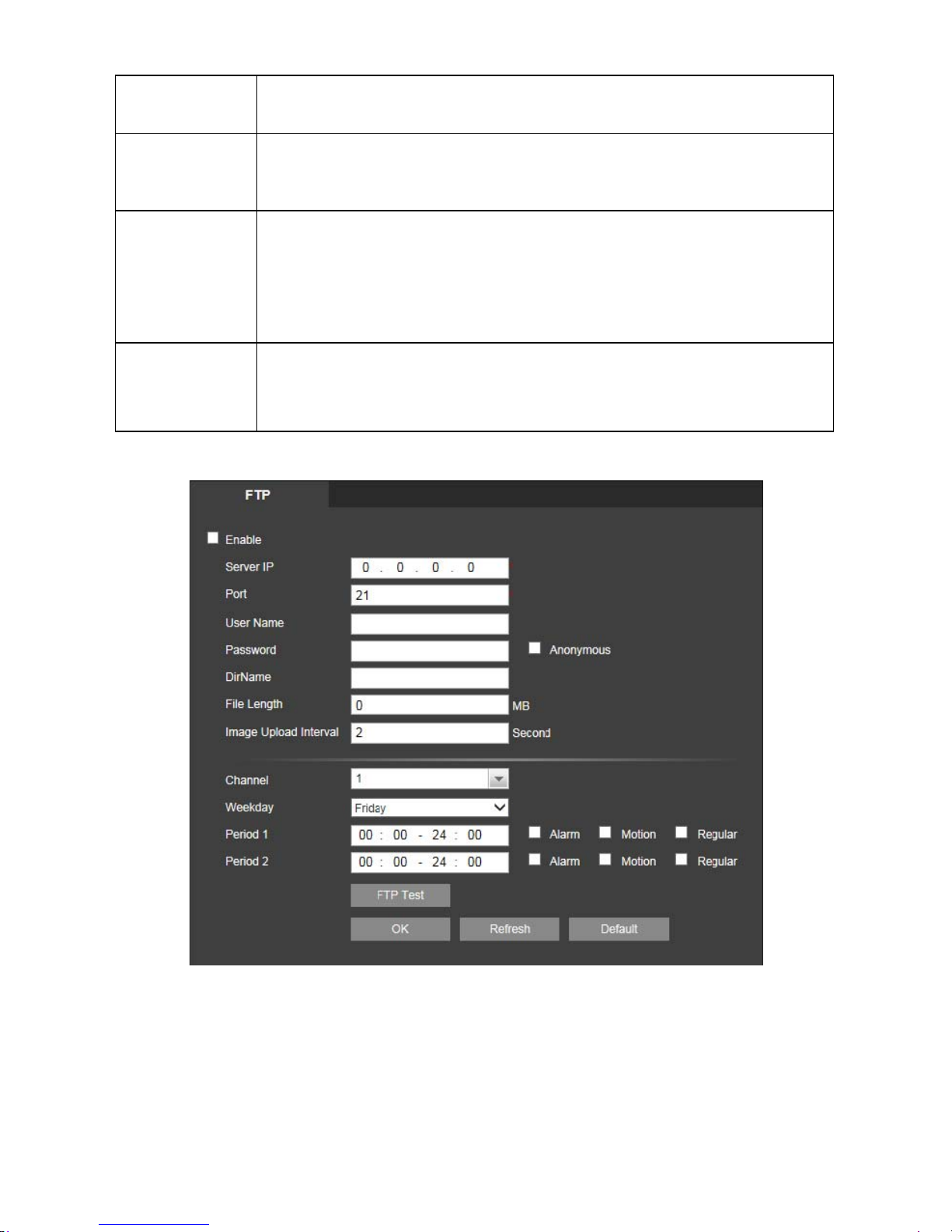

Image FTP

In the main menu, from Setting->Network->FTP, you can set FTP server
information. Please enable FTP function and then click save button

‐37‐



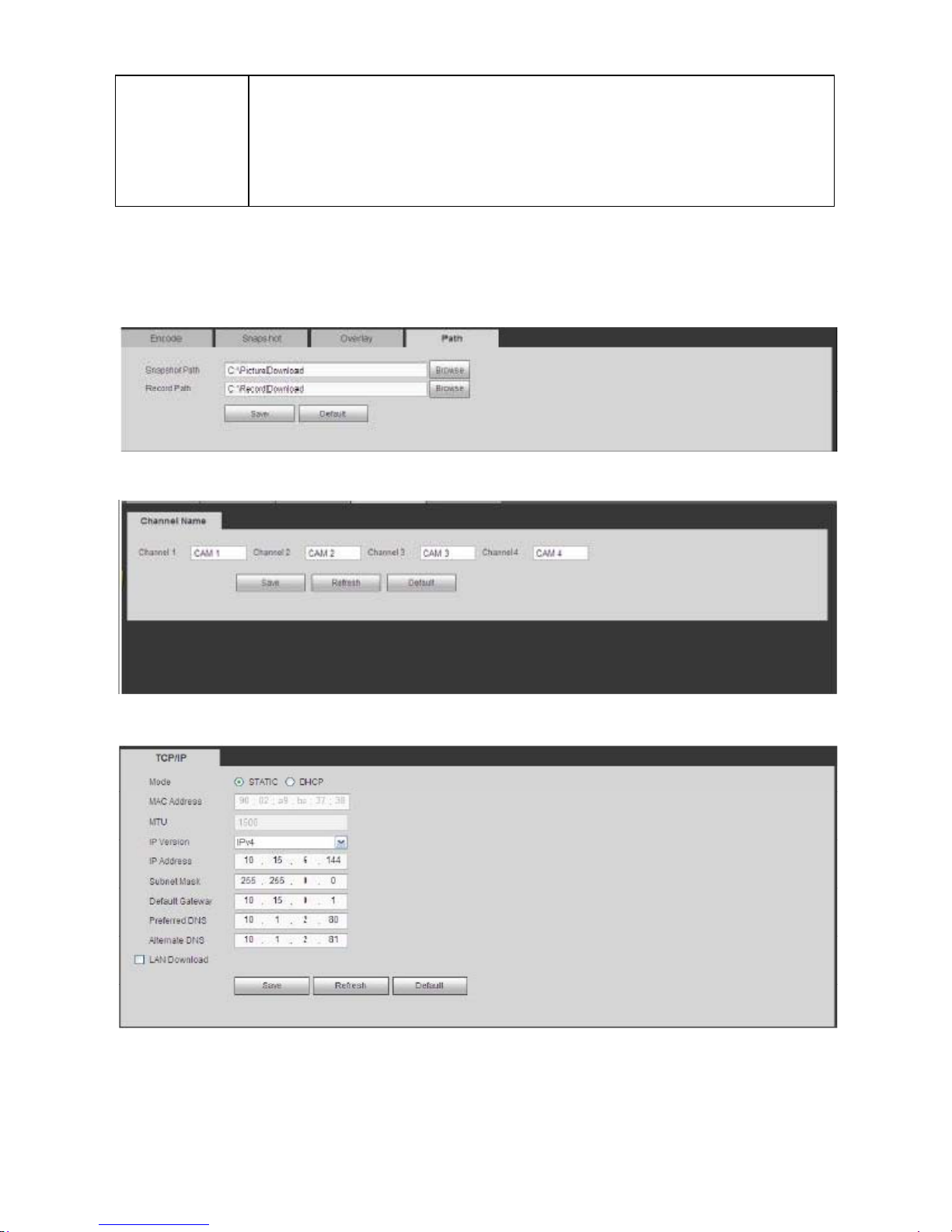

 IP Version: There are two options: IPv4 and IPv6. Right now, system

supports these two IP Address format and you can access via them.
 MAC address: The host in the LAN can get a unique MAC address. It is for

you to access in the LAN. It is read-only.
 IP address: Here you can use up/down button or input the corresponding

number to input IP address. Then you can set the corresponding subnet

‐38‐



mask the default gateway.
 Default gateway: Here you can input the default gateway. Please note

system needs to check the validity of all IPv6 addresses. The IP address

and the default gateway shall be in the same IP section. That is to say, the

specified length of the subnet prefix shall have the same string .
 DHCP: It is to auto search IP. When enable DHCP function, you can not

modify IP/Subnet mask/Gateway. These values are from DHCP function.

If you have not enabled DHC P function, IP/Subnet mask/Gateway display

as zero. You need to disable DHCP function to view current IP information.

Besides, when PPPoE is operating, you can not modify IP/Subnet mask
 Gateway. MTU: It is to set MTU value of the network adapter. The value

ranges from 1280 -7200. The default setup is 1500 bytes. Please note

MTU modification may result in network adapter reboot and network

becomes off. That is to say, MTU modification can affect current network

service. System may pop up dialog box for you to confirm setup when you

want to change MTU setup. Click OK button to confirm current reboot, or

you can click Cancel button to terminate current modification. Before the

modification, you can check the MTU of the gateway; the MTU of the DVR

shall be the same as or is lower than the MTU of the gateway. In this way,

you can reduce packets and enhance network transmission efficiency.
 1500: Ethernet information packet max value and it is also the default

value. It is the typical setup when there is no PPPoE or VPN. It is the

default setup of some router, switch or the network adapter.

 1492: Recommend value for PPPoE.
 1468: Recommend value for DHCP.
 Preferred DNS server: DNS server IP address.
 Alternate DNS server: DNS server alternate address.
 Transfer mode: Here you can select the priority between fluency/video

qualities.
 LAN download: System can process the downloaded data first if you

enable this function. The

 download speed is 1.5X or 2.0X of the normal speed.
 LAN download: System can process the downloaded data first if you

enable this function. The download

 5X or 2.0X of the normal speed.
 After completing all the setups please click save button, system goes back

to the previous menu.

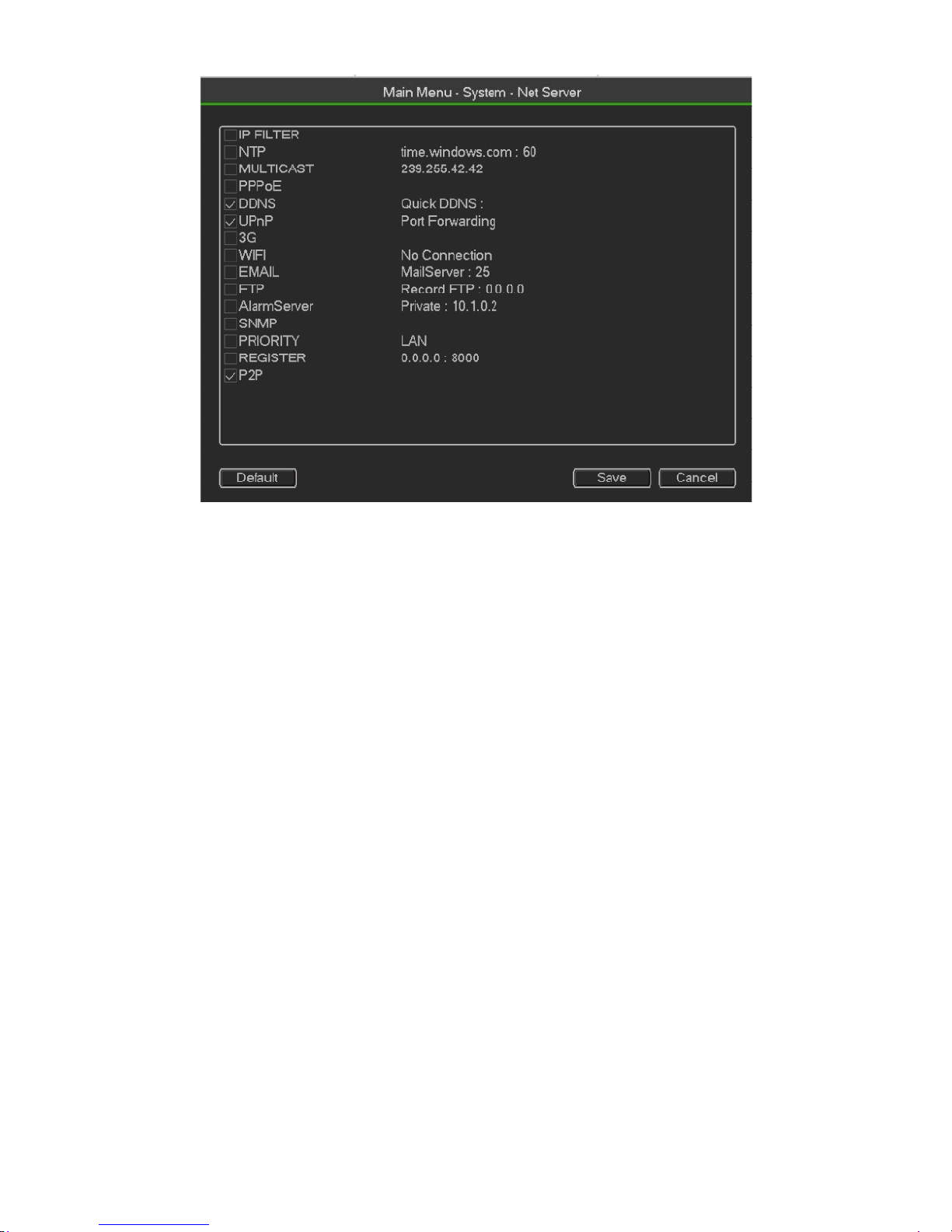

Network service

‐39‐



IP

Filter

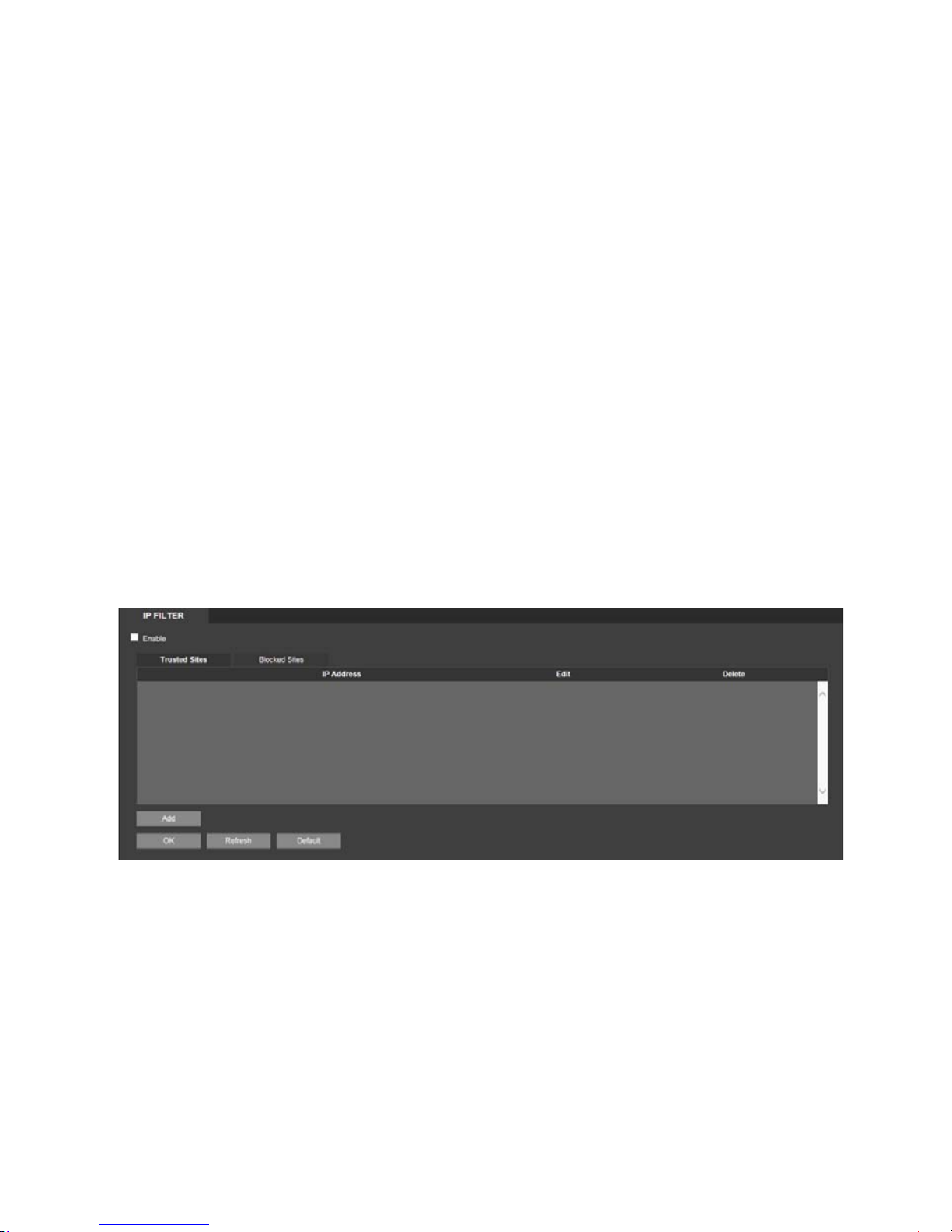

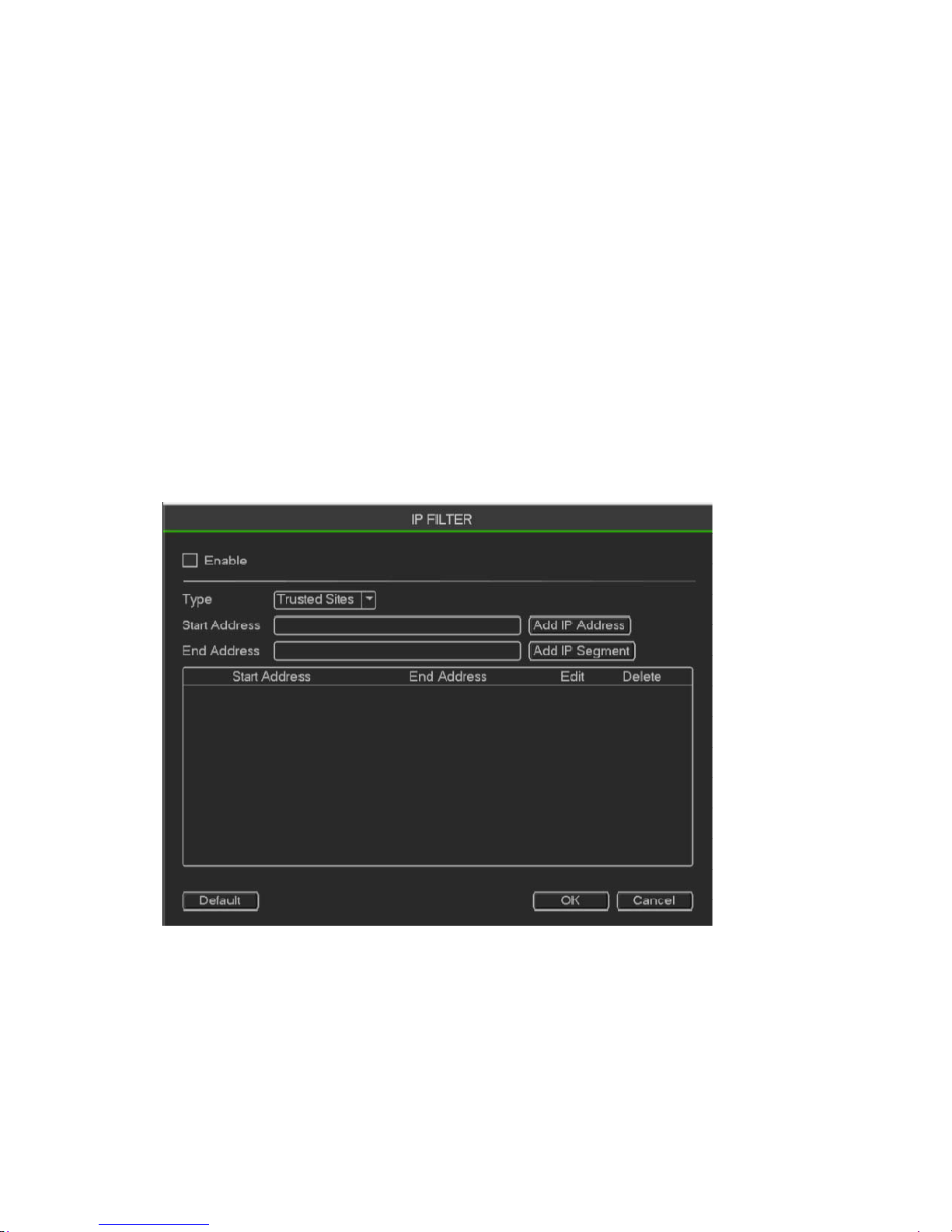

IP filter interface is shown as in Figure 4-61. You can add IP in the following list.
The list supports max64 IP addresses. System supports valid address of IPv4
and IPv6.

Please note system needs to check the validity of all IPv6 addresses and
implement optimization.

After you enabled trusted sites function, only the IP listed below can access
current DVR. If you enable blocked sites function, the following listed IP
addresses can not access current DVR
 Enable: Highlight the box here, you can check the trusted site function and

blocked sites function.

You can not see these two modes if the Enable button is grey.
 Type: You can select trusted site and blacklist from the dropdown list. You

can view the IP address on the following column.
 Start address/end address: Select one type from the dropdown list, you

can input IP address in the start address and end address. Now you can

click Add IP address or Add IP section to add

 For the newly added IP address, it is in enable status by default.

Remove the √ before the item, and then current item is not in the list.

 System max supports 64 items.

 Address column supports IPv4 or IPv6 format. If it is IPv6 address,

system can optimize it. For example, system can optimize aa:0000: 00:

00aa: 00aa: 00aa: 00aa: 00aa as aa:: aa: aa: aa:aa: aa: aa.

 System automatically removes space if there is any space before or

after the newly added IP address.

‐40‐



 System only checks start address if you add IP address. System

check start address and end address if you add IP section and the
end address shall be larger than the start address.

 System may check newly added IP address exists or not. System

does not add if input IP address does not exist.

 Delete: Click it to remove specified item.
 Edit: Click it to edit start address and end address. See Figure 4-62.

System can check the IP address validity after the edit operation and

implement IPv6 optimization.
 Default: Click it to restore default setup. In this case, the trusted sites and

blocked sites are both null.

Note:

 If you enabled trusted sites, only the IP in the trusted sites list can access

the device.
 If you enabled blocked sites, the IP in the blocked sites can not access the

device.
 System supports add MAC address.

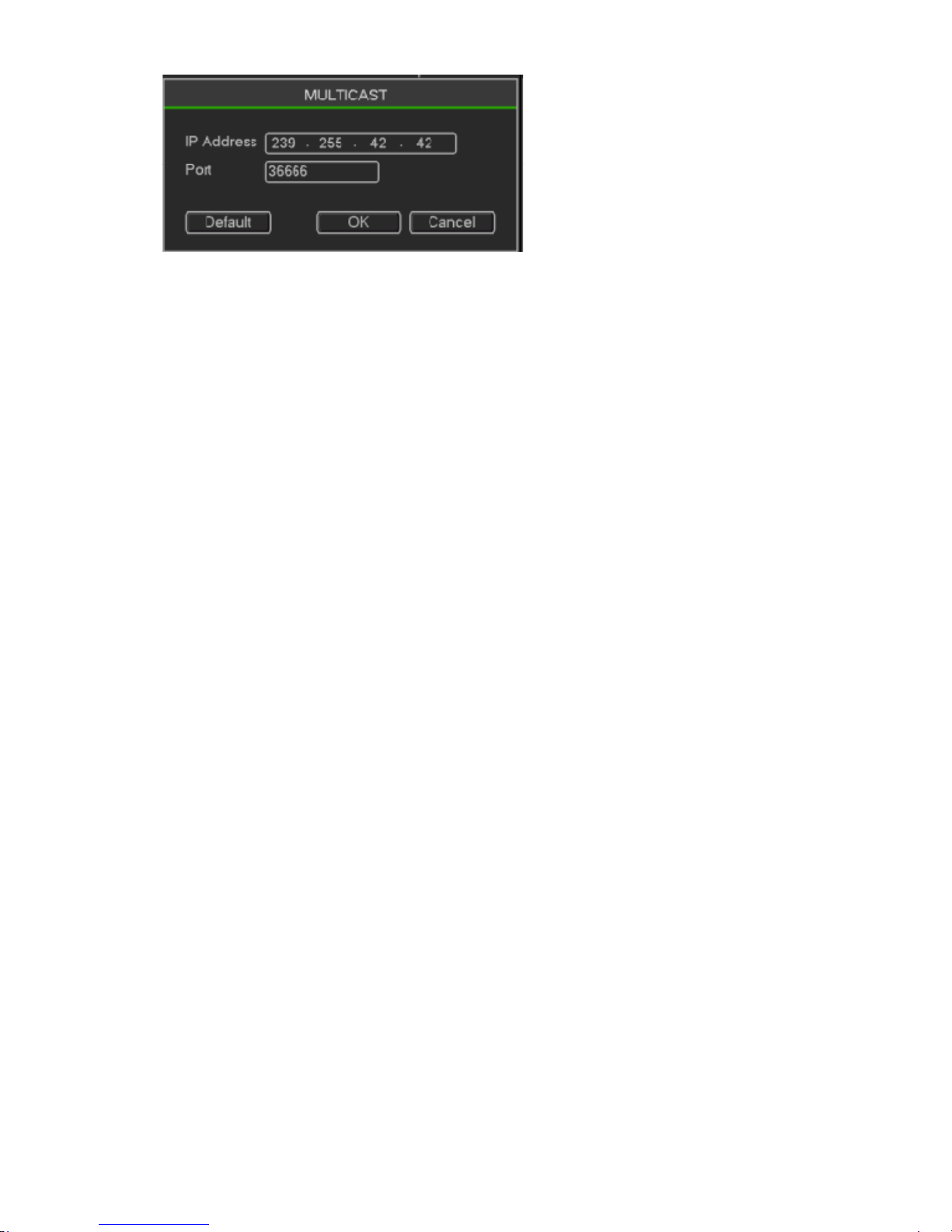

Multicast

‐41‐



Here you can set a multiple cast group. Please refer to the following sheet for
detailed information .
 IP multiple cast group address -224.0.0.0-239.255.255.255 - “ D” address

space The higher four-bit of the first byte= ” 1110”
 Reserved local multiple cast group address -224.0.0.0-224.0.0.255

-TTL=1 W hen sending out telegraph

-For example

224.0.0.1All systems in the sub-net

224.0.0.2All routers in the sub-ne

224.0.0.4DVMRP router

224.0.0.5OSPF router

224.0.0.13 PIMv2 router
 Administrative scoped addressees -239.0.0.0-239.255.255.255

-Private address space

 Like the single broadcast address of RFC1918
 Can not be used in Internet transmission
 Used for multiple cast broadcast in limited space.

Except the above mentioned addresses of special meaning, you can use other
addresses. For example:
Multiple cast IP: 235.8.8.36
Multiple cast PORT: 3666.
After you logged in the Web, the Web can automatically get multiple cast
address and add it to the multiple cast groups. You can enable real-time
monitor function to view the view. Please note multiple cast function applies to
special series only.

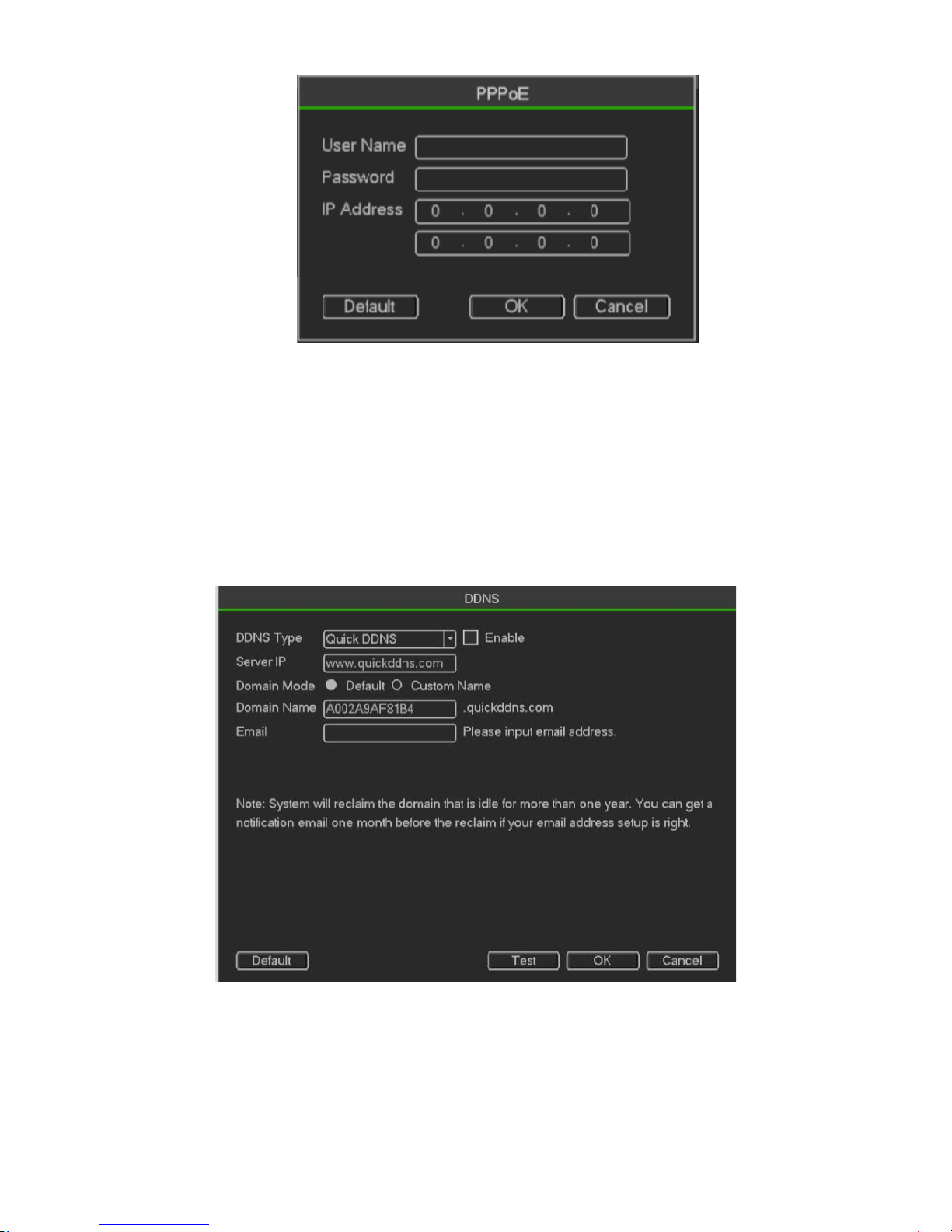

PPPoE

Input “PPPoE name” and “PPPoE password” you get from your ISP (Internet
service provider). Click save button, you need to restart to activate your
configuration. After rebooting, DVR will connect to internet automatically. The
IP in the PPPoE is the DVR dynamic value.

‐42‐



DDNS

You need a PC of fixed IP in the internet and there is the DDNS software
running in this PC. In other words, this PC is a DNS (domain name server).
In network DDNS, please select DDNS type and highlight enable item. Them
please input your PPPoE name you get from you IPS and server IP (PC with
DDNS). Click save button and then reboot system. Click save button, system
prompts for rebooting to get all setup activated. After rebooting, open IE and

input as below: http：//(DDNS server IP)/(virtual directory name)/webtest.htm
e.g.: http：//10.6.2.85/DVR _DDNS/webtest.htm.) Now you can open DDNS

Server web search

Please note NNDS type includes: CN99 DDNS, NO-IP DDNS, Quick DDNS,
Dyndns DDNS and sysdns DDNS. All the DDNS can be valid at the same time,
you can select as you Private DDNS function shall work with special DDNS
server and special Professional Surveillance Software (PSS).

Quick DDNS and Client-end Introduction

‐43‐



1) Background Introduction

Device IP is not fixed if you use ADSL to login the network. The DDNS function
allows you to access the DVR via the registered domain name. Besides the
general DDNS ,the Quick DDNS works with the device from the manufacturer
so that it can add the extension function.

2) Function Introduction

The quick DDNS client has the same function as other DDNS client end. It
realizes the bonding of the domain name and the IP address. Right now,
current DDNS server is for our own devices only. You need to refresh the
bonding relationship of the domain and the IP regularly. There is no user name,
password or the ID registration on the server. At the same time, each device
has a default domain name(Generated by MAC address) for your option. You
can also use customized valid domain name (has not registered.).

3) Operation

Before you use Quick DDNS, you need to enable this service and set proper
server address, port value and domain name.

 Server address：www.quickddns.com
 Port number：80
 Domain name ：There are two modes: Default domain name and

customized domain name

Except default domain name registration, you can also use customized

domain name (You can input your self-defined domain name.) After

successful registration, you can use domain name to login installed of the

device IP. Do not register frequently. The interval between two

registrations shall be more than 60 seconds. Too many registration

requests may result in server attack. System may take back the domain

name that is idle for one year. You can get a notification email before

the cancel operation if your email address setup is OK.

UPnP

The UPNP protocol is to establish a mapping relationship between the LAN
and the WAN. Please Input the router IP address in the LAN

‐44‐



 UPNP on/off ：Turn on or off the UPNP function of the device.
 Status: When the UPNP is offline, it shows as “Unknown”. When the

UPNP works it shows “Success”.

 Router LAN IP: It is the router IP in the LAN.
 WAN IP: It is the router IP in the WAN.

 Port Mapping list： The port mapping list here is the one to one

relationship with the router’s port mapping setting.

 Service name ：Defined by user.

 Protocol： Protocol type

 Internal port ：Port that has been mapped in the router.

 External port ：Port that has been mapped locally.

Default: UPNP default port setting is the HTTP, TCP and UDP of the
DVR. Add to the list: Click it to add the mapping relationship.
Delete: Click it to remove one mapping item.

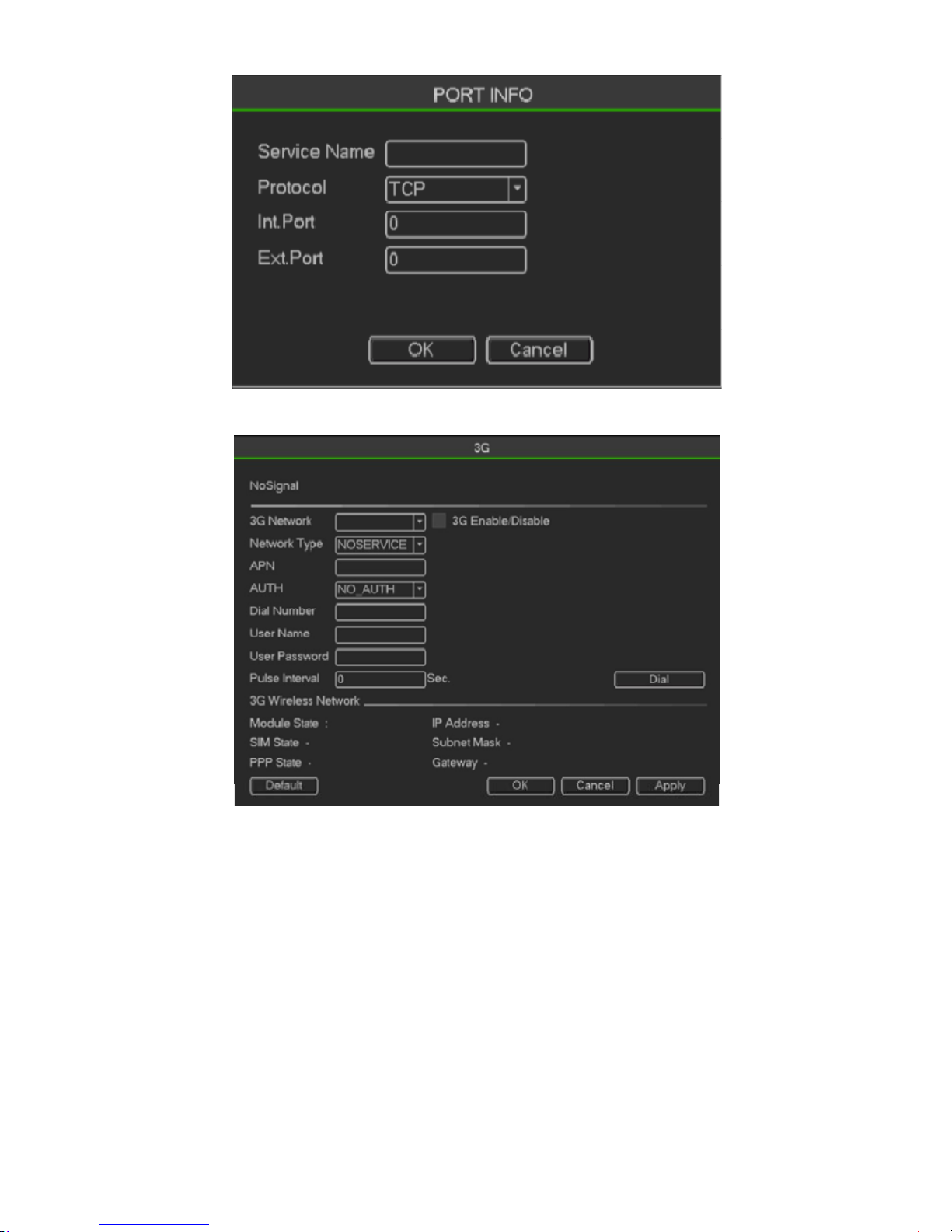

Double click one item; you can change the corresponding mapping
information.

Important:
When you are setting the router external port, please use 1024~5 000 port.
Do not use well-known port 1~255 and the system port 256~1023 to avoid
conflict. For the TCP and UDP, please make sure the internal port and
external port are the same to guarantee the proper data transmission.

‐45‐



3G

Please refer to the following contents for the parameter information

 Pane 1: Display 3G signal intensity after you enabled 3G function.
 Pane 2: Display 3G module configuration information after you enabled

3G function.
 Pane 3: Display 3G module status information after you enabled 3G

function. It is to display current wireless network signal intensity such as

EVDO, CDMA1x, W CDMA, CDMA,EDGE and etc.

 3G module: It is to display current wireless network adapter name.
 3G Enable/Disable: Check the box here to enable 3G module.
 Network type: There are various network types for different 3G network

modules. You can select according to your requirements.
 APN: It is the wireless connection server. It is to set you access the

wireless network via which method.

‐46‐



 AUTH: It is the authentication mode. It supports PAP/CHAP.
 Dial number: Please input 3G network dialup number you got from your

ISP.

 User name: It is the user name for you to login the 3G network.
 Password: It is the password for you to login the 3G network.
 Pulse interval: You can set dialup duration. Once you disable the extra

stream, the connection time begins. For example, if you input 5 seconds

here, then 3G network connection period is 5 seconds.
 The device automatically disconnect when time is up. If there is no extra

stream, 3G Network connection is valid all the time. If the alive time is 0,

then the 3G network connection is valid all the time.
 Dial: Here you can enable or disable 3G network connection

/disconnection manually.
 3G wireless network: Here is to display wireless network status, SIM card

status, dial status. If the 3G connection is OK, then you can see the device

IP address the wireless network automatically allocates.

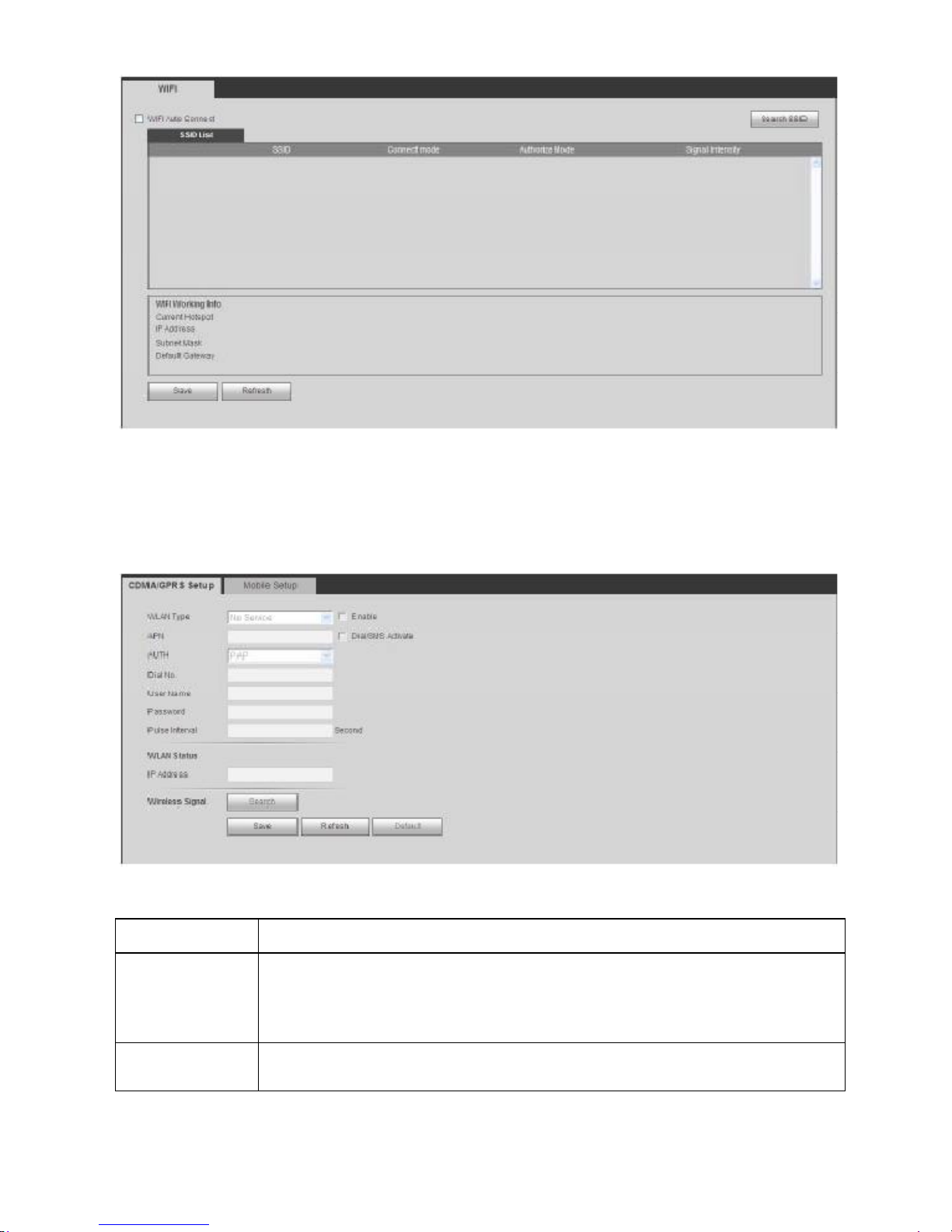

WIFI

The W IFI interface is shown as below.

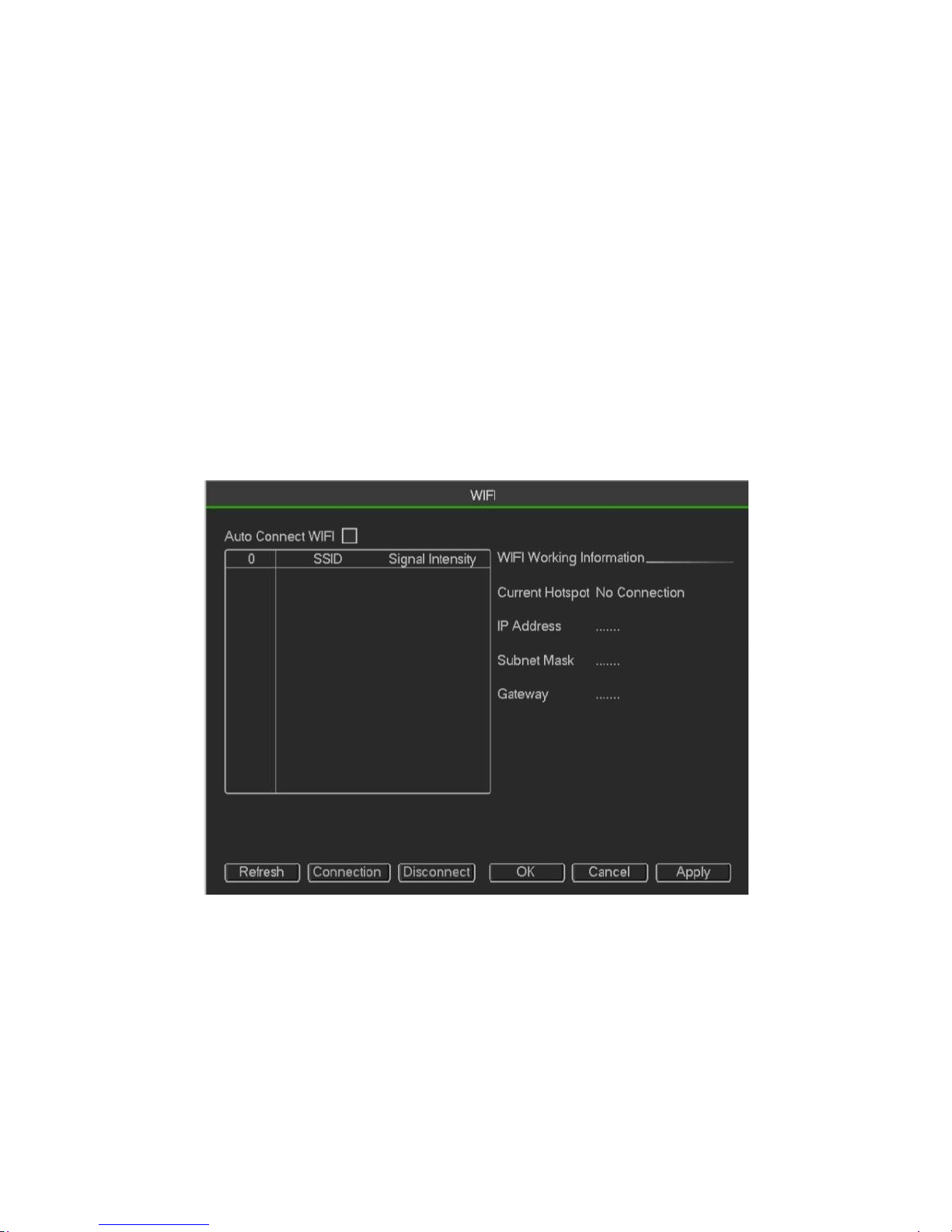

 Auto connect W IFI: Check the box here, system automatically connects to

the previous W IFI hotspot.
 Refresh: You can click it to search the hotspot list again. It can

automatically add the information such as the password if you have set it

before.

 Disconnect: Here you can click it to turn off the connection.
 Connect: Here you can click it to connect to the hotspot. System needs to

turn off current connection and then connect to a new hotspot if there is

‐47‐



connection of you selected one. W IFI working status: Here you can view

current connection status. Please note:
 After successful connection, you can see WIFI connection icon at the top

right corner of the preview interface.
 When the hotspot verification type is WEP, system displays as AUTO

since the device can not detect its encryption type.
 System does not support verification type WPA and WPA2. The display

may become abnormal for the verification type and encryption type.

After device successfully connected to the WIFI, you can view the hotspot
name, IP address, subnet mask default gateway and etc

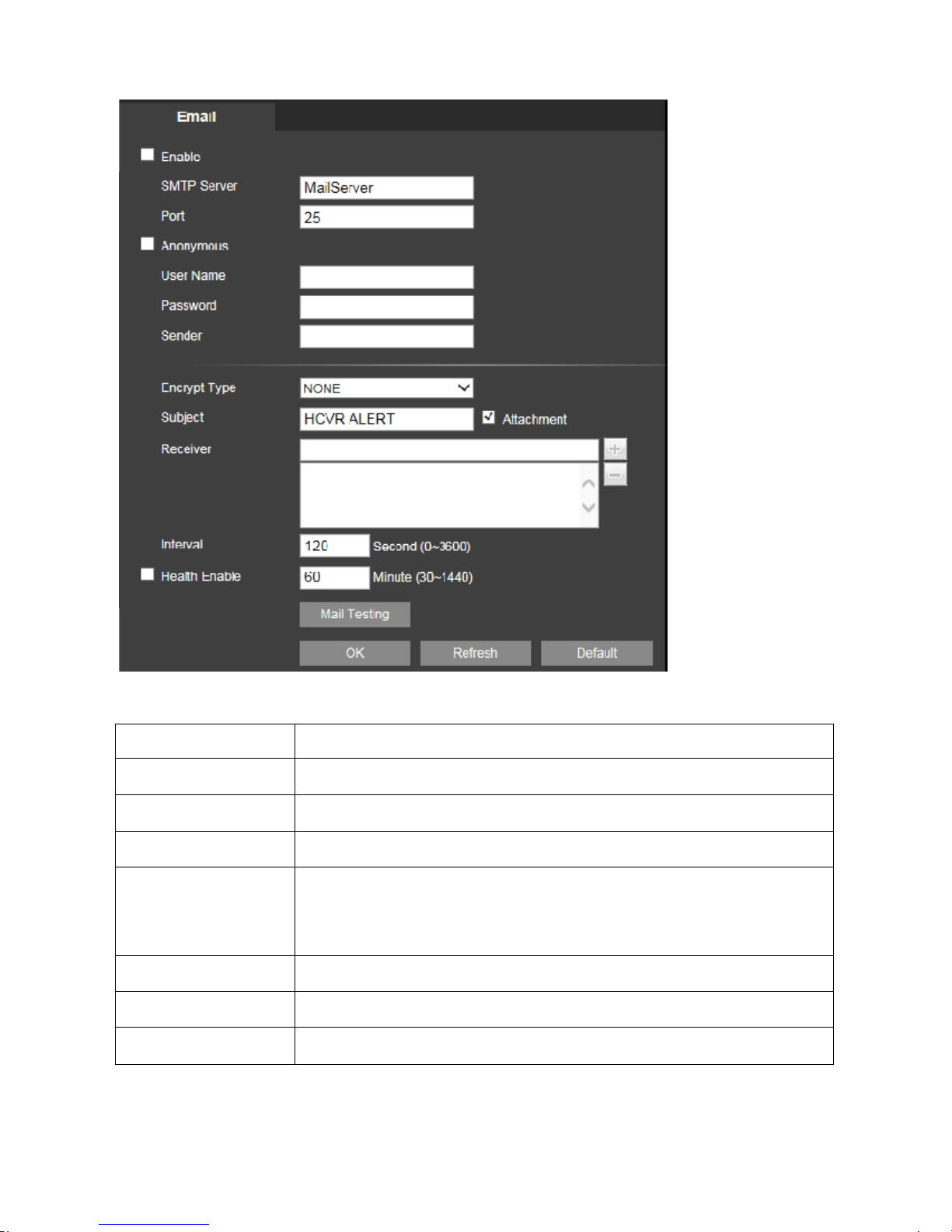

Email

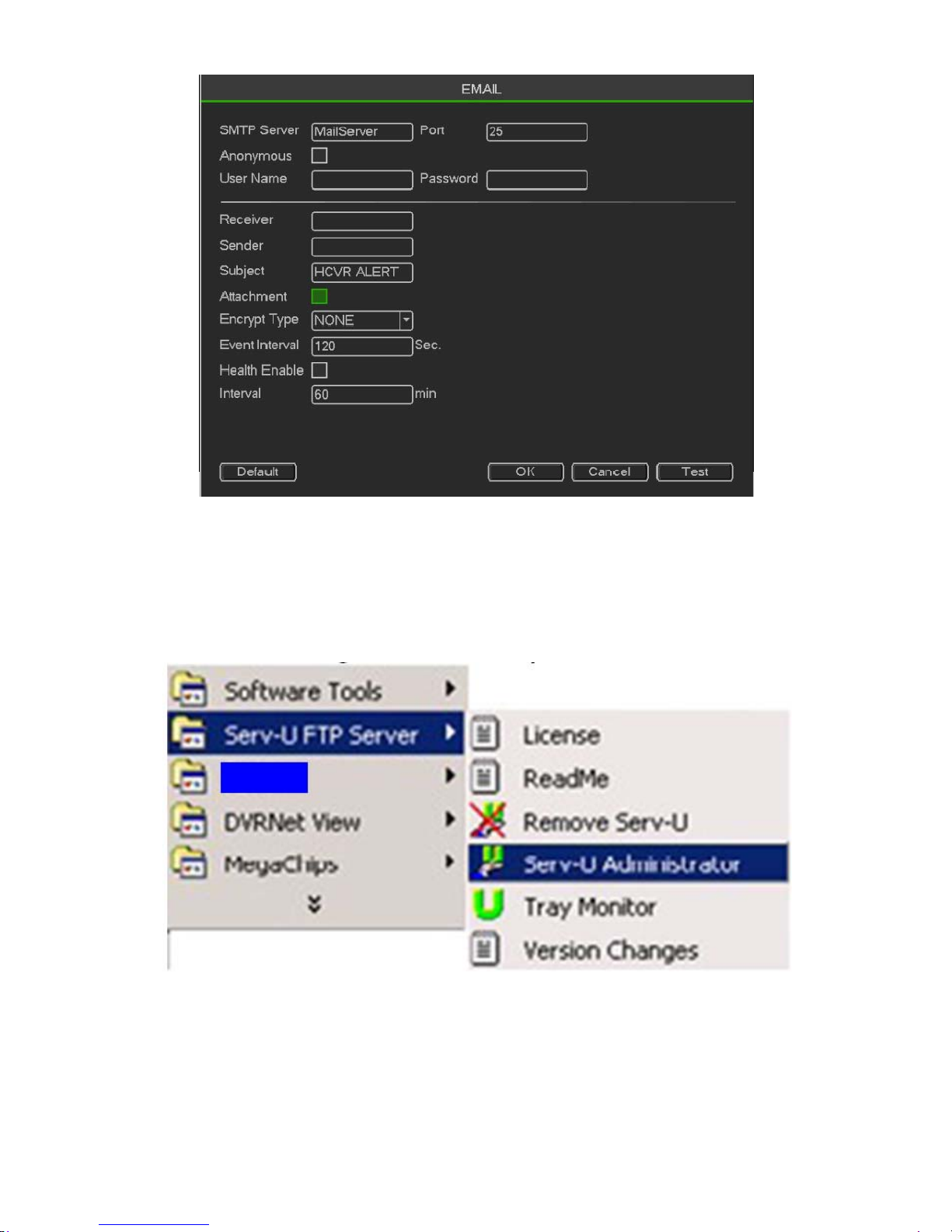

 SMTP server: Please input your email SMTP server IP here.
 Port: Please input corresponding port value here.
 User name: Please input the user name to login the sender email box.
 Password: Please input the corresponding password here.
 Sender: Please input sender email box here.
 Title: Please input email subject here. System support English character

and Arabic number. Max 32-digit.
 Receiver: Please input receiver email address here. System max supports

3 email boxes. System automatically filters same addresses if you input

one receiver. Repeatedly. SSL enable: System supports SSL encryption

box.
 Interval: The send interval ranges from 0 to 3600 seconds. 0 means there

is no interval.
 Health email enable: Please check the box here to enable this function.

This function allows the system to send out the test email to check the

connection is OK or not.
 Interval: Please check the above box to enable this function and then set

the corresponding interval.
 System can send out the email regularly as you set here. Click the Test

button, you can see the corresponding dialogue box to see the email

connection is OK or not. Please note system will not send out the email

immediately when the alarm occurs. When the alarm, motion detection or

the abnormity event activates the email, system sends out the email

according to the interval you specified here. This function is very useful

when there are too many emails activated by the abnormity

‐48‐



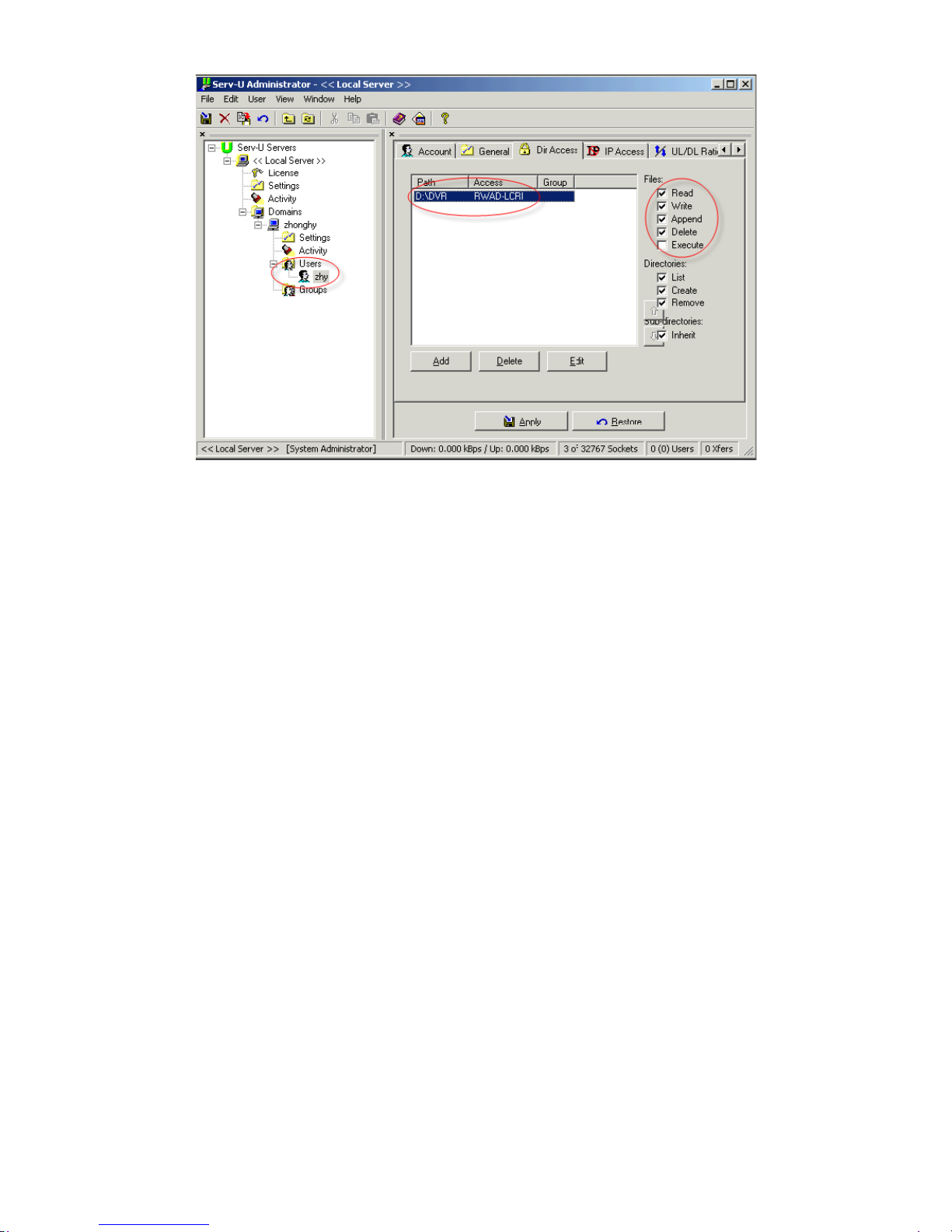

FTP

You need to download or buy FTP service tool (such as Ser-U FTP SERVER)
to establish FTP service. Please install Ser-U FTP SERVER first. From “start” ->
“program” -> Serv-U FTP Server ->
Serv-U Administrator. Now you can set user password and FTP folder. Please
note you need to grant write right to FTP upload user

‐49‐



You can use a PC or FTP login tool to test setup is right or not. For example,
you can login user ZHY to H140H140H140HTUFTP://10.10.7.7UTH and then
test it can modify or delete folder or not . System also supports upload multiple
DVRs to one FTP server. You can create multiple folders under this FTP.
Please highlight the icon front of Enable to activate FTP function. Here you can
input FTP server address, port and remote directory. When remote directory is
null, system automatically create folders according to the IP, time and channel.
User name and password is the account information for you to login the FTP.
File length is upload file length. When setup is larger than the actual file length,
system will upload the whole file. When setup here is smaller than the actual
file length, system only uploads the set length and auto ignore the left section.
When interval value is 0, system uploads all corresponding files. After
completed channel and weekday setup, you can set two periods for one each
channel. Click the Test but ton, you can see the corresponding dialogue box to
see the FTP connection is OK or not.

‐50‐



Alarm Centre

This interface is reserved for you to develop.

SNMP

SNMP is an abbreviation of Simple Network Management Protocol. It provides
the basic network management frame of the network management system.
The SNMP widely used in many environments. It is used in many network

device, software and system. You can set in the following interface。

‐51‐



Please enable the SNMP function. Use the corresponding software tool (MIB
Builder and MG-SOFT MIB Browser. You still need two MIB file:
BASE-SNMP-MIB, DVR-SNMP-MIB) to connect to the device.

 Please follow the steps listed below to configure.
 Check the box to enable the SNMP function. Input the IP address of the

PC than is running the software in the Trap address. You can use default

setup for the rest items.

 Compile the above mentioned two MIB file via the software MIB Builder.
 Run MG-SOFT MIB Browser to load the file from the previous step to the

software.
 Input the device IP you want to manage in the MG-SOFT MIB Browser.

Please set the corresponding version for your future reference.
Open the tree list on the MG-SOFT MIB Browser; you can get the device
configuration. Here you can see the device has how many video
channels, audio channels, application version and etc.

Note

Port conflict occurs when SNMP port and Trap port are the same.

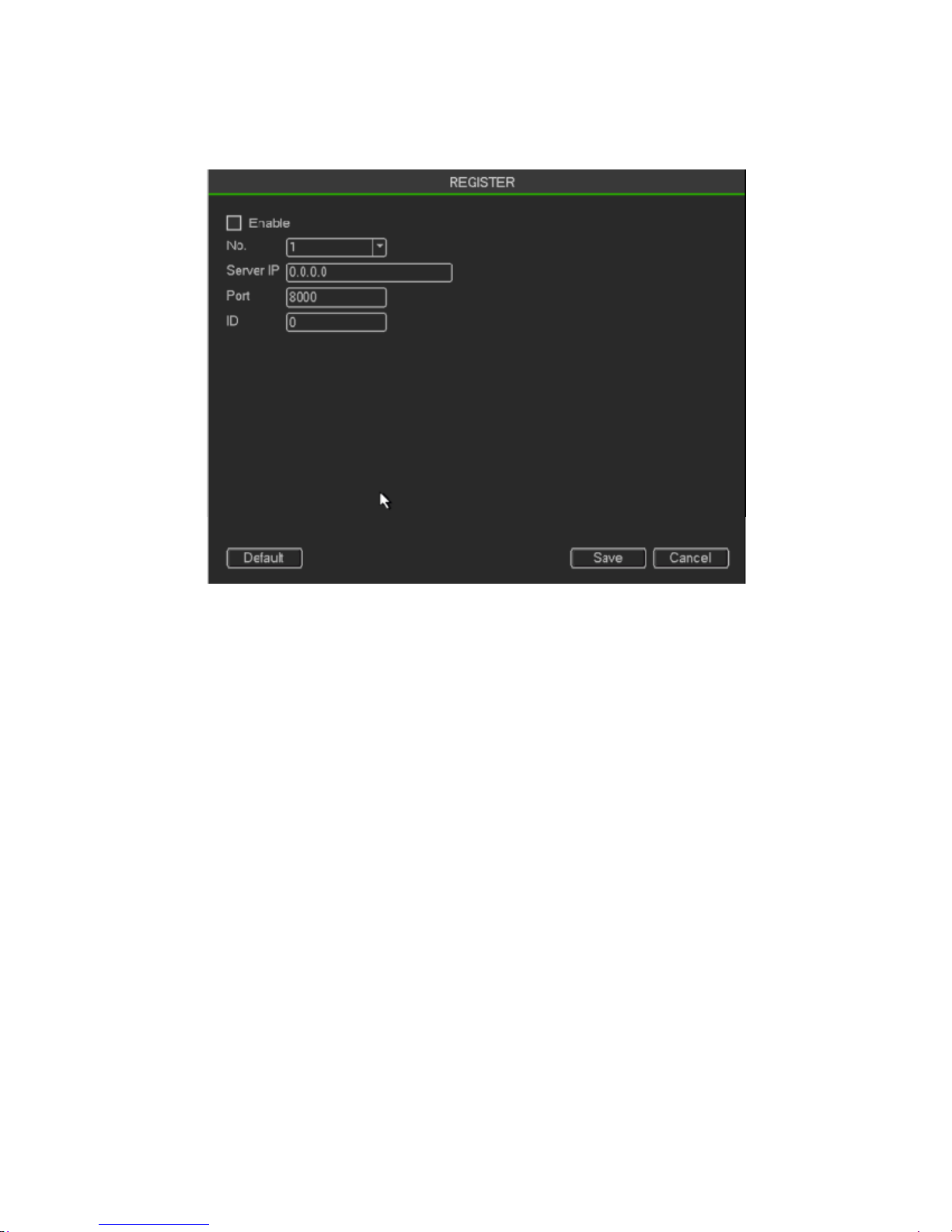

Register

This function allows the device to auto register to the proxy you specified. In
this way, you can use the client-end to access the DVR and etc via the proxy.
Here the proxy has a switch function. In the network service, device supports
the server address of IPv4 or domain.
Please follow the steps listed below to use this function.
Please set proxy server address, port, and sub-device name at the device-end.

‐52‐



Please enable the auto register function, the device can auto register to the
proxy server.

Important

Do not input network default port such as TCP port number

The proxy server software developed from the SDK. Please open the software
and input the global setup. Please make sure the auto connection port here is
the same as the port you set in the previous step. Now you can add device.
Please do not input default port number such as the TCP port in the mapping
port number. The device ID here shall be the same with the ID you input in
Figure 4 -71. Click Add button to complete the setup. Now you can boot up the
proxy server. When you see the network status is Y, it means your registration
is OK. You can view the proxy server when the device is online.

Important

The server IP address can also be domain. But you need to register a domain
name before you

‐53‐



Display

Display

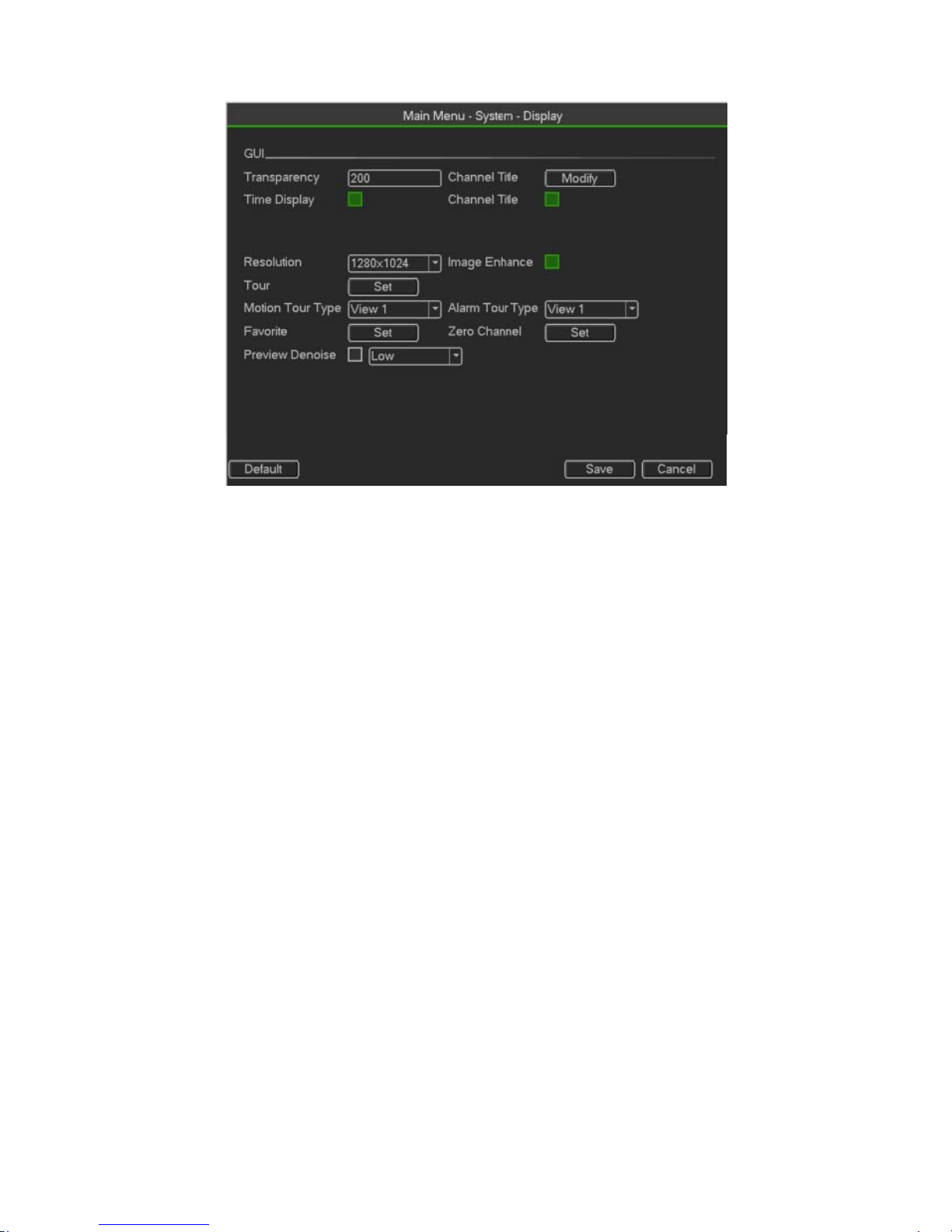

 Transparency: Here is for you to adjust transparency. The value ranges

from 128 to 255.
 Channel name: Here is for you to modify channel name. System max

support 25 -digit (The value may vary due to different series). Please note

all your modification here only applies to DVR local end. You need to open

web or client end to refresh channel name.
 Time display: You can select to display time or not when system is

playback.
 Channel display: You can select to channel name or not when system is

playback.
 Resolution: There are four options: 1920×1080, 1280×1024 (default),

1280×720,1024×768. Please note the system needs to reboot to activate

current setup.
 Image enhance: Check the box; you can optimize the margin of the

preview video.
 Preview de noise: It is to reduce the video noise and make it clearer. You

can set de noise level. The higher the level is, the clearer the video is.

Please highlight icon to select the corresponding function. After

completing all the setups please click save button, system g oes back to

the previous menu.

‐54‐



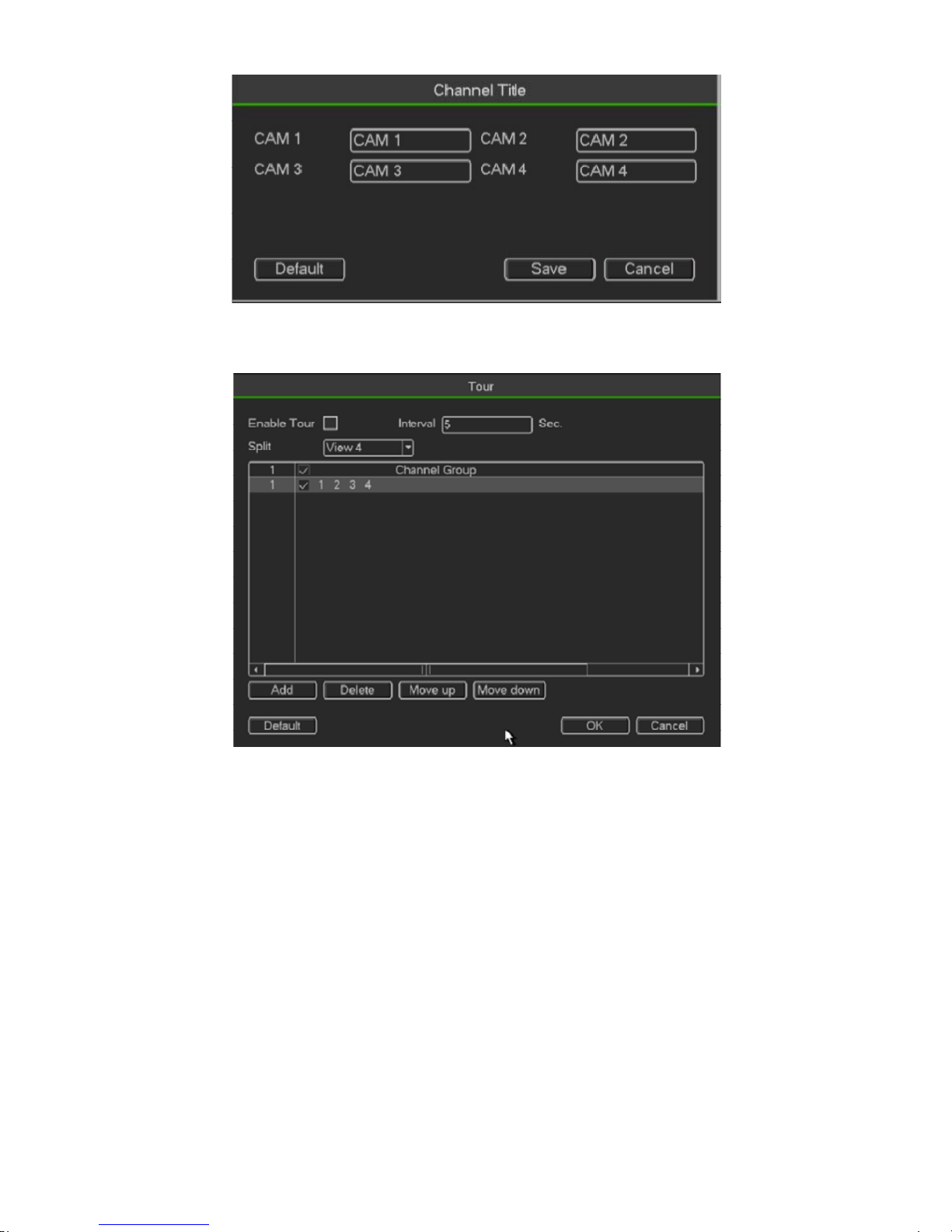

It is to modify channel name.

Channel Type

It is to set channel type. It supports coaxial.

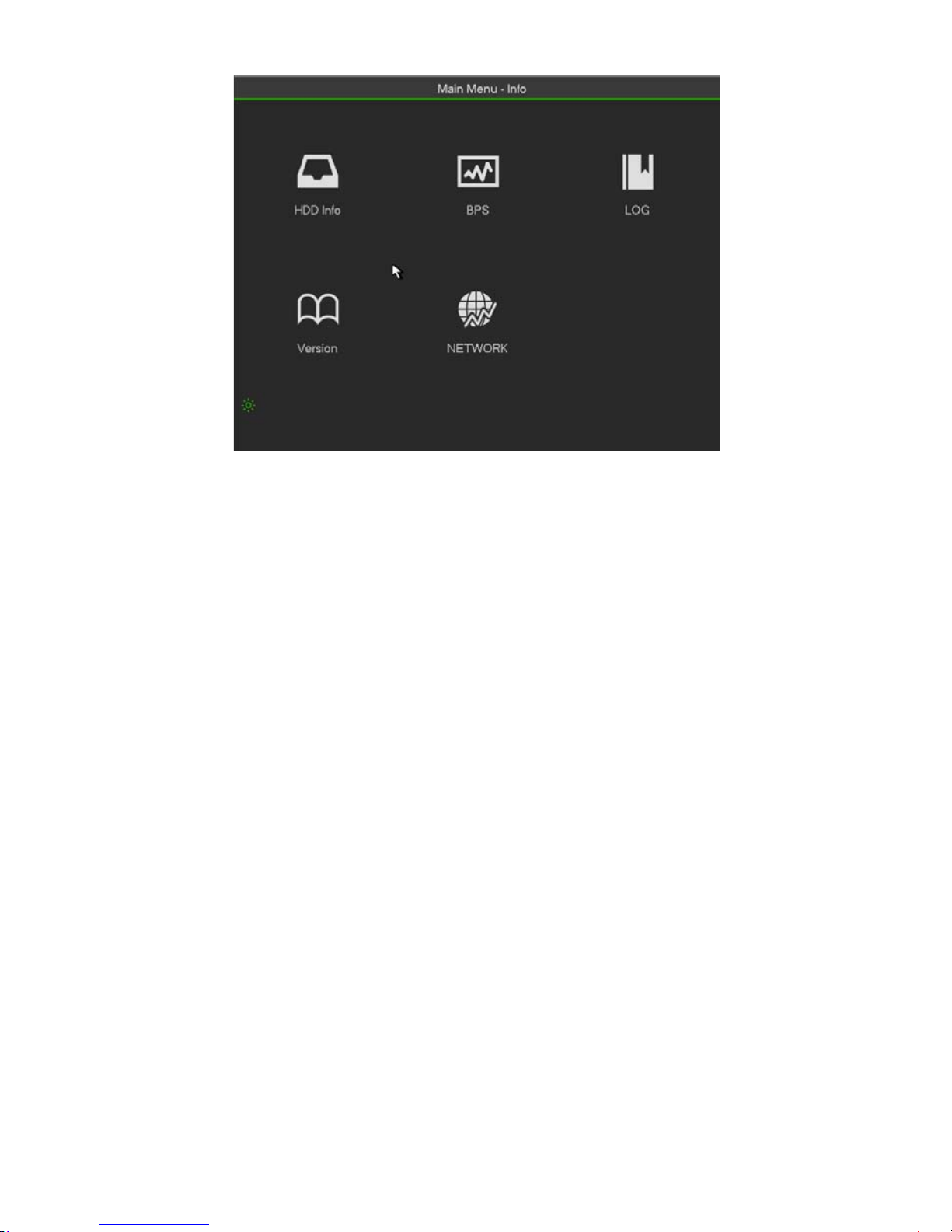

3.3.4 Information

‐55‐

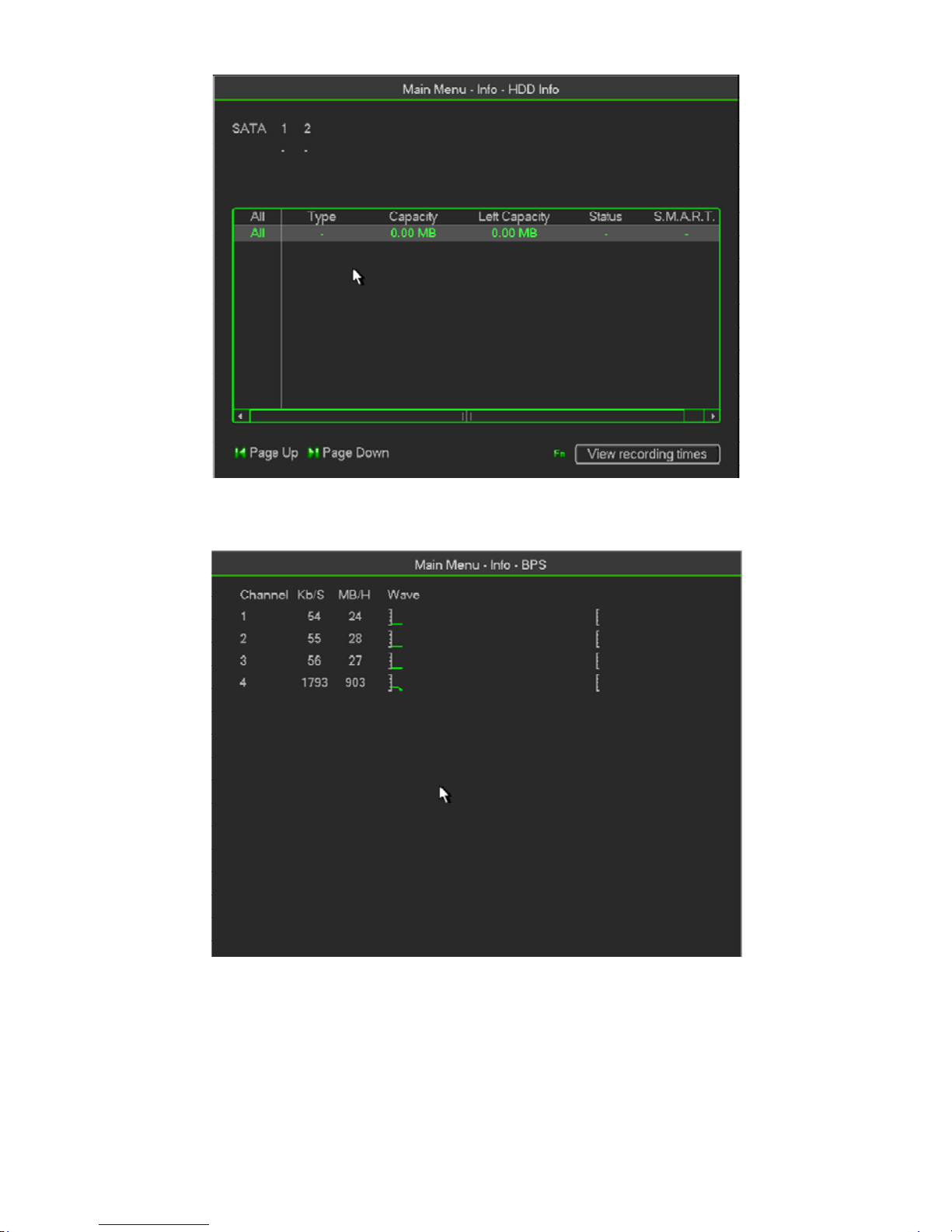

HDD Information

Here is to list hard disk type, total space, free space, video start time and
status.
SATA: 1 here means system max supports 1 HDD. ○ means current HDD is
normal. X means there is error. - means there is no HDD. If disk is damaged,
system shows as “?”. Please remove the broken hard disk before you add a
new one.

﹡ means the second SN: You can view the HDD amount the device
connected to. HDD is current working HDD
Type: The corresponding HDD properties
Total space: The HDD total capacity
Free space: The HDD free capacity.
Status: HDD can work properly or not.
SMART: Display HDD information

‐56‐



Double click one HDD information; you can see the HDD SMART information

BPS

Here is for you to view current video data stream (KB/s), resolution and etc.

Log

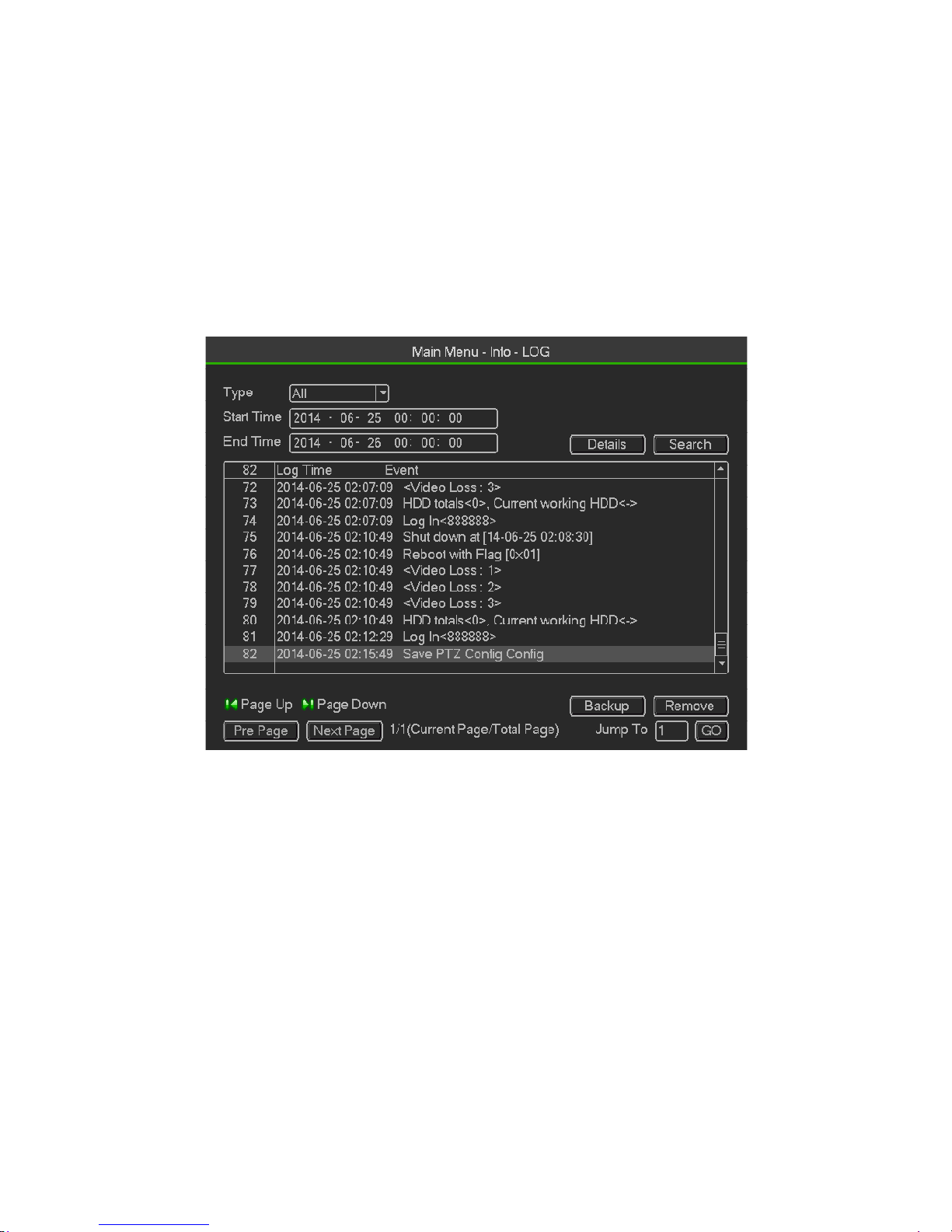

Here is for you to view system log file. System lists the following information
Log types include system operation, configuration operation, data
management, alarm event, record operation, account manager, log clear, file
operation and etc. It optimized reboot log. There are only three types: normal
reboot, abnormal

‐57‐



 Start time/end time: Pleased select start time and end time, then click

search button. You can view the log files in a list. System max displays

100 logs in one page. It can max save 1024 log files. Please use page

up/down button on the interface or the front panel to view more.
 Backup: Please select a folder you want to save; you can click the backup

button to save the log files. After the backup, you can see there is a folder

named Log time on the backup path. Double click the folder, you can see

the log file
 Details: Click the Details button or double click the log item, you can view

the detailed information. Here you can use rolling bar to view information,

or you can use Page up/Page down to view other log

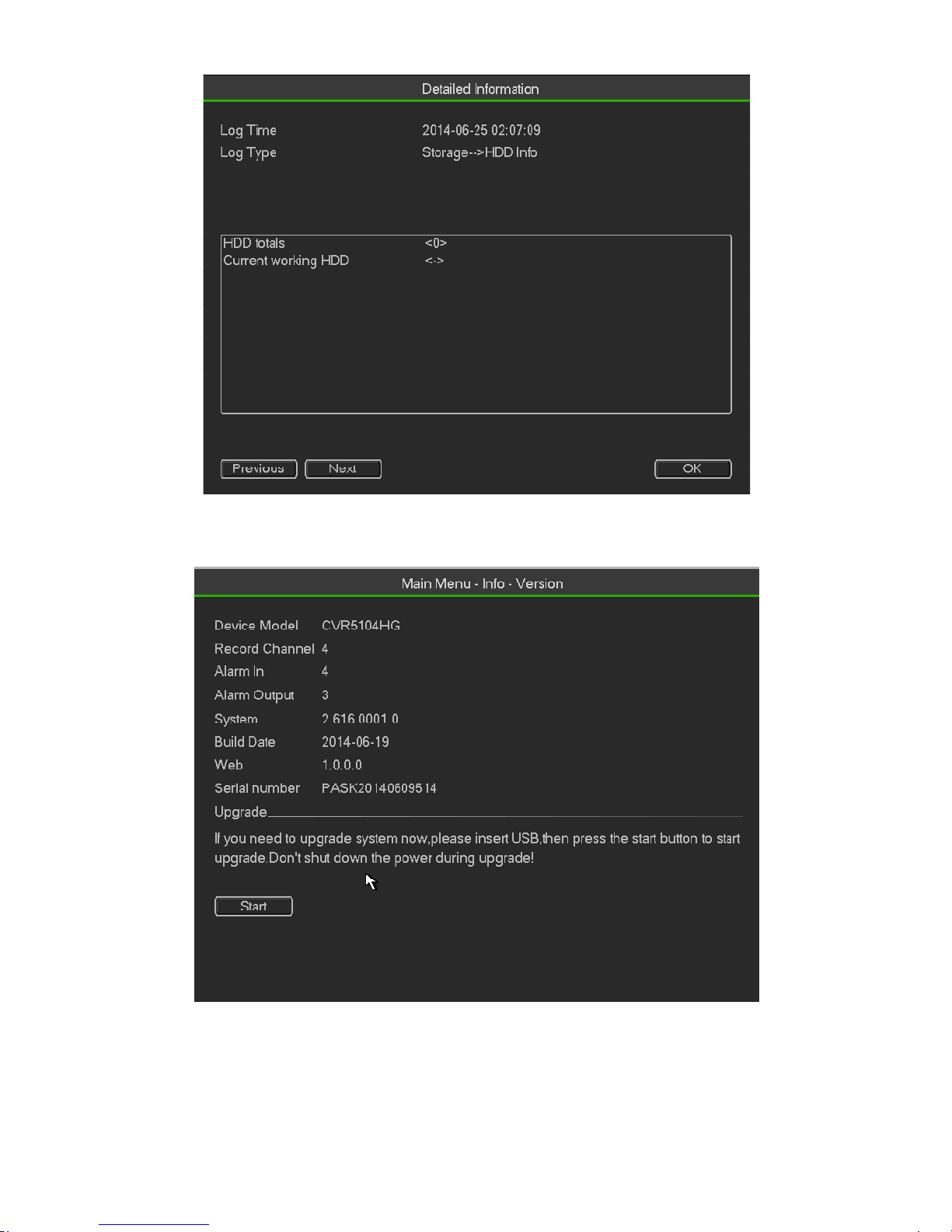

Select an item on the list and then click the Details button or double click the
log item, you can view the detailed information such as log time, log type, log
user, IP address and etc

‐58‐



Version

Here is for you to view some version information such as version number, built
date, serial number and etc

Network

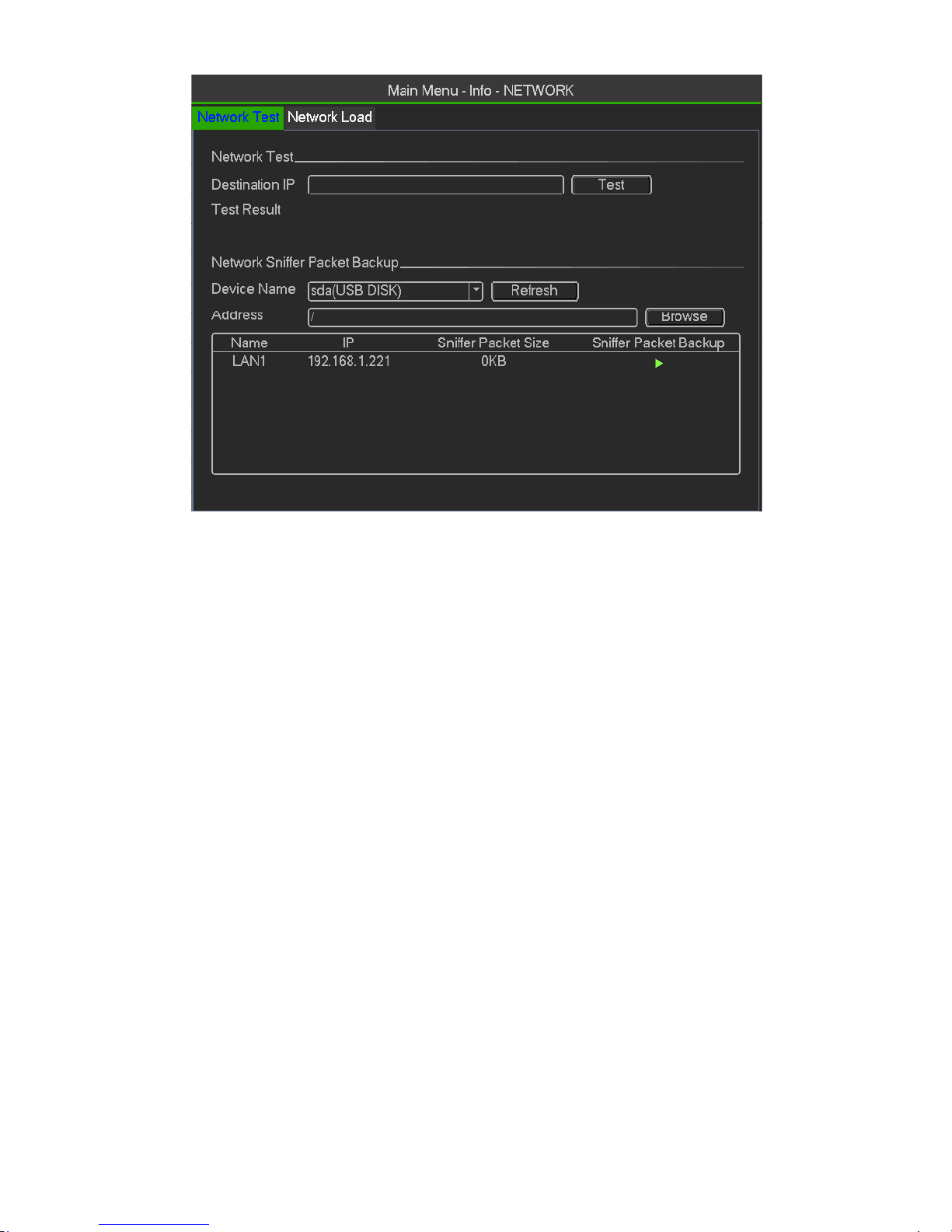

Network Test

‐59‐



Network test interface is shown。

 Destination IP: Please input valid IPV4 address or domain name.
 Test: Click it to test the connection with the destination IP address. The

test results can display average delay and packet loss rate and you can

also view the network status as OK , bad, no connection and etc
 Network Sniffer backup: Please insert USB2.0 device and click the

Refresh button, you can view the device on the following column. You can

use the dropdown list to select peripheral device. Click Browse button to

select the snap path. The steps here are same as preview backup You

can view all connected network adapter names (including Ethernet,

PPPoE, W IFI, and 3G), you can click the button on the right panel to

begin Sniffer. Click the grey stop button to stop. Please note. system can

not Sniffer several network adapters at the same time. After Sniffer began,

you can exit to implement corresponding network operation such as login

WEB monitor. Please go back to Sniffer interface to click stop Sniffer.

System can save the packets to the specified path. The file is named after

“Network adapter name + time”. You can use software such as Wire shark

to open the packets on the PC for the professional engineer to solve

complicated problems.

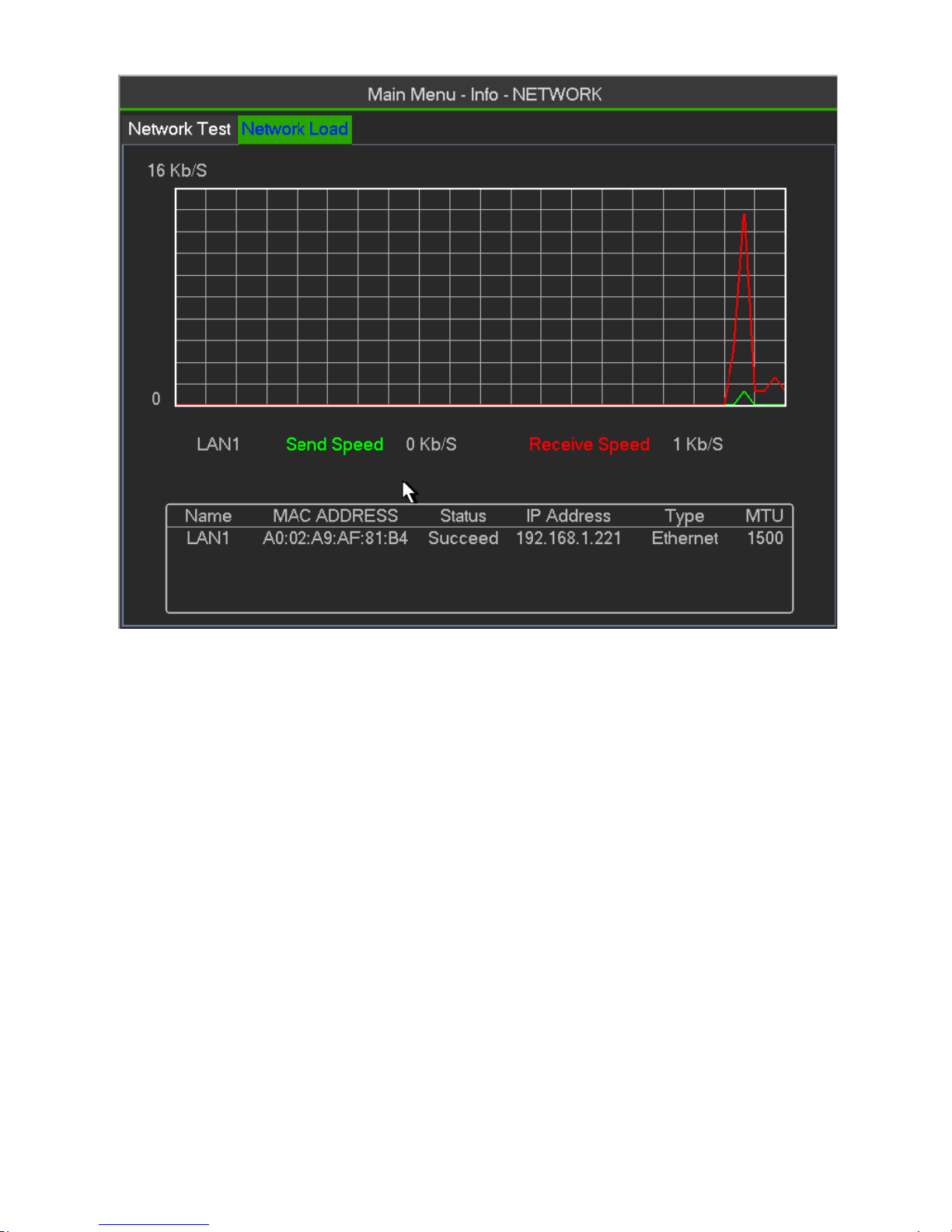

Network Load

Network load is shown as follow. Here you can view the follow statistics of the
device network adapter

‐60‐



Here you can view information of all connected network adapters. The
connection status is shown as offline if connection is disconnected. Click one
network adapter, you can view the flow statistics such as send rate and receive
rate at the top panel

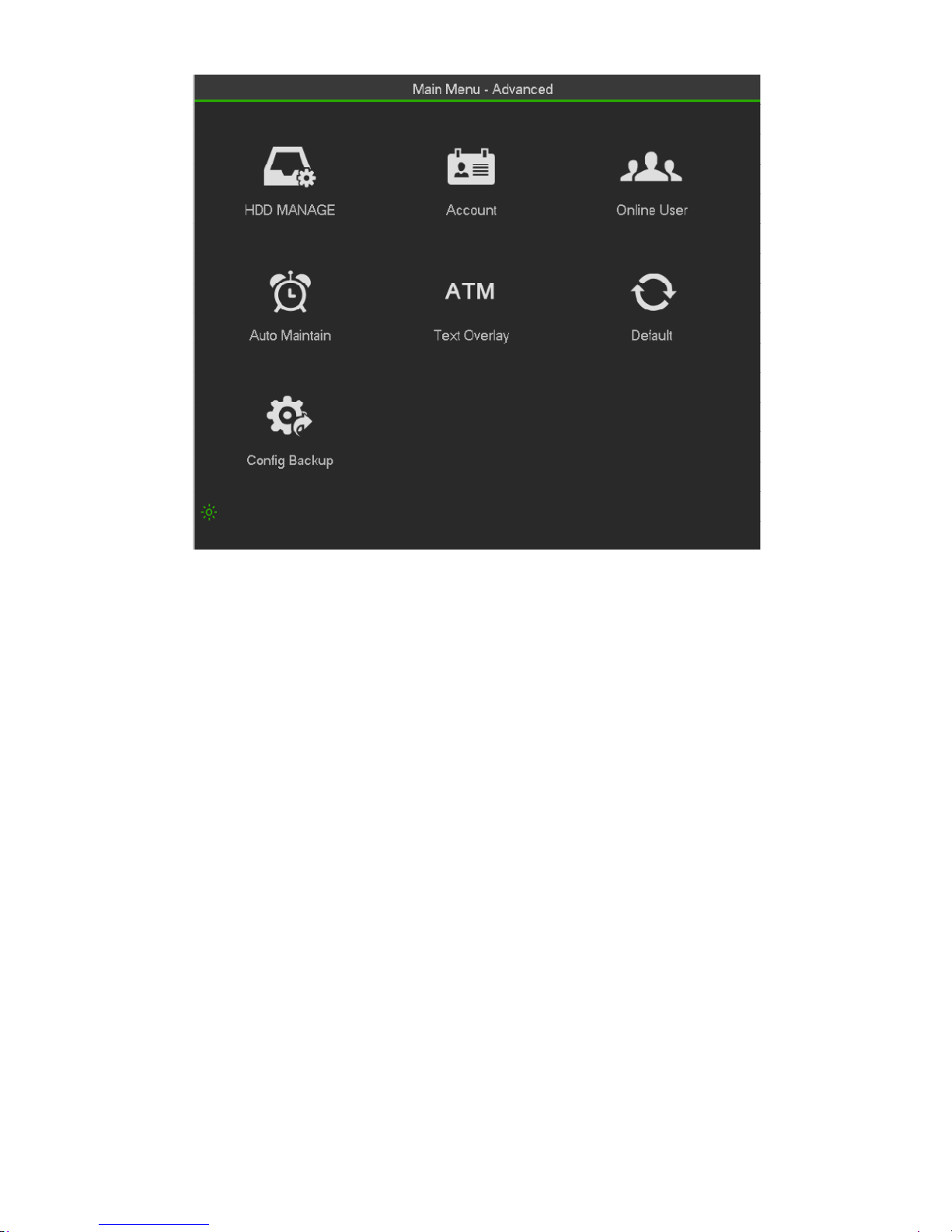

3.3.5 Advanced

You can see HDD Manager, Account, Online User, Auto Maintain, Text
Overlay, Default, Configure.

‐61‐

HDD Manag

er

Here is to list hard disk type, total space, free space, video start time and
status.
 SATA: 1 here means system max supports 1 HDD. ○ means current HDD

is normal. X means there is error. - means there is no HDD. If disk is

damaged, system shows as “?”. Please remove the broken hard disk

before you add a new one.
 SN: You can view the HDD amount the device connected to. ﹡ means

the second HDD is current working HDD.

 Type: The corresponding HDD properties.
 Total space: The HDD total capacity.
 Free space: The HDD free capacity.
 Status: HDD can work properly or not.
 SMART: Display HDD information

‐62‐



Double click Set HDD Group.

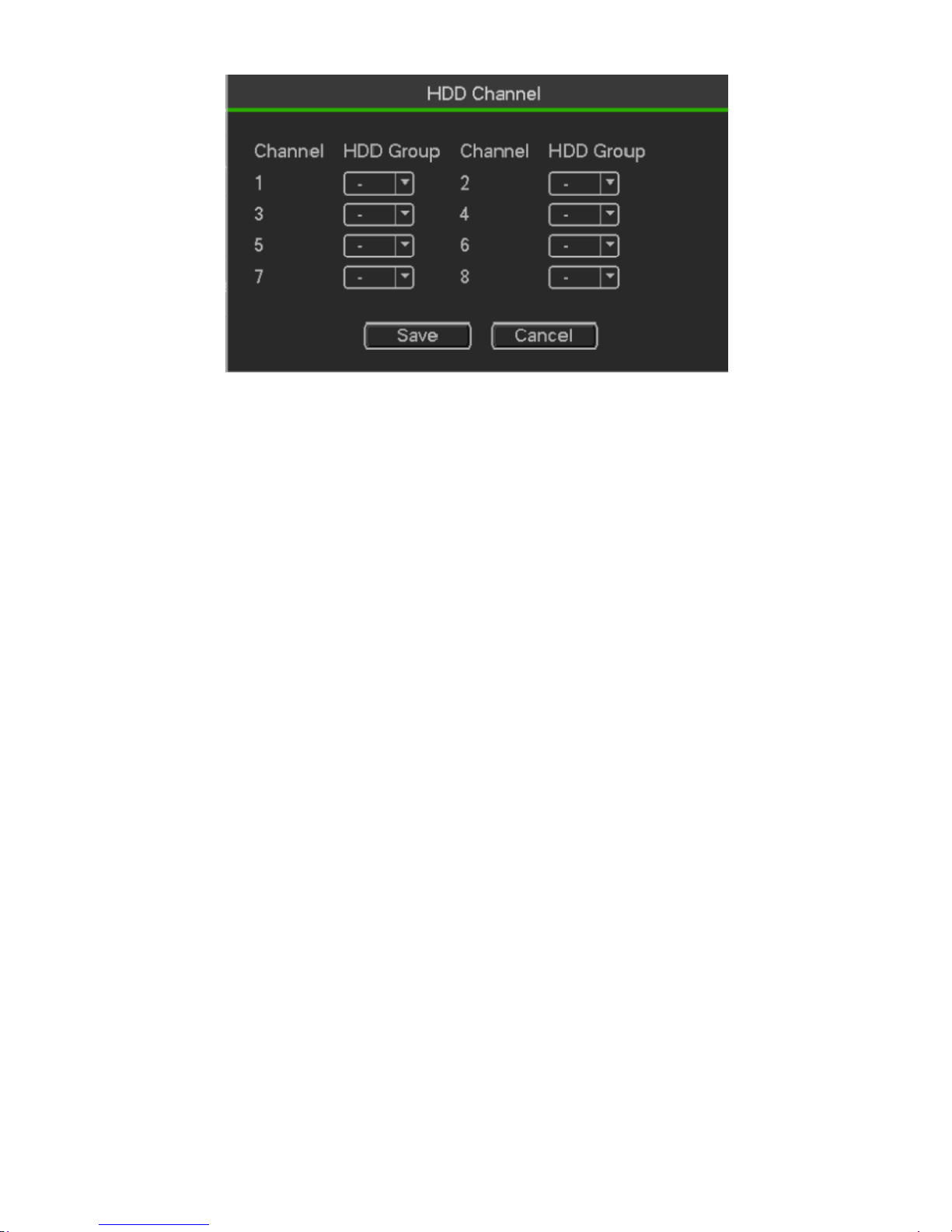

Double click Set HDD Channel.

‐63‐



Account

Here is for you to implement account management.

 Add new user
 Modify user
 Add group
 Modify group
 Modify password

For account management please note:
 For the user account name and the user group, the string max length is

6-byte. The backspace in front of or at the back of the string is invalid.

There can be backspace in the middle. The string includes the valid

character, letter, number, underline, subtraction sign, and dot.
 The default user amount is 64 and the default group amount is 20. System

account adopts two-level management: group and user. No limit to group

or user amount.

 For group or user management, there are two levels: admin and user.
 The user name and group name can consist of eight bytes. One name can

only be used once.
 There are four default users: admin/888888/666666 and hidden user

“default”. Except user 6666, other users have administrator right. Hidden

user “default” is for system interior use only and can not be deleted. When

there is no login user, hidden user “default” automatically login. You can

set some rights such as monitor for this user so that you can view some

channel view without login.
 One user should belong to one group. User right can not exceed group

right.
 About reusable function: this function allows multiple users use the same

account to login. About user account and MAC. When you add a new user,

you can input the MAC address of current user. Only the user of the

same MAC address can access the device remotely. remotely.(MAC

address is for the device

‐64‐



of the same LAN.) If you leave MAC address item in blank when you add a
new user, the user of any MAC address can access the device remotely.
You can set or change MAC address when you add or modify a user. The

MAC address function is also valid for PSS login. Please note current
function does not support IPV6.

After all the setups please click save button, system goes back to the previous
menu

Add/Modify User

‐65‐



Click add user button, Please input the user name, password, select the group
it belongs to from the dropdown list. Then you can check the corresponding
rights for current user. For convenient user management, usually we
recommend the general user right is lower than the admin account.
When you create a new user, you can input the corresponding MAC address of
current user. If you leave this item in blank, any MAC address user can share
this user account to login. Please note system needs to check the validity of

MAC. Only the 12-digit 0-f format address can pass the validity verification。
System only saves small character even you input capitalized one. You can
see the corresponding prompt if there is any illegal input.

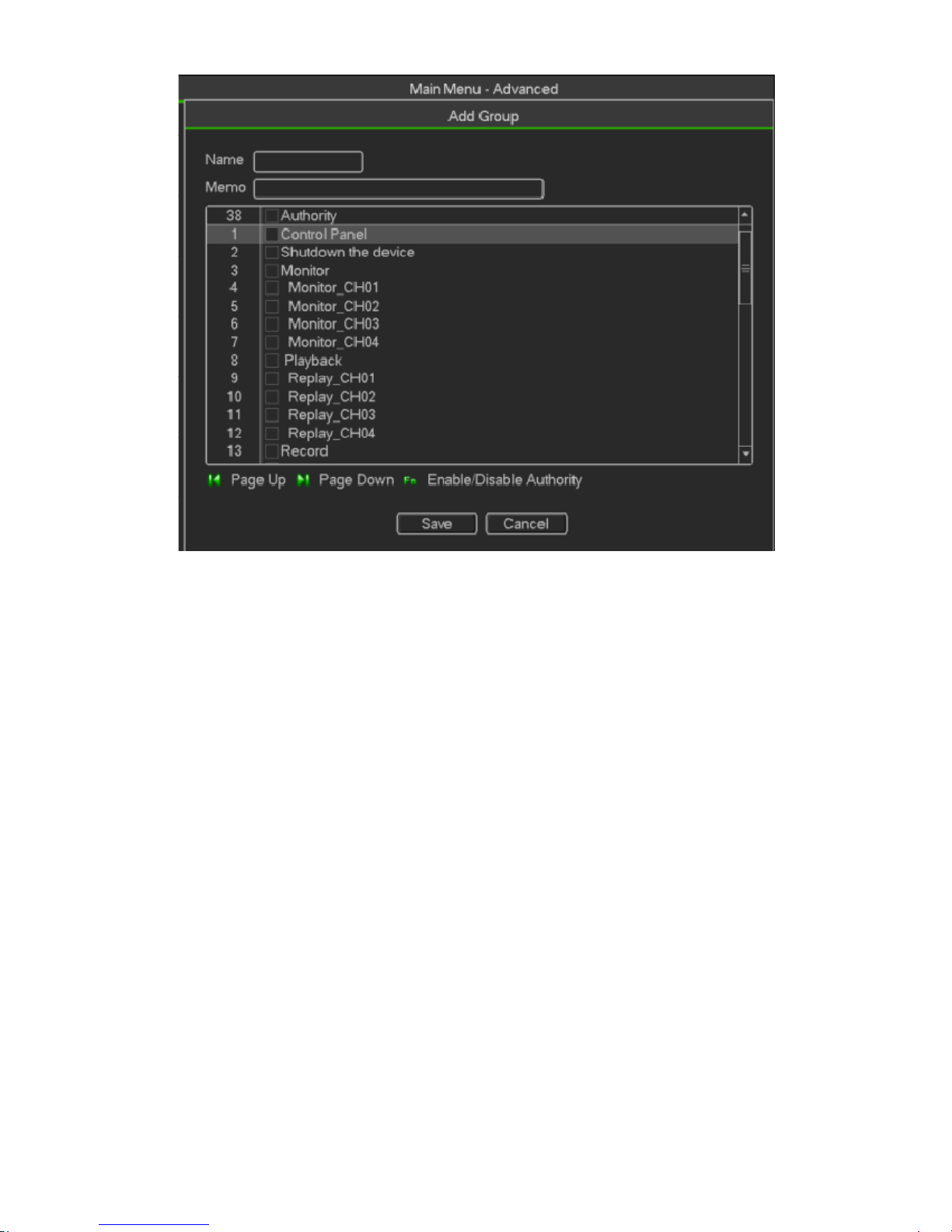

Add/Modify Group

‐66‐



Click add group button, Here you can input group name and then input some
memo information if necessary. There are total 98 rights such as control panel,
shut down, real -time monitor, playback, record, record file backup, PTZ, user
account, system information view, alarm input/output setup, system setup, log
view, clear log, upgrade system, control device and etc.

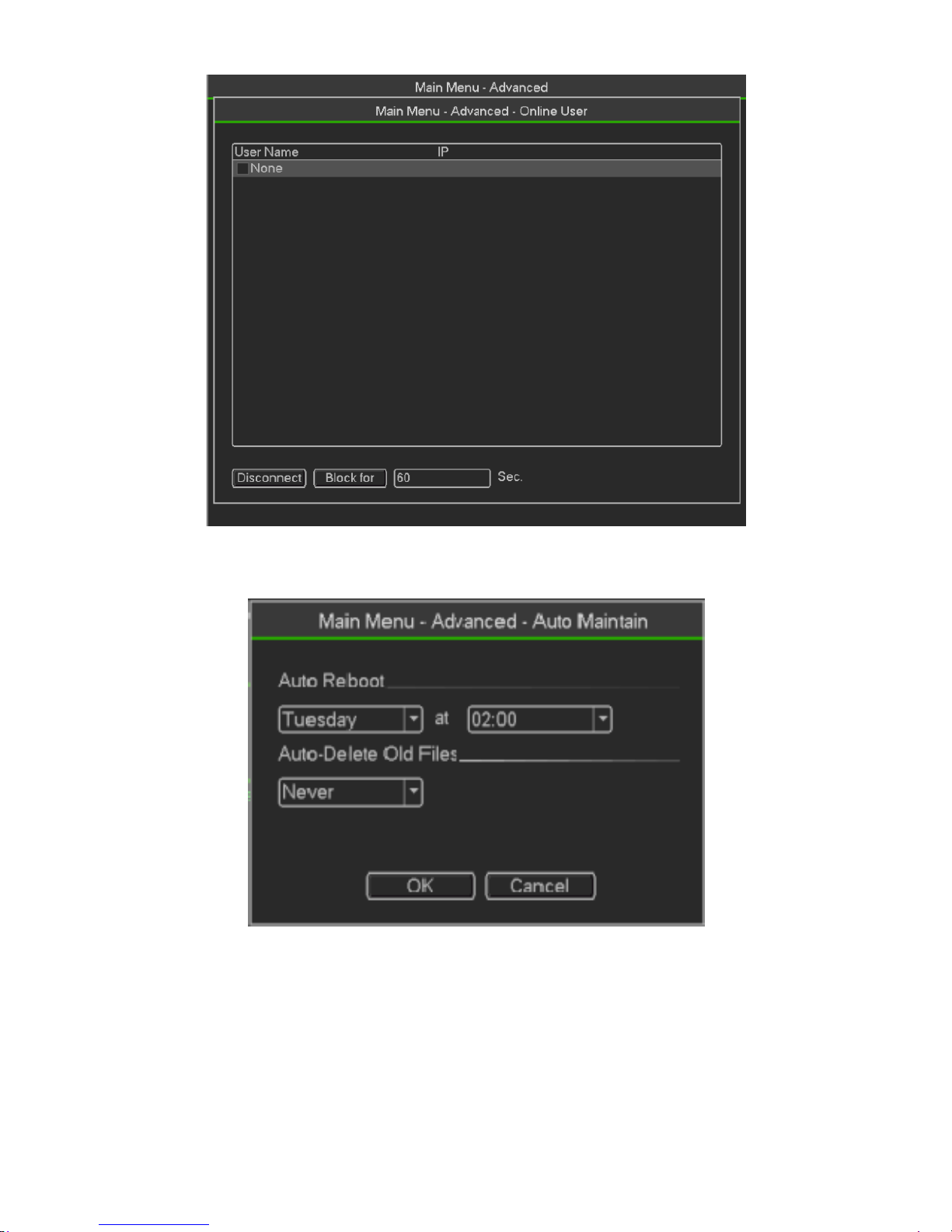

Online Users

Here is for you to manage online users. You can disconnect one user or block
one user if you have proper system right. Max disconnection setup is 65535
seconds.
System detects there is any newly added or deleted user in each five seconds
and refresh the list automatically.

‐67‐



Auto Maintain

Here you can set auto-reboot time and auto-delete old files setup. You can set
to delete the files for the specified days

ATM/POS

The ATM/POS function is for financial areas. It includes Sniffer, information
analysis and title overlay function. The Sniffer mode is network. The network
type interface is shown as below. Here we take the ATM/POS protocol to
continue. There are two types: with or without the protocol according to client’s
requirements.

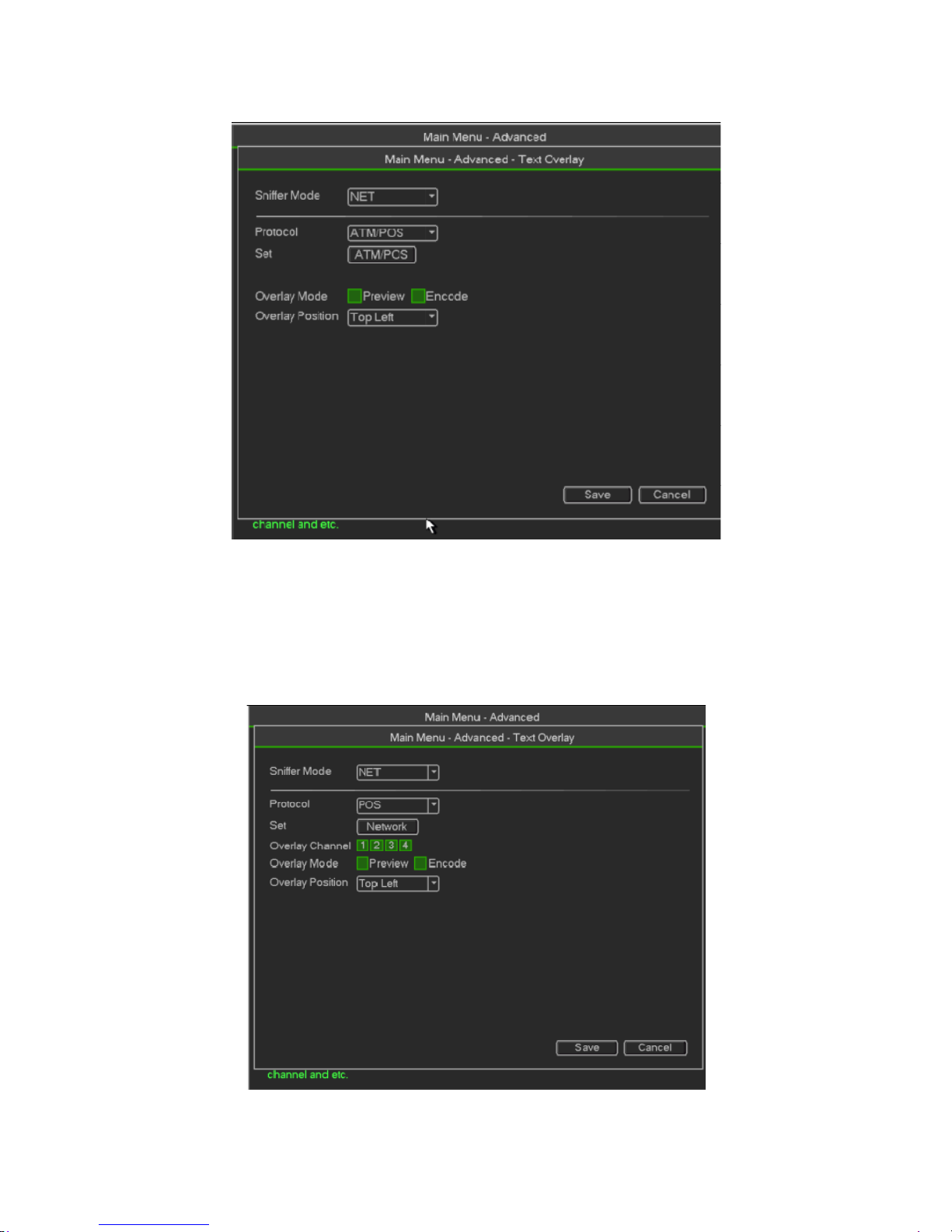

With the protocol

‐68‐



For ATM/POS with the protocol, you just need to set the source IP, destination
IP (sometimes you need to input corresponding port number

Without the protocol

For the ATM/POS without the protocol, the interface is shown.
Source IP refers to host IP address that sends out information (usually it is the
device host.) Destination IP refers to other systems that receive information.
Usually you do not need to set source port and target port. There are total four
groups IP. The record channel applies to one group (optional) only. Six frame
ID groups verification can guarantee information validity and legal.

‐69‐



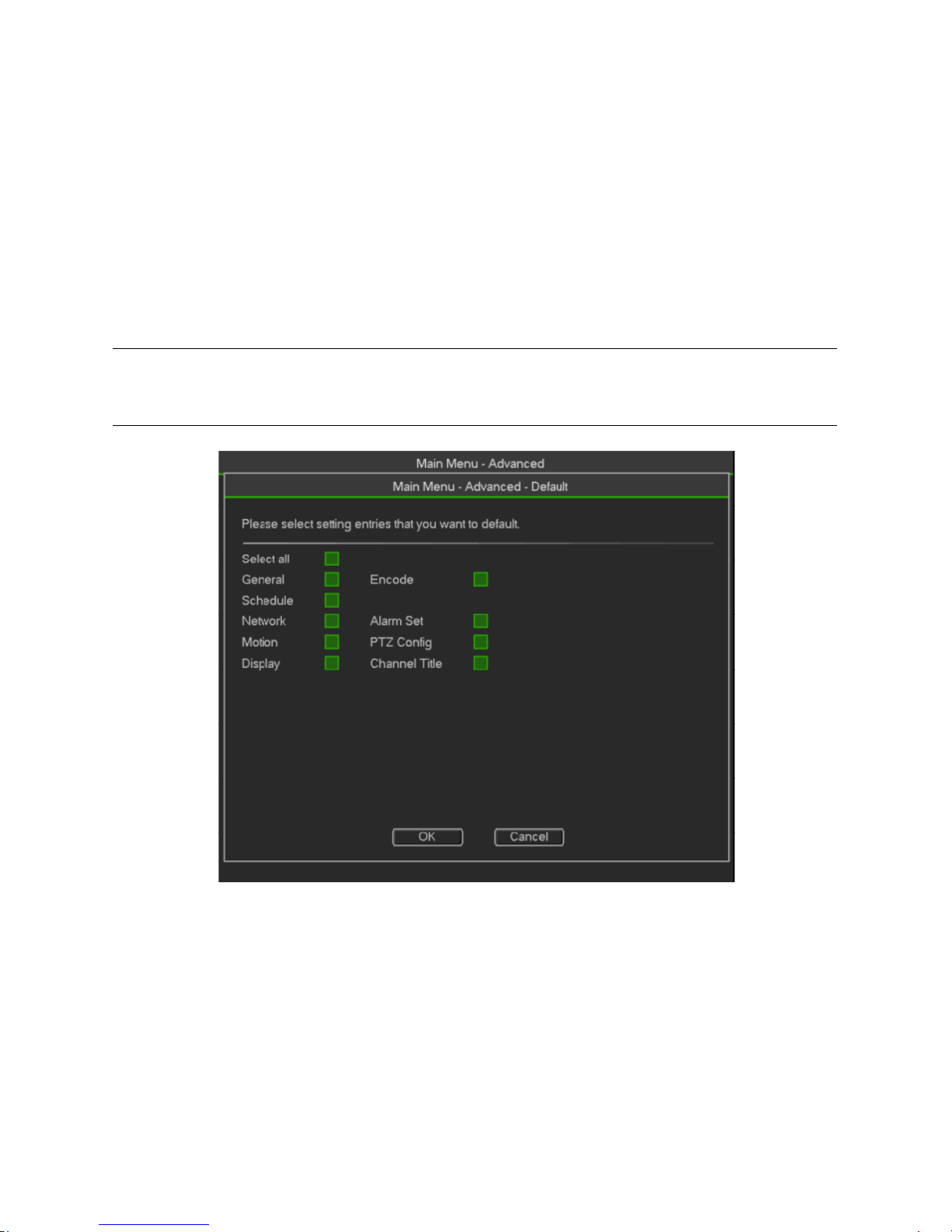

Default

Click default icon, system pops up a dialogue box. You can highlight to restore
default factory

 Camera
 Network
 Event
 Storage
 System

Please highlight icon to select the corresponding function. After all the setups
please click save button, system goes back to the previous menu.

Warning!

System menu color, language, time display mode, video format, IP address,
user account will not maintain previous setup after default operation!

Backup

DVR support CD-RW, DVD burner, USB device backup, network download
and eSATA. Here we introduce USB, eSATA backup. You can refer to Chapter

5 Web Operation for network download backup operation。

‐70‐



Click backup button, you can see an interface is shown as in Figure 4-32. Here
is for you to view information. You can view backup device name and its total
space and free space. The device includes CD -RW ,DVD burner, USB device,
flash disk, eSATA backup select backup device and then set channel, file start
time and end time. Click add button, system begins search. All matched files
are listed below. System automatically calculates the capacity needed and
remained. System only backup files with a √ before channel name. You can
use Fn or cancel button to delete √ after file serial number Click Start button,
system begins copy. At the same time, the backup button becomes stop button.
You can view the remaining time and process bar at the left bottom
When the system completes backup, you can see a dialogue box prompting
successful backup
 File format: Click the file format; you can see there are two options:

DAV/ASF The file name format usually is: Channel number + Record type

+ Time. In the file name, the YDM
format is Y+M+D+H+M+S. File extension name is .dav

Tips:

During backup process, you can click ESC to exit current interface for other
operation. The system will not terminate backup process.

Note:

When you click stop button during the burning process, the stop function
becomes activated immediately. For example, if there are ten files, when you
click stop system just backup five files, system only save the previous 5 files in
the device (But you can view ten file names).

3.3.6 Shut Down

select Shut Down, you can go to the following interface..

‐71‐

There are three options: Shutdown/logout/reboot.
For the user who does not have the shut down right, please input
corresponding password to shut down

Slightly difference may be found in the interface due to different series.

4. WEB Operation

4.1 Network Connection

Before web client operation, please check the following items
Network connection is right. DVR and PC network setup is right. Please refer to
network setup(main menu->Setting->Netw

ork) Use order ping ***.***.***.***(*
DVR IP address) to check connection is OK or not. Usually the return TTL
value should be less than 255. HDCVI DVR supports various browsers such
as Safari, fire fox browser, Google browser. Device supports multiple-channel
monitor, PTZ control, DVR parameter setup on the Apple PC.

4.2 Login

Open IE and input DVR address in the address column. For example, if your
DVR IP is 192.168.1.108 then please input http:// 192.168.1.108 in IE address
column. System pops up warning information to ask you whether install control
or not. Please click Install button.

‐72‐



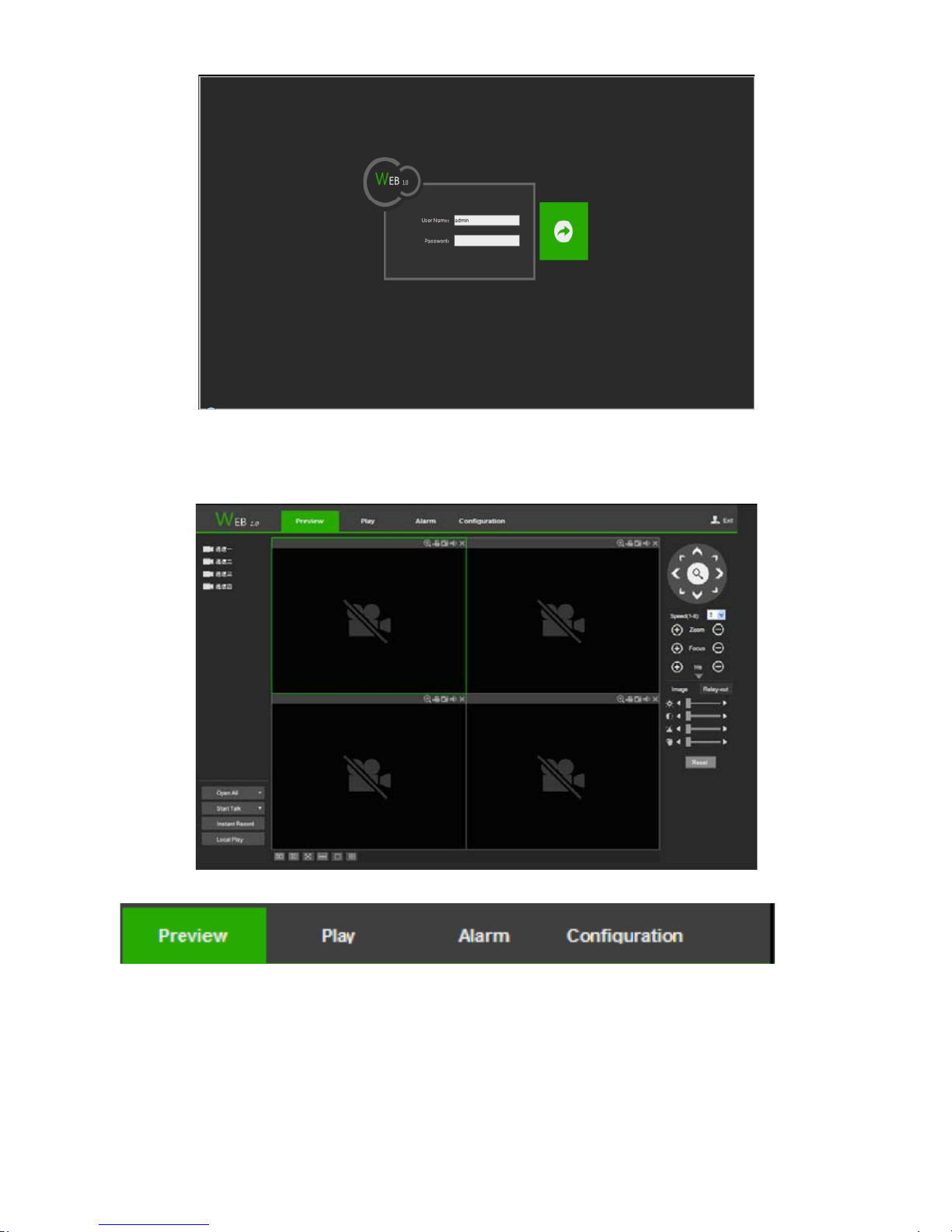

After installation, the interface is shown as below. Please input your user name
and password. Default factory name is admin and password is admin.

Note: For security reasons, please modify your password after you first
login.

4.3 System menu

4.3.1 Live

In section 2, left click the channel name you want to view, you can see the
corresponding video incurrent window. On the top left corner, you can view
device IP (10.15.6.144), channel number (1), network monitor bit stream
(61Kbps) and stream type: M (Main stream)/S (Sub stream).

‐73‐



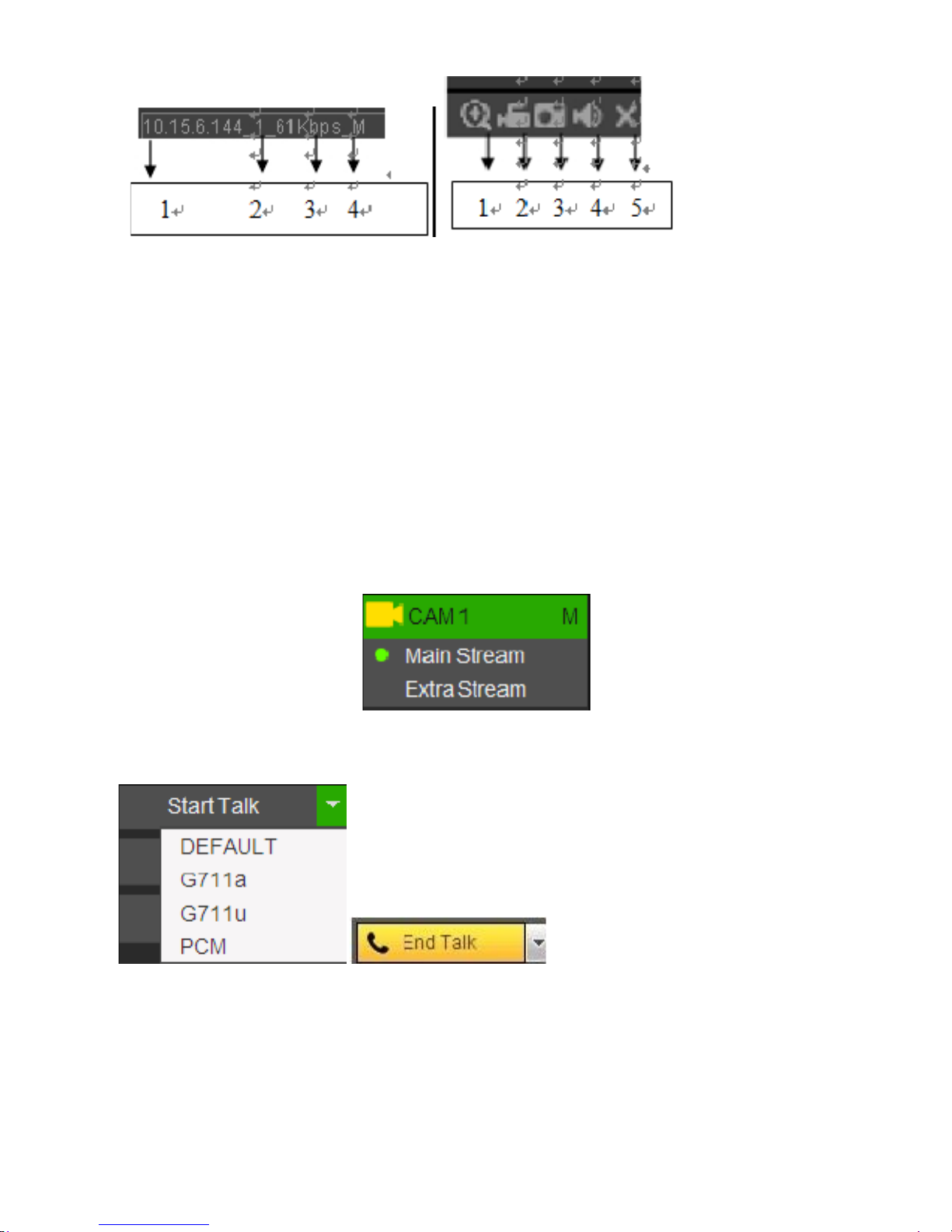

On the top right corer, there are six unction buttons
 1: Digital zoom: Click this button and then left drag the mouse in the zone

to zoom in. right click mouse system restores original status.

 2: Local record. When you click local record button, the system begins

recording and this button becomes highlighted. You can go to system
folder Record Download to view the recorded file.

 3: Snapshot picture. You can snapshoot important video. All images are

memorized in system client folder picture Download (default).

 4: Audio :Turn on or off audio.(It has no relationship with system audio

setup )

 5: Close video.

There are channel number and one button: Start all. Start all button is to
enable/disable ,all-channel real-time
monitor. Click it the button becomes yellow.

4.3.2 Start dialogue button

You can click this button to enable audio talk. Click【▼】 to select bidirectional
talk mode. There are four options: DEFAULT，G711a，G711u and PCM. After

you enable the bidirectional talk, the Start talk button becomes End Talk button
and it becomes yellow

4.3.3 Instant record button

‐74‐



Click it, the button becomes yellow and system begins manual record.Click it
again, system restores previous record mode

4.3.4 Local play button

The Web can playback the saved (Extension name is dav) files in the PC -end,
Click local play button, system pops up the following interface for you to select
local play file.

4.3.5 Window change

From left to right, it is to set video quality, video latency, full screen, 1 -window,
4-window.

4.3.6 PTZ control

Before PTZ operation, please make sure you have properly set PTZ protocol
There are eight direction keys. In the middle of the eight direction keys, there is
a 3D intelligent positioning key. Click 3D intelligent positioning key, system
goes back to the single screen mode. Drag the mouse in the screen to adjust
section size. It can realize PTZ automatically. Please refer to the following
sheet for PTZ setup information.

‐75‐



4.3.7 Image

Here you can adjust its brightness, contrast, hue and saturation. (Current
channel border becomes green).Or you can click Reset button to restore
system default setup

‐76‐



4.4 Setup

4.4.1 Camera Conditions

Here you can view device property information. The setups become valid

immediately after you set.

Please refer to the following sheet for detailed information

Parameter Function

Channel Please select a channel from the dropdown list.

Period

It divides one day (24 hours) to two periods. You can set
different hue, brightness, and contrast for different periods.

Hue It is to adjust monitor video brightness and darkness level. The

default value is 50. The bigger the value is, the large the
contrast between the bright and dark section is and vice versa.

‐77‐



Brightness It is to adjust monitor window brightness. The default value is

50. The larger the number is , the bright the video is. When you
input the value here, the bright section and the dark section of
the video will be adjusted accordingly. You can use this
function when the whole video is too dark or too bright. Please
note the video may become hazy if the value is too high. The
value ranges from 0 to 100.The recommended value ranges
from 40 to 60.

Contrast It is to adjust monitor window contrast. The value ranges from

0 to 100. The default value is 50. The larger the number is, the
higher the contrast is. You can use this function when the
whole video bright is OK but the contrast is not proper. Please
note the video may become hazy if the value is too low. If this
value is too high, the dark section may lack brightness while
the bright section may over exposure .The recommended
value ranges from 40 to 60.

Saturation It is to adjust monitor window saturation. The value ranges

from 0 to 100. The default value is 50. The larger the number
is, the strong the color is. This value has no effect on the
general brightness of the whole video. The video color may
become too strong if the value is too high. For

4.4.2 Encode

The encode interface is shown as below

Please refer to the following sheet for detailed information.

‐78‐



Parameter Function

Channel Please select a channel from the dropdown list.

Video enable

Check the box here to enable extra stream video. This item
is
enabled by default.

Code stream
type

It includes main stream, motion stream and alarm stream.
You can select different encode frame rates form different
recorded events. System supports active control frame
function (ACF). It allows you to record in different frame
rates. For example, you can use high frame rate to record
important events, record scheduled event in lower frame
rate and it allows you to set different frame rates for motion
detection record and alarm record.

Compression

The main bit stream supports H.264. The extra stream
supports
H.264, MJPG.

Resolution dropdown list. Please note the option may vary due to

different System supports various resolutions, you can
select from the series.

Frame Rate

PAL：1～25f/s；NTSC：1～30f/s.

Bit Rate  Main stream: You can set bit rate here to change

video quality. The large the bit rate is , the better the
quality is. Please refer to recommend bit rate for the
detailed information.

 Extra stream: In CBR, the bit rate here is the max
value. In dynamic video, system needs to low frame rate
or video quality to guarantee the value. The value is null
in VBR mode.

Reference bit
rate

Recommended bit rate value according to the resolution and
frame rate you have set.

I Frame Here you can set the P frame amount between two I frames.

The value ranges from 1 to 150. Default value is 50.
Recommended value is frame rate *2.

‐79‐



Audio source Please select from the dropdown list. There are two options:

Normal/HDCVI. In the normal mode, the audio signal comes
from the Audio In. In the HDCVI mode, the audio signal
comes from the coaxial cable of the camera.

Watermark
enable

This function allows you to verify the video is tampered or
not.

Here you can select watermark bit stream, watermark mode
and watermark character. Default character is Digital CCTV.
The max length is 85-digit. The character can only include
number, character and underline.

Snapshot

Please refer to the following sheet for detailed information.

Parameter

Function

Snapshot
type

There are two modes: Regular (schedule) and Trigger.

Regular snapshot is valid during the specified period 　

you set.
Trigger snapshot only is valid when motion detect 　
alarm, tampering alarm or local activation alarm
occurs.

Image size

It is the same with the resolution of the main stream.

Quality

It is to set the image quality. There are six levels.

Interval

I t is to set snapshot frequency. The value ranges from
1s to 7s. Or you can set customized value. The max
setup is 3600s/picture.

Copy

Click it; you can copy current channel setup to other
channel(s).

Video Overlay

The video overlay interface is shown

‐80‐



Please refer to the following sheet for detailed information

Parameter

Function

Channel

Please select a channel from the dropdown list.

Period

It divides one day (24 hours) to two periods. You can set
different hue, brightness, and contrast for different
periods.

Hue

It is to adjust monitor video brightness and darkness level.
The default value is 50. The bigger the value is, the large
the contrast between the bright and dark section is and
vice versa

Brightness

It is to adjust monitor window brightness. The default
value is 50. The larger the number is , the bright the video
is. When you input the value here, the bright section and
the dark section of the video will be adjusted accordingly.
You can use this function when the whole video is too
dark or too bright. Please note the video may become
hazy if the value is too high. The value ranges from 0 to

100.The recommended value ranges from 40 to 60.

Contrast

It is to adjust monitor window contrast. The value ranges
from 0 to 100. The default value is 50. The larger the
number is, the higher the contrast is. You can use this
function when the whole video bright is OK but the
contrast is not proper. Please note the video may become
hazy if the value is too low. If this value is too high, the
dark section may lack brightness while the bright section
may over exposure .The recommended value ranges
from 40 to 60.

Saturation

It is to adjust monitor window saturation. The value
ranges from 0 to 100. The default value is 50. The larger

‐81‐



the number is, the strong the color is. This value has no
effect on the general brightness of the whole video. The
video color may become too strong if the value is too high.
For

4.4.2 Encode

The encode interface is shown as below

Please refer to the following sheet for detailed information.

Parameter

Function

Channel

Please select a channel from the dropdown list.

Video enable Check the box here to enable extra stream video. This

item is enabled by default.
Code stream
type

It includes main stream, motion stream and alarm

stream. You can select different encode frame rates

form different recorded events. System supports active

control frame function (ACF). It allows you to record in

different frame rates. For example, you can use high

frame rate to record important events, record scheduled

event in lower frame rate and it allows you to set

different frame rates for motion detection record and

alarm record
Compression The main bit stream supports H.264. The extra stream

supports H.264, MJPG.
Resolution

System supports various resolutions, you can select

from the dropdown list. Please note the option may vary

due to different series

‐82‐



Frame Rate

PAL：1～25f/s；NTSC：1～30f/s.
Bit Rate

Main stream: You can set bit rate here to change 　

video quality. The large the bit rate is , the better the

quality is. Please refer to recommend bit rate for the

detailed information.

　Extra stream: In CBR, the bit rate here is the max

value. In dynamic video, system needs to low frame

rate or video quality to guarantee the value. The value

is null in VBR mode.

Reference
bit rate

Recommended bit rate value according to the

resolution and frame rate you have set.
I Frame

Here you can set the P frame amount between two I

frames. The value ranges from 1 to 150. Default value

is 50. Recommended value is frame rate *2.

Audio source

Please select from the dropdown list. There are two

options: Normal/HDCVI. In the normal mode, the audio

signal comes from the Audio In. In the HDCVI mode,

the audio signal comes from the coaxial cable of the

camera.

Watermark
enable

This function allows you to verify the video is tampered

or not. Here you can select watermark bit stream,

watermark mode and watermark character. Default

character is Digital CCTV. The max length is 85-digit.

The character can only include number, character and

underline.

Snapshot

Please refer to the following sheet for detailed information.

Parameter

Function

Snapshot
type

There are two modes: Regular (schedule) and Trigger.

Regular snapshot is valid during the specified period 　

you set.

‐83‐



Trigger snapshot only is valid when motion detect 　
alarm, tampering alarm or local activation alarm occurs.

Image size

It is the same with the resolution of the main stream.

Quality

It is to set the image quality. There are six levels.

Interval

It is to set snapshot frequency. The value ranges from 1s
to 7s. Or you can set customized value. The max setup is
3600s/picture.

Copy

Click it; you can copy current channel setup to other
channel(s).

Video Overlay

The video overlay interface is shown

Please refer to the following sheet for detailed information

Parameter Function

Cover-area Check Preview or Monitor first.

Click Set button, you can privacy mask the specified video in
the preview or monitor video.
System max supports 4 privacy mask zones.

Time Title You can enable this function so that system overlays time

information in video window.
You can use the mouse to drag the time title position.
You can view time title on the live video of the WEB or the
playback video.

‐84‐



Channel
Title

You can enable this function so that system overlays channel
information in video window.
You can use the mouse to drag the channel title position.
You can view channel title on the live video of the WEB or the
playback video.

Path

The storage path interface is shown
Here you can set snap image saved path and the record storage path. The
default setup is C:\PictureDownload and C:\RecordDownload.Please click the
Save button to save current setup.

Channel Name

Here you can set channel name

4.4.3 Network
TCP/IP

‐85‐



Please refer to the following sheet for detailed information.

Parameter

Function

Mode

There are two modes: static mode and the DHCP mode.

The IP/submask/gateway are null when you select the 　

DHCP mode to auto search the IP.
　If you select the static mode, you need to set the
IP/submask/gateway manually.

If you select the DHCP mode, you can view the 　

IP/submask/gateway from the DHCP.
If you switch from the DHCP mode to the static mode, 　
you need to reset the IP parameters.

Besides, IP/submask/gateway and DHCP are read　 -only

when the PPPoE dial is OK.
Mac
Address

It is to display host Mac address.

IP Version

It is to select IP version. IPV4 or IPV6. You can access

the IP address of these two versions.

IP Address Please use the keyboard to input the corresponding

number to modify the IP address and then set the

corresponding subnet mask and the default gateway.
Preferred

DNS

DNS IP address.

Alternate
DNS

Alternate DNS IP address.

For the IP address of IPv6 version, default gateway, preferred DNS and
alternate DNS, the input value shall be 128-digit. It shall not be left in
blank.
LAN load

System can process the downloaded data first if you

enable this function. The download speed is 1.5X or 2.0X

of the normal speed.

Connection

‐86‐



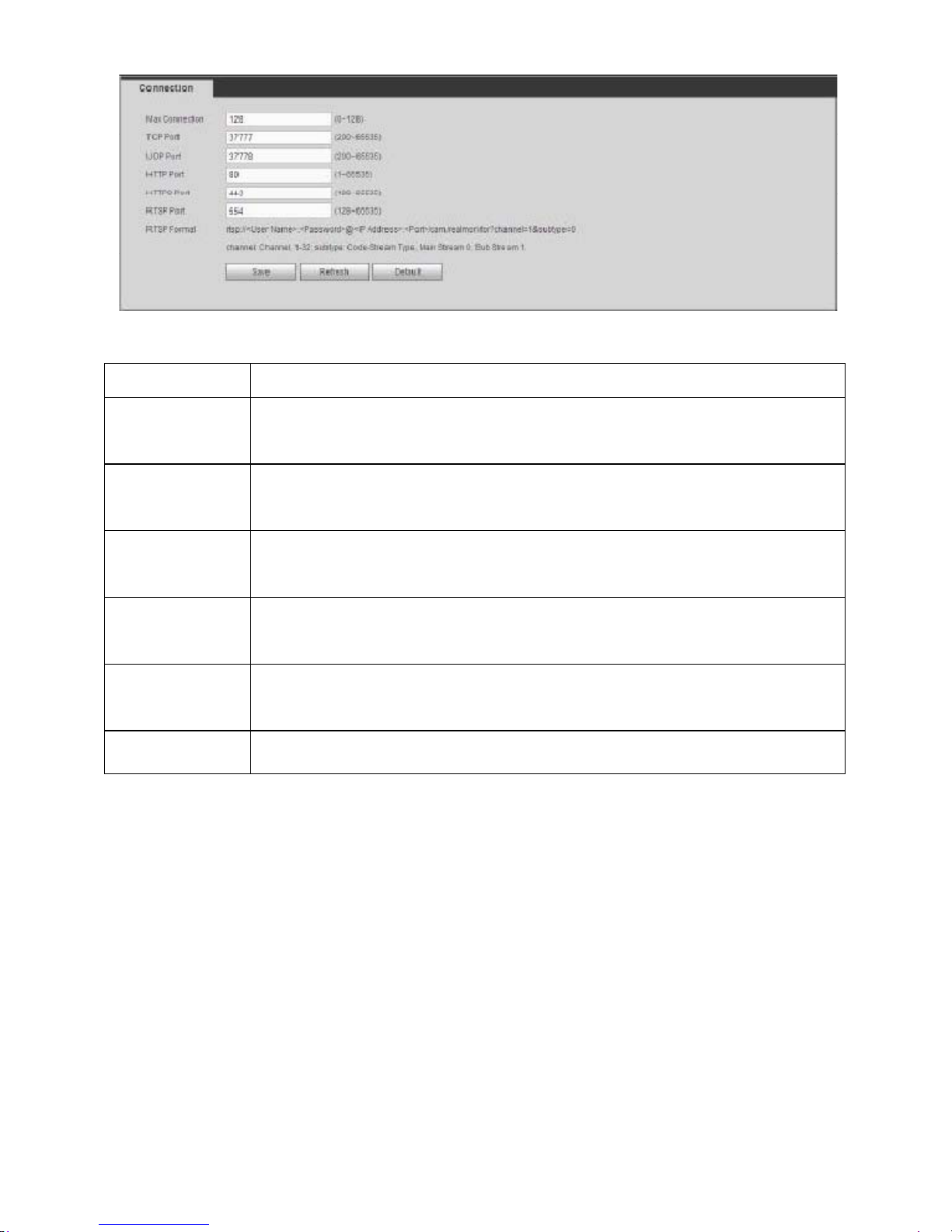

Please refer to the following sheet for detailed information.

Parameter Function

Max
connection

It is the max Web connection for the same device. The value
ranges from 1 to 120. The default setup is 120.

TCP port The default value is 37777. You can input the actual port

number if necessary.

UDP port The default value is 37778. You can input the actual port

number if necessary.

HTTP port

The default value is 80. You can input the actual port
number if necessary.

HTTPS

The default value is 443. You can input the actual port
number if necessary.

RTSP port

The default value is 554.

WIFI

Please note this function is for the device of WIFI module.

‐87‐



Please check the box to enable WIFI function and then click the Search SSID
button. Now you can view all the wireless network information in the following
list. Double click a name to connect to it. Click Refresh button, you can view
latest connection status.

3G

CDMA/GPRS

Please refer to the following sheet for detailed information.

Parameter Function

WLAN type Here you can select 3G network type to distinguish the 3G

module from different ISP. The types include WCDMA，
CDMA1x and etc.

APN/Dial
No.

Here is the important parameter of PPP.

‐88‐



Authorization It includes PAP,CHAP,NO_AUTH.

Pulse
interval

It is to set time to end 3G connection after you close xtra
stream monitor. For example, if you input 60 here, system
ends 3G connection after you close extra stream monitor 60
seconds.

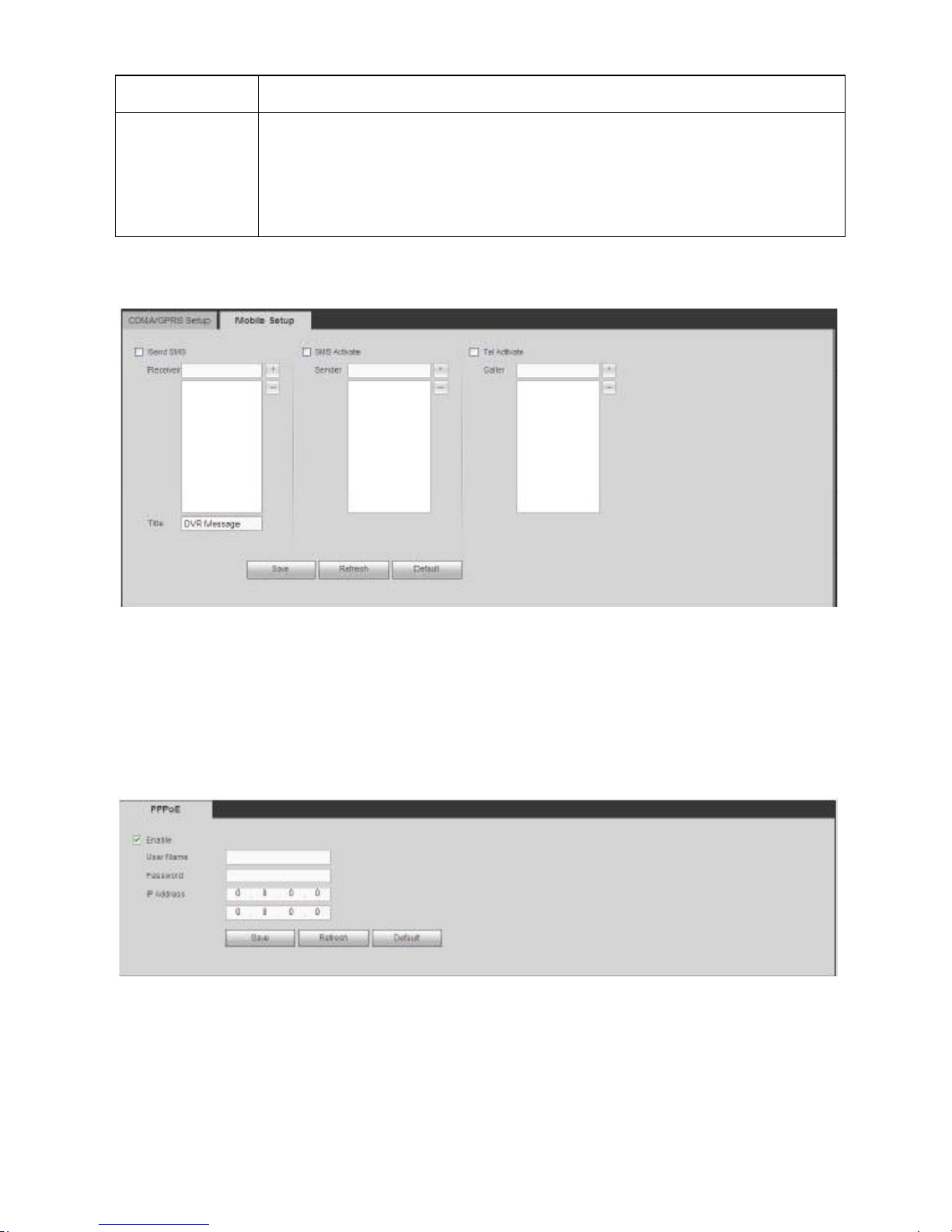

Mobile

Here you can activate or turn off the 3G connected phone or mobile phone, or
the phone you set to get alarm message.

PPPoE

Input the PPPoE user name and password you get from the IPS (internet
service provider) and enable PPPoE function. Please save current setup and
then reboot the device to get the setup activated. Device connects to the
internet via PPPoE after reboot. You can get the IP address in the WAN from
the IP address column. Please note, you need to use previous IP address in
the LAN to login the device. Please go to the IP address item to via the device
current device information. You can access the client-end via this new address.

DDNS

The DDNS is to set to connect the various servers so that you can access the
system via the server. Please go to the corresponding service website to apply
a domain name and then access the system via the domain. It works even your
IP address has changed. Please select DDNS from the dropdown list (Multiple

‐89‐



choices). Before you use this function, please make sure your purchased
device support current function.

Please refer to the following sheet for detailed information.

Parameter Function

Server
Type

You can select DDNS protocol from the dropdown list and then
enable DDNS function.

Server IP DDNS server IP address

Server Port DDNS server port.

Domain
Name

Your self-defined domain name.

User The user name you input to log in the server.

Password The password you input to log in the server.

Update
period

Device sends out alive signal to the server regularly. You can
set interval value between the device and DDNS server here.

Quick DDNS and Client-end Introduction

1) Background Introduction Device IP is not fixed if you use ADSL to login the
network. The DDNS function allows you to access the DVR via the registered
domain name. Besides the general DDNS, the quick DDNS works with the
device from the manufacturer so that it can add the extension function.

2) Function Introduction The quick DDNS client has the same function as other
DDNS client end. It realizes the bonding of the domain name and the IP
address. Right now, current DDNS server is for our own devices only. You
need to refresh the bonding relationship of the domain and the IP regularly.
There is no user name, password or the ID registration on the server. At the
same time, each device has a default domain name (Generated by MAC
address) for your option. You can also use customized valid domain name (has
not registered.). 3) Operation Before you use Quick DDNS, you need to enable
this service and set proper server address, port value and domain name

‐90‐



Server address　 ：www.quickddns.com
Port number　 ：80
Domain name　 ：There are two modes: Default domain name and

customized domain name Except default domain name registration, you can
also use customized domain name (You can input your self-defined domain
name.) After successful registration, you can use domain name to login
installed of the device IP.
User name: It is optional. You can input your commonly used email 　
address.

Important
Do not register frequently. The interval between two registrations shall

be more than 60 seconds. Too many registration requests may result in server
attack.
System may take back the domain name that is idle for one year. You 　
can get a notification email before the cancel operation if your email address
setup is OK.

IP filter

After you enabled trusted sites function, only the IP listed below can access
current DVR. If you enable blocked sites function, the following listed IP
addresses can not access current DVR.

‐91‐



Email

Please refer to the following sheet for detailed information.

Parameter Function

Enable Please check the box here to enable email function.

SMTP Server Input server address and then enable this function.

Port Default value is 25. You can modify it if necessary.

Anonymity For the server supports the anonymity function. You can

auto login anonymously. You do not need to input the
user name. password and the sender information.

User Name The user name of the sender email account.

Password The password of sender email account.

Sender Sender email address.

‐92‐



Authentication
(Encryption
mode)

You can select SSL or none.

Subject Input email subject here.

Attachment System can send out the email of the snapshot picture

once you check the box here.

Receiver Input receiver email address here. Max three addresses.

It supports SSL, TLS email box.

Interval The send interval ranges from 0 to 3600 seconds.

0means there is no interval. Please note system will not
send out the email immediately when the alarm occurs.
When the alarm, motion detection or the abnormity event
activates the email, system sends out the email
according to the interval you specified here. This
function is very useful when there are too many

emails activated by the abnormity events, which may
result in heavy load for the email server.

Health mail Please check the box here to enable this function.

Parameter Function

Enable Please check the box here to enable email function.

SMTP
Server

Input server address and then enable this function.

Health mail
enable

Please check the box here to enable this function.

Update
period
(interval)

This function allows the system to send out the test email to
check the connection is OK or not. Please check the box to
enable this function and then set the corresponding interval.
System can send out the email regularly as you set here.

Email test The system will automatically sent out a email once to test

the connection is OK or not .Before the email test, please
save the email setup information.

Health
mail

Please check the box here to enable this function.

Enable

Please check the box here to enable email function.

‐93‐



SMTP
Server

Input server address and then enable this function.

Health
mail
enable

Please check the box here to enable this function.

Update
period
(interval)

This function allows the system to send out the test email
to check the connection is OK or not. Please check the
box to enable this function and then set the corresponding
interval. System can send out the email regularly as you
set here.

Email test

The system will automatically sent out a email once to test
the connection is OK or not .Before the email test, please
save the email setup information.

FTP

It is to set FTP IP, port and etc for remote storage.

UPnP

It allows you to establish the mapping relationship between the LAN and the
public network. Here you can also add, modify or remove UPnP item. In the
Windows OS, From Start->Control Panel->Add or remove programs. Click the
“Add/Remove Windows Components” and then select the “Network Services”
from the Windows Components Wizard.

‐94‐



Click the Details button and then check the “Internet Gateway Device 　

Discovery and Control client ”and “UPnP User Interface”. Please click OK
to begin installation.

Enable UPnP from the Web. If your UPnP　 is enabled in the Windows

OS, the DVR can auto detect it via the “My Network Places”

SNMP

The SNMP allows the communication between the network management work
station software and the proxy of the managed device. It is reserved for the 3rd
party to develop.

Please refer to the following sheet for detailed information.

‐95‐



Read
Community

It is a string. It is a command between the manage process
and the proxy process. It defined the authentication, access
control and the management relationship between one proxy
and one group of the managers. Please make sure the device
and the proxy are the same. The read community will read all
the objects the SNMP supported in the specified name. The
default setup is public.

Write
Community

It is a string. It is a command between the manage process
and the proxy process. It defined the authentication, access
control and the management relationship between one proxy
and one group of the managers. Please make sure the device
and the proxy are the same. The read community will
read/write/access all the objects.

SNMP Port The listening port of the proxy program of the device. It is a

UDP port not a TCP port. The value ranges from 1 to

65535.The default value is 161SNMP supported in the
specified name. The default setup is write.

Trap
address

The destination address of the Trap information from the proxy
program of the device.

Trap port

The destination port of the Trap information from the proxy
program of the device. It is for the gateway device and the
client-end PC in the LAN to exchange the information. It is
anon-protocol connection port. It has no effect on the network
applications. It is a UDP port not TCP port. The value ranges
from 1 to 165535. The default value is 162.

SNMP
version

Check V1, system only processes the information of V1.　

Check V2, system only processes the information of V2. 　

Multicast

Multicast is a transmission mode of data packet. When there is multiple-host to
receive the same data packet, multiple-cast is the best option to reduce the
broad width and the CPU load. The source host can just send out one data to
transit. This function also depends on the relationship of the group member
and group of the outer.

‐96‐



Auto Register

This function allows the device to auto register to the proxy you specified. In
this way, you can use the client-end to access the DVR and etc via the proxy.
Here the proxy has a switch function. In the network service, device supports
the server address of IPv4 or domain. Please follow the steps listed below to
use this function. Please set proxy server address, port, and sub-device name
at the device-end. Please enable the auto register function, the device can auto
register to the proxy server.

Alarm Centre

This interface is reserved for you to develop. System can upload alarm signal
to the alarm centre when local alarm occurs. Before you use alarm centre,
please set server IP, port and etc. When an alarm occurs, system can send out
data as the protocol defined, so the client-end can get the data.

‐97‐



HTTPS

In this interface, you can set to make sure the PC can successfully login via the
HTTPS. It is to guarantee communication data security. The reliable and stable
technology can secure the user information security and device safety.
Note:
You need to implement server certificate again if you have changed device IP.
You need to download root certificate if it is your first time to use HTTPS on
current PC

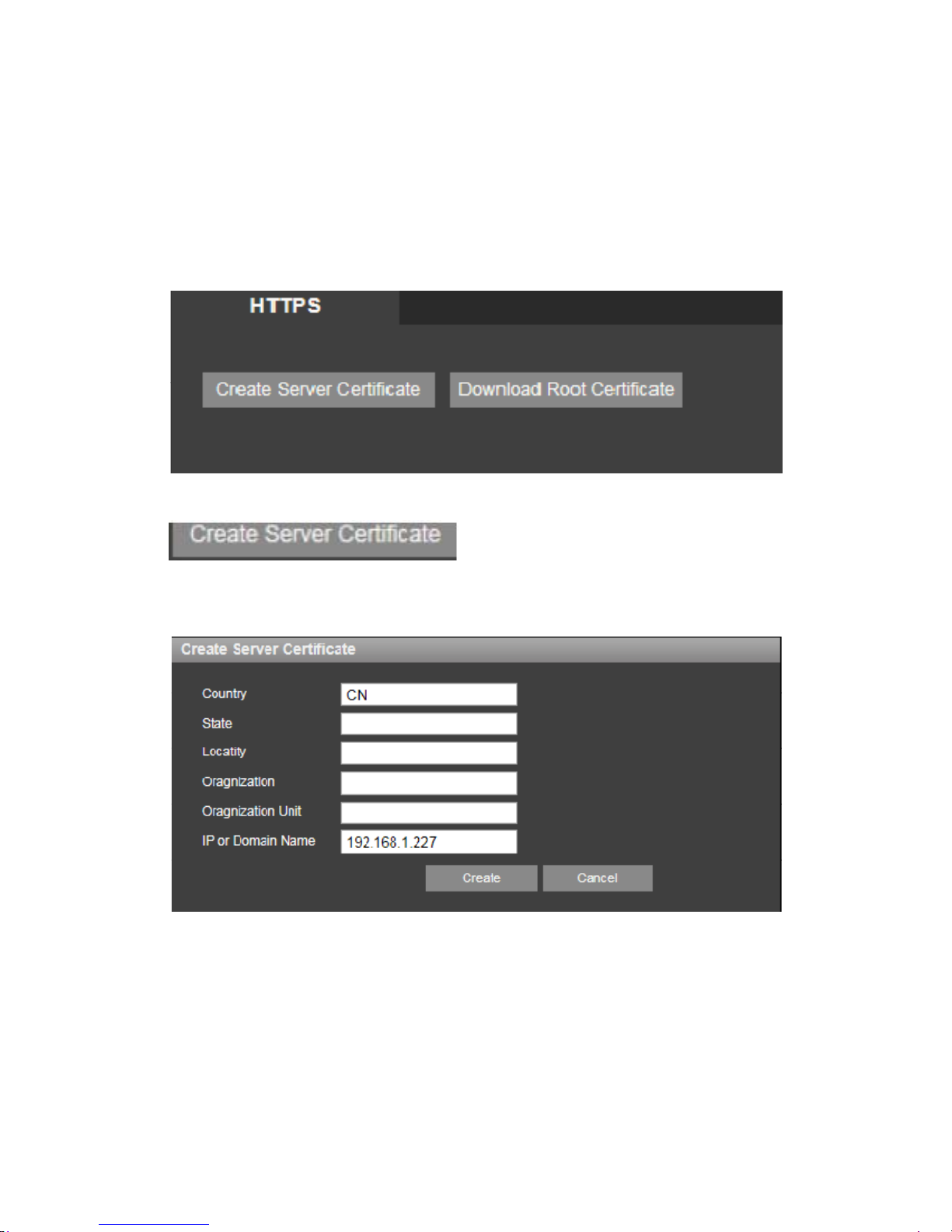

Create Server Certificate If it is your first time to use this function, please

follow the steps listed below.

click button, input country name, state name
and etc. Click Create button.
Note: Please make sure the IP or domain information is the same as your
device IP or domain name

You can see the corresponding prompt. Now the server certificate is
successfully created.

‐98‐



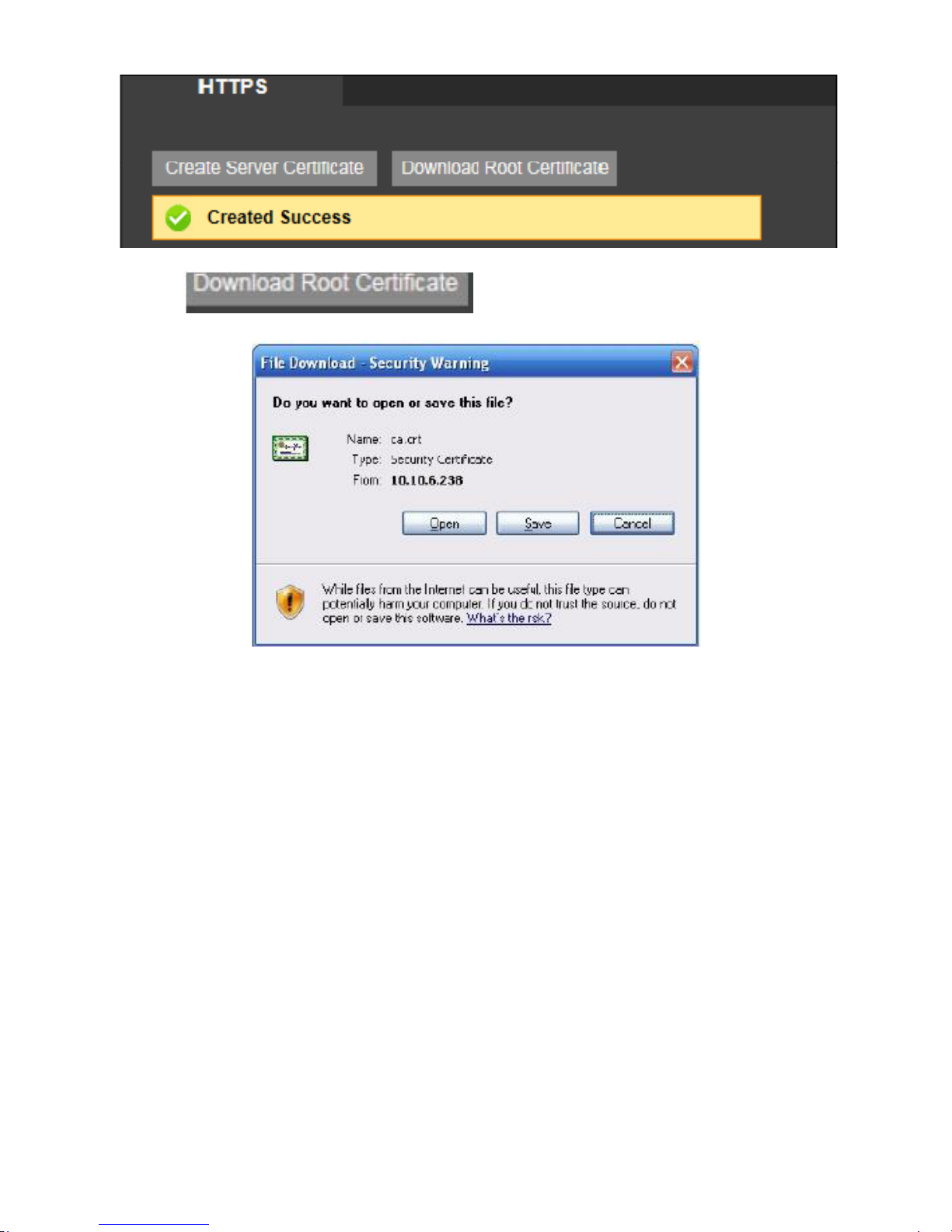

Download root certificate

Click button, system pops up a dialogue
box.

Click Open button, you can go to the following interface.

‐99‐



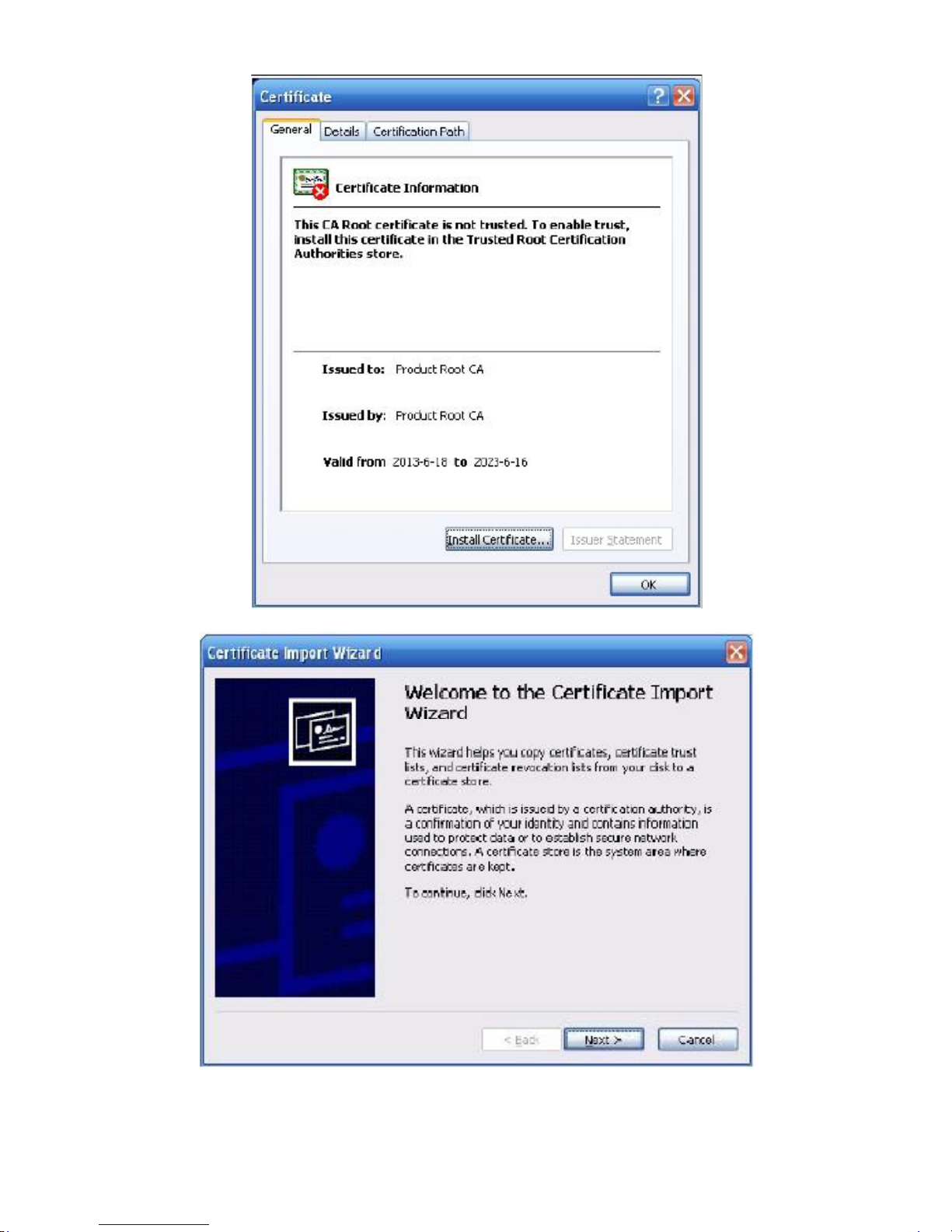

Click Install certificate button, you can go to certificate wizard.

Click Next button to continue. Now you can select a location for the certificate.
