STRYKER BEAM
User Instructions
Page 2
©2023 Eliminator Lighting all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. Eliminator Lighting logo and identifying product
names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes
all forms and matters of copyrightable materials and information now allowed by statutory or judicial
law or hereinafter granted. Product names used in this document may be trademarks or registered
trademarks of their respective companies and are hereby acknowledged. All non-Eliminator brands and
product names are trademarks or registered trademarks of their respective companies.
Eliminator Lighting and all afliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as a
result of the improper, unsafe, insufcient and negligent assembly, installation, rigging, and operation
of this product.
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of
this document may be available online.
Please check www.adj.com for the latest revision/update of this manual
before beginning installation and/or programming.
Date
02/27/2023 1.0 1.0 13/19 ch. Initial Release
05/22/2023 1.1 N/C No Change Updated FCC Statement
08/23/2023 1.2 N/C No Change Updated Specifications
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment. Please turn off all electrical products when
they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power
when not in use. Thank you!
Document
Version
Software
Version
DMX Channels Notes
2
Page 3
TABLE OF CONTENTS
Introduction 4
Limited Warranty (USA Only) | Warranty Registration 5
Features 6
Safety Precautions 7
Overview 8
Installation 9
Color Wheel | Gobos 13
Control Panel 14
System Menu 15
DMX Set Up 18
DMX Traits 21
Primary-Secondary Set Up 24
Maintenance Guidelines 25
Dimensional Drawings 26
Specifications 27
3
Page 4
INTRODUCTION
Unpacking: Thank you for purchasing the Stryker Beam. Every device has been thoroughly tested and
has been shipped in perfect operating condition. Carefully check the shipping carton for damage that
may have occurred during shipping. If the carton appears to have been damaged, carefully inspect your
xture for any damage and be sure all accessories necessary to operate the unit have arrived intact.
In the event that damage has been found or parts are missing, please contact our toll free customer
support number for further instructions. Do not return this unit to your dealer without rst contacting
customer support.
Introduction: The Stryker Beam is a DMX-capable, LED-powered moving head xture. It features
multiple selectable DMX channel modes, pan and tilt control, 13 colors, and 11 static gobos, among
other effects.
Customer Support: Contact ADJ Service for any product related service and support needs. Also visit
forums.adj.com with questions, comments or suggestions.
Parts: To purchase parts online visit:
http://parts.adj.com (US)
http://www.adjparts.eu (EU)
ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
Voice: 800-322-6337 | Fax: 323-582-2941 | [email protected]
ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: +31 45 546 85 60 | Fax: +31 45 546 85 96 | [email protected]
ADJ PRODUCTS LLC USA
6122 S. Eastern Ave. Los Angeles, CA. 90040
323-582-2650 | Fax 323-532-2941 | www.adj.com | [email protected]
ADJ SUPPLY Europe B.V
Junostraat 2 6468 EW Kerkrade, The Netherlands
+31 (0)45 546 85 00 | Fax +31 45 546 85 99
www.americandj.eu | [email protected]
ADJ PRODUCTS GROUP Mexico
AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000
+52 (728) 282-7070
CAUTION! This device is intended for indoor use only! Do not expose to rain or moisture!
CAUTION! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,
as doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service,
please contact ADJ Products, LLC.
Do not discard the shipping cartoon in the trash. Please recycle when ever possible.
4
Page 5
LIMITED WARRANTY (USA ONLY)
1 Year Limited Warranty: The Eliminator Lighting warranty is valid for 1 year from the date of purchase. Our
1 year limited warranty covers manufacturing defects only. The serial number of your device and the place of
purchase with dated valid receipt must be submitted at time of service. The Eliminator Lighting warranty does
not cover items or parts prone to wear and tear: lamps, fuses, brushes and belts. Eliminator Lighting warranty
is only valid within the United States.
To register your Eliminator Lighting product online, please click here to the ADJ Warranty Registration Page:
https://www.adj.com/portal/user/register/
WARRANTY REGISTRATION
Please fill out the enclosed warranty card to validate your purchase. All returned service items,
whether under warranty or not, must be freight pre-paid and accompanied by a return authorization
(R.A.) number. The R.A. number must be clearly written on the outside of the return package. A brief
description of the problem as well as the R.A. number must also be written down on a piece of paper
included in the shipping carton. If the unit is under warranty, you must provide a copy of your proof of
purchase invoice. You may obtain an R.A. number by contacting our customer support team. All packages returned to the service department not displaying an R.A. number on the outside of the package
will be returned to the shipper.
5
Page 6
FEATURES
• 1 x 100W LED
• Multiple selectable DMX channel modes
• Pan and tilt adjustment
• 13colors
• 11staticgobos
• Effectwheelwithbi-directionalrotatingprisms
• Single6-colorchip
• Adjustabledimmingandstrobing
• LCDdisplay
INCLUDED ITEMS
• Power Cable (x1)
• Omega Bracket (x1)
6
Page 7
SAFETY PRECAUTIONS
PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT
ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S
WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE
AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS
MANUAL VOID THE MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO
ANY WARRANTY CLAIMS AND/OR REPAIRS.
INDOOR USE ONLY! DO NOT EXPOSE TO RAIN OR MOISTURE!
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
• Maximum ambient operating temperature is 113° F (45° C)!
• DO NOT TOUCH the fixture housing during operation. Disconnect the power and allow approximately
15 minutes for the fixture to cool down before servicing.
• DO NOT shake the fixture, and avoid brute force when installing and/or operating the fixture.
• DO NOT operate the fixture if the power cord has become frayed, crimped and/or damaged. If the
power cord is damaged, replace immediately with a new one of the same power rating.
• DO NOT attempt to remove or break off the ground prong from the electrical cord. This prong is used
to reduce the risk of electrical shock and fire in the event of an internal short.
• DO NOT attempt to operate this unit if it has been damaged in any way.
• DO NOT spill water or other liquids into or on to your unit.
• Disconnect from main power before making any type of connection.
• DO NOT block any air ventilation slots. All fan and air inlets must remain clean and never blocked.
Allow approx. 20” (50cm) between fixture and other devices or a wall for proper cooling.
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 20” (50cm)
between this device and a wall.
• DO NOT remove the cover for any reason.
• When installing fixture in a suspended enviroment, always use mounting hardware that is no less than
M10 x 25mm, and always install fixture with an appropriately rated safety cable.
• Never plug this unit in to a dimmer pack.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to the point where they exit from the unit.
• Cleaning - The fixture should be cleaned only as recommended by the manufacturer.
• Heat - The appliance should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug have been damaged.
B. Objects have fallen onto, or liquid has been spilled into, the fixture.
C. The fixture does not appear to operate normally or exhibits a marked change in performance.
D. The fixture has fallen and/or has been subjected to extreme handling.
7
Page 8

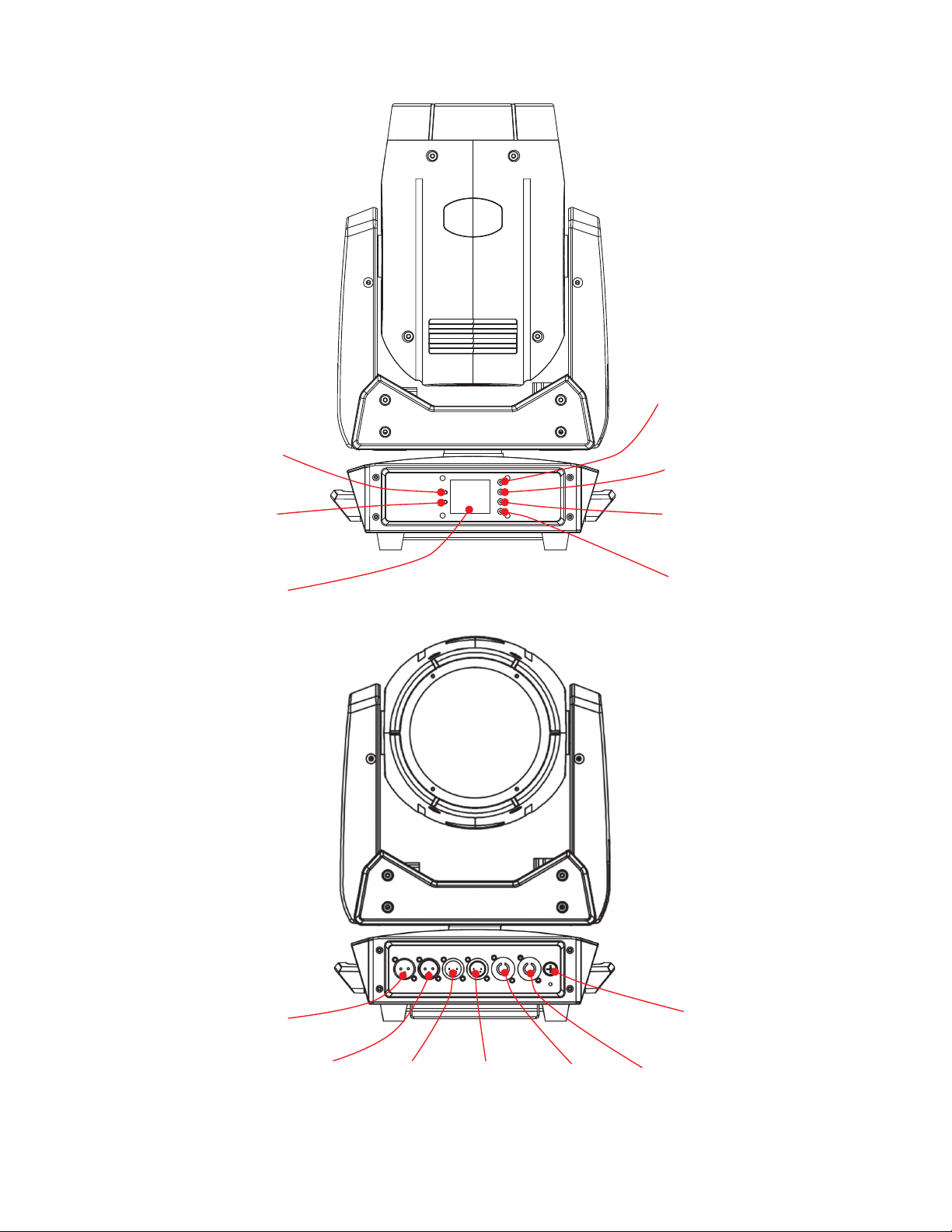

OVERVIEW

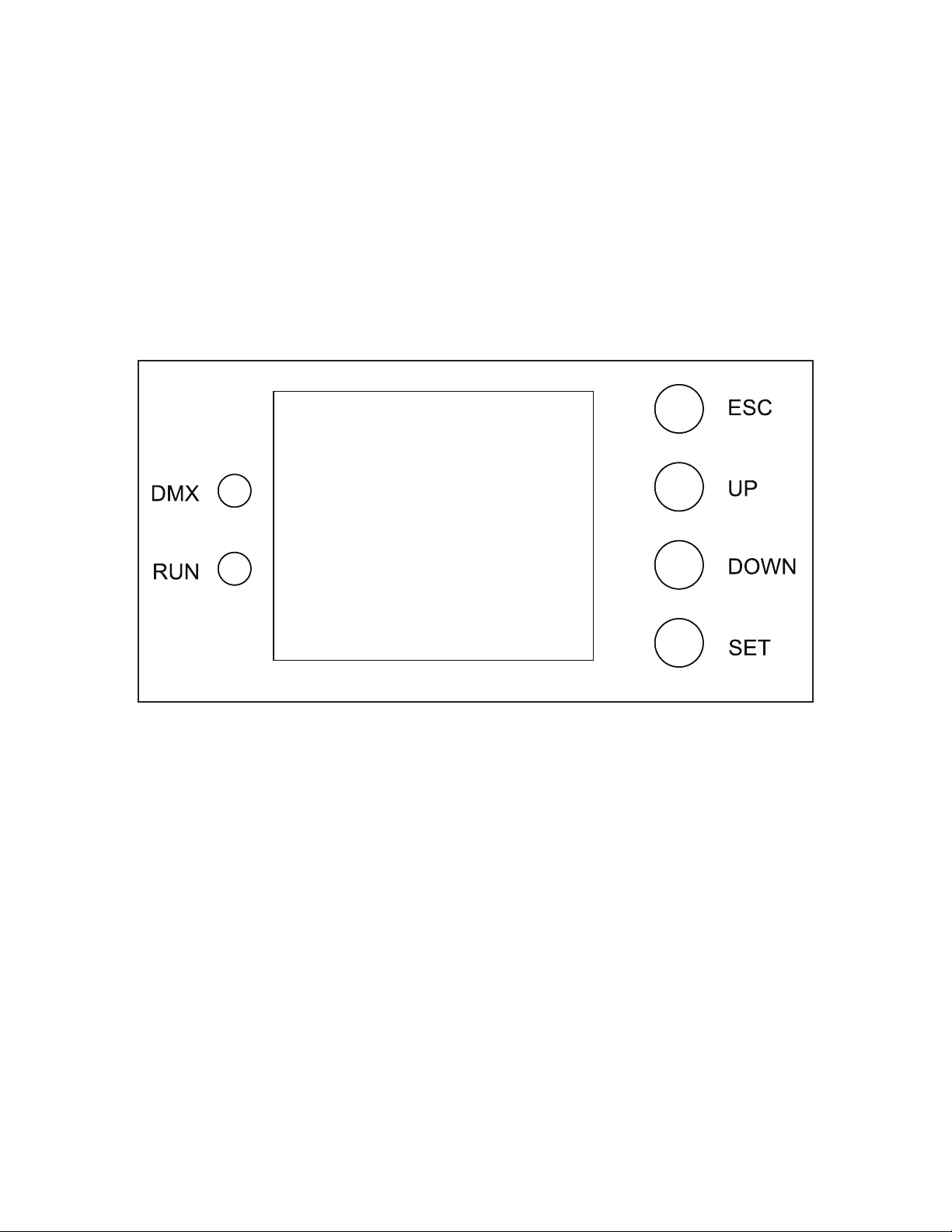

ESC
Button
DMX
LED
Run
LED
Display
Screen
Up
Button
Down
Button
Set
Button
3pin
DMX In
3pin
DMX Out
5pin
DMX In
5pin
DMX Out
8
Power
In
Fuse
Power
Out
Page 9
INSTALLATION
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
Fixture MUST be installed following all local, national, and country commercial electrical and construction codes and regulations.
When installing the unit, the trussing or area of installation must be able to hold at least 10 times the
weight of the unit and any attached accessories without any deformation. The unit must be secured
with a secondary safety attachment, e.g. an appropriately-rated safety cable.
Before rigging/mounting a single fixture to any metal truss/structure or placing the fixture(s) on any
surface, a professional equipment installer MUST be consulted to determine if the metal truss/structure
or surface is properly certified to safely hold the combined weight of the fixture(s), clamps, cables, and
accessories.
Maximum ambient operating temperature is 113°F (45°C).
Fixture(s) should be installed away from walking paths, seating areas, or areas where unauthorized
personnel might reach the fixture by hand.
NEVER stand directly below the fixture(s) when rigging, removing, or servicing.
Overhead fixture installation must always be secured with a secondary safety attachment, such as an
appropriately rated safety cable that can hold at least 10 times the weight of the fixture.
Overhead mounting requires extensive experience, including calculating working load limits, knowl-
edge of installation material being used, and perodic safety inspection of all installation material as
well as the unit itself. If you lack these qualifications, do not attempt the installation yourself.
The installation should be checked by a skilled person once a year.
9
Page 10
INSTALLATION
CLAMP MOUNTING

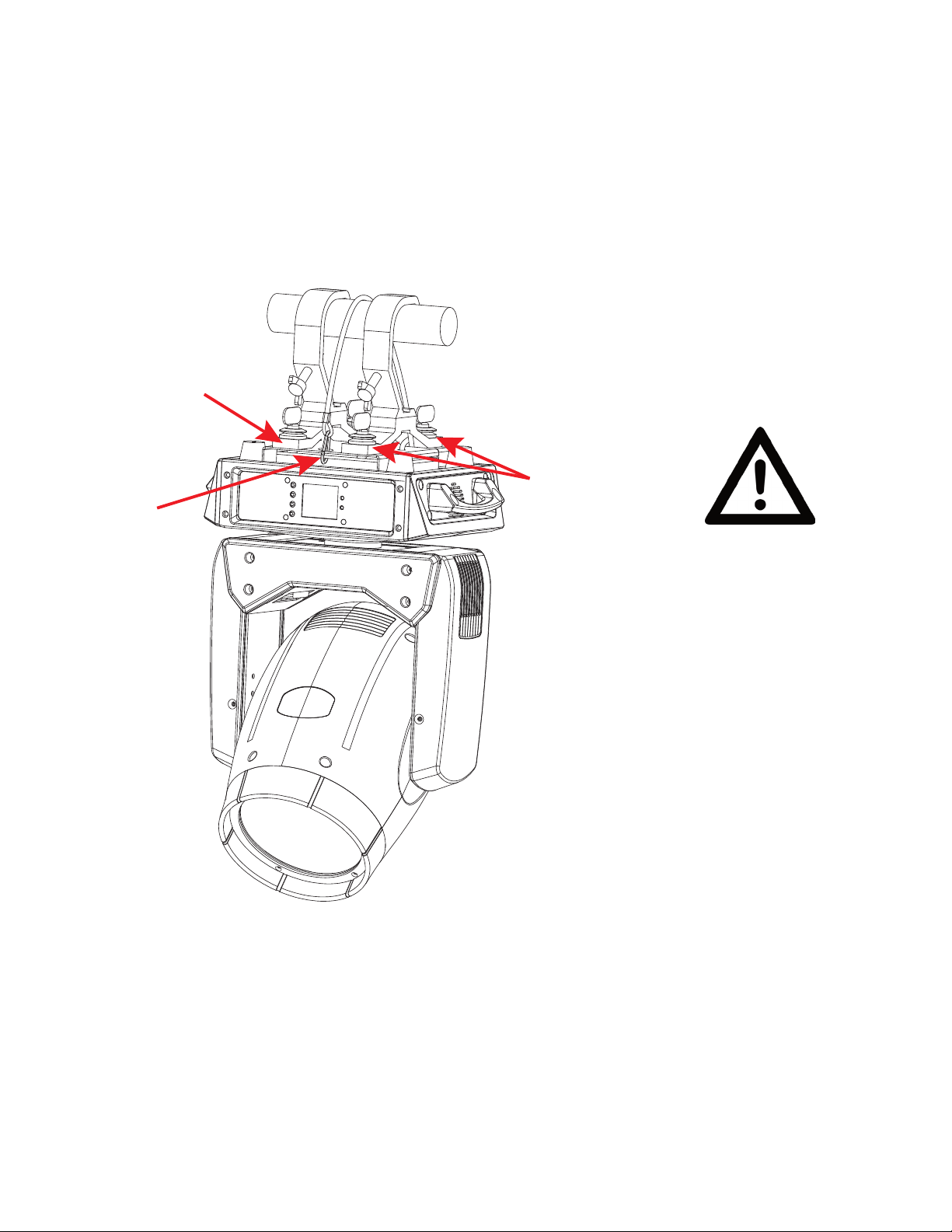

This fixture features attachment points for two mounting clamps on the bottom surface of the unit.
Additionally, the unit also features a safety cable loop located just below the display screen (see the
illustration below). When mounting the fixture to a truss or any other suspended or overhead installation, be sure to secure TWO appropriately rated clamps (not included) to the bracket installation
points, and attach a separate SAFETY CABLE of the appropriate weight rating to the provided safety
cable loop.
MOUNTING
CLAMP
INSTALLATION
POINT
MOUNTING
CLAMP
SAFETY
CABLE
LOOP
INSTALLATION
POINT
SAFETY CABLE:
ALWAYS ATTACH A SAFETY
CABLE WHENEVER
INSTALLING THIS
FIXTURE IN A SUSPENDED
ENVIRONMENT TO ENSURE
THAT THE FIXTURE WILL NOT
FALL IF THE CLAMP FAILS.
NOTICE: The maximum ambient operational temperature for this lighting fixture is 113˚ F (45˚ C). Do
not place this lighting fixture in an environment where the temperatures exceed this value. This will
allow the fixture to run at its best and help prolong the fixture life.
10
Page 11
INSTALLATION

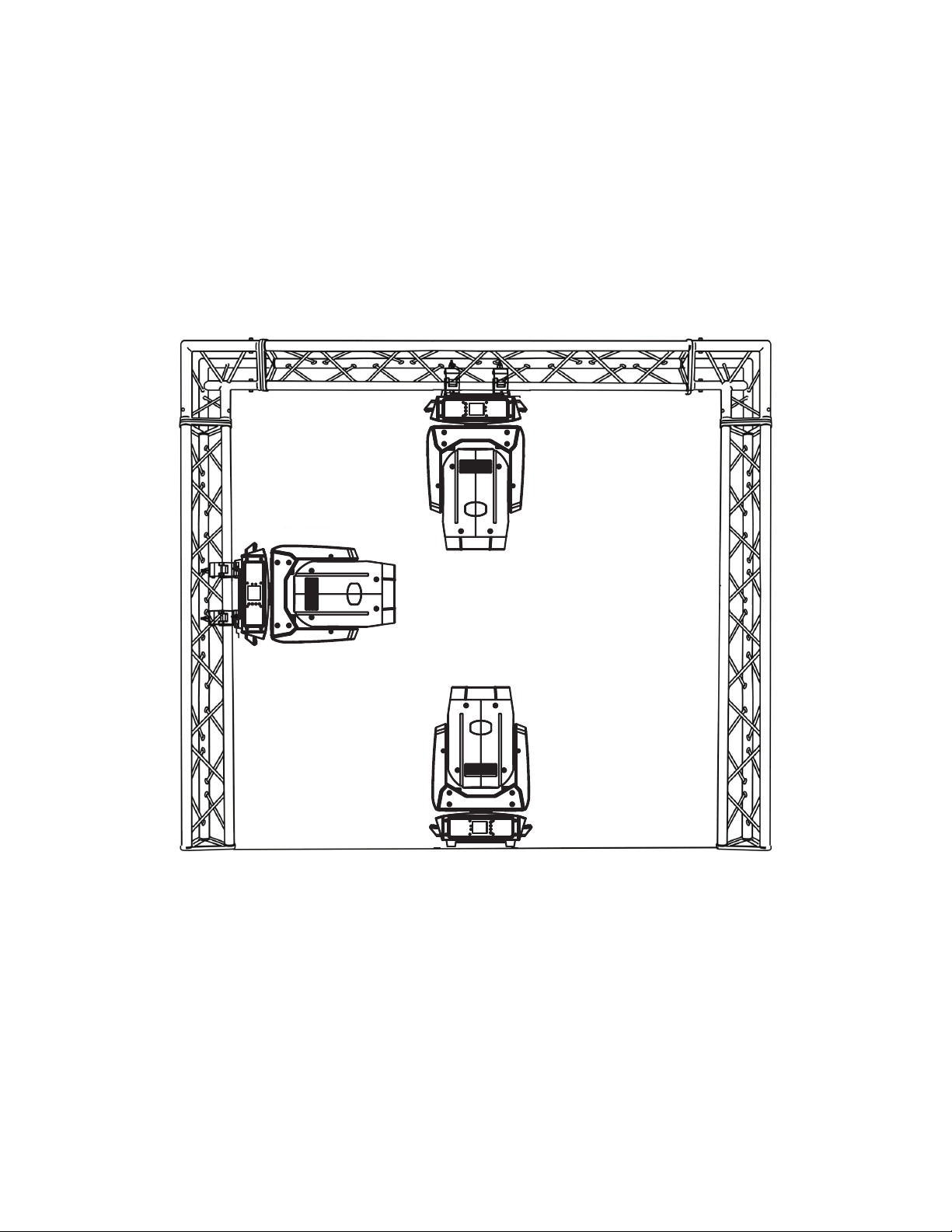

RIGGING ORIENTATIONS
Overhead rigging requires extensive experience, including calculating working load limits, installation
material being used, and periodic safety inspection of all installation material and the fixture, among
other skills. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury.
The fixture is fully operational in the following positions: hanging from a horizontal truss, suspended
sideways from a vertical truss, or standing upright on a flat, level surface. See the illustration below for
reference.
11
Page 12
INSTALLATION

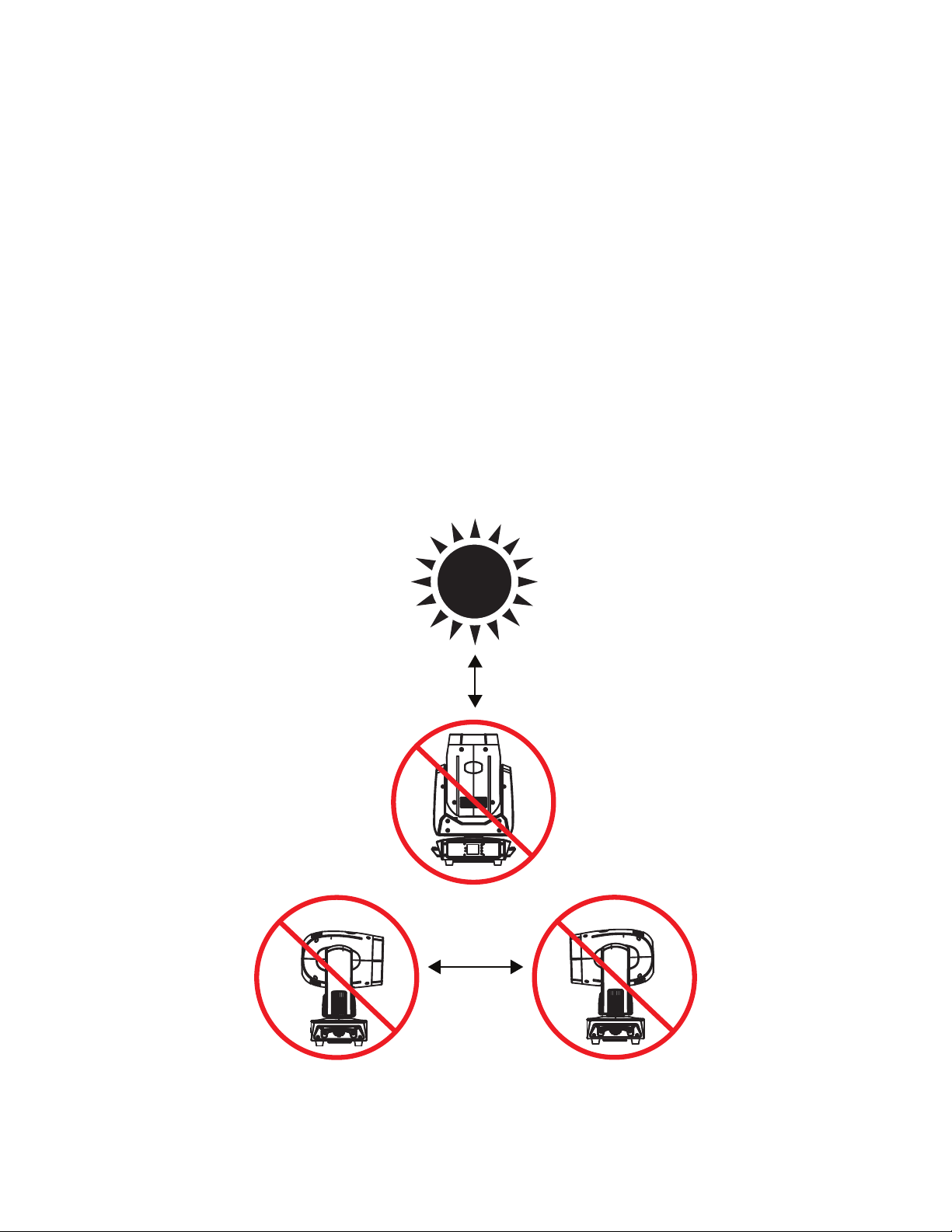

POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS
External sources of light beams from direct sunlight, lighting and moving head fixtures, and lasers,
which are focused directly towards the exterior housing and/or penetrate the front lens opening of
Eliminator lighting fixtures, can cause severe internal damage including burning of optics, dichroic
color filters, glass and metal gobos, prisms, animation wheels, frost filters, iris, shutters, motors, belts,
wiring, discharge lamps, and LEDs.
This issue is not specific only to Eliminator lighting fixtures, but rather it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can reduce the risk of potential damage. Contact ADJ Service for more
details.
DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO LIGHT BEAMS FROM
DIRECT SUNLIGHT, OTHER LIGHTING OR MOVING HEAD FIXTURES, AND LASERS DURING
UNPACKING, INSTALLATION, USE, AND EXTENDED IDLE TIMES OUTDOORS. DO NOT FOCUS
A LIGHT BEAM FROM ONE LIGHTING FIXTURE DIRECTLY TOWARDS ANOTHER.
12
Page 13

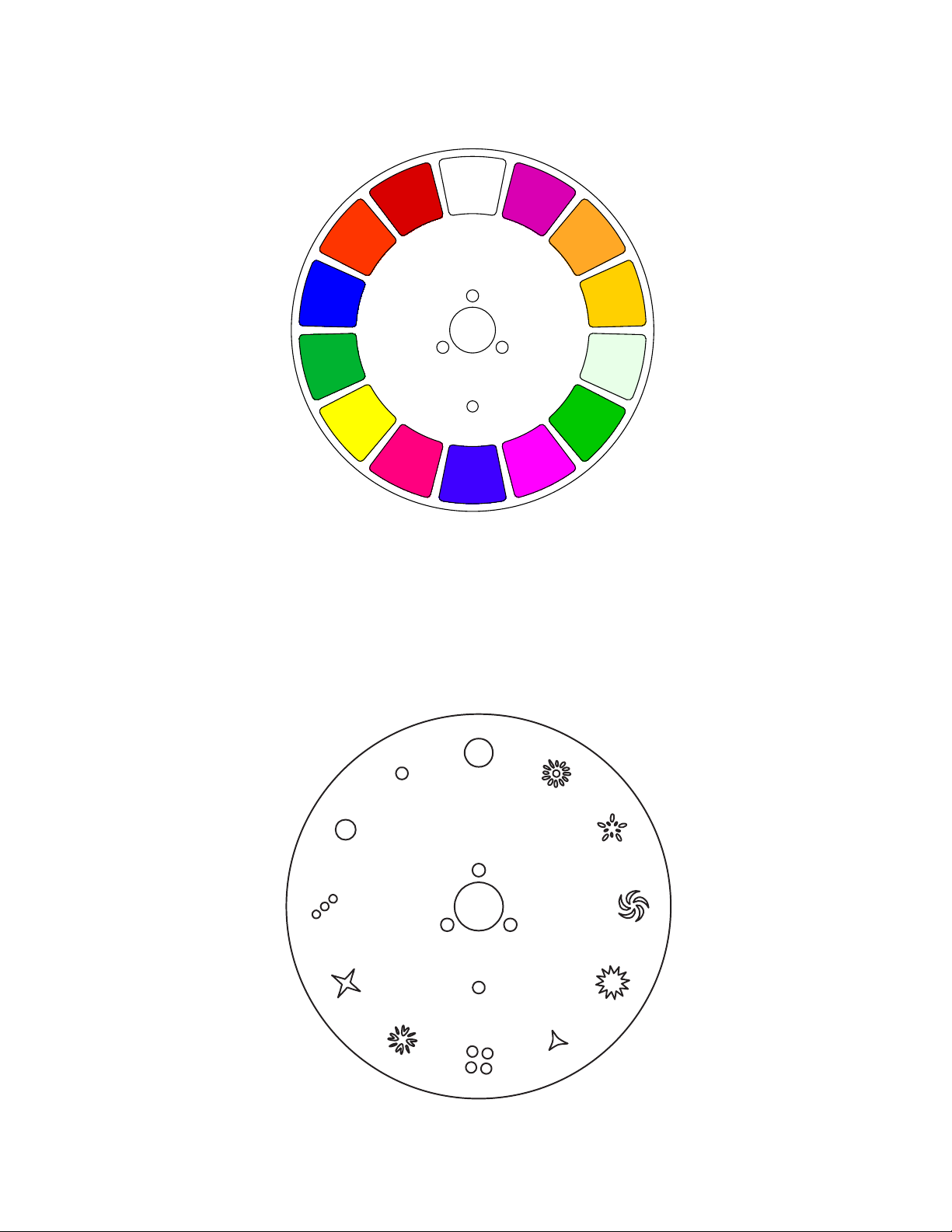

COLOR WHEEL
Orange
Blue
Green
Yellow
Red
Carmine
Open
Purple
Orange
Yellow
Light
Yellow
Silver
Reseda
Pink
Royal
Blue
GOBOS
Open
1
2
3
4
11
10
9
8
5
7
6
13
Page 14
CONTROL PANEL
The Stryker Beam features a display screen with a 6-button control pad, which can be used to easily
adjust any device settings.
Pressing the UP and DOWN buttons to scroll through options on the screen. Press SET to select the
option currently highlighted on the screen, and enter into the Sub-Menu to adjust that setting, if appli-
cable. Press ESC to exit without making changes.
The panel also includes two LEDs, which indicate whether the unit is in DMX mode (“DMX” LED is
illuminated) or Standalone mode (“RUN” LED is illuminated).
14
Page 15
SYSTEM MENU
001 - 512 Select DMX address
Prev
ADDR
MODE
DISP
Next
Chan
DMX Ctrl DMX control mode
Auto Run Auto run mode
Sound Ctrl Sound active mode
Scene Mode
M/S Choose
Screen Saver
Screen Rot
13 CH
19 CH
Auto
01 - 10
Primary
Auto
Secondary
Mode 1 Black screen
Mode 2 DMX address
Mode 3 Model name
Mode 4 Model name
Off Screen saver off
Reverse Invert display orientation
Forward
Mode 1
Select DMX channel
mode
Scene mode
Standard display orientation
Connected: LED On
Not Connected: LED Off
SCENE
DMX Indicate
Screen Light 001 - 010 Screen display brightness
Scene Select 1 - 10
Scene Time 0s - 25.5s
Control Mode On / Off
01. Pan 000 - 255
02. Pan Fine 000 - 255
03. Tilt 000 - 255
04. Tilt Fine 000 - 255
05. Color 000 - 255
06. Gobo 000 - 255
07. Strobe 000 - 255
08. Dimmer 000 - 255
Mode 2
Mode 3
CONTINUED ON NEXT PAGE
Connected: LED Off
Not Connected: Led On
Connected: LED ash
Not Connected: LED Off
15
Page 16
SYSTEM MENU
09. Focus 000 - 255
10. Prism 1 000 - 255
11. Prism 1 R 000 - 255
12. Prism 2 000 - 255
SCENE
(cont’d)
ADVA
13. Prism 2 R 000 - 255
14. Frost 000 - 255
15. 7 Color 000 - 255
16. Function 000 - 255
17. Mode 000 - 255
18. PT Speed 000 - 255
19. Reset 000 - 255
Pan Invert On / Off
Tilt Invert On / Off
P/T Rectify On / Off
Pan Offset 004 - 150
Tilt Offset 004 - 048
Data Hold On / Off
Scene Time 001 - 255
Reset Yes / No
Factory Setting Yes / No
Returns pan/tilt to previous setting in the event of
accidental strike
Holds last DMX setting
received if signal is lost
Power reset: powers
xture off then powers it
back on
Return unit to factory de-
fault settings
CONTINUED ON NEXT PAGE
16
Page 17
SYSTEM MENU
STAT Stepper Info
Error Logging Display error log
Fixture Status
STAT
(cont’d)
Version x.x.x
Light Time xxx:xx
Total Time xxx:xx Total lifetime run time
Serial Number
Pan xxx
Tilt xxx
Pan OP xx
Tilt OP xx
01 Pan xxx
02 Tilt xxx
03 Gobo1 xxx
04 Color1 xxx
05 Prism1 xxx
06 Prism2 xxx
07 Prism Rot1 xxx
08 Prism Rot2 xxx
09 Focus1 xxx
10 Frost xxx
11 MT1 xxx Rainbow mirror motor
Communication xxx%
Error Cnt x
Light Temp xx F / xx C
Panel Temp xx F / xx C
Sensor1 Temp xx F / xx C
Sensor2 Temp xx F / xx C
Time since unit was last
powered on
17
Page 18
DMX SET UP

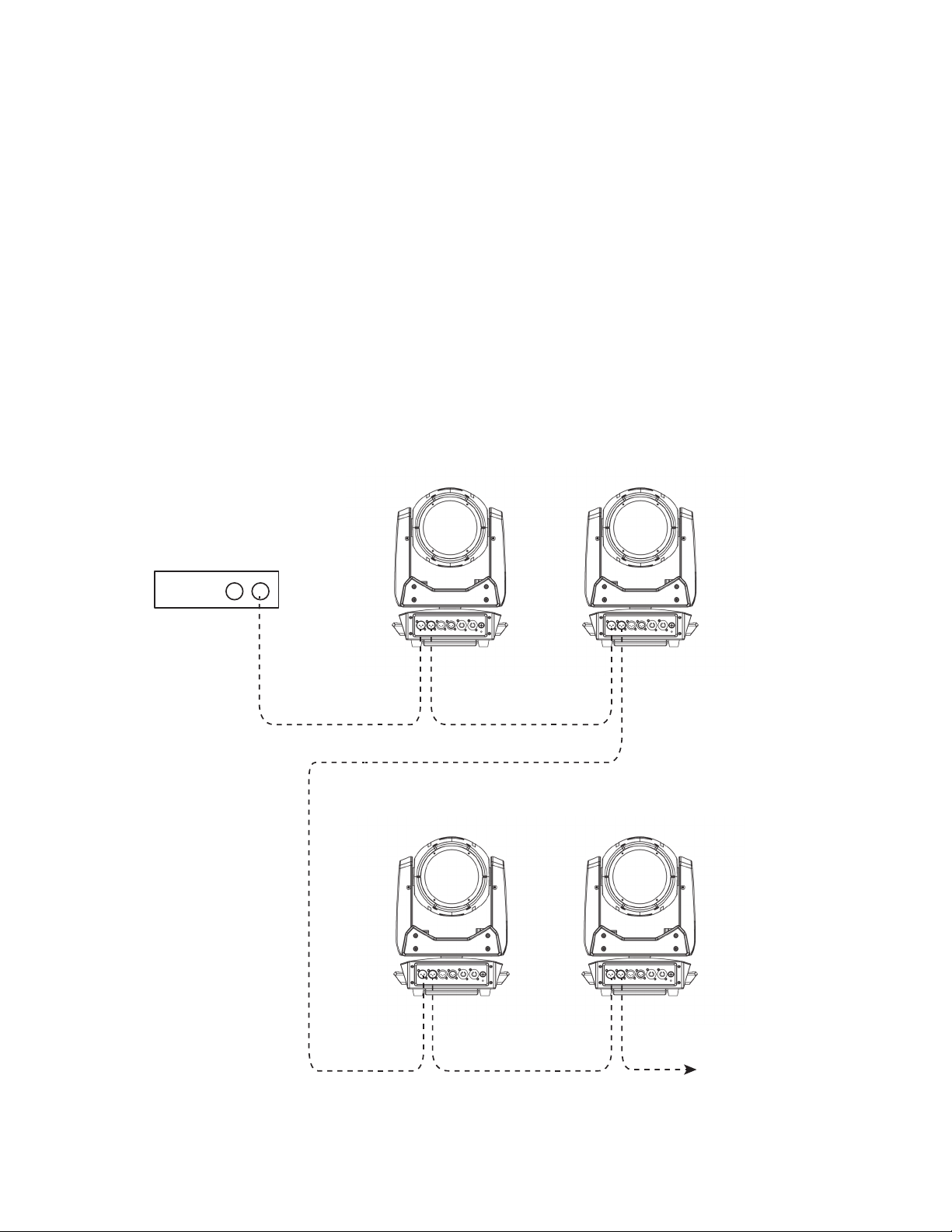

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu-
nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions
from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via
the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have
a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be
linked together and operate from a single controller, as long as all fixtures and the controller are
DMX compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible
when linking several DMX fixtures. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.
DMX
CONTROLLER
DMX
IN
FIXTURE
1
DMX
OUT
FIXTURE
3
DMX
IN
FIXTURE
2
DMX
OUT
FIXTURE
4
DMX
IN
DMX
OUT
DMXINDMX
OUT
ADDITIONAL
FIXTURES
Note: The diagram above depicts DMX linking via the 3-pin DMX ports, but the units can also be
linked via the 5-pin DMX ports. However, all linkages must be made using the same set of ports: all
3-pin or all 5-pin.
18
Page 19
DMX SET UP

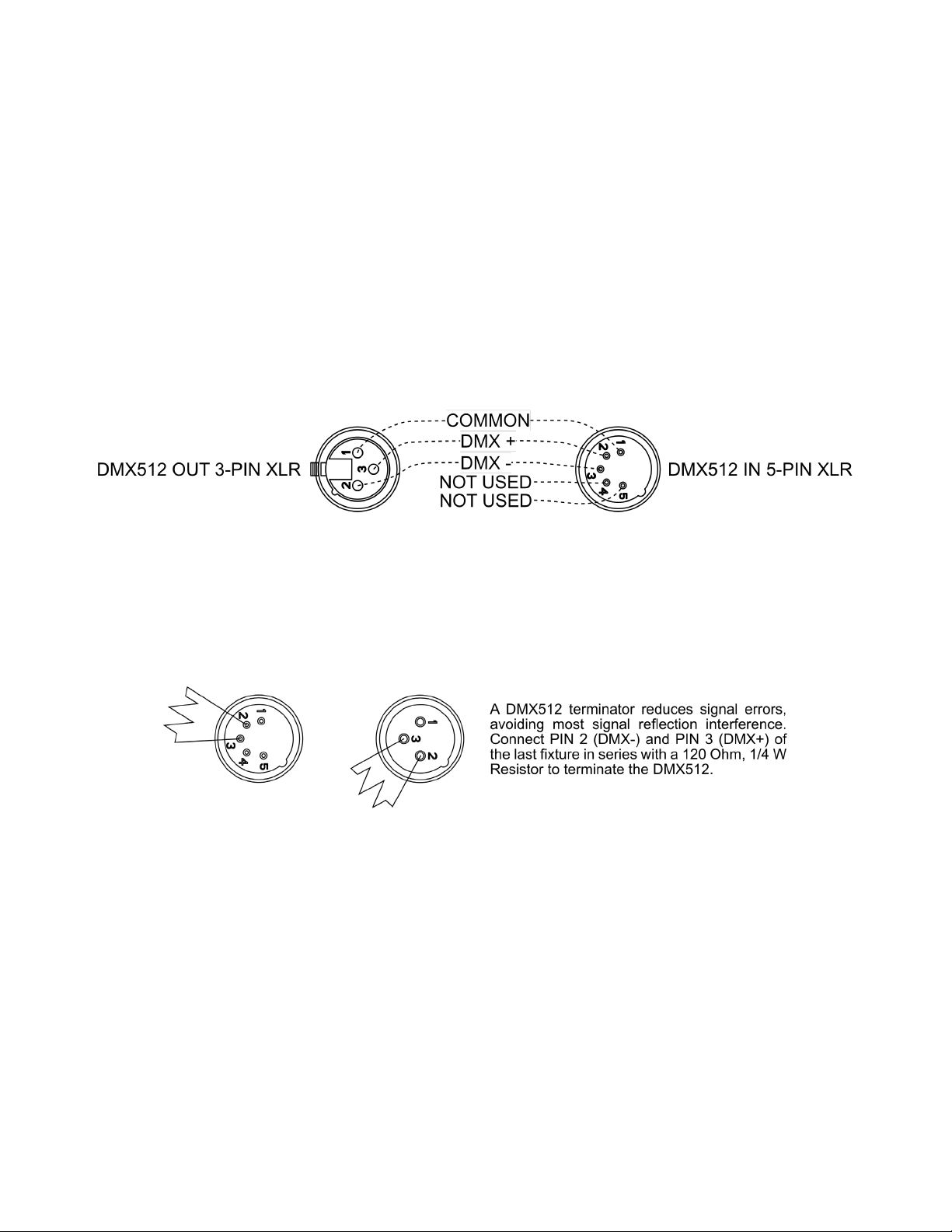

Data Cable (DMX Cable) Requirements (For DMX Operation): This unit can be controlled via
DMX-512 protocol. The DMX address is set on the rear panel of the unit. Your unit and your DMX
controller require a standard 3-pin or 5-pin XLR connector for data input and data output. We recommend Accu-Cable DMX cables. If you are making your own cables, be sure to use standard 110-120
Ohm shielded cable (This cable may be purchased at almost all pro lighting stores). Your cables
should be made with a male XLR connector at one end and a female XLR connector at the other.
Also remember that DMX cable must be daisy chained and cannot be split.
Notice: Be sure to follow the illustration below when making your own cables. Do not use the ground
lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the
shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a
short circuit and erratic behavior.
Special Note: Line Termination. When longer runs of cable are used, you may need to use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is
connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted
in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable
terminator (ADJ part number Z-DMX/T) will reduce the risk of erratic behavior.
19
Page 20
DMX SET UP
DMX ADDRESSING.
All fixtures should be given a DMX starting address when using a DMX controller, so the correct fixture responds to the correct control signal. This digital starting address is the channel number from
which the fixture starts to “listen” to the digital control signal sent out from the DMX controller. The
assignment of this starting DMX address is achieved by setting the correct DMX address on the digi-
tal control display on the fixture.
You can set the same starting address for all fixtures or a group of fixtures, or set different addresses
for each individual fixture. Setting all fixtures to the same DMX address will cause all fixtures to react
in the same way. In other words, changing the settings of one channel will affect all the fixtures simul-
taneously.
If you set each fixture to a different DMX address, each unit will start to “listen” to the channel number
you have set, based on the quantity of DMX channels of each fixture. That means changing the settings of one channel will only affect the selected fixture.
For example, when operating this unit in 13-channel mode, you should set the starting DMX address
of the first unit to 1, the second unit to 14 (1 + 13), the third unit to 27 (1 + 13 + 13), and so on. See
the chart below for more details.
CHANNEL MODE UNIT 1 ADDRESS UNIT 2 ADDRESS UNIT 3 ADDRESS UNIT 4 ADDRESS
13 Ch 1 14 27 40
19 Ch 1 20 39 58
20
Page 21
DMX TRAITS
CHANNEL
13Ch 19Ch
1 1 000 - 255 Pan, 0 - 540
2 000 - 255 Pan Fine
2 3 000 - 255 Tilt, 0 - 225
4 000 - 255 Tilt Fine
3 5
DMX
VALUES
000 - 004 White
005 - 009 White + Red
010 - 014 Red
015 - 019 Red + Orange
020 - 024 Orange
025 - 029 Orange + Blue
030 - 034 Blue
035 - 039 Blue + Green
040 - 044 Green
045 - 049 Green + Yellow
050 - 054 Yellow
055 - 059 Yellow + Carmine
060 - 064 Carmine
065 - 069 Carmine + Royal Blue
070 - 074 Royal Blue
075 - 079 Royal Blue + Pink
080 - 084 Pink
085 - 089 Pink + Reseda
090 - 094 Reseda
095 - 099 Reseda + Silver
100 - 104 Silver
105 - 109 Silver + Light Yellow
110 - 114 Light Yellow
115 - 119 Light Yellow + Orange Yellow
120 - 124 Orange Yellow
125 - 129 Orange Yellow + Purple
130 - 134 Purple
135 - 139 Purple + White
140 - 149 White
150 - 199 Clockwise Rotation (fast to slow)
FUNCTION
Color
200 - 205 Stop
206 - 255 Counter Clockwise Rotation (slow to fast)
CONTINUED ON NEXT PAGE
21
Page 22
DMX TRAITS
CHANNEL
13Ch 19Ch
4 6
5 7
6 8 000 - 255 Dimmer, 0% to 100%
7 9 000 - 255 Focus, far to near
DMX
VALUES
000 - 009 Open
010 - 019 Gobo1
020 - 029 Gobo2
030 - 039 Gobo3
040 - 049 Gobo4
050 - 059 Gobo5
060 - 069 Gobo6
070 - 079 Gobo7
080 - 089 Gobo8
090 - 099 Gobo9
100 - 109 Gobo10
110 - 119 Gobo11
120 - 127 Gobo1 Shake, slow to fast
128 - 135 Gobo2 Shake, slow to fast
136 - 143 Gobo3 Shake, slow to fast
144 - 151 Gobo4 Shake, slow to fast
152 - 159 Gobo5 Shake, slow to fast
160 - 167 Gobo6 Shake, slow to fast
168 - 175 Gobo7 Shake, slow to fast
176 - 183 Gobo8 Shake, slow to fast
184 - 191 Gobo9 Shake, slow to fast
192 - 199 Gobo10 Shake, slow to fast
200 - 207 Gobo11 Shake, slow to fast
208 - 230 Clockwise Rotation, fast to slow
231 - 232 Stop
233 - 255 Counter Clockwise Rotation, slow to fast
000 - 003 Off
004 - 127 Strobe, slow to fast
128 - 191 Pulse Strobe, slow to fast
192 - 251 Random Strobe, slow to fast
252 - 255 Open
FUNCTION
Gobo
Shutter
CONTINUED ON NEXT PAGE
22
Page 23
DMX TRAITS
CHANNEL
13Ch 19Ch
10
11
12
13
8 14
9 15
10 16
11 17
12 18 000 - 255 Pan/Tilt Speed, fast to slow
13 19
DMX
VALUES
000 - 127 Off
128 - 255 On
000 - 063
064 - 126 Clockwise Rotation, fast to slow
127 - 128 Stop
129 - 191 Counter Clockwise Rotation, slow to fast
192 - 255 Bi-directional Rotation, slow to fast
000 - 127 Off
128 - 255 On
000 - 063
064 - 126 Clockwise Rotation, fast to slow
127 - 128 Stop
129 - 191 Counter Clockwise Rotation, slow to fast
192 - 255 Bi-directional Rotation, slow to fast
000 - 127 Off
128 - 255 On
000 Off
001 - 255 On
000 - 127 Off
128 - 255 Auto Run On
000 - 127 Off
128 - 255 Auto Run On
000 - 021 Off
022 - 025 No function
026 - 076 Reset Effect (hold 3s)
FUNCTION
Prism 1
Prism 1 Rotation
Prism Index, 0° - 400°
Prism 2
Prism 2 Rotation
Prism Index, 0° - 400°
Frost
7 Color
Effect Auto
Pan/Tilt Auto
Reset
077 - 128 Reset Pan/Tilt Motor (hold 3s)
129 - 255 Reset All (hold 3s)
23
Page 24
PRIMARY-SECONDARY SET UP
This function allows you to link units together to run in a Primary-Secondary set-up, in which one unit
will act as the controlling unit and the others will react to the controlling unit’s built-in programs. Any
unit can be configured to act as a Primary or as a Secondary, but only one unit in a given system can
be programmed to act as the Primary.
Primary-Secondary Connections and Settings:
1. Daisy chain your units via the XLR connectors on the rear panels of each unit. Use standard XLR
data cables to link your units together. Remember that the male XLR connector is the input and
the female XLR connector is the ouput. The first unit in the chain (primary) will use the female XLR
connector only. The last unit in the chain will use the male XLR connector only.
2. Use the display screen and control panel to navigate to the “Primary / Secondary” setting in the
main menu. Select this setting using the ENTER button, and use the arrows to toggle between
“Primary”, “Secondary1”, and “Secondary2”. Press ENTER to confirm your selection.
3. Repeat Step 2 for each unit in the system. Make sure that only one unit is designated as the
Primary, while all other units are designated as Secondaries.
4. The secondary units will act in conjunction with the primary unit. Note that secondary units set to
the “Secondary1” setting will follow the motions of the primary, while those set to the “Secondary2”
setting will move in contrast to the primary.
24
Page 25
MAINTENANCE GUIDELINES
DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!
CLEANING
Frequent cleaning is recommended to ensure proper function, optimized light output, and an extended life. The frequency of cleaning depends on the environment in which the fixture operates: damp,
smoky, or particularly dirty environments can cause greater accumulation of dirt on the fixture’s optics.
Clean the external lens surface regularly with a soft cloth to avoid dirt/debris accumulation.
NEVER use alcohol, solvents, or ammonia-based cleaners.
MAINTENANCE
Regular inspections are recommended to ensure proper function and extended life. There are no
user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ or
Eliminator service technician. Should you need any spare parts, please order genuine parts from your
local ADJ/Eliminator dealer.
Please refer to the following points during routine inspections:
A. A detailed electrical check by an approved electrical engineer every three months, to make sure
the circuit contacts are in good condition and prevent overheating.
B. Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall out
during normal operation, resulting in damage or injury as larger parts could fall.
C. Check for any deformations on the housing, color lenses, rigging hardware, and rigging points
(ceiling, suspension, trussing). Deformations in the housing could allow for dust to enter into the
fixture. Damaged rigging points or unsecured rigging could cause the fixture to fall and seriously
injure a person(s).
D. Electric power supply cables must not show any damage, material fatigue, or sediments.
NEVER remove the ground prong from the power cable.
SOFTWARE UPDATES
Please contact ADJ service for assistance with updating your device’s software.
25
Page 26

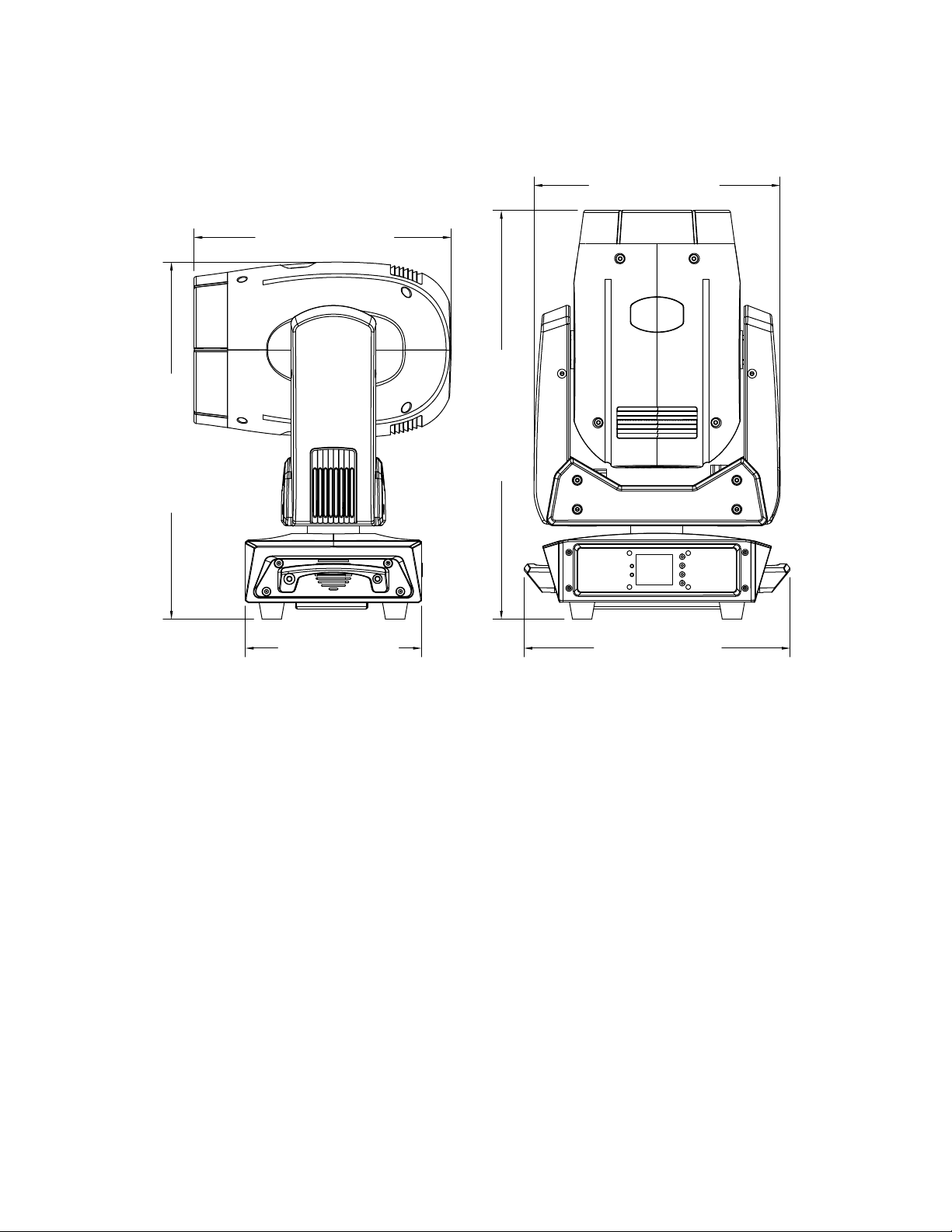

DIMENSIONAL DRAWINGS
11.5in. [292.1mm]
16.0in. [405.3mm]
11.0in. [279.4mm]
18.3in. [464.0mm]
7.9in. [200.0mm]
Drawings not shown to scale.
11.9in. [302.3mm]
26
Page 27
SPECIFICATIONS
LIGHT SOURCE:
• 100W LED Engine
• 6-Degree Beam Angle
FEATURES:
• Full color function display with 4 buttons
• Fast, precise, pan & tilt movements
• Primary / Secondary stand-alone mode
• Motorized Focus
• Frost Filter (50-Degree Wash Effect)
COLOR WHEEL:
• 13 colors + open
• Separate 6-Color flag for multi-color effects
GOBO WHEEL:
• Metal wheel with 11 GOBOS + open (2 are beam reducers)
• GOBO Shake Effect
PRISM WHEEL:
• 8-facet rotating circular prism
• 16-facet rotating circular prism
• Prism layering
CONTROL:
• 2 DMX channel modes: 6 & 19 channels
• Protocols: DMX-512, RDM, Auto and Primary/Secondary control modes
• Electronic Dimmer: 0- 100 %
• Variable Strobe: 0-20HZ
• With Wired Digital Communication Network
CONNECTIONS:
• DMX Data In/Out: 3-pin & 5-pin connections
• Power In: Blue Locking indoor power connection
• Power Out: White Locking indoor power connection
PAN/TILT:
• Pan/Tilt: 540-degrees / 270-degrees
• 16-bit Fine Pan
• 16-bit Fine Tilt
ELECTRICAL:
• Multi-voltage operation: AC 100-24V, 50/60Hz
• Maximum Power Consumption: 150W
• Power daisy chain: 2 units @120V, 3 units @230V
DIMENSIONS & WEIGHT:
• Dimensions (LxWxH): 11.5” x 11.9” x 18.3” / 292.1x302.3x464.0mm
• Weight: 29 lbs. / 12.8 kg.
ROAD CASES (SOLD SEPERATELY)::
• Two (2) Stryker Beam fit inside the ADJ DRC MH road case
• Four (4) Stryker Beam fit inside the ADJ QRC HM road case
WHAT’S INCLUDED:
• Locking power cord
• Omega bracket
Specifications subject to change without notice.
27
Page 28
FCC INFORMATION
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC RADIO FREQUENCY INTERFERENCE WARNINGS & INSTRUCTIONS
Please note that changes or modications of this product is not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
This product has been tested and found to comply with the limits as per Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This device uses and can radiate radio frequency energy and, if not
installed and used in accordance with the included instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this device does cause harmful interference to radio or television
reception, which can be deter- mined by turning the device o and on, the user is encouraged
to try to correct the interference by one or more of the following methods:
• Reorient or relocate the device.
• Increase the separation between the device and the receiver.
• Connect the device to an electrical outlet on a circuit dierent from which the radio
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the environment. Please turn o all electrical
products when they are not in use. To avoid power consumption in idle mode, disconnect all
electrical equipment from power when not in use. Thank you!
28
Page 29
Loading...
