Eliminator FURIOUS THREE RG User guide

FURIOUS THREE RG

SKU#: FUR128
UPC#: 818651029314

User Instructions

©2022 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and instructions

herein are subject to change without notice. Eliminator Lighting, ADJ Products, LLC logo and identifying product

names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes

all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or

hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their

respective companies and are hereby acknowledged. All non-ADJ Products, LLC brands and product names are

trademarks or registered trademarks of their respective companies.

ADJ Products, LLC and all afliated companies hereby disclaim any and all liabilities for property, equipment,

building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with

the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe,

insufcient and negligent assembly, installation, rigging, and operation of this product.

ADJ PRODUCTS LLC World Headquarters

6122 S. Eastern Ave. | Los Angeles, CA 90040 USA

Tel: [phone] | Fax: [phone] | www.adj.com |[email protected]

ADJ Supply Europe B.V.

Junostraat 2 | 6468 EW Kerkrade | Netherlands

Tel: [phone] | Fax: [phone] | www.americandj.eu | [email protected]

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the environment. Please turn off all electrical products when

they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power

when not in use. Thank you!

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of this

document may be available online.

Please check www.eliminatorlighting.com for the latest revision/update of this

manual before beginning installation and/or programming.

Date

Document

Version

Software

Version >

DMX Channel Mode Notes

04/20/2021 1.0 1.0 9 Channels Initial Release

04/20/2021 1.5 N/C No change Updated Graphics & Specications

03/29/22 2.0 N/C No change Added accession number

2

CONTENTS

General Information 3

Limited Warranty (USA Only) 5

Safety Guidelines 6

Laser Warning 8

Overview 10

Installation 11

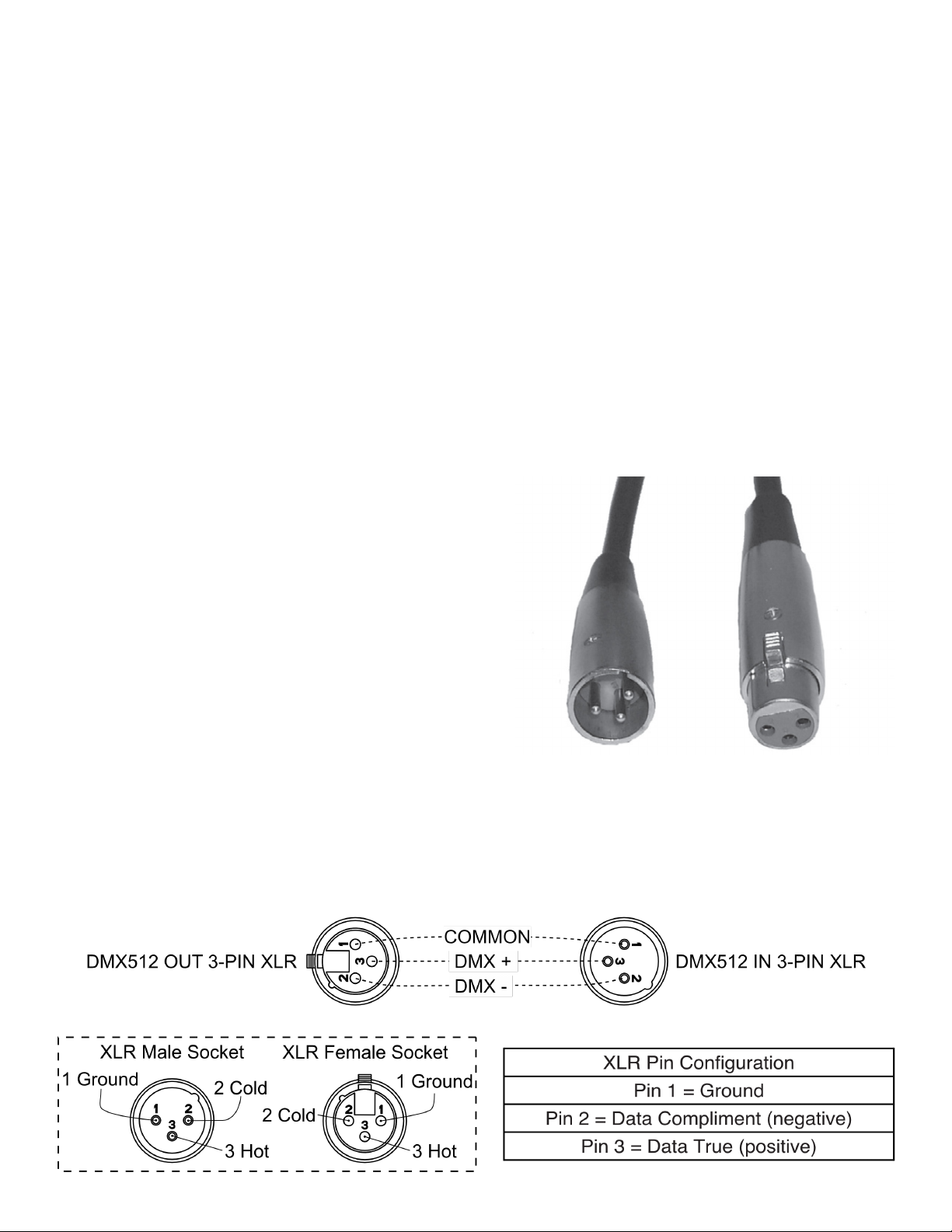

DMX Set Up 13

DMX Addressing

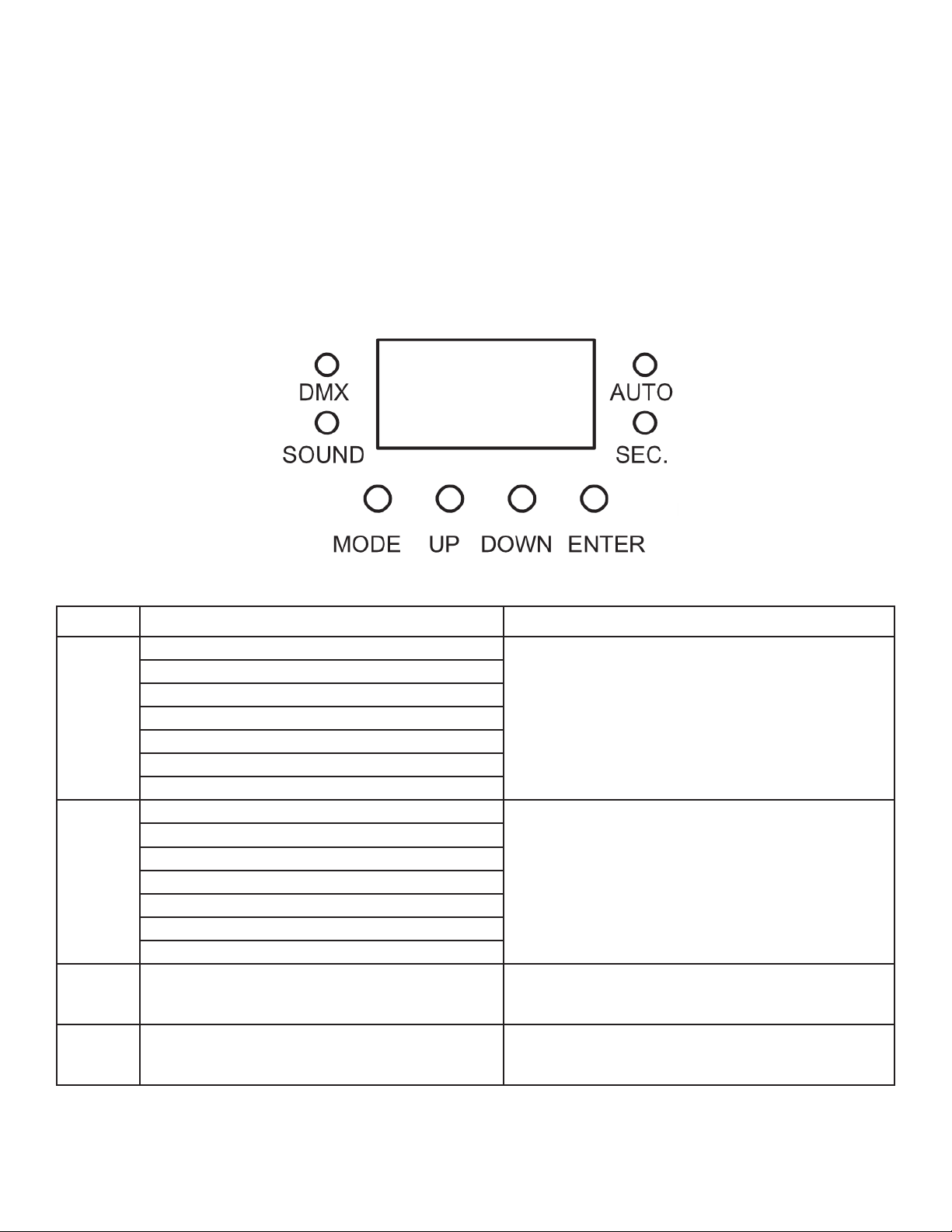

System Menu 16

DMX Traits: Channel Functions & Values 17

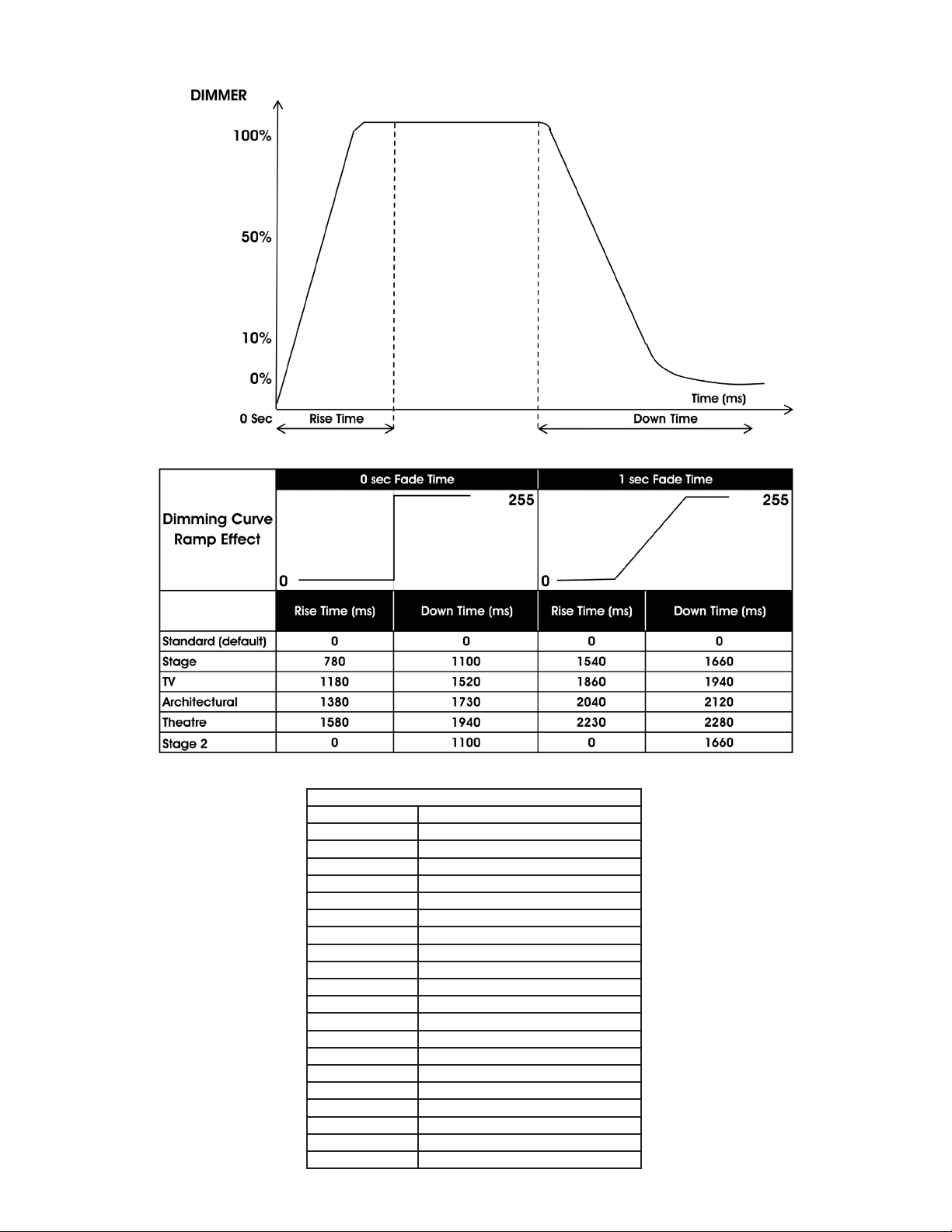

Dimmer Mode Chart 19

Cleaning | Maintenance 20

Specications 21

15

3

GENERAL INFORMATION

INTRODUCTION

Please read and understand all instructions in this manual carefully and thoroughly before attempting
to operate these products. These instructions contain important safety and use information.

UNPACKING

The products in this kit have been thoroughly tested and have been shipped in perfect operating
condition. Carefully check the shipping carton for damage that may have occurred during shipping.
If the carton appears to be damaged, carefully inspect each unit included for damage and be sure all
accessories necessary to operate the units have arrived intact. In the event damage has been found
or parts are missing, please contact our customer support team for further instructions. Please do not

return this kit to your dealer without rst contacting customer support at the number listed below. Please

do not discard the shipping carton in the trash. Please recycle whenever possible.

WARRANTY RETURNS

All returned service items whether under warranty or not, must be freight pre-paid and accompany a
return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return
package. A brief description of the problem as well as the R.A. number must also be written down on
a piece of paper and included in the shipping container. If the unit is under warranty, you must provide
a copy of your proof of purchase invoice. Items returned without a R.A. number clearly marked on the

outside of the package will be refused and returned at customer’s expense. You may obtain a R.A.

number by contacting customer support.

4

LIMITED WARRANTY (USA ONLY)

A. Eliminator Lighting, an ADJ Products, LLC brand, hereby warrants, to the original purchaser,

ADJ Products, LLC products to be free of manufacturing defects in material and workmanship

for a prescribed period from the date of purchase (see specic warranty period on reverse). This

warranty shall be valid only if the product is purchased within the United States of America, including

possessions and territories. It is the owner’s responsibility to establish the date and place of purchase

by acceptable evidence, at the time service is sought.

B. For warranty service, you must obtain a Return Authorization number (RA#) before sending back the

product-please contact ADJ Products, LLC Service Department at 800-322-6337. Send the product

only to the ADJ Products, LLC factory. All shipping charges must be pre-paid. If the requested

repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products,
LLC will pay return shipping charges only to a designated point within the United States. If the entire
instrument is sent, it must be shipped in its original package. No accessories should be shipped
with the product. If any accessories are shipped with the product, ADJ Products, LLC shall have no
liability whatsoever for loss of or damage to any such accessories, or for the safe return thereof.

C. This warranty is void of the serial number has been altered or removed; if the product is modied

in any manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the
product, if the product has been repaired or service by anyone other than ADJ Products, LLC factory
unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is
damaged because not properly maintained as set forth in the instruction manual.

D. This is not a service contact, and this warranty does not include maintenance, cleaning or periodic

check up. During the period specied above, ADJ Products, LLC will replace defective parts at its

expense with new or refurbished parts, and will absorb all expenses for warrant service and repair
labor by reason of defects in material or workmanship. The sole responsibility of ADJ Products, LLC
under this warranty shall be limited to the repair of the product, or replacement thereof, including
parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were
manufactured after August 15, 2012, and bear identifying marks to that effect.

E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its

products without any obligation to include these changes in any products theretofore manufactured.

F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied

with products described above. Except to the extent prohibited by applicable law, all implied warranties
made by ADJ Products, LLC in connection with this product, including warranties of merchantability

or tness, are limited in duration to the warranty period set forth above. And no warranties, whether
expressed or implied, including warranties of merchantability or tness, shall apply to this product
after said period has expired. The consumer’s and/or Dealer’s sole remedy shall be such repair or

replacement as is expressly provided above; and under no circumstances shall ADJ Products, LLC

be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use,

this product.

G. This warranty is the only written warranty applicable to ADJ Products, LLC Products and supersedes

all prior warranties and written descriptions of warranty terms and conditions heretofore published.

LIMITED WARRANTY PERIODS

• All Eliminator Lighting products (except laser diodes) = 1-year (365 days) Limited Warranty

(Such as: Special Effect Lighting, Intelligent Lighting, UV lighting, Strobes, Fog Machines, Bubble
Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands etc. excluding LED and lamps)

• Laser Products = 1 Year (365 Days) Limited Warranty (excludes laser diodes which have 6

month limited warranty)

• Batteries = 180 Day Limited Warranty (excluding batteries which have a 180 day limited warranty)

5

SAFETY GUIDELINES

To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual.

ADJ Products, LLC is not responsible for injury and/or damages resulting from the misuse of this xture
due to the disregard of the information printed in this manual. Only qualied and/or certied personnel
should perform installation of this xture and only the original rigging parts included with this xture
should be used for installation. Any modications to the xture and/or the included mounting hardware

will void the original manufactures warranty and increase the risk of damage and/or personal injury.

PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED

THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT
ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR MANUFACTURES
WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE
AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS
MANUAL VOID THE MANUFACTURES WARRANTY AND ARE NOT SUBJECT TO ANY
WARRANTY CLAIMS AND/OR REPAIRS.

DO NOT PLUG FIXTURE INTO A DIMMER PACK!
NEVER OPEN THIS FIXTURE WHILE IN USE!
UNPLUG POWER BEFORE SERVICING FIXTURE!
NEVER TOUCH FIXTURE DURING OPERATION AS IT MAY BE HOT!
KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!

INDOOR / DRY LOCATIONS USE ONLY!
DO NOT EXPOSE DEVICES TO RAIN AND/OR MOISTURE!

NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE! RETINA INJURY RISK - MAY
INDUCE BLINDNESS! SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!

6

SAFETY GUIDELINES

This unit may “pop” the fuse if the maximum allotted load of 3 amps is reached.

• To reduce the risk of electrical shock or re, do not expose this unit rain or moisture.

• Do not spill water or other liquids into or on to your unit.

• Do not attempt to remove or break off the ground prong from the electrical cord. This prong

is used to reduce the risk of electrical shock and re in case of an internal short.

• Do not attempt to operate this unit if the power cord has been frayed or broken.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user serviceable parts inside.

• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”
(15cm) between this device and a wall.

• Do not attempt to operate this unit if it has been damaged in any way.

• This unit is intended for indoor use only. Use of this product outdoors voids all warranties.

• During long periods of non-use, disconnect the unit’s main power.

• Always mount this unit in safe and stable matter.

• Power cords should be routed so they are not likely to be walked on, pinched by items
placed upon or against them.

• Cleaning - The xture should be cleaned only as recommended by the manufacturer. See the
Maintenance Guidelines section of this manual for cleaning details.

• Heat - The appliance should be situated away from heat sources such as radiators, heat

registers, stoves, or other appliances (including ampliers) that produce heat.

• The xture should be serviced by qualied service personnel when:

A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into, the unit.
C. The unit has been exposed to rain or water.
D. The unit does not appear to operate normally or exhibits a marked change in performance.

7

LASER WARNING

After completing setup, and before public use, test the laser to ensure proper function. Do not
use if any defects are detected. Do not use if the laser emits only a few laser beams rather than
dozens/hundreds, as this could indicate damage to the diffraction grating optic, and could allow
emission of laser intensity levels that exceed Class 3R.

• Do not point lasers at people or animals. Never look into the laser aperture or directly at laser
beams.

• Do not point lasers into areas which could create instances of unintentional or harmful
exposure, such as uncontrolled balconies, etc.

• Do not point lasers at highly reective surfaces, such as windows, mirrors, and shiny metal.

Even laser reections can be hazardous.

• Never point a laser at aircraft. This is a federal offense.

• Never point un-terminated laser beams into the sky.

• Do not expose the output optic (aperture) to cleaning chemicals.

• Do not use laser if the laser appears to be emitting only a few beams.

• Do not use the laser if the housing is damaged, the housing is open, or if the optics appear
dam-aged in any way.

• Never open the laser housing. The high laser power levels inside of the protective housing

can start res, burn skin, and will cause instantaneous eye injury.

• Never leave this device running unattended.

• The operation of a class 3R laser show is only allowed if the show is controlled by a skilled
and well-trained operator who is familiar with the information enclosed in this manual.

• The legal requirements for using laser entertainment products vary from country to country.
The user is responsible for determining the legal requirements at the location/country of use.

• Always use proper lighting safety cables when hanging lights and effects overhead.

8

LASER WARNING

9

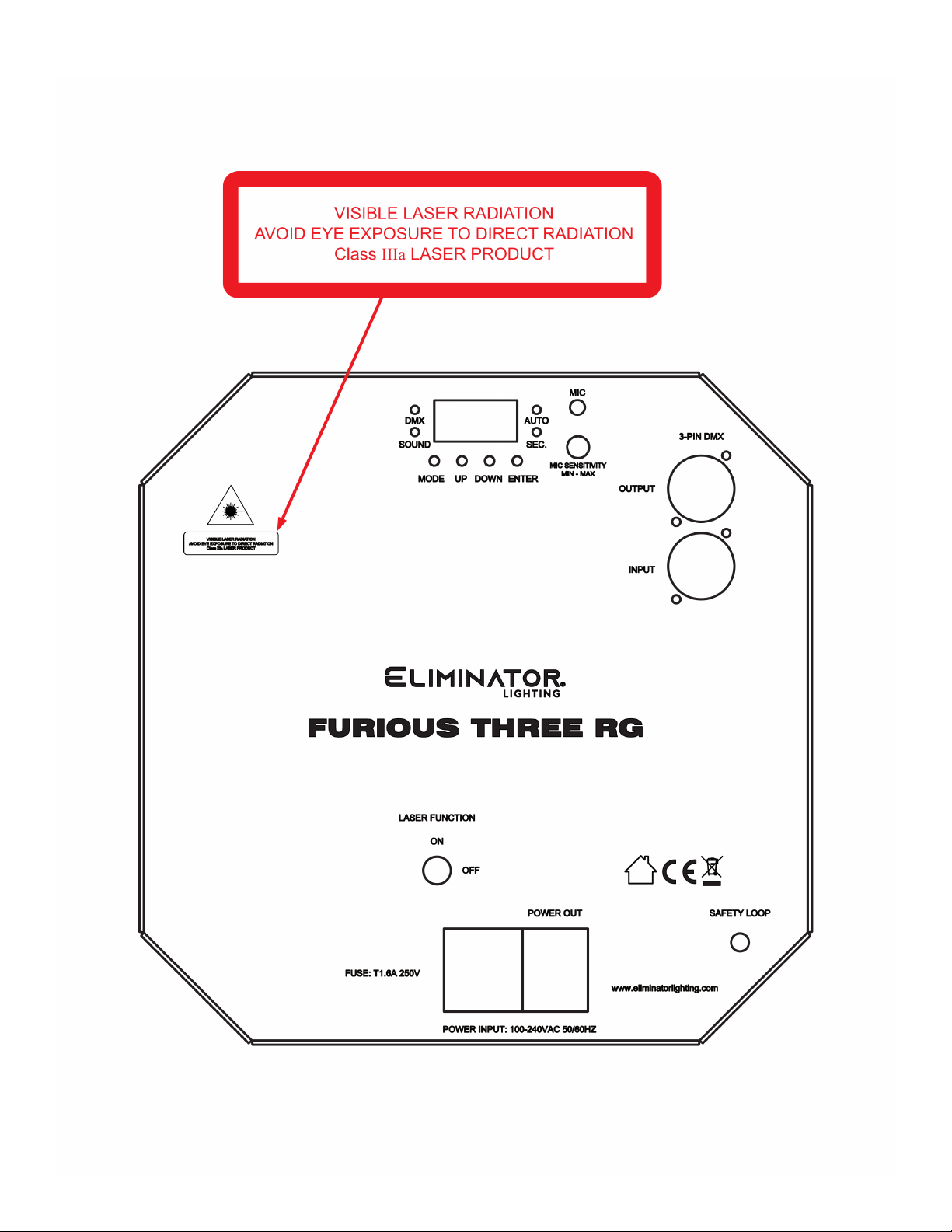

OVERVIEW

10

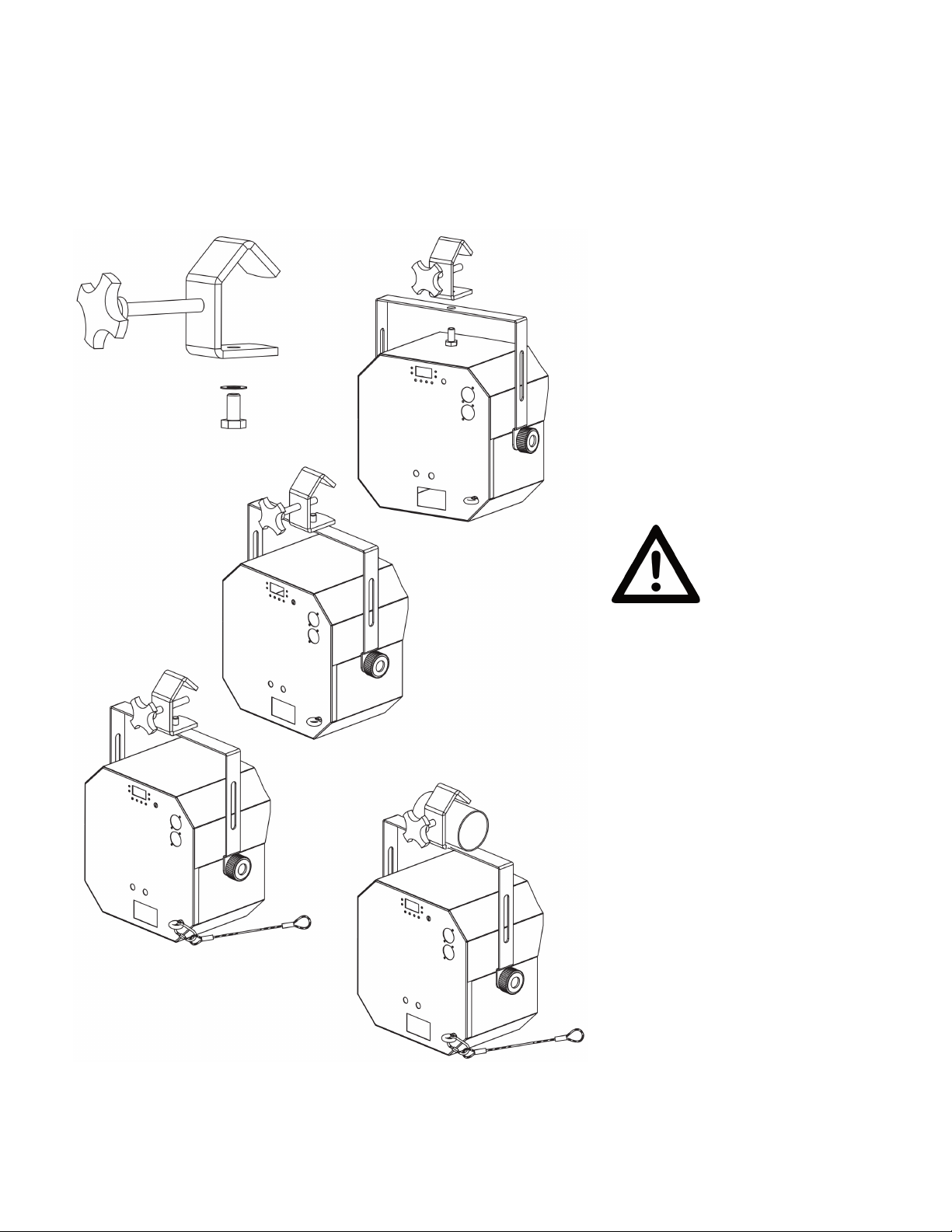

INSTALLATION

FLAMMABLE MATERIAL WARNING

Keep xture at least 7.9in. (0.2m) away from any ammable materials, decorations,

pyrotechnics, etc.

ELECTRICAL CONNECTIONS

A qualied electrician should be used for all electrical connections and/or

installations.

MINIMUM DISTANCE TO OBJECTS/SURFACES MUST BE 40 FEET (12 METERS)

MAXIMUM TEMPERATURE OF EXTERNAL SURFACE 167°F (75°C)

DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!

Fixture MUST be installed following all local, national, and country commercial electrical and construction

codes and regulations. Before rigging/mounting the xture to any metal truss/structure or placing the
xture on any surface, a professional equipment installer MUST be consulted to determine if the metal
truss/structure or surface is properly certied to safely hold the combined weight of the xture, clamps,

cables, and accessories.

Overhead xture installation must always be secured with a secondary safety attachment, such as an

appropriately rated safety cable that meets all local, national, and country codes and regulations.

Fixture ambient operating temperature range is -4°F to 104°F. (-20°C to 40°C) Do not use this xture
outside this temperature range.

Fixture should be installed in areas outside walking paths, seating areas, or away from areas were

unauthorized personnel might reach the xture by hand.

NEVER stand directly below the xture when rigging, removing, or servicing.

Allow approximately 15-minutes for the xture to cool down before servicing.

11

INSTALLATION

CLAMP INSTALLATION

This xture features a mounting clamp attachment point, which is located on the mounting yoke, as well

as a safety cable rigging point, located on the rear face of the unit near the power connection (see the
illustration below). When mounting the xture to a truss or any other suspended or overhead installa­tion, be sure to secure an appropriately rated clamp (not included) to the clamp attachment point and

attach a separate SAFETY CABLE of the appropriate safety rating to the safety cable rigging point.

*SAFETY CABLE

ALWAYS ATTACH A SAFETY CABLE WHENEVER
INSTALLING THIS FIXTURE IN A SUSPENDED
ENVIRONMENT TO ENSURE THE FIXTURE WILL
NOT DROP IF THE CLAMP FAILS.

RIGGING

Overhead rigging requires extensive experience, including but not limited to: calculating working load

limits, understanding the installation material being used, and periodic safety inspection of all installation

material and the xture itself. If you lack these qualications, do not attempt to perform the installation

yourself. Improper installation can result in bodily injury.

12

DMX SETUP

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communication

between intelligent xtures and controllers. A DMX controller sends DMX data instructions from the
controller to the xture. DMX data is sent as serial data that travels from xture to xture via the DATA
“IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only have a DATA

“OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of dierent manufacturers to be
linked together and operate from a single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using several DMX xtures try to use
the shortest cable path possible. The order in which xtures are connected in a DMX line does not
inuence the DMX addressing. For example, a xture assigned a DMX address of 1 may be placed
anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a xture is

assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX Operation): This device can be controlled via
DMX-512 protocol. The DMX address is set using the
display screen on the back of the device. Your unit
and your DMX controller require a standard 3-pin XLR
connector for data input and data output (Figure 1).
We recommend Accu-Cable DMX cables. If you are
making your own cables, be sure to use standard 110­120 Ohm shielded cable (This cable may be purchased
at almost all pro lighting stores). Your cables should
be made with a male XLR connector on one end and
a female XLR connector on the other. Also remember
that DMX cable must be daisy chained and cannot be
split.

Notice: Be sure to follow gures two and three when making your own cables. Do not use the ground
lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the
shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a

short circuit and erratic behavior.

13

DMX SETUP

Special Note: Line Termination. When longer runs of cable are used, you may need to use a terminator
on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is
connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted
in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable
terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.

5-Pin XLR DMX Connectors: Some manufactures use 5-pin DMX- 512 data cables for DATA

transmission in place of 3-pin. 5-pin DMX xtures may be integrated into a 3-pin DMX line with a

5-pin to 3-pin adapter cable. Although these adapters are available at most electric stores, one can be

assembled using the conversion chart.

14

DMX ADDRESSING

All fixtures should be given a DMX starting address when operating with a DMX controller, in order to
ensure that the correct fixture responds to the correct control signal. This digital starting address is
the channel number from which the fixture starts to “listen” to the digital control signal sent out from
the DMX controller. This starting DMX address is assigned by setting the correct DMX address on
the digital control display on the fixture.

You can set the same starting address for all fixtures or a group of fixtures, or set different addresses
for each individual fixture. Setting all fixtures to the same DMX address will cause all fixtures to react
in the same way. In this case, please note that changing the settings of one channel will affect all the
fixtures simultaneously.

If you set each fixture to a different DMX address, each unit will start to “listen” to the channel
numBer you have set, based on the quantity of DMX channels of each fixture. That means changing
the settings of one channel will only affect the selected fixture.

As an example, since this device has 9 DMX channels, you should set the starting DMX address of
the first unit to 1, the second unit to 10 (1 + 9), the third unit to 19 (1+ 9 + 9), and so on.

Channel Mode Unit 1 Address Unit 2 Address Unit 3 Address Unit 4 Address

9 Channels 1 10 19 28

15

SYSTEM MENU

CONTROL PANEL

The device includes an easy to navigate system menu that can be accessed via a set of control
buttons located on the back face of the device below the digital display.

FUNC: Press to cycle through main menu options (Auto, Sound, Secd, DMX).

ENTER: Press to conrm selection and open up the option sub-menu, if applicable.

UP/DOWN: Press to scroll through menu or sub-menu options.

Menu Submenu Description

Aut0: Laser + RGBWY + 8x1WLED
Aut1: Laser + RGBWY

ENTER to conrm, then UP/DOWN to select

display speed.

S0 (fastest) to S100 (slowest).

ENTER to conrm, then adjust sensitivity with
Sound Sensitivity Adjustment knob.

NOTE: A ashing display screen indicates a

poor connection to the primary unit. Please
check the cable connections.

NOTE: A ashing display screen indicates a

poor DMX connection. Please check the cable
connections.

Auto

Sound

Secd

DMX

Aut2: Laser + 8x1WLED
Aut3: RGBWY + 8x1WLED
Aut4: RGBWY
Aut5: Laser
Aut6: 8x1WLED
Sou0: Laser + RGBWY + 8x1WLED
Sou1: Laser + RGBWY
Sou2: Laser + 8x1WLED
Sou3: RGBWY + 8x1WLED
Sou4: RGBWY
Sou5: Laser
Sou6: 8x1WLED

When selected, the unit will follow the
movements of a designated primary unit.

D001 - D506

16

DMX TRAITS: CHANNEL FUNCTIONS & VALUES (9 DMX Channels)

9CH Values Functions

Mode

0 - 9 No Function
10 - 24 Aut0
25 - 39 Aut1
40 - 54 Aut2
55 - 69 Aut3
70 - 84 Aut4
85 - 99 Aut5

1

2

100 - 114 Aut6
115 - 129 Sou0
130 - 144 Sou1
145 - 159 Sou2
160 - 174 Sou3
175 - 189 Sou4
190 - 204 Sou5
205 - 220 Sou6
221 - 255 DMX Mode

LED Operation

0 - 9 No Function
10 - 14 Red
15 - 19 Green
20 - 24 Blue
25 - 29 Yellow
30 - 34 White
35 - 39 Red + White
40 - 44 Red + Green
45 - 49 Green + Blue
50 - 54 Blue + Yellow
55 - 59 Yellow + White
60 - 64 Green + White
65 - 69 Green + Yellow
70 - 74 Red + Yellow
75 - 79 Red + Blue
80 - 84 Blue + White
85 - 89 Red + Green + Blue
90 - 94 Red + Green + Yellow
95 - 99 Red + Green + White

100 - 104 Red + Blue + Yellow
105 - 109 Red + Blue + White
110 - 114 Red + Yellow + White
115 - 119 Green + Blue + Yellow
120 - 124 Green + Blue + White
125 - 129 Green + Yellow + White
130 - 134 Blue + Yellow + White
135 - 139 Red + Green + Blue + Yellow
140 - 144 Red + Green + Blue + White
145 - 149 Green + Blue + White + Yellow
150 - 154 Red + Green + White + Yellow
155 - 159 Red + Blue + White + Yellow
160 - 164 Red + Green + Blue + Yellow + White
165 - 209 Automatic (single colors only)
210 - 255 Automatic (two colors at a time)

17

DMX TRAITS: CHANNEL FUNCTIONS & VALUES (9 DMX Channels)

9CH Values Functions

3

4

0 - 255

0 - 4 No Function

5 - 254 Strobe Speed, slow to fast

255 Sound-Activated Strobe Mode

0 - 9 No Function
10 - 19 Picture 1, slow to fast
20 - 29 Picture 2, slow to fast
30 - 39 Picture 3, slow to fast
40 - 49 Picture 4, slow to fast

5

50 - 59 Picture 5, slow to fast
60 - 69 Picture 6, slow to fast
70 - 79 Picture 7, slow to fast
80 - 89 Picture 8, slow to fast
90 - 99 Picture 9, slow to fast

100 - 109 Picture 10, slow to fast
110 - 255 On

0 - 9 No Function
10 - 49 Red On
50 - 89 Green On

6

90 - 129

130 - 169 Red On, Green Strobe (CH7 must be set to appropriate value)
170 - 209 Green On, Red Strobe (CH7 must be set to appropriate value)
210 - 255 Red and Green Strobe (CH7 must be set to appropriate value)

7

0 - 4 No Function
5 - 254 Strobe, fast to slow

255 Sound-Activated Strobe Mode

0 - 4 Stop

8

5 - 127 Clockwise, slow to fast

128 - 133 Stop
134 - 255 Counter-clockwise, slow to fast

0 - 4 Stop

9

5 - 127 Rotate Clockwise, slow to fast

128 - 133 Stop
134 - 255 Rotate Counter-Clockwise, slow to fast

Automatic Speed, slow to fast (when CH2 is set to a DMX value
between 165 - 209)

LED Strobe

8-piece LED Control

Laser

Red and Green Alternating Strobe (CH7 must be set to appropriate
value)

Laser Strobe

LED Rotate

Laser Rotate

18

DIMMER MODE CHART

Dimming Speed

DMX Value Delay and Menu Display Time

121 0.1Sec.
122 0.2Sec.
123 0.3Sec.
124 0.4Sec.
125 0.5Sec.
126 0.6Sec.
127 0.7Sec.
128 0.8Sec.
129 0.9Sec.
130 1.0Sec.
131 1.5Sec.
132 2.0Sec.
133 3.0Sec.
134 4.0Sec.
135 5.0Sec.
136 6.0Sec.
137 7.0Sec.
138 8.0Sec.
139 9.0Sec.
140 10Sec.

19

CLEANING AND MAINTENANCE

DISCONNECT POWER BEFORE PERFORMING ANY CLEANING OR
MAINTENANCE!

CLEANING

Frequent cleaning is recommended to ensure proper function, optimized light output, and an extended
life. The frequency of cleaning depends on the environment in which the device operates: damp,

smoky, or particularly dirty environments can cause greater accumulation of dirt on the xture housing
and/or light xture optics. Clean the external surface and the front lens of the device periodically with
a soft cloth to avoid dirt/debris accumulation

NEVER use alcohol, solvents, or ammonia-based cleaners.

MAINTENANCE

Regular inspections are recommended to ensure proper function and extended life. There are no user
serviceable parts inside these devices; please refer all other service issues to Eliminator Lighting.
Should you need any spare parts, please order genuine parts from Eliminator Lighting.

Please refer to the following points during routine inspections:

• A detailed review should be performed by an approved electrical engineer every three months, to
make sure the circuit contacts are in good condition in order to prevent overheating.

• Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall out
during normal operation, resulting in damage or injury as larger parts could fall.

• Check for any deformations on the unit. Deformations could allow for dust to enter into the device,
or cause the device to fall and seriously injure a person(s).

• Electric power supply cables must not show any damage, material fatigue, or sediments.

FUSE REPLACEMENT

This device features a replaceable fuse located alongside the Power Input on the back side of the

device. To access the fuse, use a at head screwdriver to catch the groove in the wall of the Power

Input. BE CAREFUL NOT TO DAMAGE THE FUSE CLIP, THE POWER INPUT, OR THE PRONGS.
When replacing the fuse, be sure to replace the correct one, as the fuse clip contains both an operational
fuse and a spare fuse. Replace the fuse only with an identical F2A 250V fuse.

20

SPECIFICATIONS

• 3-FX-IN-1 dance party lighting eect: LED Moonower, Wash and laser eects

• Dozens of razor-sharp beams ll a dance oor, ceiling or wall

• Moonower: 5 x 3W (RGBWY) 5-in-1 LEDs

• Wash: 6 x 3W (RGBY) Quad LEDs

• Laser: Red & Green laser diodes

• 4 control mode: DMX, Sound Active, Auto, Primary/Secondary

• 4-button LED display menu

• 9 DMX channels

• Electronic dimming: 0-100%

• 3-pin DMX In/Out

• IEC AC In/Out connectors to daisy chain power

• Laser On/O with safety key

• Safety eye on rear panel

• Built-in microphone with sensitivity potentiometer

• With wired digital communication network

• Power Draw: 40W max

• Dimensions: 11.8” x 12.25”x 8.9” / 300x312x226mm

• Weight: 8 lbs. / 3.7 kg.

• Laser accession number: 2110902-000

21

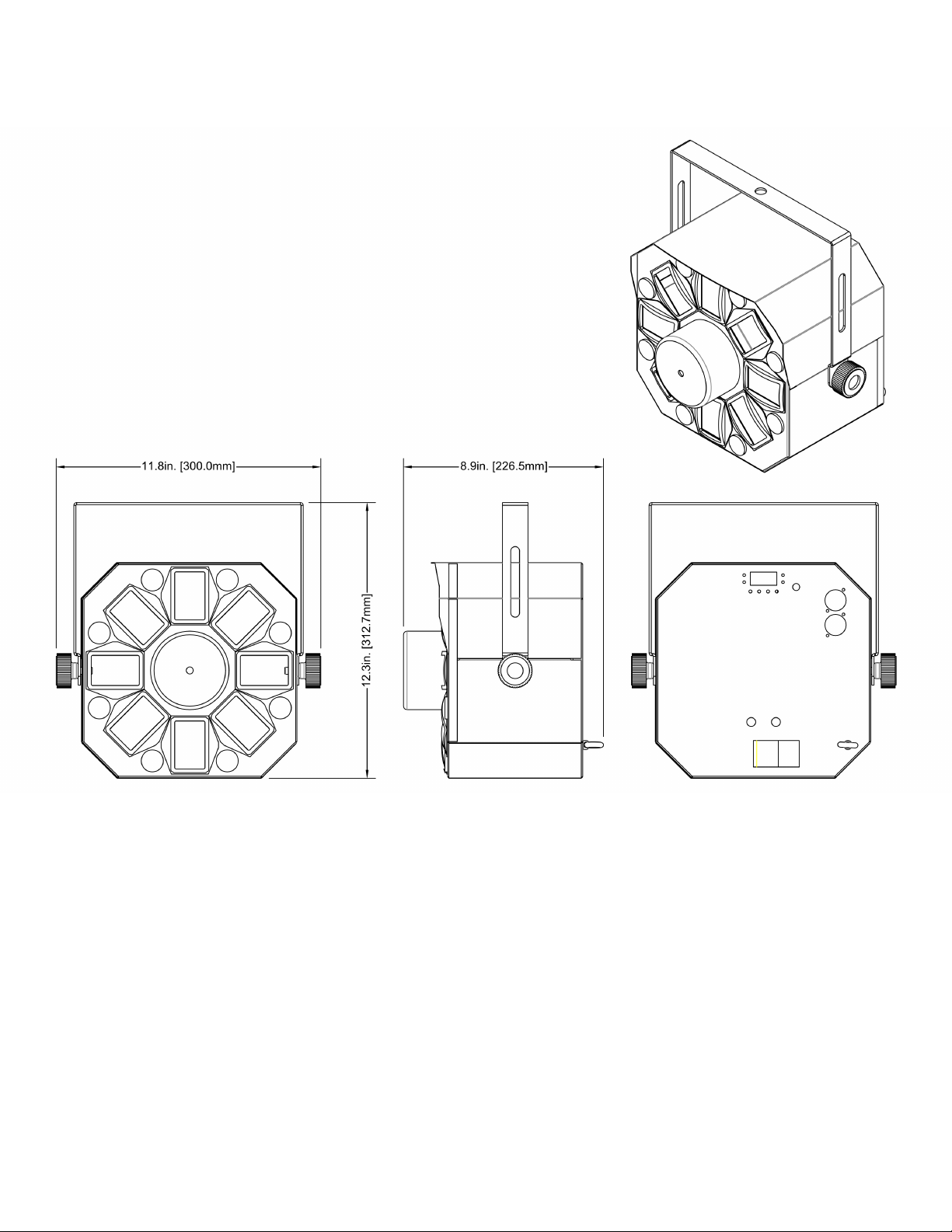

DIMENSIONS

22
