Page 1
SKU#: Furious Five RG
UPC#: 818651028096
ITF-14#: 10818651028093
Furious Five RG
User Manual
Page 2
©2022 Eliminator Lighting all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. Eliminator logo and identifying product
names and numbers herein are trademarks of Eliminator Lighting. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or
judicial law or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. All non-Eliminator
brands and product names are trademarks or registered trademarks of their respective companies.
Eliminator Lighting and all aliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/
or as a result of the improper, unsafe, insucient and negligent assembly, installation, rigging, and
operation of this product.
Eliminator Lighting USA
6122 S. Eastern Ave. | Los Angeles, CA 90040 USA
Tel: (323) 948-0480 | Fax: 888-287-5224 | www.eliminatorlighting.com | [email protected]
DOCUMENT VERSION
An updated version of this document may be available online.
Please check www.eliminatorlighting.com for the latest revision/update of this
document before beginning installation and use.
Date
09/01/2020 1.0 2.0 11 / 24 Channels Initial Release
03/29/2022 1.1 N/C No change Added laser accession number
Document
Version
Software
Version
DMX Channels Notes
2
Page 3
CONTENTS
General Information 4
Limited Warranty (USA Only) 5
Safety Guidelines 6
Maintenance Guidelines 8
Overview 10
Installation Instructions 11
System Menu 13
DMX Traits 15
IR Remote Operation 21
Dimensional Drawings 22
Specications 23
3
Page 4
GENERAL INFORMATION
INTRODUCTION
Please read and understand all instructions in this manual carefully and thoroughly before attempting
to operate this product. These instructions contain important safety and use information.
UNPACKING: This product has been thoroughly tested and has been shipped in perfect condition.
Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your product for damage and be sure all accessories
necessary to assemble the product have arrived intact. In the event that damage has been found
or parts are missing, please contact our customer support team for further instructions. Please do
not return this product to your dealer without rst contacting customer support at the number listed
below. Please do not discard the shipping carton in the trash. Please recycle whenever possible.
CUSTOMER SUPPORT
Tel: (323) 213-4592 | Fax: (323) 582-2941
www.eliminatorlighting.com | [email protected]
WARRANTY RETURNS
All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on the outside
of the return package. A brief description of the problem as well as the R.A. number must also be
written down on a piece of paper and included in the shipping container. If the unit is under warranty,
you must provide a copy of your proof of purchase invoice. Items returned without an R.A. number
clearly marked on the outside of the package will be refused and returned at customer’s expense.
You may obtain an R.A. number by contacting customer support.
4
Page 5
LIMITED WARRANTY (USA ONLY)
A. Eliminator Lighting, an ADJ Products, LLC brand, hereby warrants, to the original purchaser, ADJ Products, LLC
products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of
purchase (see specic warranty period listed below). This warranty shall be valid only if the product is purchased
within the United States of America, including possessions and territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service you must obtain a Return Authorization number (RA#) before sending back the product,
please contact ADJ Products, LLC Service Department at 800-322-6337. Send the product only to the ADJ Products, LLC factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No
accessories should be shipped with the product. If any accessories are shipped with the product, ADJ Products,
LLC shall have no liability whatsoever for loss of or damage to any such accessories, or for the safe return thereof.
C. This warranty is void if the serial number has been altered or removed; if the product is modied in any manner
which ADJ Products, LLC concludes, after inspection, aects the reliability of the product; if the product has been
repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior written authorization was
issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth
in the instruction manual.
D. This is not a service contract, and this warranty does not include maintenance, cleaning or periodic check-up.
During the period specied above, ADJ Products, LLC will replace defective parts at its expense with new or refurbished parts, and will absorb all expenses for warranty service and repair labor by reason of defects in material or
workmanship. The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the
product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered
by this warranty were manufactured after August 15, 2012, and bear identifying marks to that eect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products without any obligation to include these changes in any products theretofore manufactured. No warranty, whether
expressed or implied, is given or made with respect to any accessory supplied with products described above.
Except to the extent prohibited by applicable law, all implied warranties made by ADJ Products, LLC in connection
with this product, including warranties of merchantability or tness, are limited in duration to the warranty period
set forth above. And no warranties, whether expressed or implied, including warranties of merchantability or t-
ness, shall apply to this product after said period has expired. The consumer’s and/or Dealer’s sole remedy shall be
such repair or replacement as is expressly provided above; and under no circumstances shall ADJ Products, LLC
be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.
This warranty is the only written warranty applicable to Eliminator Lighting, an ADJ Products, LLC brand, and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.
MANUFACTURER’S LIMITED WARRANTY PERIODS:
All Eliminator Lighting products (except laser diodes) = 1-year (365 days) Limited Warranty (Such as: Special
Eect Lighting, Intelligent Lighting, UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans,
Trussing, Lighting Stands etc., excluding lamps)
Laser Products = 1 Year (365 Days) Limited Warranty (excluding laser diodes which have a 6 month limited warranty)
Batteries = 180 Day Limited Warranty
To register your Eliminator Lighting product online, please click here to the ADJ Warranty Registration Page:
https://www.adj.com/portal/user/register/
5
Page 6
SAFETY GUIDELINES
To ensure smooth operation, it is important to follow all instructions and guidelines in this manual.
ELIMINATOR LIGHTING is not responsible for injury and/or damages resulting from the misuse of
these devices due to the disregard of the information printed in this manual. Only qualied and/or
certied personnel should perform installation of these devices and only the original rigging parts included with these devices should be used for installation. Any modications to these devices and/or
the included mounting hardware will void the original manufacturer’s warranty and increase the risk
of damage and/or personal injury.
THERE ARE NO USER SERVICEABLE PARTS INSIDE THESE DEVICES. DO NOT
ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR MANUFACTURER’S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THESE
DEVICES AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER’S WARRANTY AND ARE
NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.
NEVER TOUCH LIGHT DURING OPERATION, AS IT MAY BE HOT!
ALWAYS DISCONNECT FROM MAIN POWER BEFORE REPLACING LAMPS!
ALWAYS REPLACE LAMPS AND FUSES WITH REPLACEMENTS OF THE SAME
TYPE!
KEEP FLAMMABLE MATERIALS AWAY FROM THESE DEVICES!
INDOOR / DRY LOCATIONS USE ONLY!
DO NOT EXPOSE DEVICES TO RAIN AND/OR MOISTURE!
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV)
RADIATION!
FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF ULTRAVIOLET
LIGHT AT A WAVELENGTH OF 395NM – 400NM.
WEAR PROPER EYE AND SKIN PROTECTION.
DO NOT OPERATE FIXTURE WITH DAMAGED/MISSING
EXTERNAL COVER PROTECTIVE LENS.
DO NOT LOOK DIRECTLY INTO THE (UV) LIGHT AND/OR VIEW (UV) LIGHT DIRECTLY WITH
OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE LIGHT/RADIATION OUTPUT.
AVOID PROLONGED PERIODS OF EXPOSURE.
AVOID WEARING WHITE COLOR CLOTHING AND/OR USING (UV) PAINTS ON SKIN.
AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES SHORTER THAN 11 feet (3.3m).
INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE
DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY EXPERIENCE
DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE.
6
Page 7
SAFETY GUIDELINES
DO NOT position device close to any FLAMMABLE MATERIALS while operating.
DO NOT attempt installation and/or operation of device without knowledge of how to do so.
DO NOT permit operation by persons who are not qualied to operate these types of devices.
DO NOT shake device, and avoid brute force when installing and/or operating.
DO NOT operate this device if the main power cord has become frayed, crimped and/or damaged.
Replace any damaged power cords with cords of a similar power rating.
DO NOT remove or break o the ground plug from the device power cords.
DO NOT remove or disassemble devices, there are NO user serviceable parts inside.
ALWAYS disconnect device from main power source before performing any cleaning.
ALWAYS disconnect light from main power before replacing lamp.
ALWAYS be sure to install this device in an area that will allow proper ventilation.
NEVER remove the ground prong from the power cable.
Power cords should be safely routed and secured so they are not likely to get pinched.
Disconnect power cords during long periods of non-use.
Only use recommended rigging hardware as described in this guide.
Use the original packaging and materials to transport this device for service.
This device should be serviced by qualied service personnel when:
• The power cords or plugs have become damaged.
• Objects have fallen on and/or liquid has spilled into the device.
• The device has been exposed to rain and/or moisture.
• The device does not operate normally or exhibits a marked change in performance.
7
Page 8
MAINTENANCE GUIDELINES
DISCONNECT POWER BEFORE PERFORMING ANY CLEANING OR
MAINTENANCE!
CLEANING
Frequent cleaning is recommended to ensure proper function, optimized light output, and an extended life. The frequency of cleaning depends on the environment in which the device operates: damp,
smoky, or particularly dirty environments can cause greater accumulation of dirt on the xture housing and/or light xture optics. Clean the external surface and the front lens of the device periodically
with a soft cloth to avoid dirt/debris accumulation
NEVER use alcohol, solvents, or ammonia-based cleaners.
MAINTENANCE
Regular inspections are recommended to ensure proper function and extended life. There are no
user serviceable parts inside these devices, please refer all other service issues to Eliminator Lighting. Should you need any spare parts, please order genuine parts from Eliminator Lighting.
Please refer to the following points during routine inspections:
• A detailed review should be performed by an approved electrical engineer every three months, to
make sure the circuit contacts are in good condition and prevent overheating.
• Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall out
during normal operation, resulting in damage or injury as larger parts could fall.
• Check for any deformations on the unit. Deformations could allow for dust to enter into the
device, or cause the device to fall and seriously injure a person(s).
• Electric power supply cables must not show any damage, material fatigue, or sediments.
8
Page 9
MAINTENANCE GUIDELINES
FUSE REPLACEMENT

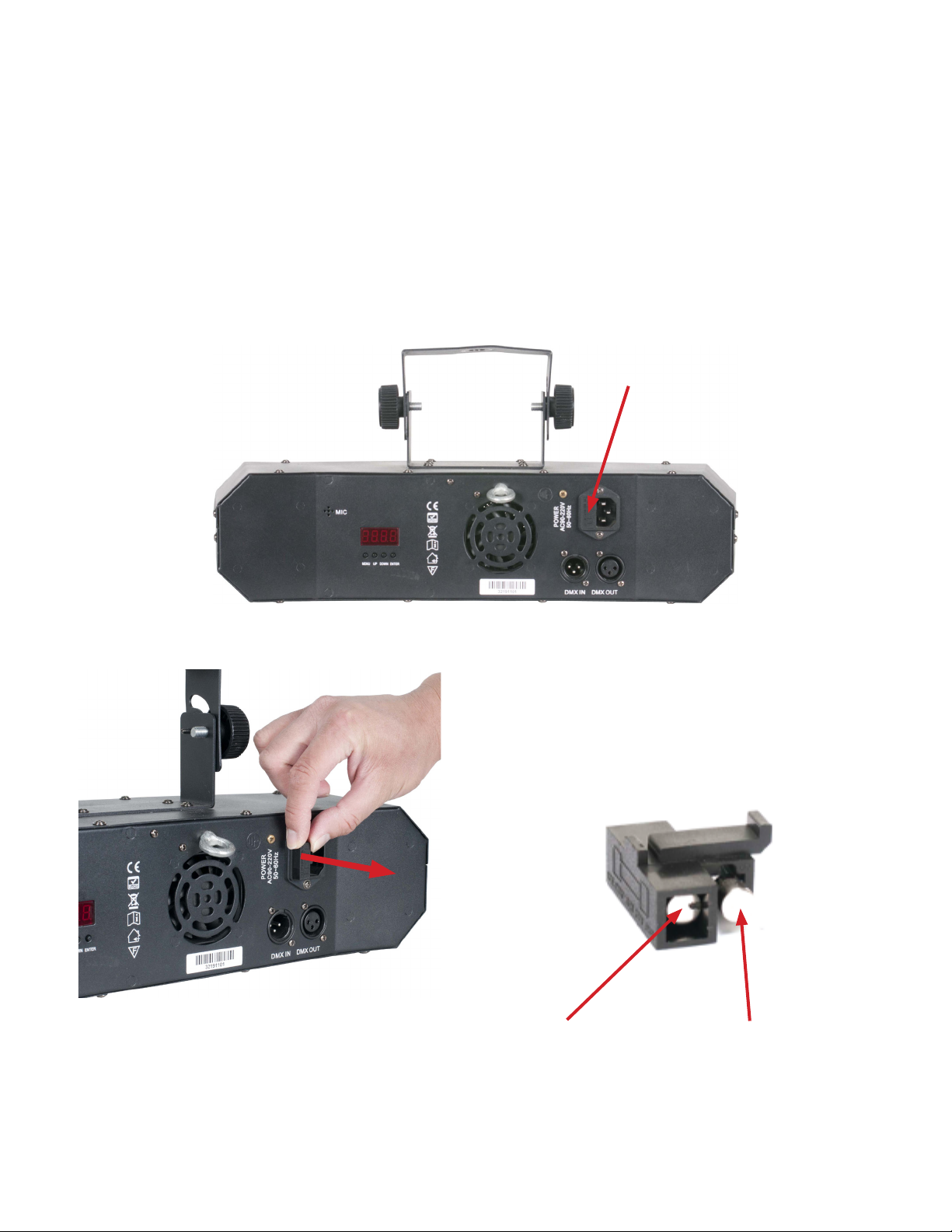

This device features a replaceable fuse located alongside the Power Input on the back side of the
device. To access the fuse, use a at head screwdriver to catch the groove in the wall of the Power
Input. BE CAREFUL NOT TO DAMAGE THE FUSE CLIP, THE POWER INPUT, OR THE PRONGS.
The clip contains one operational fuse and one spare. The operational fuse is the exposed fuse
which sits further back in the fuse socket, while the spare fuse is enclosed within the square section
clip housing. Please refer to the images below.
REPLACE FUSE ONLY WITH AN IDENTICAL F5A 250V FUSE.
Fuse Location
Spare Fuse Operational Fuse
9
Page 10

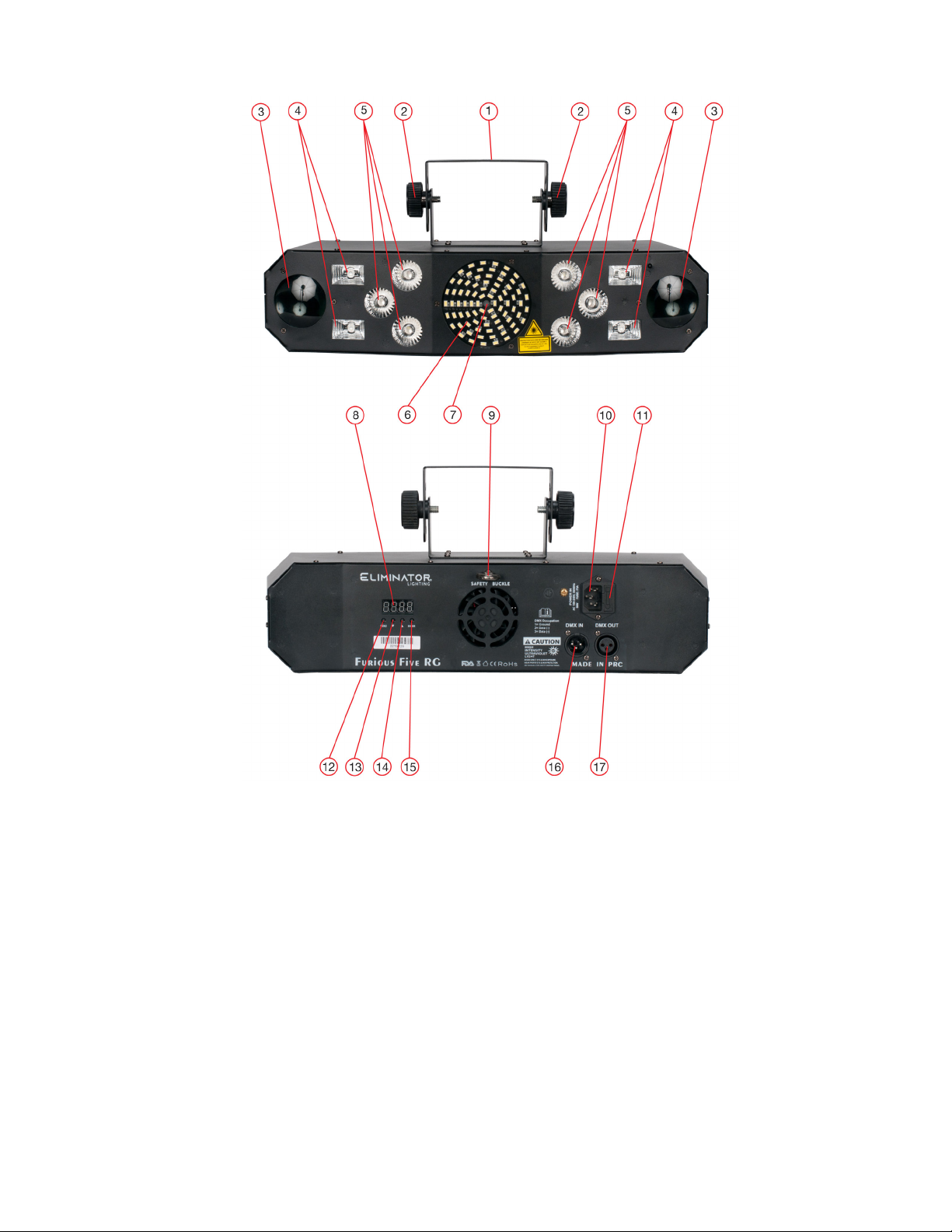

OVERVIEW
1. Adjustable Mounting Bracket
2. Bracket Adjustment Knobs (x2)
3. 4-color LED Spotlights (x2)
4. UV Lights (x4)
5. 4-in-1 LEDs (x6)
6. 5730 White LED
7. Red/Green Laser
8. Display Screen
9. Safety Cable Attachment Point
INCLUDED ITEMS:
• Power Cable (x1)
• Wireless IR Remote (x1)
10. Power In
11. Fuse
12. Menu Button

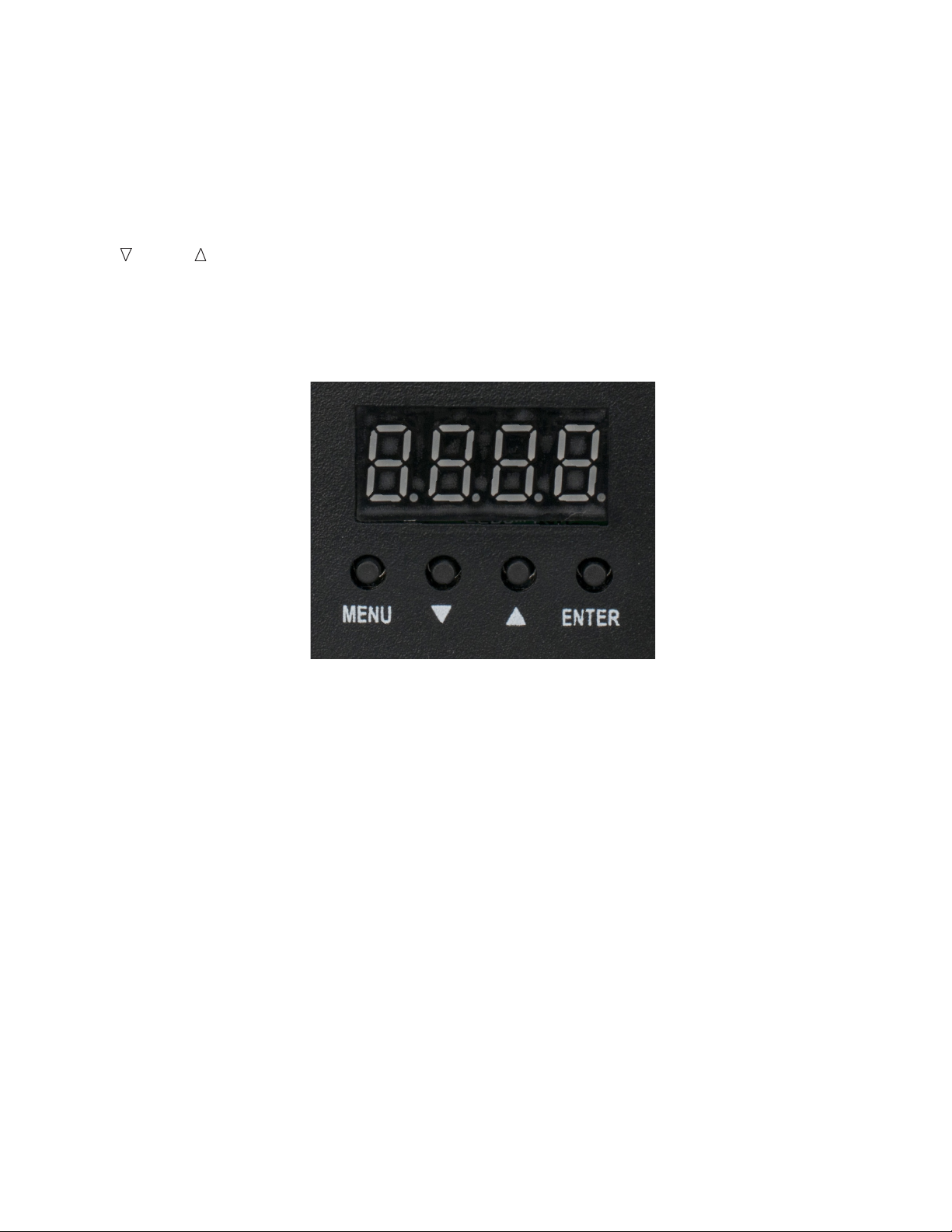

13. Down Button
14. Up Button
15. Enter Button
16. DMX In
17. DMX Out
10
Page 11
INSTALLATION INSTRUCTIONS
FLAMMABLE MATERIAL WARNING
Keep devices at least 5.0 feet (1.5m) away from ammable materials and/or pyrotechnics.
ELECTRICAL CONNECTIONS
A qualied electrician should be used for all electrical connections and/or installations.
DO NOT INSTALL THE DEVICE IF YOU ARE NOT QUALIFIED TO DO SO!
OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, INCLUDING CALCULATING
WORKING LOAD LIMITS, KNOWLEDGE OF INSTALLATION MATERIAL BEING USED, AND PERIODIC SAFETY INSPECTION OF ALL INSTALLATION MATERIALS.
IF YOU LACK THESE QUALIFICATIONS, DO NOT ATTEMPT THE INSTALLATION YOURSELF.
IMPROPER INSTALLATION CAN RESULT IN BODILY INJURY.
BEFORE RIGGING/MOUNTING DEVICES TO ANY METAL TRUSS/STRUCTURE OR CEILING, A
PROFESSIONAL EQUIPMENT INSTALLER MUST BE CONSULTED TO DETERMINE WHETHER
THE METAL TRUSS/STRUCTURE OR CEILING IS PROPERLY CERTIFIED TO SAFELY HOLD
THE COMBINED WEIGHT OF THE LIGHT FIXTURE, CLAMPS, CABLES, AND ACCESSORIES.
BEFORE MOUNTING DEVICES TO ANY SURFACE OR STRUCTURE, MAKE SURE THE SURFACE OR STRUCTURE CAN HOLD A MINIMUM POINT LOAD OF 10 TIMES THE WEIGHT OF
THE DEVICES.
MAKE SURE SCREWS AND/OR ANCHOR BOLTS (NOT INCLUDED) FIT INTO MOUNTING
HOLES!
FOR ADDED PROTECTION, MOUNT DEVICES OUTSIDE WALKING PATHS, SEATING AREAS,
OR AREAS WHERE UNAUTHORIZED PERSONNEL CAN REACH THE DEVICES.
SECURE FIXTURE WITH A SECONDARY SAFETY ATTACHMENT, SUCH AS AN APPROPRIATE
SAFETY CABLE. (NOT INCLUDED)
NEVER STAND DIRECTLY BELOW THE DEVICES WHEN MOUNTING, REMOVING OR SERVICING.
DEVICES MUST ALL BE INSTALLED FOLLOWING ALL LOCAL, NATIONAL, AND COUNTRY
COMMERICAL ELECTRICAL AND CONSTRUCTION CODES AND REGULATIONS.
11
Page 12
INSTALLATION INSTRUCTIONS
CLAMP INSTALLATION

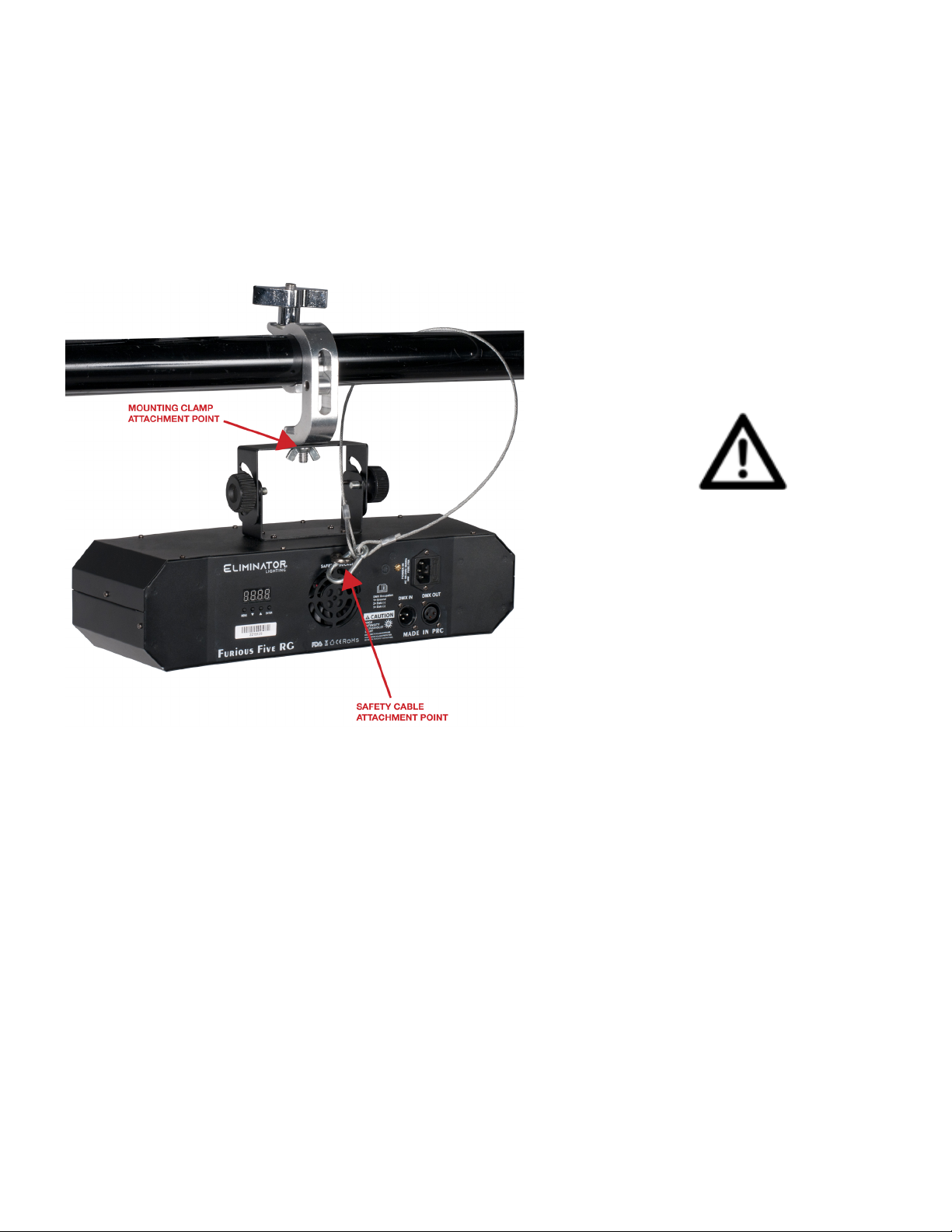

This xture features a mounting clamp attachment point, which is located on the mounting yoke, as
well as a safety cable rigging point, located on the rear face of the unit above the central cooling fan
(see the illustration below). When mounting the xture to a truss or any other suspended or overhead
installation, be sure to secure an appropriately rated clamp (not included) to the clamp attachment
point and attach a separate SAFETY CABLE of the appropriate safety rating to the safety cable rigging point.
SAFETY CABLE
ALWAYS ATTACH A SAFETY
CABLE WHENEVER INSTALLING
THIS FIXTURE IN A SUSPENDED
ENVIRONMENT TO ENSURE
THAT THE FIXTURE WILL NOT
FALL IF THE CLAMP FAILS.
RIGGING
Overhead rigging requires extensive experience, including but not limited to: calculating working
load limits, understanding the installation material being used, and periodic safety inspection of all
installation material and the xture itself. If you lack these qualications, do not attempt to perform
the installation yourself. Improper installation can result in bodily injury.
12
Page 13
SYSTEM MENU
CONTROL PANEL
The device includes an easy to navigate system menu that can be accessed via a set of control buttons located on the back face of the device below the digital display.
Menu: Cycles through main menu options.
Down ( ) / Up ( ): Scrolls through options in the current menu.
Enter: Selects the option currently shown on the digital display.
13
Page 14
SYSTEM MENU
A _ _ _
CHND
FAIL
AUT _
SOU _
A000 - A512 DMX address
CH11 11-channel DMX mode
CH24 24-channel DMX mode
OFF Fixture turns o when DMX signal is lost
NAST/SLAV Allows xture to be set to Master or Slave mode
HOLD
AUT0
AUT1 Red/green laser auto show
AUT2 5730 white LED auto show
AUT3 4-in-1 LED + UV auto show
AUT4 4-color LED spot auto show
SOU0
SOU1 Red/green laser sound show
SOU2 5730 white LED sound show
SOU3 4-in-1 LED + UV sound show
Fixture continues to operate according to settings in use prior to
loss of DMX signal
Full system auto show
Show speed, slow to fast:
(SP01 - SP16)
Full system sound show
Sound sensitivity, low to high:
(SE00 - SE99)
IRCL
LED
VER
SOU4 4-color LED spot sound show
ON / OFF Remote control capability
ON / OFF
2.0 Software version
Display screen always-on mode. Selecting OFF turns the display
screen o after 60 seconds of inactivity.
14
Page 15
DMX TRAITS
Eliminator Furious Five RG - DMX Traits
Software Version 2.0
CHANNEL
11-CH MODE 24-CH MODE
1 000 - 255
2
3
DMX VALUE DESCRIPTION
Master Dimmer, 0 to 100%
UV Strobe
000 - 007 No strobe
008 - 255 Strobe, slow to fast
UV Dimmer
000 - 007 O
008 - 255 Dimmer, 0% to 100%
Left-side 4-in-1 LED Color
000 - 007 O
008 - 024 Red
025 - 041 Green
042 - 058 Blue
059 - 075 White
076 - 092 Yellow
093 - 109 Magenta
4
5
110 - 126 Pink
127 - 143 Cyan
144 - 160 Light Green
161 - 177 Lavender
178 - 194 Mauve
195 - 211 Peach
212 - 228 Light Magenta
229 - 245 Ice Blue
246 - 255 Light Pink
Right-side 4-in-1 LED Color
000 - 007 O
008 - 024 Red
025 - 041 Green
042 - 058 Blue
059 - 075 White
CONTINUED ON NEXT PAGE
15
Page 16
DMX TRAITS
Eliminator Furious Five RG - DMX Traits
Software Version 2.0
CHANNEL
11-CH MODE 24-CH MODE
5 (cont’d from
prev page)
DMX VALUE DESCRIPTION
Right-side 4-in-1 LED Color (cont’d from prev
page)
076 - 092 Yellow
093 - 109 Magenta
110 - 126 Pink
127 - 143 Cyan
144 - 160 Light Green
161 - 177 Lavender
178 - 194 Mauve
195 - 211 Peach
212 - 228 Light Magenta
229 - 245 Ice Blue
246 - 255 Light Pink
4-in-1 LED + UV Show Mode
000 - 007 O
008 - 045 Jump
046 - 064 Smooth Fade
065 - 083 Fast Pulse
1 6
2 7 000 - 255
3
8 000 - 255
084 - 102 Slow Pulse
103 - 121 Left/Right Jump
122 - 140 Flash
141 - 159 Left/Right Flash
160 - 200 Left/Right Fade
201 - 255 Sound Show
000 - 007 O
008 - 255 Strobe, Slow to Fast
4-in-1 LED + UV Show Speed, Slow to Fast
4-in-1 LED + UV Strobe
White LED Dimmer, 0% to 100%
CONTINUED ON NEXT PAGE
16
Page 17
DMX TRAITS
Eliminator Furious Five RG - DMX Traits
Software Version 2.0
CHANNEL
11-CH MODE 24-CH MODE
6 9
4 10
5 11 000 - 255
12 000 - 255
9 13
DMX VALUE DESCRIPTION
White LED Strobe
000 - 007 O
008 - 255 Strobe, Slow to Fast
White LED Show Mode
000 - 007 O
008 - 200 Auto Show
201 - 255 Sound Show
White LED Auto Show Speed, Slow to Fast
LED Spot Dimmer, 0% to 100%
LED Spot Strobe
000 - 007 O
008 - 255 Strobe, Slow to Fast
Left LED Spot, Outboard Color
14
000 - 007 O
008 - 024 Red
025 - 041 Green
042 - 058 Blue
059 - 075 White
076 - 092 Red + Green
093 - 109 Red + Blue
110 - 126 Red + White
127 - 143 Green + Blue
144 - 160 Green + White
161 - 177 Blue + White
178 - 194 Red + Green + Blue
195 - 211 Red + Green + White
212 - 228 Red + Blue + White
229 - 245 Green + Blue + White
246 - 255 Red + Green + Blue + White
CONTINUED ON NEXT PAGE
17
Page 18
DMX TRAITS
Eliminator Furious Five RG - DMX Traits
Software Version 2.0
CHANNEL
11-CH MODE 24-CH MODE
15
DMX VALUE DESCRIPTION
Left LED Spot, Inboard Color
000 - 007 O
008 - 024 Red
025 - 041 Green
042 - 058 Blue
059 - 075 White
076 - 092 Red + Green
093 - 109 Red + Blue
110 - 126 Red + White
127 - 143 Green + Blue
144 - 160 Green + White
161 - 177 Blue + White
178 - 194 Red + Green + Blue
16
195 - 211 Red + Green + White
212 - 228 Red + Blue + White
229 - 245 Green + Blue + White
246 - 255 Red + Green + Blue + White
Right LED Spot, Inboard Color
000 - 007 O
008 - 024 Red
025 - 041 Green
042 - 058 Blue
059 - 075 White
076 - 092 Red + Green
093 - 109 Red + Blue
110 - 126 Red + White
127 - 143 Green + Blue
144 - 160 Green + White
161 - 177 Blue + White
178 - 194 Red + Green + Blue
CONTINUED ON NEXT PAGE
18
Page 19
DMX TRAITS
Eliminator Furious Five RG - DMX Traits
Software Version 2.0
CHANNEL
11-CH MODE 24-CH MODE
16 (cont’d
from prev
page)
DMX VALUE DESCRIPTION
Right LED Spot, Inboard Color (cont’d from
prev page)
195 - 211 Red + Green + White
212 - 228 Red + Blue + White
229 - 245 Green + Blue + White
246 - 255 Red + Green + Blue + White
Right LED Spot, Outboard Color
000 - 007 O
008 - 024 Red
025 - 041 Green
042 - 058 Blue
059 - 075 White
076 - 092 Red + Green
093 - 109 Red + Blue
17
7 18
110 - 126 Red + White
127 - 143 Green + Blue
144 - 160 Green + White
161 - 177 Blue + White
178 - 194 Red + Green + Blue
195 - 211 Red + Green + White
212 - 228 Red + Blue + White
229 - 245 Green + Blue + White
246 - 255 Red + Green + Blue + White
LED Spot Show Mode
000 - 007 O
008 - 034 Both LED Spots, Single Color Full Display
035 - 061 Both LED Spots, Single Color Half Display
062 - 088
089 - 115 Alternating LED Spots, Single Color Half Display
Both LED Spots, Contrasting Single Color Half
Display
116 - 142 Alternating LED Spots, Single Color Full Display
CONTINUED ON NEXT PAGE
19
Page 20
DMX TRAITS
Eliminator Furious Five RG - DMX Traits
Software Version 2.0
CHANNEL
11-CH MODE 24-CH MODE
7 (cont’d from
prev page)
8 19 000 - 255
18 (cont’d
from prev
page)
20
21
DMX VALUE DESCRIPTION
LED Spot Show Mode (cont’d from prev page)
143 - 160 Alternating LED Spots, Pinwheel
161 - 178 Both LED Spots, Pinwheel
179 - 187
188 - 200 Both LED Spots, All Color Spin
201 - 255 Sound Show
000 - 127 O
128 - 255 On
000 - 127 O
128 - 255 On
Both LED Spots, Single/Dual/Triple/All Color
Spin
Auto LED Spot Show Speed, Slow to Fast
Red Laser
Green Laser
000 - 010 O
011 - 120 Counter Clockwise, Fast to Slow
22
121 - 134 O
135 - 245 Clockwise, Slow to Fast
246 - 255 O
000 - 007 O
10 23
008 - 200 Auto
201 - 255 Sound Show
11 24 000 - 255
Laser Movement
Laser Show Mode
Auto Laser Show Speed, Slow to Fast
20
Page 21

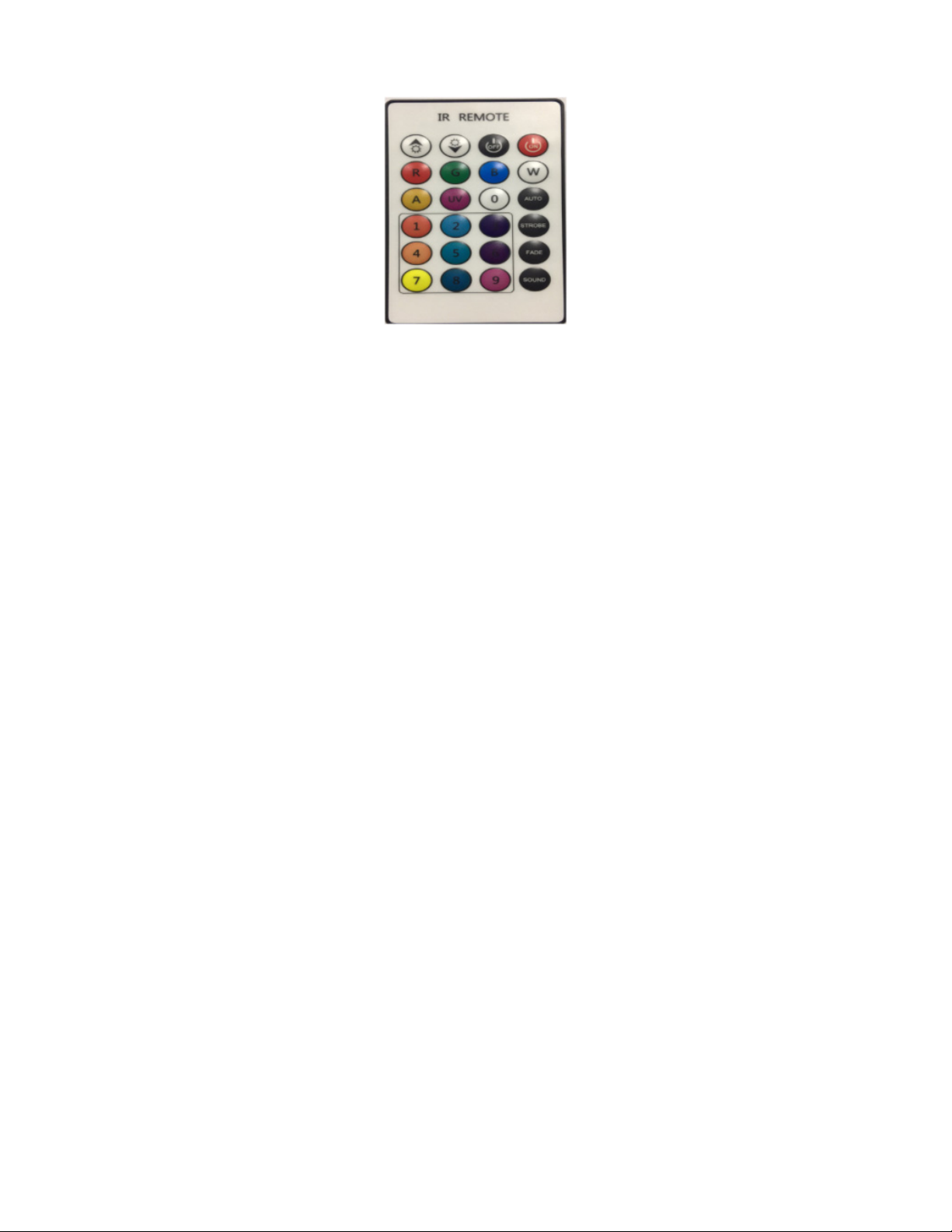

IR REMOTE OPERATION
UP/DOWN ARROW: Scrolls through Auto Modes and Sound Modes, or adjusts intensity for Red,
Green, Blue, White, or UV lighting display modes.
OFF: Switches all lighting displays o.
ON: Switches lighting displays on.
R: Turns 4-in-1 LEDs on in Red light mode.
G: Turns 4-in-1 LEDs on in Green light mode.
B: Turns 4-in-1 LEDs on in Blue light mode.
W: Turns 4-in-1 LEDs on in White light mode.
A: No function.
UV: Turns UV lights on.
0: Switches xture to AUT1 Mode (Red/Green Laser Auto Show).
AUTO: Switches xture to more recently used Auto Mode. Up/Down Arrow buttons can be used to
cycle through the dierent Auto Modes.
STROBE: Switches the xture to AUT2 Mode (5730 White LED Auto Show).
FADE: Switches the xture to AUT0 Mode (Full System Auto Show).
SOUND: Switches the xture to the most recently used Sound Mode. Up/Down Arrow buttons can
be used to cycle through the dierent Sound Modes.
1-9 NUMBER PAD: Switches 4-in-1 LEDs to one of nine color presets. Note that the display color
corresponds approximately to the color of the button on the remote, but does not match precisely.
Please note that the device may also be aected by other IR devices operating nearby, and
those devices may likewise be aected by this IR remote, regardless of whether those devices
were produced by Eliminator Lighting or by another manufacturer.
To minimimze the chances of interference, it is highly advisable to test your setup ahead of time to
ensure that each IR remote compatible device is located well outside the range of any other IR remote compatible devices that have been installed in the vicinity.
21
Page 22

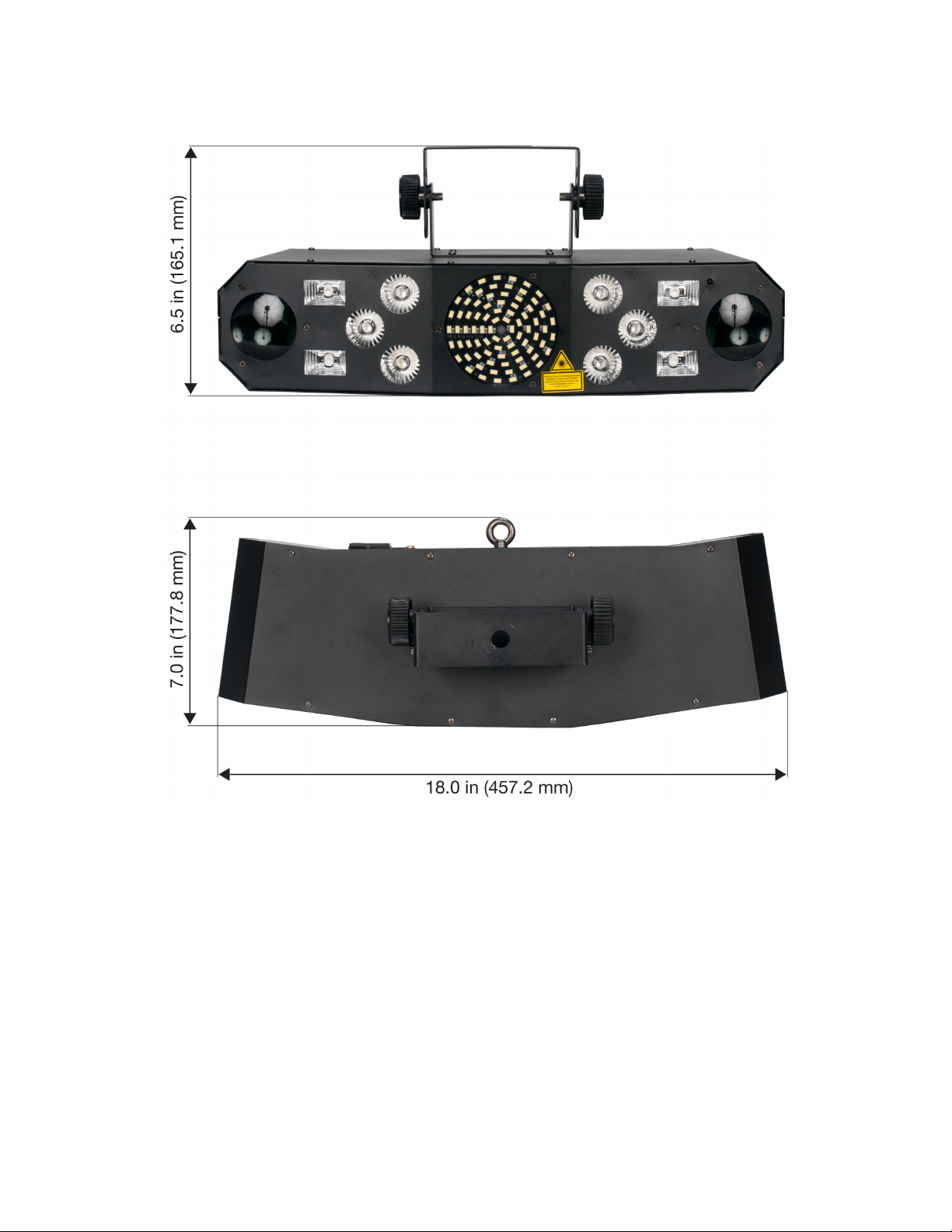

DIMENSIONAL DRAWINGS
NOTE: Dimensions may not be drawn to scale.
22
Page 23
SPECIFICATIONS
• Strobe: 81 SMD 5730 white LED
• Four (4) 3W UV CREE single color
• Six (6) 3W Quad (RGBW) LEDs
• Laser Diodes: Red = 100MW and Green = 70MW
• Moonower eect: 5mm LED (16x Red, 12x Green, 12x Blue 12, 16x White)
• 4 operation modes: Automatic running, DMX, Sound Active and Master/Slave
• Sound controlled via built-in microphone
• 0-100% linear dimmer
• Power Consumption: 60W
• 2 DMX Channel modes: 11 or 24 channels
• Voltage: AC110-240V 50/60Hz
• Unit Dimensions (LxWxH): 18” x 7” x 6.5”
• Weight: 8 lbs.
• Laser accession number: 2110902-000
23
Page 24
Loading...
