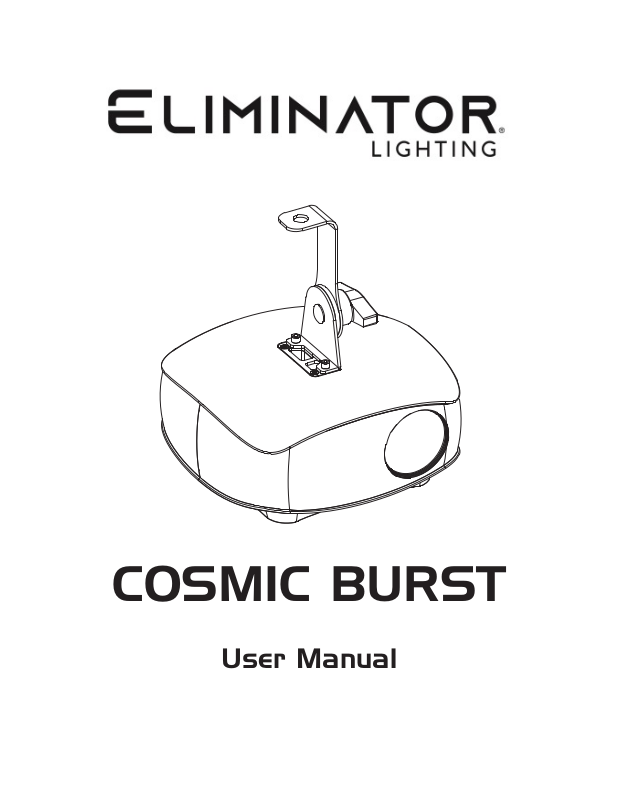

COSMIC BURST
User Manual
Page 2
©2023 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. Eliminator Lighting logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed
includes all forms and matters of copyrightable materials and information now allowed by statutory or
judicial law or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. All non-Eliminator
brands and product names are trademarks or registered trademarks of their respective companies.
ADJ Products, LLC and all afliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, insufcient and negligent assembly, installation, rigging, and operation of this product.
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of
this document may be available online.
Please check www.adj.com for the latest revision/update of this manual
before beginning installation and/or programming.
Date
10/27/2022 1.0 1.0 6 / 7 ch. Initial Release
02/28/2023 1.1 N/C No Change
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment. Please turn off all electrical products when
they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power
when not in use. Thank you!
Document
Version
Software
Version
DMX Channels Notes
Updated Dimensional Drawing,
Specifications
2
Page 3
TABLE OF CONTENTS
Introduction 4
Limited Warranty (USA Only) | Warranty Registration 5
Features 6
Safety Precautions 7
Overview 9
Installation 10
Remote Device Management (RDM) 12
Control Panel 13
System Menu 14
DMX Set Up 16
DMX Traits 19
Primary-Secondary Set Up 20
Maintenance Guidelines 21
Dimensional Drawings 22
Specifications 23
3
Page 4
INTRODUCTION
Unpacking: Thank you for purchasing the Cosmic Burst. Every device has been thoroughly tested and
has been shipped in perfect operating condition. Carefully check the shipping carton for damage that
may have occurred during shipping. If the carton appears to have been damaged, carefully inspect your
xture for any damage and be sure all accessories necessary to operate the unit have arrived intact.
In the event that damage has been found or parts are missing, please contact our toll free customer
support number for further instructions. Do not return this unit to your dealer without rst contacting
customer support.
Introduction: The Cosmic Burst is a laser burst beam effect. It features a single 10W laser module,
OLED display, and 5-channel DMX control.
Customer Support: Contact ADJ Service for any product related service and support needs. Also visit
forums.adj.com with questions, comments or suggestions.
Parts: To purchase parts online visit:
http://parts.adj.com (US)
http://www.adjparts.eu (EU)
ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
Voice: 800-322-6337 | Fax: 323-582-2941 | [email protected]
ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: +31 45 546 85 60 | Fax: +31 45 546 85 96 | [email protected]
ADJ PRODUCTS LLC USA
6122 S. Eastern Ave. Los Angeles, CA. 90040
323-582-2650 | Fax 323-532-2941 | www.adj.com | [email protected]
ADJ SUPPLY Europe B.V
Junostraat 2 6468 EW Kerkrade, The Netherlands
+31 (0)45 546 85 00 | Fax +31 45 546 85 99
www.americandj.eu | [email protected]
ADJ PRODUCTS GROUP Mexico
AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000
+52 (728) 282-7070
CAUTION! This device is intended for indoor use only! Do not expose to rain or moisture!
CAUTION! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,
as doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service,
please contact ADJ Products, LLC.
Do not discard the shipping cartoon in the trash. Please recycle when ever possible.
4
Page 5
LIMITED WARRANTY (USA ONLY)
1 Year Limited Warranty: The Eliminator Lighting warranty is valid for 1 year from the date of purchase. Our
1 year limited warranty covers manufacturing defects only. The serial number of your device and the place of
purchase with dated valid receipt must be submitted at time of service. The Eliminator Lighting warranty does
not cover items or parts prone to wear and tear: lamps, fuses, brushes and belts. Eliminator Lighting warranty
is only valid within the United States.
To register your Eliminator Lighting product online, please click here to the ADJ Warranty Registration Page:
https://www.adj.com/portal/user/register/
WARRANTY REGISTRATION
Please fill out the enclosed warranty card to validate your purchase. All returned service items,
whether under warranty or not, must be freight pre-paid and accompanied by a return authorization
(R.A.) number. The R.A. number must be clearly written on the outside of the return package. A brief
description of the problem as well as the R.A. number must also be written down on a piece of paper
included in the shipping carton. If the unit is under warranty, you must provide a copy of your proof of
purchase invoice. You may obtain an R.A. number by contacting our customer support team. All packages returned to the service department not displaying an R.A. number on the outside of the package
will be returned to the shipper.
5
Page 6
FEATURES
• 1 x 10W laser module
• Smooth dimming 0-100%
• Adjustable strobe effect
• OLED display
• 6/7-channel DMX control
• DMX-512 and RDM protocols
• 3-pin XLR Data In/Out ports
• IP20 rating
INCLUDED ITEMS
• Power Cable (x1)
6
Page 7
SAFETY PRECAUTIONS
LASER ACCESSION NUMBER: 2210851-000
After completing setup, and before public use, test the laser to ensure proper function. Do
not use if any defects are detected. Do not use if the laser emits only a few laser beams rather
than dozens/hundreds, as this could indicate damage to the diffraction grating optic, and
could allow emission of laser intensity levels that exceed Class 3R.
• Do not point lasers at people or animals. Never look into the laser aperture or directly at laser
beams.
• Do not point lasers into areas with a high risk of unintentional or harmful exposure, such as uncontrolled balconies, etc.
• Do not point lasers at highly reective surfaces, such as windows, mirrors, and shiny metal. Even
laser reections can be hazardous.
• Never point a laser at aircraft. This is a federal offense.
• Never point un-terminated laser beams into the sky.
• Do not expose the output optic (aperture) to cleaning chemicals.
• Do not use if the laser appears to be emitting only a few beams.
• Do not use if the housing is damaged, the housing is open, or if the optics appear damaged in any
way.
• Never open the laser housing. The high laser power levels inside of the protective housing can
start res, burn skin, and will cause instantaneous eye injury.
• Never leave this device running unattended.
• The operation of a class 3R laser show is only allowed if the show is controlled by a skilled and
well-trained operator who is familiar with the information enclosed in this manual.
• The legal requirements for using laser entertainment products vary from country to country. The user is responsible for determining the legal requirements at the location/country
of use.
• Always use proper lighting safety cables when hanging lights and effects overhead.
7
Page 8
SAFETY PRECAUTIONS
PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT
ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S
WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE
AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS
MANUAL VOID THE MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO
ANY WARRANTY CLAIMS AND/OR REPAIRS.
INDOOR USE ONLY! DO NOT EXPOSE TO RAIN OR MOISTURE!
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
• Maximum ambient operating temperature is 104° F (40° C)!
• DO NOT TOUCH the fixture housing during operation. Disconnect the power and allow approximately
15 minutes for the fixture to cool down before servicing.
• DO NOT shake the fixture, and avoid brute force when installing and/or operating the fixture.
• DO NOT operate the fixture if the power cord has become frayed, crimped and/or damaged. If the
power cord is damaged, replace immediately with a new one of the same power rating.
• DO NOT attempt to remove or break off the ground prong from the electrical cord. This prong is used
to reduce the risk of electrical shock and fire in case of an internal short.
• DO NOT attempt to operate this unit if it has been damaged in any way.
• DO NOT spill water or other liquids into or on to your unit.
• Disconnect from main power before making any type of connection.
• DO NOT block any air ventilation slots. All fan and air inlets must remain clean and never blocked.
Allow approx. 20” (50cm) between fixture and other devices or a wall for proper cooling.
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 20” (50cm)
between this device and a wall.
• DO NOT remove the cover for any reason.
• When installing fixture in a suspended enviroment, always use mounting hardware that is no less than
M10 x 25mm, and always install fixture with an appropriately rated safety cable.
• Never plug this unit in to a dimmer pack.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to the point where they exit from the unit.
• Cleaning - The fixture should be cleaned only as recommended by the manufacturer.
• Heat - The appliance should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug have been damaged.
B. Objects have fallen onto, or liquid has been spilled into, the fixture.
C. The fixture does not appear to operate normally or exhibits a marked change in performance.
D. The fixture has fallen and/or has been subjected to extreme handling.
8
Page 9

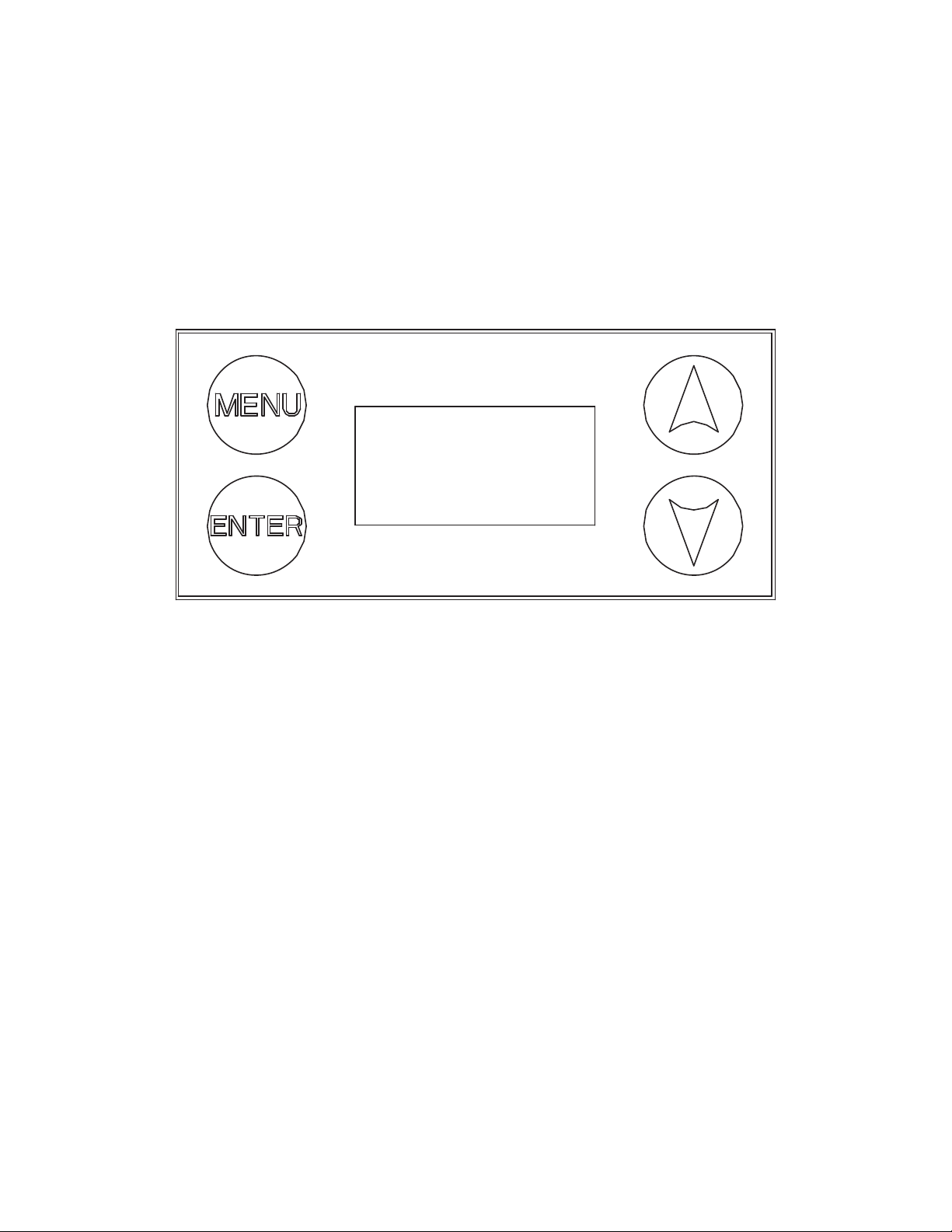

OVERVIEW

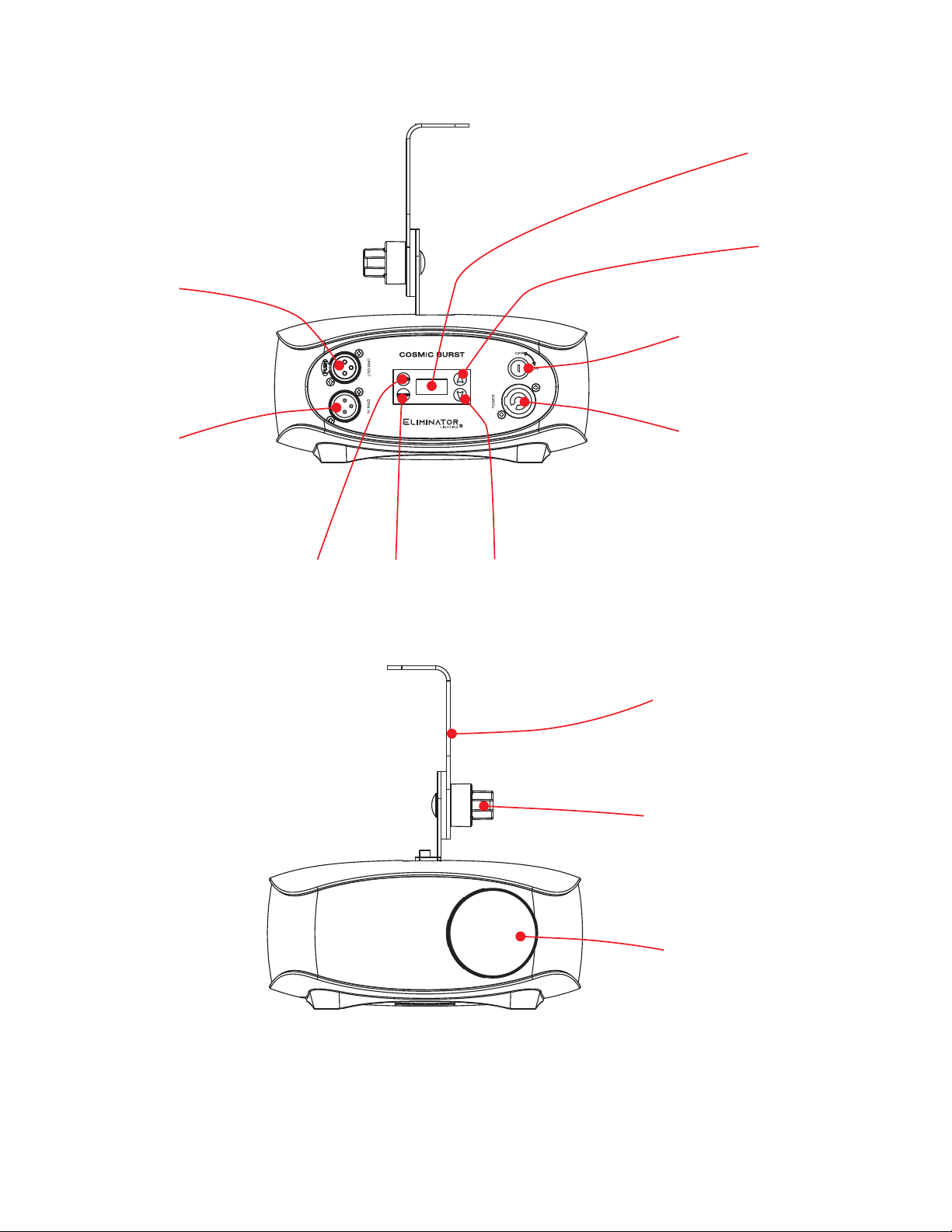

DMX
Out
Display
Screen
Up
Button
Key
Hole
DMX
In
Menu
Button
Enter
Button
Power
In
Down
Button
Mounting
Bracket
Bracket
Adjustment
Knob
Front
Lens
9
Page 10
INSTALLATION
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
Fixture MUST be installed following all local, national, and country commercial electrical and construction codes and regulations.
When installing the unit, the trussing or area of installation must be able to hold at least 10 times the
weight of the unit and any attached accessories without any deformation. The unit must be secured
with a secondary safety attachment, e.g. an appropriately-rated safety cable.
Before rigging/mounting a single fixture to any metal truss/structure or placing the fixture(s) on any
surface, a professional equipment installer MUST be consulted to determine if the metal truss/structure
or surface is properly certified to safely hold the combined weight of the fixture(s), clamps, cables, and
accessories.
Maximum ambient operating temperature is 104°F (40°C).
Fixture(s) should be installed away from walking paths, seating areas, or areas where unauthorized
personnel might reach the fixture by hand.
NEVER stand directly below the fixture(s) when rigging, removing, or servicing.
Overhead fixture installation must always be secured with a secondary safety attachment, such as an
appropriately rated safety cable that can hold at least 10 times the weight of the fixture.
Overhead mounting requires extensive experience, including calculating working load limits, knowl-
edge of installation material being used, and perodic safety inspection of all installation material as
well as the unit itself. If you lack these qualifications, do not attempt the installation yourself.
The installaiton should be checked by a skilled person once a year.
10
Page 11
INSTALLATION

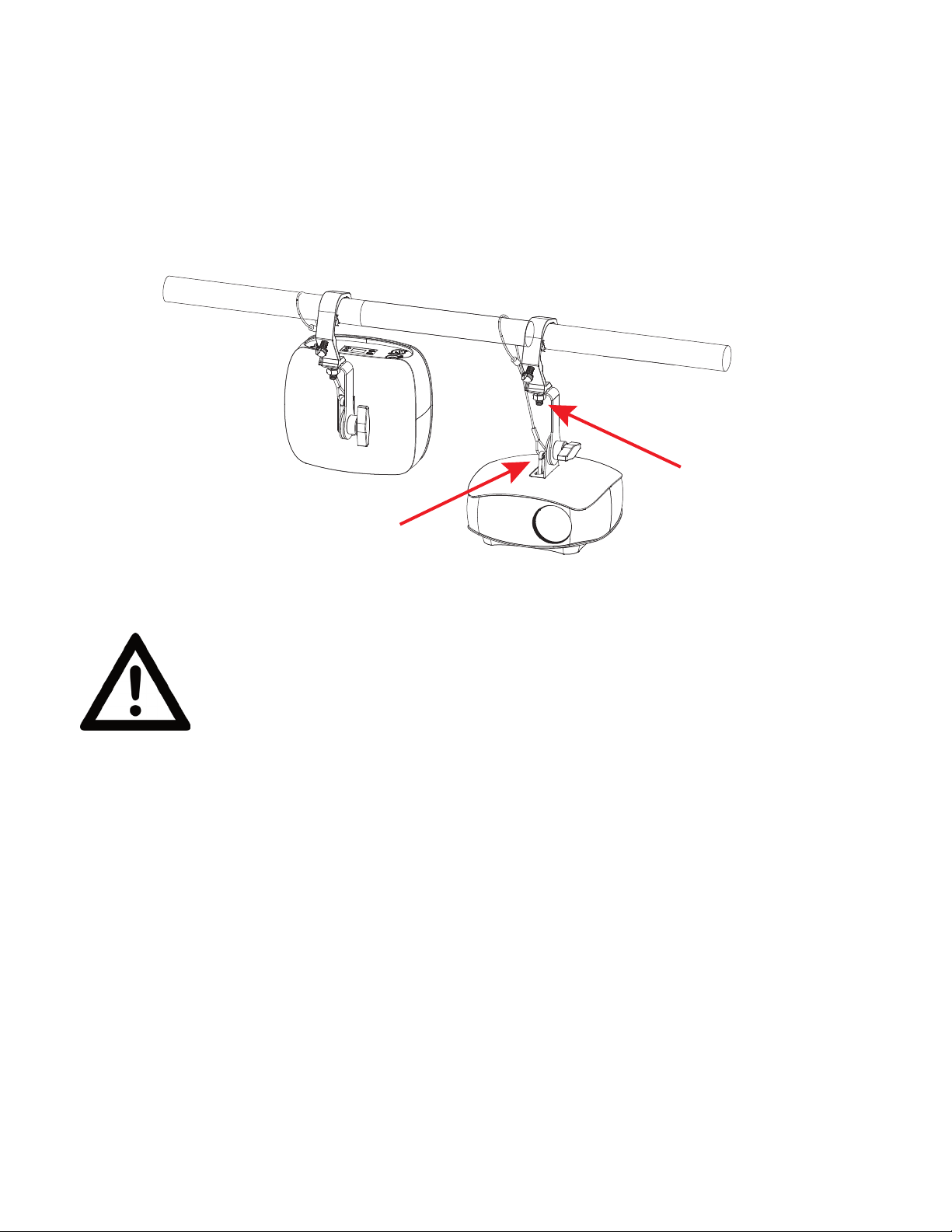

CLAMP MOUNTING
This fixture features an adjustable mounting bracket with a built-in mounting clamp attachment point.
Additionally, the unit also features a safety cable loop located at the base of the mounting bracket
(see the illustration below). When mounting the fixture to a truss or any other suspended or overhead
installation, be sure to secure an appropriately rated clamp (not included) to the mounting bracket,
and attach a separate SAFETY CABLE of the appropriate weight rating to the provided safety cable
loop.
MOUNTING
CLAMP
ATTACHMENT
POINT
SAFETY
CABLE
LOOP
SAFETY CABLE:
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIX-
TURE IN A SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE
WILL NOT FALL IF THE CLAMP FAILS.
The adjustable mounting bracket allows the fixture’s lens to be aimed vertically, horizontally, or any
angle in between. After positioning your device as desired, make sure to tighten the bracket adjustment knob to ensure that the unit is firmly secured in place.
NOTICE: The maximum ambient operational temperature for this lighting fixture is 104˚ F (40˚ C). Do
not place this lighting fixture in an environment where the temperatures exceed this value. This will
allow the fixture to run at its best and help prolong the fixture life.
11
Page 12
REMOTE DEVICE MANAGEMENT (RDM)
NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout
the entire system, including DMX data splitters and wireless systems.
Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for
lighting, allowing the DMX systems of the xtures to be modied and monitored remotely. This proto-
col is ideal for instances in which a unit is installed in a location that is not easily accessible.
With RDM, the DMX512 system becomes bi-directional, allowing a compatible RDM enabled con-
troller to send out a signal to devices on the wire, as well as allowing the xture to respond (known as
a GET command). The controller can then use its SET command to modify settings that would typi-
cally have to be changed or viewed directly via the unit’s display screen, including the DMX Address,
DMX Channel Mode, and Temperature Sensors.
FIXTURE RDM INFORMATION:
RDM Code Device ID Device Model ID Personality ID
0x1900 Random 0x0943
0x0102 (6CH)
0x0202 (7CH)
Please be aware that not all RDM devices support all RDM features, and therefore it is important
to check beforehand to ensure that the equipment that you are considering includes all of the features that you require.
Disc Unique Branch Status ID Description
Disc Mute Clear Status ID
Disc Un-mute Product Detail ID List
Device Info Manufacturer Label
Supported Parameters Device Label
Software Version Label DMX Personality
DMX Start Address DMX Personality Description
Identify Device Device Hours
Device Model Description Pan Invert
Comms Status Tilt Invert
Queued Message Reset Device
Status Messages Photosensitive Hour
12
Page 13
CONTROL PANEL
The Cosmic Burst features a display screen with a 4-button control pad, which can be used to easily
adjust any device settings.
Pressing the MENU button will cycle through the various Main Menu options. When the desired Main
Menu option is displayed on the screen, press the ENTER button to select, then use the UP and
DOWN buttons to scroll through sub-menu options. In some cases, there will be a second sub-menu
that can be navigated in the same way. Press the ENTER button to conrm the selection, or press
MENU to exit without making changes.
13
Page 14
SYSTEM MENU
DMX Address 001 - 512 Set DMX address
DMX Ch. Mode
DMX
SETTINGS
No DMX
Status
Prim/Sec Mode
PERSONALITY
MANUAL
SHOW
INFORMATION Hours
Display
Motors Reset No / Yes
Service
Passcode = 050
Reector 000 - 255
Shutter 000 - 255
Dimmer 000 - 255
Dimmer Fine 000 - 255
Effect 000 - 255
Show 0 Speed 000 - 255
Show 1 Speed 000 - 255
Show 2 Speed 000 - 255
Show 3 Speed 000 - 255
Show 4 Speed 000 - 255
Mode1 (6) 6-ch DMX channel mode
Mode2 (7) 7-ch DMX channel mode
Holds last received settings
Hold
Blackout
Show
Manual
Primary
Secondary1
Secondary2
“ON” / “OFF”
(Static display of
current setting)
Off Delay 5s - 20s Default = 10s
Invert No / Yes
Lock
Factory Restore Yes / No
Pwr On Hr1 xxxxxx Hrs
Pwr On Hr2 xxxxxx Hrs
Pwr On Rst Passcode = 050 Reset Pwr On Hr2
On / Off
Off, 30s, 1min 10min
when signal is lost or interrupted
All DMX channels go to 0 when
signal is lost or interrupted
Unit defaults to pre-selected
show mode when signal is lost
or interrupted
Unit defaults to manual mode
when signal is lost or interrupted
Total lifetime hours that xture
has been powered on; not
resettable
Hours xture has been powered on since last reset
CONTINUED ON NEXT PAGE
14
Page 15
SYSTEM MENU
Temperature
Fan State
INFORMATION
(continued)
DMX Value
RDM UID
Soft Vers x.xx
LED
Temp Rst
Reector
Strobe
Dimmer
Shutter
Show
Show Speed
Current Current LED temperature
Max Temp
xxx F / xxx C
Yes / No
Passcode = 050
Max recorded LED temperature
Reset LED temperature
Display current DMX value for
the selected channel
Display current software version.
15
Page 16
DMX SET UP
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu-
nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions
from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via
the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have
a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be
linked together and operate from a single controller, as long as all fixtures and the controller are
DMX compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible
when linking several DMX fixtures. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation): This unit can be controlled via DMX512 protocol. The DMX address is set on the rear panel of the unit. Your unit and your DMX controller
require a standard 3-pin XLR connector for data input and data output. We recommend Accu-Cable
DMX cables. If you are making your own cables, be sure to use standard 110-120 Ohm shielded
cable (This cable may be purchased at almost all pro lighting stores). Your cables should be made
with a male XLR connector at one end and a female XLR connector at the other. Also remember that
DMX cable must be daisy chained and cannot be split.

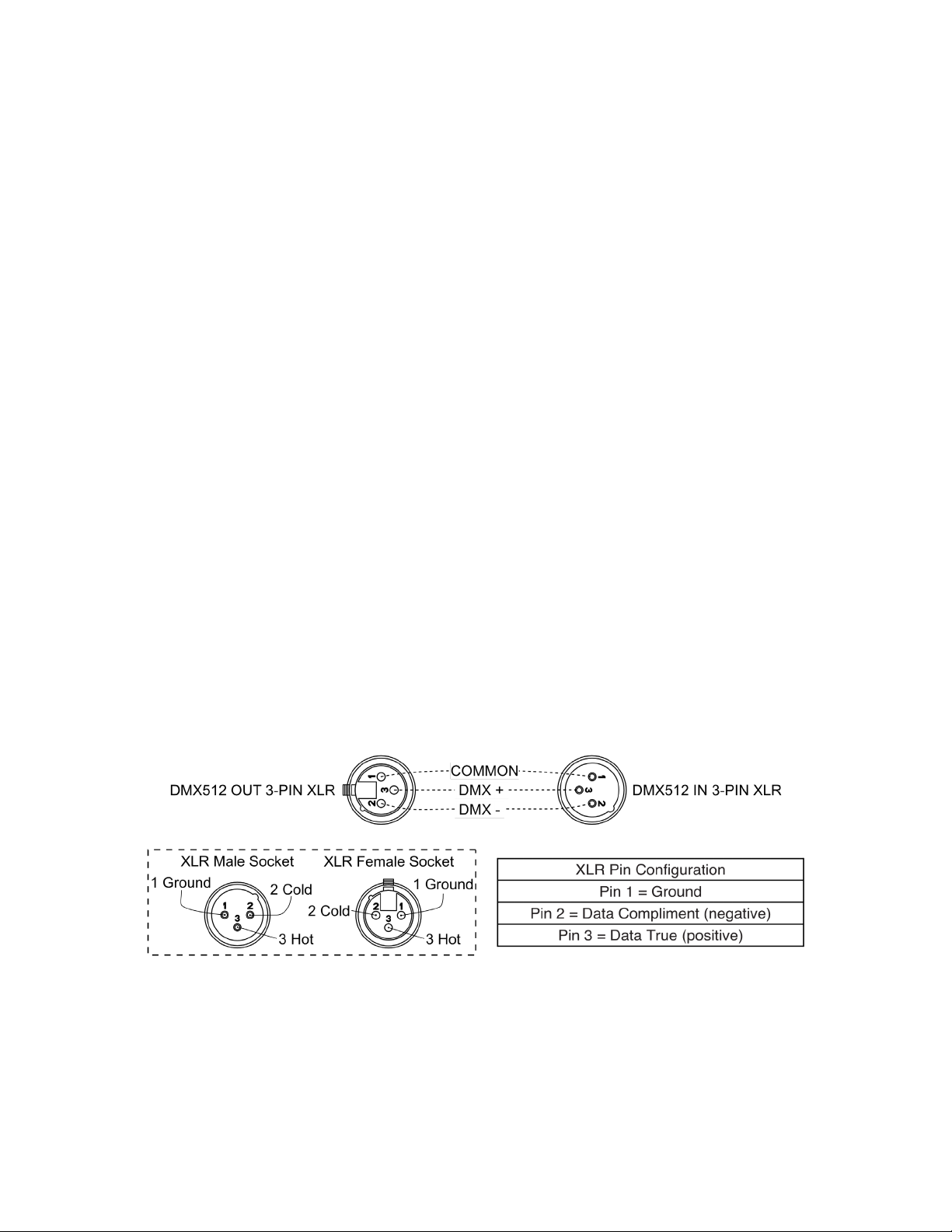

Notice: Be sure to follow the illustration below when making your own cables. Do not use the ground
lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the
shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a
short circuit and erratic behavior.
16
Page 17
DMX SET UP

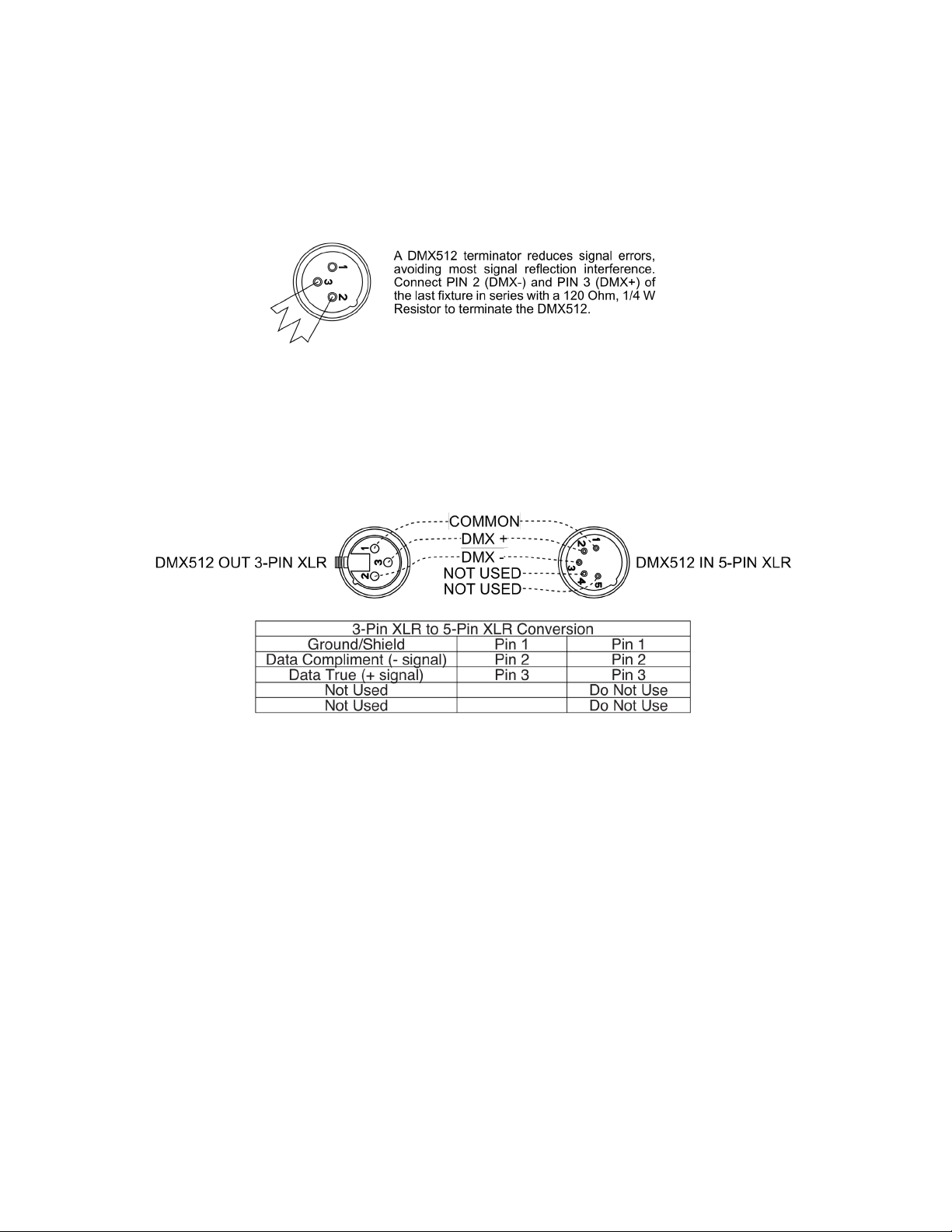

Special Note: Line Termination. When longer runs of cable are used, you may need to use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is
connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted
in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable
terminator (ADJ part number Z-DMX/T) will reduce the risk of erratic behavior.
5-Pin XLR DMX Connectors. Some manufacturers use 5-pin DMX-512 data cables for DATA trans-
mission in place of 3-pin. 5-pin DMX xtures may be implemented in a 3-pin DMX line by using a
cable adapter. These adaptors are readily available at most electronics stores. The chart below details a proper cable conversion.
17
Page 18
DMX SET UP
DMX ADDRESSING.
All fixtures should be given a DMX starting address when using a DMX controller, so the correct fixture responds to the correct control signal. This digital starting address is the channel number from
which the fixture starts to “listen” to the digital control signal sent out from the DMX controller. The
assignment of this starting DMX address is achieved by setting the correct DMX address on the digi-
tal control display on the fixture.
You can set the same starting address for all fixtures or a group of fixtures, or set different addresses
for each individual fixture. Setting all fixtures to the same DMX address will cause all fixtures to react
in the same way. In other words, changing the settings of one channel will affect all the fixtures simul-
taneously.
If you set each fixture to a different DMX address, each unit will start to “listen” to the channel number
you have set, based on the quantity of DMX channels of each fixture. That means changing the settings of one channel will only affect the selected fixture.
For example, when operating this unit in 6-channel mode, you should set the starting DMX address of
the first unit to 1, the second unit to 7 (1 + 6), the third unit to 13 (1 + 6 + 6), and so on. See the chart
below for more details.
CHANNEL MODE UNIT 1 ADDRESS UNIT 2 ADDRESS UNIT 3 ADDRESS UNIT 4 ADDRESS
6 Ch 1 7 13 19
7 Ch 1 8 15 22
18
Page 19
DMX TRAITS
CHANNEL
1 1
2 2
3 3 000 - 255 Dimmer Intensity, 0% to 100%
4 000 - 255 Dimmer Fine
4 5
5 6
6 7 000 - 255 Speed, slow to fast
DMX
VALUES
000 - 007 Standby
008 - 125 Clockwise Rotation, fast to slow
126 - 129 Stop
130 - 247 Counter-Clockwise Rotation, slow to fast
248 - 255 Stop
000 - 031 Off
032 - 063 On
064 - 095 Strobe Effect, slow to fast
096 - 127 On
128 - 159 Pulse Effect in Sequences
160 - 191 On
192 - 223 Random Strobe Effect, slow to fast
224 - 255 On
000 - 008 Stop
009 - 015 Open
016 - 255 Shutter, slow to fast
000 - 045 Null
046 - 087 Show 1
088 - 129 Show 2
130 - 171 Show 3
172 - 213 Show 4
214 - 255 Show 0 (Random Show 1-4)
FUNCTION
Reector Rotation
Shutter, Strobe
Effect
Show
19
Page 20
PRIMARY-SECONDARY SET UP
This function allows you to link units together to run in a Primary-Secondary set-up, in which one unit
will act as the controlling unit and the others will react to the controlling unit’s built-in programs. Any
unit can be configured to act as a Primary or as a Secondary, but only one unit in a given system can
be programmed to act as the Primary.
Primary-Secondary Connections and Settings:
1. Daisy chain your units via the XLR connectors on the rear panels of each unit. Use standard XLR
data cables to link your units together. Remember that the male XLR connector is the input and
the female XLR connector is the ouput. The first unit in the chain (primary) will use the female XLR
connector only. The last unit in the chain will use the male XLR connector only.
2. Use the display screen and control panel to navigate to the “Primary / Secondary” setting in the
main menu. Select this setting using the ENTER button, and use the arrows to toggle between
“Primary”, “Secondary1”, and “Secondary2”. Press ENTER to confirm your selection.
3. Repeat Step 2 for each unit in the system. Make sure that only one unit is designated as the
Primary, while all other units are designated as Secondaries.
4. The secondary units will act in conjunction with the primary unit. Note that secondary units set to
the “Secondary1” setting will follow the motions of the primary, while those set to the “Secondary2”
setting will move in contrast to the primary.
20
Page 21
MAINTENANCE GUIDELINES
DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!
CLEANING
Frequent cleaning is recommended to ensure proper function, optimized light output, and an extended life. The frequency of cleaning depends on the environment in which the fixture operates: damp,
smoky, or particularly dirty environments can cause greater accumulation of dirt on the fixture’s optics.
Clean the external lens surface regularly with a soft cloth to avoid dirt/debris accumulation.
NEVER use alcohol, solvents, or ammonia-based cleaners.
MAINTENANCE
Regular inspections are recommended to ensure proper function and extended life. There are no
user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ
service technician. Should you need any spare parts, please order genuine parts from your local ADJ
dealer.
Please refer to the following points during routine inspections:
A. A detailed electrical check by an approved electrical engineer every three months, to make sure
the circuit contacts are in good condition and prevent overheating.
B. Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall out
during normal operation, resulting in damage or injury as larger parts could fall.
C. Check for any deformations on the housing, color lenses, rigging hardware, and rigging points
(ceiling, suspension, trussing). Deformations in the housing could allow for dust to enter into the
fixture. Damaged rigging points or unsecured rigging could cause the fixture to fall and seriously
injure a person(s).
D. Electric power supply cables must not show any damage, material fatigue, or sediments.
NEVER remove the ground prong from the power cable.
SOFTWARE UPDATES
Please contact ADJ service for assistance with updating your device’s software.
21
Page 22

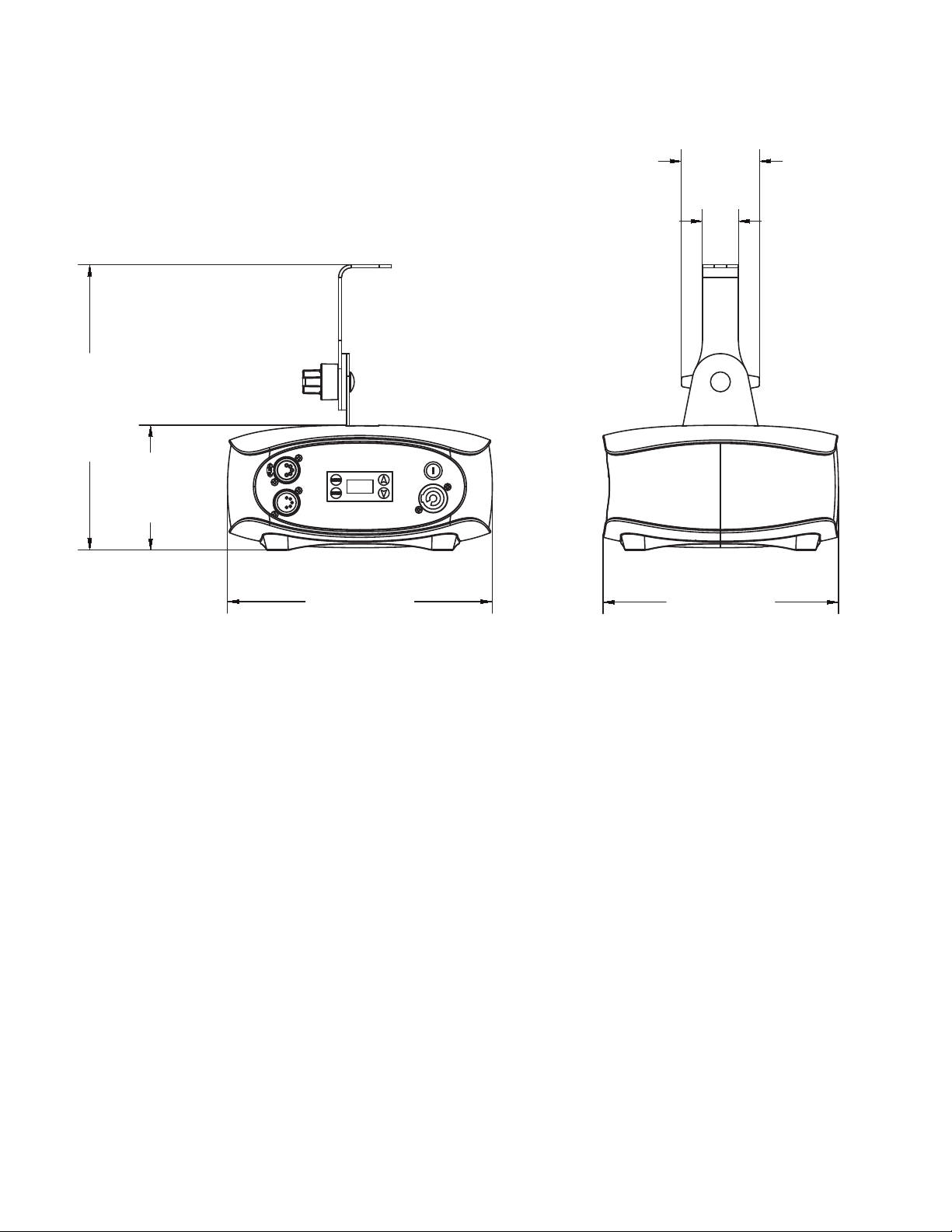

DIMENSIONAL DRAWINGS
9.4in. [238mm]
4.1in.
[104mm]
2.6in.
[65mm]
1.2in.
[30mm]
8.7in. [221mm]
Drawings not shown to scale.
7.7in. [196mm]
22
Page 23
SPECIFICATIONS
Model: Cosmic Burst
Light Source: 1 x 10W laser module
Color Temperature: 6000K - 8000K
Beam Angle: 87°
Lamp Life: 10,000 hours
Display: OLED
DMX Control Mode: 6/7 channels
Protocols: DMX512 and RDM
Firmware Upgrade: Via DMX link
Data In/Out: 3-pin XLR
Power In/Out: Indoor locking power connector
IP Rating: IP20
Power Consumption: 20W
Lens Diameter: 60mm
Effects: Smooth dimming from 0~100%
Adjustable, unique strobe effect
Dimensions: 8.7” x 7.7” x 9.4” (221 x 196 x 238mm)
Weight: 4.4lbs (2 kg)
Laser Accession No.: 2210851-000
Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any
prior written notice.
23
Page 24
Loading...
