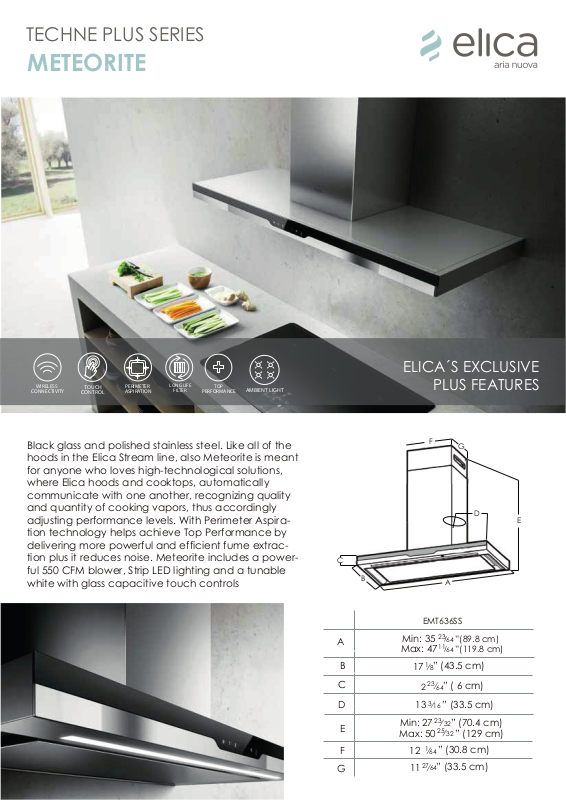

TECHNE PLUS SERIES
FILTER
PERFORMANCE
METEORITE
WIRELESS
CONNECTIVITY
TOUCH
CONTROL
PERIMETER
ASPIRATION
LONG LIFE
TOP
AMBIENT LIGHT
Black glass and polished stainless steel. Like all of the
hoods in the Elica Stream line, also Meteorite is meant
for anyone who loves high-technological solutions,
where Elica hoods and cooktops, automatically
communicate with one another, recognizing quality
and quantity of cooking vapors, thus accordingly
adjusting performance levels. With Perimeter Aspiration technology helps achieve Top Performance by
delivering more powerful and efficient fume extraction plus it reduces noise. Meteorite includes a powerful 550 CFM blower, Strip LED lighting and a tunable
white with glass capacitive touch controls
ELICA´S EXCLUSIVE
PLUS FEATURES
F
C
B
EMT636SS
A
B
Min: 35
Max: 47
1
8
⁄
17
G
D
A
23
/
”(89.8 cm)
64
11
/
”(119.8 cm)
64
” (43.5 cm)
E
C
D
E
Min: 27
Max: 50 ” (129 cm)
F 12
G
11
13
23
2
3
1
⁄
27
⁄
” ( 6 cm)
⁄
64
” (33.5 cm)
⁄
16
23
” (70.4 cm)
32
⁄
25
⁄
32
” (30.8 cm)
64
” (33.5 cm)
64
Page 2
TECHNE PLUS SERIES
METEORITE
SPECIFICATIONS
36” Unit
Model:
Dimensions:
Blower Type(internal):
Blower Performance:
Speed 1
Speed 2
Speed 3
Speed 4
Noise (sones):
Woking Speed
Finish:
Controls:
Illumination:
(replaceable lamps 1 intensity)
Filter Type:
Duct Transition:
Installation Type:
Electrical:
EMT636SS
36” W x 17 1/8” D x 2 3/8” H
550 CFM(4-speed)
192 CFM
310 CFM
450 CFM
550 CFM
Min:1.7, Max:7
Stainless Steel with black glass
Touch Control 3 Speeds + Booster (sensor)
Dishwaher safe, Aluminim Mesh Filter + Perimeter Aspiration
Strip LED 7 Watts 2700 - 6000K Tunable White
Top Round 6”
Ducted
120V - 60 Hz
460 Watt at 3.8 Amp
KITS:
Recirculating Kit
Long Chimney
Extension:
CONSUMABLE PARTS:
Charcoal Filter
Replacement:
Grease Filter
Replacement:
PLUS FEATURES
WIRELESS CONNECTIVITY - Wireless technology allows the
transmission of real time information about cooking (active
zones, pots, temperature), to your hood. Elica hoods with
STREAM technology will process data and function totally
automatically.
TOUCH CONTROL - Enjoy effortless cooking, and fully control
each cooking zone with the tip of a single finger.
PERIMETER ASPIRATION - This technology draws air through a
narrowed channel around a face plate, which increases
suction, without increasing blower speed or energy
consumption.
KIT0102875
KIT02785
KIT0141918
GF04YB
Consumable parts are sold in units of one (1). Order accordingly
LONG LIFE FILTER - One of a kind odour filter, capable of
regenerating itself and of lasting up to 3 years. To maintain these
characteristics, the filter only requires simple maintenance: wash
every 2 or 3 months with hot water and mild soap (also in
dishwasher at 65 degrees) and dry in the oven for ten minutes at
100 degrees
TOP PERFORMANCE - Excellent performance for models
equipped with this plus. High fume capturing capacity
with an average aspiration range of 600 CFM's and a noise
level be tween 60-65 db(A)at maximum speed
(reference point varies based on the hood category).
AMBIENT LIGHT - Transforms a kitchen appliance into a true
lighting element.
