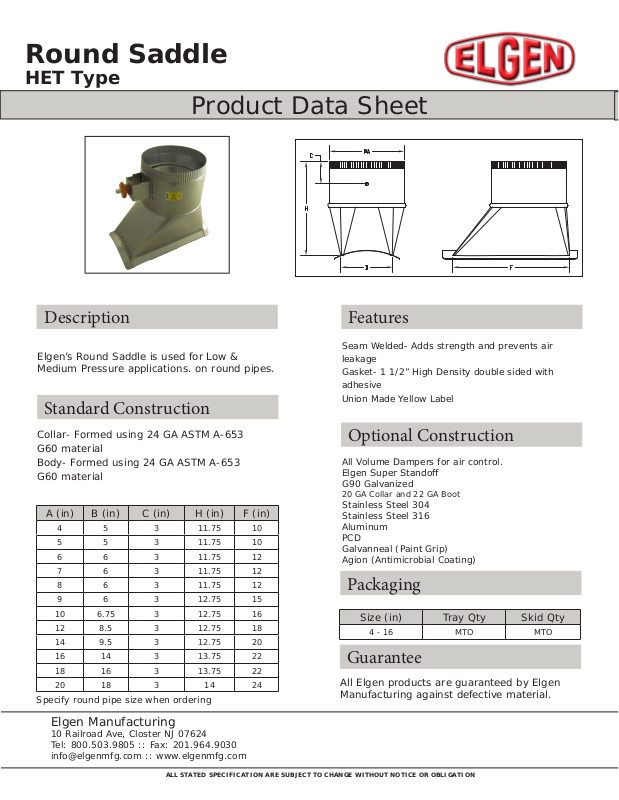

Round Saddle

HET Type

Product Data Sheet

Description

Elgen’s Round Saddle is used for Low &
Medium Pressure applications. on round pipes.

Standard Construction

Collar- Formed using 24 GA ASTM A-653
G60 material
Body- Formed using 24 GA ASTM A-653
G60 material

A (in) B (in) C (in) H (in) F (in)

4 5 3 11.75 10
5 5 3 11.75 10
6 6 3 11.75 12
7 6 3 11.75 12
8 6 3 11.75 12

9 6 3 12.75 15
10 6.75 3 12.75 16
12 8.5 3 12.75 18
14 9.5 3 12.75 20
16 14 3 13.75 22
18 16 3 13.75 22
20 18 3 14 24

Specify round pipe size when ordering

Features

Seam Welded- Adds strength and prevents air
leakage
Gasket- 1 1/2” High Density double sided with
adhesive
Union Made Yellow Label

Optional Construction

All Volume Dampers for air control.

Elgen Super Stando

G90 Galvanized

20 GA Collar and 22 GA Boot

Stainless Steel 304
Stainless Steel 316
Aluminum
PCD
Galvanneal (Paint Grip)
Agion (Antimicrobial Coating)

Packaging

Size (in) Tray Qty Skid Qty

4 - 16 MTO MTO

Guarantee

All Elgen products are guaranteed by Elgen
Manufacturing against defective material.
