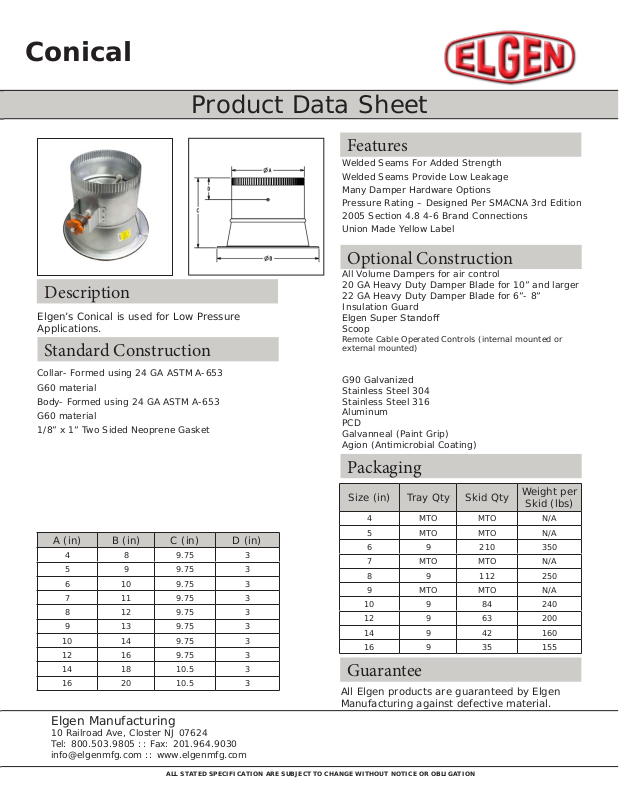

Elgen Manufacturing Conical User Manual

Conical

Product Data Sheet

Description

Elgen’s Conical is used for Low Pressure
Applications.

Standard Construction

Features

Welded Seams For Added Strength
Welded Seams Provide Low Leakage
Many Damper Hardware Options
Pressure Rating – Designed Per SMACNA 3rd Edition
2005 Section 4.8 4-6 Brand Connections
Union Made Yellow Label

Optional Construction

All Volume Dampers for air control
20 GA Heavy Duty Damper Blade for 10” and larger
22 GA Heavy Duty Damper Blade for 6”- 8”
Insulation Guard

Elgen Super Stando

Scoop

Remote Cable Operated Controls (internal mounted or
external mounted)

Collar- Formed using 24 GA ASTM A-653
G60 material
Body- Formed using 24 GA ASTM A-653
G60 material
1/8” x 1” Two Sided Neoprene Gasket

A (in) B (in) C (in) D (in)

4 8 9.75 3
5 9 9.75 3
6 10 9.75 3
7 11 9.75 3
8 12 9.75 3

9 13 9.75 3
10 14 9.75 3
12 16 9.75 3
14 18 10.5 3
16 20 10.5 3

G90 Galvanized
Stainless Steel 304
Stainless Steel 316
Aluminum
PCD
Galvanneal (Paint Grip)
Agion (Antimicrobial Coating)

Packaging

Size (in) Tray Qty Skid Qty

4 MTO MTO N/A
5 MTO MTO N/A
6 9 210 350
7 MTO MTO N/A
8 9 112 250

9 MTO MTO N/A
10 9 84 240
12 9 63 200
14 9 42 160
16 9 35 155

Weight per

Skid (lbs)

Guarantee

All Elgen products are guaranteed by Elgen
Manufacturing against defective material.
