Page 3
We hope you enjoy your new compact
kitchen. Read these instructions carefully to
make sure that the kitchen is properly
installed and used in the right way. Please
keep these documents in such a way that
you or any subsequent owner can always
refer to.
Security
Do not operate damaged equipment, if in doubt
contact Elfin Kitchens NZ Limited.
Any changes in the product must be performed by a
specialist.
For repairs, please disconnect from the mains power
supply
This product should only be operated by adults.
Attention, the unit has hot surfaces during operation.
Always cook with handle to the wall for safety.The
rings are very hot and can cause burns.
Do not store explosive liquids in the cabinet.
Do not place coffee machines or other electric
devices onto the cooking plates. This also applies to
other combustible materials.
Be careful when cooking dishes with oils and fats
(eg chips), as they can ignite.
No flammable or combustible objects (eg spray
cans) are to be stored in the unit.
Do not heat food in aluminium foil or plastic
containers, always use the purpose made
saucepans and pots.
The hob should not be cleaned with a steam
cleaner.
This product is not intended to be used by persons
(including children) with reduced physical, sensory
or mental capabilities or lack of experience and / or
knowledge, unless they are supervised by a
responsible person.
Do not let children play with the kitchen.
The kitchen is only for normal indoor use. They must
not be used as a source of heating.
Do not block ventilation grills.
When installing a extractor hood, a minimum
distance of 650 mm between the hob and the lower
edge of hood are to be observed.
Notes for the environment
Our high quality products are protected for their
journey to you with effective protective packaging.
All packaging materials used are environmentally
friendly and can be safely disposed.
Wooden parts are not chemically treated.
The cardboard boxes are made predominantly from
recycled paper and can be crushed again and
recycled.
Unpacking
Please check the unit for damage, if damage is found
please report immediately to Elfin Kitchens NZ Limited
within 24 hours of receiving your kitchen, reports of
damage outside of this time cannot be resolved.
Lifting the Compact Kitchen
Care should always be taken when lifting the kitchen,
please wear appropriate gloves and ensure there are
sufficient people to lift the kitchen from the packaging
into its final position. Lift from the bottom of the unit and
be careful of any sharp edges, do not lift using the door
or fridge handles as this will damage your kitchen.
Assembly, installation and connection of your
compact mini kitchen
Your compact kitchen is designed to work in room
temperatures between 12 and 32°C. Tiles may be
placed around the top of the kitchen but please note that
most repairs can be carried out with the kitchen in situ
but occasionally you may need to remove your kitchen
for maintenance and too much cement and grout will
prevent ease of removal.
The kitchen must be placed on a firm level surface, there
is limited adjustment on the front feet of your kitchen and
also bear in mind the fridge may need to be removed so
the floor in front of the kitchen must be at the same level.
The vents at the rear of the pantry top must be kept
clear in order to allow the heat from the built in
appliances to exhaust.
Appliances
Your Elfin kitchen will have either a Liebherr or Techwood fridge fitted dependant on the model purchased
and we ask you to read the operation instructions found
in the fridge.
*Attention*
The Liebherr fridge is fitted with a ‘CoolPlus’ button
located by the thermostat control knob inside the
fridge. This is designed for use in cold environments
and prolonged use (over 24hours) could result in
your fridge failing as the compressor will be over
worked and this type of failure is not covered under
warranty.
If your kitchen is fitted with a combination oven, microwave, convection oven or dishwasher please do read
the operating instructions and keep in a safe place for
future reference.
Regular cleaning will prolong the life of any appliance
and prevent any unwanted smells!
Page 4

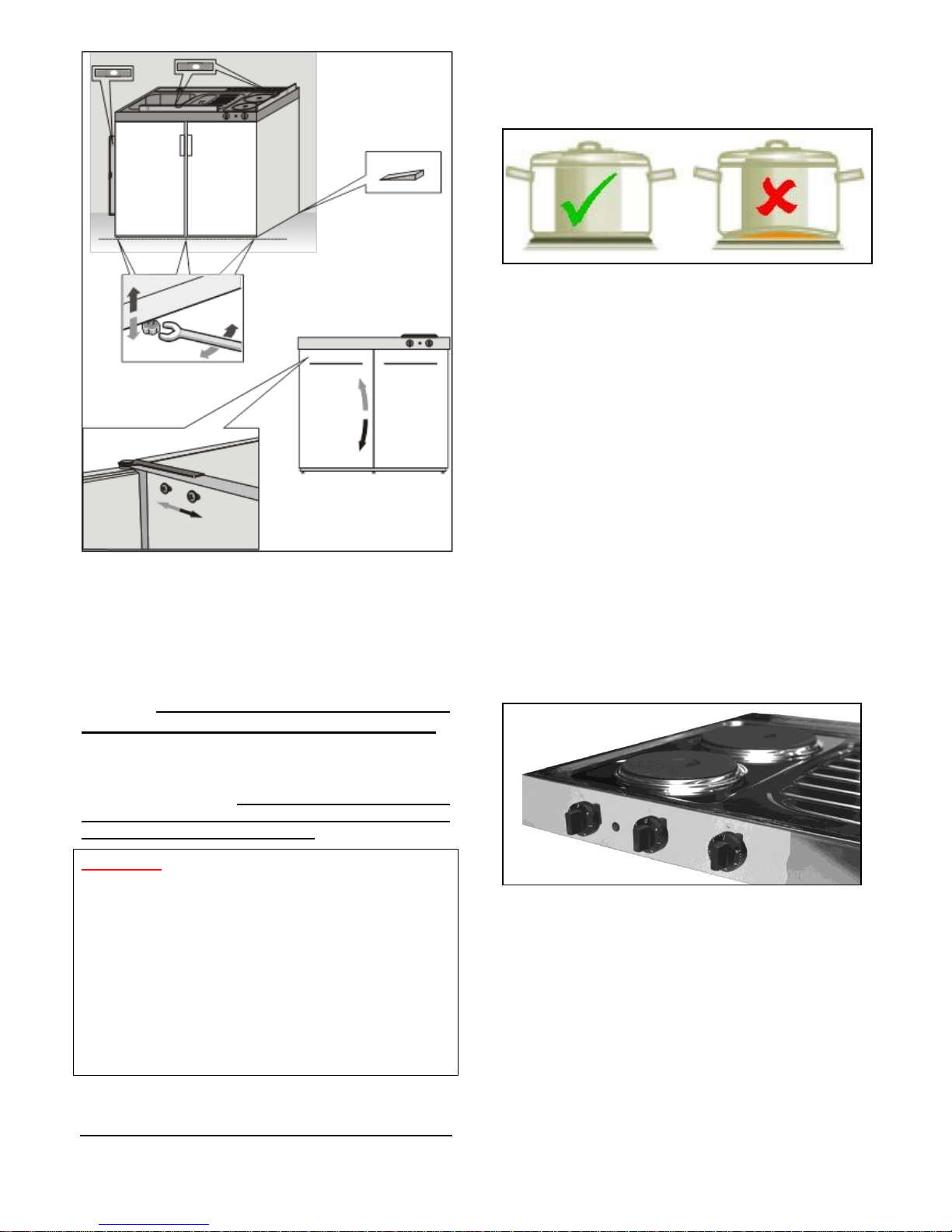

Mains Connection
Depending on the kitchen purchased your kitchen will
have 1,2, 3 or 4 x 10amp plugs fitted to the individual
appliances (with the exception of the Fov kitchen) .
Please consult a qualified electrician regarding the
installation of the sockets to feed the kitchen and refer to
the first fix guide regarding the electrical loadings and
positions.
Any installation and repairs must
be carried out by a qualified trades person.
Water Supply and Drainage
Your kitchen is supplied with a waste kit and tap (except
for the contract range)
please ensure these are fitted
and secured correctly by a competent trades person
to ensure a watertight installation
.
Hotplates
Before your first use of hotplates, the rings must be
tempered. For this you must peform the following;
First the rear hob must be switched on at the
highest level without a pot for at least 4 minutes (the
front plate must remain off). After this time, wait at
least 5 minutes. Then switch on the front hotplate to
the highest level without a pot for at least 4 minutes
(the rear plate remains off). Thereafter, the operation
of burners is generally prohibited without pot.
Use only vessels with a flat bottom and a plate for
each appropriate diameter
.
Timer – if fitted
As an additional safety device for safe cut-off of rings,
the mini kitchen has a mechanical timer with a max.
running time of 30 minutes. After the set time 0 to 30
minutes, the power is interrupted to the burners. If longer
cooking is required, the timer must be re-set again to the
maximum adjustable 30 minutes.
The hotplates are controlled according to a switch with
seven switch positions (6 circuit stages and a 0position). On the knobs you will find the numbers
0-1-2-3.
0 = Off
1 = Low
2 = Medium
3 = High
The dots indicate three additional intermediate/half
stages. These intermediates can be selected if the
higher level is too high or the lower level of heat output
is too small.
At 0-position the hob is switched off. The indicator light
is lit while at least one of the two rings is in operation.
The cooking plates can still be hot (residual heat)
despite extinguished pilot light.
O) = for rear hob
o) = switch for the front hob
For parboiling set the timer to the desired cooking time
and then turn the switch at level 3 Then switch according
to need one or several levels lower. In almost all cooking
and frying operationsthe hotplates can be turned off 5-10
minutes prior due to the residual heat of the hotplate. So
switch to "0" and select the cooking time with the timer
correspondingly shorter. If the cooking time exceeds the
maximum adjustable 30 minutes, the timer this must be
reset.
Page 5
Cleaning and Maintenance
In everyday use, only dry pots should be used. Pans with lids should always be used, this will reduce excess cleaning.
When the stove has boiled over and when the hotplates have cooled hot plates should be washed. Do not scrape off food
particles with abrasive utensils or cleaning cloths.
A damp cloth is sufficient for normal cleaning. Heavily soiled hotplates should be cleaned with cleaning agents from the
supermarket.
After cleaning, buff with a dry cloth. After cleaning a small amount of oil on a dry cloth can be applied from time to time for
a shiny surface.
:

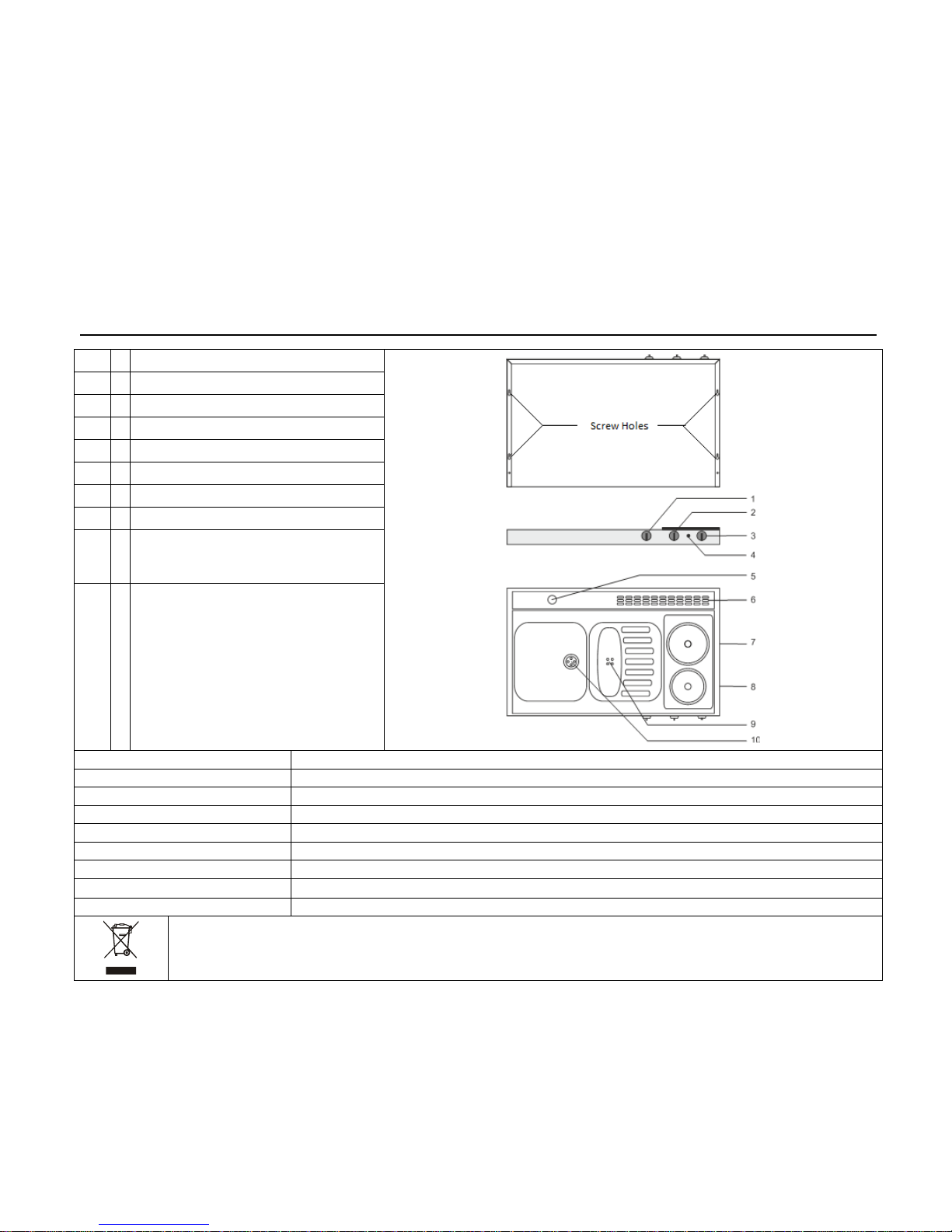

Glass ceramic cooking field description
1 Timer switch
2 Switch for Lightning hob 145 mm
3 Switch for hob 180 mm
4 Warning lamp
5 Drilled holes for water manifold
6 Ventilation slots
7 Hob 180 mm
8 Flash hob 145 mm
9 Residual basin
(not for pantry 900 mm)
10 Sink
Name
STP
Total power
2200W solid hotplate
Nominal voltage
230V AC
Connection
Cable HO5W-F 3 G 1.5
Regulation
Energy regulator, adjustable
Hot Plates
ø 140 mm with 1000 w, ø 180 mm with 1200W power
Operating control lamp
Display whether device is switched on
Certified according to VDE and CE
GS certificate No. 57 41 077
Old equipment recycling
Devices are ear registered WEEE-Reg.-Nr. EF1120WQ
This equipment complies with the European low voltage directives 2006/95/EC to the electrical safety, the European directives
89/336/EEC on electromagnetic compatibility and to the CE marking directives 93/68/EEC.
Page 6
Operational Issues
The hot plates are not hot.
Is the timer turned on?
Is the rotary switch turned on.
Is the mini kitchen connected correctly? (2 Plugs, one for the hot plates and one for the fridge).
Check fuses in the fuse box.
Check the voltage to the power outlet.
If no cause is found beyond these measures, please contact your installer.
Service
Services and spare parts can be obtained from Elfin Kitchens NZ Limited
Always give the model no. on contact with the service workshop.
Please retain your recipt for this purpose
Product name:
......................................................
Electrical Connections
230 V 50 Hz, 10A
Hot plates
ø 145 mm; Power 1000 W
ø 180 mm; 1200 W output
Power: 1000-2200 W
Radiation heaters
Ceramic hob
ø 140 mm; Power 1200 W
ø 180 mm; output 1800 W
Power: 1200-3000 W
Operation cook top
Switch with 7 positions of the switch
Dimensions kitchen sink
Height: 70 mm
Depth: 600 mm
Width: 900-1500 mm depending on model
Base cabinet
1 Sheet metal cabinet
Refrigerator
Net volume: 120 L ** power 110 W (compressor)
Coolant: R600a
Energy consumption 0.64 kWh in 24 h
Dimensions fridge
Height: 820 mm
Depth: 575 mm
Width: 495 mm

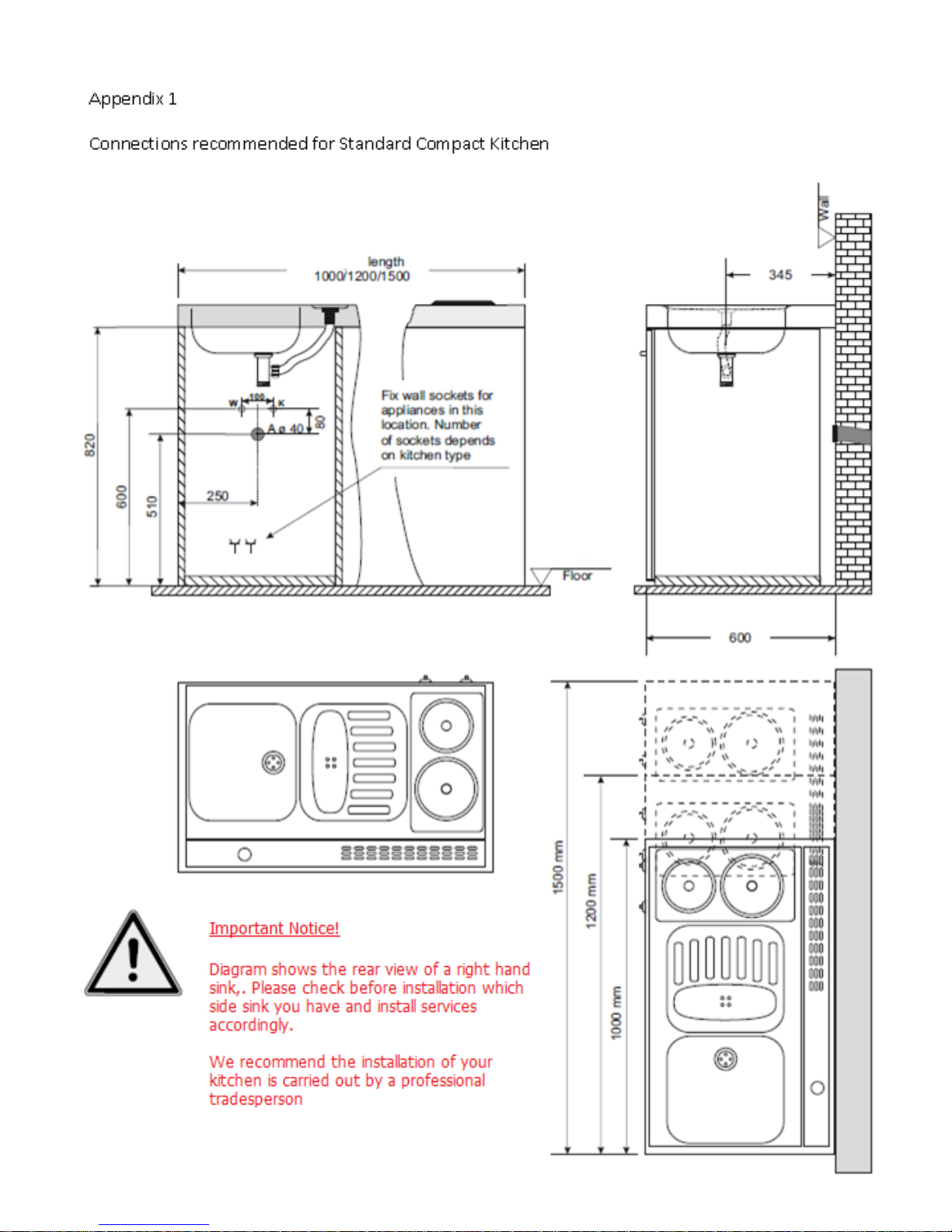

Page 7

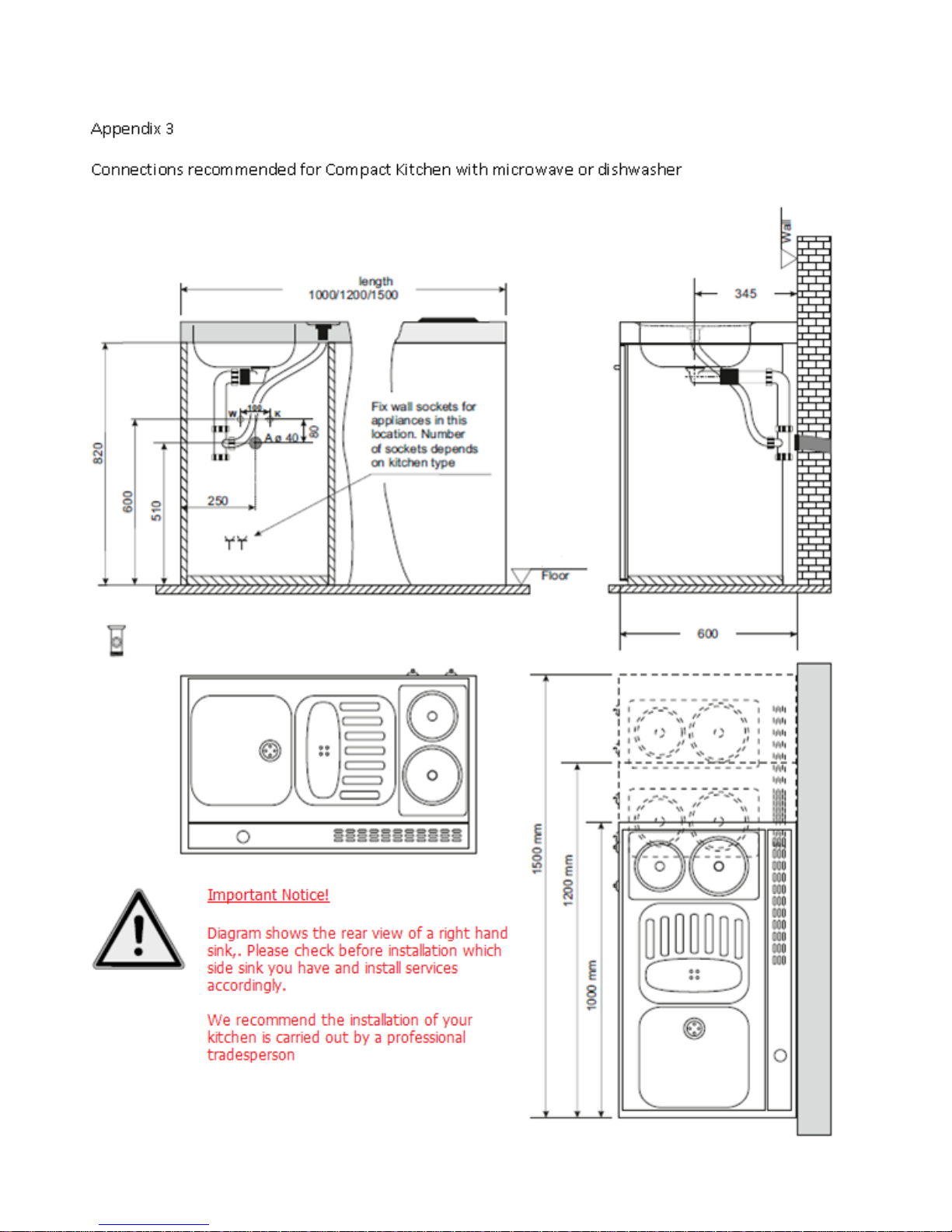

Page 8
Page 9
Your Elfin Kitchen Guarantee
We are pleased that you have purchased an Elfin Kitchen. Due to strict control of production we are sure your kitchen will
provide a long reliable service. Elfin Kitchens NZ Limited does however guarantee your kitchen against the following failures for a period of two years from date of purchase.
Corrosion in base unit
Fridge failure
Hotplate failure
Tap failure
If you purchased a unit housing either a combination microwave oven, microwave or convection oven these appliances
are guaranteed by the manufacturer and the certificate must be completed and sent to the address on the documentation
found within the appliance.
If you experience problems with the fridge within its second year of service this too is covered by the manufacturer and
you will need to contact Elfin Kitchens NZ Ltd on 09 573 1444. In the event of the fridge not being able to be repaired and
it is reported as a genuine failure Elfin Kitchens NZ Limited will provide a replacement fridge.
Accidental damage and general wear and tear is not covered by this guarantee. In the event of damage resulting from
misuse most items on your kitchen can be replaced. Please contact Elfin Kitchens NZ Limited for a quotation on the cost
of the damaged components.
Please retain your recipt for this purpose
We hope you enjoy your new Compact Kitchen Unit
Notes:
____________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
20 Sylvia Park Road, Mt Wellington, Auckland, New Zealand
PO Box 22705 Otahuhu, Auckland, New Zealand
Tel: 09 5731444
www.elfinkitchens.co.nz
Loading...
