Page 1
Always Connected. Always Covered.
Motion Detector
DMMS1
User Manual
Page 2
Preface
As this is the full User Manual, a working knowledge of Z-Wave automation
terminology and concepts will be assumed. If you are a basic user, please visit
www.domeha.com for instructions. This manual will provide in-depth technical
information about the Motion Detector, especially in regards to its compliance
to the Z-Wave standard (such as compatible Command Classes, Association
Group capabilities, special features, and other information) that will help you
maximize the utility of this product in your system.
Motion Detector Advanced User Manual
Preface
Page 2
Page 3
Table of Contents
Preface ................................................................................................................................. 2
Description & Features ..................................................................................................... 4
Specifications ..................................................................................................................... 5
Physical Characteristics ................................................................................................... 6
Inclusion & Exclusion ........................................................................................................ 7
Factory Reset & Misc. Functions ..................................................................................... 8
Physical Installation .......................................................................................................... 9
LED Behavior .................................................................................................................... 11
Button Behavior ............................................................................................................... 12
Compatible Command Classes ..................................................................................... 13
“Configuration” Command Class Parameters ............................................................ 16
Troubleshooting .............................................................................................................. 19
Warranty & Support ........................................................................................................ 20
Motion Detector Advanced User Manual
Table of Contents
Page 3
Page 4
Description & Features
The Dome Motion Detector is a Z-Wave Plus device that monitors areas for
movement. It does this using a sensor which detects changes in infrared light.
Similar to how lightbulbs “glow” in the “visible” light spectrum, humans and oth-
er mammals “glow” in the “infrared” light spectrum, so it is easy to detect this
type of movement. The Motion Detector can either be wall mounted or placed
on any flat horizontal surface. The MOUNT uses a spherical magnet to hold the
SENSOR, so it can point in any direction. The Motion Detector also monitors
ambient light levels and reports the data to your Z-Wave Hub.
Key Features:
» Z-Wave Plus Certified
» Ambient Light Sensor
» FlexibleMounting Options
» 110o Extra-Wide Coverage Area
» Up to 150’ wireless range, depending on environment
» Three-Year Battery Life
» Low Battery Indication
Motion Detector Advanced User Manual
Description & Features
Page 4
Page 5
2x Wall Anchors
Thank you for purchasing the DOME
Motion Detector, which works with your Z-Wave
Certi ed Controller to monitor areas of your
home for movement and ambient light levels.
Figure 1 - Motion Detector Front
Including/Connecting into the Z-Wave Network:
Follow the instructions for your Z-Wave certi ed
Controller to enter inclusion mode.
When prompted by the Controller:
1. For proper inclusion, bring the
Motion Detector to within 10 feet of your
Controller. After inclusion, the device can be
moved to any desired location.
2. Remove the cover of the Motion Detector by
twisting it apart.
3. Remove the Battery Tab.
4. Press the Connect Button quickly 3 times in
a row.
The LED Indicator will ash ve times indicating
inclusion.
SENSOR LENS &
LED Indicator
CONNECT BUTTON
A. B. C.
SCREW HOLES
BATTERY COMPARTMENT
Figure 3 - Parts of the A. Sensor from the Front, B. Sensor from the
Rear, and C. MOUNT (WALL MOUNT)
Resetting the Motion Detector to Factory Settings:
To disconnect from the Z-Wave Network and
restore factory default settings:
1. Remove the Cover and make sure the
Motion Detector is powered.
2. Hold the Connect Button for 10 seconds until
the LED Indicator blinks once, then release
the button.
Only do this if the controller is disconnected or otherwise unreach-
able!
Excluding/Disconnecting from the Z-Wave Network
Follow the instructions for your Z-Wave certi ed Controller
to enter exclusion mode. When prompted by the Controller:
1. Remove the Cover and make sure the Motion Detector
is powered.
2. Press the Connect Button quickly 3 times in a row.
The LED Indicator will ash ve times indicating exclusion/
disconnection.
How to Use—Table Top:
You can use the facets on the
Sensor Body to properly
angle the Motion Detector on a table top or bookshelf to
monitor a room.
1. Remove the Magnetic Cradle and store it for later use
if needed.
2. Make sure your device is powered on and that there
is enough Z-Wave coverage in your installation
location.
3. Follow Figure 4 and place the
Sensor Body on a at
horizontal surface with an unobstructed view of the
area you wish to monitor.
110.00°
110
o
Figure 2 - Using the Motion Detector on a Table Top
Motion Detector
Specications
Technical Specications
Radio protocol
Power supply
Max Current
Power Consumption
Radio frequency
Z-Wave Range
Dimensions (L x W x H)
Table 1 - Technical Specications
Z-Wave Plus (500 series)
Single CR123A 3.0V battery
35mA
0.15W
908.4 MHz US
Up to 150’ depending on environment
SENSOR—1.75” Sphere
Package Contents:
User Manual SENSOR MOUNT 2x ScrewsBattery
Motion Detector Advanced User Manual
Specications
Page 5
Page 6
SENSOR LENS/LED INDICATOR
A. B. C.
Physical Characteristics
The names used in Figures 1 & 2 will be used throughout this manual. Please
refer to this page as needed.
MOUNT (WALL MOUNT)
MOUNT (MAGNET)
BATTERY
BATTERY TAB
SENSOR COVER
SENSOR BASE
Figure 1 - Motion Detector Exploded View
BUTTON
Figure 2 - Parts of the A. SENSOR BASE Front, B. SENSOR BASE Rear, and C.
MOUNT (WALL MOUNT)
BATTERY COMPARTMENT
SCREW HOLES
Motion Detector Advanced User Manual
Physical Characteristics
Page 6
Page 7
Inclusion & Exclusion
Inclusion
Follow the instructions for your Z-Wave Certified Conto enter inclusion mode.
When prompted by the controller:
1. The Motion Sensor should be within 10’ of your Z-Wave controller for the
inclusion process. After successful pairing, the device can be brought to
the desired location.
2. Remove the SENSOR COVER by twisting it counterclockwise.
3. Remove the BATTERY TAB.
4. Press the BUTTON quickly 3 times in a row.
The LED INDICATOR will flash five times indicating inclusion
Exclusion
Follow the instructions for your Z-Wave Certified Conto enter exclusion mode.
When prompted by the controller:
1. Remove the SENSOR COVER.
2. Press the BUTTON quickly 3 times in a row.
The LED INDICATOR will flash five times indicating exclusion/disconnection.
Motion Detector Advanced User Manual
Inclusion & Exclusion
Page 7
Page 8
Factory Reset & Misc. Functions
Resetting the Motion Detector
If needed, the Motion Detector can be reset locally by following these steps.
Only do this when your Z-Wave controller is disconnected or otherwise unreach-
able. Beware that resetting your device will disconnect it from the system:
1. Remove the SENSOR COVER and confirm that your Motion Detector is
powered up.
2. Press and hold the BUTTON for at least 10 seconds then release. A flash-
ing LED INDICATOR indicates a successful factory reset.
3. The Motion Detector’s memory will be erased to factory settings.
Waking Up The Motion Detector
Because the Motion Detector is a battery powered device, it wakes up on reg-
ular intervals to give battery and other status updates to the controller, as well
as to accept configuration settings from the controller. This helps to extend
the battery life. The device can be forced to wake up to submit these reports
or accept new settings immediately by simply pressing and holding the BUTTON
for two seconds. The LED INDICATOR will flash once indicating successful wake
up.
Motion Detector Advanced User Manual
Factory Reset & Misc. Functions
Page 8
Page 9
Physical Installation
How to Use—Tabletop
You can use the facets on the Sensor Body to properly angle the Motion Sensor
on a table top or bookshelf to monitor a room.
1. Remove the Magnetic Cradle and store it for later use if needed.
2. Make sure your device is powered on and that there is enough Z-Wave
coverage in your installation location.
3. Follow Figure 3 and place the Sensor Body on a flat horizontal surface
with an unobstructed view of the area you wish to monitor.
110.00°

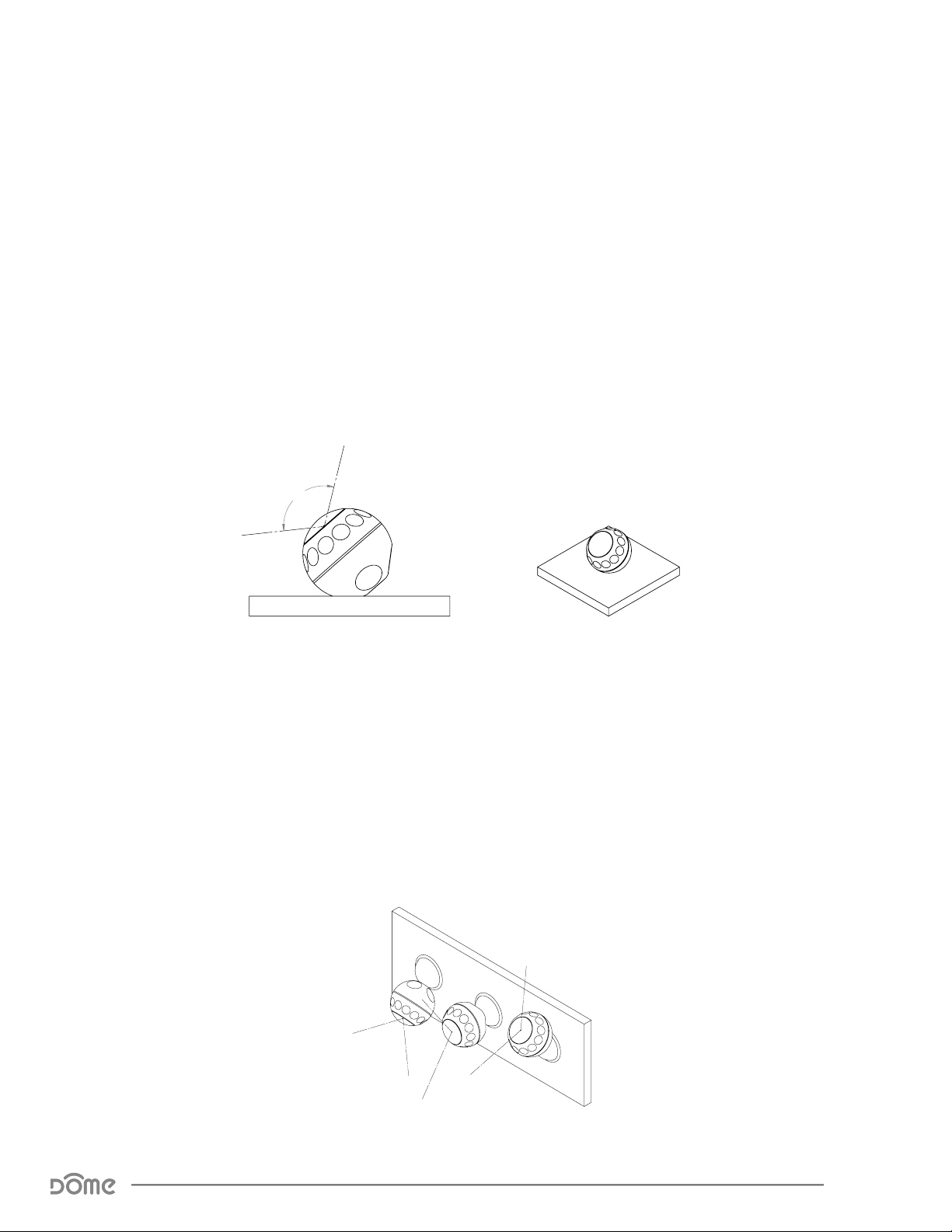

Figure 3 - Using the Motion Detector on a tabletop
How to Use—Wall Mount
You can mount the Motion Detector on any wall with a central line-of-sight per-
spective of the area you wish to monitor. See Figure 4 to visualize the Motion
Sensor’s coverage area and its optimal positioning. It is best to mount the
Motion Detector as high as possible to avoid limiting its effective range with
obstacles like tables and chairs.
Figure 4 - Motion Detector Wall Mount Congurations
Motion Detector Advanced User Manual
Physical Installation
Page 9
Page 10
Installation—With Double-Stick Tape
1. Find a good location (Fig 4) with adequate Z-Wave coverage to mount your
Motion Sensor.
2. Wipe your wall clean of any dirt and grease.
3. Peel-and-stick the MOUNT to your wall using the included double-stick
tape.
4. Place the SENSOR on the MOUNT (MAGNET) at an angle to properly mon-
itor your room, and the magnet will hold the SENSOR in place.
Installation—With Screws
1. Find a good location (Fig 4) with adequate Z-Wave coverage to mount your
Motion Detector.
2. Twist the MOUNT counterclockwise to separate the MOUNT (MAGNET)
from the MOUNT (WALL MOUNT).
3. Hold the MOUNT (WALL MOUNT) to your wall and drive the included screws
through the SCREW HOLES.
4. Reattach the MOUNT (MAGNET) to the MOUNT (WALL MOUNT).
5. Place the SENSOR on the MOUNT (MAGNET) at an angle to properly mon-
itor your room, and the magnet will hold the SENSOR in place.
Motion Detector Advanced User Manual
Physical Installation
Page 10
Page 11
LED Behavior
Color Behavior This happens when…
Red
Blink 5 times in 5 seconds
(slow)
Blink 5 times in 2.5
seconds (medium)
Blink 5 times in 1.5
seconds (fast)
Stay on for 2+ seconds
straight
Blinks once
Table 2 - LED Blinking Behavior
…the Motion Detector was just powered on, but is
not yet included in a system.
…the BUTTON is pressed 3 times quickly
(regardless of inclusion status.)
…the Motion Detector is powered on, and already
included in a system.
…the BUTTON is pressed and held for 10+ seconds,
resetting Motion Detector to factory settings.
…the SENSOR detects motion OR the BUTTON is
pushed once.
Motion Detector Advanced User Manual
LED Behavior
Page 11
Page 12
Button Behavior
Action Condition Result
Press and hold
BUTTON for 2 sec-
onds
Push BUTTON 3
Times
Press and hold
BUTTON for 10+
seconds
Motion Detector Already
Included in System
Motion Detector Already
Included in System
Motion Detector Already
Included, and Controller is
in Exclusion Mode
Motion Detector Not Yet
Included in System, and
Controller is in Inclusion
Mode
Motion Detector Already
Included in System
Device sends a wake up notication to its
controller, awaits further instructions, and blinks
the LED Indicator once
Device sends node info to Group 1
Device is excluded from the system and removes
the Home ID from its memory
Device enters inclusion mode
Device will be reset to factory settings, and a
DEVICE_RESET_LOCALLY command will be sent to
Node 1
Press and Hold for
10+ seconds
Motion Detector Advanced User Manual
Button Behavior
Any condition (as long as
the device has power)
The device’s memory will erase to factory default
settings and any associations, conguration param-
eters, and other locally saved data will be lost
Table 3 - Button Behavior
Page 12
Page 13
Compatible Command Classes
Command Class Notes
Device Reset Locally V1 (5A) -
Powerlevel V1 (73) -
Association Group Information V1 (59) -
Battery V1(80) -
Returned Value: 01 06 00 0C 07 0C 07
Z-Wave Plus Version: 01
Z-Wave Plus Info V2 (5E)
Role Type: 06
Node Type: 00
Installer Icon Type: 0C 07
User Icon Type: 0C 07
(Slave Sleeping Reporting)
(Z-Wave Plus Node)
(Home Security Alarm)
(Home Security Alarm)
Version V2 (86)
Manufacturer Specic V2 (72)
Multilevel Sensor (31)
Returned Value: 03 04 05 03 50 42 00
Z-Wave Library Type: 03
Protocol Version: 04 05
Protocol Sub-Version: 03 50
Application Version: 42
Application Sub-Version: 00
Manufacturer ID: 02 1F
Product Type: 03
Product ID: 00 83
The Motion Detector monitors ambient light levels and reports this data
to the main controller using the Multilevel Sensor command class. The
light is measured everytime motion is detected and periodically (every
180 s by default; see Parameter 07.) Each time the device wakes up or
checks the light level, the Param 7 clock is reset. A report is sent only if
the light is at least 100 Lux more intense than the last reported value.
Sensor Type: 03
Precision/Scale/Size: 0A
Sensor Data: 00 00 ~ FF FF
(Luminance)
(Enhanced Slave)
Returned Value: 02 1F 03 01 06
Returned Value: 03 0A XX XX
(Precision = 000; Scale = 01; Size = 010)
(0 ~ 65,535 in Lux)
Motion Detector Advanced User Manual
Compatible Command Classes
Table 4 - Command Classes
Page 13
Page 14
Command Class Notes
Group 1
Group 1 is the “Lifeline” group, which can hold ve devices. The
Motion Detector sends this group a Notication Report and Binary Sen-
sor Report whenever motion is detected and when it stops. It also sends
a Multilevel Sensor Report incrementally based on time (see Param 7,)
or when a relative change in light level is detected (see Param 9.) Finally, the Motion Detector sends this group Battery Reports and a Device
Reset Locally notication to remove itself from the Z-Wave network.
Group 2
The Motion Detector sends a BASIC_SET command to Association Group
Association V2 (85)
2 to directly trigger devices (like a siren, chime, etc.) when motion is detected and when it stops. Optionally, the Motion Detector can be set to
only send this when ambient light levels fall below a predetermined level
(see Conguration Parameters 5 and 8.) See Conguration Parameters
2, 3, 5, and 8 for more details regarding Association Group 2.
Group 3
Group 3 supports up to 5 members and the Motion Detector sends it a
NOTIFICATION_REPORT when motion is detected and when it stops.
Group 4
Group 4 supports up to 5 members and the Motion Detector sends it a
SENSOR_BINARY_REPORT when motion is detected and when it stops.
Notication V4 (71)
Table 5 - Command Classes Continued
The Motion Detector sends a Notication Report whenever motion is
detected. If no motion is detected for the amount of time set by Conguration Parameter 2, the device will send another Notication Report to
the main controller.
Returned Value: 00 00 00 FF 07 XX 00 00
V1 Alarm Type: 00
V1 Alarm Level: 00
Reserved: 00
Notication Status: FF
Notication Type: 07
(Unsupported)
(Unsupported)
(Reserved)
(Unsolicited Reporting is Enabled)
(Home Security)
Event:
Motion Detected—08
No More Motion—00
(Motion Detected, Unknown Location)
(Event Inactive)
Sequence/Reserved/Event Parameters Length: 00
Notication Event Parameters: 00
(No Event Parameters)
Motion Detector Advanced User Manual
Compatible Command Classes
Page 14
Page 15
Command Class Notes
by default. The wake-up interval can be set to any value from 300s (5
The Motion Detector also sends a Binary Sensor Report when motion
is detected or cleared. See below for the Binary Sensor Report
Binary Sensor (30)
parameters sent:
Sensor Type: 0C
Motion Detected: FF
No More Motion: 00
The wake-up interval is set in seconds, and is 43,200 seconds (12 hours)
(Motion)
Wake Up V2 (84)
Conguration V1 (70)
Table 6 - Command Classes Continued
minutes) to 16,777,200s (about 190 days) in 60-second increments.
See ““Conguration” Command Class Parameters” on page 16.
Motion Detector Advanced User Manual
Compatible Command Classes
Page 15
Page 16
“Conguration” Command Class Parameters
Configuration parameters are sent using a standard syntax to ensure interoperability between all manufacturers’ products. All values are represented using the
hexadecimal number system.
Typical syntax is as shown below. Note that the value sent must be the exact size,
in bytes, as accepted by the setting. The “extra” spaces should be filled with zeros
(see the “value” column below.)
Example Configuration Parameter: 02 02 00 0A
Param # Size Value
02
(Param #2)
02
(2 Bytes)
00 0A
(10)
Param
# Size Name Available Values
This parameter sets the sensitivity of the Motion Detector. It is a unitless parameter ranging in
values from 8 up to 255, with 8 being the highest sensitivity level and 255 being the lowest.
After physical installation, make sure the farthest part of the coverage area is still “visible” to the
01
02
01
This parameters sets the amount of time after a motion event before the Motion Detector reports
no activity to the main controller (see “Notication” and “Binary Sensor” command classes on page
14-15 for more information.) This also sets the amount of time before a BASIC_SET(00) command
is sent to Association Group 2 to turn off any activated devices. This value must be higher than the
value of Parameter 6, and if this parameter is reset to default settings, Parameter 6 will also be
02
Sensitivity Level
Motion Cleared Time Delay
Motion Detector by adjusting this parameter.
08 ~ FF
(8 ~ 255)
reset. See “Group 2” on page 14 for more information.
00 05 ~ 02 58
(5 ~ 600 in Seconds)
Default
Value
0C
(12)
1E
(30 sec)
This parameter sets the value sent by the BASIC_SET command to Association Group 2 (for more
03
01
Motion Detector Advanced User Manual
“Conguration” Command Class Parameters
BASIC_SET Level
information, see “Group 2” on page 14.)
00
(0/Turn Off Device)
01 ~ 63
FF
(255/Turn On Device)
Table 7 - Motion Detector Conguration Parameters
(0-99)
FF
(255/Turn
On Device)
Page 16
Page 17
Param
# Size Name Available Values
This setting enables or disables motion detection.
Default
Value
04
05
06
01
(Motion
Detection
Enabled)
01
Enable/Disable Motion Detection
00
(Motion Detection Disabled)
01
(Motion Detection Enabled)
If Parameter 8 is enabled, this setting sets the light level below which the Motion Detector will send
BASIC_SET commands to Association Group 2 when motion is detected. For more information, see
“Group 2” on page 14.
02
Group 2 Ambient Light Threshold
00 05 ~ 03 E8
(5 ~ 1,000 in Lux)
00 64
(100 Lux)
After each motion event, the Motion Detector is disabled for the amount of time set by this
parameter before it can send out another “Motion Detected” Notication Report/Binary Sensor
Report. This value must be lower than the value of Parameter 2, and if this parameter is reset to
default settings, Parameter 2 will also be reset.
01
Retrigger Interval
01 ~ 08
(1 ~ 8 in seconds)
08
(8 sec)
07
08
This parameter sets the amount of time between each successive ambient light level reading that
is sent. This value must be less than the Wakeup Interval Time (which is 43,200 seconds or 12
hours by default.)
02
Light Sensing Interval
00 3C ~ 8C A0
(60 ~ 36,000 in seconds)
00 B4
(180 sec)
If this parameter is enabled, the Motion Detector will only send Basic Set commands to Associon
Group 2 if the ambient light level is below the value set in Parameter 05. For more information, see
“Group 2” on page 14.
0
(Ambient
Light
Threshold
Disabled)
01
Enable/Disable Group 2 Ambient
Light Threshold
00
(Group 2 Ambient Light Threshold Disabled)
01
(Group 2 Ambient Light Threshold Enabled)
Table 8 - Motion Detector Conguration Parameters Continued
Motion Detector Advanced User Manual
“Conguration” Command Class Parameters
Page 17
Page 18
Param
# Size Name Available Values
This Parameter sets the minimum change in ambient light level (in lux) the Motion Detector must
detect before a Multilevel Sensor Report is sent to the main controller.
09
Default
Value
0A
01
Ambient Light Sensitivity Level
00 ~ FF
(0 ~ 255 in Lux)
64
(100 Lux)
If this parameter is enabled, the LED INDICATOR will ash everytime there motion is detected. If
this is disabled, the LED INDICATOR will not ash to indicate motion events.
00
01
Enable/Disable LED INDICATOR
(LED Disabled)
01
(LED Enabled)
01
(LED En-
abled)
Table 9 - Motion Detector Conguration Parameters Continued
Motion Detector Advanced User Manual
“Conguration” Command Class Parameters
Page 18
Page 19
Troubleshooting
:Q Help! My Motion Detector paired successfully, but my controller
can’t see it anymore after I installed it!
:A The Z-Wave signal is probably weak in that area of your home. Remember that the
120' - 150' range doesn’t take into account walls, furniture, and other obstacles.
To boost your Z-Wave network coverage, add a few non-battery powered Z-Wave
devices between the controller and the furthest device, like the Dome On/Off Plug
or Water Main Shut-Off. You can even purchase dedicated Z-Wave extenders from
3rd party manufacturers.
:Q There’s so many words in this manual I don’t understand. How can
I learn more about Z-Wave?
:A Remember you don’t have to understand everything in this manual to start
automating your home. Our Quick-Start Guides have all you need to start using
any device. For more thorough information about Z-Wave home automation, visit
www.domeha.com/support.
:Q My Motion Detector keeps sending signals when there is no move-
ment/it doesn’t respond everytime it should.
:A You most likely have to fine tune the sensitivity levels - contact your controller’s
manufacturer for further assistance. If you are still having issues, please visit
www.domeha.com/support
:Q I’ve tried multiple times, but I can’t include the Motion Detector in
my system.
:A Make sure your device is getting power. Then, follow the procedure to Factory
Reset on Page 8 and try going through the inclusion process again. If you are still
having issues, please visit www.domeha.com/support
:Q All of a sudden, my Motion Detector is offline.
:A Make sure your device is getting power. If powered, make sure you still have
Z-Wave network coverage. If you are still having issues, visit www.domeha.com/
support.
Motion Detector Advanced User Manual
Troubleshooting
Page 19
Page 20
Warranty & Support
If you have questions, our trained Customer Service Department is happy to assist you 24 hours a day, 7 days a week.
Contact Dome Customer Service as follows: • In North America
dial: 1-855-249-1754 • Email Dome at [email protected]
DO NOT RETURN THIS PRODUCT TO THE STORE OR WEBSITE
FROM WHICH IT WAS PURCHASED
If you believe the product is defective, has a missing or broken
part or are having difculty with it please contact Dome as listed above for a quick and efcient solution to the problem.
Legal Notices: This device complies with part 15 of the FCC
rules. Operation is subject to the following two conditions (1)
This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the
interference by one or more of the following measures: Reorient or relocate the receiving antenna; increase the separation
between the equipment and the receiver; connect the equipment into an outlet on a circuit different from that to which the
receiver is connected. Consult the dealer or an experienced
radio/TV technician for help.
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference
that may cause undesired operation of the device.
Elexa Consumer Products, Inc. (”ECP”) warrants to the original
retail purchaser (”Purchaser”) that the DOME Window/Door
sensor (the “Product”) will be free of defects in materials or
workmanship under use for one (1) year from the date of purchase (the “Warranty period”).
For the Purchaser only, if the Product fails to perform as speci-
ed during the Warranty Period due to defective parts or faulty
workmanship, ECP will repair or replace the defective or damaged parts of the Product. Normal wear and tear is not covered
nor is abnormal use, misuse, mishandling, faulty installation,
improper shipping, damage caused by disasters such as re,
ood or earthquake, neglect, accident or tampering. This war-
ranty covers only normal use in the United States or Canada.
To obtain warranty service during the Warranty Period, call
Dome Customer Service (1-855-249-1754) or email: support@
domeHA.com for instructions on sending damaged parts and
documentation for a Return Material Authorization (RMA).
Products returned to ECP for repair or replacement without authorization will be returned at the sender’s expense. All warranty claims must be accompanied by a legible copy of the original
receipt showing date and details of purchase. The RMA number
must be clearly written on the side of the shipping container in
which you return the Product or defective parts. Unless otherwise instructed by ECP, the Product must be sent freight prepaid to the following address:
Elexa Consumer Products, c/o Promac,
1153 Timber Dr., Elgin, IL 60123
ECP will repair or replace the defective parts and return them
at ECP’s cost by a shipping method selected by ECP. When contacting ECP to obtain an RMA, Purchaser may request expedited return shipping at Purchaser’s expense.
THIS WARRANTY IS NOT TRANSFERABLE, AND, TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW IS IN LIEU OF
ALL OTHER WARRANTIES, REPRESENTATIONS AND CONDITIONS, EXPRESSED OR IMPLIED, STATUTORY OR OTHERWISE,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
NO OTHER PERSON OR REPRESENTATIVE IS AUTHORIZED TO
MAKE ANY OTHER WARRANTY ON BEHALF OF ECP OR ASSUME
FOR ECP ANY OTHER LIABILITY IN CONNECTION WITH THE SALE
OF THIS PRODUCT. IN NO EVENT WILL ECP BE LIABLE FOR ANY
DAMAGES, INCLUDING BUT NOT LIMITED TO INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE
OR INABILITY TO USE THE PRODUCT, INCLUDING DAMAGES
DUE TO ECP’S NEGLIGENCE.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU
MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO
STATE AND COUNTRY TO COUNTRY.
This marking on the product, accessories or literature indicates
that the product and its electronic accessories should not be
disposed of with other household waste.
To prevent possible harm to the environment or human health
from uncontrolled waste disposal, please separate these items
from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their government ofce, for details
of where and how they can take these items for
environmentally safe recycling.
Business users should contact their supplier and check the
terms and conditions of the purchase contract. This product
and its electronic accessories should not be mixed with
other wastes for disposal.
This marking on the battery, manual or packaging indicates
that the batteries in this product should not be disposed of with
other household waste. Where marked, the chemical symbols
Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.
If batteries are not properly disposed of, these substances can
cause harm to human health or the environment.
Motion Detector Advanced User Manual
Warranty & Support
Page 20
Loading...
