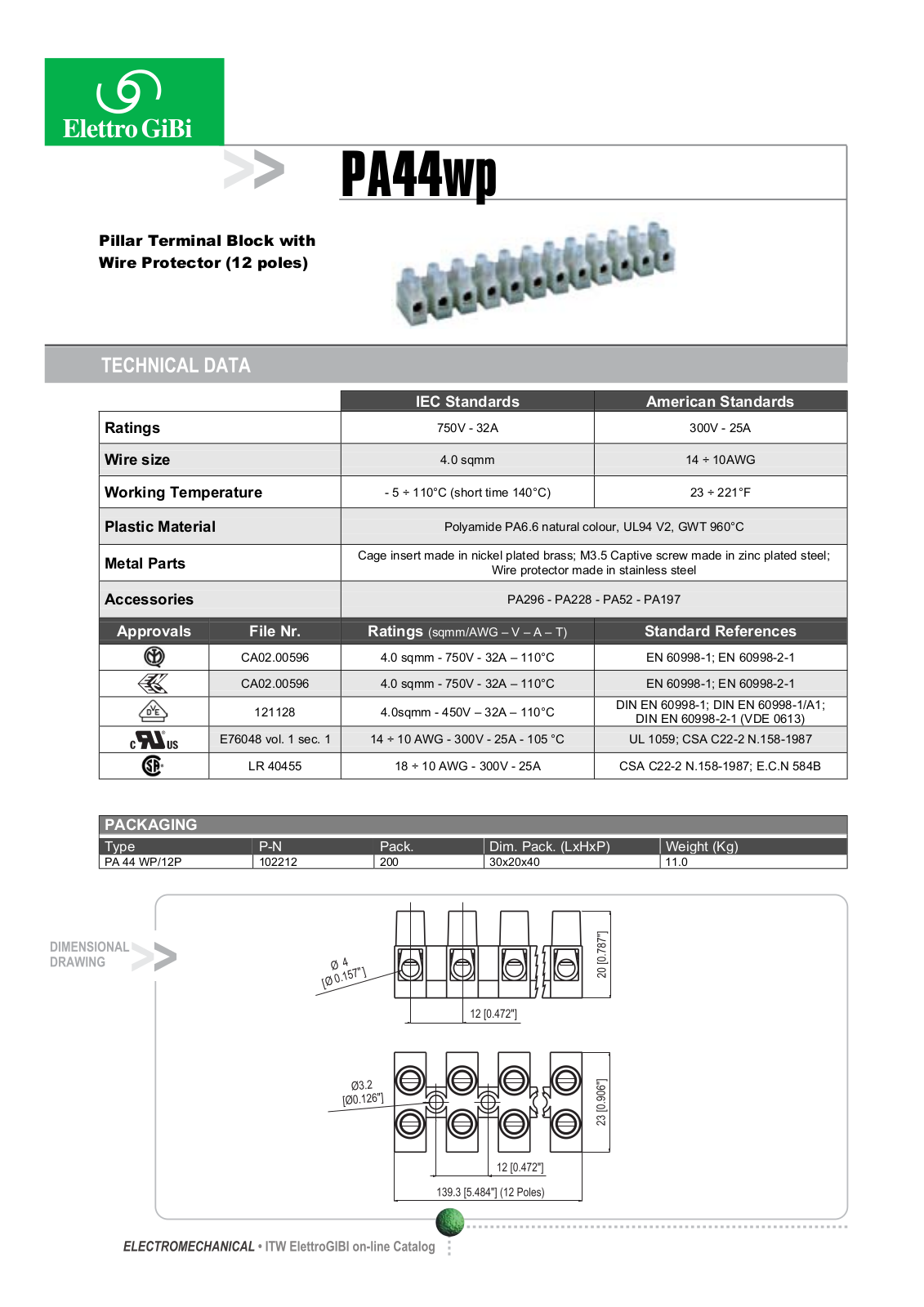

elettro gibi PA44wp User Manual

Pillar Terminal Block with
Wire Protector (12 poles)

Ratings

PA44wp

IEC Standards American Standards

750V - 32A 300V - 25A

Wire size

Working Temperature

Plastic Material

Metal Parts

Accessories

- 5 ÷ 110°C (short time 140°C) 23 ÷ 221°F

Cage insert made in nickel plated brass; M3.5 Captive screw made in zinc plated steel;

4.0 sqmm 14 ÷ 10AWG

Polyamide PA6.6 natural colour, UL94 V2, GWT 960°C

Wire protector made in stainless steel

PA296 - PA228 - PA52 - PA197

Approvals File Nr. Ratings (sqmm/AWG – V – A – T) Standard References

CA02.00596 4.0 sqmm - 750V - 32A – 110°C EN 60998-1; EN 60998-2-1

CA02.00596 4.0 sqmm - 750V - 32A – 110°C EN 60998-1; EN 60998-2-1

121128 4.0sqmm - 450V – 32A – 110°C

E76048 vol. 1 sec. 1 14 ÷ 10 AWG - 300V - 25A - 105 °C UL 1059; CSA C22-2 N.158-1987

LR 40455 18 ÷ 10 AWG - 300V - 25A CSA C22-2 N.158-1987; E.C.N 584B

DIN EN 60998-1; DIN EN 60998-1/A1;

DIN EN 60998-2-1 (VDE 0613)

PACKAGING

Type P-N Pack. Dim. Pack. (LxHxP) Weight (Kg)

PA 44 WP/12P 102212 200 30x20x40 11.0
