LDMOS - UHF TV AMPLIFIER

AUTV/1500LD

Users manual

51

This page is intentionally blank

52

_______________________________________________________________________________________________

Section 1 - Information

Contents:

1.1 Description

1.2 Technical characteristics

53

1.1 DESCRIPTION

The AUTV/1500LD is an amplifier operating into Band IV-V for common amplification process of the Vision
and Sound carriers.
The amplifier has been designed to offer to the customer high performances, high reliability and greater
simplicity in his operation and maintenance procedures.
The amplifiers modules employ all solid state LDMOS technology in order to obtain high gain, wide­band performances, very good linearity, reliability and high efficiency.
The equipment design allows the soft degradation (RF power loss) for several transistor faulty: in fact the
output combiner uses RF power resistors for unbalancing power dissipation. The unit is enclosed in a cabinet
for 19- 6U rackmounting.

AUTV/1500LD

LDMOS - UHF TV AMPLIFIER

54

1.2 TECHNICAL CHARACTERISTICS

RF

Frequency range 470 - 860MHz
Output power 1300W PEP
Video/Sound power ratio 10/1
Out stage technology Solid State LDMOS
Vision-Sound amplification Common
I.M.D. (-8, -10, -16dB) Better than -54dB
Standards G, K, N
Spurious and harmonics level In compliance with CCIR rec.
RF Output impedance 50W
RF Output connector 7/16

GENERAL

Power supply 230Vac, ±10%, 50/60Hz

400Vac 3P+N (on request)
Power consumption 3400VA at black level
RS232 Socket DB9 Connector (on front panel)
RS485 Socket DB9 Connector (on rear panel)
Telemeasuring socket DB9 Connector (on rear panel)
AGC Socket DB9 Connector (on rear panel)
Power factor > = 0.9
Ambient temperature -5° to +45°C
Relative humidity 20% - 90%
Altitude Up to 2.500 meters
Cooling Forced air
Cabinet Rack 19-6U
Dimensions 760x263x266mm
Wei ght 70kg

PROTECTION THR.

FWD Power 1500W
REF Power 150W
Unbalacing 350W
Temperature 75°C
I

DC

25A
V

DC

Min 10V - Max 33,5V

55

This page is intentionally blank

56

_______________________________________________________________________________________________

Section 2 - Installation

Contents:

2.1 Operating environment

2.2 Preliminary operations

2.3 Telemeasuring socket connections

2.4 RS232, RS485 and AGC socket connections

2.5 Preventive maintenance

- Front panel

- Rear panel

57

2.1 OPERATING ENVIRONMENT

You can install the apparatus in a standard component rack or on a suitable surface such as a bench or desk.
In any case, the area should be as clean and well-ventilated as possible. Always allow for at least 2 cm of
clearance under the unit for ventilation. If you set the apparatus on a flat surface, install spacers on the bottom
cover plate. If you install the apparatus in a rack, provide adequate clearance above and below. Do not locate
the apparatus directly above a hot piece of equipment.

2.2 PRELIMINARY OPERATIONS

Correct installation of the equipment is important for maximum performance and reliability. Antenna and earth
connections must be installed with the greatest care. The equipment adjustment isnt need, because the unit is
completely adjusted by our technical staff. This is the installation procedure:

1. connect the power supply cable of the exciter to the auxiliary socket on the rear panel of the amplifier;

2. connect the power supply cable of the amplifier to the electric network (230VAC). If there is the Isolator
Transformer, the amplifier is provided with cable and plug;

3. connect the exciter / antenna cables respectively to the RF IN and RF OUT on the rear panel of the
amplifier.

WARNING!!!

FOR ELECTRICAL SAFETY REASONS AND IN ORDER TO KEEP
THE APPARATUS SAFE, THE GROUND TERMINAL OF THE
APPARATUS MUST BE CONNECTED TO THE EXISTING GROUND­ING SYSTEM AND NOT BY USING THE SHIELD OF THE OUTPUT
COAXIAL CABLE.

13

2

Three-Phase cabling

Monophase cabling

58

When the apparatus is put within a combined system it is directly connected to the input splitting and output
combining systems.

Before fully powering the apparatus, check that the output connections of the coaxial cable to the antenna
system are working.
In order to this it is possible to check the indication of the reflected power at low power levels. Only if the
SWR indication on the display is 0, the output power can be slowly increased. At maximum output power,
some watts might be shown as reflected power.

2.3 TELEMEASURING SOCKET CONNECTIONS

DB9 Socket

2.4 RS232, RS485 AND AGC SOCKET CONNECTIONS

PIN N° SIGNAL TYPE IN / OUT FUNCTION

1 Analog Output FWD P ower

2 A nalog Output REF Po wer

3 Digital Output Temperature

4 Digital Input Interlock

5GND - -

6 - 7 Digital Output Free contact (closed when alarm)

8 Digital Input

0V = ON
5V = Normal

9 Digital Input

0V = OFF
5V = Normal

PIN

123456789

FUNCTIONS

-TxDRxD-GND----

RS232 - DB9 Socket

PIN

123456789

FUNCTIONS

-Rx-Rx+5VGND-Tx-Tx+-

RS485 - DB9 Socket

59

AGC - DB9 Socket

PIN N° SIGNAL TYPE IN / OUT FUNCTION

1GND - -

2 Digital Output

0V = Normal
5V = AGC Alarm

3 Digital Output

0V = Normal
5V = AGC Alarm

8 Ana log Output FWD Power

9 Ana log Output FWD Power

2.5 PREVENTIVE MAINTENANCE

To ensure maximum performance and minimum repair trouble, we strongly recommend you to follow the
below stated headlines for preventive maintenance:

1. check antenna installation and ground connection at regular intervals;

2. keep your apparatus clean and dry externally: this will ensure continuous functioning of the front panel
controls;

3. if the apparatus has not been used for a long period of time combined with exposure to extreme environ­mental conditions, open the unit and make a visual inspection.
Remove salt, water or ice with a moist cloth before turning the apparatus on. Check that the cooling fans are
running freely.

4. for general maintenance and top performance, call an authorized service technician to give the apparatus
and the complete antenna/earth connection installation a general check every 12-18 months;

5. check at regular intervals that the air intake located on the front panel is free of dust. If there is visible dust,
remove it by means of a soft brush.

60

Front panel

1

2

3

4

5

6

DESCRIPTION

1 LCD Display

2 Function keys

3Status LEDs

4 RF Monitor connector

5 Main switch

6 RS232 Socket

61

Rear panel

1

2

3

4

5

6

9

8

7

DESCRIPTION

1 Breaker

2 Power supply socket

3 Auxiliary socket

4Fuse

5 RS485 Socket

6AGC Socket

7 Telemeasure socket

8 RF Input connector

9 RF Output connector

62

_______________________________________________________________________________________________

Section 3 - Operation

Contents:

3.1 Operation

3.2 Display

3.3 Menus

63

3.1 OPERATION

At startup, after initial image, the display shows the main screen with the RF powers as in Figure 1:

The user may turn on and off the amplifier by means of the switch on the front panel. The control board turns
on all the power supplies, the exciter (if any), and internal cooling fans. While the amplifier is working, the
micro-controller monitors continuously the most important parameters: power supply voltages, absorbed
currents, high power zone temperature, forward and reflected powers, unbalances (if any). Each measure is
associated to a maximum threshold beyond which the amplifier is immediately put in protection status by
turning off one or more power supply, depending on the failed block. In order to prevent a temporary problem
to trigger a definitive protection status, the failed block is turned on again, after some seconds, for up to five
times. If it goes beyond the protection threshold for more than five times, it is declared as FAILED and it will
no longer be turned on. In this case, the amplifier will have to be turned off manually by means of the switch on
the front panel, then turned on again after performing the needed maintenance.
On the front panel there are also three LEDs labelled ON, REMOTE and ALARM. Their meanings are
explained in Table 1.

Figure 1: Main screen

Table 1: Meanings of the three LEDs on the front panel

1

Screenshots in this manual are indicative, so they can be different from those on your equipment.

LED COLOUR MEANING MEANING WHEN BLINKING

ON Green The amplifier is on

The amplifier has been turned on

locally but it has been turned off by

remote

REMOTE Yellow

Remote control is
enabled

It neve r b l i nks

ALARM Red An alarm is present It never blinks

64

3.2 DISPLAY

The control board is provided with a modern pixels graphic display with blue background. Normally it always
shows a title bar (on the top line) and a status bar (on the bottom line).
The title bar, see Figure 2, shows the name of the amplifier (TV Amplifier) and the current time. If the amplifier
is a single unit coupled externally with other units in a high power transmitter, the title bar shows the amplifier
number (slave address) too.

Figure 2: Title bar

Figure 3: Status Bar

The status bar (Figure 3) indicates the forward and reflected powers and the temperature. It also contains two
symbols for the interlock (lock) and the alarm (bell).

The bell symbol is continuously displayed in case of alarm. It blinks if there has been an alarm which has ended
but has not yet been seen by the user. It stops blinking once the Log has been checked.
The interlock symbol is displayed only when this function is enabled. It may be either a close lock, as in Figure
3, when there is no alarm (interlock chain closed) or an open lock in case of alarm (interlock chain open).
Since the status bar is always showed on the display, regardless of the screen, the user may monitor at any
time the most important parameters and the presence of alarms while moving between different screens.

3.3 MENUS

The user may see or modify locally some configuration parameters using the four buttons on the front panel.
All screens areorganized in a hierarchical menus and the user may move between them in a simple and intuitive
way.
To see the menu its sufficient to press the ESC key (see Figure 4).

65

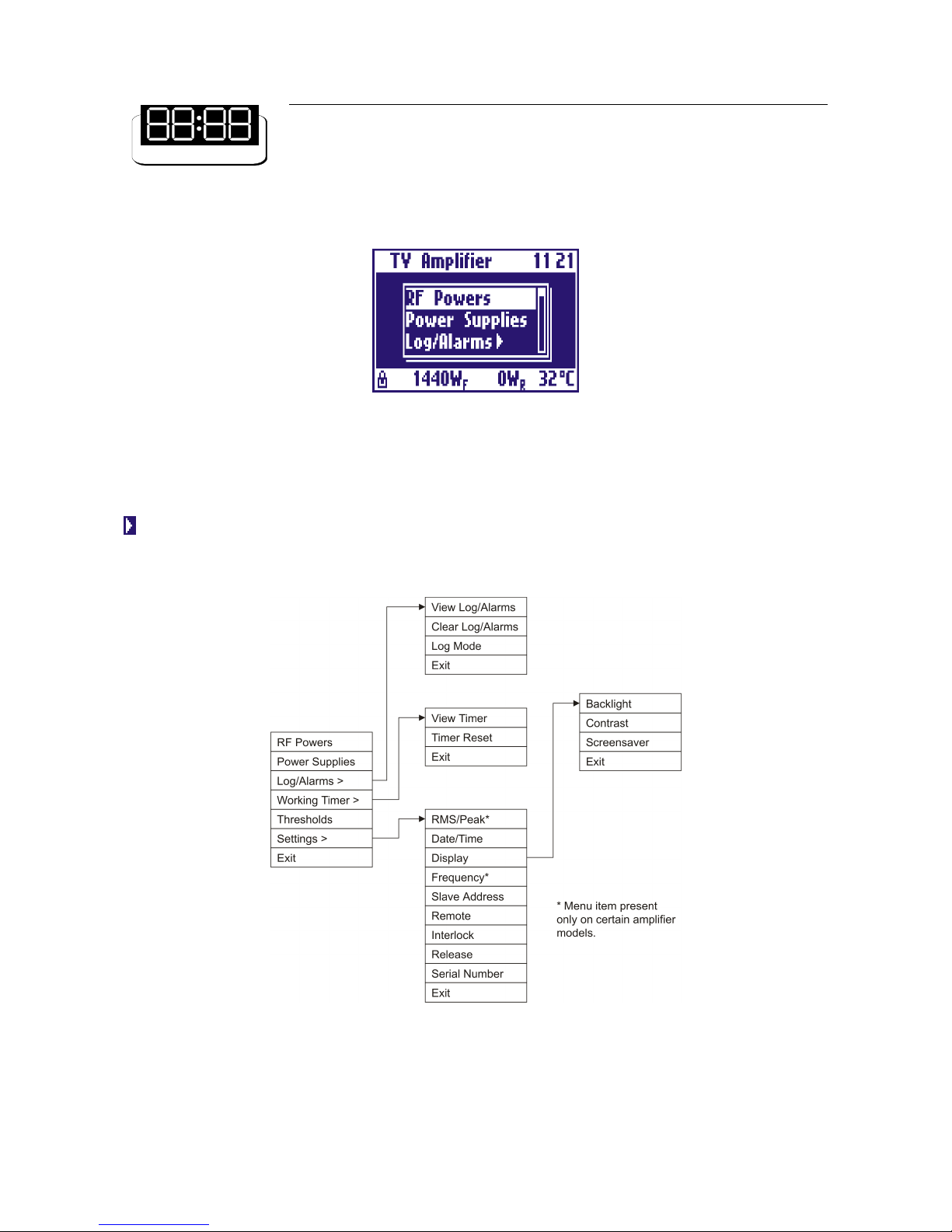

Figure 4: Main menu

The display only shows three items at a time: all the items can be scrolled by the UP and DOWN arrow keys.
Any item can be chosen by selecting it and pressing the RET key. Menu entries with an arrow on the right
open sub-menus when chosen. Thus there is a hierarchical structure as in Figure 5. To go back from a sub­menu to the previous menu, press the ESC key. If the ESC key is pressed in the main menu, the RF powers
screen is accessed.

Figure 5: Hierarchical menu structure

All menu items are described in detail below.

66

- RF Powers

This is the main screen showing the RF powers of the amplifier: forward power, reflected power, unbalances,
if any. For forward power a level bar is displayed. See an example in Figure 1.

- Power Supply

This screen shows all the signals coming from the power supply. To check the next (previous) power supply
press the UP (DOWN) key. For each power supply, the two voltages, the two absorbed currents and the
status (ON or OFF) are shown.

Figure 6: Power supply screen

- Log/Alarms

The control board is provided with an external EEPROM and a clock. Any alarm or switching event with the
time at which it occurred is saved in the EEPROM. The Log/Alarms sub-menu allows to manage this log.
It is possible to see the events stored in the log by selecting Log/Alarms View Log/Alarms. All events
can be scrolled by pressing the UP and DOWN keys. For example, the event shown in Figure 7 is the turning
on of the amplifier by means of the local switch. For every event/alarm a short description and the date and
time at which it occurred is displayed.

Figure 7: Event stored in the log

67

In case of alarm, the value of the measure which caused the alarm is saved into the log. In case of alarm still
existing after five turning-on attempts, the parameter is marked as FAILED. Table 2 is the list of all the events
which can be logged.

Table 2: Events managed and logged by the control board

The log may be completely deleted by selecting Log/Alarms Clear Log/Alarms.
Amplifier can store in the log details about alarms and generic events. You can change this behaviour selecting
Log/Alarms Log/Mode menu item.

- Working Timer

The control board has a working timer which is always enabled while the amplifier is working (i. e. there is at
least one power supply working). The menu entry Working Timer View Timer allows to check the hours
for which the timer has been enabled. Working Timer Timer Reset resets the timer.

- Thresholds

This is a screen showing the alarm threshold of each signals monitored by the control board. The list can be
scrolled by means of the UP and DOWN keys.

EVENT DESCRIPTION

Local ON Amplifier turned on by means of the local switch

Local OFF Amplifier turned off by means of the local switch

Remote ON Amplifier turned on remotely

Remote OFF Amplifier turned off remotely

Interlock open Interlock chain open

Interlock closed Interlock chain closed

Power Supply ON Power supply on

Fwd Pwr xxxxW Alarm for forward power

Ref P wr xxxxW Alarm for re flected power

UnbY xxxxW Unbala ncing a la rm

Pwr Sup x: V1 xx.xV Power supply voltage alarm

I1 xx.xA Power supply current alarm

Pwr Sup x: OVERVOLT Power supply overvoltage alarm

Pwr Sup x: OVERTEMP Power supply overtemperature alarm

68

- RMS/Peak

The control board can monitor both the RMS and peak powers, the first used in digital systems. The menu
entry Settings RMS/Peak allows to choose the power to be displayed and monitored. This menu is
present only in certain amplifiers.

- Date/Time

This screen allows to set the current date and time. The setting is changed by pressing the arrow keys, then
pressing the RET key to move to the following value and eventually save the changes. To go back to the
previous menu and discard any change made, press the ESC key. Figure 8 shows an example of this screen.

Figure 8: Date and time setting screen

- Display

The menu entry Settings Display allows to change some settings of the display, such has back light,
contrast and screensaver. The back light and the contrast are set by means of the UP and DOWN arrow
keys. The changes made are saved by pressing the RET key or discarded pressing the ESC key. Figure 9
shows an example of this screen.
With Settings Display Screensaver you can set an interval time after which display backlight is
turned off. When display backlight is off, press any key to switch it on.

Figure 9: Display contrast setting screen

69

- Frequency (only for some Amplifiers)

The forward and reflected RF powers is measured by means of a directional coupler. In order to compensate
for the effect due to the sampling made by the coupler, it is possible to set the frequency by menu entry
Settings Frequency. The setting can be changed by pressing the arrow keys. The changes made are
saved by pressing the RET key or discarded pressing the ESC key. Set the video carrier frequency.

- Slave Address

The amplifier may be used either in stand-alone mode or as a slave of a master in a high power multiple units
transmitter. In the latter case an unique address for each amplifier has to be specified, in order for all of them
to communicate with the master on the same RS485 bus. The menu entry Settings Slave Address
allows to choose the stand-alone mode or set a slave address by means of the UP and DOWN arrow keys.
The changes made are saved by pressing the RET key or discarded pressing the ESC key. An example of this
screen is shown in Figure 10.

Figure 10:Slave address setting screen

- Remote

The amplifier may be controlled either locally, by means of the keys and display, or remotely. There are three
possibilities for remote control:

- using a direct serial connection between amplifier RS232 connector and a PC RS232;

- using the remote control device manufactured by Elettronika S.r.l. (RCU), on the RS485;

- using a general-purpose control system connected to telemeasures.
You can enable / disable remote control choosing menu item Settings Remote. When remote control
is enabled, the yellow REMOTE LED on the front panel is lit.

- Interlock

One of the pins of the telemeasure connector, located on the rear panel, is used for the interlock alarm. It is an
input line which turns off the amplifier in case of alarm. The interlock check can be enabled or disabled using

70

menu item Settings Interlock. When it is enabled, the status bar shows the lock symbol (see Figure 3),
which is close if the interlock chain is closed (no alarm) or open if it is open (alarm).

- Firmware Release

The menu entry Settings Firmware Release allows to display the firmware version number and the
hardware release of the amplifier.

- Serial Number

The menu entry Settings Serial Number allows to display the serial number of the apparatus.

71

This page is intentionally blank

72

_______________________________________________________________________________________________

Section 4 - Diagram

Contents:

- Cable diagram

- AUTV/1500LD Component layout

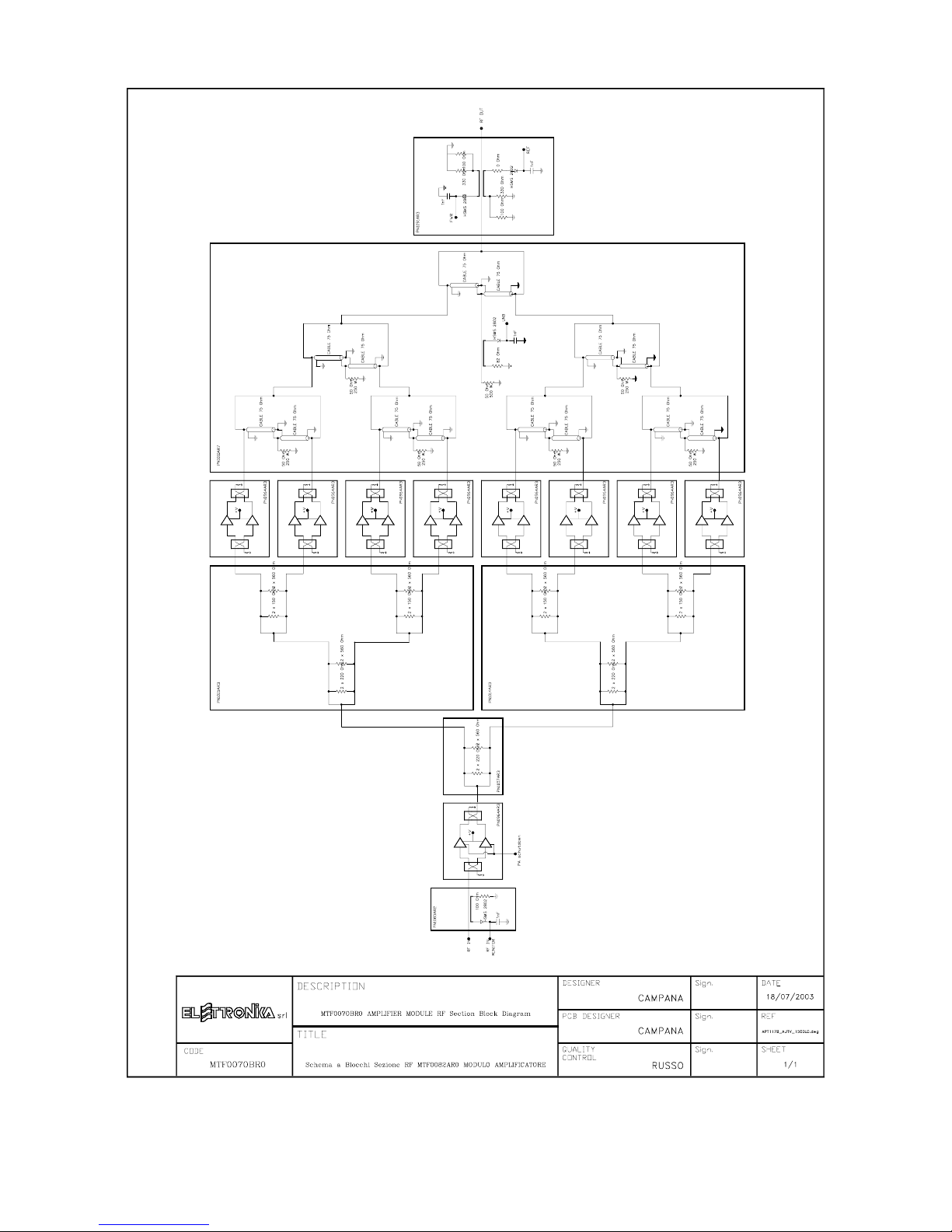

- RF Section Block Diagram

- MTF0070BR0 Amplifier module - Component list

- SCH0192AR0 (200W UHF LDMOS Amplifier module)

- SCH0223AR1 (Control board and display)

- SCH0221AR1 (Amplifier interface)

- SCH0215AR0 (Mains distribution board)

- E0026 (1kW 32Vdc Switching power supply)

73

74

75

76

Part Name Code Description Qty

00001 0W 1206 SMD RESISTOR 2
01041D 1nF 1206 2% SMD CAPACITOR 2
00221B 75W 1206 1% SMD RESISTOR 2
03207 HSMS -2802*L31 DIODE 2
SCH0192AR0 200W UHF LDMOS AMPLIFIER MODULE 9
SCH0221AR0 AMPLIFIER INTERFACE 1
SCH0248AR0 8 WAY WILKINSON 1
SCH0249AR0 4 WAY WILKINSON Dx 1
SCH0250AR0 4 WAY WILKINSON Sx 1
SCH0251AR0 2 WAY WILKINSON 1
SCH0252AR0 1500W UHF INPUT COUPLER 1
PN1091A C.S. PN1091AR3 OUTPUT DIRECTIONAL COUPLER 1
02402 7/16 FEMALE CONNECTOR cod. 0142 1
02512 J0 1151A0531 SMA SOCKET WITHOUT BAT. 1
01400 249 9-003-X5U0-102M FEED-THROUGH CAPACITOR 14
01408 5000PF FEED-THROUGH CAPACITOR 2
DET0726 DET0726R2 SIDE x 1500W UHF AMP. MOD. 2
DET0727 DET0727R1 INTERNAL FRONT SIDE x AMP. MOD. 1
DET0728 DET0728R4 INTERNAL SIDE x AMP. MOD. 2
DET0729 DET0729R2 FRONT SIDE x AMP. MOD. 1
DET0730 DET0730R2 REAR SIDE x AMP. MOD. 1
DET0732 DET0732R1 CONNECTIONS SUPPORT BOARD 1
DET0734 DET0734R0 COVER x AMPLIFIER MODULE P. 2634 1
DET0736 DET0736R5 HEATSINK x AMPLIFIER MODULE 1
DET0807 DET0807R3 SCREEN DIR. COUPLER MODULE 1
DET0810 DET0810R0 PART. x DIRECTIONAL COUPLER 1
DET0811 DET0811R1 COVER x DIRECTIONAL COUPLER 1
DET0812 DET0812R1 TEFLON RING x DIRECTIONAL COUPLER 1
DET0819 DET0819R0 SPESS. x INPUT DIR. COUPLER 1
DET0828 DET0828R0 COVER x AMPLIFIER MODULE P. 2644 1
DET0839 DET0839R2 DIRECTIONAL COUPLER 1
08502 RG316 50W CABLE 3,00
08527 HF- 85 ENDIFORM CABLE 0,20

Component list MTF0070BR0 Amplifier module

77

This page is intentionally blank

78

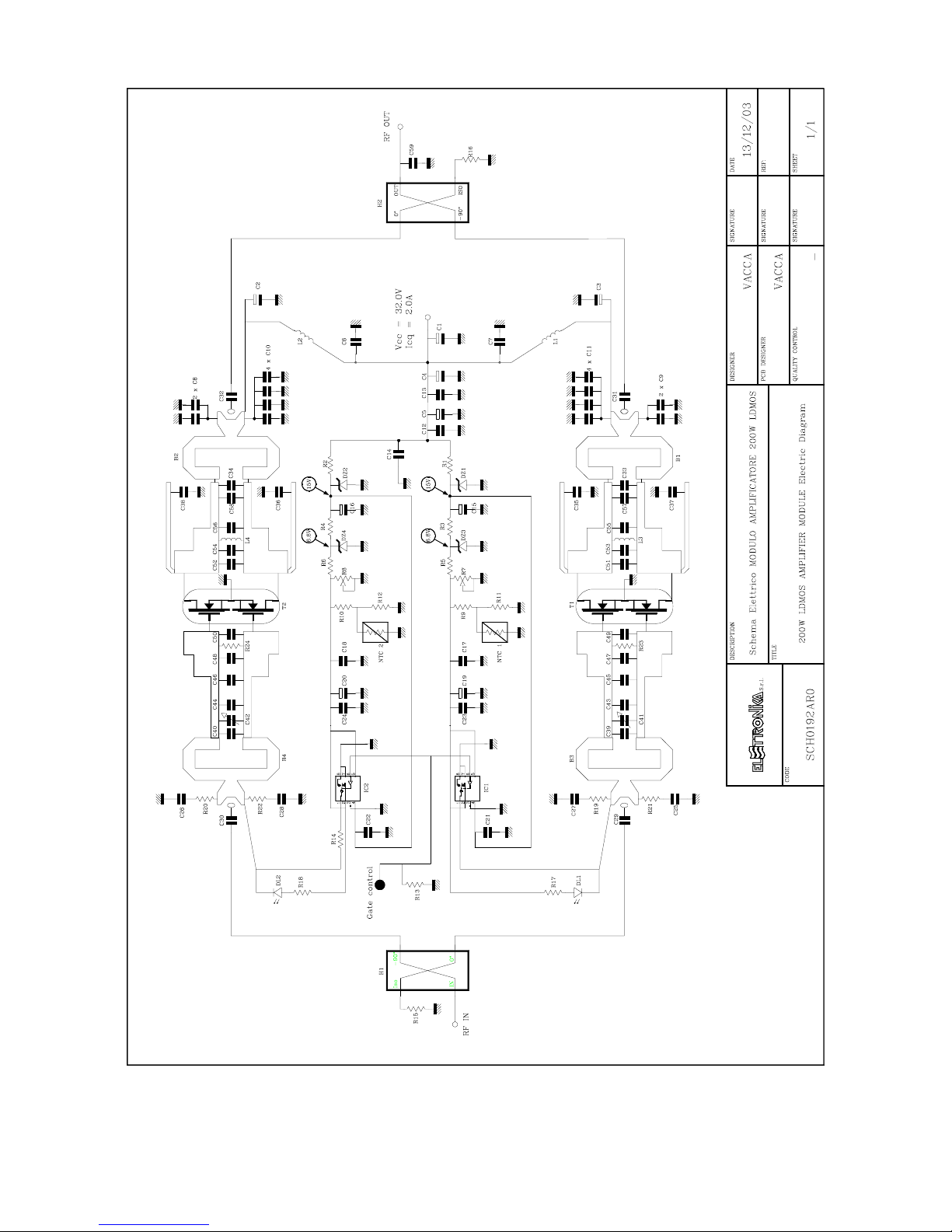

200W UHF LDMOS AMPLIFIER MODULE SCH0192AR0

DESCRIPTION

The RF module is an integrated TV linear amplifier designed for UHF band, this module employs push-pull
LDMOS technology in order to achieve very good efficiency, high linearity and reliability.
LDMOS transistors operate in AB class. It is a wideband amplifier over the full frequency, no adjustment is
required for the channel change. The board includes RF section amplifier, bias circuit, protection circuit and
matching networks. A silver plated copper plate is brazed with PCB in order to obtain low thermal resistance.
Providing a minimum of 200W Pk sync linear power, this module is the perfect amplifier for any broadband
UHF power transmitter.

TECHNICAL CHARACTERISTICS

Output power 300W max
Input power 15W max
Frequency 470 - 860MHz
Gain > 13dB
LDMOS Power supply 32V ±2%
LDMOS Bias current @+32V Vdc 2A
RF Input impedance 50W
RF Output impedance 50W
Input / Output return loss > = 15dB
Drain efficiency 47% @ 250W
Storage temperature range -50° to +150°C
Dimensions (LxWxH) 165x95x29mm

79

CALIBRATION PROCEDURE

- Technical characteristics

Power supply voltage 32V (± 2%)
Polarisation current 1.0 cold for each device (2A total), ± 0.1A
Gain for low signal Not less than 13dB in the 470-860MHz band (± 1dB)

Compare to the typical curve eclosed

- Adjustment procedure

Polarisation current calibration 32V stabilised power supply

10A amperometer

Gain curve Network analyser

- Adjustment points description

R7-R8 (Trimmers) Adjust the current absorbed in stand-by (1.0A per device)

Middle frequency 660MHz, span 500MHz, 2dB/div., reference to the arrow

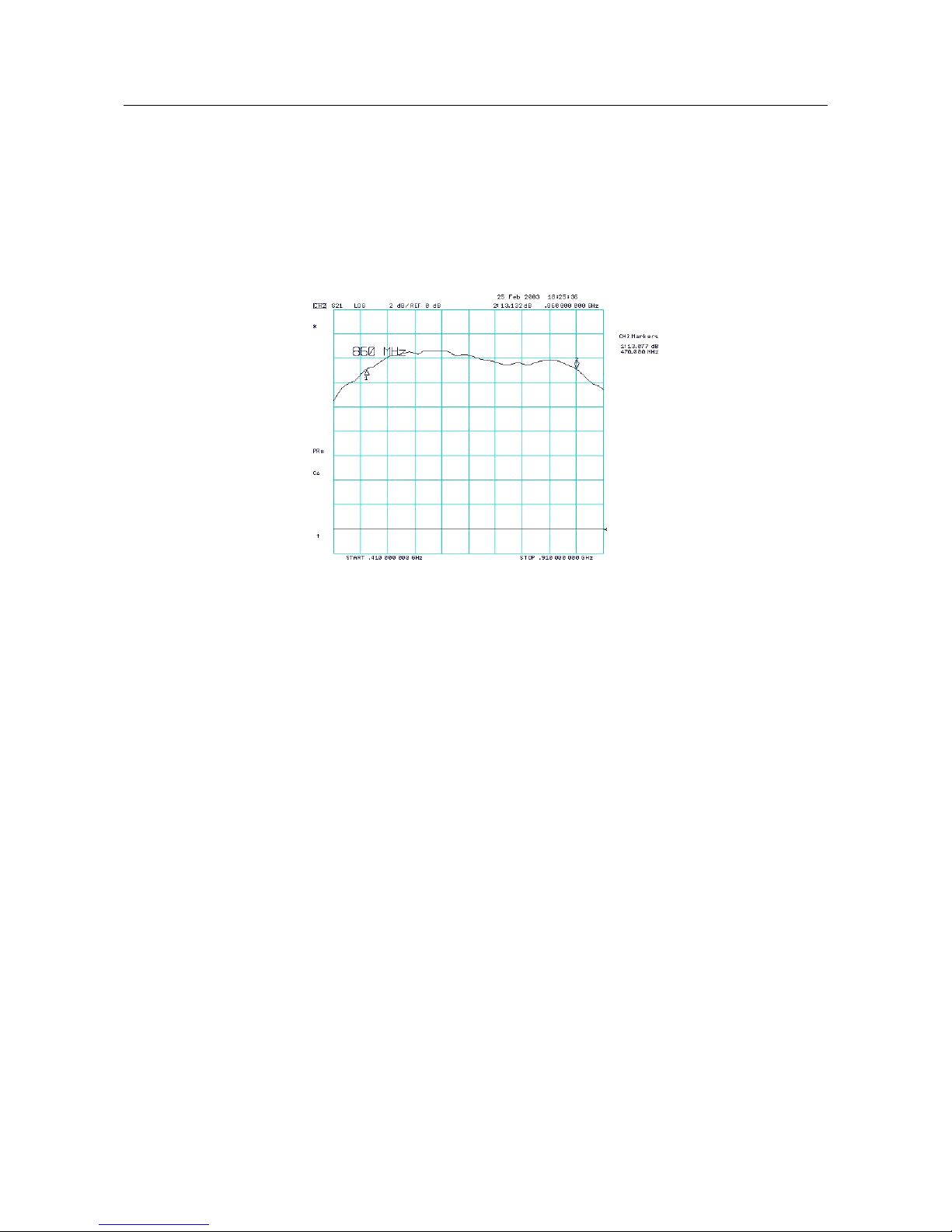

- Curve response graphic

80

- Calibration steps

STEP 1. Close the input and the output of the module by connecting them to a 50

WW

WW

W dummy load

and connect the spectrum analyser through a directive sample, in order to look for self-oscillation of the
module, if any (anyway the module has been designed so that it would not self-oscillate even if totally de­coupled, without any input or output load).

STEP 2. Check the voltages of the polarisation circuits without assembling the transistors first:
connect the 32V power supply to the proper turret by means of a fastening screw, then give power and check
data:

- the stabilised voltage on the zener diodes DZ1 and DZ2 is about 15V compared to the ground;

- the stabilised voltage on the zener diodes DZ3 and DZ4 is about 6.8V compared to the ground;

- the voltage on the pads to which the gates of the LDMOS transistors will be soldered (R23 and R24
resistors side) changes from 0V to a maximum value of about 6V when moving the relevant trimmer (R7-R8).

STEP 3. Check the work of the protections.

- Set both trimmers so that there is a value of about 4.5V on the pads of the gates;

- solder some wire to the pad between the two LEDs, next to the serigraphy of the input hybrid H1;

- in order to check the work of the protections aboard, a power of about 4V has to be supplied to the wire,
for example by touching with it the reophore of C23 or C24 which is not connected to ground; the two red
LEDs will immediately light up and the two RF transistors will be switched off at the same time: the polarisation
current (2A) will decrease to 0 and of course the gain curve displayed by the spectrum analyser will decrease;

- after this it is important to restore the position of the two trimmers for the minimum voltage! Then
disconnect the 32V power supply.

STEP 4. Fastening of the LDMOS transistors: after properly cleaning the plate surface, smear a thin
layer of silicone fat on the lower side of the flange of the MOSFETs, fasten them to the heat sink and solder
the gate first, then the drain. Solder the two 13pF (ATC) chip capacitors and above them the two 1-5pF

Solder a wire

81

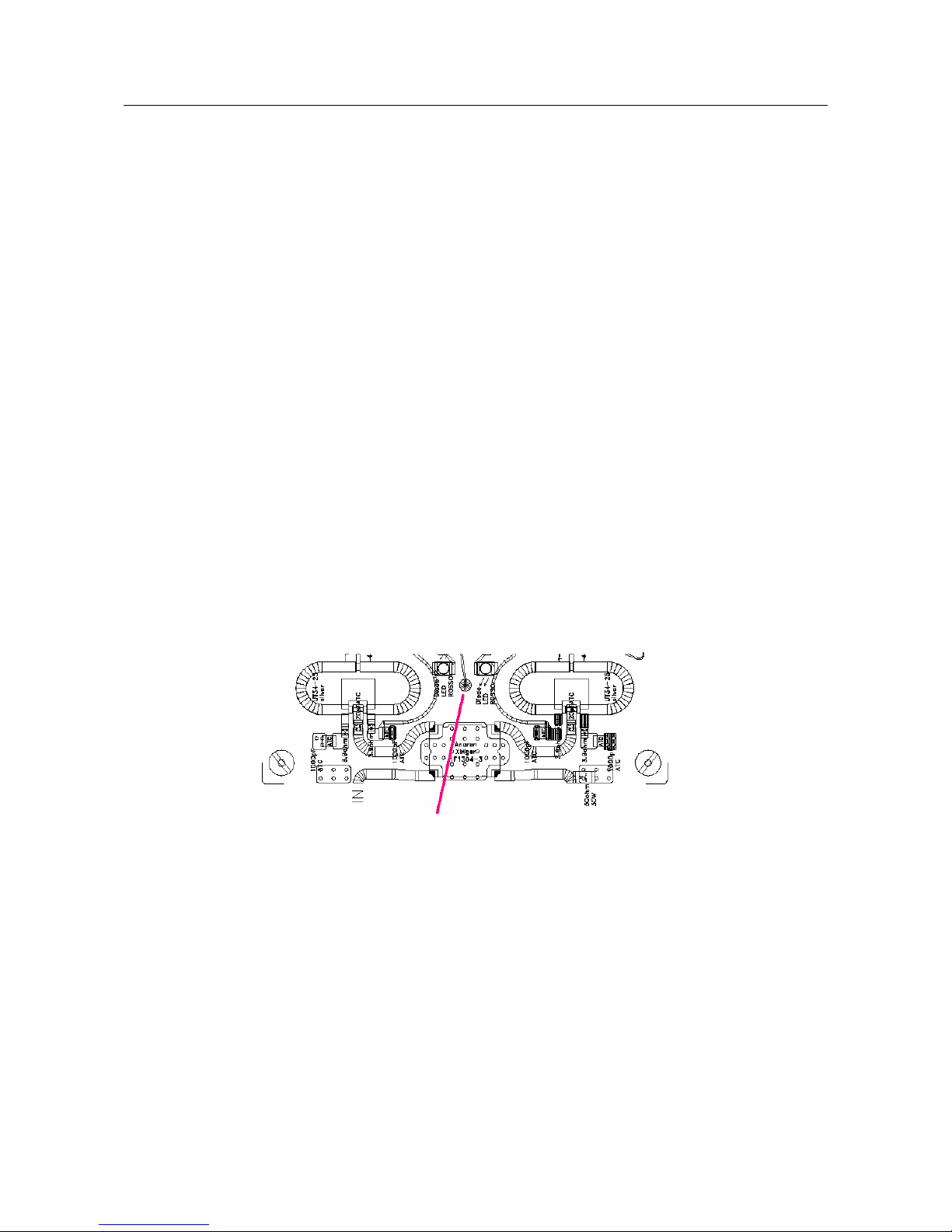

capacitive trimmers, between the two pair of gates, as shown by the mounting plan.

STEP 5. Connect serially a c.c. amperometer to the power supply, with scale starting from more than 5A
(i.e. 10A).

STEP 6. Power the module and check the MOSFET is not absorbing current; this means that the device
is integral and working correctly.

STEP 7. Slowly turn the R7 trimmer until the MOSFET absorbs 1A, always checking that there are no
self-oscillation; under this conditions it is possible to check by means of a digital tester that the voltage on the
gate is about 5.2-5.4V.

STEP 8. Repeat the previous step for the other section of the module, this time turnign R8 and checking
that the indication of the current on the amperometer increases to 2A total (which includes the current of the
other device left on).

STEP 9. Check the response curve of the module by means of the network analyser.

STEP 10. Check the response curve for low signal with centre 660MHz and span 500MHz, 2dB/div.

STEP 11. The curve should be similar to the one enclosed, with a tolerance of ± 0.5dB. To obtain this, act
on the four trimmers C41-C41a and C42-C42a with the proper calibrator, inorder to flatten the curve as
much as possible, especially at the edged of the band which represents the minimum values.

STEP 12. Finally, check that the current in stand-by does not increase by more than 15÷20%, reaching at
worst 2.3÷2.4A when the heat sink is hot and not ventilated.

Note: when mounting-removing the PALLET on the heat sink, tightly fasten the screw of each all N input and output
connectors. These are mounted with a single 3mm screw and if it is not properly fastened it may be detached from the PCB
by a movement of the connector once it has already been soldered to the path.

82

Component layout SCH0192AR0

83

84

COMPONENT LIST SCH0192AR0

REF. DES CRIP TION ELETTRONIKA CODE Page 1/3

R1 2200W 1/4W 1206 SMD RESISTOR 00045A
R2 2200W 1/4W 1206 SMD RESISTOR 00045A
R3 2200W 1/4W 1206 SMD RESISTOR 00045A
R4 2200W 1/4W 1206 SMD RESISTOR 00045A
R5 1200W 1/4W 1206 SMD RESISTOR 00042A

R6 1200W 1/4W 1206 SMD RESISTOR 00042A
R7 50kW MULTITURNS PTH TRIMMER 00800
R8 50kW MULTITURNS PTH TRIMMER 00800
R9 1200W 1/4W 1206 SMD RESISTOR 00042A
R10 1200W 1/4W 1206 SMD RESISTOR 00042A
R11 18 k W 1/4W 1206 SMD RESISTOR 00056B
R12 18 k W 1/4W 1206 SMD RESISTOR 00056B
R13 680KW 1/4W 1206 SMD RESISTOR 00075A
R14 0W 1/4W 1206 SMD RESISTOR 00001
R15 50 W 30W 1512EBX SMD RESISTOR 00416A
R16 50 W 6 0W 00432
R17 4.7kW 1/4W 1206 SMD RESISTOR 00049A
R18 4.7kW 1/4W 1206 SMD RESISTOR 00049A
R19 3. 9W 1/4W 1206 SMD RESISTOR 00012A
R20 3. 9W 1/4W 1206 SMD RESISTOR 00012A
R21 3. 9W 1/4W 1206 SMD RESISTOR 00012A
R22 3. 9W 1/4W 1206 SMD RESISTOR 00012A
R23 1000W 1W 2512 SMD RESISTOR 00396
R24 1000W 1W 2512 SMD RESISTOR 00396
*R25 = R15 (da montare se si inverte lingresso)
*R26 = R26 (da montare se si inverte luscita)
C1 470uF 50V PTH ELECTROLYTIC CAPACITOR 01807B
C2 470uF 50V PTH ELECTROLYTIC CAPACITOR 01807B
C3 470uF 50V PTH ELECTROLYTIC CAPACITOR 01807B
C4 100uF 50V PTH ELECTROLYTIC CAPACITOR 01795
C5 100uF 50V PTH ELECTROLYTIC CAPACITOR 01795
C6 1nF ATC 100B CAPACITOR OR EQUIVALENT 01145
C7 1nF ATC 100B CAPACITOR OR EQUIVALENT 01145
C8 x 2 2 x 100nF ATC CAPACITOR OR EQUIVALENT 01065H
C9 x 2 2 x 100nF ATC CAPACITOR OR EQUIVALENT 01065H
C10 x 4 4 x 100pF ATC 100B CAPACITOR OR EQUIVALENT 01135
C11 x 4 4 x 100pF ATC 100B CAPACITOR OR EQUIVALENT 01135
C12 100nF 1210 SMD CAPACITOR 1065G
C13 100nF 1210 SMD CAPACITOR 1065G
C14 100nF 1210 SMD CAPACITOR 1065G
C15 1uF 35V SMD TANTALIUM CAPACITOR 01613A
C16 1uF 35V SMD TANTALIUM CAPACITOR 01613A
C17 100nF 1210 SMD CAPACITOR 1065G

85

REF. DE SCRIP TION ELETTRONIKA CODE P age 2/3

C18 100nF 1210 SMD CAPACITOR 1065G
C19 10uF 16V SMD TANTALIUM CAPACITOR 01626A
C20 10uF 16V SMD TANTALIUM CAPACITOR 01626A
C21 100nF 1210 SMD CAPACITOR 1065G
C22 100nF 1210 SMD CAPACITOR 1065G
C23 100nF 1210 SMD CAPACITOR 1065G
C24 100nF 1210 SMD CAPACITOR 1065G
C25 1nF ATC 100B CAPACITOR OR EQUIVALENT 01145
C26 1nF ATC 100B CAPACITOR OR EQUIVALENT 01145
C27 1nF ATC 100B CAPACITOR OR EQUIVALENT 01145
C28 1nF ATC 100B CAPACITOR OR EQUIVALENT 01145
C29 20pF ATC 100B CAPACITOR OR EQUIVALENT 01123
C30 20pF ATC 100B CAPACITOR OR EQUIVALENT 01123
C31 20pF ATC 100B CAPACITOR OR EQUIVALENT 01123
C32 20pF ATC 100B CAPACITOR OR EQUIVALENT 01123
C33 1.3pF ATC 100B CAPACITOR OR EQUIVALENT 01104
C34 1.3pF ATC 100B CAPACITOR OR EQUIVALENT 01104
C35 470pF ATC 100B CAPACITOR OR EQUIVALENT 01143
C36 470pF ATC 100B CAPACITOR OR EQUIVALENT 01143
C37 470pF ATC 100B CAPACITOR OR EQUIVALENT 01143
C38 470pF ATC 100B CAPACITOR OR EQUIVALENT 01143
C39 4.7pF ATC 100B CAPACITOR OR EQUIVALENT 01108
C40 4.7pF ATC 100B CAPACITOR OR EQUIVALENT 01108
C41 x 2 2 x 1¸5pF JOHANSON SMD TRIMMER 1485
C42 x 2 2 x 1¸5pF JOHANSON SMD TRIMMER 1485
C43 3.6pF ATC 100B CAPACITOR OR EQUIVALENT 01104B
C44 3.6pF ATC 100B CAPACITOR OR EQUIVALENT 01104B
C45 6.8pF ATC 100B CAPACITOR OR EQUIVALENT 01111
C46 6.8pF ATC 100B CAPACITOR OR EQUIVALENT 01111
C47 6.8pF ATC 100B CAPACITOR OR EQUIVALENT 01111
C48 6.8pF ATC 100B CAPACITOR OR EQUIVALENT 01111
C49 13pF ATC 100B CAPACITOR OR EQUIVALENT 01119A
C50 13pF ATC 100B CAPACITOR OR EQUIVALENT 01119A
C51 8.2pF ATC 100B CAPACITOR OR EQUIVALENT 01113
C52 8.2pF ATC 100B CAPACITOR OR EQUIVALENT 01113
C53 8.2pF ATC 100B CAPACITOR OR EQUIVALENT 01113
C54 8.2pF ATC 100B CAPACITOR OR EQUIVALENT 01113
C55 10pF ATC 100B CAPACITOR OR EQUIVALENT 01117
C56 10pF ATC 100B CAPACITOR OR EQUIVALENT 01117
C57 4.7pF ATC 100B CAPACITOR OR EQUIVALENT 01108
C58 4.7pF ATC 100B CAPACITOR OR EQUIVALENT 01108
C59 0.3pF ATC 100B CAPACITOR OR EQUIVALENT 01160
T1 BLF861A RF LDMOS POWER TRANSISTOR 04034
T2 BLF861A RF LDMOS POWER TRANSISTOR 04034
B1 COAX 2:1 BALUN 08491

86

REF. DES CRIP TION ELETTRONIKA CODE Page 3/3

B2 COAX 2:1 BALUN 08491
B3 COAX 4:1 BALUN 08492
B4 COAX 4:1 BALUN 08492
L1 4 TURNS SILV. COP. WIRE 1.2mm WOUND ON OD 5mm 07684
L2 4 TURNS SILV. COP. WIRE 1.2mm WOUND ON OD 5mm 07684
L3 ½ TURN COIL
L4 ½ TURN COIL
H1 HYBRID COUPLER 3dB 90° ANAREN 05368
H2 HYBRID COUPLER 3dB 90° SAGE 05369
NTC1 NTC 100KW PTH 00661
NTC2 NTC 100KW PTH 00661
IC1 DG419DY 04583
IC2 DG419DY 04583
DZ1 15V SMD ZENER DIODE 03135
DZ2 15V SMD ZENER DIODE 03135
DZ3 6.8V SMD ZENER DIODE 03137
DZ4 6.8V SMD ZENER DIODE 03137
DL1 SMD LED DIODE - RED - 03056
DL2 SMD LED DIODE - RED - 03056
PN964AR3 PCB 0643K

Torretta 3x10 f/f V0774
Imballo velapack 200x125x50 09983
