ELEQ LS-74 Installation Manual

83715 / EN1512

CE marking

LV directive 2006/95/EC

EN-IEC 60269-3:2013

Neutral

Safety instruction

All activities for installation, commissioning and maintenance of
this connection box must be performed by qualified personnel
that has the knowledge of applicable safety precautions. This
guide assumes that the reader of this document has sufficient
electro-technical knowledge to understand the content of this
document.

General

The LS-74 is a connection box for public lighting and intended
to be used in lighting poles. The connection box should be
mounted in a weather protected and dry location. In the
connection box the incoming (ground) cable can be connected.
If desired, looped circuits wiring to the next lighting pole is
possible. The cable of the armature should be connected on
the outgoing terminals.

Fuses protect the installation against overload and short-
circuiting.

Explanation of symbols

This product is designed according to the
EN-IEC 61439-2:2011 standards and meets the
requirements of the Low Voltage Directive 2006/95/EC.

Read the installation guide before mounting the
product. Unprofessional work activities on electrical
installations may result in a threat of danger to the life
and health of human beings and livestock!

RoHS Directive 2011/65/EU

ELEQ states that it uses qualified components in its
products only from manufacturers which meet the
requirements of the European Directive for the
"Restriction of use of certain Hazardous Substances

WEEE Directive 2012/19/EU

This equipment should not be disposed as unsorted
municipal waste. Contact a qualified recycler for
disposal.

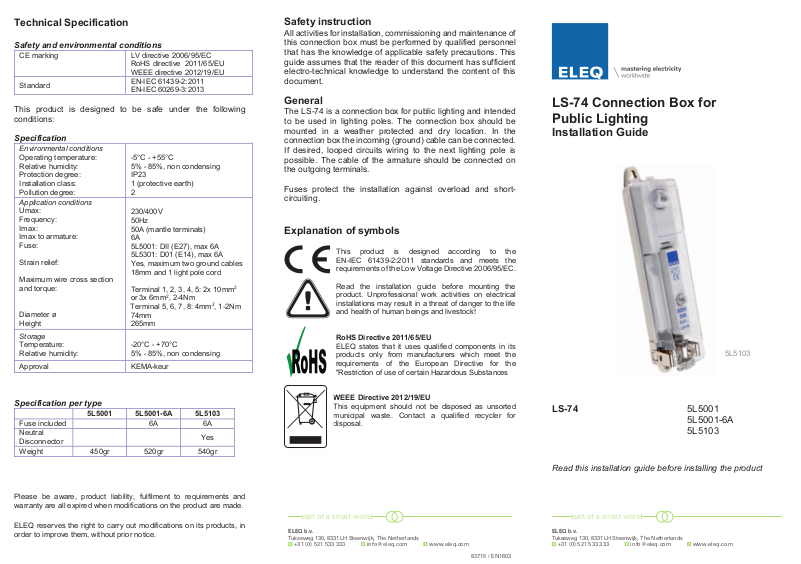

LS-74 Connection Box for
Public Lighting

Installation Guide

LS-74 5L5001

5L5001-6A

5L5103

Read this installation guide before installing the product

5L5103

LS-74 Connection Box for
Public Lighting

Installation Guide

LS-74 5L5001

5L5001-6A

5L5103

Read this installation guide before installing the product

5L5103

Technical Specification

Safety and environmental conditions

Standard

This product is designed to be safe under the following
conditions:

Specification

Environmental conditions

Operating temperature:
Relative humidity:
Protection degree:
Installation class:
Pollution degree:

Application conditions

Umax:
Frequency:
Imax:
Imax to armature:
Fuse:

Strain relief:

Maximum wire cross section
and torque:

Diameter ø
Height

Storage

Temperature:
Relative humidity:

Approval KEMA-keur

Specification per type

Fuse included 6A 6A

Disconnector
Weight 450gr 520gr 540gr

5L5001 5L5001-6A 5L5103

RoHS directive 2011/65/EU
WEEE directive 2012/19/EU
EN-IEC 61439-2:2011

-5°C - +55°C
5% - 85%, non condensing
IP23
1 (protective earth)
2

230/400V
50Hz
50A (mantle terminals)
6A
5L5001: DII (E27), max 6A
5L5301: D01 (E14), max 6A
Yes, maximum two ground cables
18mm and 1 light pole cord

Terminal 1, 2, 3, 4, 5: 2x 10mm
or 3x 6mm2, 2-4Nm
Terminal 5, 6, 7, 8: 4mm
74mm
265mm

-20°C - +70°C
5% - 85%, non condensing

Yes

2

, 1-2Nm

Please be aware, product liability, fulfilm ent to requirements and
warranty are all expired when modifications on the product are made.

ELEQ reserves the right to carry out modifications on its products, in
order to improve them, without prior notice.

Safety instruction

All activities for installation, commissioning and maintenance of
this connection box must be performed by qualified personnel
that has the knowledge of applicable safety precautions. This
guide assumes that the reader of this document has sufficient
electro-technical knowledge to understand the content of this
document.

General

The LS-74 is a connection box for public lighting and intended
to be used in lighting poles. The connection box should be
mounted in a weather protected and dry location. In the
connection box the incoming (ground) cable can be connected.
If desired, looped circuits wiring to the next lighting pole is
possible. The cable of the armature should be connected on
the outgoing terminals.

Fuses protect the installation against overload and short­circuiting.

Explanation of symbols

2

ELEQ b.v.

Tukseweg 130, 8331 LH Steenwijk, The Netherlands

[phone] [e-mail] www.eleq.com

This product is designed according to the
EN-IEC 61439-2:2011 standards and meets the
requirements of the Low Voltage Directive 2006/95/EC.

Read the installation guide before mounting the
product. Unprofessional work activities on electrical
installations may result in a threat of danger to the life
and health of human beings and livestock!

RoHS Directive 2011/65/EU

ELEQ states that it uses qualified components in its
products only from manufacturers which meet the
requirements of the European Directive for the
"Restriction of use of certain Hazardous Substances

WEEE Directive 2012/19/EU

This equipment should not be disposed as unsorted
municipal waste. Contact a qualified recycler for
disposal.

83715 / EN1603

LS-74 Connection Box for
Public Lighting

Installation Guide

LS-74 5L5001

5L5001-6A
5L5103

Read this installation guide before installing the product

ELEQ b.v.

Tukseweg 130, 8331 LH Steenwijk, The Netherlands

[phone] [e-mail] www.eleq.com

5L5103

Incoming Outgoing

1 = PE - Protective earth 6 = Neutral
2 = Neutral 7 = fused phase L3
3 = phase L1 8 = PE - Protective earth
4 = phase L2
5 = phase L3

If required, incoming terminals 1 through 5 can be looped to the
next lighting pole.

Wiring Diagram

Maintenance and inspection

 The connection box should be situated on a dry and clean

location.

 The connection box should be mounted firmly.
 The connections should be mounted firmly.

Attention

Always avoid working on live parts of an installation.

Disassembly instruction

1. Disconnect the power of the main circuit and make sure it

can not be enabled unintentionally.

2. Unmount the transparent cover.

3. Remove the fuses.

4. Remove the strain relief block.

5. Disconnect the ground cables.

6. Disconnect the connection box from the lighting pole.

Recycling

When the product has reached ‘end of life’, it must be recycled.

Do not dispose this product as unsorted municipal waste.
Contact a qualified recycler for disposal.

5L5001

5L5103

Maintenance and inspection

 The connection box should be situated on a dry and clean

location.

 The connection box should be mounted firmly.
 The connections should be mounted firmly.

Attention

Always avoid working on live parts of an installation.

Disassembly instruction

1. Disconnect the power of the main circuit and make sure it

can not be enabled unintentionally.

2. Unmount the transparent cover.

3. Remove the fuses.

4. Remove the strain relief block.

5. Disconnect the ground cables.

6. Disconnect the connection box from the lighting pole.

Recycling

When the product has reached ‘end of life’, it must be recycled.

Do not dispose this product as unsorted municipal waste.
Contact a qualified recycler for disposal.

Always avoid working on live parts of an installation.

Functional Description

The terminal boxes of the LS-74 series all are intended to be
fitted with one DII or D01 fuse. Het fuse capacity is limited to
max 6A.

Assembly

1. Ensure a safe working area during assembly, maintenance

and inspection of the connection box. Disconnect the power
of the main circuit and make sure it cannot be enabled
unintentionally.

2. Remove the transparent cover, mounted fuse and the

intermediate cover.

3. Mount the connection box with the upper and lower

connection in the lighting pole.

4. Connect the incoming and (if present) outgoing ground

cable to terminals 1 through 5.

5. Mount the outgoing cables to the armature.

6. Tightly mount strain relief block.

7. Check if the connections are mounted properly and firmly.

8. Install the fuse(s). Fuse type: DII (E27) for 5L5001 or D01

(E14) for 5L5301. Max 6A.

9. Mount the transparent cover and screw tightly.

Incoming Outgoing

1 = PE - Protective earth 6 = Neutral
2 = Neutral 7 = fused phase L3
3 = phase L1 8 = PE - Protective earth
4 = phase L2
5 = phase L3

If required, incoming terminals 1 through 5 can be looped to the
next lighting pole.

Wiring Diagram

5L5001

5L5103

Maintenance and inspection

 The connection box should be situated on a dry and clean

location.

 The connection box should be mounted firmly.
 The connections should be mounted firmly.

Attention

Always avoid working on live parts of an installation.

Disassembly instruction

1. Disconnect the power of the main circuit and make sure it

can not be enabled unintentionally.

2. Unmount the transparent cover.

3. Remove the fuses.

4. Remove the strain relief block.

5. Disconnect the ground cables.

6. Disconnect the connection box from the lighting pole.

Recycling

When the product has reached ‘end of life’, it must be recycled.

Do not dispose this product as unsorted municipal waste.
Contact a qualified recycler for disposal.
