This product contains electrical or electronic materials. The presence of these materials may, if
not disposed of properly, have potential adverse effects on the environment and human health.
Presence of this label on the product means it should not be disposed of as unsorted waste
and must be collected separately. As a consumer, you are responsible for ensuring that this
product is disposed of properly.
This TV incorporates High-Defi nition Multimedia Interface (HDMITM) technology.
HDMI, the HDMI logo and High-Defi nition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
FCC
Federal Communications
Commission Statement
This equipment has been tested and found to comply with the limits of a class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
1. Reorient/Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit which is different from what the receiver is
connected to.
4. Consult the dealer or an experienced radio/TV technician for help.
Changes or modi cations not expressly approved by the manufacturer
responsible for compliance could void the user authority to operate the
equipment.
ENGLISHENGLISH
1
Warnings and Precautions
Warnings and Precautions
To prevent any injuries, the following safety precautions should be observed in the installation, use,
servicing and maintenance of this equipment.
Before operating this equipment, please read this manual completely, and keep it nearby for future
reference.
This symbol is intended to alert the user to avoid the risk of electric shock.
WARNING
CAUTION
This equipment must not be disassembled by anyone except qualifi ed service personnel.
This symbol is intended to alert the user to the presence of important operating and
maintenance instructions in the literature accompanying the appliance.
To reduce the risk of fi re or electric shock, do not expose this equipment to rain or moisture.
▪ TO REDUCE THE RISK OF ELECTRIC SHOCK,
▪ DO NOT REMOVE COVER (OR BACK).
▪ NO USER-SERVICEABLE PARTS INSIDE.
▪ REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Use of controls, adjustments or performance of procedures other than those specifi ed herein
may result in hazardous radiation exposure.
Important Safety Instructions
This symbol indicates caution points.
This symbol indicates actions that should not be done.
This symbol indicates actions that must be performed.
▪ Do not place the equipment on any uneven or unstable carts, stands, tables, shelves etc.
The equipment may fall, causing serious injury to children or adults and serious damage to
the equipment itself.
▪ Use only a cart or stand recommended by the manufacturer. This equipment and
recommended cart or stand should be handled with care. Quick stops, excessive force, and
uneven surfaces may cause the equipment and cart/stand to overturn.
▪ Do not disable the 3-wire grounding type plug. The grounding pin on the 3-prong plug is an
important feature. Removing the grounding pin will increase the risk of damaging the
equipment.
▪ If you can not fi t the plug into the electrical outlet, contact an electrician to install a grounding
outlet.
▪ Always operate this equipment from the type of power source indicated on the rear of the
serial/model plate.
▪ Never overload wall outlets and extensions.
2
Warnings and Precautions
▪ Use and handle the power cord with care. Do not place any heavy objects on the AC
power cord.
▪ Do not pull the AC power cord. Do not handle the AC power cord with a wet hand.
▪ Do not touch the power cord and antenna cable during lightning.
▪ Remove the plug from the wall outlet, if the equipment will not be used for a long period
of time.
▪ Do not place, use or handle this equipment near water.
▪ Never expose the equipment to liquid, rain, or moisture.
Seek for service if any of the above is spilled into the equipment.
▪ Do not expose the equipment to extreme temperature or to direct sunlight, as the
equipment may heat up and suffer damage.
▪ Do not install the equipment near any heat sources such as radiators, heat registers,
stoves, or any other apparatus that might produce heat.
▪ Do not attempt to service the equipment yourself.
▪ Opening and removing the covers may expose you to dangerous voltage or other
hazards and may void your warranty. Refer service to qualifi ed personnel.
▪ Do not place or drop any other objects on top.
▪ Do not insert anything into the ventilation holes of your equipment.
Inserting any metal or fl ammable objects may result to fi re or electric shock.
▪ Protect the power cord from being walked on or pinchrd particularly at plugs ,convenience
receptacles, and the point where they exit from the apparatus.
▪ Do not place the equipment on uneven or unstable carts, stands, tables, shelves etc. The
equipment may fall, causing serious injury to children or adults and serious damage to
the equipment itself.
Always place the equipment on the fl oor or on a surface that is sturdy, level, stable and
strong enough to support the weight of the equipment.
▪ Do not block any ventilating openings. Leave an open space around the equipment.
Never place the equipment :
on a bed, sofa, rug, or any other similar surfaces; too close to drapes/curtains/walls, in a
bookcase, built-in cabinet, or any other similar places that may cause poor ventilation.
▪ Unplug this apparatus during lightning storms or when unused for long periods of time.
▪ Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
▪ Always remove the power cord from the outlet before cleaning the equipment.
▪ Never use liquid or aerosol cleaners on the equipment.
Clean only with a soft dry cloth.
ENGLISHENGLISH
▪ Only use attachments/accessories specified by the manufacturer.
3
Warnings and Precautions
Outdoor Antenna Safety Instructions
If an outdoor antenna is connected, follow the precautions below:
▪ An outdoor antenna should not be located in any area where it could come in contact with
overhead power lines, or any other electric light or power circuits.
▪ When installing an outdoor antenna system, extreme caution should be taken to prevent
contact with power lines. Direct contact with power lines may be fatal and should be avoided
at all costs.
Section 810 of National Electrical Code (NEC) provides information with respect to proper grounding of the
mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for
the grounding electrode.
Antenna lead-in wire
Ground clamps
Electric service
equipment
EXAMPLE OF OUTDOOR ANTENNA GROUNDING
Ground clamps
Power service grounding
(NEC Art250 part H)
NEC : National Electrical code
4
Antenna discharge unit
(NEC section 810-20)
Grounding conductors
(NEC section 810-20)
TABLE OF CONTENTS
Federal Communications Commission Statement .......................... 1
Warnings and Precautions
Important Safety Instructions ....................................................................................... 2
Operating the Menu ..................................................................................................................................... 30
Customizing the VIDEO Settings ...........................................................................................................32
Customizing the AUDIO Settings ...........................................................................................................34
Customizing the TV Settings ....................................................................................................................36
Customizing the SETUP Settings .........................................................................................................38
Using the Program Block Settings ........................................................................................................ 41
Using the Program Guide ..........................................................................................................................46
Various Audio/Video terminals for external equipment connection
▪ 2 sets of composite A/V input terminals
▪ 1 set of S-VIDEO terminals
▪ 2 sets of component Video input terminals
▪ 1 VGA/ Audio input terminals
▪ 1 HDMI/Audio input terminals
▪ 1 set of Audio(L/R) output terminals
▪ 2 SPDIF output terminals (Optical x 1 /Coaxial x 1)
▪ 1 Headphone terminal
The built-in TV tuner to receive HD ATSC
▪ This function allows the reception of HD broadcasting without the addition of a set top
box.
High De nition Multimedia Interface (HDMI)
▪ High Defi nition Multimedia Interface (HDMI) is a small, user-friendly interconnect that
can carry up to 5 Gbps of combined video and audio in a single cable. This system
eliminates the cost, complexity and confusion of multiple cables used to connect
current A/V systems.
HDTV Component Video Inputs
▪ Offers the best video quality for DVD(HD1080p,1080i, 720p) and digital set-top-box
(HD1080p,1080i, 720p) connections.
3D Digital Noise Reduction
▪ This function can digitally reduce image noise to provide better picture quality.
Film-Mode Detection (3:2 Reverse Pull Down)
▪ This function can automatically detect content derived from fi lm and adjust the
interlacer’s frame matching to provide a more natural-looking, clearer image of the
moving picture.
6
Package Contents
Chapter 1 Introducing the LCD TV
Make sure all of the following contents are included.
LCD TV
VIDEO Cable Remote Control/
AAA Batteries x 2
MTS
S.MODE
P. MODE
P.SIZESLEEPCAPTION
MUTE
CH.
VOL.
INPUT
GUIDEEXIT
INFOMENU
Power Cord
AUDIO Cable Warranty Card
ENGLISH
Bottom Stand /
Screw Driver and Screws (4~6)
Component Cable
User’s Manual
Stand Assembly Guide
Quick Start Guide
Remote Control Guide
These items are all you need to set up and operate the LCD TV in its basic confi guration.
Make sure all of the above contents are included in the package. If you are missing
any items, please contact the Element Electronics customer service department.
7
Chapter 1 Introducing the LCD TV
Setting Up Your LCD TV
How to install the TV Stand
Read all instructions before continuing with the stand installation.
Attach the Stand the TV with the bottom foam packaging material still
attached.
a. Lift foam packaging material from the top of the LCD out of the box.
b. Lift LCD out of the box, with the bottom foam packaging material still attached, and place
onto a stable surface.
ab
Stand
Shipping box
c. Remove protective bag from LCD unit, but DO NOT remove the bottom foam packaging
material from the TV.
d. Locate the place on the back of the TV to attach the stand. Secure the stand to the LCD
with all six screws.
Protective bag
Table
c
Unit
Tab le
Stand
Packaging material
d
Unit
Screws
Stand
Table
Packaging material
8
Chapter 1 Introducing the LCD TV
How to remove the TV Stand
If you prefer to mount your new Element Electronics TV on a wall instead of attaching it to the
stand, please reference the instructions included in the wall mounting kit (sold separately).
Verify your TV’s model and be sure to use the wall mounting kit (100 x 100)
specifi ed for your TV model only. Contract a qualifi ed technician for
assistance when installing the wall mounting kit.
To prevent damaging the surface of the LCD TV, place the TV on a soft cloth.
Soft cloth
Remove the screws of the table stand and detach the table stand from the TV.
ENGLISH
Soft cloth
Table stand
Align the holes on the wall mounting hook units with the corresponding holes on the rear
of the TV and fasten four screws.
4 screws (supplied
with the wall mount
kit)
Wall mounting hook
unit (supplied with the
wall mount kit)
Soft cloth
9
Chapter 1 Introducing the LCD TV
How to setup the TV

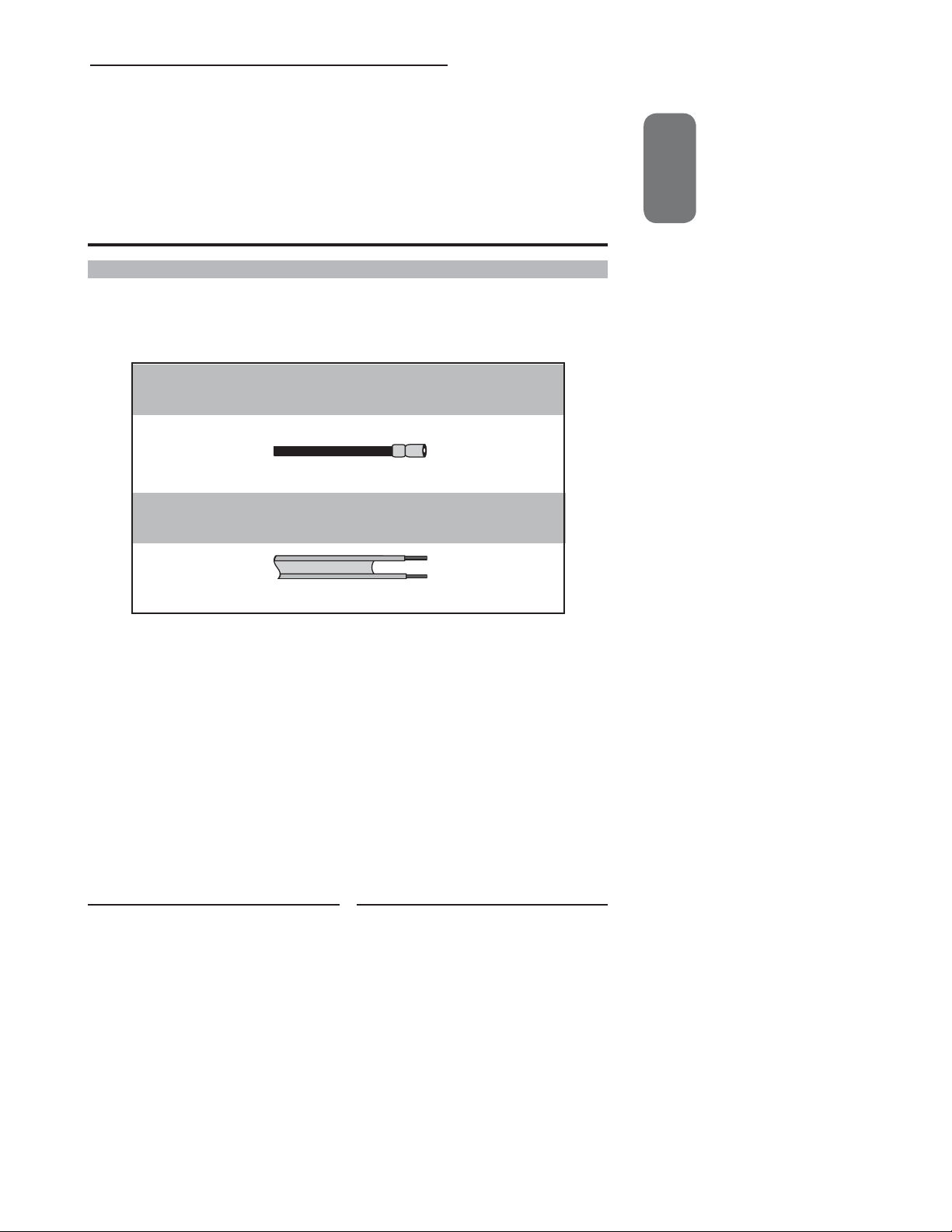

Use a supplied antenna cable to connect the VHF/UHF signal to the LCD TV’s ANT. terminal
(refer to page15-17).
Connect the AC power cord at the back of the TV and connect the power cord to wall outlet.
Insert the 2 batteries supplied in remote control.
Step1 Slide the back cover up to open the
battery compartment of the remote
control.
Step2 Insert two AAA size batteries.
Make sure to match the (+) and
( - ) ends of the batteries with
the (+) and ( - ) ends indicated
in the battery compartment.
Slide the cover back into place.
Do not use caustic cleaners (porcelain, stainless steel, toilet, or oven cleaner
etc.) on the remote, as it may su er damage.
To connect to another external A/V device, refer to pages 19-27.
10
Your LCD TV
Chapter 1 Introducing the LCD TV
Front/Right Side View and Controls
LED
The LED light indicates when the LCD TV is
activated.
+-
VOLUME
Adjusts the volume up and down.
Selects the main-menu item and
change values for items when in the
OSD mode.
IR
Infrared
Receiver
VIDEO
L
AUDIO
R
VIDEO
L
R
VIDEO1 IN
ENGLISH
CHANNEL
▲▼
Scans up and down through channels.
Selects sub-menu item when in the OSD
mode.
MENU
Press once to display the OSD (on screen
display), press again to turn the OSD off.
INPUT
Chooses from different input signal sources.
Turns the LCD TV on and into standby mode.
VIDEO1 IN
Connects to the composite
Video and Audio output jacks
on external video equipment.
HEADPHONE
Connects to the external
headphone for private
listening.
11
Chapter 1 Introducing the LCD TV
Rear View and Jacks
VIDEO2 IN
Connects to the composite VIDEO and AUDIO(L/R) output jacks on external video equipment.
HDMI IN
Connects the all digital AV equipment with HDMI connector.HDMI supports enhanced,
high-defi nition video and two-channel digital audio. The AUDIO(L/R) of HDMI IN is for
DVI connection.
S-VIDEO IN
Connects to the S-VIDEO and AUDIO(L/R) output jacks on external
video equipment.
VGA IN
Connects the PC, or other AV equipment with VGA and
AUDIO(L/R) output jacks.
HDMI IN
AUDIO
LR
LR
VIDEOAUDIO
VIDEO2 IN
YPbPr1 IN/YPbPr2 IN
Connects to the DVD player, Digital Set-Top-Box, or other AV
equipment with component(YPbPr) video and audio output jacks.
AUDIO OUT-STEREO
Connects to the AUDIO(L/R) input jacks on AV equipment.
AUDIO OUT-DIGITAL-OPTICAL/
COAXIAL
Connects to the DIGITAL AUDIO
jack on digital/standard 5.1 audio
system.
VGA IN
YPbPr1 IN
AUDIO
LRLR
LR
S-VIDEOAUDIO
S-VIDEO IN
YPbPr AUDIO
YPbPr AUDIO
YPbPr2 IN
AIR/CABLE IN
Connects RF input from VHF/UHF antenna or cable
to receive high/standard defi nition television.
LR
AC IN
Connects to the AC power cord.
12
STEREO
L
R
AUDIO OUT
DIGITAL
OPTICAL
COAXIAL
HDTV/TV
Air/Cable
VHF/UHF IN
Your Remote Control
Chapter 1 Introducing the LCD TV
Turns the LCD TV on and off.
1
MTS Cycles through the multi-channels TV
2
2
sound(MTS) options: SAP/MONO/
ENGLISH
STEREO
1
1
2
2
MTS
3
3
6
6
7
7
S.MODE
P.MODE
P.SIZESLEEPCAPTION
4
4
5
5
3
S.MODE Selects sound effect options: Surround/
Live/Dance/Techno/Classic/Soft/Rock/
Pop/Off.
P. M O D E Selects picture mode: Vivid/Hi-Bright/
4
Cinema/Sport/User
5
P. S I Z E Cycles through Wide mode settings :
NORMAL /FULL/WIDE/ZOOM
8
8
6
CAPTION Cycles through the Closed Caption:
Anlalog Closed Caption:CC1/CC2/
CC3/CC4/TT1/TT2/TT3/TT4/Off
9
9
10
10
11
11
VOL.
MUTE
INPUT
GUIDEEXIT
12
12
CH.
Digital Closed Caption:Service1/
Service2/Service3/Service4/Service5/
Service6/Off
SLEEP Cycles through the LCD TV sleep timer:
7
OFF/10/20/30/40/50/60/90/120 mins
0-9 Select and switch to a channel by using
8
0-9 buttons.
In HDTV mode, use with 0-9 and
INFOMENU
9
JUMP Returns to previously selected channel.
buttons to select a digital channels.
MUTE Mutes and restores the audio
10
11
VOL.+- Increases and decreases volume.
CH.+- Scans up and down the channels
12
13
Loading...
+ 34 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
