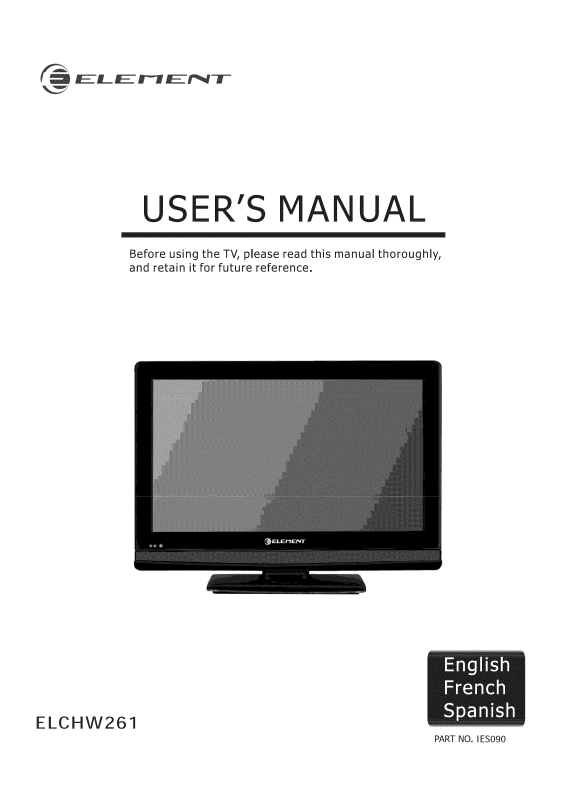

USER'S MANUAL

Before using the TV, please read this manual thoroughly,

and retain it for future reference.

ELCHW261

PARTNO. IESO90

Federal Communications Commission Statement

NOTE

The manufacturer is not responsible for any radio or tv interference caused by
unauthorized modifications to this equipment. Such modifications could void the user's
authority.

NOTE

This equipment has been tested and found to comply with the limits for a class B digital

Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio
Communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or
television reception,which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following
measures:

1.Reorient or relocate the receiving antenna.

2.Increase the separation between the equipment and the receiver.

3.Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

4.Consult the dealer or an experienced radio/TV technician for help.

CONTENTS

Important safety instructions ...........................................................................................................3

Preparation for using your new TV .................................................................................................5

Base installation instruction ............................................................................................................5

Learning about your -iV ....................................................................................................................6

view the front connectionpanel......................................................................................................6

View the backconnectionpanel......................................................................................................6

Selecting a location for the TV .......................................................................................................7

Connection to other devices ...........................................................................................................7

The side panel connection ............................................................................................................... 7

The back panel connection .............................................................................................................. 8

Connectingyour TV.......................................................................................................................... 9

Connectingto an antenna................................................................................................................ 9

Connecting to A/V equipments ......................................................................................................... 9

Service jack ...................................................................................................................................... 9

Connecting component devices (DVD/DVR) ..................................................................................... 9

Connecting HDMI ........................................................................................................................ 10

Connecting computer ................................................................................................................... 10

Connecting audio ......................................................................................................................... 10

Connecting to a cable converter box ............................................................................................. 10

Using the remote control ....................................................................................................................12

Preparing the remote control for use ........................................................................................12

Learning about the remote control .............................................................................................13

Understanding the TV features .......................................................................................................14

Basic operation .........................................................................................................................................14

Menu operation .................................................................................................................................14

Video mode adjustment .................................................................................................................17

Audio mode adjustment .................................................................................................................17

Setup ....................................................................................................................................................18

Parental control .................................................................................................................................19

Appendix ......................................................................................................................................................21

Cleaning and care ............................................................................................................................21

Troubleshooting ................................................................................................................................22

Wall-mounting Bracket Installation ..................................................................... 23

Specifications .....................................................................................................................................24

SAFETY CLASS :This is an IEC safety class 1 product and it must be grounded for safety,

2

CAUTION

The lightning flash symbol with an arrowhead inside a

triangle alerts the user about an uninsulated dangerous
voltage that may be of sufficient magnitude to constitute
a risk of electric shock.

CAUTION: TO REDUCE THE RISK OF AN ELECTRICSHOCK,

DO NOT REMOVETHE COVER(OR BACK).

THERE ARE NO USERSERVICEABLE PARTS
INSIDE. FOR ANY REQUIRED SERVICING,

PLEASECONTACT QUALIFIED SERVICE
PERSONNEL.

The flash with the symbol of an exclamation point
inside a triangle alerts the user about important

operating and maintenance instructions related to
the product.

CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY

RESPONSIBLE FOR COMPLIANCE WITH THE FCC RULES COULD VOID THE USERS

AUTHORITY TO OPERATE THIS EQUIPMENT.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

Important safety instructions

1. Read these instructions

2. Keep these instructions

3. Heed all warnings

4. Follow all instructions

5. Do not use this apparatus near water

6. Clean only with dry cloth

7. Do not block any ventilation openings

8. Do not install near any heat sources

9. Do not defeat the safety purpose of the polarized or grounding-type plug

10. Protect the power cord from being damaged particularly at plugs, convenience receptacles, and at points in
which they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer or
sold with the apparatus. When a cart is used, use caution when moving the

cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of
time.

14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as when the powermsupply cord or

plug is damaged, when liquid has been spilled or when objects have fallen into the

apparatus, or when the apparatus has been exposed to rain or moisture, does not

operate normally, or has been dropped. $3!2E

3

ImPortant safety instructions

15. POWER SOURCE: This TV should be operated only from the type of power source indicated on the marking
label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local
power company. For TVs intended to operate from battery power, or other sources, refer to the operating

instructions.

16. POWER CORD PROTECTION: Power-supply cords should be routed so that they are not likely to be walked
on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience

receptacles, and the point where they exit from the appliance.

17. OUTDOOR ANTENNA GROUNDING : If an outside antenna or cable system is connected to the TV, be sure
the antenna or cable system is grounded to provide
some protection against voltage surges and built-up
static charges. Section 810 of the National Electrical
Code, ANSI/NFPA NO.70,provides information with
respect to proper grounding of the mast and supporting

structure, grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors, location
of antenna discharge unit, connection to grounding
electrodes, and requirements for the grounding
electrode. (Fig.A)

18. LIGHTNING= For added protection for this TV receiver
during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.
This will prevent damage to the TV due to lightning and power line surges.

19. POWER LINES" An outside antenna system should not be located in the vicinity of overhead power lines, or
other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an
outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as
contact with them might be fatal.

20. OVERLOADING-" Do not overload wall outlets and extension cords as this can result in a risk of fire or electric
shock.

21, OBJECT AND LIQUID ENTRY: Never push objects of any kind into this TV through openings as they may

touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill liquid
of any kind into theTV.

22. SERVICING-" Do not attempt to service this TV yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

23. REPLACEMENT PARTS: When replacement parts are required, be sure that the service technician uses
replacement parts with the same characteristics as the original parts specified by the manufacturer.
Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

24. SAFETY CHECK-" Upon completion of any service or repairs to this TV, ask the service technician to perform
routine safety checks to determine that the TV is in proper operating condition.

25. The apparatus should not be exposed to any dripping or splashing, and no objects filled with liquids (such as a
vase) should be placed on the apparatus.

26. WARNING: Plug the power cord into a power outlet where access to a power cord connector is readily
accessible, in case if the power needs to be immediately disconnected.

27. ATTENTION-" This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

28. CAUTION: To reduce the risk of electric shock, the grounding of the center pin of this plug must be
maintained.

FIGURE A

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

GROUND

CLAMP

ELECTRIC

SERVICE

EQUIPMENT

$2898A

i /

//

ELECTRODESYSTEM

- iN WINE

ANTENNA
DISCHARGE UNiT

GROUNDING WIRES

4

Pre aration for usin

r new TV

Base installation instruction

1. Lay a cloth or other soft material that can afford adequate weight on a flat table to avoid damage to the LCD

screen.

2. Put the TV back upward and the LCD screen downward and keep it flat on the table-board.

3. Take out the base and insert it into the installing slot in the lower part of the TV in the arrow direction as
illustrated in the figure.

4. Fasten the base and the TV set together with the 4 screws provided.

5

Preparation for using your new TV

Learning about your TV

Operate your TV via the buttons located on the front or side of cabinet or use the remote control. The
terminals located on back of TV provides all the connections from other equipment to TV.

View the front connection panel

)ut selection

Up

Down

Up
Down

Dn/Standby)

indicator

--Remote receiver

View the back connection panel

Input

6

Preparation for using your new TV

Selecting a location for the TV

1. Place the TV on an open stand in a location where light does not directly hit the screen.

2. Place the TV far enough from the walls to allow proper ventilation. Inadequate ventilation may cause
overheating, which may damage the TV.

NOTE- =Please contact a local dealer for wall mounting.

Connection to other devices

The side pane| connection

Update jack

The equipment with AV or S-Video

output function ( such as VCR, DVD,
set=top boxes, etc,),
