Made in Taiwan
HDMI
TM
EXTENDER
ELE8084
INSTALLATION Manual
1
Safety and Notice
The ELE8084 HDMI™ EXTENDER has been tested for conformance to safety
regulations and requirements, and has been certied for international use. However, like
all electronic equipments, the ELE8084 should be used with care. Please read and follow
the safety instructions to protect yourself from possible injury and to minimize the risk of
damage to the unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is
on a stable surface.
● Use only the power adapter and power cords and connection cables designed for this
unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
2
INTRODUCTION
The ELE8084 HDMITM EXTENDER allows user to extend HDMITM transmission range up to 330ft
(100m) with resolutions as high as 1080p 50/60Hz and also supports 3D. ELE8084 is extremely
easy to install and works perfectly with existing RGBHV or RG-6 coaxial cables, even original
Component + Audio cables will work, which makes it perfect to retrofit those extenders to the
current technology. Built with Bi-Directional IR pass-through extension, users can control the
remote HDMITM source devices such as Blu-ray players, Cable/Sat Boxes, Video Game consoles,
etc… instantly at the display site. The Bi-Directional IR also gives advantage to user to control
display via Control System by sending commands (such as on/off, input change, etc...) from
Control System to Display.
The ELE8084 comes with one transmitting module and one receiving module. Both transmitter
modules are based on the HDMITM 1.4a (3D) and HDCP 2.0 and therefore are compatible with:
» All latest video formats such as 1920x1200 or 1080p
» 3D Compatible (all 7 formats)
» EDID pass-though (very important if user would want to connect sources such as computers, 3D
players, latest Satellite receivers).
» Supports all latest Audio formats such as Dolby TrueHD, DTS-HD Master Audio, etc…
» HDCP compatible
Features
» 3D capable
» HDMITM 1.4a (3D) and DVI 1.0 compliant
» HDCP compliant
» Supports 7.1-channel DTS-HD Master Audio and Dolby TrueHD high bitrate audio
» Supports Deep Color and x.v.Color (xvYCC)
» Extends the transmission range up to 330ft (100m) at full 1080p 24-bit color depth; and up to
165ft (50m) at full 1080p 36-bit color depth
» Supports bi-directional IR pass-through (0~60Khz) and Consumer Electronics Control (CEC)
channel
» Supports Video resolutions up to WQXGA (2560x1600@60Hz or 1920x1200@75Hz) or 1080p
» Supports VESA DDC and Hot-Plug Detect (HPD)
Package Contents

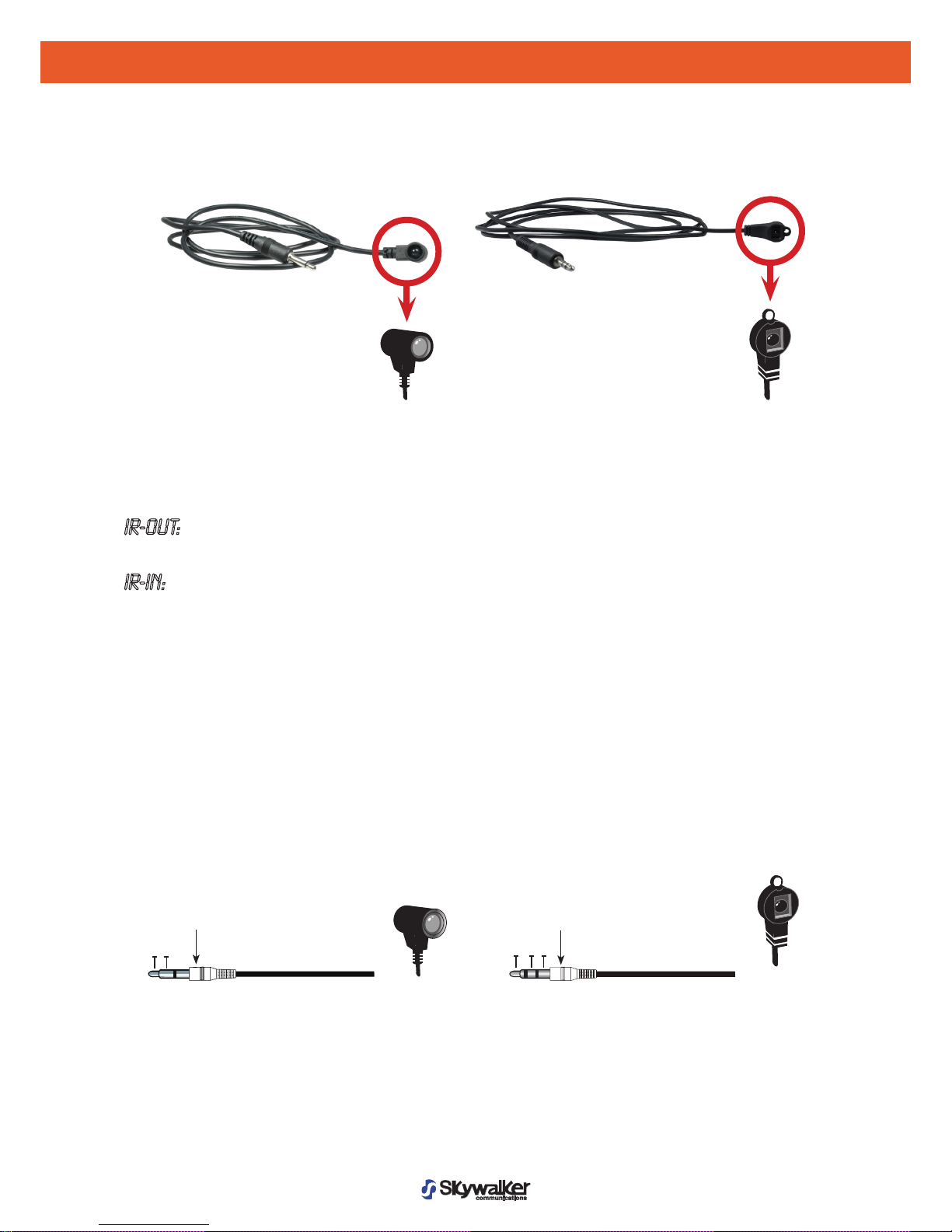

» ELE8084 x1 » IR blaster x1
» IR receiver x1 » DC 5V 4A in-line with C7 power cord x2
» Installation manual x1
3
Specications
Technical Transmitter Receiver
Technical
3D Support Yes
HDMITM compliance HDMITM 1.4a (3D)
HDCP compliance Yes
Video bandwidth Single-link 340MHz (10.2Gbps)
Video support 480i / 480p / 720p / 1080i / 1080p60 / 1920x1200@75 / 2560x1600@60
HDMITM over Coax
transmission range
Full HD [1080p 24-bit color] @ 330ft (100m)
Deep Color Full HD [1080p 36-bit color] – 165ft (50m)
HDMITM equalization N/A Auto
Input TMDS signal 1.2 Volts [peak-to-peak]
Input DDC signal 5 Volts [peak-to-peak, TTL]
ESD protection
[1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset — ±8kV
PCB stack-up 4-layer board [impedance control — differential 100 Ω; single 50 Ω]

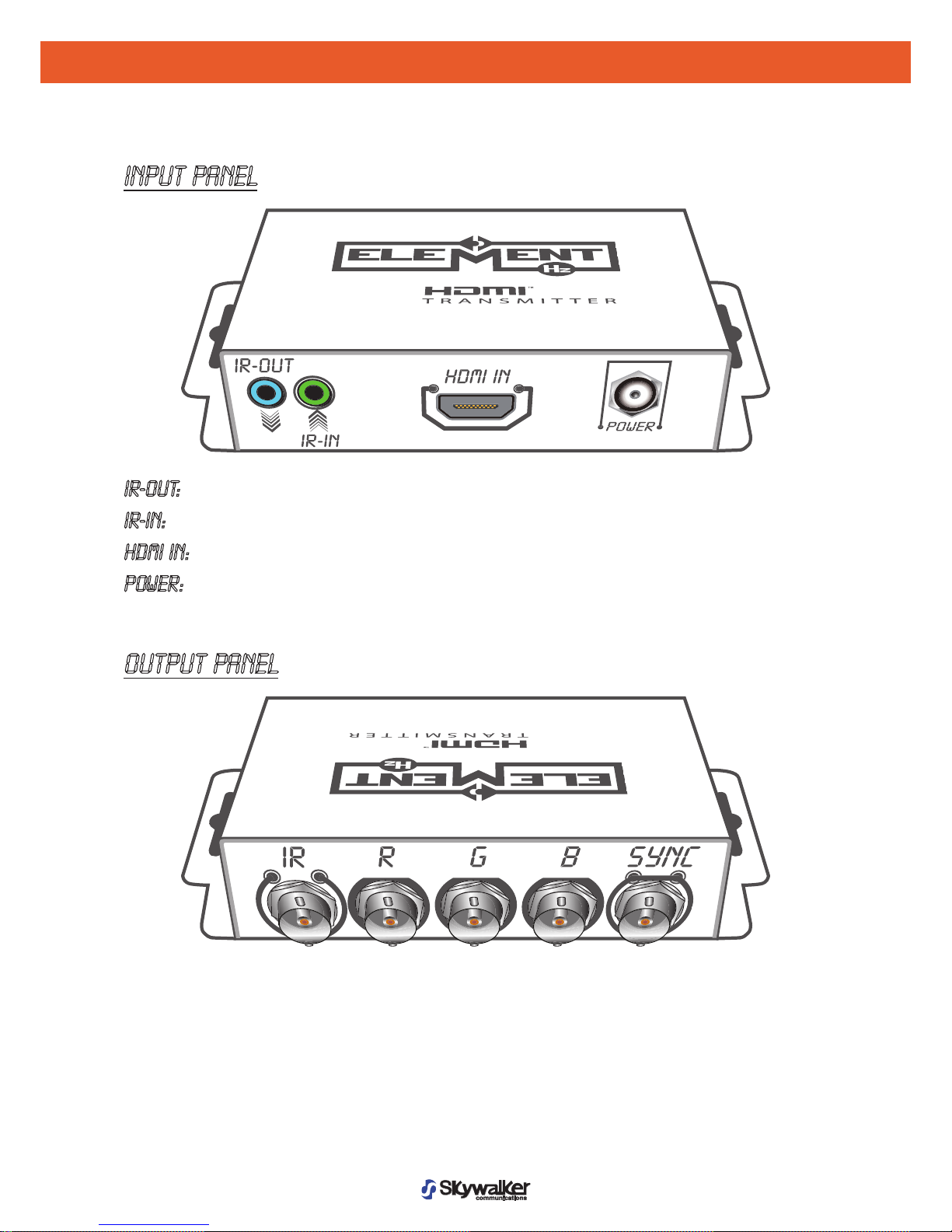

Input
1x HDMI
TM
1x IR socket for IR receiver
5x BNC
1x IR socket for IR receiver

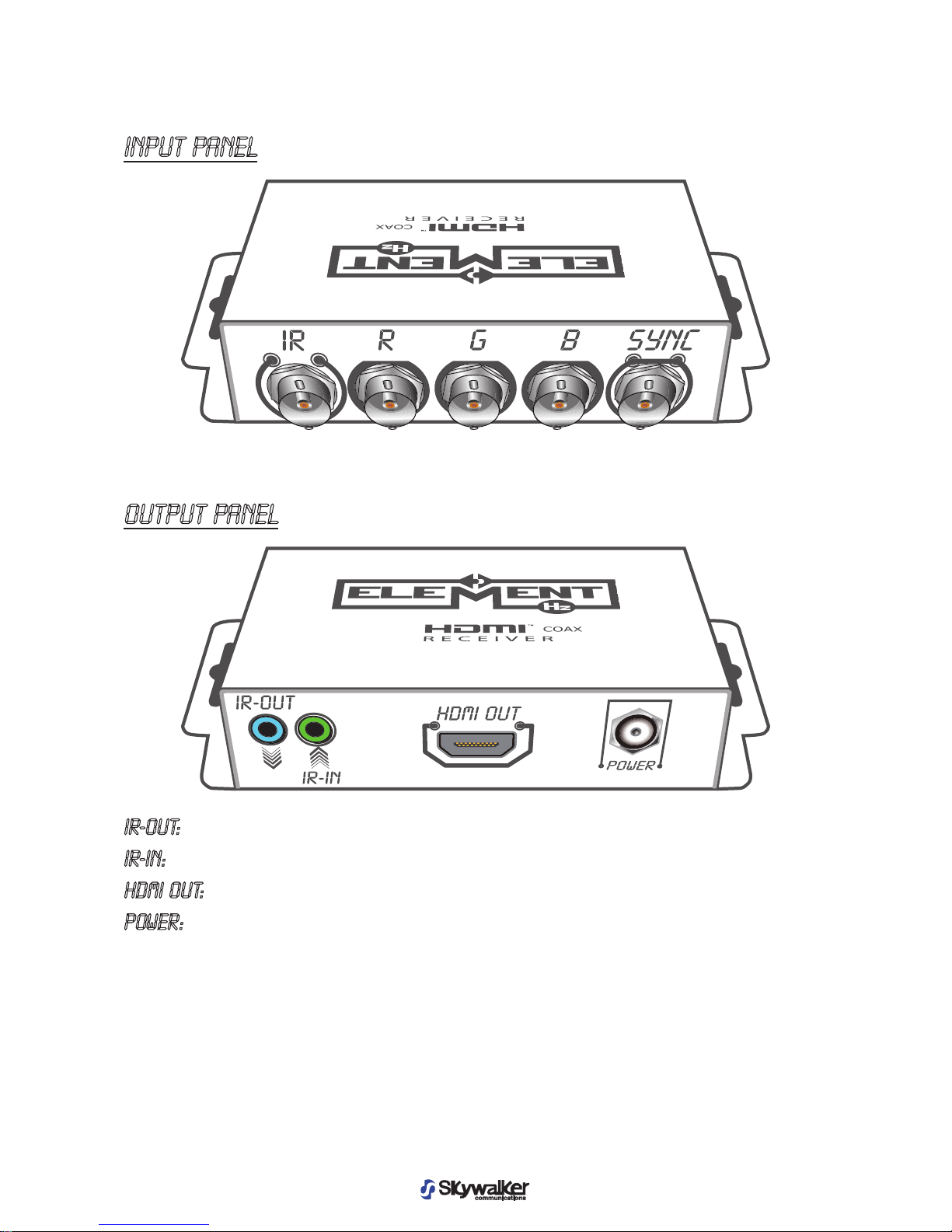

Output
5x BNC
1x IR socket for IR blaster
1x HDMI
TM
1x IR socket for IR blaster
IR remote control Electro-optical characteristics: τ = 25° / Carrier frequency: 20-60kHz

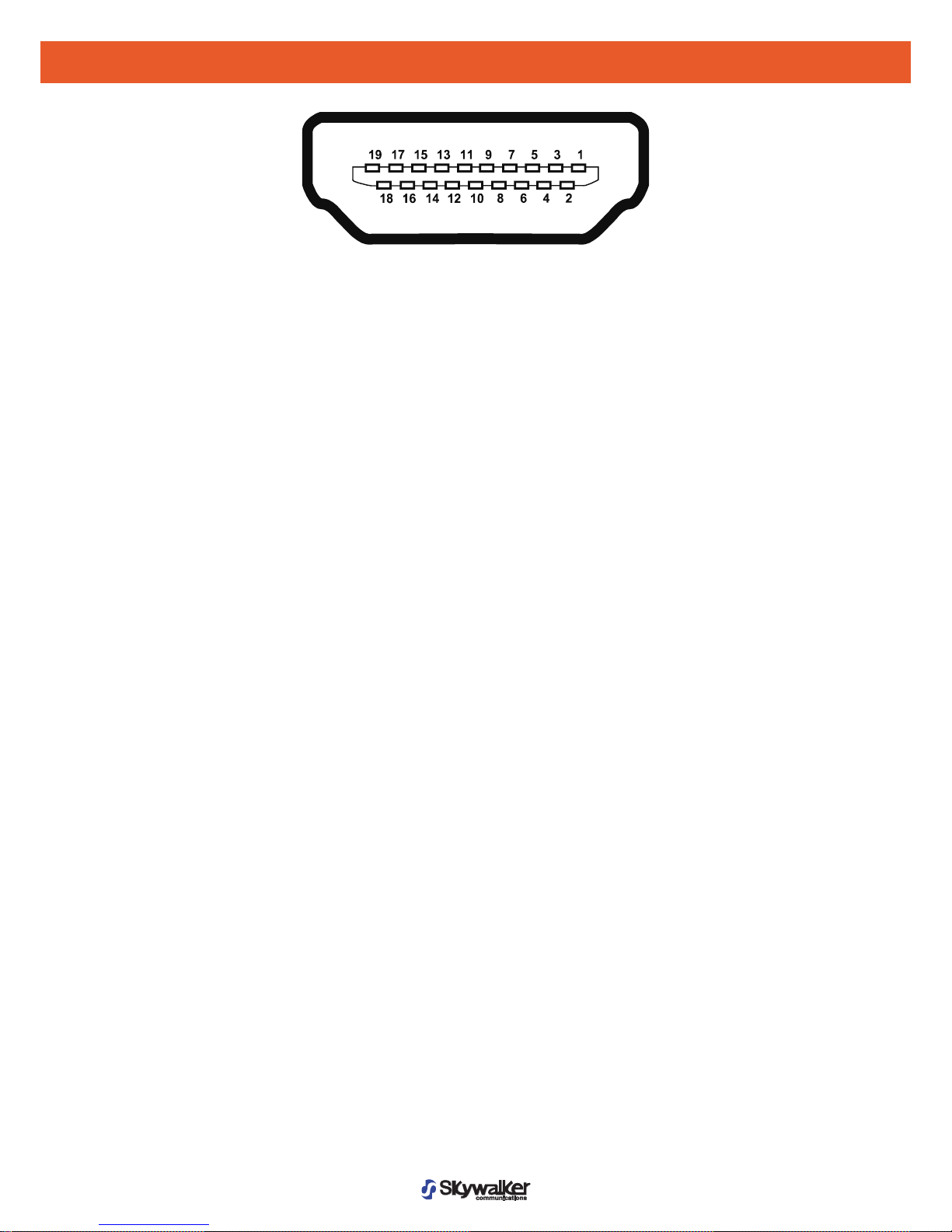

HDMITM connector Type A [19-pin female]
BNC connector 75Ω interlocking socket
3.5mm connector Earphone jack for IR blaster and IR receiver
Mechanical
Housing Metal enclosure
Dimensions
[L x W x H]
Model [TX/RX] – 3.6” x 5” x 1.1” (93 x 128 x 27mm)
Package 6.9” x 10.6” x 3.1” (175 x 270 x 80mm)
Carton 1’6” x 1’3” x 1’ (450 x 370 x 300mm)
Weight
Model 1.2 lbs (560g)
Package 3.0 lbs (1350g)
Fixedness Interlocking power supply & wall-mount case with screws
Power supply +5V DC
Power consumption 3 Watts (max)
Operation temperature 32~104°F (0~40°C)
Storage temperature -4~140°F (-20~60°C)
Relative humidity 20~90% RH (no condensation)
