Element 42LE45Q User Manual

Model: 42LE45Q UM No.: N03185H1200

CAUTION: To reduce the risk of electric shock,

do not remove cover or back. No user- serviceable parts ]nsTde.

Refer Servicing to qualified service personnel.

CAUTION:

Changes or modifications not

expressly approved by the party responsible for compliance with the

FCC Rules could avoid the users' authority to operate this equipment.

The TV shall not be exposed to

dripping or splashing. No objects filled with liquids, such as vases, shall

be placed on the TV.

Do Not Place This TV on an

unstable cart, stand, or table. The TV may fall, causing serious injury to a child or adult, and serious damage

to the TV. Use only with a cart or stand recommended by the manufacturer, or

sold with the TV.

CAUTION: Installation on concrete wall has passed

UL safety test.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT

INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

WARNING: THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR

SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES SHALL BE PLACED ON THE APPARATUS.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT IN

OUTLET.

CAUTION: THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE

PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT PERFORM ANY SERVICING ACTIVITIES, BUT CALL QUALIFIED ELECTRICIAN PERSONNEL.

CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED, REPLACE ONLY

WITH THE SAME OF EQUIVALENT TYPE

READ THESE INSTRUCTIONS

KEEP THESE INSTRUCTIONS

HEED ALL WARNINGS

FOLLOW ALL INSTRUCTIONS

DO NOT USE THIS APPARATUS NEAR WATER

Do not use this TV near water. For example, do not use near a bathtub, washbowl, kitchen sink or laundry tub, in a wet

basement, or near a swimming pool, and the like. The TV set shall not be exposed to dripping or splashing. No objects

filled with liquids, such as vases, shall be placed on the TV set.

6. CLEAN ONLY WITH DRY CLOTH

Unplug the TV from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

DO NOT BLOCK ANY VENTILATION OPENINGS, INSTALL IN ACCORDANCE WITH THE

MANUFACTURER'S INSTRUCTIONS.

Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the TV and to protect it from overheating. These openings must not

be blocked or covered. The openings should never be blocked by placing the TV on a bed, sofa, rug, or other

similar surface. This TV should never be placed near or over a radiator or heat resource. This TV should not be placed in a built-in installation such as a bookcase or rack unless proper

ventilation is provided or the manufacturer's instructions have been adhered to.

DO NOT INSTALL NEAR ANY HEAT SOURCES SUCH AS

RADIATORS, HEAT REGISTERS, STOVES, OR OTHER

APPARATUS (INCLUDE AMPLIFIERS) THAT PRODUCE

HEAT.

DO NOT DEFEAT THE PURPOSE OF THE POLARIZED

OR GROUNDING-TYPE PLUG. A POLARIZED PLUG HAS

TWO BLADES WITH ONE WIDER THAN THE OTHER. A

GROUNDING TYPE PLUG HAS TWO BLADES AND A

THIRD GROUNDING PRONG. THE WIDE BLADE OR THE

THIRD PRONG IS PROVIDED FOR YOUR SAFETY. IF

THE PROVIDED PLUG DOES NOT FIT INTO YOUR

OUTLET, CONSULT AN ELECTRICIAN FOR

REPLACEMENT OF THE OBSOLETE OUTLET.

10.

PROTECT THE POWER CORD FROM BEING WALKED

ON OR PINCHED PARTICULARLY AT PLUGS,

CONVENIENCE RECEPTACLES, AND THE POINT

WHERE THEY EXIT FROM THE APPARATUS.

11.

ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED

BY THE MANUFACTURER.

12.

USE ONLY WITH CART, STAND, TRIPOD, BRACKET, OR

TABLE SPECIFIED BY THE MANUFACTURER, OR SOLD WITH THE APPARATUS. WHEN A CART IS USED, USE

CAUTION WHEN MOVING THE CART/

APPARATUS COMBINATION TO AVOID INJURY FROM TIP-OVER.

Do not place this TV on an unstable cart, stand, tripod, bracket, or table. The TV may fall, causing serious injury to

someone, and serious damage to the appliance. A TV and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the TV and

cart combination to overturn.

13. UNPLUG THIS APPARATUS DURING LIGHTNING

STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME.

For added Protection for this TV receiver during a lightning storm, or when it is left unattended and unused for long

period of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the

TV due to Lightning and power line surges.

14, REFER ALL SERVICING TO QUALIFIED SERVICE

PERSONNEL. SERVICING IS REQUIRED WHEN THE

APPARATUS HAS BEEN DAMAGED IN ANY WAY, SUCH AS POWER-SUPPLY CORD OR PLUG IS DAMAGED,

LIQUID HAS BEEN SPILLED OR OBJECTS HAVE FALLEN INTO THE APPARATUS, THE APPARATUS HAS

BEEN EXPOSED TO RAIN OR MOISTURE, DOES NOT

OPERATE NORMALLY, OR HAS BEEN DROPPED.

Note: All figures in the manual are for reference only, please

refer to the actual units to determine their appearance.

Thefrontofthedisplaypanelhasbeenspeciallytreated.Wipethepanelsurfacegentlyusingonlyacleaning clothorasoft,lint-freecloth.

Ifthesurfaceisparticularlydirty,soakasoft,lint-freeclothinaweakdetergentsolutionandthenremove excessliquid.Usethisclothtowipethesurfaceofthedisplaypanel,andthenwipeitwithadrycloth,ofthe

sametype,untilthesurfaceisdry.

Donotscratchorhitthesurfaceofthepanelwithfingernailsorotherhardobjects.Furthermore,avoidcontact withvolatilesubstancessuchasinsectsprays,solventsandthinner;otherwise,thequalityofthesurfacemay beadverselyaffected.

Pleasereadallthesafetyandoperatinginstructionscarefullybeforebegin.

Tableofcontents

CAUTION AND WARNING ........................................................................... 1

IMPORTANT SAFETY INSTRUCTIONS ........................................................... 3

CLEANING AND MAINTENANCE ................................................................. 4

SAFETY PRECAUTIONS ............................................................................. 6

INSTALLATION .......................................................................................... 7

Preparation for using your new TV ............................................................. 8

FRONT PANEL ......................................................................................... 8

REAR PANEL ............................................................................................ 9

CONNECTIONS AND EXTERNAL INPUT SETTINGS .............................................. 10

Using the Remote control .......................................................................... 11

LEARNING ABOUT REMOTE CONTROL ........................................................... 11

REMOTE CONTROL INSTRUCTIONS ............................................................... 12

Basic operation ......................................................................................... 13

TURNING ON AND OFF THE TV...................................................................... 13

CHOOSING TV CHANNEL ............................................................................. 13

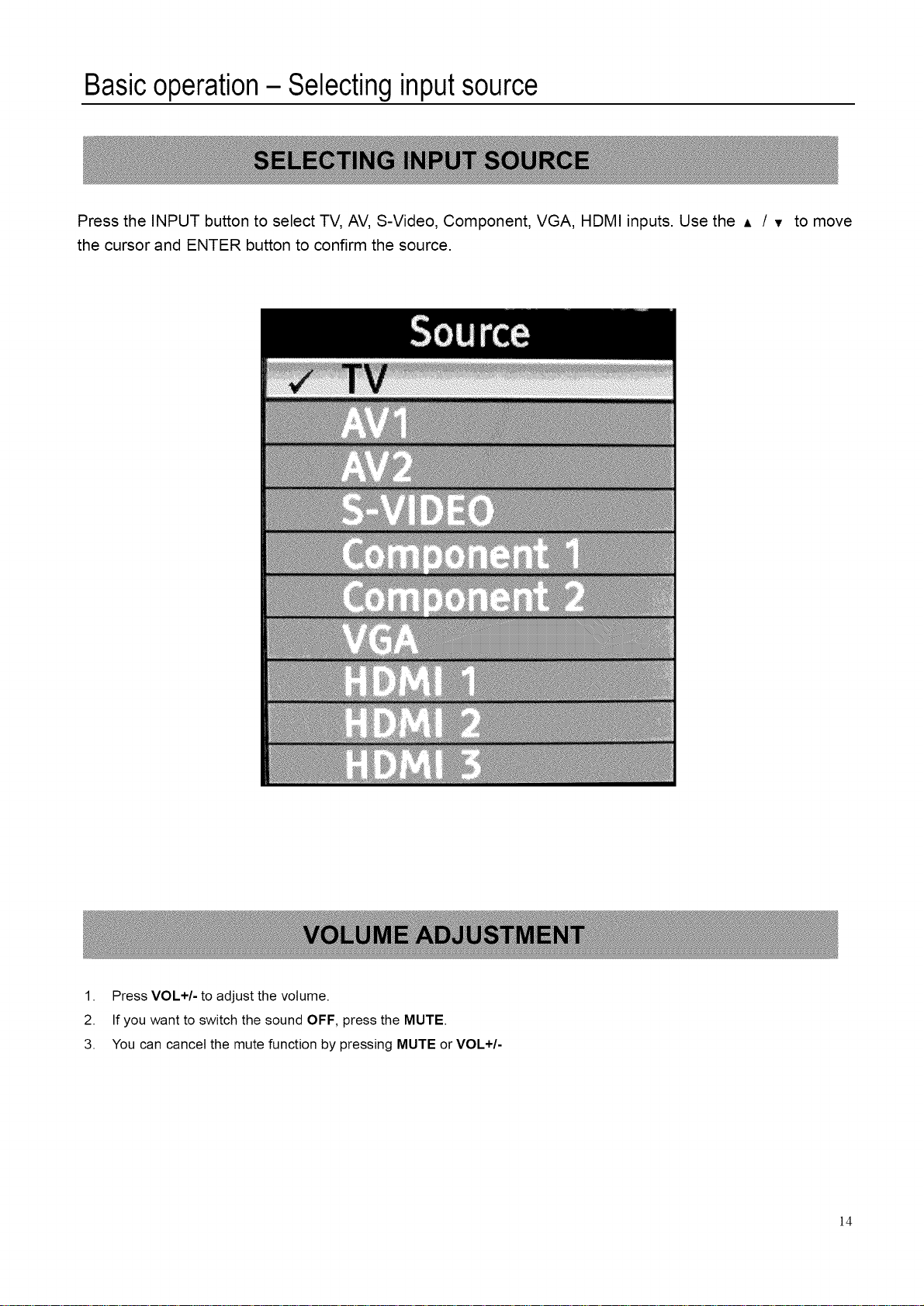

SELECTING INPUT SOURCE .......................................................................... 14

VOLUME ADJUSTMENT .............................................................................................. 14

Setup menu operation ................................................................................ 15

ADJUST THE OSD SCREEN ........................................................................... 15

SELECT ON SCREEN LANGUAGE ................................................................... 16

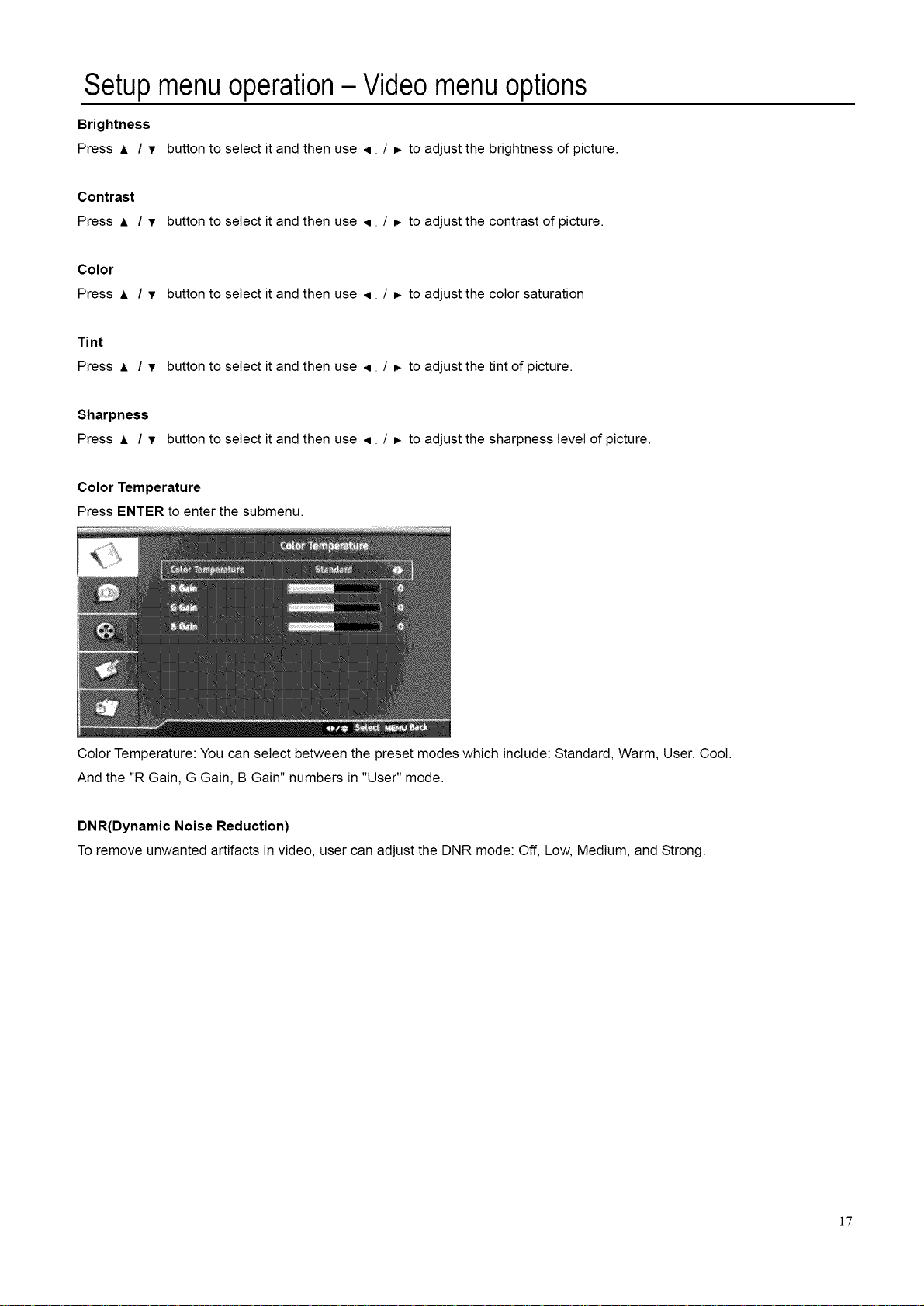

VIDEO MENU OPTIONS ................................................................................ 16

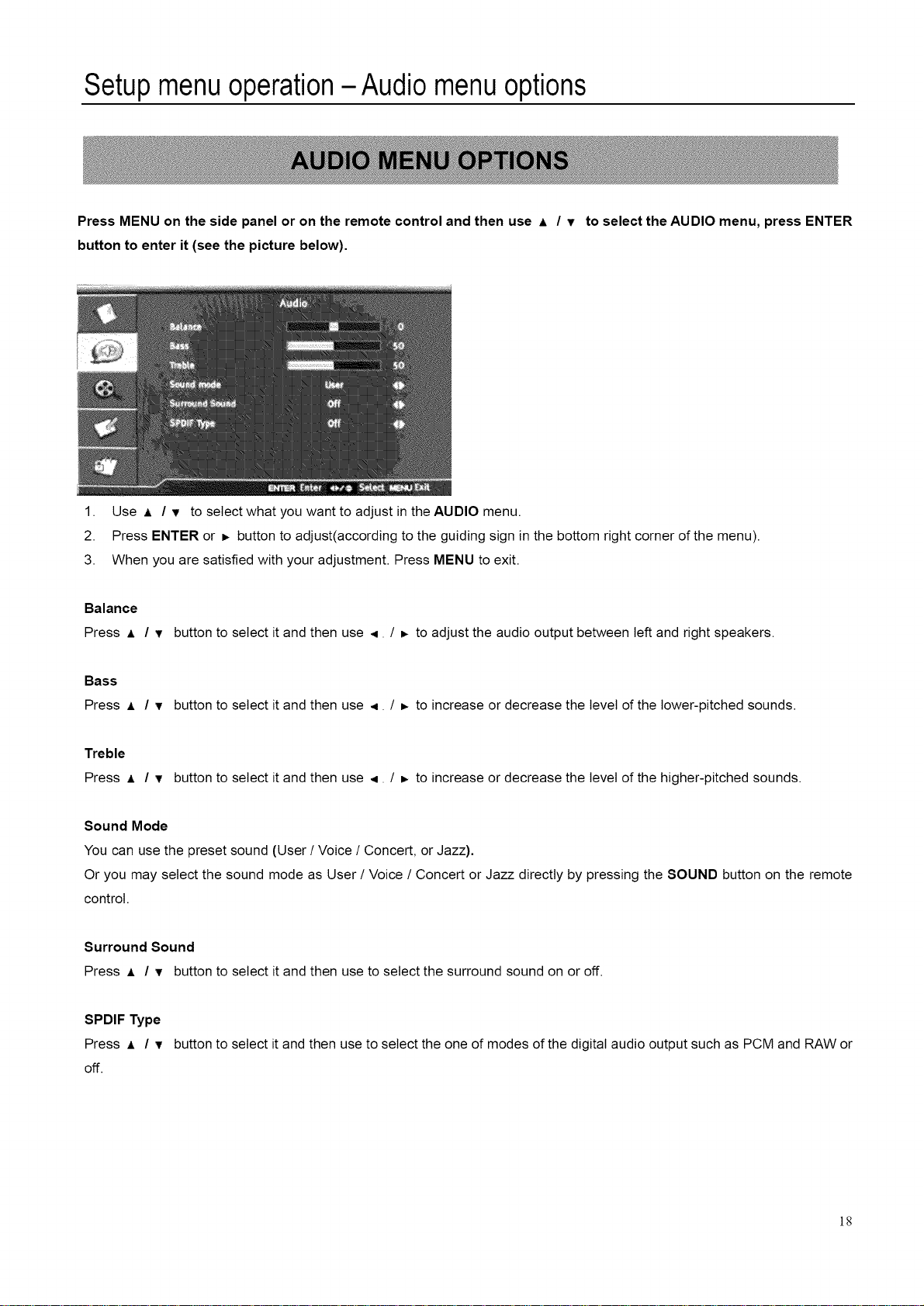

AUDIO MENU OPTIONS ................................................................................ 18

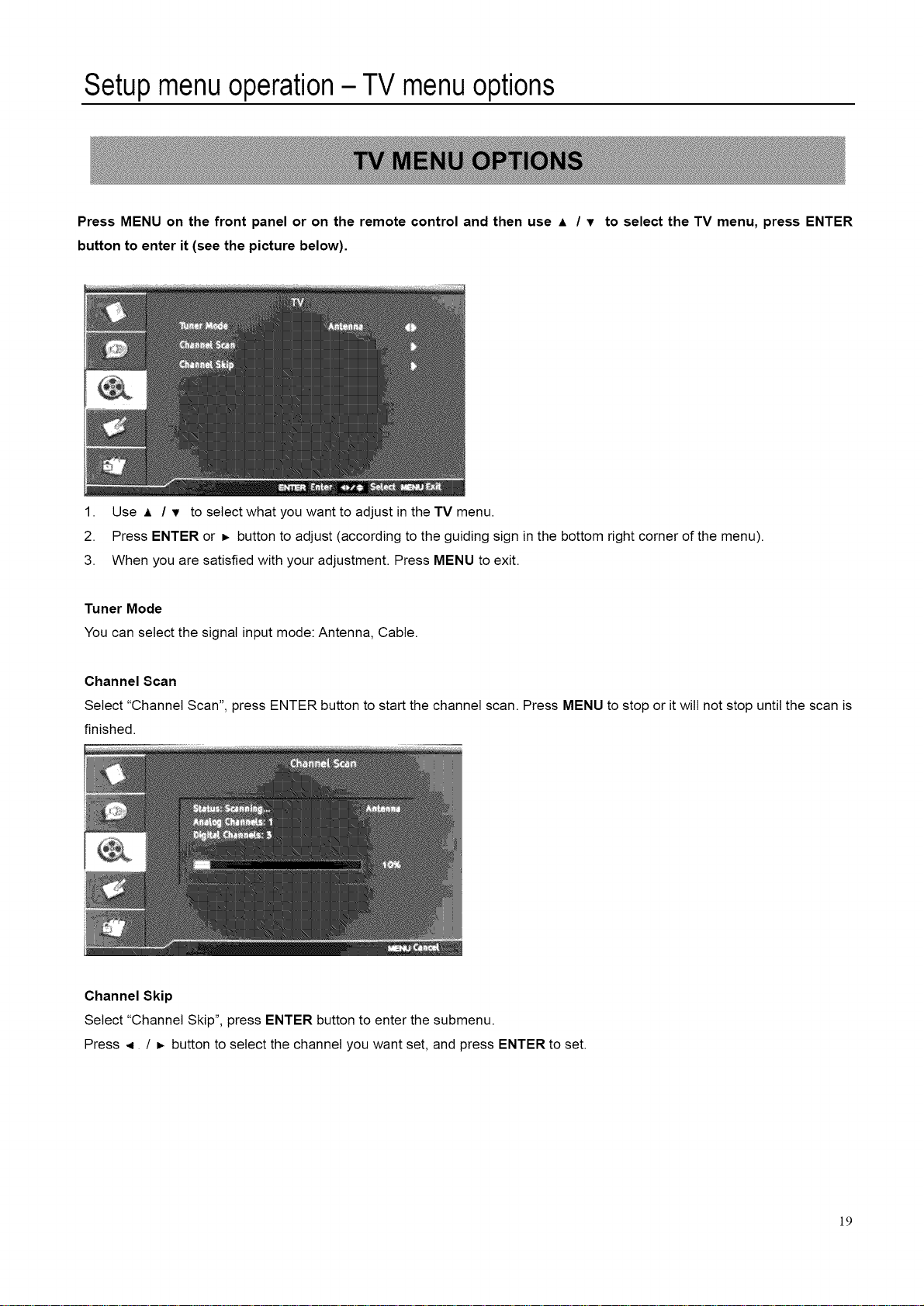

TV MENU OPTIONS ..................................................................................... 19

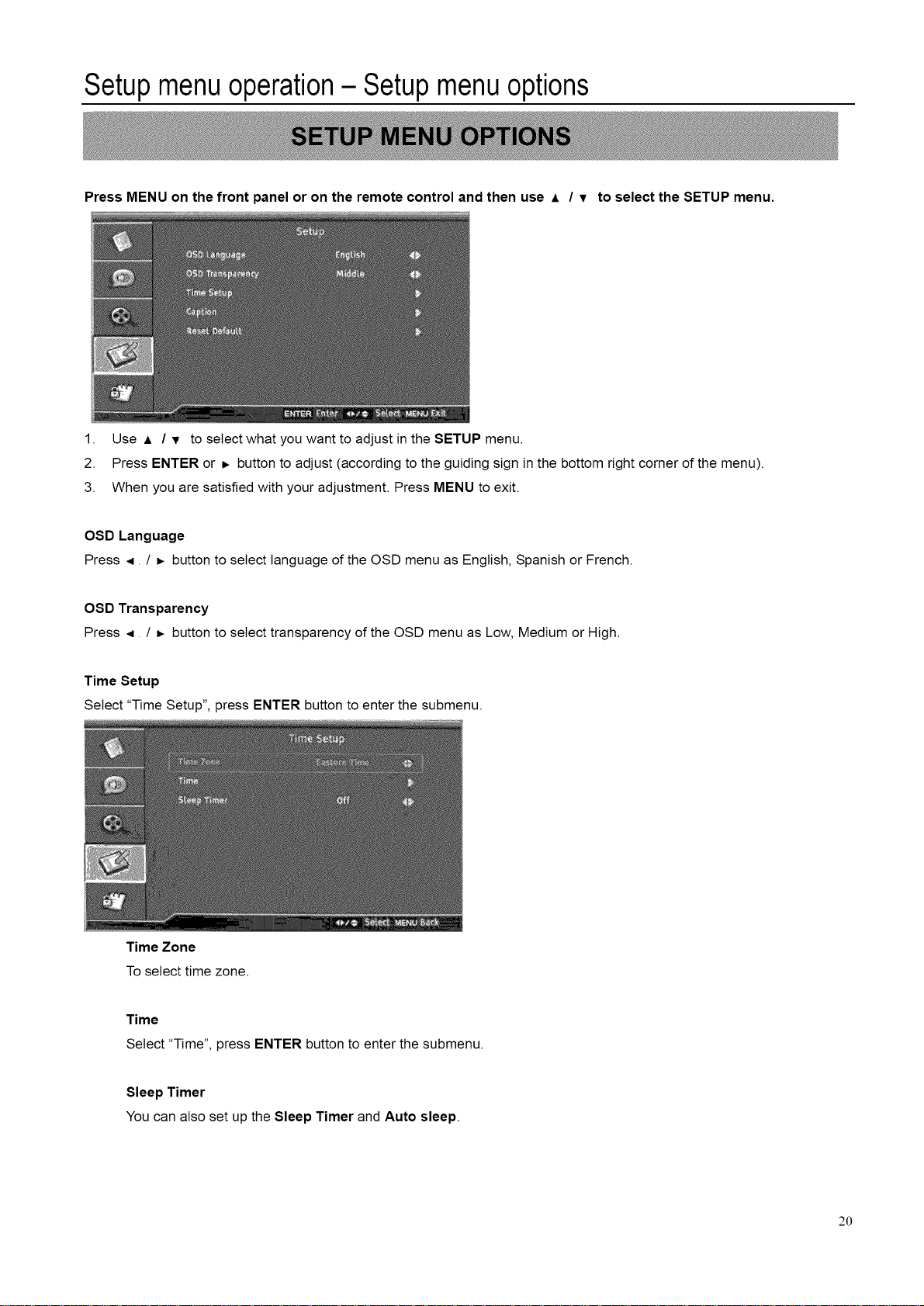

SETUP MENU OPTIONS ............................................................................... 20

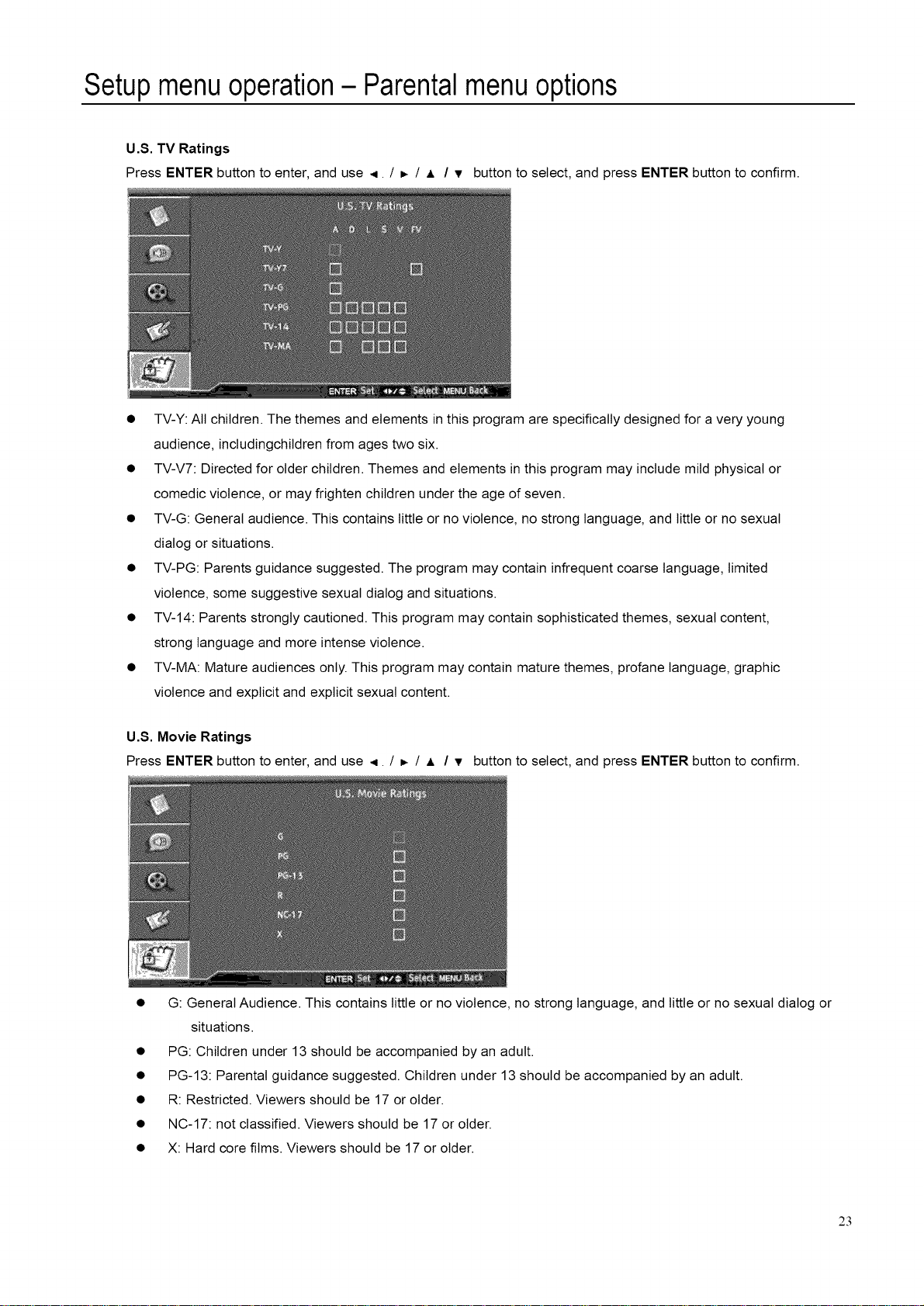

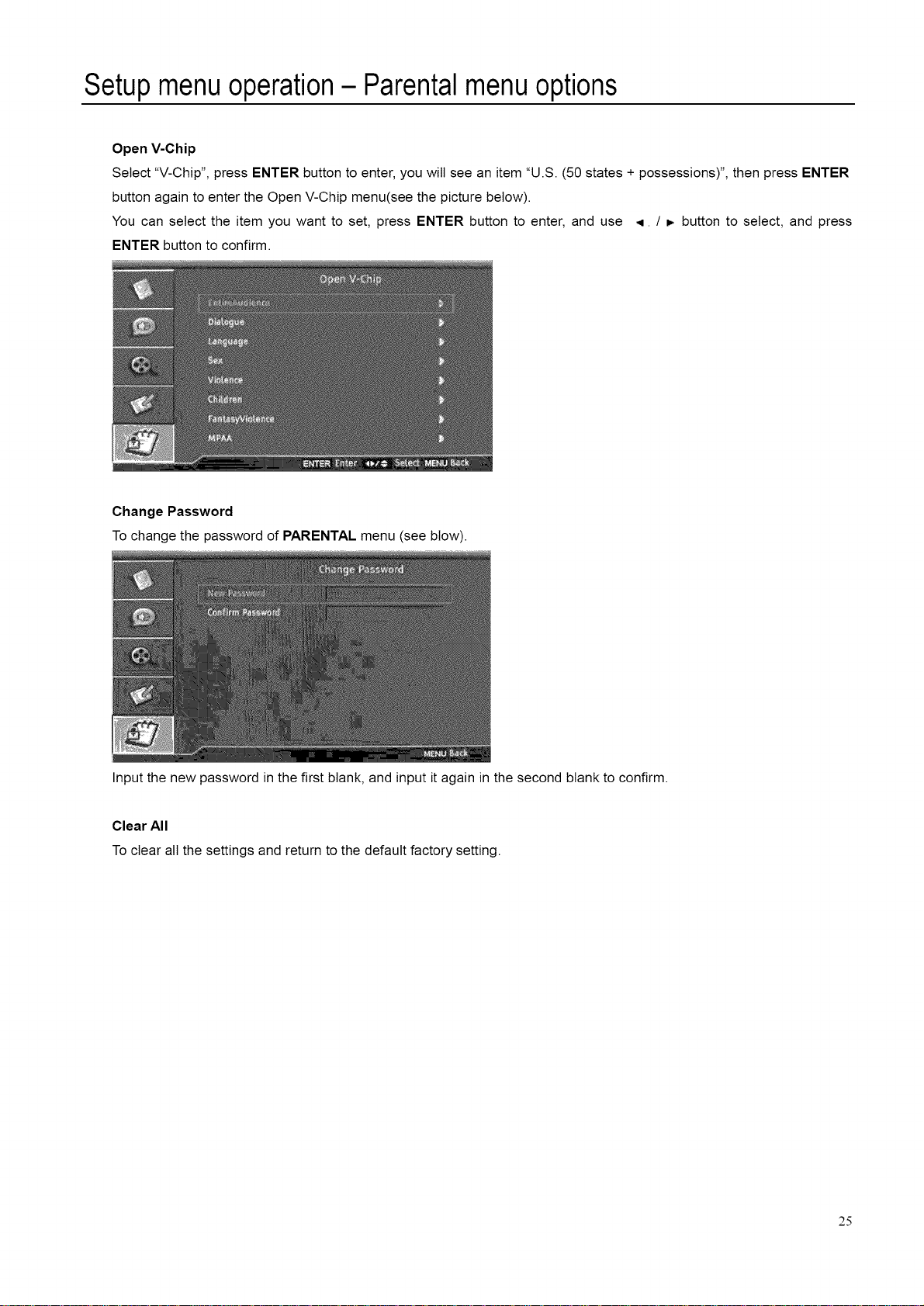

PARENTAL MENU OPTIONS ........................................................................... 22

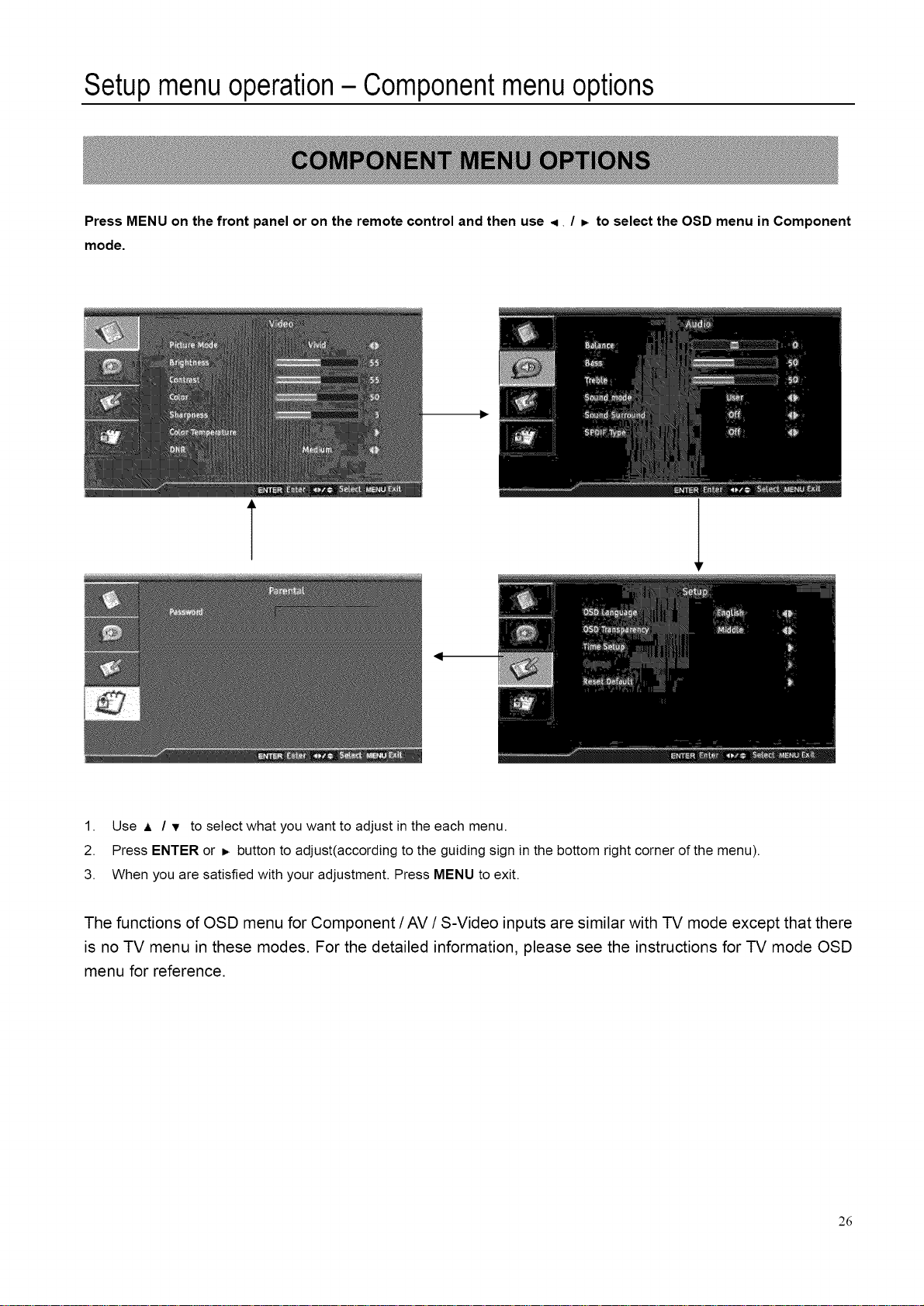

COMPONENT MENU OPTIONS ........................................................................ 26

VGA MENU OPTIONS .................................................................................. 27

HDMI MENU OPTIONS ................................................................................... 28

APPENDIX ................................................................................................ 29

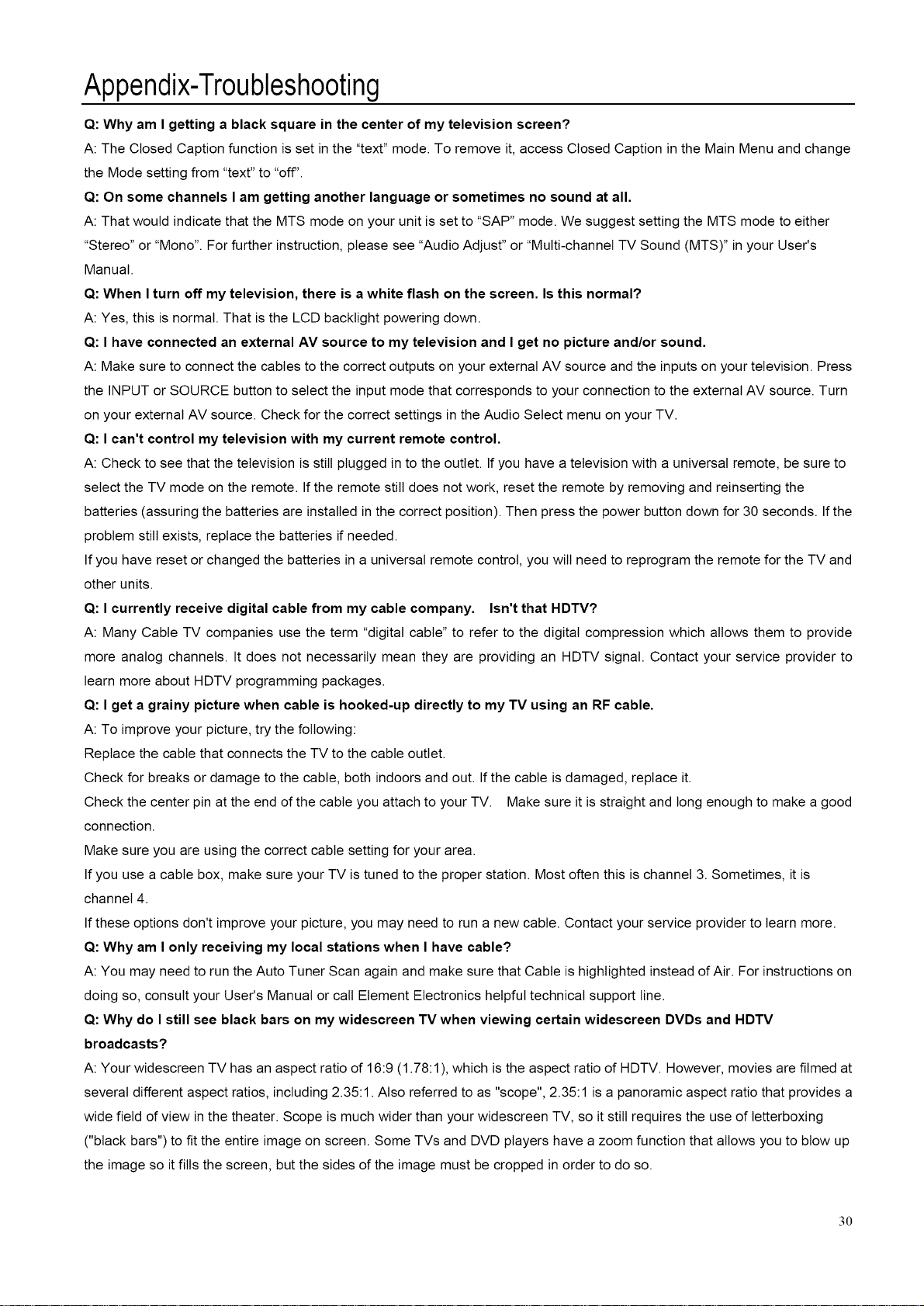

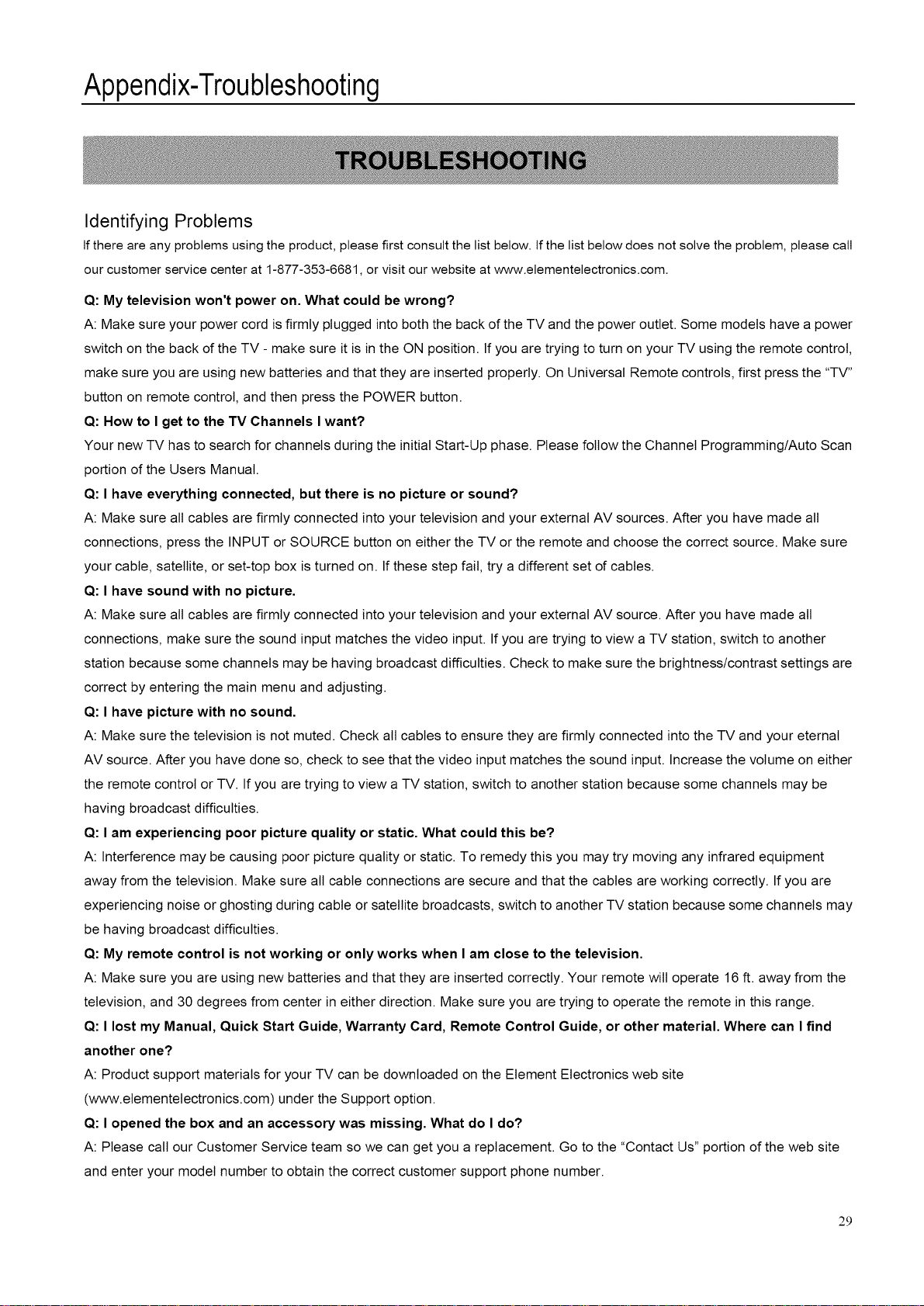

Troubleshooting ......................................................................................... 29

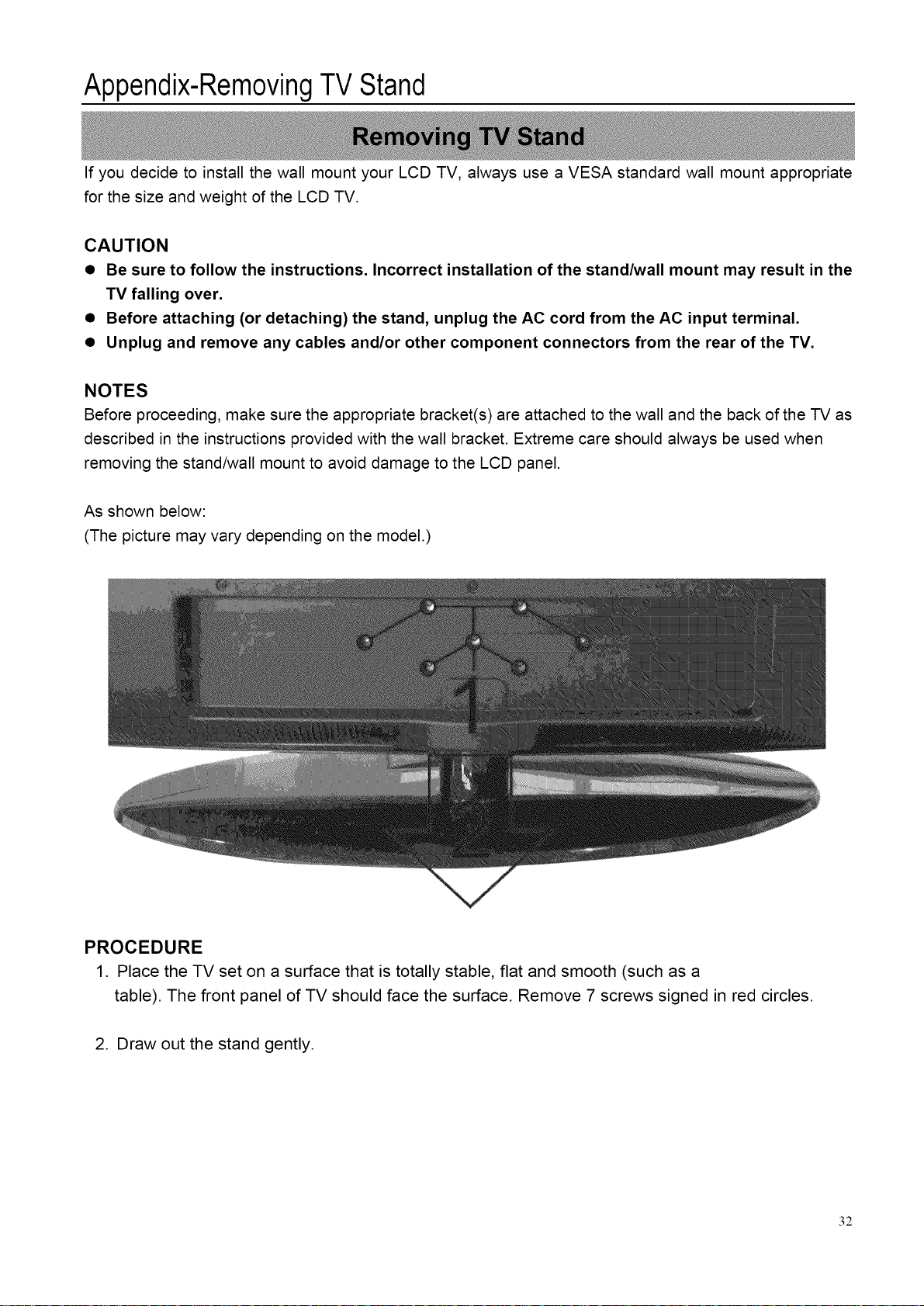

Removing TV Stand ....................................................................................... 32

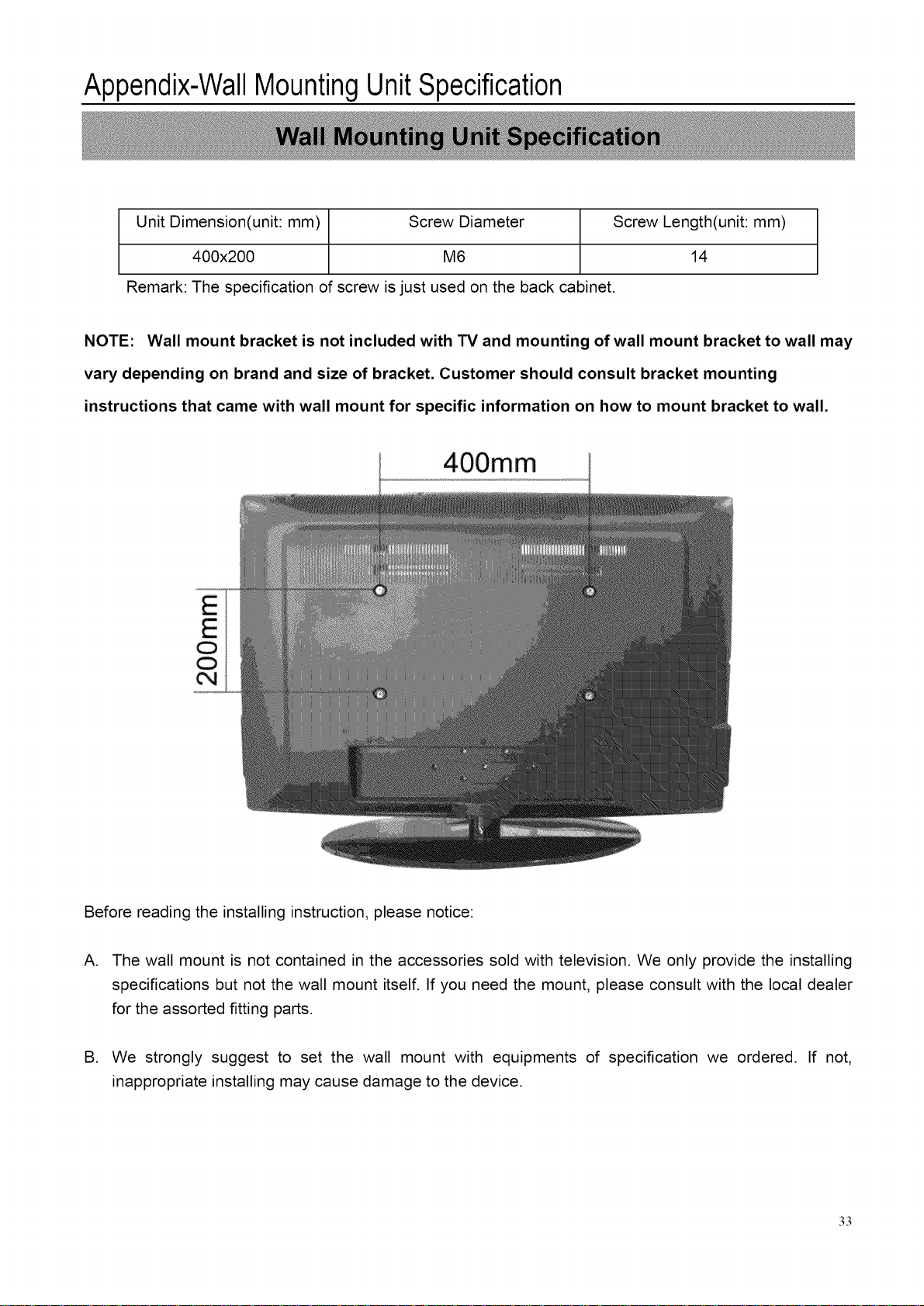

Wall Mounting Unit Specification ...................................................................... 33

Safety Warnings ....................................................................................... 34

Universal Remote Control Code List ................................................................. 34

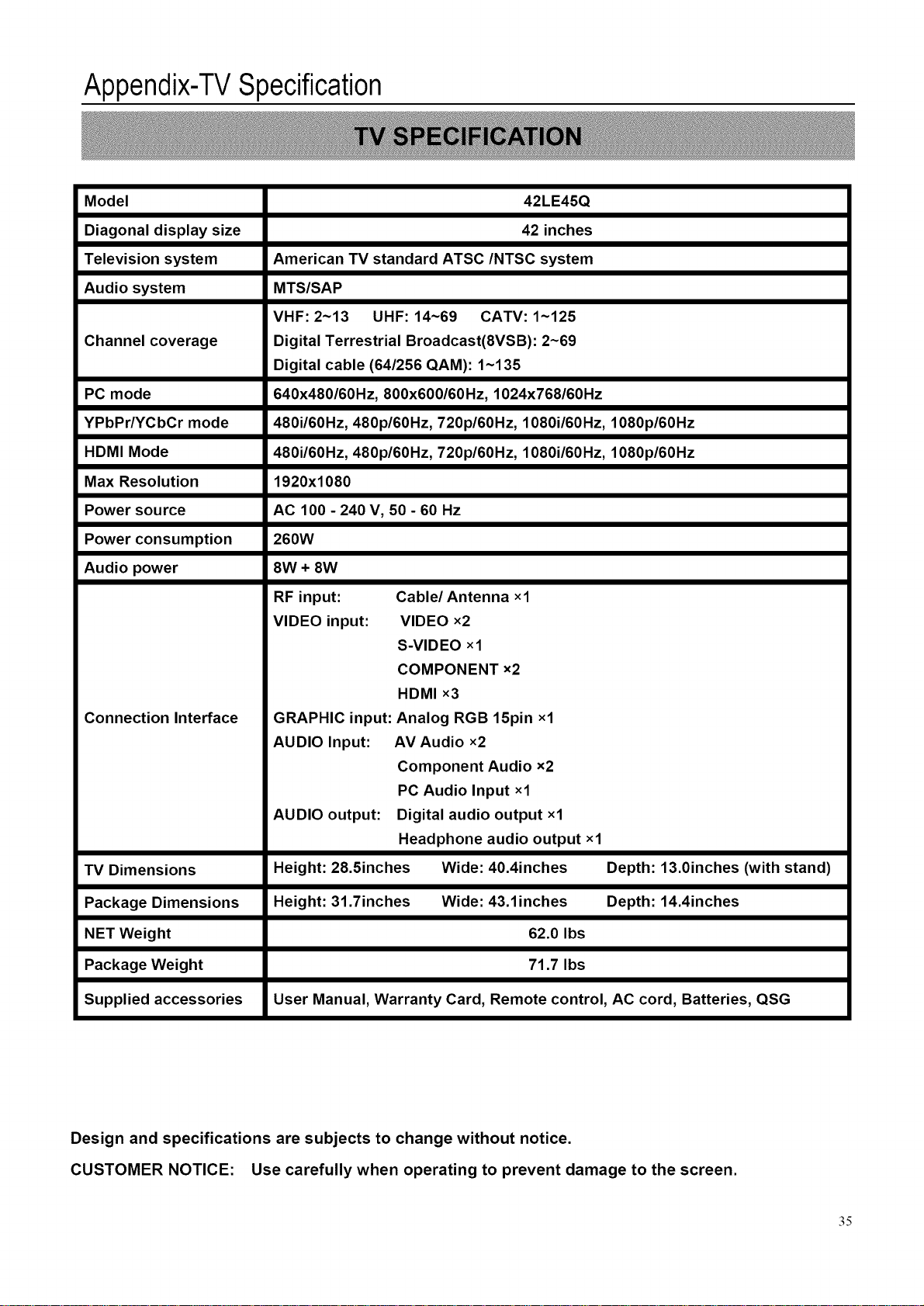

TV Specification ........................................................................................................ 35

SafetyPrecautions

,_WARNING

KEEP UNNEEDED SMALL PARTS AND OTHER OBJECTS OUT OF THE REACH OF SMALL CHILDREN. THESE OBJECTS CAN BE ACCIDENTALLY SWALLOWED. ALSO,

BE CAREFUL ABOUT PACKAGING MATERIALS AND PLASTIC SHEETS.

Set up

Do not place the TV set on sloped or unstable surfaces.

Do not place any objects on top of the TV set. If water spills onto the TV set or foreign objects get inside it, short-circuiting may occur which could result in fire or electric shock. If any foreign objects get inside the TV set,

please consult an Authorized Service Center.

Do not cover the ventilation holes. Doing so may cause the TV set overheated and can cause fire or damage to the TV set.

Avoid installing this product near electronic equipment that is readily affected by electromagnetic waves. It may cause interference in image, sound, etc. In particular, keep video equipment away from this

product.

AC Power Supply Cord

Securely insert the power cord plug as far as it will go. If the plug is not fully inserted, heat may be generated which could cause fire. If the plug is damaged or the wall socket plate is loose, they should not be used.

Do not handle the power cord plug with wet hands. Doing so may cause electric shocks. Do not do anything that might damage the power cable. When disconnecting the power cable, hold the plug, not the cable.

Do not make any modifications to, place heavy objects on, place near hot objects, heat, bend, twist or forcefully pull the power cable. Doing so may cause damage to the power cable which can cause fire or electric shock. If damage

to the cable is suspected, have it repaired at an Authorized Service Center.

If the TV set will not be used for a long period of time, unplug the power cord from the wall outlet.

If Problems Occur During Use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odor is detected from the TV set, unplug the power cord immediately. Continued use of the TV under these conditions might cause fire or permanent

damage to the unit. Have the TV evaluated at an Authorized Service Center. Service to the TV by any unauthorized personnel is strongly discouraged due to its high voltage dangerous nature. If water or foreign objects get inside the

TV set, if the TV set is dropped, or if the cabinet becomes damaged, disconnect the power cord plug immediately. Contact an Authorized Service Center for any repairs that need to be made.

SafetyPrecautions-Installation

When using the TV set

Do not bring your hands, face or objects close to the ventilation holes of the TV set. Top of the TV set is usually very hot due to the high temperature of exhaust air being released through the Ventilation holes. Burns or personal

injuries can happen if any body parts are brought too close. Placing any object near the top of the TV could also result in heat damage to the object as well as to the TV if its ventilation holes are blocked. Be sure to disconnect all cables before moving the TV set. Moving the TV with its cables attached might damage

the cables which, in turn, can cause fire or electric shock.

Disconnect the power plug from the wall outlet as a safety precaution before carrying out any cleaning. electric shocks can result if this is not done.

Clean the power cable regularly to prevent it from becoming dusty. Built-up dust on the power cord plug can increase humidity which might damage the insulation and cause fire. Unplug the cord from the wall outlet and clean it with a dry cloth.

This TV set radiates infrared rays; therefore, it may affect other infrared communication equipment. Install your infrared sensor in a place away from direct or reflected light from your TV set.

Selecting a location for the TV

1. Place the TV on the floor or on a sturdy platform in a location where light does not directly hit the screen.

2. Place the TV far enough from the walls to allow proper ventilation. Inadequate ventilation may cause overheating, which may damage the TV.

Optional External Equipment

Before you purchase any cables, be sure you know what type of output and input connectors your various components require. Also determine the length of cable you will need. For more information regarding

cables, please refer to the Quick Start Guide.

Preparationfor usingyournewTV- Frontpanel

Familiarizing Yourself with the Main Hardware

(The picture of the product may vary depending on the model)

a. Select signal input.

(It changes to "ENTER" function when main menu displays )

b. Main Menu display and menu selection

c. Channel up d. Channel down

e. Volume up f. Volume down

g. ON/OFF button

Preparationfor usingyournewTV- Rearpanel

Rear panel (The picture of the product may vary depending on the model)

HDMI Input

Input1: B Input2: C Input3: D

Component Input 1

Video: H, I, J Audio: K, L

Component Input 2

Video: H1, I1 , J1 Audio: K1, L1

AV1 Input

Video: M Audio: N, O

AV2 Input

Video: M1

- Audio: N1, O1

S-Video Input

- Video: G

- Audio: N, O

VGA Input

- Video: E

- Audio: P(3.5mm plug)

AUDIO Output

- Headphone: Q(3.5mm plug)

- COAX Digital Out: F

OTHERS

- Power Input:A

- ExternalAntenna: R

Preparationfor usingyournewTV- Antennasetting

1. Checking Items before Connecting

Please check the list below before connecting the product to other devices. < Check items before connecting. >

Check the instruction manual when connecting external devices. External products sometimes have different buttons and locations.

A. Do not connect the power unless every connection is well connected. The product may be

damaged if turned on while still in the process of being connected.

B. Connect the left (white) and right (red) cables correctly to the sound cable. C. Check the terminals to connect the product to on the rear panel.

2. Connecting an Antenna

There are internal and external types of antenna. < Connecting an Antenna>

The rear of LOB TV

Cable TV network

A. Use a coaxial cable to connect the rear panel of the TV's [AIR] or [CABLE] terminals and the wall

mount or external antenna.

B. When an Air signal is required, connect to the [AIR] terminal. If a Cable signal is required, connect

to the [CABLE] terminal.

If both Air and Cable are available, and then connect both [AIR] and [CABLE] terminals.

C. Connect the TV power cord when connecting everything else.

CAUTION

Avoid bending the copper tip at the center of the coaxial cable.
