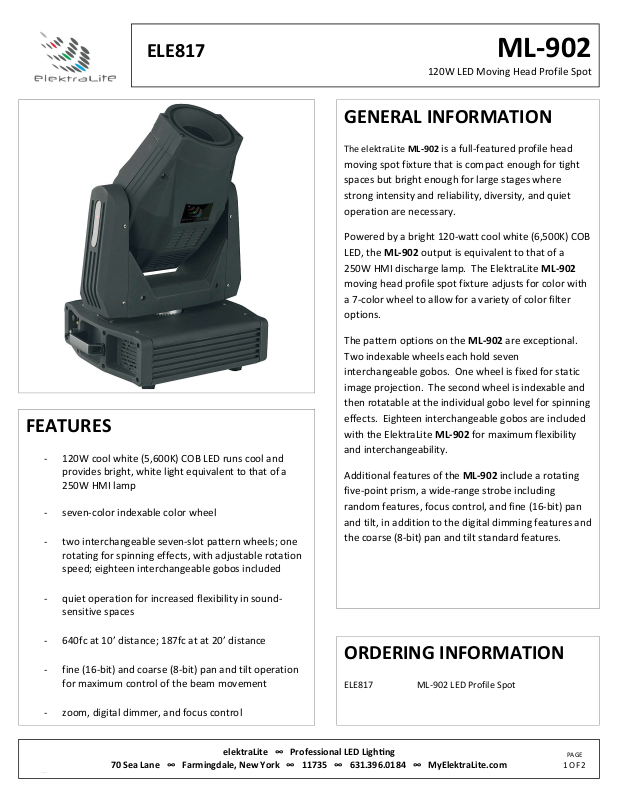

elektraLite ELE817 Data Sheet
ORDERING INFORMATION
GENERAL INFORMATION
FEATURES
ELE817 ML-902
d
- 120W cool white (5,600K) COB LED runs cool and
provides bright, white light equivalent to that of a
250W HMI lamp
- seven-color indexable color wheel
- two interchangeable seven-slot pattern wheels; one
rotating for spinning effects, with adjustable rotation
speed; eighteen interchangeable gobos included
- quiet operation for increased flexibility in soundsensitive spaces
- 640fc at 10’ distance; 187fc at at 20’ distance
- fine (16-bit) and coarse (8-bit) pan and tilt operation
for maximum control of the beam movement
- zoom, digital dimmer, and focus control
120W LED Moving Head Profile Spot
The elektraLite ML-902 is a full-featured profile head
moving spot fixture that is compact enough for tight
spaces but bright enough for large stages where
strong intensity and reliability, diversity, and quiet
operation are necessary.
Powered by a bright 120-watt cool white (6,500K) COB
LED, the ML-902 output is equivalent to that of a
250W HMI discharge lamp. The ElektraLite ML-902
moving head profile spot fixture adjusts for color with
a 7-color wheel to allow for a variety of color filter
options.
The pattern options on the ML-902 are exceptional.
Two indexable wheels each hold seven
interchangeable gobos. One wheel is fixed for static
image projection. The second wheel is indexable and
then rotatable at the individual gobo level for spinning
effects. Eighteen interchangeable gobos are included
with the ElektraLite ML-902 for maximum flexibility
and interchangeability.
Additional features of the ML-902 include a rotating
five-point prism, a wide-range strobe including
random features, focus control, and fine (16-bit) pan
and tilt, in addition to the digital dimming features and
the coarse (8-bit) pan and tilt standard features.
ELE817 ML-902 LED Profile Spot
70 Sea Lane ∞ Farmingdale, New York ∞ 11735 ∞ 631.396.0184 ∞ MyElektraLite.com
elektraLite ∞ Professional LED Lighng
PAGE
1 OF 2
DIMENSIONS CHART
SPECIFICATIONS
WEIGHTS CHART
In a
policy of continual improvement, specifi
cations are
subject to change.
9
/16
ACCESSORIES
PATTERNS
DMX PROFILE
CH ACTION DESCRIPTION
VALUE
1
Pan 0-255 2 Tilt 0-255 3 Pan Fine
0-
255
4 Tilt Fine
0-
255
5 Color Effect
0-
255 6 Color Wheel
0-
255 7 Fixed Gobo Wheel
0-
255 8 Rotating Gobo Wheel (selection of gobo)
0-
255 9 Rotating Gobo Wheel
(rotation of gobo)
0-
255
10 Shutter
0-
255
11 Dimmer
0-
255 12 Reset 0-255 13 Prism Select
0-
255 14 Prism Rotation
0-
255 15 Focus 0-255
ELE817 ML-902
Power Consumption - 146 watts (1.2A)
Electrical - multi-voltage; AC 100-240V – 50/60Hz
Housing - black aluminum
Materials - corrosion resistant hardware
Yoke - rigid flat steel
Light Engine - single 90-watt COB white LED emitter
Refresh Rate - >800Hz
Control - DMX-512A (in and thru) via 5-pin XLR
Seventeen interchangeable templates are included with the ML-902
fixture. Patterns are accessed through an indexing pattern wheel. The
selected pattern can be rotated both clockwise and counterclockwise.
Consult factory for more details on patterns.
ROTATING TEMPLATES
120W LED Moving Head Profile Spot
Accessories Included with each ML-902 are as follows:
(1) 18” integrated Edison power cable
(1) safety cable
(d) U-bracket for pipe attachment
Depending on personality chosen, the ML-902 can be set for
operation using 15 channels of DMX. Consult the User
Manual for full DMX Profile details.
1 – Triangle 2 – Linear Dots 3 – Circle Ring
4 – Spiral 5 – Swirl 6 – Fan
FIXED TEMPLATES
1 – Hazard Lines 2 – Ice Breakup 3 – Cathedral
4 – Stairway Swirl 5 – Bubble Breakup 6 – Starburst
7 – Fire Breakup
ADDITIONAL/SPARE TEMPLATES
1 – Star Breakup 2 – Biohazard 3 – Fireworks 4 – Retina
Physical Dimensions Shipping Dimensions
Height Length Width Height Length Width
19.5” 12” 13.5” 23.5” 15.5” 17.5”
Weight Shipping Weight
lbs kgs lbs kgs
30.0 13.7 38.0 17.3
70 Sea Lane ∞ Farmingdale, New York ∞ 11735 ∞ 631.396.0184 ∞ MyElektraLite.com
elektraLite ∞ Professional LED Lighng
PAGE
2 OF 2
