K0047IVZ.fm
O OFF
AUTO

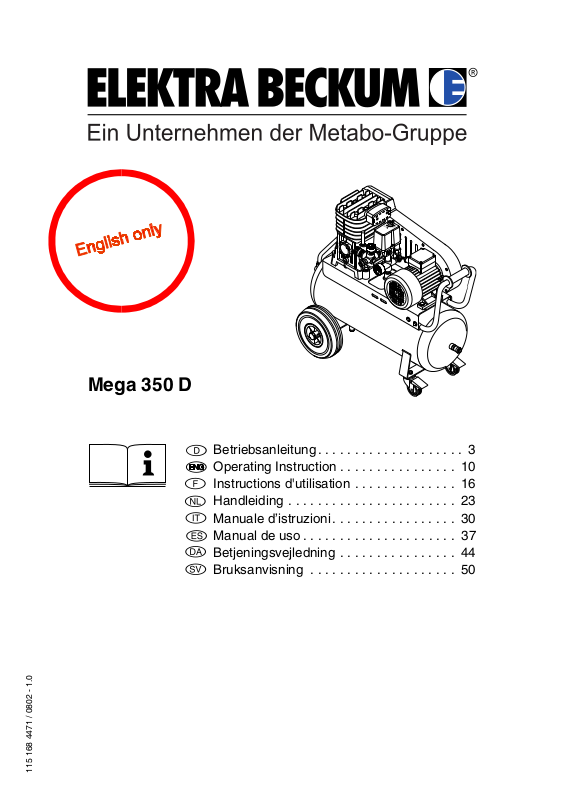

Mega 350 D
Betriebsanleitung. . . . . . . . . . . . . . . . . . . . 3
Operating Instruction . . . . . . . . . . . . . . . . 10
Instructions d'utilisation . . . . . . . . . . . . . . 16
Handleiding . . . . . . . . . . . . . . . . . . . . . . . 23
Manuale d’istruzioni. . . . . . . . . . . . . . . . . 30
Manual de uso . . . . . . . . . . . . . . . . . . . . . 37
Betjeningsvejledning . . . . . . . . . . . . . . . . 44
Bruksanvisning . . . . . . . . . . . . . . . . . . . . 50
115 168 4471 / 0802 - 1.0
Ñ
Ê
ÖRSÄ
U2K0047.fm
D DEUTSCH ENG ENGLISH
KONFORMITÄTSERKLÄRUNG DECLARATION OF CONFORMITY
Wir erklären in alleiniger Verantwortlichkeit, daß dieses Produkt mit den folgenden
Normen übereinstimmt* gemäß den Bestimmungen der Richtlinien** Prüfbericht ***
ausstellende Prüfstelle **** Gemessener/ Garantierter Schalleistungspegel*****
F FRANÇAIS NL NEDERLANDS
DECLARATION DE CONFORMITE CONFORMITEITSVERKLARING
Nous déclarons, sous notre seule responsabilité, que ce produit est en conformité
avec les normes ou documents normatifs suivants* en vertu des dispositions des
directives **Compte-rendu de
revision *** effectué par ****Niveau de puissance acoustique mesuré/ garanti*****
IT ITALIANO ES ESPA
DICHIARAZIONE DI CONFORMITÀ DECLARACION DE CONFORMIDAD
Noi dichiariamo sotto la nostra esclusiva responsabilità che il presente prodotto è
conforme alle seguenti norme* in conformità con le disposizioni delle normative **
verbale di prova *** eseguita da ****Livello di potenza sonora misurato/
garantito*****
PT PORTUGU
DECLARAÇÃO DE CONFORMIDADE
Declaramos sob nossa responsabilidade que este produto está de acordo com as
seguintes normas* de acordo com as directrizes dos regulamentos ** Acta de
revisão *** efectuado por ****Nível de potência
acústica medido/ garantido*****
FIN SUOMI NO NORGE
VAATIMUKSENMUKAISUUSVAKUUTUS SAMSVARSERKLÆRING
Vakuutamme, että tämä tuote vastaa seuraavia normeja* on direktiivien
määräysten mukainen**tarkastusraportti*** testin suorittaja****Mitattu/ Taattu äänen
tehotaso*****
DA DANSK POL POLSKI
OVERENSSTEMMELSESATTEST OŚWIADCZENIE O ZGODNOŚCI
Hermed erklærer vi på eget ansvar, at dette produkt stemmer overens ed følgende
standarder* iht bestemmelserne i direktiverne** rapport *** gennemført af ****Målt/
Garanteret lydeffektniveau*****
EL ΕΛΛHNIKA HU MAGYAR
∆ΗΛΩΣΗ ΑΝΤΙΣΤΟΙΧΕΙΑΣ MEGEGYEZŐSÉGI NYILATKOZAT
∆ηλώνουµε µε ιδία ευθύνη ότι το προϊόν αυτό αντιστοιχεί στις ακόλουθες
προδιαγραφές* σύµφωνα µε τις διατάξεις των οδηγιών** Εκθεση ελεγχου***
πραγµατοποιούµενος από το****Μετρηθείσα/ Εγγυηµένη στάθµη απόδοσης
ήχου*****
S SV SVENSKA
We herewith declare in our sole responsibility that this product complies with the
following standards* in accordance with the regulations of the undermentioned
Directives** testreport *** issuing test office ****measured/ guaranteed sound
power level*****
Wij verklaren als enige verantwoordelijke, dat dit product in overeenstemming is
met de volgende normen*
conform de bepalingen van de richtlijnen** keuringsinstantie *** uitgevoerd door
****Gemeten/ Gegarandeerd geluidsnviveau*****
OL
Declaramos bajo nuestra exclusiva responsabilidad, que el presente producto
cumple con las siguientes normas* de acuerdo a lo dispuesto en las directrices**
Acta de revisión *** llevada a cabo por ****Nivel de potencia acústica medido/
garantizado*****
F
KRAN OM ÖVERENSSTÄMMELSE
Vi försäkrar på eget ansvar att denna produkt överensstämmer med följande
standarder* enligt bestämmelserna i direktiven**provningsrapport *** genomfört
av ****Uppmätt/ Garanterad ljudnivå*****
Vi erklærer under eget ansvar at dette produkt samsvarer med følgende normer*
henhold til bestemmelsene i direktiv**
prøverapport *** utstilt av ****Målt/ Garantert lydeffektnivå*****
Oświadczamy z pełną odpowiedzialnością, że niniejszy produkt odpowiada
wymogom następujących norm* według ustaleń wytycznych **sprawozdanie z
kontroli technicznej *** przeprowadzone przez **** Zmierzony/ Gwarantowany
poziom ciśnienia akustycznego*****
Kizárólagos felelősségünk tudatában ezennel igazoljuk, hogy ez a termék
kielégíti az alábbi szabványokban lefektetett követelményeket* megfelel az alábbi
irányelvek előírásainak** Vizsgálati jegyzőkönyv *** a **** Mért/ Garantált
zajszint****'*
MEGA 350 D
* EN 1012-1, EN 60204-1, EN ISO 3744
** 98/37/ EWG, 89/336/ EWG, 73/23/ EWG, 93/68/ EWG, 2000/14/ EG Annex VI, P< 15KW
**** DE10 - TÜV Hannover/ Sachsen Anhalt e.V.
***** LWA = 91 dB/1pW - L
ELEKTRA BECKUM AG – Daimlerstraße 1 – 49716 Meppen
Meppen, 20.12.2001 1001055
2
*** CE-DE10-143 677
= 92 dB/1pW
WAd
Dipl. Ing. Jürgen Kusserow
Vorstand
XK0023E.fm Operating Instruction ENGLISH
ENGLISH
1. Machine overview
12
17
3
4
16
15
14
13
12
11
AUTO
O OFF
5
1 Compressor pump
2 Air intake filter housing
3 On/Off switch
4 Safety valve
5 Transport handle
6 Outlet for regulated
compressed air
7 Swivel plate casters, lockable
8 Motor
9 Pressure vessel
10
9
8
6
7
10 Condensate drain cock of
pressure vessel
11 Tank pressure gauge
12 Outlet for regulated
compressed air
13 Oil drain plug
14 Oil sight glass
15 Pressure regulator
16 Outlet pressure gauge
17 Oil filler plug
10
ENGLISH
Table of Contents
1. Machine overview .....................10
2. Please read first!....................... 11
3. Safety .........................................11
3.1 Specified conditions of use.........11
3.2 General safety information.......... 11
3.3 Safety devices ............................12
4. Operation...................................12
4.1 Prior to initial operation...............12
4.2 Mains connection........................ 12
4.3 Generating compressed air ........12
5. Care and maintenance .............12
5.1 Periodic maintenance .................12
5.2 Device storage............................13

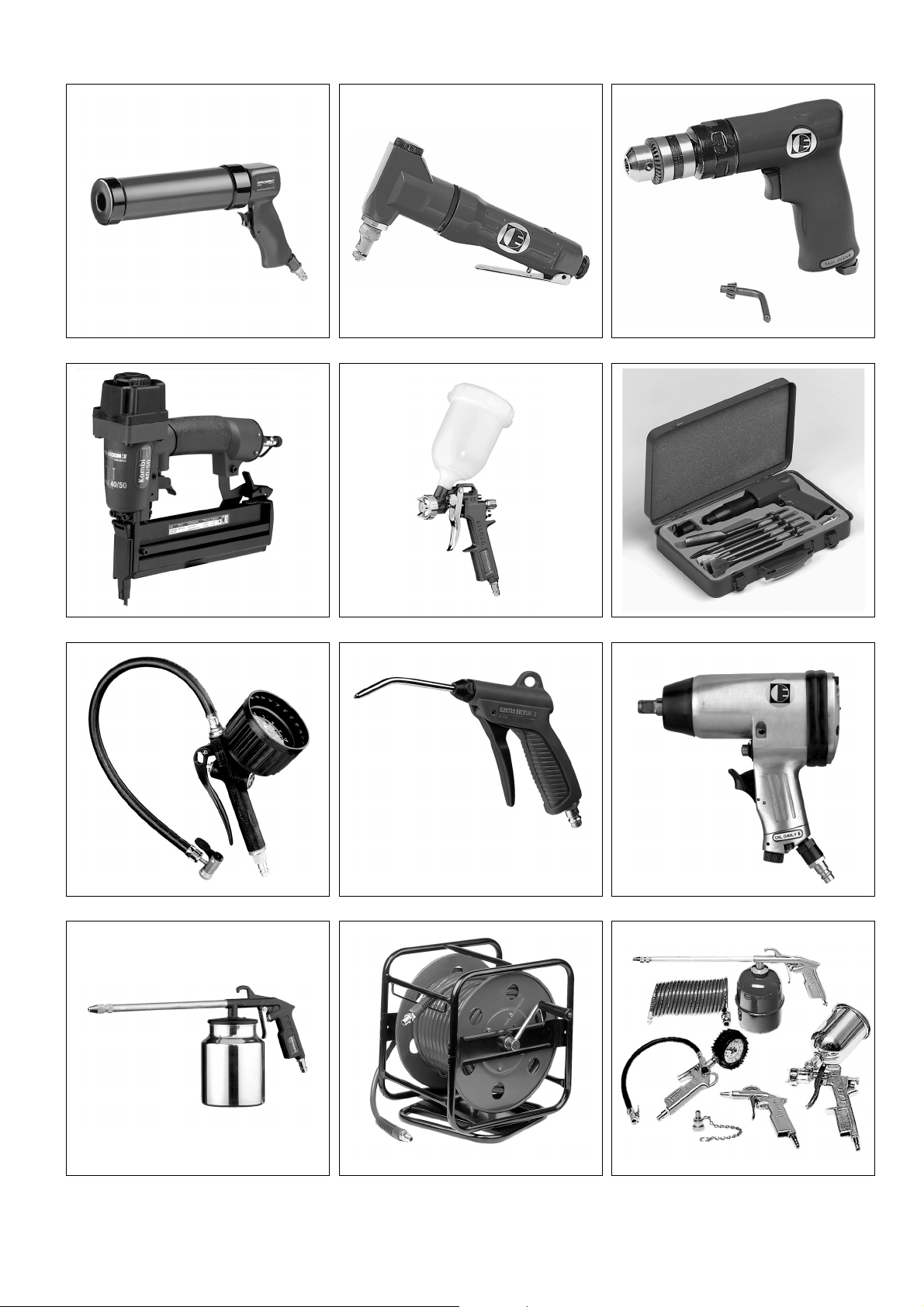

6. Available Accessories......... 13/56
7. Trouble shooting ......................14
8. Repairs.......................................15
9. Environmental protection ........15
10. Technical specifications ..........15
2. Please read first!
• Read these instructions before use.
Pay special attention to the safety
information.
• If you notice transport damage while
unpacking, notify your supplier
immediately. Do not operate the
device!
• Dispose of the packing in an environmentally friendly manner. Take
to a proper collecting point.
• Keep these instructions for reference on any issues you may be
uncertain about. Also keep the test
certificates of all compressed air
components.
• If you lend or sell this device be sure
to have the instructions to go with it.
3. Safety
3.1 Specified conditions of
use
This device is intended to generate compressed air required for the operation of
air tools.
Any use for medical purposes, food
processing as well as filling of oxygen
cylinders for breathing equipment is not
permitted.
Explosive, combustible gases or gases
detrimental to health may not be compressed. Operation in hazardous locations is not permitted.
Any other use is not as specified. Use
not as specified, alteration of the device
or use of parts not approved by the
equipment manufacturer, can cause
unforeseeable damage!
Children, juveniles and persons not having been instructed in its usage are not
permitted to operate this device and any
air tools connected to it.
3.2 General safety information
When using this electric tool observe the
following safety instructions, to exclude
the risk of personal injury or material
damage.
Please also observe the special safety
instructions in the respective chapters.
Keep all documents, supplied with the
device, for future reference.
Observe the statuary accident insurance
institution regulations and regulations for
the prevention of accidents pertaining to
the operation of air compressors and air
tools, where applicable.
A
General hazard!
Keep your work area tidy – a messy
work area invites accidents.
Be alert. Know what you are doing. Set
out to work with reason. Do not operate
the electric tool while under the influence
of drugs, alcohol or medication.
Consider environmental conditions.
Keep work area well lighted.
Prevent adverse body positions. Ensure
firm footing and keep your balance at all
times.
Do not operate the electric tool near
inflammable liquids or gases.
Keep bystanders, particularly children,
out of the work area. Do not permit other
persons to touch the tool or power cable
while the electric tool is running.
Do not overload the electric tool – use it
only within the performance range it was
designed for (see "Technical specifications").
B
Danger! Risk of electric shock!
Do not expose the electric tool to rain.
Do not operate the electric tool in damp
or wet environment.
Prevent body contact with earthed
objects such as radiators, pipes, cooking
stoves or refrigerators when operating
this electric tool.
Do not use the power cable for any purpose it is not intended for.
A
Risk of personal injury by
escaping compressed air and parts
hurled about by escaping air!
Never direct compressed air against persons or animals!
Ensure all air tools and accessories
used are designed for the working pressure or are supplied via a pressure regulator.
Please note that, when disconnecting
the quick coupler, the compressed air
contained in the pressure hose will
escape all of a sudden. You should
therefore hold the air hose firmly when
disconnecting it.
Ensure all screwed connections are fully
tightened at all times.
Do not attempt to repair the device yourself! Only trained specialists are permitted to service or repair compressors,
pressure vessels and air tools.
Hazard generated by oil-satu-
A
rated compressed air!
Use oil saturated compressed air only
for air tools requiring such supply. Do
not use an air hose used to supply compressed air containing oil to supply air
tools not designed for operation on compressed air containing oil. Do not fill tires
with compressed air containing oil.
A
Risk of burns from the surfaces of parts carrying compressed
air!
Let tool cool off before servicing.
Risk of personal injury and
A
crushing by moving parts!
Do not operate the electric tool without
installed guards.
Please note that the compressor will
start automatically when the pressure
falls off to minimum! – disconnect from
power supply prior to any servicing.
Ensure that when turning ON (e.g. after
servicing) no tools or loose parts are in
the electric tool.
Hazard generated by insuffi-
A
cient personal protection gear!
Wear hearing protection.
Wear safety glasses.
Wear mask respirator when work generates dust or mist detrimental to health.
Wear suitable work clothes. When working outdoors wearing of non-slip shoes is
recommended.
Hazard generated by electric
A
tool defects!
Keep electric tool and accessories in
good repair. Observe the maintenance
instructions.
Priot to any use check the electric tool
for possible damage: before using the
electric tool carefully check safety
devices, protection devices or slightly
damaged parts for proper function as
specified. Check to see that all moving
parts work properly and do not jam. All
parts must be correctly installed and
meet all conditions necessary for the
proper operation of the electric tool.
Damaged protection devices or parts
must be repaired or replaced by an qualified specialist. Have damaged switches
replaced by a service centre. Do not
operate electric tool if the switch can not
be turned ON or OFF.
Keep handles free of oil and grease.
11
ENGLISH

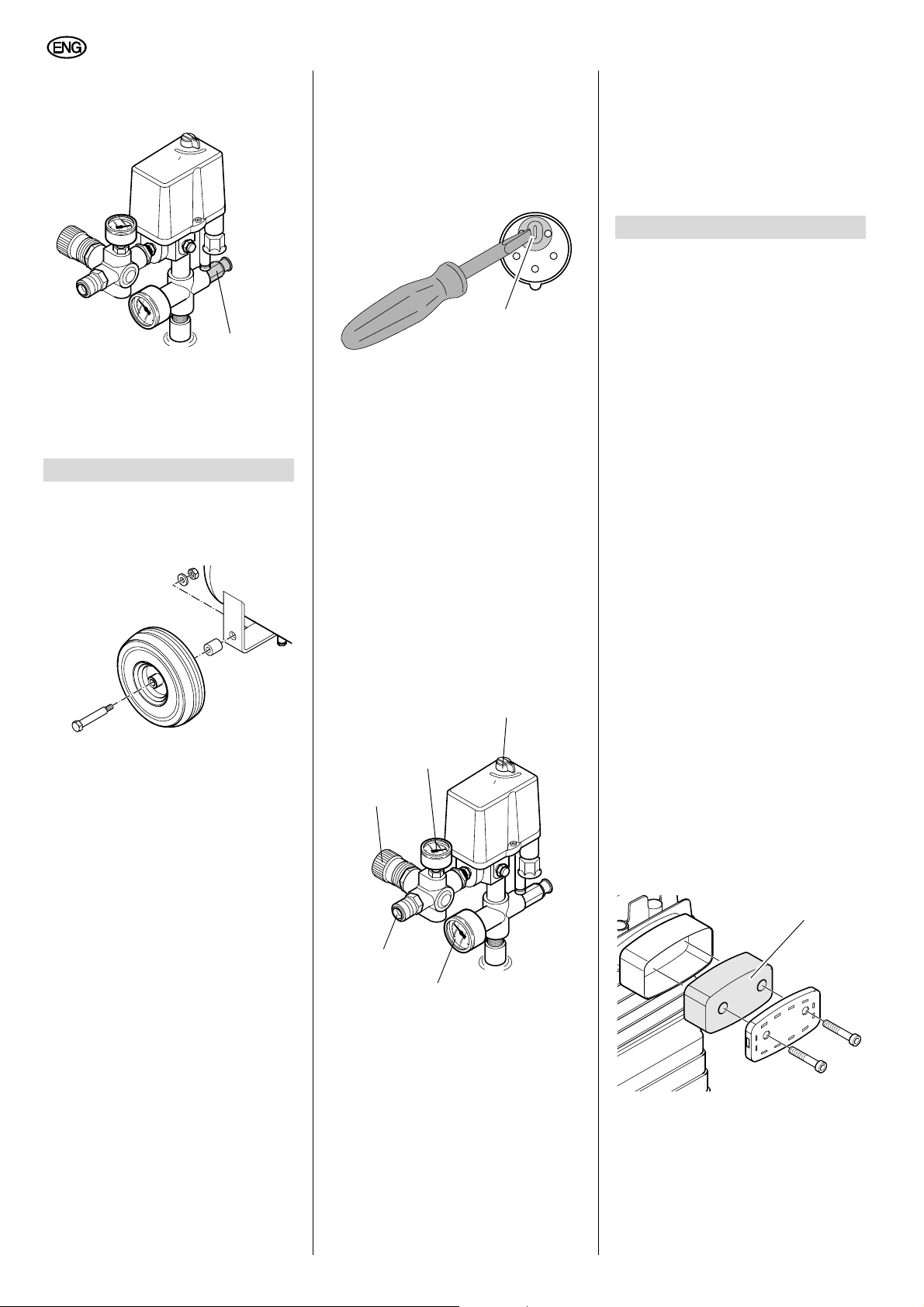

3.3 Safety devices
Safety valve
O OFF
AUTO
18
The spring-loaded safety valve (18) is
incorporated into the pressure switch.
The safety valve opens if the max. permissible pressure is exceeded.
4. Operation
4.1 Prior to initial operation
Wheel installation
1. Install the wheels as illustrated.
4.2 Mains connection
Danger! High voltage
B
Operate device in dry environment only.
Operate device only on a power
source complying with the following
requirements:
− outlets properly installed, earthed
and tested;
− fuse protection in accordance
with the technical specifications.
Position power cable so it does not
interfere with the work and is not
damaged.
Always check to see that the device is
switched OFF before plugging in.
Check direction of rotation!
B
Depending on the phase
sequence, the motor could turn in the
wrong direction. This can damage the
machine. Therefore the direction of
rotation must be checked after any
reconnection to the power mains: the
belt pulley of the compressor pump
must turn in the direction indicated
by the arrow on the belt guard.
If it turns in the wrong direction, two
phases must be interchanged in the
power cable plug:
1. Unplug.
2. Interchange phases with a screwdriver as illustrated:
− Push switch (19) in slightly.
− Turn switch by 180°.
19
3. Plug power cable in again.
Protect power cable from heat,
aggressive liquids and sharp edges.
Use only extension cables with sufficient lead cross section (see "Technical Specifications").
Do not stop the machine by unplugging, but switch OFF using the ON/
OFF switch.
Unplug after use.
4.3 Generating compressed
air
1. Start device (22) and wait until the
max. tank pressure is reached
(compressor shuts off).
The tank pressure is indicated by
the tank pressure gauge (23).
22
21
20
24
23
2. Set pressure regulator (20) to
required working pressure. The current working pressure is indicated
by the regulated pressure gauge
(21).
Caution!
A
The regulated pressure may
not be set higher than the max. working pressure of the connected air
tools!
3. Connect air hose to compressed air
outlet (24).
AUTO
O OFF
4. Connect air tool.
You are now ready to work with the
air tool.
5. Switch the compressor OFF, if you
do not continue working immediately
afterwards. Unplug after switching
OFF.
5. Care and maintenance
Danger!
A
Prior to all servicing:
− Switch Off.
− Unplug.
− Wait until the device has come to
a complete stop.
− Ensure the device and all air tools
and accessories connected to it
are relieved from pressure.
− Let the device and all air tools
and accessories used cool off.
After all servicing:
− Check to see that all safety
devices are operational.
− Make sure that no tools or other
parts remain on or in the device.
Repair and maintenance work other
than described in this section must
only be carried out by qualified specialists.
5.1 Periodic maintenance
Prior to each use
• Check air hoses for damage,
replace if necessary.
• Check all screwed connections for
tightness, tighten if necessary.
• Check power supply cable for damage, if necessary have replaced by
a qualified electrician.
Every 50 operating hours

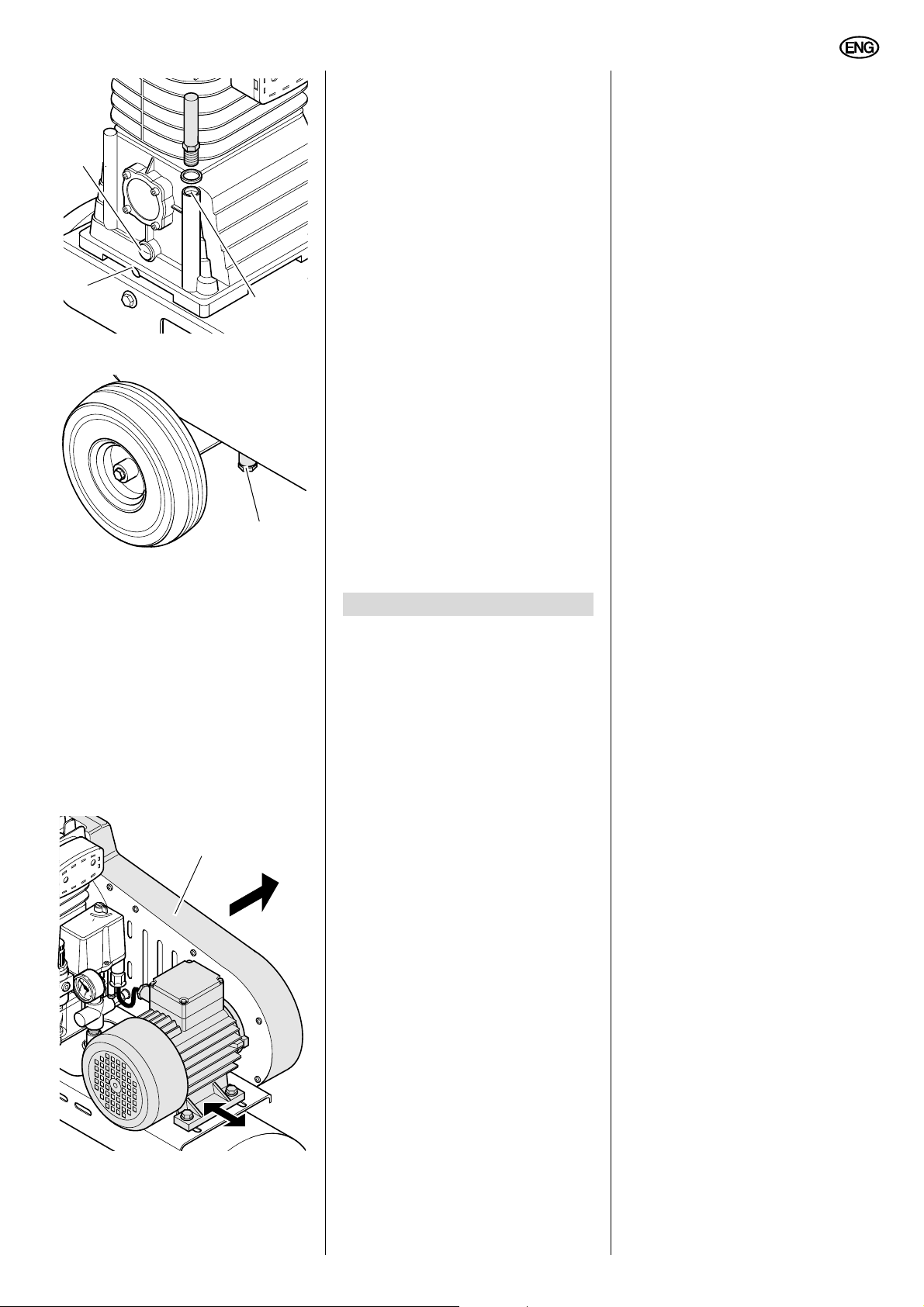

• Check air filter element (25) of com-
pressor pump, clean if necessary.
25
• Check oil level (26) of compressor
pump, top up if necessary (27).
12
26
28
27
• Drain condensate from pressure
vessel (29).
29
Caution!
A
The condensate contains oil
and must be disposed at a proper collecting point.
• Check V-belt:
− Remove belt guard (30).
− Retension V-belt or replace, if
necessary.
− To adjust the V-belt tension,
loosen the four screws at the
motor base and shift the motor.
− Tighten the screws at the motor
base again.
− Replace the belt guard.
30
O
O
F
F
AUTO
Every 500 operating hours
• Drain oil from compressor pump
through the drain plug (28) and fill
with fresh oil.
A
Dispose of the waste oil environmentally safe by taking it to a
proper collecting point!
Every 1000 operating hours
• Have unit serviced by an authorized
service station. This will extent the
compressor's service life considerably.
5.2 Device storage
1. Switch unit OFF and unplug.
2. Release pressure from tank and all
connected air tools.
3. Store device in such way that it cannot be started by unauthorized persons.
Caution!
A
Do not store device unprotected outdoors or in damp environment.
Do not lay device on its side for transportation or storing.
6. Available Accessories
For special applications the following
accessories are available at your specialist dealer – see back cover for illustrations:
Sealing
A Air Caulking Gun KP 910
for commercially available cartridges.
Stock-no. 090 101 0030
Sheet metal cutting
B Air Nibbler BN 540
extra small cutting radius; cuts steel
sheet up to 1.0 mm thickness.
Stock-no. 090 100 6784
Drilling
C Air Drill BM 310
especially handy tool for low-fatigue
working; right-hand rotation only.
Stock-no. 090 100 6725
• Air Drill BM 500
(not illustrated) with 3/8" keyless
chuck, fully reversible with quick
reverse feature.
Stock-no. 090 105 4533
ENGLISH
for staples (type 90) from 15 mm to
32 mm and finishing nails (type
SKN) from 16 mm to 32.
Stock-no. 090 105 4711mm.
• Air Stapler KG 80/16
(not illustrated) for staples (type 80)
from 6 mm to 16 mm.
Stock-no. 090 105 4681
• Air Stapler KG 90/25
(not illustrated) for staples (type 90)
from 15 mm to 25 mm.
Stock-no. 090 105 4690
• Air Stapler KG 90/40
(not illustrated) for staples (type 90)
from 20 mm to 40 mm.
Stock-no. 090 105 4703
• Air Finish Nailer SKN 50
(not illustrated) for finishing nails
(type SKN) from 20 mm to 50 mm.
Stock-no. 090 105 4738
Spray painting
E Spray Gun FB 2200 HVLP
high-volume low-pressure feature
reduces paint mist bounce-back
and provides thicker coating at less
paint consumption.
Stock-no. 090 105 4460
• Paint Spray Gun FB 2200
(not illustrated) with 0.5 l flow cup;
professional spray gun; steplessly
adjustable round, horizontal and
vertical spray pattern.
Stock-no. 090 105 4452
• Paint Spray Gun SB 200
(not illustrated) with 1.0 l siphon cup.
Stock-no. 090 100 3882
• Paint Spray Gun FB 150
(not illustrated) with 0.5 l flow cup;
for spraying primers and paints of
varying viskosity.
Stock-no. 090 100 3874
• Paint Spray Gun FB 90
(not illustrated) with 0.75 l flow cup;
for spraying primers and paints of
varying viskosity.
Stock-no. 090 105 6064
Chiselling
F Air Hammer Set MHS 450
for construction and auto body work
Stock-no. 090 100 9210
• Air Hammer Set MHS 315
(not illustrated) to take off plaster
and tiles and for light chiselling
work.
Stock-no. 090 100 6911
Every 250 operating hours
• Replace air intake filter element of
compressor pump.
• Replace air filter element of filter/
regulator unit.
Stapling / nailing
D Combination Air Stapler/Nailer
Kombi 40/50
for staples (type 90) from 20 mm to
40 mm and finishing nails (type
SKN) from 20 mm to 50.
Stock-no. 090 105 4720mm.
• Combination Air Stapler/Nailer
Kombi 40/50
Tyre inflating / checking
G Tyre Inflator Gauge RF 480
professional version (calibrated).
Stock-no. 090 105 4630
• Tyre Inflator Gauge RF 363
(not illustrated) same as RF 480, but
not calibrated.
Stock-no. 090 105 4622
13
ENGLISH
• Tyre Inflator Gauge RF 200
(not illustrated) for inflating tyres and
balls (calibrated).
Stock-no. 090 105 6188
• Tyre Inflator Gauge RF 100
(not illustrated) same as RF 200, but
not calibrated.
Stock-no. 090 102 6724
Cleaning
H Blow Gun BP 200
all plastic body.
Stock-no. 090 105 4606
• Blow Gun BP 300
(not illustrated) all plastic body; venturi nozzle provides extra high air
volume.
Stock-no. 090 105 4614
• Blow Gun BP 70
(not illustrated) light metal body
(with 100 mm extension nozzle).
Stock-no. 090 102 6726
• Blow Gun BP 60
(not illustrated) light metal body
(short).
Stock-no. 090 102 6718
Driving screws
I Impact Wrench SR 230
rugged impact wrench for DIY and
automotive applications.
Stock-no. 090 105 6170
• Impact Wrench SR 340 Set
(not illustrated) professional version;
many accessories included.
Stock-no. 090 105 6137
• Impact Wrench SR 140 Set
(not illustrated) for multiple DIY and
automotive applications; complete
with many accessories.
Stock-no. 090 100 8582
• Impact Wrench SR 120 Set
(not illustrated) requires only minimal amount of air, thus can be run
on small compressors; complete
with many accessories.
Stock-no. 090 100 6750
• Ratchet Wrench RS 320
(not illustrated) due to narrow
design and rubber-covered ratchet
head it is well suited for automotive
applications and work in confined
areas.
Stock-no. 090 105 4541
• Ratchet Wrench RS 220 Set
(not illustrated) this set comes complete with many accessories.
Stock-no. 090 100 6717
• Air Screwdriver DS 1610
(not illustrated) reversible with quick
reversing action.
Stock-no. 090 101 2440
Spraying
J Spray Gun SPP 161
for spraying degreaser, oil, liquid
wax, etc.
Stock-no. 090 105 4525
• Combination Spray Gun UBS 820
(not illustrated) for commercially
available 1.0 l screw-top cartridges.
Stock-no. 090 105 4479
Air hoses
K Hose Reel ST 200
swivels through 360°; with 30 m PU
air hose.
Stock-no. 090 105 4568
• Braided Air Hose
(not illustrated) c/w quick coupler
and male plug; length 5 m; outer
diameter 12 mm; inner diameter
6mm.
Stock-no. 090 105 4908
• Braided Air Hose
(not illustrated) c/w quick coupler
and male plug; length 10 m; outer
diameter 12 mm; inner diameter
6mm.
Stock-no. 090 105 4916
• Braided Air Hose
(not illustrated) c/w quick coupler
and male plug; length 10 m; outer
diameter 15 mm; inner diameter
9mm.
Stock-no. 090 105 4924
• Bulk Braided Air Hose
(not illustrated) length 50 m; outer
diameter 15 mm; inner diameter
9mm.
Stock-no. 090 105 4932
• Self-storing Coil Air Hose, Rilsan
(not illustrated) c/w quick coupler
and male plug; 2.5 m working
length; outer diameter 8 mm; inner
diameter 6 mm.
Stock-no. 090 105 4940
• Self-storing Coil Air Hose, Rilsan
(not illustrated) c/w quick coupler
and male plug; 7.5 m working
length; outer diameter 8 mm; inner
diameter 6 mm.
Stock-no. 090 105 4959
• Self-storing Coil Air Hose, Rilsan
(not illustrated)
c/w quick coupler and male plug;
10.0 m working length; outer diameter 10 mm; inner diameter 8 mm.
Stock-no. 090 105 4967
• Hand-crank Hose Reel SA 100
(not illustrated) c/w 20.0 m braided
air hose; outer diameter 15 mm;
inner diameter 9 mm.
Stock-no. 090 105 4975
• Automatic Retractable Hose Reel
SA 200
(not illustrated) suitable for wall and
ceiling mounting; retracts automatically by simply pulling on hose; with
8 m PU air hose; outer diameter
13 mm; inner diameter 8 mm.
Stock-no. 090 105 4550
Accessory kits
L Accessory Kit LPZ 7-S
comprising: blow gun, tyre inflator
gauge, tyre valve adaptor, ball
valve needle, paint spray gun,
spray gun, self-storing coil air hose.
Stock-no. 090 100 3858
• Accessory Kit LPZ 7-P
(not illustrated) comprising: blow
gun, tyre inflator gauge, tyre valve
adaptor, ball valve needle, paint
spray gun, spray gun, 10 m braided
air hose.
Stock-no. 090 100 3890
• Accessory Kit LPZ 6-P
(not illustrated) comprising: blow
gun, tyre inflator gauge, tyre valve
adaptor, ball valve needle, paint
spray gun, 5 m braided air hose.
Stock-no. 090 104 4487
• Accessory Kit LPZ 4
(not illustrated) comprising blow
gun, tyre inflator gauge, paint spray
gun, self-storing coil air hose.
Stock-no. 090 101 3845
• Accessory Kit LPZ 2
(not illustrated) comprising change
handle with blow gun, tyre inflator
gauge, paint spray gun, self-storing
coil air hose.
Stock-no. 090 105 5971
7. Trouble shooting
Danger!
A
Prior to all servicing:
− Switch Off.
− Unplug.
− Wait until the device has come to
a complete stop.
− Ensure the device and all air tools
and accessories connected to it
are relieved from pressure.
− Let the device and all air tools
and accessories used cool off.
After all servicing:
− Check to see that all safety
devices are operational.
− Make sure that no tools or other
parts remain on or in the device.
Compressor does not run:
• No mains voltage.
− Check cables, plug, outlet and
mains fuse.
• Mains voltage too low.
− Use only extension cables with
sufficient lead cross section (see
"Technical specifications"). Avoid
using extension cable when
device is cold.
• Compressor was stopped by
unplugging.
− Switch compressor OFF at the
On/Off switch, then ON again.
14
ENGLISH
• Motor protection tripped, e.g. by
insufficient cooling (cooling fins covered).
− Switch compressor OFF at the
On/Off switch; remove cause for
overheating; let cool off for
approx. 10 minutes; reset the
motor protection switch; switch
compressor ON again at the On/
Off switch.
Compressor runs but does not build
up sufficient pressure.
• Condensate drain of pressure vessel leaky.
− Check gasket of drain cock(s);
replace if necessary.
− Tighten drain cock(s) fingertight.
• Check valve leaky.
− Have check valve serviced by
qualified service centre.
Air tool is not supplied with sufficient
pressure.
• Pressure regulator not opened wide
enough.
− Open pressure regulator more.
• Hose connection between compres-
sor and air tool leaky.
− Check air hoses, replace defec-
tive parts if necessary.
8. Repairs
Danger!
A
Repairs to power tools must be
carried out by qualified electricians
only!
Electric tools in need of repair can be
send to the service centre in your country. See spare parts list for address.
Please attach a description of the fault to
the power tool.
9. Environmental protection
The machine's packaging can be 100 %
recycled.
Worn out devices and accessories contain considerable amounts of valuable
raw and plastic materials, which can be
recycled.
These instructions are printed on chlorine-free bleached paper.
10. Technical specifications
Suction capacity l/min 290
Free air delivery (volume flow rate) l/min 165
Filling rate l/min 195
Working pressure (compression end pressure) bar 10
Pressure vessel volume l 50
No. of air outlets 2
Compressor pump model B 2800
No. of cylinders 2
-1
Speed (compressor pump) min
Motor capacity kW 2.0
Supply voltage (50 Hz) V 400
Rated current A 3.7
Fuse protection min. A 10 (time-lag)
Degree of protection IP44
Maximum overall length when using extension cables with:
– 3 x 1.5 mm
– 3 x 2.5 mm
Oil grade 10 W 40
Oil qantity for oil change l 0.21
Dimensions: length x width x height cm 88 x 49 x 77
Weight kg 46
Sound pressure level L
Sound power level L
2
lead cross-section
2
lead cross-section
at 4 m maximum dB (A) 71 ± 3
PA
WA
1300
m
m
dB (A) 91 ± 3
100
160
15
U3K0028_wf.fm
A 090 101 0030 B 090 100 6784 C 090 100 6725
D 090 105 4720 E 090 105 4460 F 090 100 9210
G 090 105 4630 H 090 105 4606 I 090 105 6170
J 090 105 4525 K 090 105 4568 L 090 100 3858
www.elektra-beckum.de
ZINDEL - Technische Dokumentation und Multimedia, www.zindel.de
Loading...
