Xi-1082
Description
Introducing a family of advanced sound
reinforcement products for everyone who
desires the sound quality of Electro-Voice's
X-Array™ touring systems. X-Array
Install™ is the ideal choice for small-to-medium array configurations and fixed installations of any size.
Inspired by the most demanded features of
EV's acclaimed X-Array™ touring systems,
the X-Array Install™ series incorporates a
potent combination of very high output, medium- to long-throw "cells," and Ring-Mode
Decoupling (RMD™).
RMD™
Ring-Mode Decoupling is the same advanced
technology built into the X-Array™ touring
series. RMD™ produces substantially improved tonal character and fidelity whether
operated at low or extremely high sound pressure levels. RMD™ attacks time domain
"ringing modes" at their sources. Mechanical solutions resolve mechanical issues,
acoustical solutions address acoustical modes
found in all sound reinforcement systems.
The combination of each RMD™ technique
provides improved tonal character and fidelity at increasing drive levels. The result is
clear, even sound quality with vastly improved intelligibility.
Magnetics
Mid-bass and high-frequency drivers in
X-Array Install™ products use ferrite magnetics instead of the neodymium magnetics
used in X-Array™ touring systems. While
neodymium drivers provide unmatched output capabilities, the advanced RMD™ technology used in X-Array Install™ produces
world class sound reinforcement at very high
levels.
Applications
The Xi-1082 loudspeaker system is ideal for
any professional touring or installation application requiring accurate, high-level,
sound reinforcement. Because of the unique
performance capabilities featured in this system, the X-Array Install™ Xi-1082 offers
extremely wide-range music reproduction as
well as accurate vocal coverage and maximized intelligibility. It's single 8-inch woofer
avoids the mid-bane interference nulls of the
dual spaced woofers in "traditional" under
balcony systems.
Power Handling Test
Electro-Voice components and systems are
manufactured to exacting standards to en-
X-Array Install
™
Two-Way, Full-Range,
Sound-Reinforcement
System
• 8-inch two-way
• 90° x 40° horn coverage
• 175-watts long term power capacity
• Ring-Mode Decoupling (RMD™)
• Full-range with internal passive
crossover
• DH3 1-inch-exit compression driver
with titanium diaphragm
• Low-profile for low ceiling or under
balconies
sure reliability in continuous use in arduous
real-life conditions. Besides utilizing industry-standard power tests, extreme in-house
power tests which push the performance
boundaries of the loudspeakers are also performed for an extra measure of reliability.
The Xi-1082 systems are rated per ANSI/
EIA RS-426-A Loudspeaker Power Rating,
Full Range Test, which uses a shaped-random-noise signal to simulate typical music
to test the mechanical and thermal capabilities of the loudspeakers. Specifically,
the Xi-1082 passes the ANSI/EIA
RS-426-A power test with the following test
parameters:
P
: 175 watts
E(MAX)
Test Voltages: 34.2 volts rms
68.3 volts peak
(1.15 RE): 6.67 ohms
R
SR
Suspending the Xi-1082
The Xi-1082 is fitted with several threaded
inserts and can be suspended as follows:
1. Two 3/8-16 threaded inserts are located
on each side of the enclosure to allow
the use of the Mb1082 mounting bracket.
The Mb1082 is a universal U-bracket de
signed to allow the suspension of the Xi1082 at any angle and orientation from
X- Array Install
TM
Xi-1082 Loudspeaker System
the wall or ceiling. Full instructions are
included with the Mb1082.
2. OmniMount Series 100 support system.
Four 5/16-18 threaded inserts are located
in the rear panel to allow use of the
OmniMount Series 100 support system.
Full instructions can be obtained from:
OmniMount Systems, Inc.
1501 W. 17th St.
Tempe, AZ 85281
Tel: 602/829-8000
Fax: 602/756-900.
WARNING: It is the responsibility of the
installer to ensure that the mounting surface has sufficient rigidity to support the
Xi-1082 Loudspeaker System
Xi-1082 and that the mounting bracket is
TM
correctly fitted to the surface and to the
Xi-1082. Suspending an object is potentially dangerous and should only be attempted by individuals who have a thorough knowledge of the techniques and regu-
X-Array Install
lations of rigging objects overhead. It is
the responsibility of the installer to ensure
the Xi-1082 is safely installed in accordance
with applicable regulations. If the Xi-1082
is suspended, Electro-V oice strongly recommends that the system be inspected at least
once a year . If any sign of weakness or damage is detected, remedial action should be
taken immediately.
Architects' And Engineers'
Specifications
The loudspeaker system shall be a two-way,
vented type, consisting of a 203-mm (8.0 in.)
direct-radiating driver with a compression
driver with a 25.4-mm (1.0 in.) exit mounted
on a 90° x 40° constant-directivity horn.
Power handling shall be 175 watts of pink
noise with a 6-dB crest factor for eight hours
(as per ANSI/EIA RS-426-A 1980 standard).
Frequency response shall be smooth and usable at high SPL levels from 50 Hz to 20
kHz with pressure sensitivity of 91 dB for 1
watt at 1 meter. Impedance shall be 8 ohms
nominal, 6 ohms minimum. The system shall
have a distribution pattern with 90° nominal
horizontally from 3 kHz to 16 kHz and 40°
nominal vertically from 3 kHz to 20 kHz.
The loudspeaker enclosure shall be constructed of 18-mm thick plywood, trapezoidal in shape, internally lined with sound-absorbing material. The finish of the enclosure
shall be textured black. A black metal removable grille with foam backing shall be provided. The loudspeaker enclosure dimensions
shall be 488-mm (19.23 in.) high, 235-mm
(9.25 in.) wide (front), 150-mm (5.9 in.) wide
(back) and 285-mm (11.23 in.) deep. The
loudspeaker system shall weigh 13.3 kg (31
lb).
Uniform Limited Warranty
Electro-Voice products are guaranteed
against malfunction due to defects in materials or workmanship for a specified period,
as noted in the individual product-line
statement(s) below, or in the individual product data sheet or owner’s manual, beginning
with the date of original purchase. If such
malfunction occurs during the specified period, the product will be repaired or replaced
(at our option) without charge. The product
will be returned to the customer prepaid.
Exclusions and Limitations: The Limited
W arranty does not apply to: (a) exterior finish or appearance; (b) certain specific items
described in the individual product-line
statement(s) below, or in the individual product data sheet or owner’s manual; (c) malfunction resulting from use or operation of
the product other than as specified in the
product data sheet or owner’s manual; (d)
malfunction resulting from misuse or abuse
of the product; or (e) malfunction occurring
at any time after repairs have been made to
the product by anyone other than
Electro-Voice Service or any of its authorized service representatives. Obtaining W arranty Service: To obtain warranty service, a
customer must deliver the product, prepaid,
to Electro-Voice Service or any of its authorized service representatives together with
proof of purchase of the product in the form
of a bill of sale or receipted invoice. A list of
authorized service representatives is available from Electro-V oice Service at 600 Cecil
Street, Buchanan, MI 49107 (800-234-6831
or F AX 616-695-4743). Incidental and Consequential Damages Excluded: Product repair or replacement and return to the customer are the only remedies provided to the
customer. Electro-Voice shall not be liable
for any incidental or consequential damages
including, without limitation, injury to persons or property or loss of use. Some states
do not allow the exclusion or limitation of
incidental or consequential damages so the
above limitation or exclusion may not apply
to you. Other Rights: This warranty gives
you specific legal rights, and you may also
have other rights which vary from state to
state.
Electro-V oice Speakers and Speaker Systems are guaranteed against malfunction due
to defects in materials or workmanship for a
period of five (5) years from the date of original purchase. The Limited W arranty does not
apply to burned voice coils or malfunctions
such as cone and/or coil damage resulting
from improperly designed enclosures.
Electro-Voice active electronics associated
with the speaker systems are guaranteed for
three (3) years from the date of original purchase. Additional details are included in the
Uniform Limited Warranty statement.
Electro-Voice Accessories are guaranteed
against malfunction due to defects in materials or workmanship for a period of one (1)
year from the date of original purchase. Additional details are included in the Uniform
Limited Warranty statement.
Electro-V oice Flying Hardware (including
enclosure-mounted hardware and rigging accessories) is guaranteed against malfunction
due to defects in materials or workmanship
for a period of one (1) year from the date of
original purchase. Additional details are included in the Uniform Limited Warranty
statement.
For warranty repair, service information, or
a listing of the repair facilities nearest you,
contact the service repair department at:
616/695-6831 or 800/685-2606.
For technical assistance, call: 800/234-6831.
Specifications subject to change without
notice.
2
X-Array Install
Figure 1— Polar Response
The directional response of the system was measured in an anechoic environment at a distance of 6.1 m (22 feet) using 1/3-octave-filtered pink
noise with a full spherical measurement system. The polar response of the loudspeaker system at selected 1/3-octave frequencies is shown.
The selected frequencies are representative of the polar response of the system.
TM
Xi-1082 Loudspeaker System
Horizontal
V ertical
X-Arrayy Install
TM
Xi-1082 Loudspeaker System
3
X- Array Install
Xi-1082 Loudspeaker System
TM
TM
Xi-1082 Loudspeaker System
Horizontal
V ertical
X-Array Install
4
X-Array Install

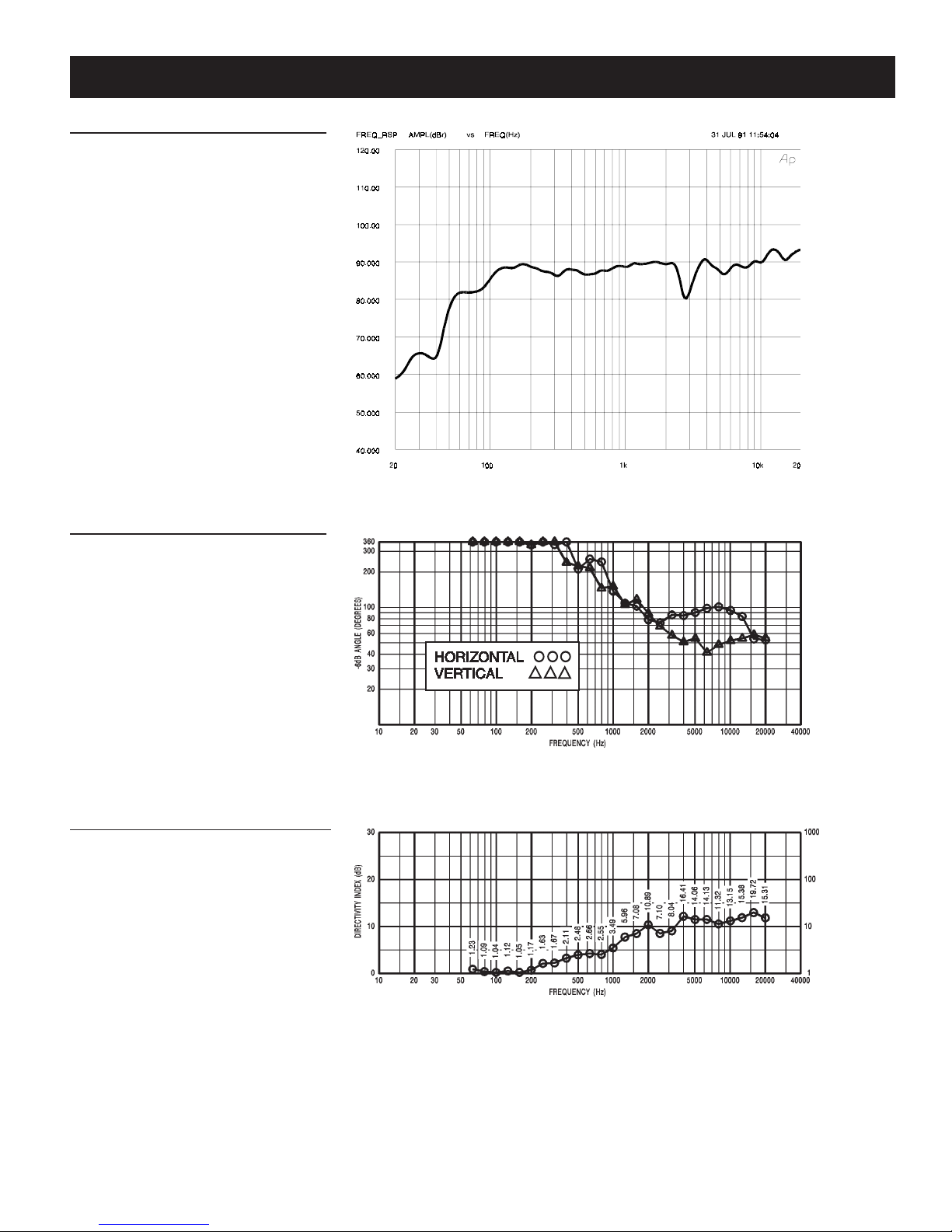

Figure 2— Axial Frequency Response
(anechoic environment, 1 watt at 1
meter)
TM
Xi-1082 Loudspeaker System
X-Arrayy Install
TM
Xi-1082 Loudspeaker System
Figure 3— Beamwidth vs. Frequency
(anechoic environment)
Figure 4— Directivity
(the directivity index, D
factor , R
(Q), of the system were measured
θθ
θ
θθ
, and directivity
i
with a full spherical measurement system
as described for the "Polar Response.")
5
X- Array Install
Figure 5— Distortion
Distortion for the system was measured on
axis in the farfield in an anechoic environment with an input signal that would result in
a 10% power rating (17.5 watts). A frequency
spectrum typical of close-miked rock music
was employed. The sound-pressure level was
normalized for an equivalent one-meter distance. Plots of second and third harmonic distortion are shown referenced to the fundamental.
Xi-1082 Loudspeaker System
TM
TM
Xi-1082 Loudspeaker System
X-Array Install
Figure 6— Impedance
(anechoic environment, log scale)
6
X-Array Install
Figure 7 — Dimensions
TM
Xi-1082 Loudspeaker System
488 mm
(19.23 in)
Specifications
Axial Frequency Response (swept
sine wave, 4 volts at 10 feet on axis,
anechoic environment normalized for
1 watt/1 meter; see Figure 2):
50-20,000 Hz
Long-Term Average Power-Handling
Capacity (per ANSI/EIA RS-426-A
1980; see Power-Handling Capacity
section):
175 watts
Sensitivity (SPL at 1 m, 1 W into
nominal impedance, anechoic
environment, band-limited pink-noise
signal, 100-15,000 Hz):
90 dB
Beamwidth (angle included by 6-dBdown points on polar responses,
horizontal and vertical planes,
indicated one-third-octave bands of
pink noise; see Figures 1 and 3),
3,150-16,000 Hz,
Horizontal:
90° +10°/–16°
Vertical:
40° +18°/–0°
Directivity Factor, R
(Q), 2,000- to
θθ
θ
θθ
20,000-Hz Median (see Figure 4):
13.2 (+6.5, –6.1)
Directivity Index, Di, 2,000- to 20,000Hz Median (see Figure 4):
11.2 dB (+1.8 dB, –2.7 dB)
Transducer Complement,
Low-Frequency:
8-inch woofer
High-Frequency:
DH3 Compression driver on
HP94 Horn
Box Tuning Frequency:
55 Hz
Crossover Frequency:
3,500 Hz
Crossover Slope:
12 dB
Impedance,
Nominal:
8 ohms
Minimum:
5.8 ohms
Input Connections:
Single barrier strip
with screw terminals
Enclosure Materials:
Plywood with removable grille
Finish:
Black textured paint
Grille:
Black powder-coated steel backed
with foam
Suspension: See suspending the
Xi-1082 section
Dimensions,
Height:
488 mm (19.23 in.)
Width:
235 mm (9.25 in.) (front)
150 mm (5.9 in.) (back)
Depth:
285 mm (11.23 in.)
Net Weight:
13.3 kg (28 lb)
Shipping Weight:
14.1 kg (31 lb)
Optional Accessories:
Mb1082 wall/ceiling mounting
bracket kit; OmniMount
Series 100
mounting hardware
X-Arrayy Install
TM
Xi-1082 Loudspeaker System
7
X- Array Install
Xi-1082 Loudspeaker System
TM
TM
Xi-1082 Loudspeaker System
X-Array Install
SPEAKERS - X-Array Install Part Number 535278 — 9907
8
600 Cecil Street, Buchanan, MI 49107
616/695-6831, 616/695-1304 Fax
©Telex Communications, Inc. 1999 • Litho in U.S.A.
Loading...
