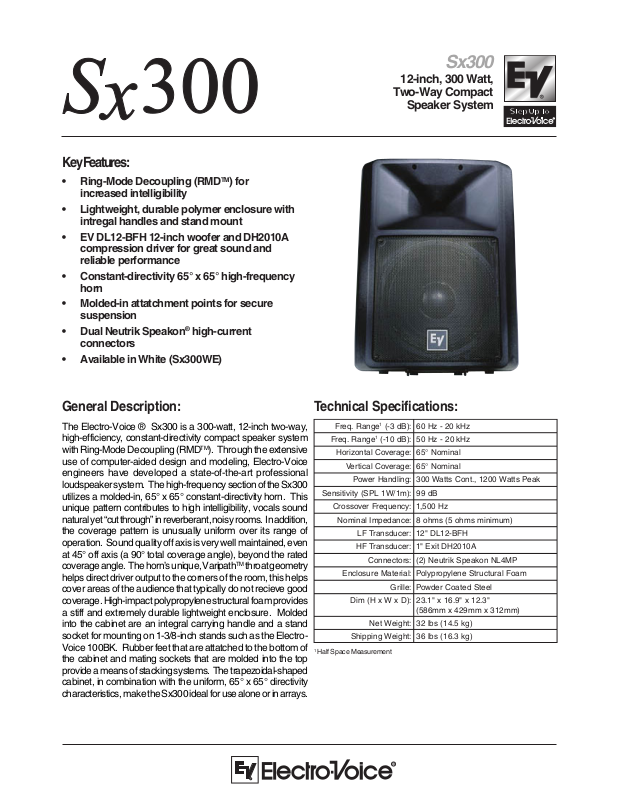

Electro-Voice SX300WE Specifications
Key Features:
• Ring-Mode Decoupling (RMDTM) for
increased intelligibility
• Lightweight, durable polymer enclosure with
intregal handles and stand mount
• EV DL12-BFH 12-inch woofer and DH2010A
compression driver for great sound and
reliable performance
• Constant-directivity 65° x 65° high-frequency
horn
• Molded-in attatchment points for secure
suspension
®
• Dual Neutrik Speakon
connectors
• Available in White (Sx300WE)
high-current
Sx300
12-inch, 300 Watt,
Two-Way Compact
Speaker System
General Description:
The Electro-Voice ® Sx300 is a 300-watt, 12-inch two-way,
high-efficiency, constant-directivity compact speaker system
with Ring-Mode Decoupling (RMDTM). Through the extensive
use of computer-aided design and modeling, Electro-Voice
engineers have developed a state-of-the-art professional
loudspeaker system. The high-frequency section of the Sx300
utilizes a molded-in, 65° x 65° constant-directivity horn. This
unique pattern contributes to high intelligibility, vocals sound
natural yet “cut through” in reverberant, noisy rooms. In addition,
the coverage pattern is unusually uniform over its range of
operation. Sound quality off axis is very well maintained, even
at 45° off axis (a 90° total coverage angle), beyond the rated
coverage angle. The horn’s unique, VaripathTM throat geometry
helps direct driver output to the corners of the room, this helps
cover areas of the audience that typically do not recieve good
coverage. High-impact polypropylene structural foam provides
a stiff and extremely durable lightweight enclosure. Molded
into the cabinet are an integral carrying handle and a stand
socket for mounting on 1-3/8-inch stands such as the ElectroVoice 100BK. Rubber feet that are attatched to the bottom of
the cabinet and mating sockets that are molded into the top
provide a means of stacking systems. The trapezoidal-shaped
cabinet, in combination with the uniform, 65° x 65° directivity
characteristics, make the Sx300 ideal for use alone or in arrays.
Technical Specifications:
1
egnaR.qerF
1
egnaR.qerF
1
Half Space Measurement
:)Bd3-(zHk02-zH06
:)Bd01-(zHk02-zH05
:egarevoClatnoziroHlanimoN°56
:egarevoClacitreVlanimoN°56
:gnildnaHrewoPkaePsttaW0021,.tnoCsttaW003
:)m1/W1LPS(ytivitisneSBd99
:ycneuqerFrevossorCzH005,1
:ecnadepmIlanimoN)muminimsmho5(smho8
:recudsnarTFLHFB-21LD"21
:recudsnarTFHA0102HDtixE"1
:srotcennoCPM4LNnokaepSkirtueN)2(
:lairetaMerusolcnEmaoFlarutcurtSenelyporpyloP
:ellirGleetSdetaoCredwoP
:)DxWxH(miD"3.21x"9.61x"1.32
:thgieWteN)gk5.41(sbl23
:thgieWgnippihS)gk3.61(sbl63
)mm213xmm924xmm685(
Suspending the Sx300 with Mb100
and Mb200:
Mb100 Mb200
Dimension Drawings:
Frequency Response & Impedance:
Beamwidth:
Directivity:
12000 Portland Avenue South, Burnsville, MN 55337
Phone:952/884-4051, Fax:952/884-0043
www.electrovoice.com
© Telex Communications, Inc. 4/2003
Part Number 534694 Rev D
Performance Match:
• Sb121 Bass Module
• 100BK Mounting Stand
• F200 Monitor Feet Attatchments
• Mb100 Forged Eyebolt Attatchment Kit
• Mb200 Wall/Ceiling Mounting Bracket
• Mb300 Horizontal Array Kit
• P1200 Amplifier
• Q44 Amplifier
• Q66 Amplifier
Sx300 Part Numbers:
• Sx300E -- 11053031
Neutrik Speakon®, Black
• Sx300WE -- 11053029
Neutrik Speakon®, White
U.S.A. and Canada only. For customer orders, contact Customer Service at:
800/392-3497 Fax: 800/955-6831
Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:
+ 49 9421-706 0 Fax: + 49 9421-706 265
Other International locations. For customer orders, contact Customer Service at:
+ 1 952 884-4051 Fax: + 1 952 736-4212
For warranty repair or service information, contact the Service Repair department at:
800/685-2606
For technical assistance, contact Technical Support at: 866/78AUDIO
Specifications subject to change without notice.
