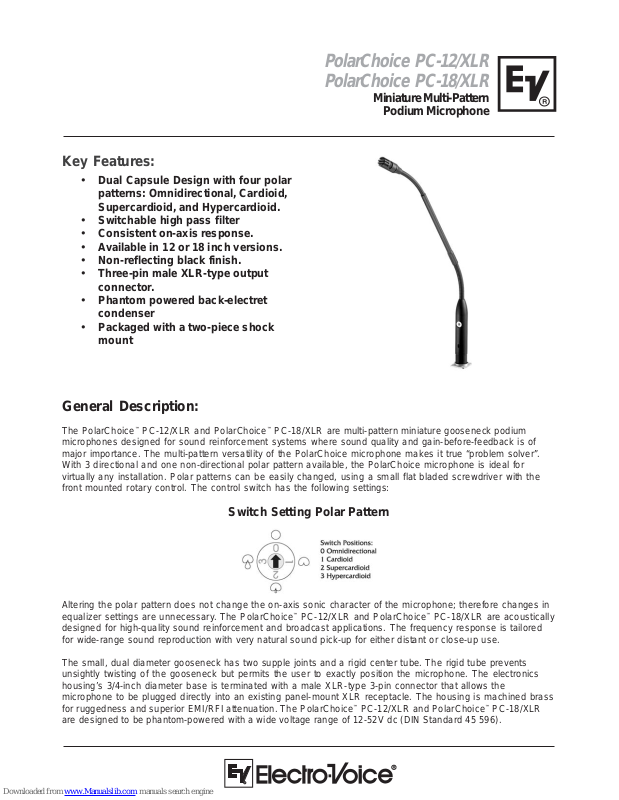

Key Features:
• Dual Capsule Design with four polar
patterns: Omnidirectional, Cardioid,
Supercardioid, and Hypercardioid.
• Switchable high pass filter
• Consistent on-axis response.
• Available in 12 or 18 inch versions.
• Non-reflecting black finish.
• Three-pin male XLR-type output
connector.
• Phantom powered back-electret
condenser
• Packaged with a two-piece shock
mount
PolarChoice PC-12/XLR
PolarChoice PC-18/XLR
Miniature Multi-Pattern
Podium Micr ophone
General Description:
The PolarChoice
microphones designed for sound reinforcement systems where sound quality and gain-before-feedback is of
major importance. The multi-pattern versatility of the PolarChoice microphone makes it true “problem solver”.
With 3 directional and one non-directional polar pattern available, the PolarChoice microphone is ideal for
virtually any installation. Polar patterns can be easily changed, using a small flat bladed screwdriver with the
front mounted rotary control. The control switch has the following settings:
™
PC-12/XLR and PolarChoice
Switch Setting Polar Pattern
Altering the polar pattern does not change the on-axis sonic character of the microphone; therefore changes in
equalizer settings are unnecessary. The PolarChoice
designed for high-quality sound reinforcement and broadcast applications. The frequency response is tailored
for wide-range sound reproduction with very natural sound pick-up for either distant or close-up use.
The small, dual diameter gooseneck has two supple joints and a rigid center tube. The rigid tube prevents
unsightly twisting of the gooseneck but permits the user to exactly position the microphone. The electronics
housing’s 3/4-inch diameter base is terminated with a male XLR-type 3-pin connector that allows the
microphone to be plugged directly into an existing panel-mount XLR receptacle. The housing is machined brass
for ruggedness and superior EMI/RFI attenuation. The PolarChoice
are designed to be phantom-powered with a wide voltage range of 12-52V dc (DIN Standard 45 596).
™
PC-18/XLR are multi-pattern miniature gooseneck podium
™
PC-12/XLR and PolarChoice
™
PC-12/XLR and PolarChoice
™
PC-18/XLR are acoustically
™
PC-18/XLR
Page 2
PolarChoice PC-12/XLR PolarChoice PC-18/XLR Microphone
Applications:
The PolarChoice
other applications which require a quick plug-in gooseneck microphone. To maximize gain-before-feedback the
PolarChoice™’s three directional polar patterns allow the user to pick the directional polar pattern for optimum effect. For
those applications where gain-before-feedback is not a problem, an omnidirectional pattern is included. Applications
requiring speaking close to the microphone at podiums, lecterns, or pulpits normally require a windscreen to control breath
noise and P-popping or, in some cases, wind noise from circulating air.
™
PC-12/XLR and PolarChoice
™
PC-18/XLR can be used on lecterns, podiums, desk and table-tops, or
Technical Specifications:
Generation Element:
Dual condenser, back electret
Frequency Response:
50 Hz to 20,000 Hz (see chart)
Polar Patterns: (see chart)
Omnidirectional
Cardioid
Supercardioid
Hypercardioid
Sensitivity:
Open Circuit Voltage, 1 kHz:
5.6mV/Pascal
Clipping Level (1% THD):
>135 dB SPL
Dimensions:
Gooseneck Length:
PolarChoice™ PC-12/XLR: 316.4 mm (12.5 in.)
PolarChoice™ PC-18/XLR: 460.4 mm (18.1 in.)
Maximum Head Diameter: 14.6 mm (0.58 in.)
Gooseneck Diameter: 6.4/7.9 mm (0.25/0.312 in.)
Electronics Module Diameter: 20 mm (0.79 in.)
Connector Diameter: 19 mm (0.75 in.)
Accessories Furnished:
Windscreen
Two-piece shock mount
Optional Accessories:
FMK flange-mount kit
WS-PC1 large windscreen
CPSM shock-mount kit
Equivalent Noise:
<26 dB SPL “A” weighted
(0 dB=20 micropascals)
Dynamic Range:
>109 dB
Output Impedance, 1 kHz:
200 ohms
Power Requrements:
Phantom, 12 – 52 VDC
Current Consumption:
< 8 mA with P12 supply
Polarity:
Pin 2 positive, referenced to pin 3,
with positive pressure on the diaphragm
Color:
Nonreflecting black
Environmental Conditions:
Relative Humidity 0-50%:
-29° to 74°C (-20° to 165°F)
Relative Humidity 0 to 95%:
-29° to 57°C (-20° to 135°F)
Net Weight:
PolarChoice™ PC-12/XLR:
170 grams (6.0 oz)
PolarChoice™ PC-18/XLR:
178 grams (6.3 oz)
Page 3
Engineering Data Sheet
EV Multi-Port Windscreen:
All PolarChoice microphones come with the exclusive EV
Multi-Port Windscreen. This unique one-piece ported design
offers greatly improved resistance to “P”-popping noise by
creating a two-stage filter that has an air space between the
stages. This makes the multi-port windscreen as effective as
much larger traditional designs.
Shock Mount Installation:
Drill a 1-3/8 inch hole to mount the hard plastic flange
into the desk, table, or lectern top. Drill three holes to
secure the flange. The type of screws used to fasten
the flange will depend on the desktop material. To
insert the flexible shock mount:
1. Gently push the flexible shock mount onto the
electronics housing. Position the flexible shock mount
to cover the polar selection switch.
2. Insert the microphone and shock mount into the hard
plastic flange using a twisting action to seat the shock
mount.

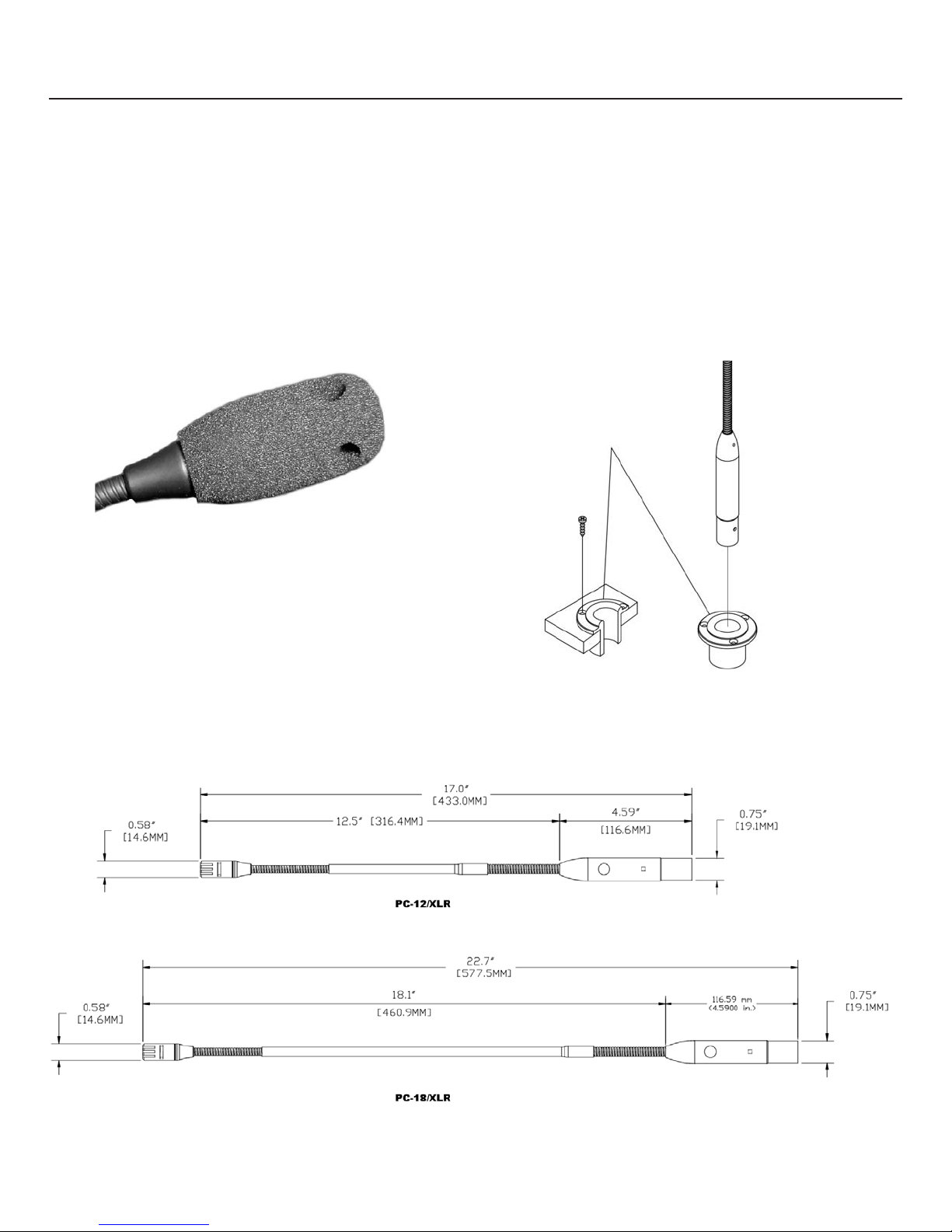

Dimension Drawings:
Page 4

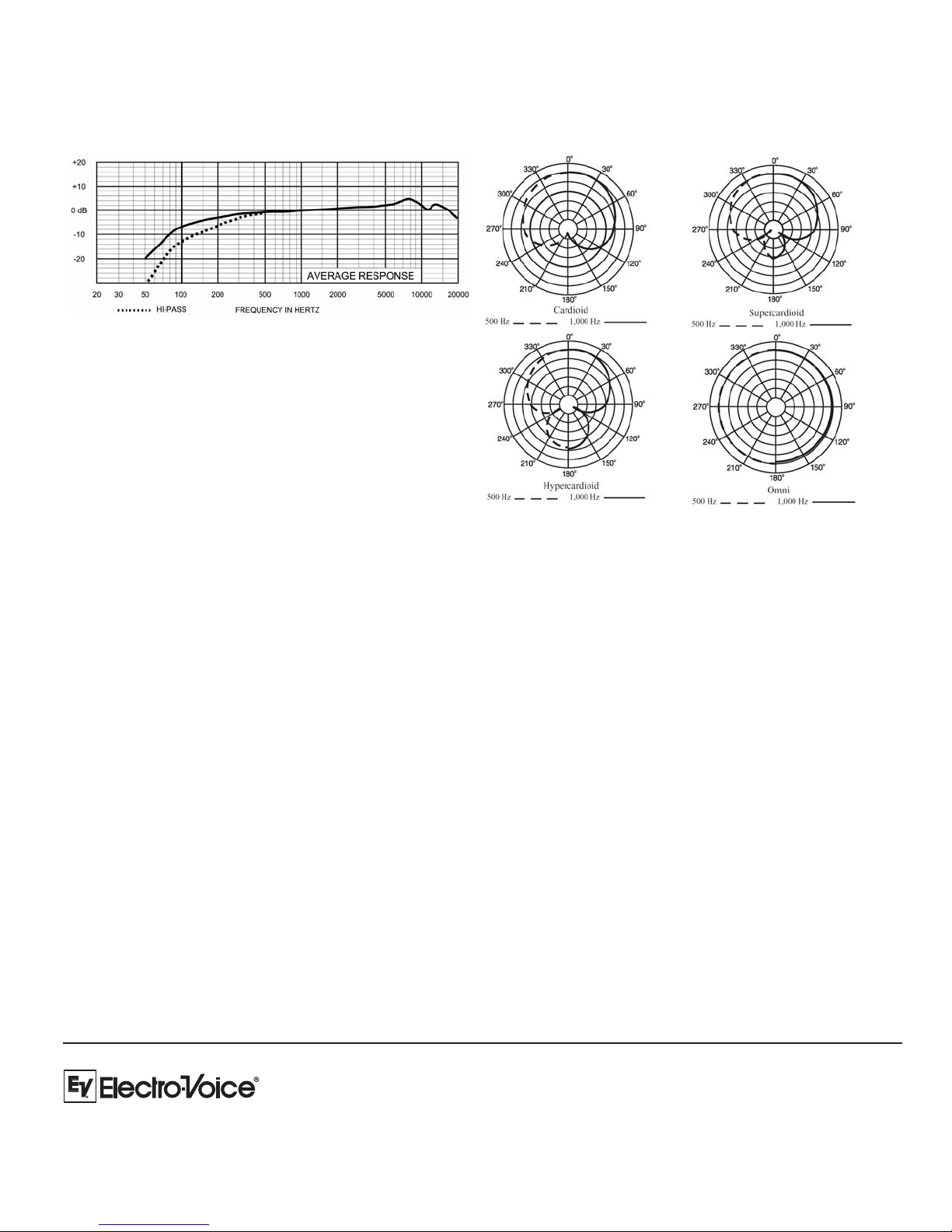

Frequency Response: Polars:
Architectural & Engineering Specs:
PolarChoice™ PC-12/XLR, PC-18/XLR
The microphone shall be a back-electret condenser type with a frequency response of 50 Hz to 20 kHz. The
microphone shall have a nominal, balanced output impedance of 200 ohms. The microphone shall have four selectable
polar patterns: omnidirectional, cardioid, supercardioid, and hypercardioid. The microphone shall have an output level of
5.6 mV/Pascal, and outputs shall not be appreciably affected by the following temperature and humidity extremes: -29°
to 74° C (-20° to 165°F) when the relative humidity is 0-50%; -29° to 57°C (-20° to 135°F) when the relative humidity is
0-95%. Dimensions shall be 433 mm (17 in.) long (PC-12/XLR), and 577.5 mm (22.7 in.) long, (Pc-18/XLR) with a
maximum head diameter of 14.6 mm (0.58 in). The PC-12/XLR microphone shall include a 318 mm (12.5 in.)
gooseneck. The PC-18/XLR microphone shall include a 460 mm (18.1 in.) gooseneck. The PC-12/XLR and PC-18/XLR
goosenecks will be terminated with a professional XLR-type 3-pin style connector. The microphone will have a
switchable high pass filter to roll off low frequencies. The microphone shall be of metal construction. The microphone
will include an external windscreen. The microphone shall have a nonreflecting black finish. The Electro-Voice
PolarChoice™ PC-12/XLR or PC-18/XLR is specified.
