Electro-voice HPS64 DATASHEET

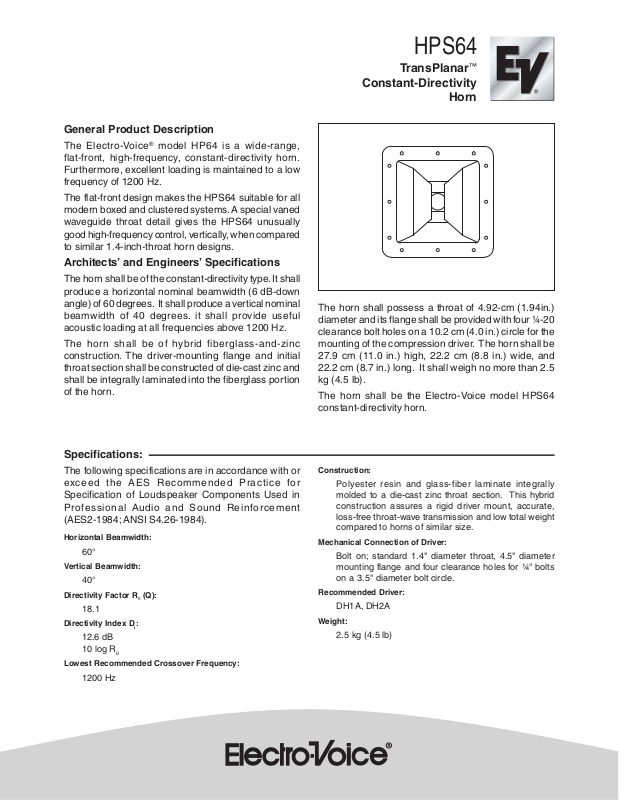

General Product Description

The Electro-Voice® model HP64 is a wide-range,
flat-front, high-frequency, constant-directivity horn.
Furthermore, excellent loading is maintained to a low
frequency of 1200 Hz.

The flat-front design makes the HPS64 suitable for all
modern boxed and clustered systems. A special vaned
waveguide throat detail gives the HPS64 unusually
good high-frequency control, vertically, when compared
to similar 1.4-inch-throat horn designs.

Architects’ and Engineers’ Specifications

The horn shall be of the constant-directivity type. It shall
produce a horizontal nominal beamwidth (6 dB-down
angle) of 60 degrees. It shall produce a vertical nominal
beamwidth of 40 degrees. it shall provide useful
acoustic loading at all frequencies above 1200 Hz.

The horn shall be of hybrid fiberglass-and-zinc
construction. The driver-mounting flange and initial
throat section shall be constructed of die-cast zinc and
shall be integrally laminated into the fiberglass portion
of the horn.

HPS64

TransPlanar

Constant-Directivity

The horn shall possess a throat of 4.92-cm (1.94in.)
diameter and its flange shall be provided with four ¼-20
clearance bolt holes on a 10.2 cm (4.0 in.) circle for the
mounting of the compression driver. The horn shall be

27.9 cm (11.0 in.) high, 22.2 cm (8.8 in.) wide, and

22.2 cm (8.7 in.) long. It shall weigh no more than 2.5
kg (4.5 lb).

The horn shall be the Electro-Voice model HPS64
constant-directivity horn.

™

Horn

Specifications:

The following specifications are in accordance with or
exceed the AES Recommended Practice for
Specification of Loudspeaker Components Used in
Professional Audio and Sound Reinforcement
(AES2-1984; ANSI S4.26-1984).

Horizontal Beamwidth:

60°

Vertical Beamwidth:

40°

Directivity Factor Rθ (Q):

18.1

Directivity Index Di:

12.6 dB
10 log R

Lowest Recommended Crossover Frequency:

1200 Hz

θ

Construction:

Polyester resin and glass-fiber laminate integrally
molded to a die-cast zinc throat section. This hybrid
construction assures a rigid driver mount, accurate,
loss-free throat-wave transmission and low total weight
compared to horns of similar size.

Mechanical Connection of Driver:

Bolt on; standard 1.4" diameter throat, 4.5" diameter
mounting flange and four clearance holes for ¼" bolts
on a 3.5" diameter bolt circle.

Recommended Driver:

DH1A, DH2A

Weight:

2.5 kg (4.5 lb)

:snoisnemiDsehcnI

A573.1

B5.4

C52.9

D52.9

E5.3

F4x182.0

G360.9

H518.8

Figure 1: Dimensions
