F R i

SPEAKER

SYSTEMS

Specification Sheet FRi-122/64

General Product Description

Two-way full-range passive system, with biamp option
in a vented trapezoidal enclosure. Includes a 12-inch
woofer and a 2/50mm voice coil compression driver
on a user-rotatable 60°  40° constant-directivity horn.
Cloth coverable steel grille.

Applications

The FRi-122/64 uses EV’s exclusive RMD™(Ring-Mode
Decoupling) to provide outstanding vocal clarity and
intelligibility in a cost-effective two-way system. The
versatile, compact enclosure features a comprehensive
system of 3/8-16 threaded mounting/suspension points,
to allow horizontal or vertical mounting. Simply rotate the
horn to select the desired coverage pattern. The FRi series
is 28-inches high, creating a uniform look in arrays. Five
year warranty.

Applications include:

Stadiums Arenas
Houses of Worship Discos
Live music clubs Gymnasiums

Speaker Description

Part Number FRi-122/64-BLK
LF Section & Components DL12BFH 12-inch woofer in vented enclosure
HF Section & Components DH2t compression driver with 2-inch titanium

diaphragm on a constant-directivity horn

System Configuration Two-way, Full range
Powering Configuration Passive or Biamp
Recommended High-Pass

Frequency (12 dB/octave min.) 50 Hz
Cabinet Type (shape) Trapezoidal
Enclosure Materials 13-ply Birch plywood
Finish Black Acrylic
Connectors Two barrier strips
Suspension Hardware (12) 3/8-16 threaded mounting/

suspension points (3 each on top
and bottom, 2 per side, 2 on rear)

Grille Powder-coated perforated 16GA steel
Options WH - white acrylic finish

UN - unfinished

USA 12000 Portland Ave South, Burnsville, MN 55337, Phone: [phone], FAX: [phone]
Canada 705 Progress Avenue, Unit 46, Scarborough, Ontario, Canada, M1H2X1, Phone: [phone], FAX: [phone]
Switzerland Keltenstrasse 11, CH-2563 IPSACH, Switzerland, Phone: [phone], FAX: [phone]
Germany Hirschberger Ring 45, D94315, Straubing, Germany, Phone: [phone], Fax: [phone]
France Parc de Courcerin, Allee Lech Walesa, Lognes, 77185 Marne La Vallee, France, Phone: [phone], FAX: [phone]
Australia Unit 23, Block C, Slough Business Park, Slough Avenue, Silverwater, N.S.W. 2128, Australia, Phone: [phone], FAX: [phone]
Hong Kong Unit E & F, 21/F, Luk Hop Industrial Bldg., 8 Luk Hop St., San PO Kong, Kowloon, Hong Kong, Phone: [phone], FAX: [phone]
Japan 2-5-60 Izumi, Suginami-ku, Tokyo, Japan 168, Phone: [phone], FAX: [phone]
Singapore 3015A Ubi Rd 1, 05-10, Kampong Ubi Industrial Estate, Singapore 408705, Phone: [phone], FAX: [phone]
Mexico Av. Parque Chapultepec #66-201, Col. El. Parque Edo. Mex. 53390, Phone: [phone], FAX: [phone]
UK 4, The Willows Centre, Willow Lane, Mitcham, Surrey CR4 4NX, UK, Phone: [phone], FAX: [phone]
Africa, Mid-East 12000 Portland Ave South, Burnsville, MN 55337, Phone: [phone], FAX: [phone]
Latin America 12000 Portland Ave South, Burnsville, MN 55337, Phone: [phone], FAX: [phone]

www.electrovoice.com • Telex Communications, Inc. • www.telex.com

©Telex Communications, Inc. 6/2000 Part Number 535883-4.00

U.S.A. and Canada only.

For customer orders, contact the Customer Service department at

800/392-3497 Fax: [phone]

For warranty repair or service information, contact the Service

Repair department at 800/685-2606

For technical assistance, contact Technical Support at 800/392-3497

Please refer to User Guide Sheet for warranty information.

Specifications subject to change without notice.

Architectural Specifications

The two-way full range loudspeaker system
shall incorporate a 12 LF transducer and a
2/50mm voice coil HF compression driver.

The LF driver shall be mounted in a vented
enclosure tuned for optimum low-frequency
response.The HF driver shall be loaded on
constant-directivity horn with a nominal
coverage pattern of 60° (h)  40° (v).An
internal passive filter network shall provide
acoustical crossover and system equalization.
Input panel shall easily change from passive to
biamp operation via internal connector.

System frequency response shall vary no more
than ±3 dB from 62 Hz to 15 kHz measured
on axis. The loudspeaker shall produce a
sound pressure level (SPL) of 97 dB on axis
at 1 meter with a power input of 1 watt, and
shall be capable of producing a full-power
peak output of 128 dB on axis at 1 meter.
It shall handle 300 watts of amplifier power
long-term (EIA Standard), and shall have a
nominal impedance of 8 ohms.

The loudspeaker enclosure shall be trapezoidal
in shape. It shall be constructed of 13 ply void­free cross-grain-laminated Birch plywood and
shall employ extensive internal bracing. It shall
be finished in black acrylic. Input connectors
shall be two at 2 terminal barrier strips. A total of
twelve 3/8 -16 threaded mounting/ suspension
points shall be provided, (three each on top and
bottom, two per side, two on rear).The front of
the loudspeaker shall be cloth coverable with a
powder-coated perforated 16 GA steel grille.

The two-way full range loudspeaker shall
be the Electro-Voice model FRi-122/64.

Speaker Characteristics

Frequency Response (passive)

±3 dB 62 Hz-15 kHz

-10 dB 50 Hz-16 kHz

Axial Sensitivity

(SPL/1 watt/1m) Passive 97 dB
(SPL/1 watt/1m) Biamp (LF/HF) 97/112 dB

Impedance

Passive 8 ohms
Biamp (LH/HF) 8/8 ohms

Power Handling

Passive Long-term (EIA) 300 watts

Short-term peak 1,200 watts

Biamp-LF Long-term (EIA) 300 watts

Short-term peak 1,200 watts

Biamp-HF Long-term (AES) 60 watts

Short-term peak 240 watts

Calculated Maximum Output SPL

Peak 128 dB
Long Term 122 dB

Nominal Coverage Angle

Horizontal (-6 dB) 60°
Vertical (-6 dB) 40°

Dimensions

Height 27.92 in. (711 mm)
Width at front 15.83 in. (401 mm)
Width at back 7.00 in. (178 mm)
Depth 17.54 in. (445 mm)
Trapezoid Angle 15° per side

Weights

Net Weight 60 lb. (27.3 kg)
Shipping Weight 72 lb. (32.7 kg)

Specification Sheet FRi-122/64

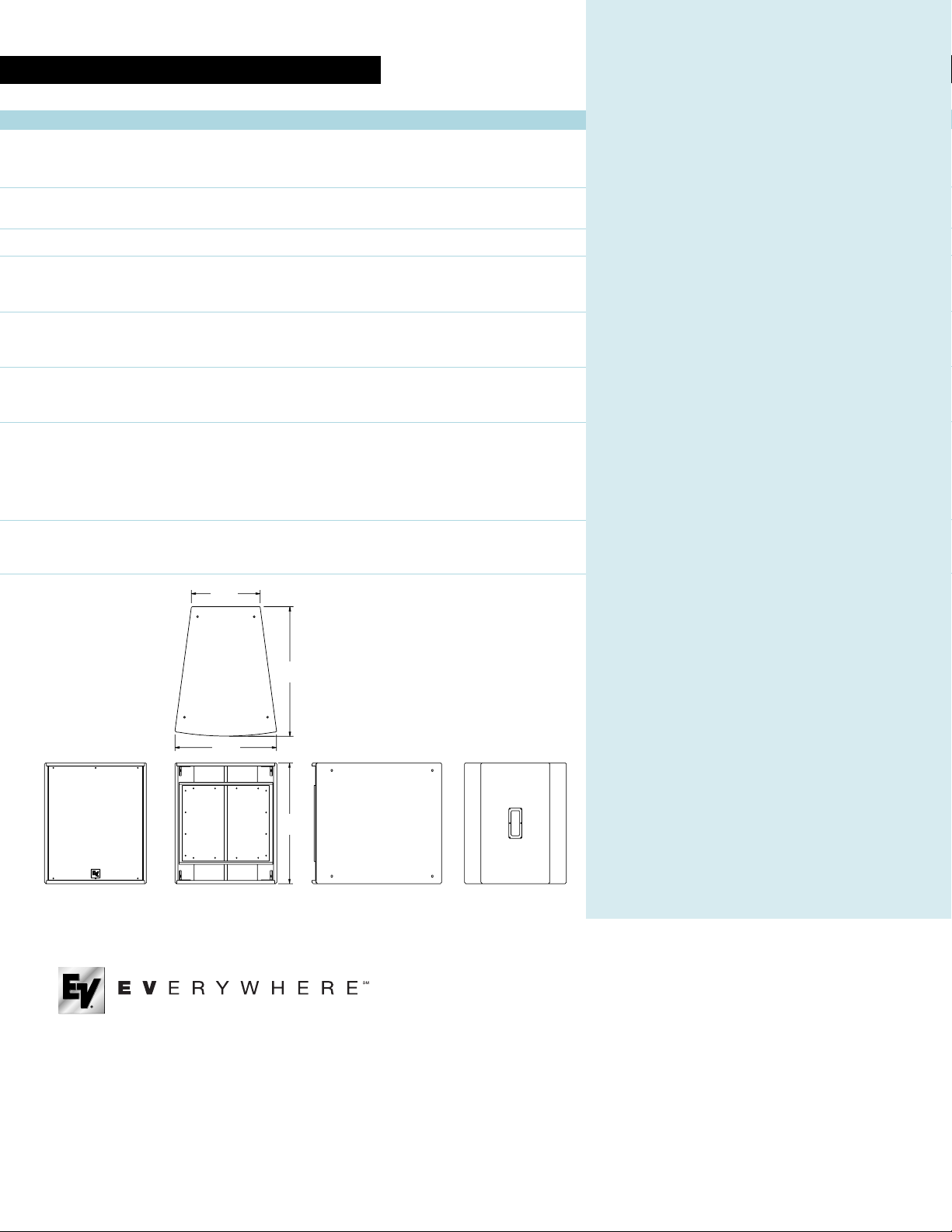

Front View

(with grille)

Front View

(with grille removed)

Side View

(with grille removed)

Back ViewTop View

27.92

7.00

15.83

17.54

F R i

SPEAKER

SYSTEMS

General Product Description

Two-way full-range passive system, with biamp option, in
a vented trapezoidal enclosure. Includes a 15-inch woofer
and a 2/50mm voice coil compression driver on a
user-rotatable 60º  40º constant-directivity horn. Cloth
coverable steel grille.

Applications

The FRi-152/64 uses EV’s exclusive RMD™(Ring-Mode
Decoupling) to provide outstanding vocal clarity and
intelligibility in a cost-effective two-way system.The versatile,
compact enclosure features a comprehensive system of
3/8-16 threaded mounting/suspension points, to allow
horizontal or vertical mounting. Simply rotate the horn
to select the desired coverage pattern.The FRi series
is 28-inches high, creating a uniform look in arrays.
Five year warranty.

Applications include:

Stadiums Arenas
Houses of Worship Discos
Live music clubs Gymnasiums

Specification Sheet FRi-152/64

Speaker Description

Part Number FRi-152/64-BLK
LF Section & Components DL15BFH 15-inch woofer in vented enclosure
HF Section & Components DH2t compression driver with 2-inch titanium

diaphragm on a constant-directivity horn

System Configuration Two-way, Full range
Powering Configuration Passive or Biamp
Recommended High-Pass

Frequency (12 dB/octave min.) 40 Hz
Cabinet Type (shape) Trapezoidal
Enclosure Materials 13-ply Birch plywood
Finish Black Acrylic
Connectors Two barrier strips
Suspension Hardware (12) 3/8-16 threaded mounting/suspension

points (3 each on top and bottom, 2 per side,
2 on rear)

Grille Powder-coated perforated 16GA steel
Options WH - white acrylic finish

UN - unfinished

U.S.A. and Canada only.

For customer orders, contact the Customer Service department at

800/392-3497 Fax: [phone]

For warranty repair or service information, contact the Service

Repair department at 800/685-2606

For technical assistance, contact Technical Support at 800/392-3497

Please refer to User Guide Sheet for warranty information.

Specifications subject to change without notice.

Architectural Specifications

The two-way full range loudspeaker system
shall incorporate a 15 LF transducer and a
2/50mm voice coil HF compression driver.

The LF driver shall be mounted in a vented
enclosure tuned for optimum low-frequency
response.The HF driver shall be loaded on
constant-directivity horn with a nominal
coverage pattern of 60° (h)  40° (v).An
internal passive filter network shall provide
acoustical crossover and system equalization.
Input panel shall be easily changeable
from passive to biamp operation via
internal connector.

System frequency response shall vary no
more than ±3 dB from 70 Hz to 15 kHz
measured on axis. The loudspeaker shall
produce a sound pressure level (SPL) of 98 dB
on axis at 1 meter with a power input of
1 watt, and shall be capable of producing a
full-power peak output of 129 dB on axis at
1 meter. It shall handle 350 watts of amplifier
power long-term (EIA Standard), and shall
have a nominal impedance of 8 ohms.

The loudspeaker enclosure shall be trapezoidal
in shape. It shall be constructed of 13 ply void­free cross-grain-laminated Birch plywood and
shall employ extensive internal bracing. It shall
be finished in black acrylic. Input connectors
shall be two at 2 terminal barrier strips. A total
of twelve 3/8-16 threaded mounting/suspension
points shall be provided, (three each on top
and bottom, two per side, two on rear). The
front of the loudspeaker shall be cloth
coverable with a powder-coated perforated
16 GA steel grille.

The two-way full range loudspeaker shall
be the Electro-Voice model FRi-152/64.

Speaker Characteristics

Frequency Response (passive)

±3 dB 70 Hz-15 kHz

-10 dB 42 Hz-16 kHz

Axial Sensitivity

(SPL/1 Watt/1m) Passive 98 dB
(SPL/1 Watt/1m) Biamp (LF/HF) 98/112 dB

Impedance

Passive 8 ohms
Biamp (LH/HF) 8/8 ohms

Power Handling

Passive Long-term (EIA) 350 watts

Short-term peak 1,400 watts

Biamp-LF Long-term (EIA) 350 watts

Short-term peak 1,400 watts

Biamp-HF Long-term (AES) 60 watts

Short-term peak 240 watts

Calculated Maximum Output SPL

Peak 129 dB
Long Term 123 dB

Nominal Coverage Angle

Horizontal (-6 dB) 60°
Vertical (-6 dB) 40°

Dimensions

Height 27.92 in. (711 mm)
Width at front 19.03 in. (483 mm)
Width at back 7.25 in. (185 mm)
Depth 23.23 in. (589 mm)
Trapezoid Angle 15° per side

Weights

Net Weight 70 lb. (31.8 kg)
Shipping Weight 82 lb. (37.3 kg)

Specification Sheet FRi-152/64

Front View

(with grille)

Front View

(with grille removed)

Side View

(with grille removed)

Back ViewTop View

27.92

7.25

19.03

23.23

USA 12000 Portland Ave South, Burnsville, MN 55337, Phone: [phone], FAX: [phone]
Canada 705 Progress Avenue, Unit 46, Scarborough, Ontario, Canada, M1H2X1, Phone: [phone], FAX: [phone]
Switzerland Keltenstrasse 11, CH-2563 IPSACH, Switzerland, Phone: [phone], FAX: [phone]
Germany Hirschberger Ring 45, D94315, Straubing, Germany, Phone: [phone], Fax: [phone]
France Parc de Courcerin, Allee Lech Walesa, Lognes, 77185 Marne La Vallee, France, Phone: [phone], FAX: [phone]
Australia Unit 23, Block C, Slough Business Park, Slough Avenue, Silverwater, N.S.W. 2128, Australia, Phone: [phone], FAX: [phone]
Hong Kong Unit E & F, 21/F, Luk Hop Industrial Bldg., 8 Luk Hop St., San PO Kong, Kowloon, Hong Kong, Phone: [phone], FAX: [phone]
Japan 2-5-60 Izumi, Suginami-ku, Tokyo, Japan 168, Phone: [phone], FAX: [phone]
Singapore 3015A Ubi Rd 1, 05-10, Kampong Ubi Industrial Estate, Singapore 408705, Phone: [phone], FAX: [phone]
Mexico Av. Parque Chapultepec #66-201, Col. El. Parque Edo. Mex. 53390, Phone: [phone], FAX: [phone]
UK 4, The Willows Centre, Willow Lane, Mitcham, Surrey CR4 4NX, UK, Phone: [phone], FAX: [phone]
Africa, Mid-East 12000 Portland Ave South, Burnsville, MN 55337, Phone: [phone], FAX: [phone]
Latin America 12000 Portland Ave South, Burnsville, MN 55337, Phone: [phone], FAX: [phone]

www.electrovoice.com • Telex Communications, Inc. • www.telex.com

©Telex Communications, Inc. 6/2000 Part Number 535882-4.00

F R i

SPEAKER

SYSTEMS

General Product Description

A dedicated passive 18-inch subwoofer system in a vented
slot-loaded trapezoidal enclosure. Includes passive crossover to
allow use with full-range signal. Secondary input connectors
bypass crossover to accept bandpassed signal. Designed as a
suspendible enclosure. Cloth coverable steel grille.

Applications

The FRi-181S provides high output low bass response in
an enclosure designed to compliment the other models in
the FRi line.The vented slot loaded design extends LF
response and improves output.The versatile, compact enclosure
features a comprehensive system of 3/8 -16 thread mounting/
suspension points, to allow vertical or horizontal mounting.
The FRi series is 28-inches high, creating a uniform look in
arrays. Five year warranty.

Applications include:

Stadiums Arenas
Houses of Worship Discos
Live music clubs Gymnasiums

Specification Sheet FRi-181S

Speaker Description

Part Number 1152-3340
Components & Loading DL18BFH 18-inch woofer in vented

slot load design

System Configuration Dedicated Subwoofer
Powering Configuration Passive or Biamp

Recommended High-Pass
Frequency (12 dB/octave min.) 40 Hz

Cabinet Type (shape) Trapezoidal
Enclosure Materials 13-ply Birch plywood
Finish Black Acrylic
Connectors Two barrier strips
Suspension Hardware (16) 3/8-16 threaded mounting/suspension

points (4 each top, bottom, sides)

Grille Powder-coated perforated 16GA steel
Options WH - white acrylic finish

UN - unfinished

U.S.A. and Canada only.

For customer orders, contact the Customer Service department at

800/392-3497 Fax: [phone]

For warranty repair or service information, contact the Service

Repair department at 800/685-2606

For technical assistance, contact Technical Support at 800/392-3497

Please refer to User Guide Sheet for warranty information.

Specifications subject to change without notice.

Architectural Specifications

The subwoofer loudspeaker system shall
incorporate one passive or biampable
18 LF transducer mounted in a vented,
slot-loaded enclosure tuned for optimum
low frequency response.

System frequency response shall vary no more
than ±3 dB from 45 Hz to 160 Hz measured
on axis.The loudspeaker shall produce a
sound pressure level (SPL) of 97 dB (100 dB
half-space) on axis at 1 meter with a power
input of 1 watt, and shall be capable of
producing a peak output of 129 dB (132 dB
half-space) on axis at 1 meter.The loudspeaker
shall handle 400 watts of amplifier power
long-term (EIA Standard), and shall have a
nominal impedance of 8 ohms.

The loudspeaker enclosure shall be trapezoidal
in shape. It shall be constructed of 13 ply void­free cross-grain-laminated Birch plywood and
shall employ extensive internal bracing. It shall
be finished in black acrylic. Input connectors
shall be two at 2 terminal barrier strips. A total of
sixteen 3/8 -16 threaded mounting/suspension
points (4 each top, bottom, sides) shall be
provided.The front of the loudspeaker shall a
cloth coverable powder-coated perforated 16
GA steel grille.

The sub bass loudspeaker shall be the
Electro-Voice model FRi-181S.

Speaker Characteristics

Frequency Response (passive)

±3 dB 45 Hz-160 Hz

-10 dB 36 Hz-250 Hz

Axial Sensitivity (full-space/half-space)

(SPL/1 watt/1m) 97 dB/100 dB

Impedance 8 ohms

Power Handling

Passive Long-term (EIA) 400 watts

Short-term peak 1,600 watts

Calculated Maximum Output SPL (full-space/half-space)

Peak 129/132 dB
Long Term 123/126 dB

Nominal Coverage Angle

Horizontal (-6 dB) 300°
Vertical (-6 dB) 270°

Dimensions

Height 27.92 in. (711 mm)
Width in front 23.51 in. (597 mm)
Width in back 15.93 in. (404 mm)
Depth 30.00 in. (762 mm)
Trapezoid Angle 7.5° per side

Weights

Net Weight 100 lb. (45.5 kg)
Shipping Weight 110 lb. (50.0 kg)

Specification Sheet FRi-181S

Front View

(with grille)

Front View

(with grille removed)

Side View

(with grille removed)

Back View

Top View

27.92

23.51

30.00

15.93

USA 12000 Portland Ave South, Burnsville, MN 55337, Phone: [phone], FAX: [phone]
Canada 705 Progress Avenue, Unit 46, Scarborough, Ontario, Canada, M1H2X1, Phone: [phone], FAX: [phone]
Switzerland Keltenstrasse 11, CH-2563 IPSACH, Switzerland, Phone: [phone], FAX: [phone]
Germany Hirschberger Ring 45, D94315, Straubing, Germany, Phone: [phone], Fax: [phone]
France Parc de Courcerin, Allee Lech Walesa, Lognes, 77185 Marne La Vallee, France, Phone: [phone], FAX: [phone]
Australia Unit 23, Block C, Slough Business Park, Slough Avenue, Silverwater, N.S.W. 2128, Australia, Phone: [phone], FAX: [phone]
Hong Kong Unit E & F, 21/F, Luk Hop Industrial Bldg., 8 Luk Hop St., San PO Kong, Kowloon, Hong Kong, Phone: [phone], FAX: [phone]
Japan 2-5-60 Izumi, Suginami-ku, Tokyo, Japan 168, Phone: [phone], FAX: [phone]
Singapore 3015A Ubi Rd 1, 05-10, Kampong Ubi Industrial Estate, Singapore 408705, Phone: [phone], FAX: [phone]
Mexico Av. Parque Chapultepec #66-201, Col. El. Parque Edo. Mex. 53390, Phone: [phone], FAX: [phone]
UK 4, The Willows Centre, Willow Lane, Mitcham, Surrey CR4 4NX, UK, Phone: [phone], FAX: [phone]
Africa, Mid-East 12000 Portland Ave South, Burnsville, MN 55337, Phone: [phone], FAX: [phone]
Latin America 12000 Portland Ave South, Burnsville, MN 55337, Phone: [phone], FAX: [phone]

www.electrovoice.com • Telex Communications, Inc. • www.telex.com

©Telex Communications, Inc. 6/2000 Part Number 535885-4.00
