Electro-Voice EVOLVE 50M User Manual [EN]

EVOLVE Portable Column Loudspeaker

EVOLVE50M‑SB‑EU | EVOLVE50M‑SB‑US | EVOLVE50M‑SW |
EVOLVE50‑TW | EVOLVE50‑TB

en

User manual

EVOLVE Portable Column Loudspeaker Table of contents | en 3

Table of contents

1

Safety 4

1.1 Important safety instructions 4

1.2 FCC information 6

1.3 Precautions 7

1.4 Certifications 7

1.5 Notices 8
2

Short information 10

2.1 Shipping contents 10
3

4

5

Description 11

Installation 13

Amplifier DSP 14

5.1 Amplifier DSP controls 14

5.2 System status 16

5.3 DSP control menu 17
6

Mixer operation 29

6.1 Inputs 1-4, 5/6 & 7/8 29

6.2 QuickSmart Link configuration 30
7

8

Pairing the QuickSmart Mobile application 32

Recommended configurations 34

8.1 Stereo pair of Evolve 50M systems 34

8.2 Solo musician performance 36
9

10

Troubleshooting 37

Technical data 39

10.1 Dimensions 40

Electro-Voice

User manual

2020-12 | v01 | F.01U.393.750

4 en | Safety EVOLVE Portable Column Loudspeaker

1 Safety

1.1 Important safety instructions

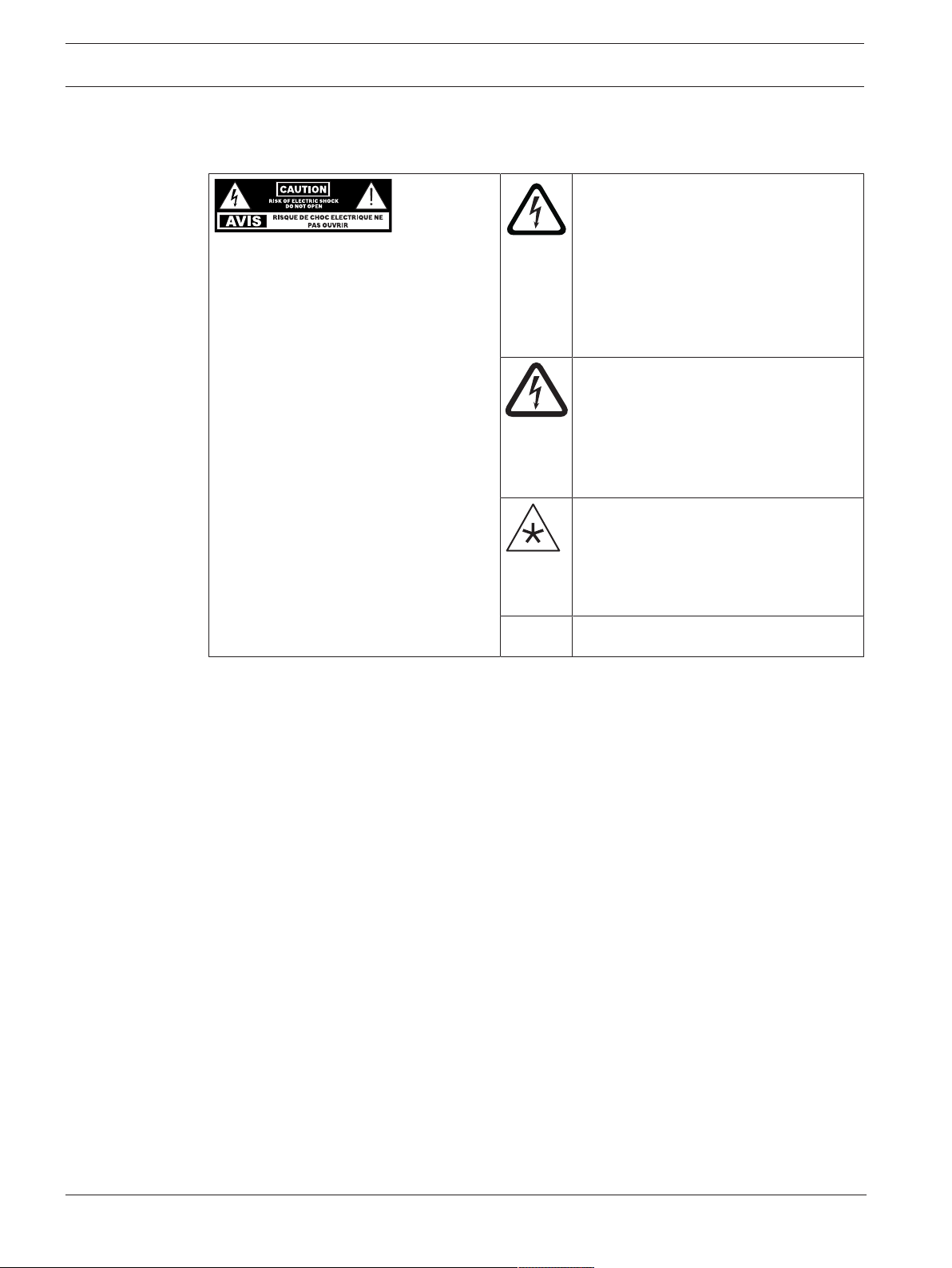

The lightning flash with arrowhead
symbol, within an equilateral triangle is
intended to alert the user to the

WARNING: TO REDUCE THE RISK OF
FIRE OR ELECTRIC SHOCK, DO NOT
OVEREXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE
AVIS: RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR.
WARNING: THE MAINS PLUG OR AC
INLET IS USED AS A DISCONNECT
DEVICE. THE DISCONNECT DEVICE
SHALL REMAIN READILY OPERABLE.
WARNING: CONNECT ONLY TO MAINS
SOCKET WITH PROTECTIVE EARTHING
CONNECTION.
WARNING: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK) AS THERE ARE NO
USER-SERVICABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
PERSONNEL.

presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be sufficient magnitude to
constitute a risk of electric shock to
persons.

The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.

The asterisk within an equilateral
triangle is intended to inform the user to
necessary installation or removal
instructions regarding equipment or
hardware use relating to the system.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong is provided for your safety. If
the provided plug does not fit into your outlet, consult an electrician for replacement of
the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.

13. Unplug the apparatus during lightning storms or when unused for long periods of time.

2020-12 | v01 | F.01U.393.750

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Safety | en 5

!

!

!

!

!

14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.

15. No naked flame sources, such as lighted candles, should be placed on the apparatus.

16. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture. The apparatus should not be exposed to dripping or splashing. Objects filled
with liquids, such as vases should not be placed on apparatus.

17. Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.

18. Minimum 60 cm (2 ft) distances around the apparatus for sufficient ventilation.

19. The ventilation should not be impeded by covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc.

20. To completely disconnect AC power from this apparatus, the power supply cord must be
unplugged.

Warning!

Apparatets stikprop skal tilsluttes en stikkontakt med jord som giver forbindelse til
stikproppens jord.
Laite on liitettävä suojakoskettimilla varustettuun pistorasiaan
Apparatet må tilkoples jordet stikkontakt
Apparaten skall anslutas till jordat uttag

Warning!

This product is not designed to be suspended. Do NOT use handles or any other method to
suspend the loudspeaker. Handles on Electro-Voice loudspeakers are intended to only be
used for temporary transport by people.
Items, such as fiber rope, wire rope, cables, or other types of materials cannot be used to
suspend loudspeaker from the handles.

Warning!

Use of non-authorized accessories or attachments with this or any Electro-Voice product is at
your own discretion. Use of non-authorized accessories or attachments can result in product
malfunction, injury, or death.
The user assumes all liability and may result in the warranty being voided.

Caution!

Do not attempt to move this loudspeaker system when it is fully assembled.
You may damage the system or cause personal injury.

Caution!

To maintain tip-over stability, do not use EVOLVE 30M 2-piece sub-pole with EVOLVE 50
column speaker array or subwoofer.
Doing so may result in damage, and/or personal injury

Electro-Voice

User manual

2020-12 | v01 | F.01U.393.750

6 en | Safety EVOLVE Portable Column Loudspeaker

!

i

Caution!

For optimal acoustics and performance, ONLY use EVOLVE 50/50M column speaker array with
the EVOLVE 50/50M subwoofer. Do not use EVOLVE 50/50M column speaker array or
subwoofer with EVOLVE 50/50M column speaker array or subwoofer.
Doing so may result in poor acoustic performance, permanent damage, and void of warranty.

1.2 FCC information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.

Notice!

This product has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This product generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this product does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV technician for help.

2020-12 | v01 | F.01U.393.750

The device has been granted by FCC and IC, the FCC ID:ESVEVOLVE and IC:1249A ­EVOLVE50M.

Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
This equipment should be installed and operated with a minimum distance of 20cm between
the radiator and your body.

This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radioexempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Safety | en 7

Under Industry Canada regulations, this radio transmitter may only operate using an antenna
of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour
l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain
de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité
nécessaire à l'établissement d'une communication satisfaisante.

1.3 Precautions

If an Electro-Voice loudspeaker is used outdoors on a sunny day, place the
loudspeaker in a shaded or covered area. The loudspeaker amplifiers have
protection circuits that temporarily shut the loudspeaker off when extremely
high temperatures are reached. This can happen on hot days when the
loudspeaker is in direct sunlight.

Do not use Electro-Voice loudspeakers in an environment where temperatures
are below 0°C (32°F) or exceed +35°C (95°F).

Never expose an Electro-Voice loudspeaker to rain, water, or high moisture.

Electro-Voice loudspeakers are easily capable of generating sound pressure
levels sufficient to cause permanent hearing damage to anyone within normal
coverage distance. Caution should be taken to avoid prolonged exposure to
sound pressure levels exceeding 90 dB.

1.4 Certifications

Brazil:

Após uma perturbação da rede elétrica, o EVOLVE pode entrar em estado de segurança. Neste
caso, você deve desligar e ligar o dispositivo novamente.

Mexico:

“La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que
este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo
debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no
deseada”

Electro-Voice

EVOLVE 50M (RCPBOEV20-1717)
EVOLVE50M-SB-US (RCPBOEV20-1717-A5)
EVOLVE50M-SB-EU (RCPBOEV20-1717-A6)
EVOLVE50M-SW (RCPBOEV20-1717-A7)

User manual

2020-12 | v01 | F.01U.393.750

8 en | Safety EVOLVE Portable Column Loudspeaker

i

Republic of Korea:

제품명: 앰프내장형 스피커

모델명: EVOLVE50M

정격: 100-240 Vac, 50-60 Hz, 1000 W

수입업체(상호)명: 로버트보쉬코리아(유)

제조자: Bosch Security Systems, LLC.

제조연월: 별도표기

제조국: 중국

A/S: 02-702-2846

해당 무선설비는 운용 중 전파혼신 가능성이 있음
해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없습니다.

United Arab Emirates:

TRA Registered no.: ER77128/19
Dealer no.: DA45733/15

1.5 Notices

Old electrical and electronic equipment

This product and/or battery must be disposed of separately from household waste.
Dispose such equipment according to local laws and regulations, to allow their reuse
and/or recycling. This will help in conserving resources, and in protecting human
health and the environment.

Copyright and disclaimer

All rights reserved. No part of this document may be reproduced or transmitted in any form by
any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of the publisher. For information on getting permission for reprints and
excerpts, contact Electro-Voice.
All content including specifications, data, and illustrations in this manual are subject to change
without prior notice.

Notice!

Bluetooth® is available in select countries.
Contact your nearest Electro-Voice dealer or Electro-Voice distributor for more information.

2020-12 | v01 | F.01U.393.750

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
and any use of such marks by Bosch Security Systems, Inc. is under license. Other trademarks
and trade names are those of their respective owners.

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Safety | en 9

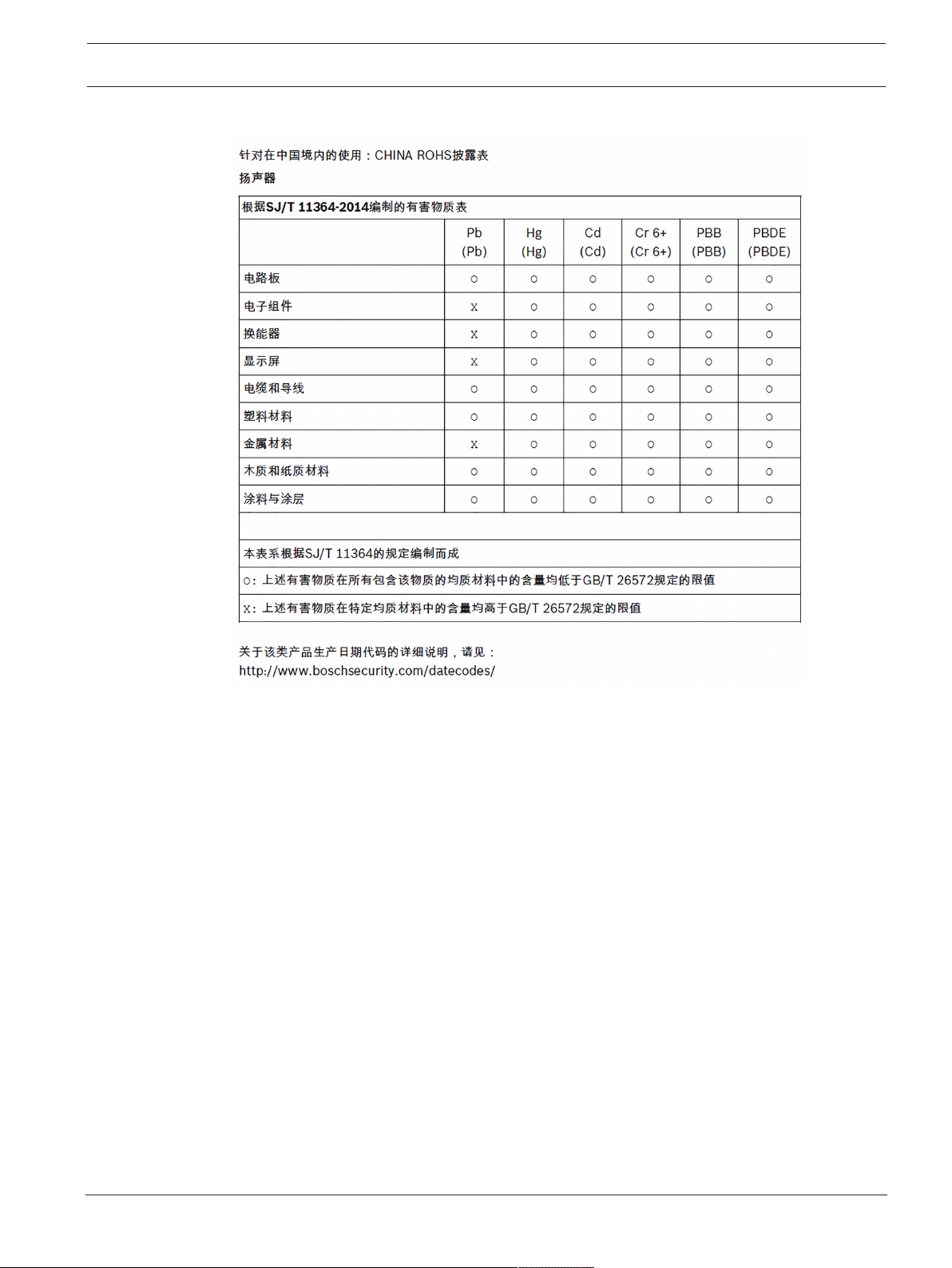

For use in China: CHINA ROHS DISCLOSURE TABLE

Electro-Voice

User manual

2020-12 | v01 | F.01U.393.750

10 en | Short information EVOLVE Portable Column Loudspeaker

2 Short information

The following table lists products in a family, with CTN (Commercial Type Number) and
identifying product name DESCRIPTION.

CTN Description

EVOLVE50-TB Column speaker array, pole, black

EVOLVE50M-SB-US Column speaker sub US, black

EVOLVE50M-SB-EU Column speaker sub EU, black

EVOLVE50-TW Column speaker array, pole, white

EVOLVE50M-SW Column speaker sub, US & EU, white

EVOLVE50-PL-SB Column speaker pole, short, black

EVOLVE50-PL-SW Column speaker pole, short, white

EVOLVE50-CASE Column speaker carrying case, wheels

EVOLVE50-SUBCVR Subwoofer Cover

2.1 Shipping contents

Quantity Component

1 Subwoofer

1 (2 for EVOLVE50M-SW) Power cord

1 User manual

1 Safety manual

Tab.2.1: EVOLVE50M-SB-US, EVOLVE50M-SB-EU, EVOLVE50M-SW

Quantity Component

1 Column array

1 Sub pole

1 Carry bag

Tab.2.2: EVOLVE50-TB, EVOLVE50-TW

2020-12 | v01 | F.01U.393.750

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Description | en 11

3 Description

Thank you for choosing an Electro-Voice portable column system. Please take time to consult
the manual to understand all the features built into your EV system and fully utilize its
performance capabilities.
Designed to deliver a step up in sound quality and set a new performance standard for
compact column speaker systems - EVOLVE 50M is perfect for solo musicians, small groups,
mobile entertainers and smaller venues that need an easy-to-use, highly portable and
lightweight system with extraordinary coverage and output for its size. EVOLVE 50M comes
ready to go with speaker array, symmetrical aluminum pole connectors with internal wire
assembly and magnetically assisted latching, subwoofer, and included pole/array carry case ­all designed to pack up compactly, set up and tear down quickly, look great on stage, and
withstand real-world wear and tear.
Professional-grade EV-engineered components and build quality - The full-range column array
and its eight 3.5” neodymium drivers provide room-filling ultra-wide 120° coverage via custom­designed waveguides; array-formed 40° asymmetrical vertical coverage ensures acoustic
output is directed towards both sitting and standing audience members. The array enclosure
is constructed from a durable composite material and incorporates an ergonomic aluminum
handle. Four tuning ports are located on the rear of the enclosure for acoustic optimization. A
12” subwoofer is housed in a 15 mm wood enclosure with a high-efficiency laminar-flow vent
design, for enhanced rigidity and acoustical performance. The Class-D amplifier provides up to
1000 W of output power. The speakers are protected by a black powder-coated 18 ga. steel
grille. Combined, these components generate a genuinely stunning performance to size ratio ­an elegant form factor that looks as good as it sounds.
The most extensive feature set in its class - The EVOLVE 50M has an integrated full-function
and fully programmable eight-channel digital mixer with multiple inputs (4x XLR/TRS combo
line/mic inputs, 1x XLR/TRS stereo line input, 1x RCA, 1x 3.5 mm stereo, 1x Hi-Z instrument
input, wireless Bluetooth® Audio Input), and professional-grade preamps and mixer functions ­all designed in collaboration with the world-class mixer engineering team at Electro-Voice’s
sibling brand Dynacord. For the performing musician, Hi-Z and foot switch inputs are included
for flexible system configuration, and a range of onboard studio-quality effects (30 presets,
including chorus, delay, flange and reverb, via two FX channels) add myriad options for
finessing your sound. This reduces set-up time - and on-stage clutter - by minimizing the need
for external equipment such as a mixer and effects pedals, which also makes loading in and
out of the venue quicker. High-resolution, low-latency Bluetooth®* streaming ensures
exceptional results for music playback or accompaniment.
EVOLVE 50M features class exclusive QuickSmart Link technology. Quicksmart Link allows
users to easily create a digital audio and control link between two EVOLVE 50M systems using
a common network cable. When connected, both EVOLVE 50M systems auto configure to
allow use of both mixer inputs, and sync stereo output mix and system controls.
The next-generation Electro-Voice QuickSmart Mobile application utilizes Bluetooth® Low
Energy (BTLE) technology for the wireless configuration, control, mixing and monitoring of all
parameters of up to six EVOLVE 50M systems simultaneously, and is fully programmable. The
full-function GUI allows intuitive control of all system functions from your mobile device.
EVOLVE 50M offers simple or sophisticated operation according to your application, making
great sound easy for users of all levels.
EV’s industry-leading QuickSmart DSP interface - Allowing intuitive navigation of system
parameters via an LCD with single-knob control - as well as multiple options for signal routing
and inputs. Setup is simple via four presets (Music, Live, Speech, Club), three-band system

Electro-Voice

User manual

2020-12 | v01 | F.01U.393.750

12 en | Description EVOLVE Portable Column Loudspeaker

EQ (low, mid, high), seven-band graphic EQ (in Mixer mode), five user-programmable presets
(Store and Recall settings), phantom power*, visual monitoring of limiter status, input level
control and meters, and master volume control to optimize gain structure.

*+15V phantom power is always on and available on INPUTS 1-4 XLR connectors only. TRS connector does not have phantom power. A safety circuit is employed

to prevent damage to devices not requiring phantom power (e.g. dynamic microphones, mixer outputs, etc...)

2020-12 | v01 | F.01U.393.750

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Installation | en 13

!

A

A

4 Installation

Caution!

Do not attempt to move this loudspeaker system when it is fully assembled.
You may damage the system or cause personal injury.

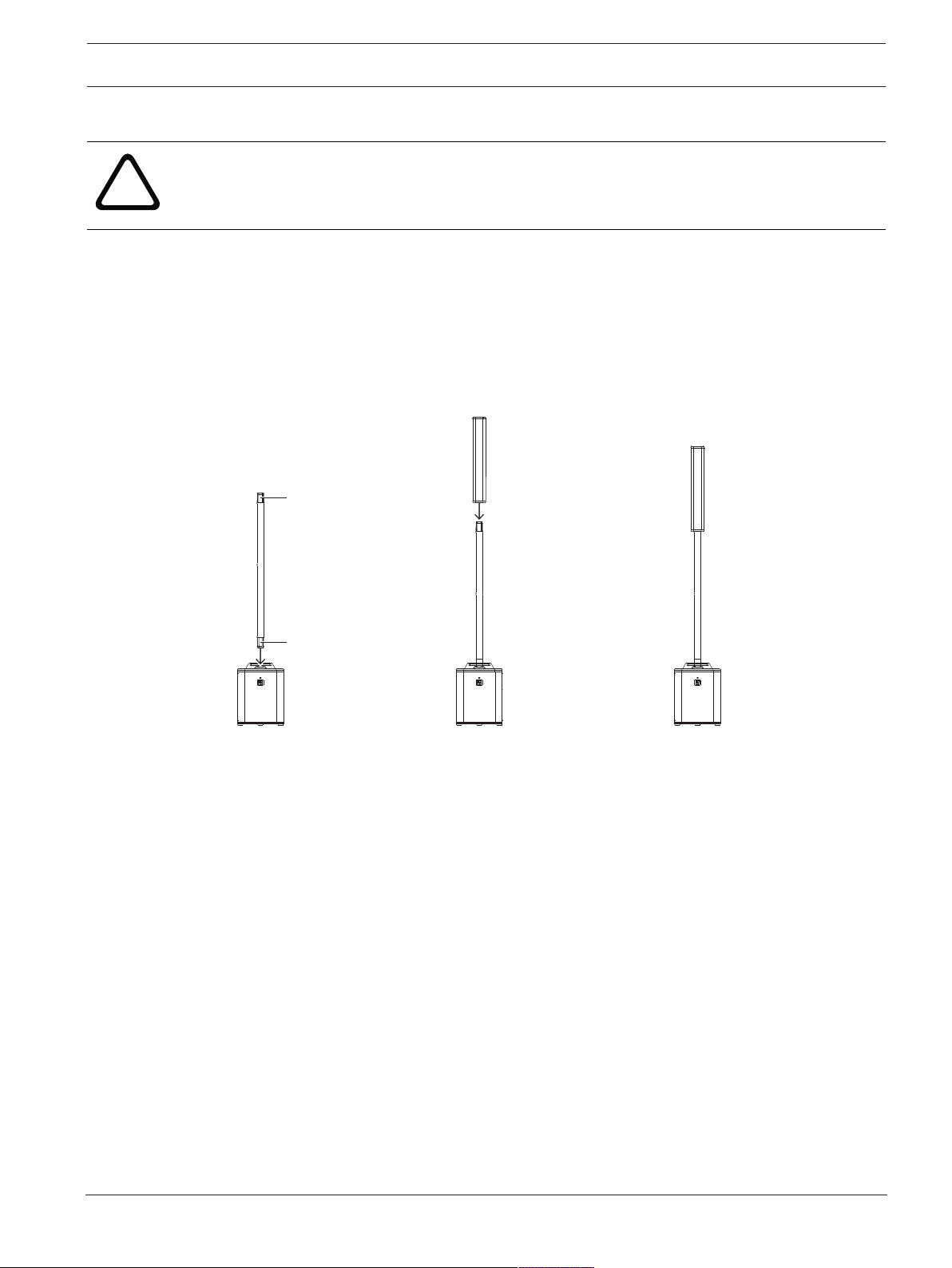

Assembling the loudspeaker system

To assemble the loudspeaker system, do the following:

1. Place the subwoofer on a level and stable surface.

2. Insert the pole into the subwoofer base.
The pole has magnets (A) at each end.

3. Place the column array loudspeaker system on top of the subwoofer pole.

4. The column array loudspeaker system set up is complete.

Electro-Voice

2. 3. 4.

User manual

2020-12 | v01 | F.01U.393.750

14 en | Amplifier DSP EVOLVE Portable Column Loudspeaker

1 2

5

3

976

MIXER

LINE

QuickSmart

Link

8

4

5 Amplifier DSP

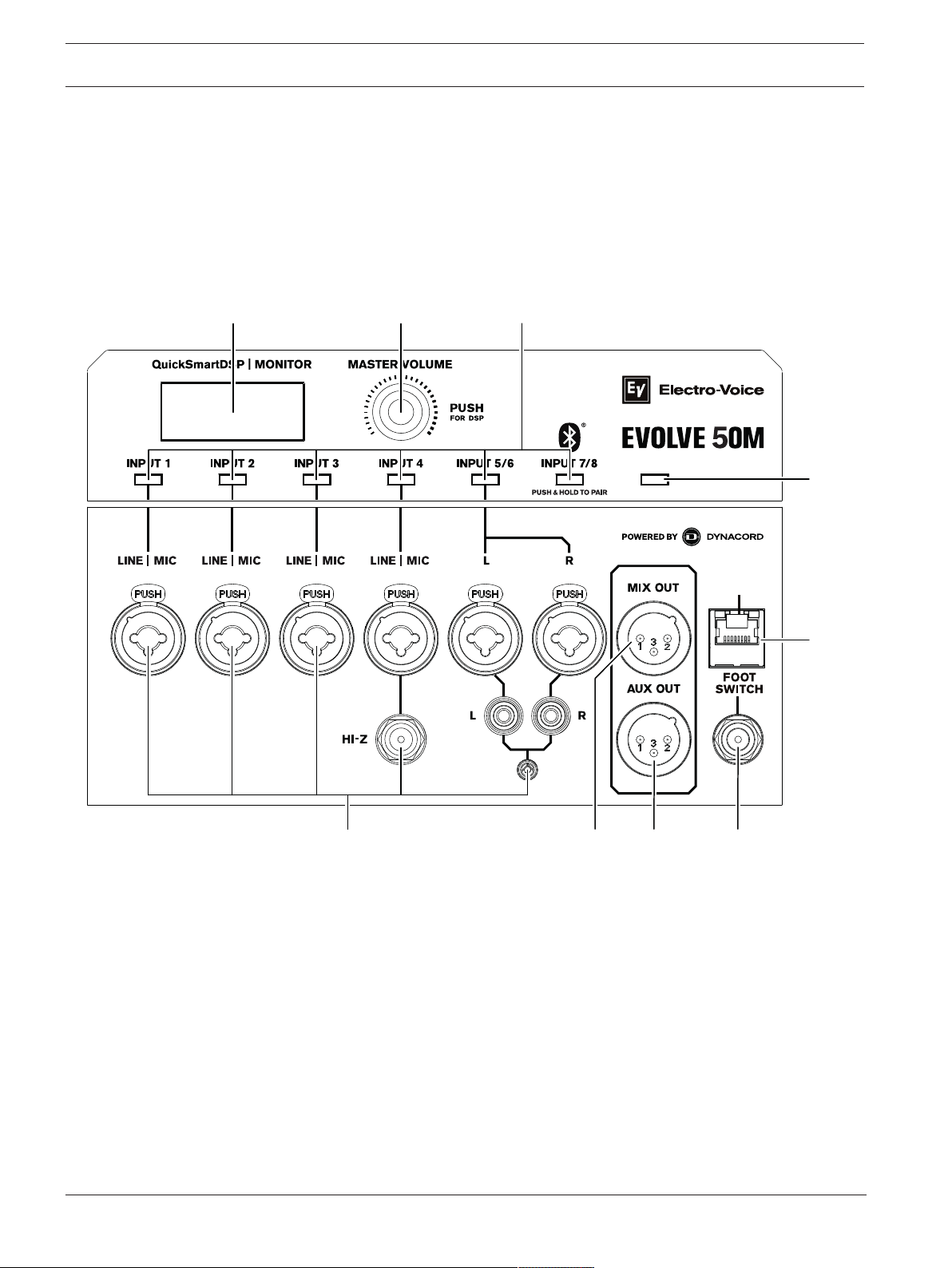

5.1 Amplifier DSP controls

The amplifier has a combination of controls and connectors to ensure the most versatile
loudspeaker system.

Portable column system control and monitoring interface

The portable column system DSP control menu selections are available for the EVOLVE.

1. LCD – DSP control and monitoring interface.

2. MASTER VOL – Adjusts the sound level.
DSP – Scroll through the menu and select the available choices. Push the MASTER VOL
knob to enter the DSP menu.

3. INPUT selection soft keys - Selects channels INPUT 1 through INPUT 7/8 for channel DSP
settings and individual level settings.

4. MIXER selection soft key - accesses mixer controls in DSP (e.g. Level, GEQ, effects and
signal routings).

5. INPUT 1-4, 5/6 & 7/8 - Electronically balanced INPUT 1 thru INPUT 4 for the connection of
a microphone or line level signal source. Establishing a connection is possible via TRS or
XLR-type plugs. Phantom Power (+15 V) is always enabled on INPUTS 1-4 on the XLR
connectors only. INPUT 4 includes a HI-Z input below the TRS/XLR combo plug for
connection to a high impedance instrument output via a TS plug. Stereo INPUT 5/6 for

2020-12 | v01 | F.01U.393.750

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Amplifier DSP | en 15

10 11

i

connection of stereo line level signals. Connection is made using either two XLR-type,
TRS, RCA, or a single 1/8th inch stereo connector. Input 7/8 is reserved for stereo
Bluetooth audio connection.

6. MIX OUT - The post-fader audio signals of INPUT 1 through INPUT 7/8 are mixed and
passed to MIX OUT. The ratio of the input signals changes when the level controls INPUT
1 - 7/8 are adjusted. This feature allows the loudspeaker to act as a basic eight-channel
mixer that can send the mix to another loudspeaker via the MIX OUT socket. The output is
configurable in the menu to provide either the Mixer Mono, Stereo left or Stereo right
signal. If QuickSmart Link is used, MIX OUT provides the same signal as the column
system.

7. AUX OUT - The AUX OUT is configurable to provide either a separate post fader audio mix
of INPUT1 - 7/8 (controlled by individual channel AUX levels adjustable in DSP) or the
main mix output signal. In the case of main mix, the full mix including effects is provided
whereas the separate aux mix comes without effects.

8. QuickSmart Link - RJ45 connector for Cat5 cable to link two EVOLVE 50M systems
together for digital audio and system control. QuickSmart Link should only be used to
connect two EVOLVE 50M systems. QuickSmart Link is not an Ethernet/LAN port and is
not compatible with network devices.

9. FOOT SWITCH - ON/OFF control of DSP user selectable audio FX.

Electro-Voice

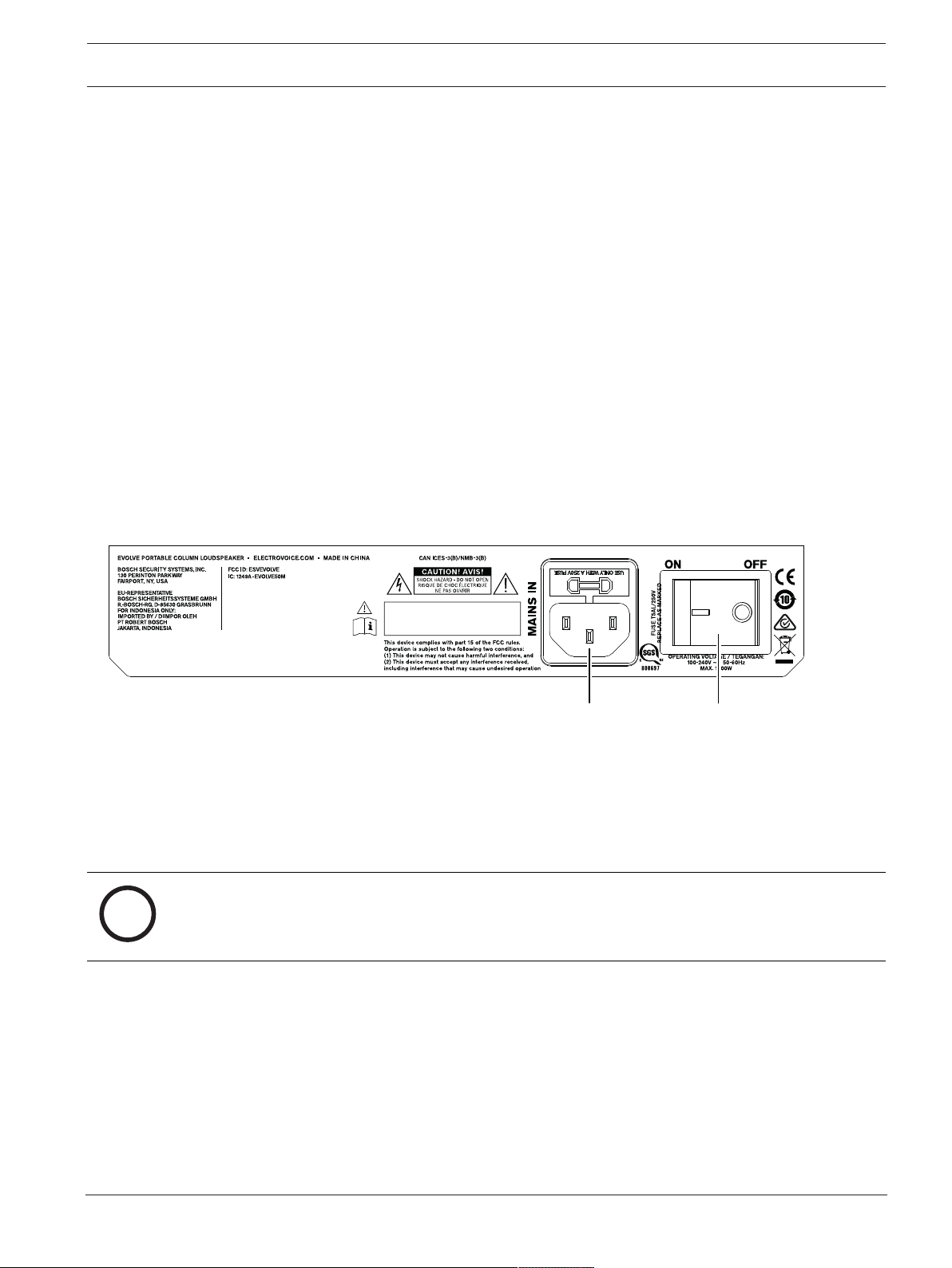

10. MAINS IN – The device receives its power supply via the MAINS IN socket. Only the
provided power cord may be used. Connect the device only to a mains network, which
corresponds to the requirements indicated on the type plate.

11. POWER - AC switch for switching the power ON or OFF. The LCD screen lights up when
the power is turned ON, after approximately 1 second.

Notice!

Markings and statements on amplifier panel may vary.

User manual

2020-12 | v01 | F.01U.393.750

16 en | Amplifier DSP EVOLVE Portable Column Loudspeaker

1 5 6 7

432

8

9

i

5.2 System status

Normal

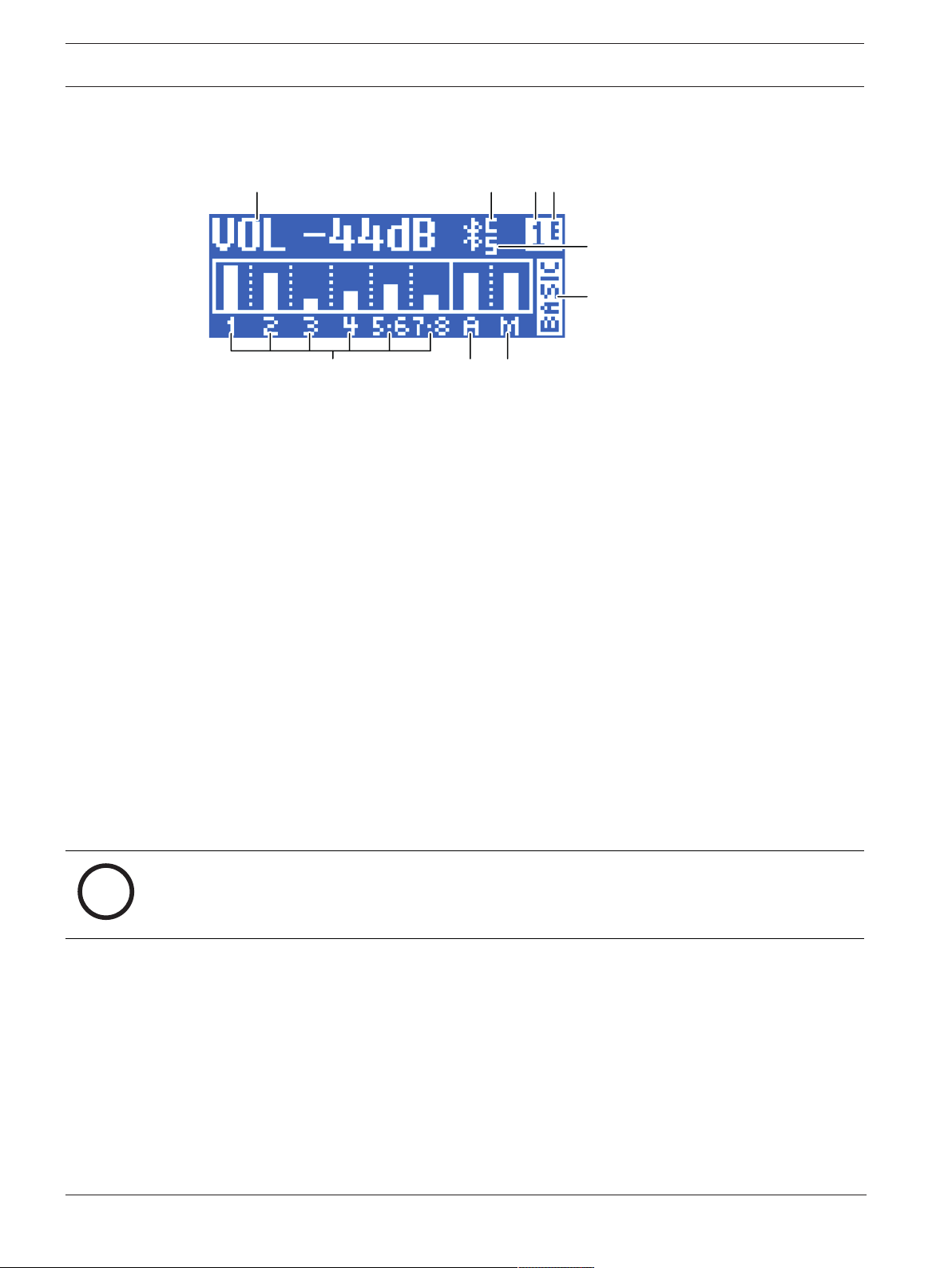

Figure5.1: Normal system status home screen with Bluetooth® status

1. VOLUME (VOL) - Indicates the master gain of the system in dB. The range is from mute to
+10 dB, in 1 dB increments.

2. 1, 2, 3, 4, 5-6, 7-8 - VU meter displays the signal level of INPUT1 through 7/8 into the
amplifier. Input levels are independent of each other.

3. AUX - VU meter displays the signal level of the AUX output. AUX level is independent of
MAIN levels.

4. MAIN - VU meter displays the signal level of the MAIN output. MAIN level is independent
of AUX levels.

5. C - Control app; the available options are:
OFF - DISABLED
FLASHING - PAIRING MODE
SOLID - CONNECTED

6. 1 - Indicates the selected store function number. There are five user defined store
function numbers available.

7. E - Indicates the preset is not saved. When the preset is saved the E is not displayed.

8. S - Audio streaming; the available options are:
OFF - DISABLED
FLASHING - PAIRING MODE (120s)
SOLID - CONNECTED

9. FUNCTION indicator - Indicates whether the system is in MIXER or BASIC mode.

Notice!

Bluetooth® is available in select countries.
Contact your nearest Electro-Voice dealer or Electro-Voice distributor for more information.

System protection

System protection limiters indicate when a system is exceeding recommended usage by
indicating CLIP or LIMIT on the LCD display.

CLIP

2020-12 | v01 | F.01U.393.750

CLIP indicates the signal to the loudspeaker is too high, resulting in a clipped signal into the
loudspeaker. If CLIP is shown, reduce the input gain and/or the signal on the mixer or source
equipment.

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Amplifier DSP | en 17

LIMIT
LIMIT protects the loudspeaker from short-term peaks which can cause distortion. When

LIMIT is shown on the screen the limiter is active. Reducing the output volume (MASTER VOL)
is strongly recommended when the limit indication is shown often or continuously.

5.3 DSP control menu

DSP control main menu (Basic mode)

VOLUME 0 dB (Default)

Mute, -80 dB +10 dB (1 dB)

EXIT

FUNCTION Basic

Mixer

MODE MUSIC (Default)

LIVE
SPEECH
CLUB

SYS DELAY OFF (Default) to 100 m (.1 m)

(0 ft to 328.1ft)

SUB DELAY OFF (Default), -10 m to +10 m (.1 m)

(-32.8 ft to 32.8 ft)

SUB LEVEL 0 dB (Default)

Mute, -80 dB to +10 dB (1 dB)

TREBLE 0 dB (Default)

-12 dB to +6 dB (1 dB)

MID 0 dB (Default)

-12 dB to +6 dB (1 dB)

BASS 0 dB (Default)

-12 dB to +6 dB (1 dB)

BLUETOOTH BLUETOOTH ON (Default)

OFF

CONTROL PAIR CONTROL PAIRING

AUDIO PAIR AUDIO PAIRING

LED OFF

ON (Default)
LIMIT

DISPLAY LCD DIM ON (Default)

OFF

Electro-Voice

BRIGHT 5 (Default)

1 to 10

CONTRAST 5 (Default)

1 to 10

User manual

2020-12 | v01 | F.01U.393.750

18 en | Amplifier DSP EVOLVE Portable Column Loudspeaker

STORE EXIT, 1, 2, 3, 4, 5, EXIT

RECALL EXIT, 1, 2, 3, 4, 5, 6, EXIT

RESET RESET ARE YOU SURE?

NO (Default)

YES

INFO PRODUCT NAME

FIRMWARE VERSION

© 2020 Electro-Voice

EXIT

DSP control main menu (Mixer mode)

VOLUME 0 dB (Default)

Mute, -80 dB +10 dB (1 dB)

EXIT

FUNCTION Basic

Mixer

MODE MUSIC (Default)

LIVE
SPEECH
CLUB

SUB DELAY OFF (Default), -10 m to +10 m (.1 m)

(-32.8 ft to 32.8 ft)

SUB LEVEL 0 dB (Default)

Mute, -80 dB to +10 dB (1 dB)

TREBLE 0 dB (Default)

-12 dB to +6 dB (1 dB)

MID 0 dB (Default)

-12 dB to +6 dB (1 dB)

BASS 0 dB (Default)

-12 dB to +6 dB (1 dB)

BLUETOOTH BLUETOOTH ON (Default)

OFF

2020-12 | v01 | F.01U.393.750

CONTROL PAIR CONTROL PAIRING

AUDIO PAIR AUDIO PAIRING

LED OFF

ON (Default)
LIMIT

DISPLAY LCD DIM ON (Default)

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Amplifier DSP | en 19

OFF

BRIGHT 5 (Default)

1 to 10

CONTRAST 5 (Default)

1 to 10

STORE EXIT, 1, 2, 3, 4, 5, EXIT

RECALL EXIT, 1, 2, 3, 4, 5, 6, EXIT

RESET RESET ARE YOU SURE?

NO (Default)

YES

INFO PRODUCT NAME

FIRMWARE VERSION

© 2020 Electro-Voice

EXIT

Electro-Voice

User manual

2020-12 | v01 | F.01U.393.750

20 en | Amplifier DSP EVOLVE Portable Column Loudspeaker

DSP control menu for Input 1-4 (Mixer mode)

LEVEL 0 dB (Default)

Mute, -80 to +10 dB (1 dB)

EXIT

INPUT PRESET FLAT

LOW CUT 80
LOW CUT 120
VOCAL MIC
VOICE FILTER
SPEECH
ACOUST GUIT
ELECTR GUIT
BASS GUITAR
PERCUSSION
LINE INPUT
More input presets available with
firmware updates.

COMP OFF, 1 to 100

TREBLE 0 dB (Default)

MID 0 dB (Default)

BASS 0 dB (Default)

FX1 OFF (Default)

FX2 OFF (Default)

AUX* OFF (Default)

PAN* C (Default)

EXIT

DSP control menu for Input 5/6 (Mixer mode)

-12 dB to +12 dB (1 dB)

-12 dB to +12 dB (1 dB)

-12 dB to +12 dB (1 dB)

-80dB TO +10dB (1dB)

-80dB TO +10dB (1dB)

-80dB TO +10dB (1dB)

10L to 10R

2020-12 | v01 | F.01U.393.750

LEVEL 0 dB (Default)

-80 dB to +10 dB (1 dB)

EXIT

MONO OFF/ON

TREBLE 0 dB (Default)

-12 dB to +12 dB (1 dB)

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Amplifier DSP | en 21

MID 0 dB (Default)

-12 dB to +12 dB (1 dB)

BASS 0 dB (Default)

-12 dB to +12 dB (1 dB)

FX1 OFF (Default)

-80dB TO +10dB (1dB)

FX2 OFF (Default)

-80dB TO +10dB (1dB)

AUX* OFF (Default)

-80dB TO +10dB (1dB)

BAL* C (Default)

10L to 10R

EXIT

DSP control menu for Input 7/8 (Mixer mode)

LEVEL 0 dB (Default)

-80 dB to +10 dB (1 dB)

EXIT

TREBLE 0 dB (Default)

-12 dB to +12 dB (1 dB)

MID 0 dB (Default)

-12 dB to +12 dB (1 dB)

BASS 0 dB (Default)

-12 dB to +12 dB (1 dB)

AUX* OFF (Default)

-80dB TO +10dB (1dB)

BAL* C (Default)

10L to 10R

BLUETOOTH BLUETOOTH ON (Default)

OFF

CONTROL PAIR CONTROL PAIRING

AUDIO PAIR AUDIO PAIRING

Electro-Voice

EXIT

* NOTE: PAN and BAL controls only visible when MIXOUT is set to “Stereo L” or “Stereo R”.
AUX controls only visible when AUX OUT is set to AUX MIX.

User manual

2020-12 | v01 | F.01U.393.750

22 en | Amplifier DSP EVOLVE Portable Column Loudspeaker

DSP control menu for Mixer controls (Mixer mode)

LEVEL 0 dB (Default)

-80 dB to +10 dB (1 dB)

EXIT

AUX LEVEL 0 dB (Default)

-80 dB to +10 dB (1 dB)

MAIN GEQ ENABLE On/Off

63Hz 0 dB (Default)

-12 dB to +12 dB (1 dB)

160Hz 0 dB (Default)

-12 dB to +12 dB (1 dB)

400Hz 0 dB (Default)

-12 dB to +12 dB (1 dB)

1KHz 0 dB (Default)

-12 dB to +12 dB (1 dB)

2.5KHz 0 dB (Default)

-12 dB to +12 dB (1 dB)

6KHz 0 dB (Default)

-12 dB to +12 dB (1 dB)

12KHz 0 dB (Default)

-12 dB to +12 dB (1 dB)

RESET Reset all bands?

Yes/No

BACK

AUX GEQ ENABLE On/Off

63Hz 0 dB (Default)

-12 dB to +12 dB (1 dB)

160Hz 0 dB (Default)

-12 dB to +12 dB (1 dB)

400Hz 0 dB (Default)

-12 dB to +12 dB (1 dB)

1KHz 0 dB (Default)

-12 dB to +12 dB (1 dB)

2020-12 | v01 | F.01U.393.750

2.5KHz 0 dB (Default)

-12 dB to +12 dB (1 dB)

6KHz 0 dB (Default)

-12 dB to +12 dB (1 dB)

12KHz 0 dB (Default)

-12 dB to +12 dB (1 dB)

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Amplifier DSP | en 23

RESET Reset all bands?

Yes/No

BACK

FX1 00: OFF

01: ECHO+REV LONG (default)

02: ECHO+REV SHORT

03: REV ROOM

04: REV CONCERT

05: REV HALL

06: REV CHURCH

07: REV CATHEDRAL

08: REV ROOM S

09: REV CONCERT S

10: REV HALL S

11: REV CHURCH S

12: REV CATHEDRAL S

13: PLATE MEDIUM

14: PLATE LONG

15: PLATE MEDIUM S

16: PLATE LONG S

17: DEL SHORT

18: DEL LONG

19: DEL SHORT S

20: DEL LONG S

21: ECHO+CHORUS

22: REVERSE

FX2 00: OFF

01: CHORUS SLOW (default)

02: CHORUS MEDIUM

Electro-Voice

03: CHORUS FAST

04: CHORUS+ECHO

05: JET FLANGER

06: DOUBLING NARROW

07: DOUBLING MEDIUM

User manual

2020-12 | v01 | F.01U.393.750

24 en | Amplifier DSP EVOLVE Portable Column Loudspeaker

08: DOUBLING WIDE

FX ENABLE ON

OFF

AUX OUT Aux Mix

Main Mix

SPK OUT L+R

L
R

MIX OUT L+R

L
R

EXIT

EXIT Menu
The Exit menu is used to return to the home screen.

FUNCTION Menu

The FUNCTION menu is used to configure between Basic and Mixer functions.
– BASIC - provides input and output gain controls, 3-band EQ, and system delay for

simplified audio setups or used as satellite or R-channel stereo setup.

– MIXER - provides full access and control of 8-channel digital mixer with AUX outs, FX, and

7-band GEQ.

MODE Menu

The Mode menu is used to configure the type of sound the EVOLVE column speaker system
delivers.
– MUSIC – is used for recorded music playback and electronic dance music applications.

(Default)

– LIVE – is used for live sound applications.
– SPEECH – is used for spoken word applications.
– CLUB – is used for recorded electronic music playback.

MAIN LEVEL Menu (Mixer mode)

The MAIN LEVEL menu is used to control the overall mixer output level that is fed to the
EVOLVE column speaker system and the MIX OUT connector.

AUX LEVEL Menu (Mixer mode)

The AUX LEVEL menu is used to control the overall level of the signal present at the AUX OUT
connector.

SYS DELAY Menu (Basic mode)

The SYS Delay menu is used to delay the output signal, e.g. to compensate for differences in
distance among individual loudspeakers. The delay can be set in meters or feet. Available
options for this selection are OFF or a delay up to 100.0 m (328 ft). The delay can be changed
in 0.1-meter increments or 0.1-foot increments.
The default is OFF.

2020-12 | v01 | F.01U.393.750

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Amplifier DSP | en 25

i

SUB DELAY Menu

The SUB DELAY menu is used to acoustically align subwoofer and column speaker if used with
an Electro-Voice authorized mounting bracket. The delay can be set in meters. The range is
from -10 m to +10 m, default setting is OFF. Positive values are used if the subwoofer is
located closer to the audience (in front of the column), negative values are used if the
subwoofer is further away from the audience (behind the column).

Notice!

Do not change this value if subwoofer and column are connected with the connector pole.
This may cause unwanted acoustic changes to the system sound.

SUB LEVEL Menu

The Sub Level menu allows independent gain control of the subwoofer output. Changes to
this parameter effectively change the crossover of the EVOLVE system. The default setting of 0
dB is recommended for best audio performance.
The range is MUTE, -80 dB to +10 dB.
The default is 0 dB.

TREBLE Menu

The Treble menu is used to adjust the high frequency performance of the loudspeaker for
different applications or personal preference.
The range is -12 dB to +6 dB for Main system EQ. The range is -12 db to +12 db for INPUTS
1-7/8 in mixer mode.
The default is 0 dB.

MID Menu

The MID menu is used to set the gain of the MID peak filter.
The range is -12 dB to +6 dB for Main system EQ. The range is -12 dB to +12 dB for INPUTS
1-7/8 in mixer mode.
The default is 0 dB.

BASS Menu

The Bass menu item is used to configure the low frequencies of sound.
The range is -12 dB to +6 dB for Main system EQ. The range is -12 dB to +12 dB for INPUTS
1-7/8 in mixer mode.
The default is 0 dB.

MAIN GEQ Menu (Mixer mode)

The MAIN EQ menu is used to adjust the frequency response of the loudspeaker for different
applications or personal preference. There are 7 different EQ filters available centered at the
following frequencies: 63, 160, 400, 1.0K, 2.5K, 6.0K & 12K Hz. The filter is also independent
of the MAIN GEQ setting if AUX OUT is set to MAIN MIX.
The range of each filter is -12 dB to +12 dB.
The default value for each filter is 0 dB.

AUX GEQ Menu (Mixer mode)

The AUX GEQ menu is used to adjust the frequency response of the AUX OUT for different
applications or personal preference. There are 7 different EQ filters available centered at the
following frequencies: 63, 160, 400, 1.0K, 2.5K, 6.0K & 12K Hz.
The range of each filter is -12 dB to +12 dB.
The default value for each filter is 0 dB.

Electro-Voice

User manual

2020-12 | v01 | F.01U.393.750

26 en | Amplifier DSP EVOLVE Portable Column Loudspeaker

i

FX1 & FX2 Menu (Mixer mode)

The FX1 & FX2 menu is used to select the reverb, delay, chorus, or flanger preset for each FX
unit.

AUX OUT Menu (Mixer mode)

The AUX OUT menu is used to select the signal present at the AUX OUT connector:
– AUX MIX (default) - provides the signal mix controlled by the individual channel AUX

sends

– MAIN MIX - provides the same signal that is present at the loudspeaker

MIX OUT Menu (Mixer mode)

The MIX OUT menu is used to select which signals should be output at MIX OUT and which
signal should be delivered by the loudspeaker.
– L+R: INPUTS 1-4 and the left and right signals of INPUT 5/6 & 7/8 are summed. The sum is

output at MIX OUT and is delivered by the loudspeaker. (Default)

– R: Only the right signal of INPUT 5/6 & 7/8 and the percentage of INPUTS 1-4 panned

right is output at MIX OUT. The loudspeaker will deliver only the left signal.

– L: Only the left signal of INPUT 5/6 & 7/8 and the percentage of INPUTS 1-4 panned left is

output at MIX OUT. The loudspeaker will deliver only the right signal.

BLUETOOTH Menu

Turning Bluetooth® ON or OFF

To turn Bluetooth® ON or OFF, do the following:

1. Select ON.
OR
Select OFF.

The Bluetooth menu options are ON/OFF, CONTROL PAIR, and AUDIO PAIR.

CONTROL PAIR Menu

The CONTROL PAIR menu is used to enable the QuickSmart Mobile wireless control and
monitoring application. Available options for this selection are: ON or OFF.
The default is OFF.

Notice!

Bluetooth® is available in select countries.
Contact your nearest Electro-Voice dealer or Electro-Voice distributor for more information.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
and any use of such marks by Bosch Security Systems, Inc. is under license. Other trademarks
and trade names are those of their respective owners.

AUDIO PAIR Menu

The AUDIO PAIR menu is used to stream audio from your Bluetooth® enabled device to the
loudspeaker system. Available options for this selection are: PAIRING, ON or OFF.
The default is OFF.

2020-12 | v01 | F.01U.393.750

Pairing the portable column system with your Bluetooth® enabled device

To pair the portable column system with your Bluetooth® enabled device, do the following:

1. From the DSP menu, scroll to AUDIO PAIR.

2. Select AUDIO PAIR.
AUDIO PAIR mode enables 120 seconds of visibility to Bluetooth® enabled devices.

3. On your mobile device, select EV EVOLVE to initiate the pairing process.
Once the device is paired, all device audio will be output through the EVOLVE system.

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Amplifier DSP | en 27

i

i

Notice!

If connected with a mobile device, notification alerts and ring tones will also be played
through the system.
Disable these notifications or enable Airplane mode on your mobile device to prevent
unwanted interruptions during audio playback.

LED Menu

The LED menu shows power on and indicates limit. Available options for this selection are:
ON, OFF, or LIMIT.
– ON - turns the LED on when the power to the loudspeaker is ON. (Default)
– OFF - turns the LED off.
– LIMIT - turns the LED off under normal operation. The LED brief blinking indicates the

limiter is activating. Short-term blinking is not critical because the integrated limiter
keeps distortion under control. Constant lighting of the LED indicates the sound is
negatively affected. If the LED is constantly lit, check the rear LCD for more information.
Reducing the output volume is strongly recommended.

DISPLAY Menu
The Display menu options are BACK, LCD DIM, BRIGHT, and CONTRAST.

LCD DIM Menu

The LCD Dim menu is used to dim the display when the display is idle for 30 seconds.
Available options for this selection are: ON or OFF.
The default is ON.

BRIGHT Menu

The Bright menu is used to determine the brightness of the LCD.
The range is 1 to 10.
The default is five (5).

CONTRAST Menu

The Contrast menu is used to increase or decrease the visibility of the LCD screen.
The range is 1 to 10.
The default is five.

STORE Menu

The Store menu allows you create up to five customized user settings. Available options for
this selection are: EXIT, 1, 2, 3, 4, and 5.

Notice!

The customized user setting name can contain a combination of alphanumeric characters
including spaces. The alphanumeric character range is A to Z and 0-9.
The name field length is 11 characters.

Storing customized user settings

To store customized user settings, do the following:

1. From the DSP menu, scroll to STORE.

2. Push the MASTER VOL knob to select STORE.
The store screen appears.

3. Push the MASTER VOL knob to select 1.
The Enter name for 1 screen appears.

4. Use the MASTER VOL knob to scroll through the characters.
The characters appear.

5. Push the MASTER VOL knob to select the desired character.

Electro-Voice

User manual

2020-12 | v01 | F.01U.393.750

28 en | Amplifier DSP EVOLVE Portable Column Loudspeaker

i

6. Turn the MASTER VOL knob to move to the next character entry.
Continue selecting characters until the desired name is entered.

7. Use the MASTER VOL knob to scroll to SAVE.

8. Push the MASTER VOL knob to select SAVE.

9. Repeat steps 3 through 8 to store additional customized user settings.

10. Select EXIT to return to the home screen.

RECALL Menu

The Recall menu allows you retrieve up to five customized user settings.
Available options for this selection are: EXIT, 1, 2, 3, 4, and 5.
In addition, setting 6 is available to recall a default setting. This setting cannot be used to
store user settings.

Recalling customized user settings

To recall customized user settings, do the following:

1. From the DSP menu, scroll to RECALL.

2. Push the MASTER VOL knob to select RECALL.
The recall screen appears.

3. Push the MASTER VOL knob to select 1.
The selected item is loaded.

4. Select EXIT to return to the home screen.

RESET Menu

The Reset menu is used to reset the loudspeaker to original factory settings.
Available options for this selection are: NO or YES.
The default is NO.

Resetting the system

To reset the system to original factory settings, do the following:

1. From the DSP menu, select RESET.
The "DEFAULT SETTINGS?" validation message appears.

2. Select YES.
The system is reset to the original factory settings.
The “Erase User Presets” validation message appears.

3. Select YES or NO.

4. If YES, the user presets are deleted and return to <EMPTY>.

Notice!

The reset menu item is used to revert the loudspeaker to the original factory default settings.
All user settings will be deleted. The user customized settings in the STORE and RECALL
menus return to <EMPTY> if YES was selected in during the reset process.

INFO Menu

The Information menu is used to display the product name and firmware version.

2020-12 | v01 | F.01U.393.750

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Mixer operation | en 29

i

6 Mixer operation

6.1 Inputs 1-4, 5/6 & 7/8

INPUT LEVEL control

Control for adjusting a LINE/MIC or line input’s sensitivity. These controls let you adjust the
incoming signals to the mixer’s internal operation level. The following gain setting instruction
is to be used as a guide to help achieve a good signal input level:
Set the MASTER volume controls to -80 dB.
Set the INPUT LEVEL control to -80 dB.
Connect the sound source (microphone, instrument, etc.) to the desired LINE/MIC input.
Start the sound source at the highest volume level to be expected - respectively sing or speak
as loudly as possible directly (close up) into the microphone.
While playing the sound source or singing into the microphone, adjust the input level using the
INPUT GAIN control, so that during the loudest part, the CLIP does not show. Then increase
the MASTER VOL until the desired output from the column is achieved. This is the basic
channel setting.
If further adjustments to the channel’s EQ setting are necessary, perform these steps again, as
changes in the sound shaping section also have an influence on the channel’s overall level.

TREBLE/MID/BASS controls

The input channel’s EQ section allows for a broad difference in the shaping of the incoming
audio signal within three frequency bands. Before you begin to alter the sound, all EQ controls
should be set to 0. Try not to set the EQ controls to extreme positions. Usually, minor changes
are sufficient to produce the best results in the overall sound. Use the natural reproduction as
a starting point and rely on your musically trained ear. The moderate use of the MID control is
the best remedy to avoid acoustical feedback. Try to avoid using this frequency range to an
extreme level. Lowering the level in this band will provide you with higher output and help
reduce feedback. Adjust the BASS control to add more “punch” to the sound of a kick drum or
“body” to the vocals. Use the TREBLE control in the same way to provide cymbals and vocals
with more treble for a more transparent sound.

Electro-Voice

FX1 & FX2 control

The FX1 & FX2 control is used to set the amount of effect you require on that channel. Using
the FX controls lets you easily assign an effect for groups of musical instruments or vocals. To
determine the desired level of the effect, start with the controls set at their minimum and
individually increase the level gradually until the desired sound is achieved.
The FX Enable switch turns the internal FX units on or off. Please keep in mind that you can
also use an external footswitch for turning the FX1 & FX2 on or off. If you want to use a
footswitch, the EVOLVE 50M is preconfigured to control FX on/off with a footswitch, requiring
no additional configuration.

Phantom Power

+15V DC Phantom power is available on the XLR connectors of INPUTS 1-4 only. There is no
phantom power on the TRS connectors. Phantom power is always on, and not switchblade.

Notice!

A protection circuit is provided to prevent damage to devices which do not require phantom
power such as dynamic microphones and mixer outputs. Best practice dictates to connect
line level sources to INPUTS 5/6 when possible.

User manual

2020-12 | v01 | F.01U.393.750

30 en | Mixer operation EVOLVE Portable Column Loudspeaker

AUX control

The AUX control is primarily meant for establishing an independent mix, e.g. for monitor or a
second room/zone. The individual channel AUX controls will determine the amount of each
channel's post fader signal present at the AUX output if AUX OUT is set to AUX MIX.

COMP control

During operation, the input signal processing can be adjusted by using the COMP control to
control the on board compressor. Compressors are available on INPUTS 1-4. Adjust the
COMPRESSOR threshold and compression ration simultaneously using the COMP adjustment.
As the COMP control is adjusted from 0 to 100, the gain below the threshold will increase
from 0 to 10 dB and the compression ratio will increase from 1:1 to 8:1. The compressor will
reduce the dynamic range of the audio signal proportional to the compressor setting. Once
the signal exceeds a certain threshold, the signal gets compressed, i.e. major input level
changes result in minor output level changes. Narrowing the dynamic range often allows for
easier recording or mixing the audio signal. It is recommended to start with low to moderate
levels of compression (25-40) and increase slowly if necessary.

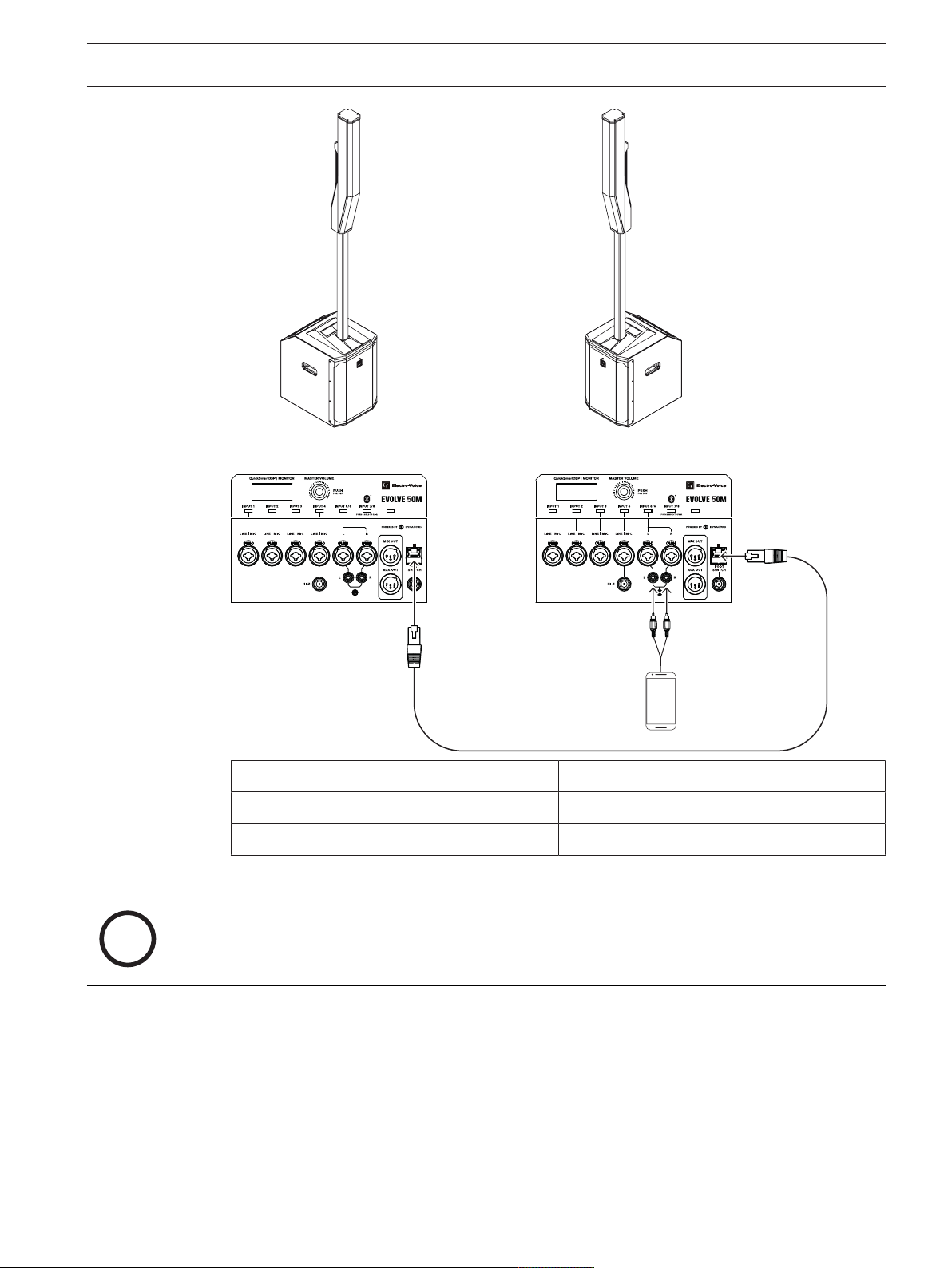

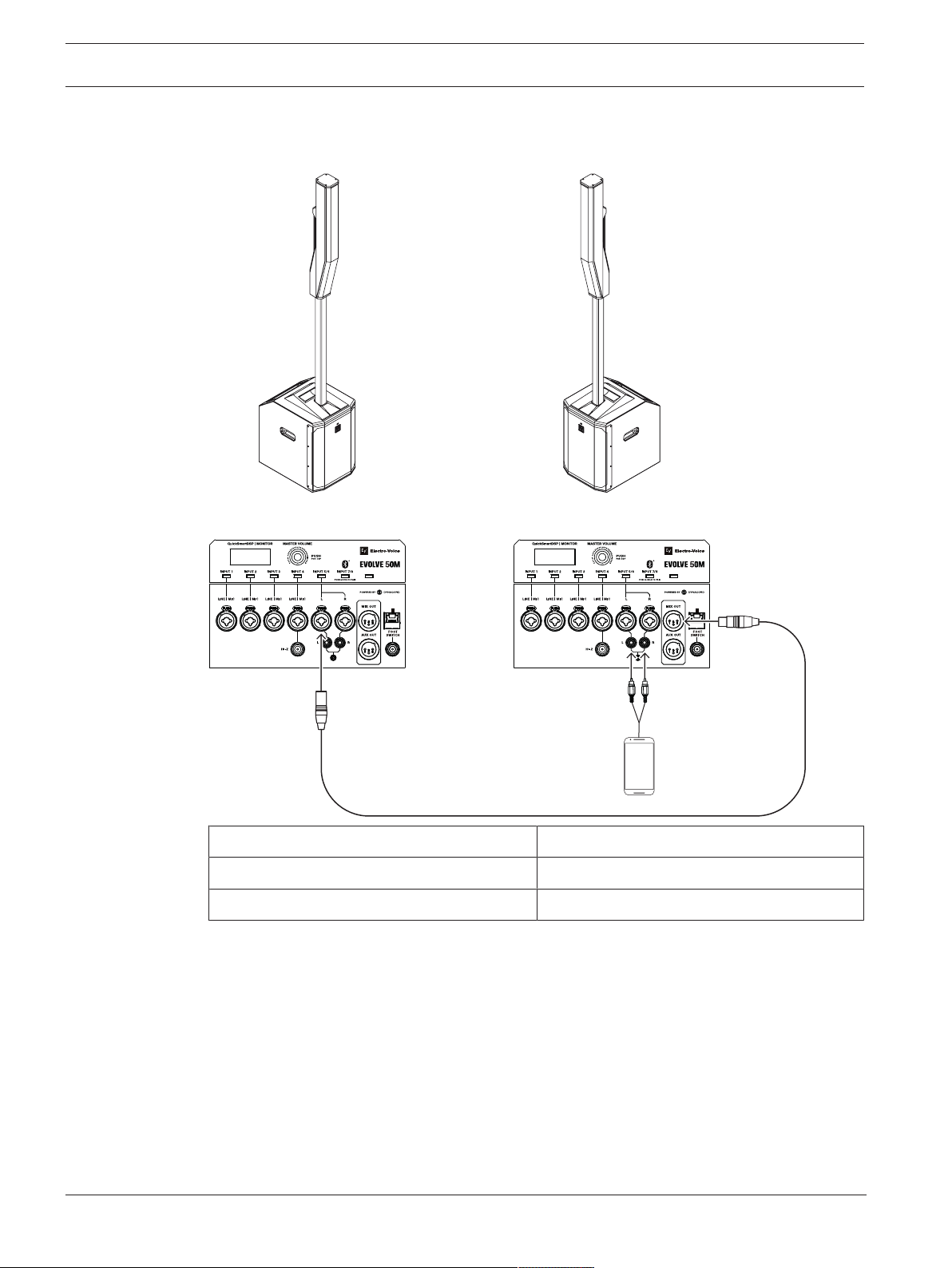

6.2 QuickSmart Link configuration

With QuickSmart Link you can combine all input signals from 2 EVOLVE50M loudspeakers into
one mixer. The mixer output signal can be Mono or Stereo, the signal routing is set during the
configuration process.

1. Make sure both EVOLVE 50M systems are turned on.

2. Connect the network cable to the QuickSmart link port on each EVOLVE 50M system.

3. Configuration is completed through the QuickSmart DSP control menu displayed on the
LCD of either EVOLVE 50M system. Choose one EVOLVE 50M system to complete the
configuration.

4. The LCD will display that the QuickSmart link is detected.

5. You will need to determine how to synchronize parameters between both EVOLVE 50M
systems. The LCD will display "parameter Sync Send or Receive".

6. If you wish to copy and send parameters from the EVOLVE 50M system you are
controlling, select "send".

7. If you wish to read and copy the parameters from the second EVOLVE 50M system, select
"receive".

8. The LCD will display a message asking if the EVOLVE 50M system you are controlling
should be configured for Stereo L, Stereo R or Mono signals.

9. Select the appropriate signal. The second EVOLVE 50M system will automatically be
configured based on your selection.

10. The LCD will then display that the QuickSmart Link is ready.

With QuickSmart Link, several parameters of the connected EVOLVE 50M systems are linked.
(i.e. changing a parameter on one EVOLVE 50M system will trigger an equivalent change on
the 2nd EVOLVE 50M system) This ensures the system parameters are consistent and results
the best acoustic performance.
Linked parameters are:
– System volume
– Function
– Mode
– System and Subwoofer Delay
– Speaker EQ (Bass, Mid, Treble)
– SPK OUT, MIX OUT and AUX OUT routings
– Main GEQ

2020-12 | v01 | F.01U.393.750

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Mixer operation | en 31

– FX enable (also via Foot Switch)
– Preset load and store

Electro-Voice

User manual

2020-12 | v01 | F.01U.393.750

32 en | Pairing the QuickSmart Mobile application EVOLVE Portable Column Loudspeaker

i

i

7 Pairing the QuickSmart Mobile application

The EV QuickSmart Mobile app is available for download for the iOS 12 and higher tablets and
smart phones from the iTunes App Store or Android 5.0 and higher tablets and smart phones
from the Google Play Store.

Notice!

The EV QuickSmart Mobile app is designed to only find speakers from Electro-Voice with
Bluetooth® enabled.
The EV QuickSmart Mobile app will not display other types of Bluetooth® devices, e.g.
phones, laptops, tablets, or headsets.

Notice!

Bluetooth® is available in select countries.
Contact your nearest Electro-Voice dealer or Electro-Voice distributor for more information.

Prior to pairing the EV QuickSmart Mobile app with loudspeakers by Electro-Voice ensure
Bluetooth® is enabled on the smart phone or tablet, and the loudspeaker.

First time pairing:

To pair the loudspeaker with the EV QuickSmart Mobile app, do the following:

1. Open the EV QuickSmart Mobile app.

2. Allow the app to access your location if requested.

3. Finding nearby speakers is displayed on the screen
The EV QuickSmart Mobile app is looking for available Bluetooth® enabled Electro-Voice
loudspeakers.

4. The available loudspeakers are displayed on the screen.
The app will display up to eight available loudspeakers.

5. Tap the loudspeaker you want to pair with the app.
The selected loudspeaker will have a line under it acknowledging it is selected.
ControlPair needs to be activated.

6. Repeat the previous step until all of the desired loudspeakers are selected.

7. Tap the CONNECT button.

8. The app pairs with the desired loudspeaker.
Allow the app to pair if prompted. Sometimes this window is hidden and you have to
actively open it.
The app can connect to up to six loudspeakers.

Subsequent pairing:

To pair the loudspeaker with the EV QuickSmart Mobile app, do the following:

1. Tap the EV QuickSmart Mobile app icon.

2. Finding nearby speakers is displayed on the screen
The EV QuickSmart Mobile app is looking for available Bluetooth® enabled Electro-Voice
loudspeakers.

3. The available loudspeakers are displayed on the screen.
The app will display up to eight available loudspeakers.

4. Tap the loudspeaker you want to pair with the app.
The selected loudspeaker will have a line under it acknowledging it is selected.

5. Repeat the previous step until all of the desired loudspeakers are selected.

2020-12 | v01 | F.01U.393.750

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Pairing the QuickSmart Mobile application | en 33

6. Tap the CONNECT button.

7. The app pairs with the desired loudspeaker.
The app can connect to up to six loudspeakers.

Electro-Voice

User manual

2020-12 | v01 | F.01U.393.750

34 en | Recommended configurations EVOLVE Portable Column Loudspeaker

MIXER

LINE

QuickSmart

Link

MIXER

LINE

QuickSmart

Link

L

R

8 Recommended configurations

8.1 Stereo pair of Evolve 50M systems

Tab.8.3: DSP settings for the portable column system

2020-12 | v01 | F.01U.393.750

Mode: Music

MASTER SPEAKER (L) MIX OUT: R

SATELLITE SPEAKER (R): INPUT 5 (MONO)

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Recommended configurations | en 35

MIXER

LINE

QuickSmart

Link

MIXER

LINE

QuickSmart

Link

L

R

i

Electro-Voice

Mode: Music

MASTER SPEAKER (L) SPK OUT: L

SATELLITE SPEAKER (R): QuickSmart Link input

Tab.8.4: DSP settings for the portable column system

Notice!

Stereo connection from device to the MASTER SPEAKER can be made with hard wires into
the stereo INPUT 5/6 or via Bluetooth ® into stereo Bluetooth ® INPUT 7/8.

User manual

2020-12 | v01 | F.01U.393.750

36 en | Recommended configurations EVOLVE Portable Column Loudspeaker

MIXER

LINE

QuickSmart

Link

B

A

i

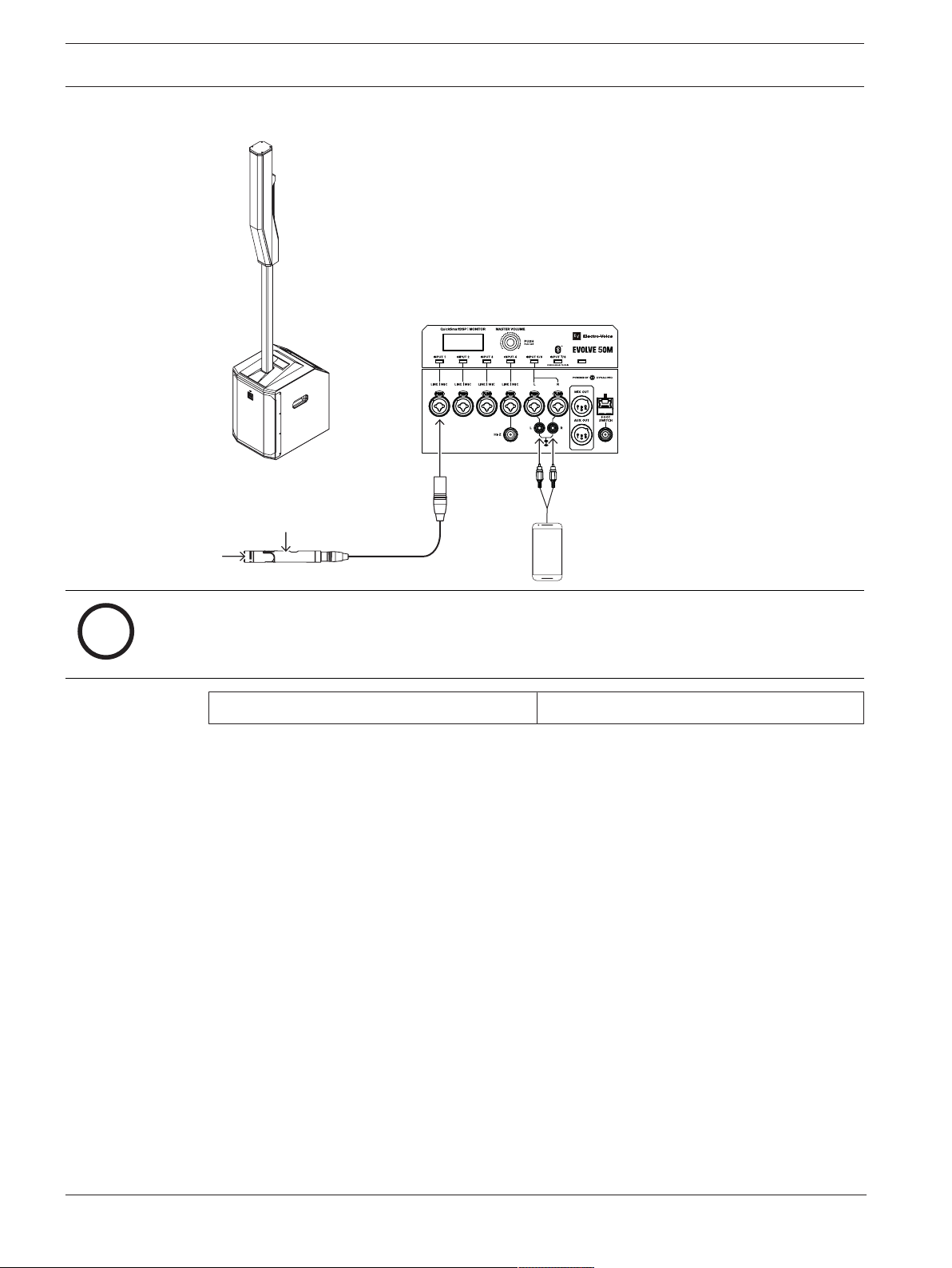

8.2 Solo musician performance

Notice!

The direction of the arrow indicates the signal path.

Mode: Live

Tab.8.5: DSP settings for the portable column system

2020-12 | v01 | F.01U.393.750

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Troubleshooting | en 37

9 Troubleshooting

Problem Possible cause Action

1. No sound Amplifier Verify all the electronics are on, the signal
routing is correct, the source is active; the
volume is turned up, no channels are muted,
etc.
Correct/repair/replace as necessary. If there is
still no sound, the problem may be wiring.

Wiring Verify you have connected the correct cables to

the amplifier. Play something at a low level
through the amplifier. Connect a test
loudspeaker in parallel with the malfunctioning
line. If the sound level is gone or is very weak,
the line has a short in it (possibly a severe
scrape, pinch, or a missed connection). Using
the test loudspeaker, move down the line and
test each connection/junction until you find the
problem and correct it. Observe proper
polarity.

2. Intermittent

output such as
crackling or
distortion

3. Constant noise

such as
buzzing hissing
or humming

4. No sound

produced with
microphone
connected to
INPUTS 1-4

5. Sound is

distorted front
LED is OFF,
LCD screen
LIMIT is ON

Faulty connection Check all connections at amplifier and

loudspeakers to ensure they are all clean and
tight. If the problem persists, check the wiring.
See problem 1.

Defective source or
other electronic
device

If noise is present, but no program material is
playing, evaluate each component as necessary
to isolate the problem. Most likely there is a
break in the signal path.

Poor system
grounding or ground

Check and correct the system grounding, as
required.

loop

Microphone requires
phantom power.

Ensure the microphone is connected to INPUTS
1-4. Phantom power is not available on INPUT
5/6.

Input channel is
muted or LEVEL is too
low.

Select the channel and verify the channel is not
muted. If it is not muted, slowly increase the
channel LEVEL until sound is produced.

Excessive input level Reduce the input level or loudspeaker level to

prevent limit.

Incorrect gain
structure or source
input (mixing console/
preamp) is overdriven

Verify level controls of the source are properly
structured by using the VU meter indicator on
the LCD screen. If the VU meter bar is solid or
the system indicates CLIP or LIMIT, the input or
source level is too high.

Electro-Voice

User manual

2020-12 | v01 | F.01U.393.750

38 en | Troubleshooting EVOLVE Portable Column Loudspeaker

Problem Possible cause Action

6. Microphone
produces
acoustic
feedback when
input level is
amplified

7. QuickSmart
Mobile app
does not
detect the
loudspeaker

8. Sound is
distorted or
interrupted if
using
QuickSmart
Link

Incorrect gain
structure

Reduce the microphone signal by reducing the
INPUT level. Positioning the microphone close
to the sound source increases gain before
feedback.

MODE is set to MUSIC Change the MODE to LIVE or SPEECH.

Microphone position
is too close to the
front of the
loudspeaker

Whenever possible, setup the loudspeakers so
the microphone is behind them. If using a
separate loudspeaker in a monitor position, aim
the loudspeaker to the back of the microphone.

Enable Bluetooth® Ensure Bluetooth® is enabled on the

loudspeaker.

Improper cable or
cable that is too long

Network hardware
(Switches / Routers)
connected

Use shielded CAT5 (or better) cables that are
not longer than as specified in the datasheet.

Only a direct connection between no more than
two EVOLVE50M systems is allowed to work
correctly.

If these suggestions do not solve your problem, contact your nearest Electro-Voice dealer or
Electro-Voice distributor.

2020-12 | v01 | F.01U.393.750

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Technical data | en 39

10 Technical data

Frequency response (-3 dB)1: 43 Hz to 20 KHz

Frequency range (-10 dB)1: 37 Hz to 20 KHz

Maximum SPL2: 127 dB

Coverage (H x V): 120° x 40°

Amplifier rating: 1000 W

LF channel rating: 500 W

HF channel rating: 500 W

Crossover frequency: 200 Hz

Connectors: 4x XLR/TRS Combo Jack Line / Mic Input

1x 1/4" TRS HI-Z input
2x XLR/TRS Combo Jack for Stereo Line Input
1x Stereo RCA Input
1x 3.5 mm Stereo Input
1x Wireless Stereo Bluetooth® Audio Input
1x 1/4" Foot Switch Input
1x XLR MIX OUT Output
1x XLR AUX OUT Output
1x RJ45 QuickSmart-Link connector

Enclosure: Sub: 15 mm plywood

Column: Composite
Pole: Aluminum

Grille: Steel with black or white powder coat

Color: Black or white

Dimensions (HxWxD):

mm (in)

Subwoofer: 530 x 345 x 471 (20.9 x 13.6 x 18.5)
Column: 825 x 102 x 172 (32.5 x 4.0 x 6.9)
Sub pole: 929 x 48.5 x 55 (36.6 x 1.9 x 2.2)

Assembled dimensions (HxWxD):

2045 x 345 x 471 (80.5 x 13.6 x 18.5)

mm (in)

Net weight: Subwoofer: 20.3 kg (44.66 lb)

Column: 4.7 kg (10.34 lb)
Pole: 1.25 kg (2.75 lb)
Subwoofer cover: 0.4 kg (0.9 lb)
Bag for column and pole: 0.85 kg (1.87 lb)

Shipping weight (sub box): 23 kg (50.71 lb)

Shipping weight (column box): 8.3 kg (18.30 lb)

Frequency Band: 2402 MHz to 2480 MHz

Electro-Voice

Transmitter Power: EIRP:4.8 dBm

Power consumption3: 100-240 V AC, 50-60 Hz, 1.5-0.6 A

1

Half-space measurement using live DSP preset.

User manual

2020-12 | v01 | F.01U.393.750

40 en | Technical data EVOLVE Portable Column Loudspeaker

2045 mm

[80.5 in]

825 mm

[32.5 in]

121.2 mm

[4.8 in]

108.4 mm
[4.3 in]

172.0 mm
[6.8 in]

157.2 mm
[6.2 in]

121.2 mm
[4.8 in]

102.4 mm
[4.0 in]

102 mm

[4.0 in]

55 mm

[2.2 in]

29.7 mm
[1.2 in]

38.5 mm
[1.5 in]

48.5 mm
[1.9 in]

27.9 mm
[1.5 in]

789 mm

[31.1 in]

68 mm

[2.7 in]

930 mm

[36.6 in]

530 mm

[20.9 in]

470 mm

[18.5 in]

492 mm

[19.4 in]

7 mm

[0.3 in]

471 mm

[18.54 in]

2

Maximum SPL is measured at 1 m using broadband pink noise at maximum output.

3

Current rating is 1/8 power.

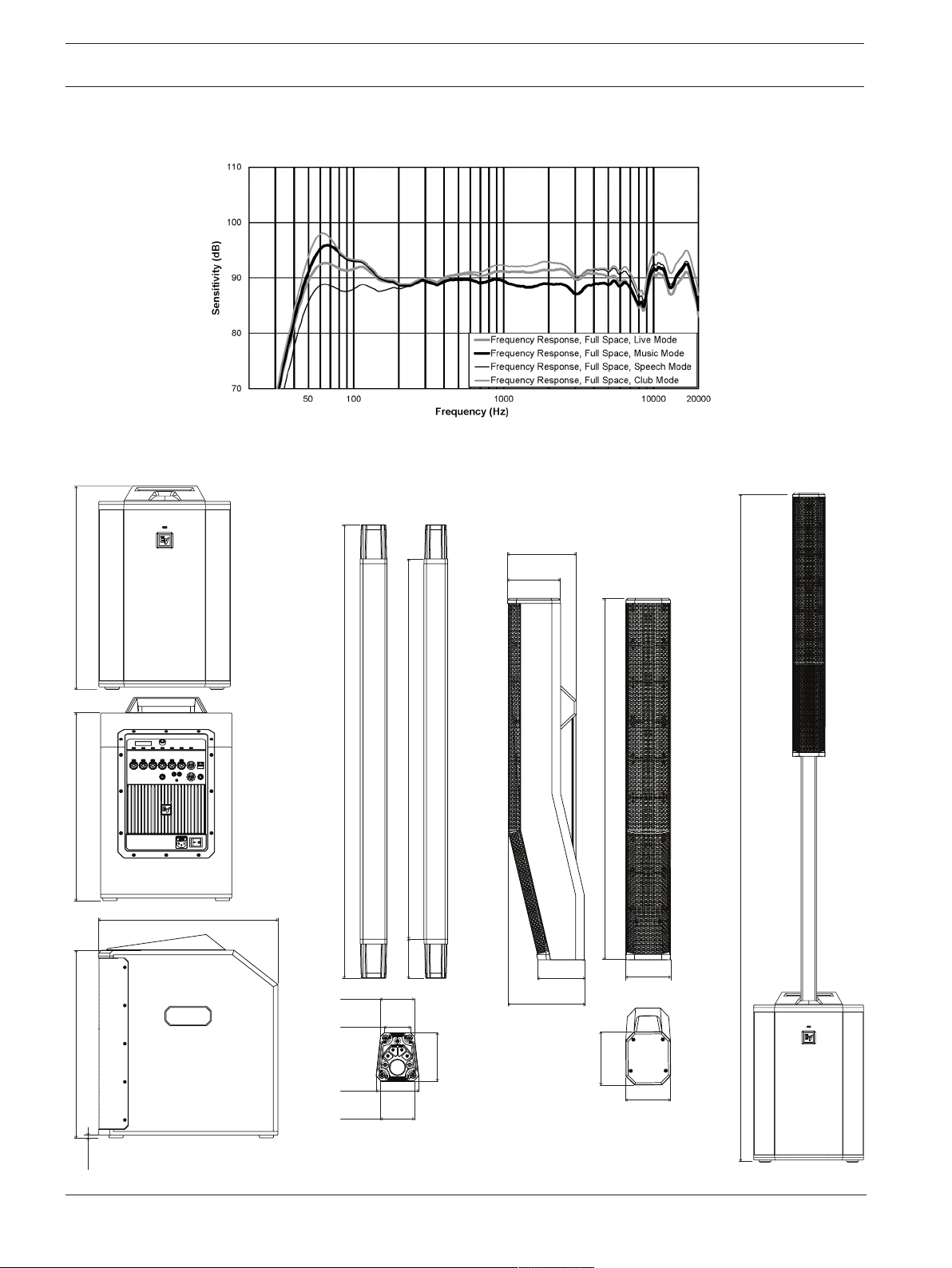

Figure10.1: Frequency response EVOLVE 50M (Live Mode, Music Mode, Speech Mode, and Club Mode)

10.1 Dimensions

Figure10.2: Dimensions EVOLVE50M System

2020-12 | v01 | F.01U.393.750

User manual

Electro-Voice

EVOLVE Portable Column Loudspeaker Technical data | en 41

54.5 mm

2.1 in

48 mm

1.9 in

159 mm

6.3 in

319 mm

12.6 in

80 mm

3.1 in

i

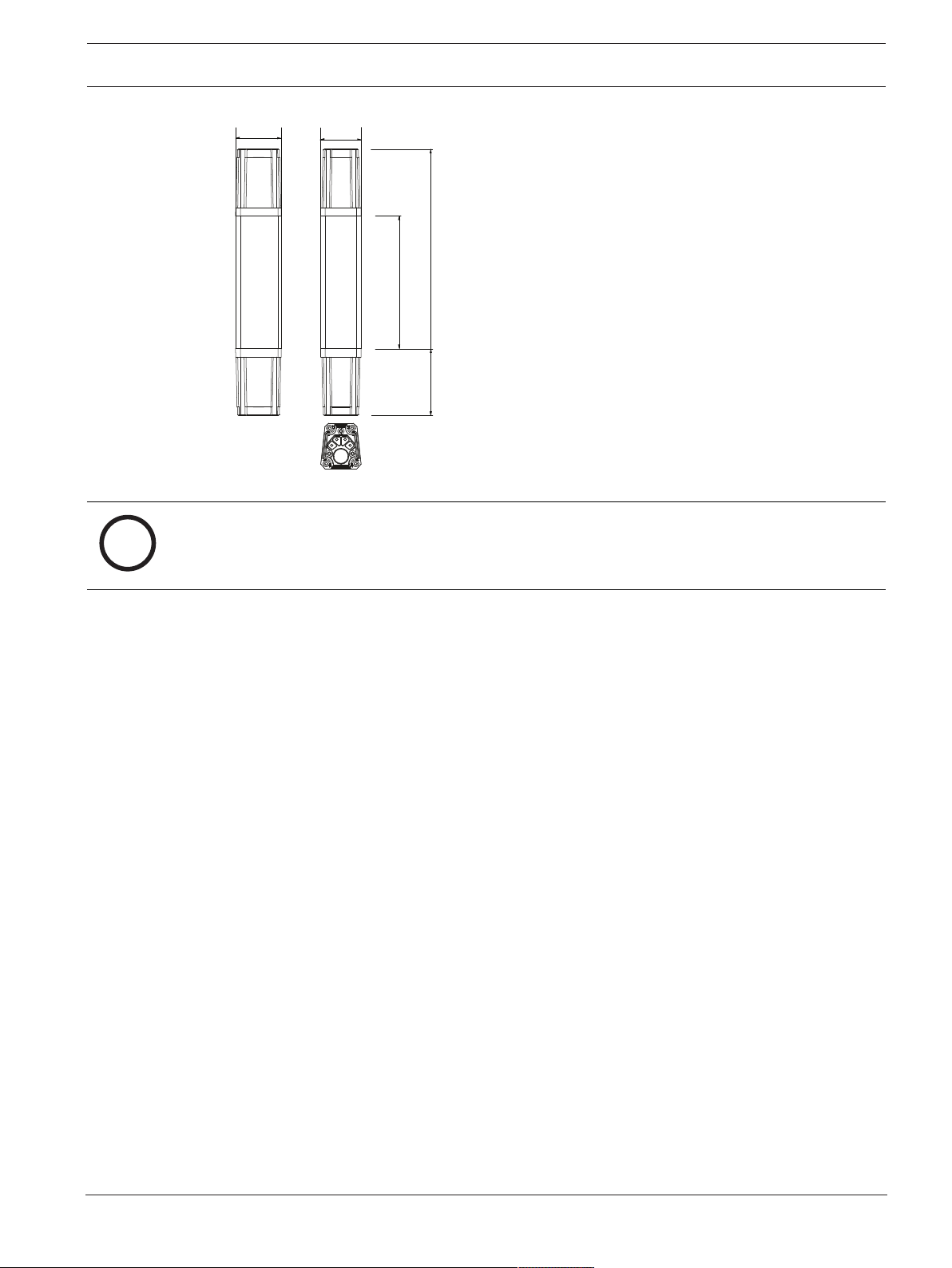

Figure10.3: Dimensions EVOLVE short pole

Notice!

The EVOLVE short pole can be used with EVOLVE 30M, EVOLVE 50 and EVOLVE 50M.

Electro-Voice

User manual

2020-12 | v01 | F.01U.393.750

42 | Technical data EVOLVE Portable Column Loudspeaker

2020-12 | v01 | F.01U.393.750

User manual

Electro-Voice

Bosch Sicherheitssysteme GmbH

Robert-Bosch-Ring 5
85630 Grasbrunn
Germany

www.boschsecurity.com

© Bosch Sicherheitssysteme GmbH, 2020

202012011723

Bosch Security Systems, LLC

12000 Portland Avenue South
Burnsville MN 55337
USA

www.electrovoice.com

© Bosch Security Systems, LLC, 2020
