Electro-Voice EVID-PC6.2, EVID-PC8.2 Installation Note
EVID High Performance Ceiling Speakers
EVID-PC6.2 and EVID-PC8.2
en | Installation Note
Table of contents
1
Safety 4
2
Welcome 5
2.1 Important features 5
3
System overview 6

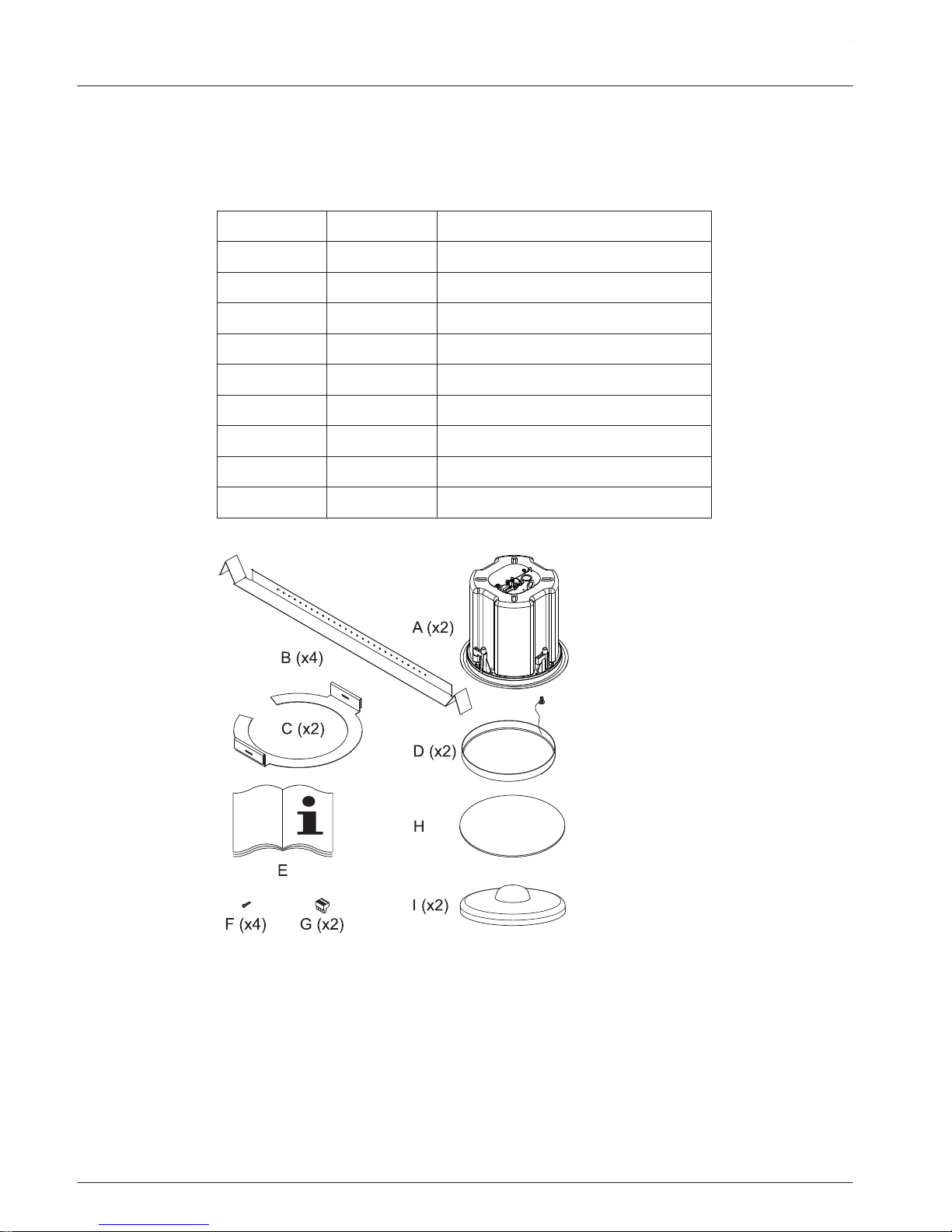

3.1 Packing list 6

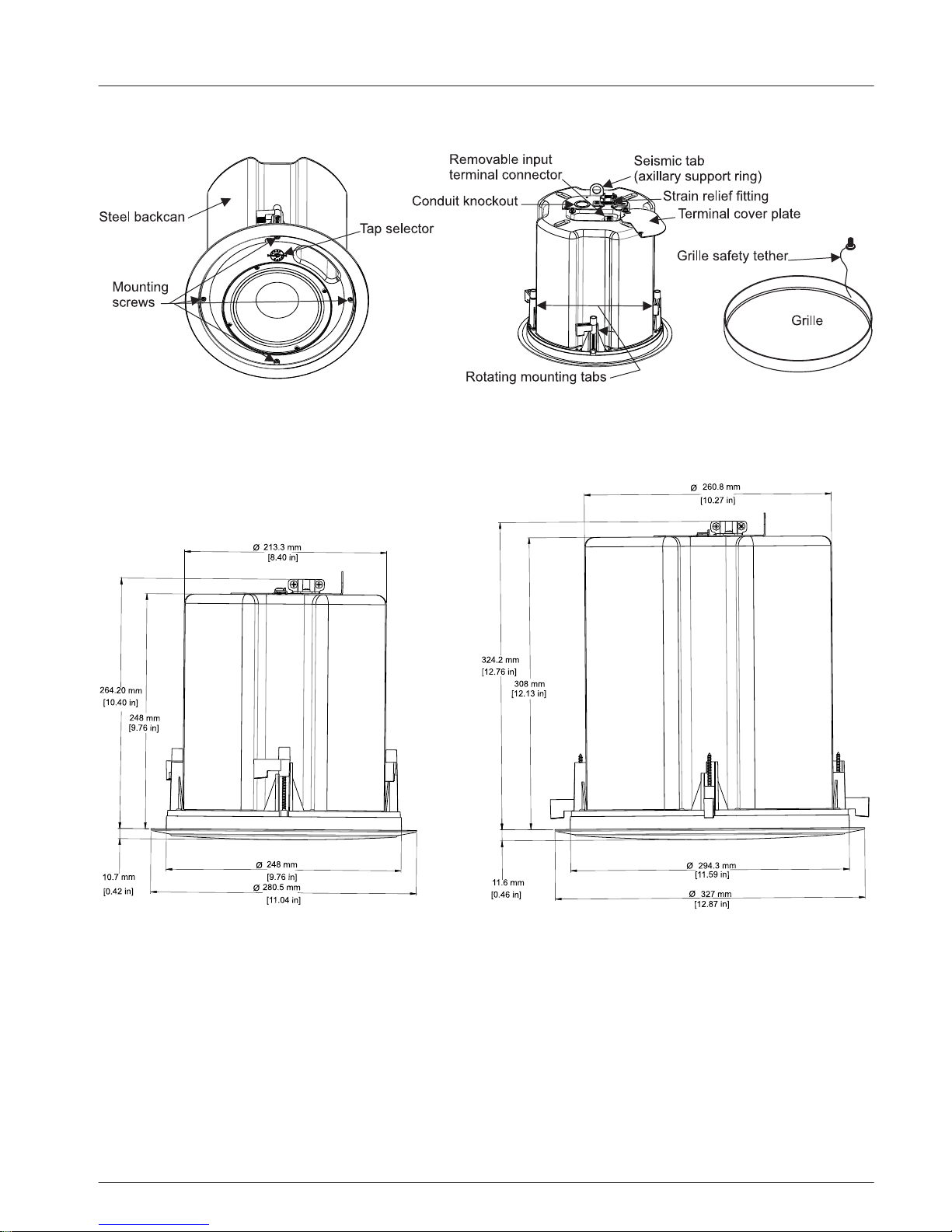

3.2 Product feature identification 7
3.3 Dimensions 7

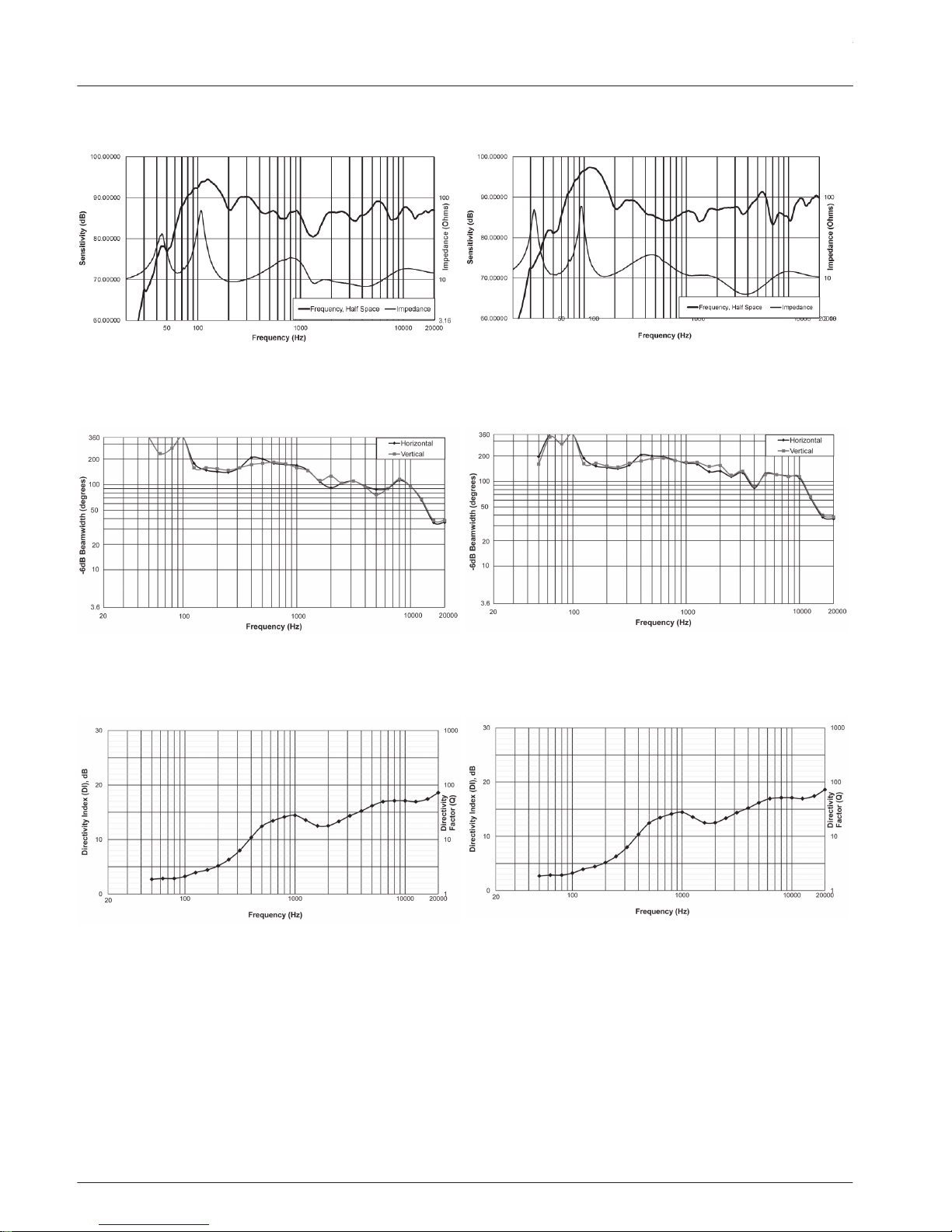

3.4 Frequency response and impedance 8
3.5 Beamwidth 8
3.6 Directivity 8

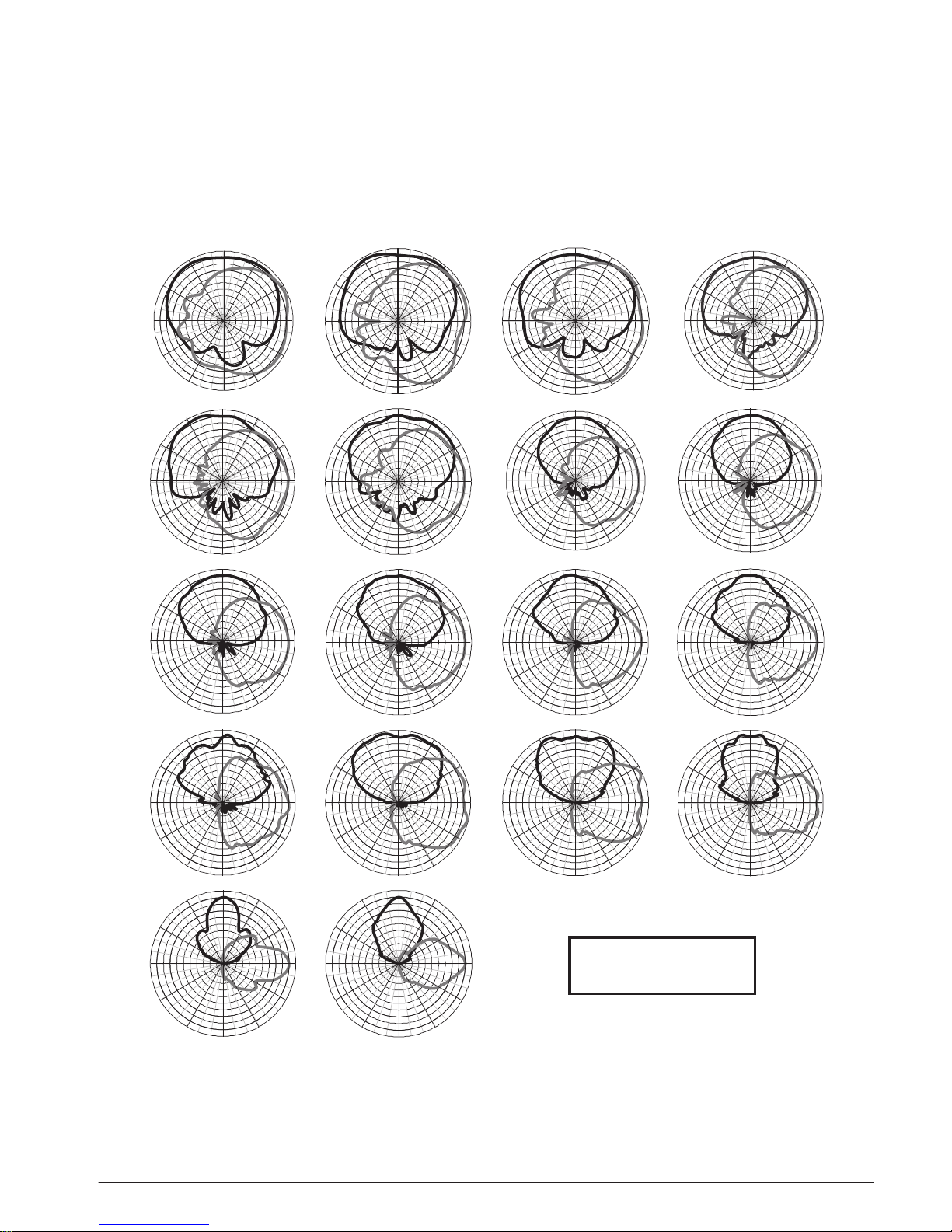

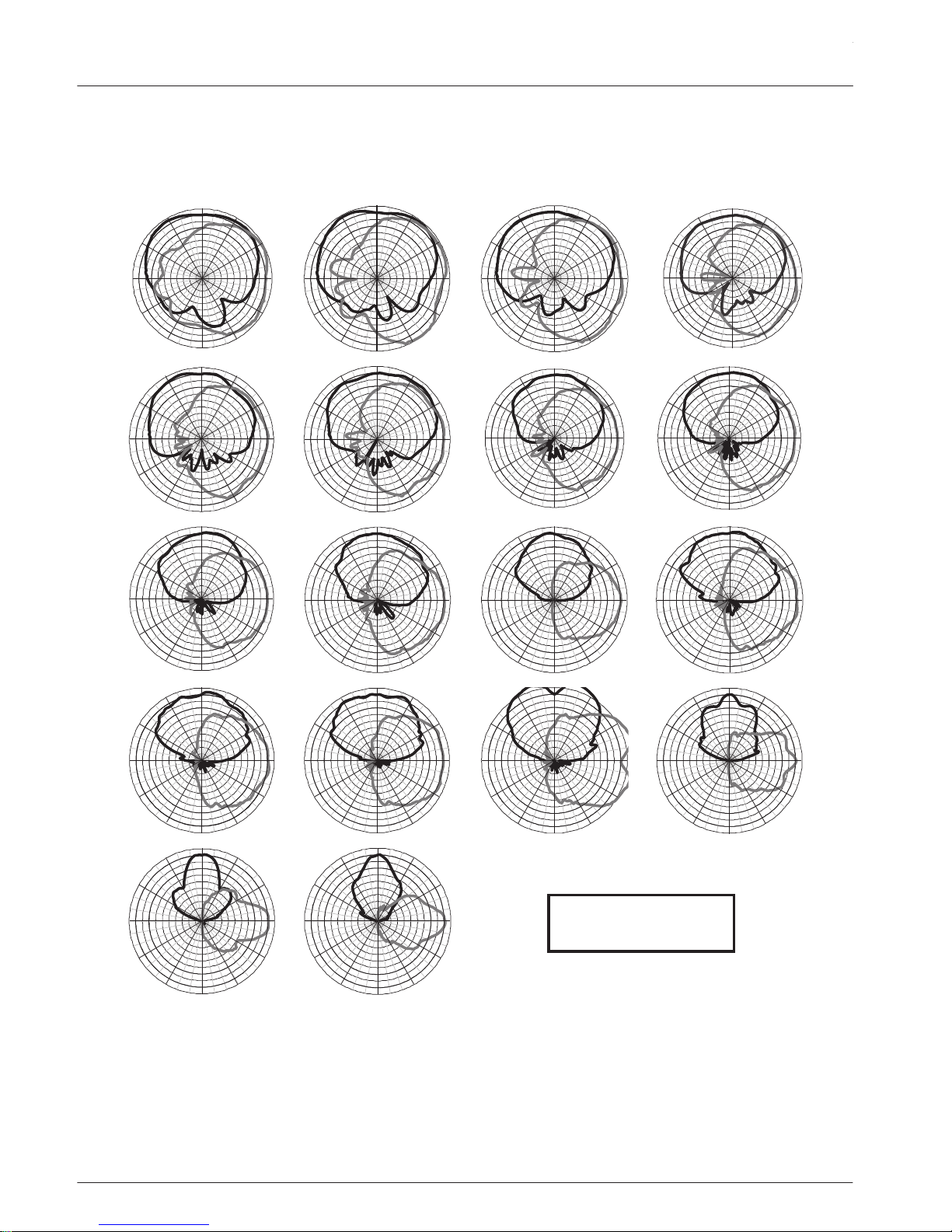

3.7 Horizontal and vertical polar response 9
4

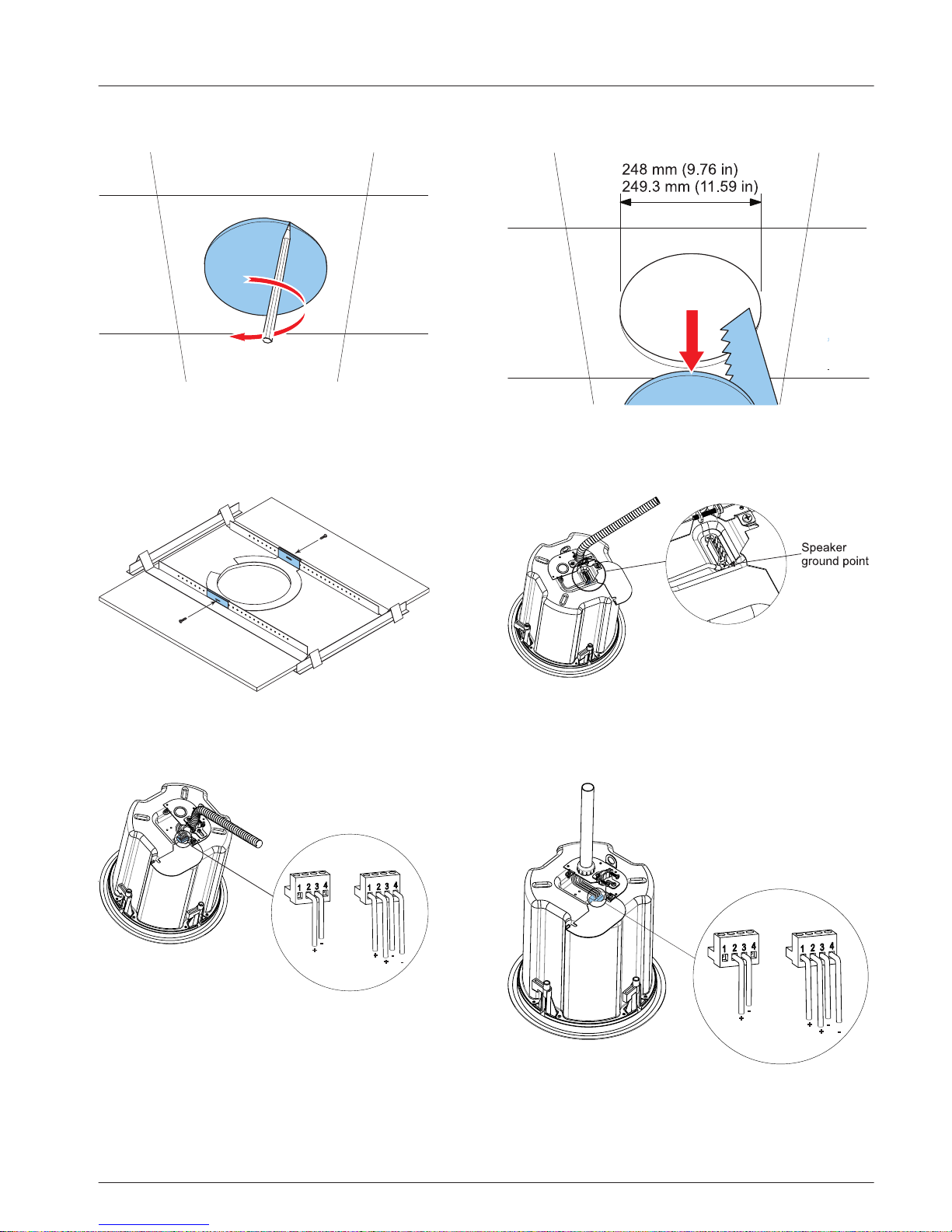

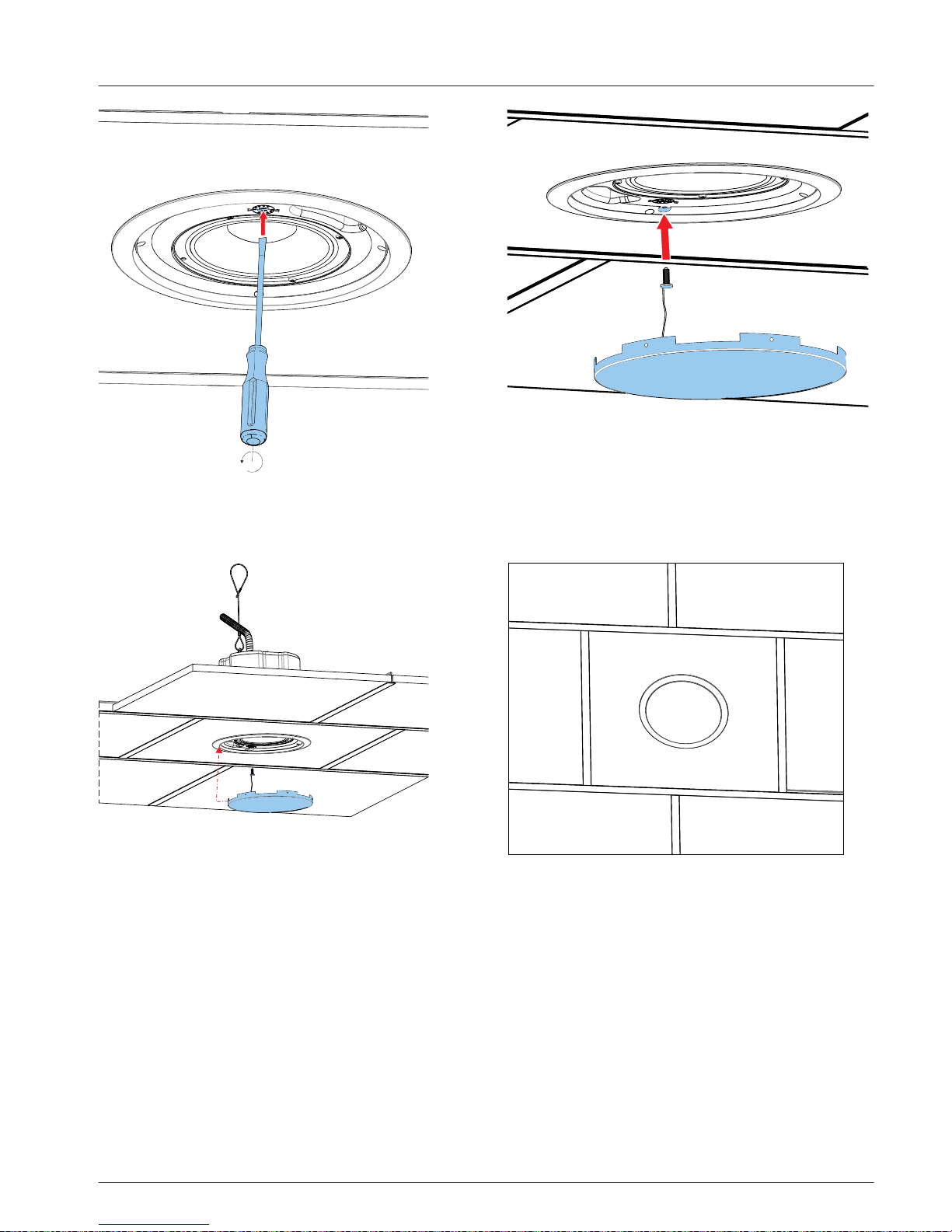

Installation 11
5
Technical data 14
en 3
Electro-Voice Installation Note 2015.06 | 03 | F.01U.307.473
Safety
!
Warning!

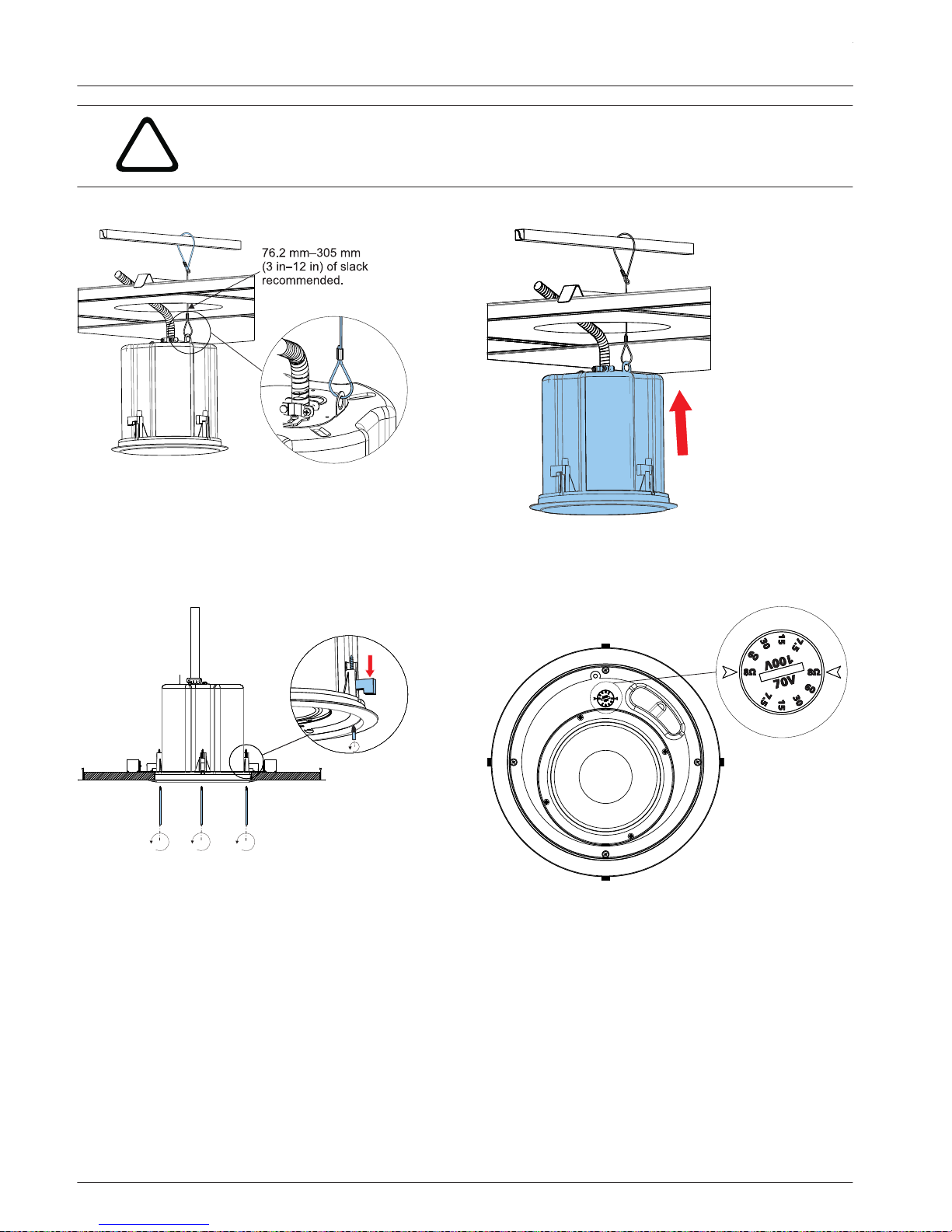

Suspending any object is potentially dangerous and should only be attempted by individuals
who have a thorough knowledge of the techniques and regulations of suspending objects
overhead.
Electro-Voice strongly recommends all loudspeakers be suspended taking into
account all current national, federal, state, and local laws and regulations. It is the
responsibility of the installer to ensure all loudspeakers are safely installed in accordance
with all such requirements. When loudspeakers are suspended, Electro-Voice strongly
recommends the system be inspected at least once per year or as laws and regulations
require. If any sign of weakness or damage is detected, remedial action should be taken
immediately. The user is responsible for making sure the wall, ceiling, or structure is capable
of supporting all objects suspended overhead. Any hardware used to suspend a loudspeaker
not associated with Electro-Voice is the responsibility of others.
!
Caution!
The seismic tab (auxiliary support ring) is not intended for primary suspension of the
loudspeaker. The seismic tab should only be used as a secondary safety point.
1
EVID High Performance Ceiling Speakers
2015.06 | 03 | F.01U.307.473 Installation Note Electro-Voice
Welcome
Thank you for purchasing EVID Premium Ceiling Speaker
s. Read through this manual to
familiarize yourself with the features, applications, and precautions before you use these
products. EVID Premium Ceiling Speakers use innovative design and materials to provide high
performance in a flush-mount ceiling format. Two (2) models comprise the EVID Premium
Ceiling Speaker family: EVID PC6.2 and EVID PC8.2.
Important features
EVID PC6.2 — 6-inch Premium Ceiling Speaker
▪ High output true compression driver for wide dispersion and superior coverage control
out to 10 kHz
▪ Long throw 6.5 inch (165 mm) woofer housed in a large vented steel enclosure for
extended LF performance down to 50 Hz
▪ 200 watt power handling provides for 113 dB maximum SPL
▪ Front baffle transformer tap adjustment switch
▪ Includes tile rails and “C” mounting ring
EVID PC8.2 — 8-inch Premium Ceiling Speaker
▪ High output true compression driver for wide dispersion and superior coverage control
out to 10 kHz
▪ Long throw 8-inch (200 mm) woofer housed in a large vented 14 gauge steel enclosure
for extended LF performance down to 40 Hz
▪ 200 watt power handling provides for 114 dB maximum SPL
▪ Front baffle transformer tap adjustment switch
▪ Includes tile rails and “C” mounting ring
2
2.1
en 5
Electro-Voice Installation Note 2015.06 | 03 | F.01U.307.473
