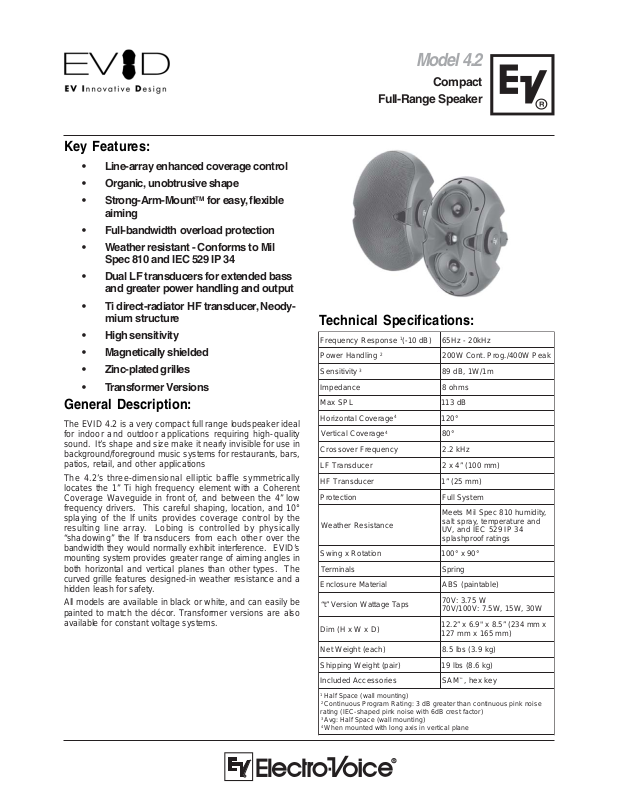

Electro-Voice EVID 4.2 User Manual

k

Key Features:

• Line-array enhanced coverage control

• Organic, unobtrusive shape

TM

• Strong-Arm-Mount

for easy, flexible

aiming

• Full-bandwidth overload protection

• Weather resistant - Conforms to Mil
Spec 810 and IEC 529 IP 34

• Dual LF transducers for extended bass
and greater power handling and output

• Ti direct-radiator HF transducer, Neody­mium structure

• High sensitivity

• Magnetically shielded

• Zinc-plated grilles

• Transformer Versions

General Description:

The EVID 4.2 is a very compact full range loudspeaker ideal
for indoor and outdoor applications requiring high-quality
sound. It’s shape and size make it nearly invisible for use in
background/foreground music systems for restaurants, bars,
patios, retail, and other applications

The 4.2’s three-dimensional elliptic baffle symmetrically
locates the 1” Ti high frequency element with a Coherent
Coverage Waveguide in front of, and between the 4” low
frequency drivers. This careful shaping, location, and 10°
splaying of the lf units provides coverage control by the
resulting line array. Lobing is controlled by physically
“shadowing” the lf transducers from each other over the
bandwidth they would normally exhibit interference. EVID’s
mounting system provides greater range of aiming angles in
both horizontal and vertical planes than other types. The
curved grille features designed-in weather resistance and a
hidden leash for safety.

All models are available in black or white, and can easily be
painted to match the décor. Transformer versions are also
available for constant voltage systems.

Model 4.2

Compact

Full-Range Speaker

Technical Specifications:

1

2

gnildnaHrewoP

3

ytivitisneS

ecnadepmIsmho8

LPSxaMBd311

egarevoClacitreV

recudsnarTFL)mm001(”4x2

recudsnarTFH)mm52(”1

noitcetorPmetsySlluF

eW

noitatoRxgniwS°09x

slanimreTgnirpS

)D

xWxH(miD

1
2

r

3
4

esnopseRycneuqerF

4

egarevoClatnoziroH

4

ycneuqerFrevossorCzHk2.2

ecnatsiseRrehta

lairetaMerusolcnE)elbatniap(SBA

)hcae(thgieWteN)gk9.3(sbl5.8

)riap(thgieWgnippihS)gk6.8(sbl91

seirosseccAdedulcnIMAS

)Bd01-(zHk02-zH56

°021

°08

°001

spaTegattaWnoisreV”t“

)gnitnuomllaw(ecapSflaH

)gnitnuomllaw(ecapSflaH:gvA

W57.3:V07

™

)rotcaftsercBd6htiwesionknipdepahs-CEI(gnita

enalplacitrevnisixagnolhtiwdetnuomnehW

aePW004/.gorP.tnoCW002

m1/W1,Bd98

,ytidimuh018cepSliMsteeM

dnaerutarepmet,yarpstlas

43PI925CEIdna,VU

sgnitarfoorphsalps

W03,W51,W5.7:V001/V07

xmm432(”5.8x"9.6x”2.21

)mm561xmm721

yekxeh,

esionknipsuounitnocnahtretaergBd3:gnitaRmargorPsuounitnoC

Architecture & Engineering Specs:

The loudspeaker shall be a two-way system consisting of two 4” (102mm)
low-frequency transducers, 1” (25mm) high-frequency transducer with
a Coherent Coverage Waveguide, and frequency-dividing network
installed in a vented, line array enclosure. The network shall include a
passive limiter for both the low frequency and high frequency transducers.
The loudspeaker system shall meet the following performance criteria:
Power handling, 200 watts of EIA RS-426A continuous pink noise (6 dB
crest factor); Frequency response, 65 Hz – 20 kHz (-10 dB from rated
sensitivity); Pressure sensitivity, 89 dB at one watt, 200 Hz – 10 kHz at
one meter; Impedance, 8 ohms nominal, 6 ohms minimum. The high
frequency transducer shall drive a waveguide to evenly cover 120°
horizontally by 80° vertically. The enclosure shall be molded of acrylic
butyl styrene. The enclosure shall be 12.2” (310mm) high, 6.9” (175mm)
wide, 8.5” (216mm) deep. The finish shall be a paintable black or white.
The grille shall be zinc plated, powder coated for corrosion resistance,
and restrained with a safety leash. The loudspeaker shall be adjustable
over a range of 100° horizontally and 90° vertically . The support bracket
shall be low profile and integral with the enclosure. The system shall be
weather resistant to MIL S pec 810 and IEC 529 IP 34 test conditions. The
surface mount loudspeaker shall be the Electro-Voice® EVID model

4.2.

Block Diagram:

Passive

INPUT

+

Limiter

HPF

LPF

Frequency Response:

Beamwidth:

Directivity:

Dimension Drawings:

Front

Top

12000 Portland Avenue South, Burnsville, MN 55337
Phone: [phone], Fax: [phone]

www.electrovoice.com

© Telex Communications, Inc. 12/2005

Part Number 38109-982 Rev E

Side

Wall Plate

Performance Match:

• EVID 12.1 Sub

Available Accessories:

• HS-3 Horizontal Mount Desk Stand for 3.2/4.2

• VS-4 Vertical Mount Desk Stand for 4.2

• AB-Z E Array Bracket Kit for 2 or 4 ZX1i or EVID Systems, Black

• TC-4B Black Weatherized Terminal Cover for 4.2

• TC-4W White Weatherized Terminal Cover for 4.2

EVID 4.2 Part Numbers:

301046-001 Black
301046-002 White
301046-003 Black, Transformer
301046-004 White, Transformer
