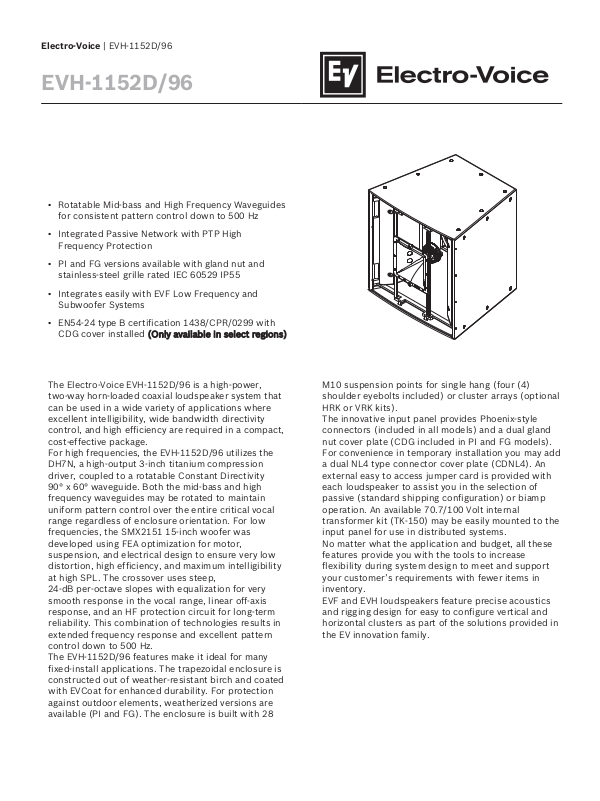

Electro-Voice | EVH-1152D/96
EVH-1152D/96
▪ Rotatable Mid-bass and High Frequency Waveguides
for consistent pattern control down to 500 Hz
▪ Integrated Passive Network with PTP High
Frequency Protection
▪ PI and FG versions available with gland nut and
stainless-steel grille rated IEC 60529 IP55
▪ Integrates easily with EVF Low Frequency and
Subwoofer Systems
▪ EN54-24 type B certification 1438/CPR/0299 with
CDG cover installed (Only available in select regions)
The Electro-Voice EVH-1152D/96 is a high-power,
two-way horn-loaded coaxial loudspeaker system that
can be used in a wide variety of applications where
excellent intelligibility, wide bandwidth directivity
control, and high efficiency are required in a compact,
cost-effective package.
For high frequencies, the EVH-1152D/96 utilizes the
DH7N, a high-output 3-inch titanium compression
driver, coupled to a rotatable Constant Directivity
90° x 60° waveguide. Both the mid-bass and high
frequency waveguides may be rotated to maintain
uniform pattern control over the entire critical vocal
range regardless of enclosure orientation. For low
frequencies, the SMX2151 15-inch woofer was
developed using FEA optimization for motor,
suspension, and electrical design to ensure very low
distortion, high efficiency, and maximum intelligibility
at high SPL. The crossover uses steep,
24-dB per-octave slopes with equalization for very
smooth response in the vocal range, linear off-axis
response, and an HF protection circuit for long-term
reliability. This combination of technologies results in
extended frequency response and excellent pattern
control down to 500 Hz.
The EVH-1152D/96 features make it ideal for many
fixed-install applications. The trapezoidal enclosure is
constructed out of weather-resistant birch and coated
with EVCoat for enhanced durability. For protection
against outdoor elements, weatherized versions are
available (PI and FG). The enclosure is built with 28
M10 suspension points for single hang (four (4)
shoulder eyebolts included) or cluster arrays (optional
HRK or VRK kits).
The innovative input panel provides Phoenix-style
connectors (included in all models) and a dual gland
nut cover plate (CDG included in PI and FG models).
For convenience in temporary installation you may add
a dual NL4 type connector cover plate (CDNL4). An
external easy to access jumper card is provided with
each loudspeaker to assist you in the selection of
passive (standard shipping configuration) or biamp
operation. An available 70.7/100 Volt internal
transformer kit (TK-150) may be easily mounted to the
input panel for use in distributed systems.
No matter what the application and budget, all these
features provide you with the tools to increase
flexibility during system design to meet and support
your customer’s requirements with fewer items in
inventory.
EVF and EVH loudspeakers feature precise acoustics
and rigging design for easy to configure vertical and
horizontal clusters as part of the solutions provided in
the EV innovation family.
Page 2
Passive
Limiter
+
-
SMX2151
-
+
+
-
HF
LF
DH7N
-
+
Passive
Limiter
HPF
LPF
+
THRU
-
SMX2151
-
+
DH7N
-
+
| EVH-1152D/96
2
Technical specifications
Frequency Response (-3 dB): 60 Hz–17 kHz
Frequency Range (-10 dB): 50 Hz–20 kHz
Rotatable Coverage: 90° x 60°
Rec. High-Pass Frequency: 60 Hz
Passive Crossover
1300 Hz
Frequency:
Axial Sensitivity: 105 dB (1 W/1 m)
Max. Calculated SPL: 138 dB
Passive Power Handling: 500 W Continuous, 2000 W Peak
Impedance: 8 Ω (nominal), 6.0 Ω (min.)
Standard 50 Hz BW24 High
Transformer:
Pass
70 V 100 V Z nom
37.5 W 75 W 130 Ω
75 W 150 W 65 Ω
150 W Do Not
89 Hz High Pass per EN54-24
Transformer:
Spectrum
70 V 100 V Z nom
50 W 100 W 100 Ω
100 W 200 W 50 Ω
1
1
1
1
Use
2
33 Ω
Grille: 16 GA powder-
coated
galvanneal with
rotatable logo
PI/FG Versions:
Stainless steel
with
hydrophobic
cloth
Environmental: IEC 60529 IP55 for PI and FG
versions
Suspension: (28) M10 threaded suspension points
Dimensions (H x W x D): 30.26” x 30.26” x 26.77”
(768.6 mm x 768.6 mm x 680.1 mm)
Net Weight: 145.5 lb (66.1 kg)
Shipping Weight: 160.5 lb (72.9 kg)
1. Half-space measurement.
2. EIA RS-426A, tested for eight hours.
3. AES 2-1984, tested for eight hours.
4. Arithmetic averages, 300–1,300 Hz (LF) and 1,300–
5,000 Hz (HF).
System overview
Block Diagram (Biamp):
200 W 400 W 25 Ω
LF Transducer - SMX2151, 15 in (381 mm) driver
LF Axial Sensitivity: 106 dB (1 W/1 m)
4
LF Max. Calculated SPL: 138 dB
LF Power Handling: 400 W Continuous, 1600 W Peak
LF Impedance: 8 Ω (nominal), 6.1 Ω (min.)
HF Transducer - DH7N, 3 in (76 mm) diaphragm compression driver
HF Axial Sensitivity: 111 dB (1 W/1 m)
4
HF Max. Calculated SPL: 136 dB
HF Power Handling: 75 W Continuous, 300 W Peak
3
HF Impedance: 8 Ω (nominal), 6.0 Ω (min.)
Connectors: Dual four-pin 10
AWG Phoenix/
Euro Block
screw-terminals
Enclosure: 13-ply weather-
resistant birch
with EVCoat
PI/FG Versions:
CDG dual-glandnut input panel
cover included
FG Version: 13ply weatherresistant birch
with fiberglass
finish
3
Block Diagram (Passive):
Standard shipping configuration
Page 3
50
100
1000
10000
20000
3.16
10
100
70
80
90
100
110
Impedance (Ohms)
SPL (dB) 1W/1m
Frequency (Hz)
Passive Mode, Half Space
Impedance, Passive Mode
50 100 1000 10000 20000
70
80
90
100
110
SPL (dB) 1W/1m
Frequency (Hz)
On Axis
10° Horizontal
20° Horizontal
30° Horizontal
40° Horizontal
50° Horizontal
50 100 1 000 10000 20000
70
80
90
100
110
SPL (dB) 1W/1m
Frequency (Hz)
On Axis
10° Vertical
20° Vertical
30° Vertical
!
100
1000
10000 20000
Horizontal
Vertical
Frequency (Hz)
-6dB Beamwidth (degrees)
100
50
20
360
20
3.6
100 1000 10000 20000
1
10
100
1000
0
10
20
30
Frequency (Hz)
Directivity Index (DI), dBDirectivity Index (DI), dBDirectivity Index (DI), dBDirectivity Index (DI), dB
Directivity
Factor (Q)
20
3 | EVH-1152D/96

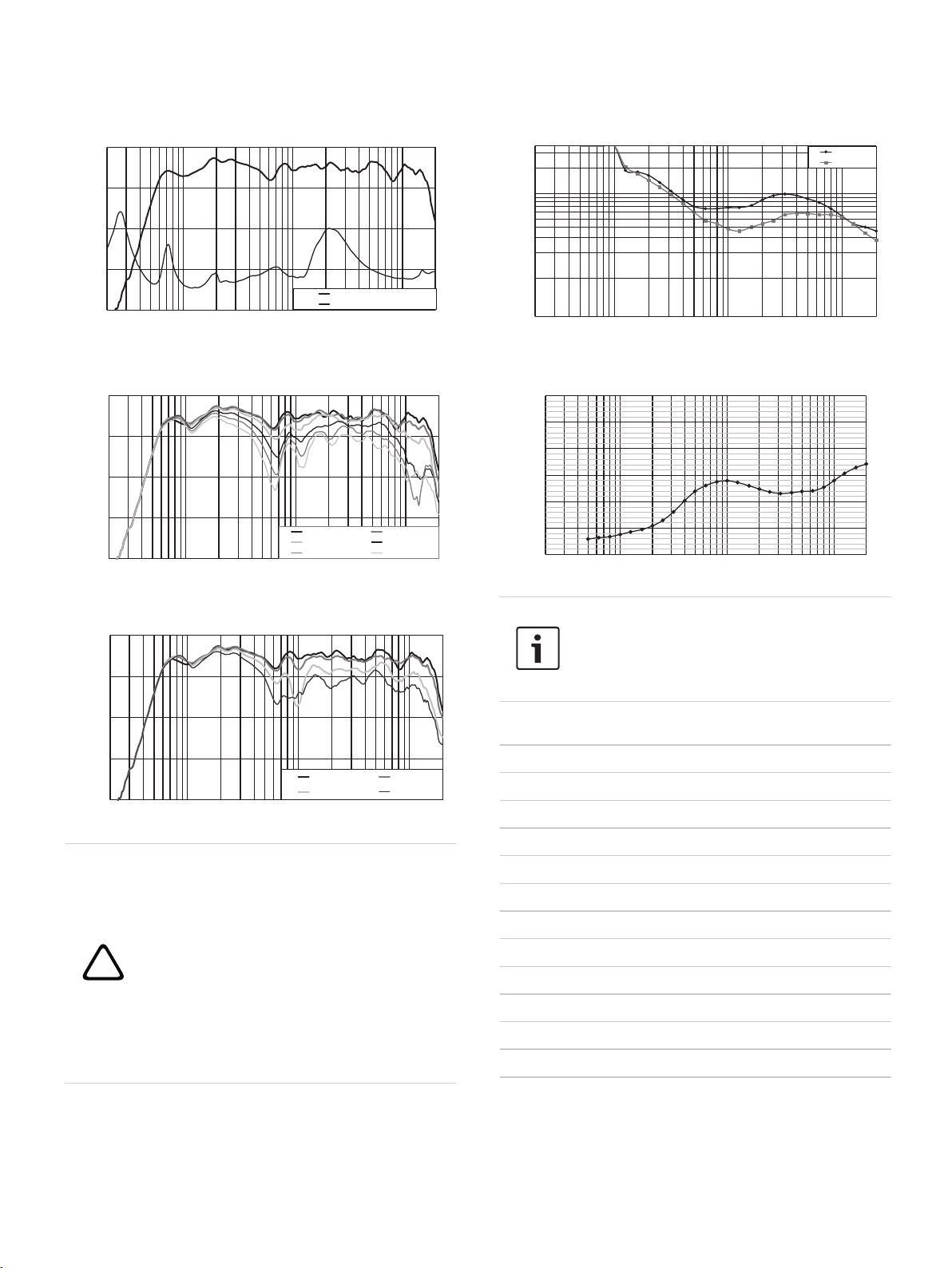

Frequency Response and Impedance:
Horizontal Off-Axis Frequency Response:
Beamwidth (Active):
Directivity (Active):
Vertical Off-Axis Frequency Response:
Notice!
Using EVH-1152D v.1.1 DSP standard IIR set-
tings for the Beamwidth, Directivity and Polar
Response.
Compatible System Solutions:
EVH-1152D/43 40° x 30° Coverage
EVH-1152D/64 60° x 40° Coverage
EVH-1152D/66 60° x 60° Coverage
EVH-1152D/94 90° x 40° Coverage
Caution!
This Electro-Voice loudspeaker should be sus-
pended overhead only in accordance with the
procedures and limitations specified in the
User’s Manual and possible manual update
notices. This system should be suspended
with certified rigging hardware by an author-
ized rigging professional and in compliance
with local, state, and federal overhead sus-
pension ordinances.
EVH-1152D/99 90° x 90° Coverage
EVF-2151D Dual 15 inch Bass Element
EVF-1181S Single 18 inch Bass Element
DX46 Dx46 Loudspeaker Controller
N8000 N8000 Digital Matrix Controller
CPS2.9 CPS 2.9 Power Amplifier
CPS2.12 CPS 2.12 Power Amplifier
CPS4.10 CPS 4.10 Power Amplifier
5
5
5
5
5
5. Contact your sales representative for voltage
information.
Page 4
4 | EVH-1152D/96

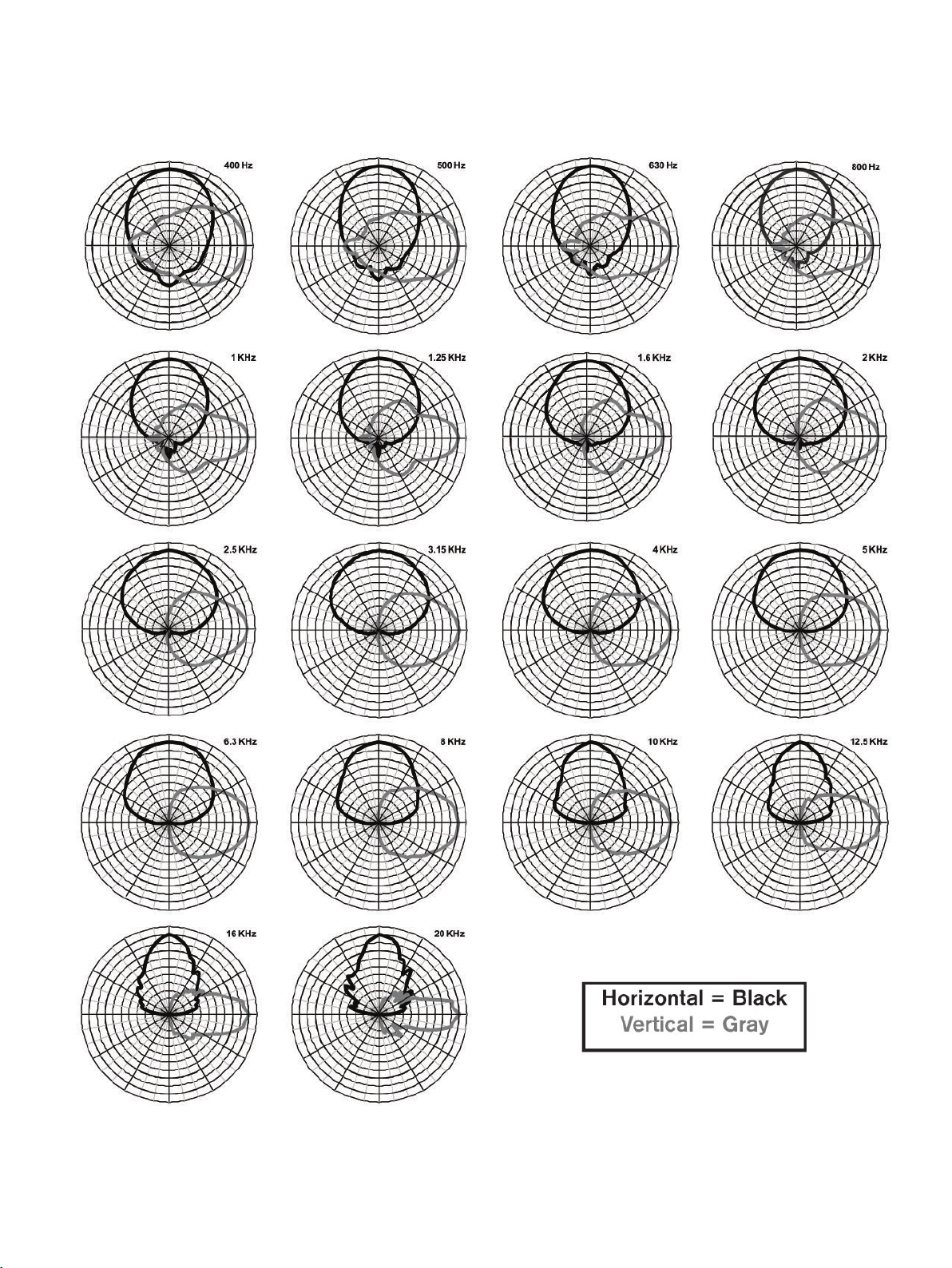

Horizontal and Vertical Polar Response (Active):
Polar plots (1/3 octave)
Page 5
5 | EVH-1152D/96

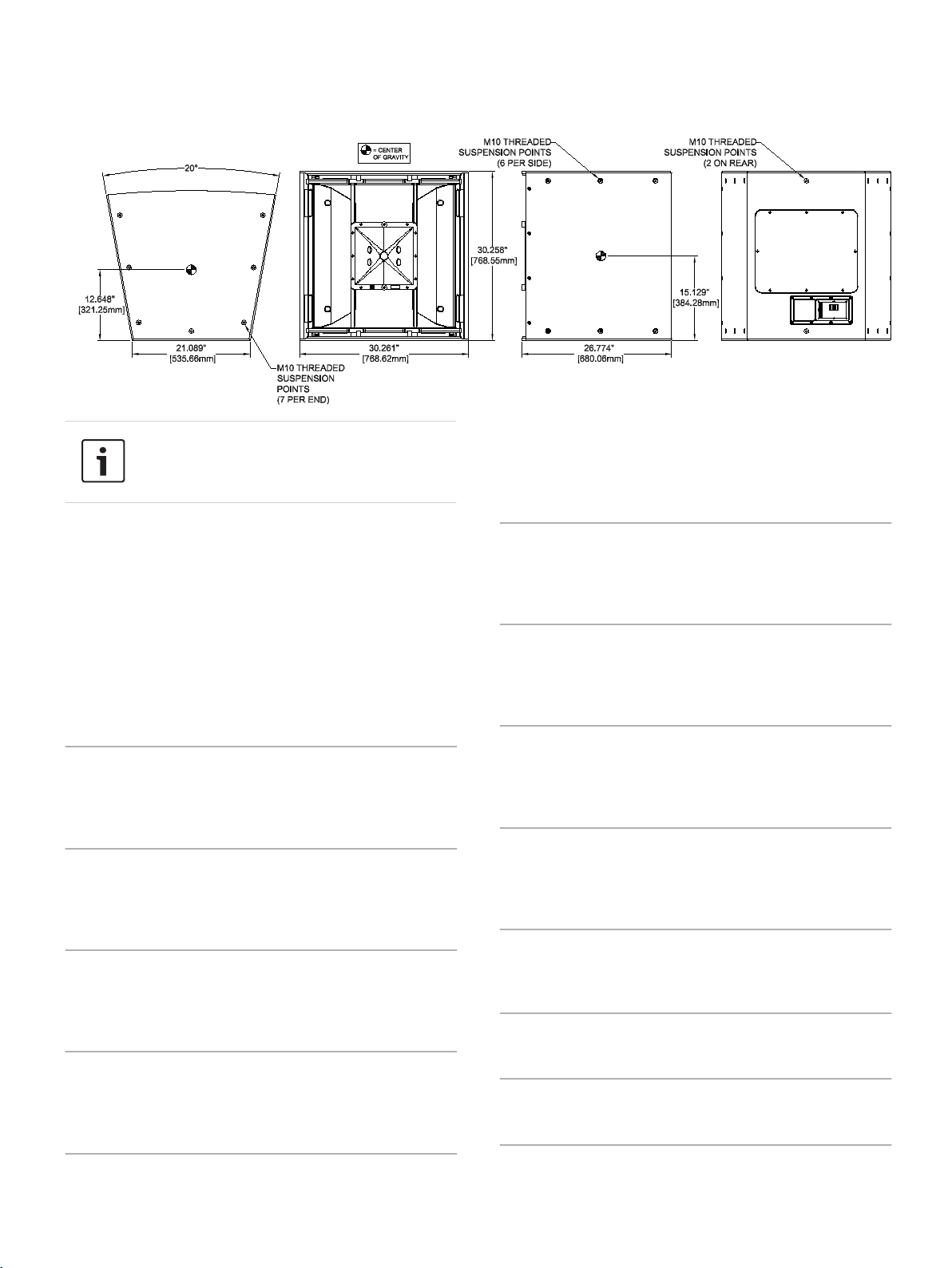

Dimension Drawing:
Notice!
Acoustic measurement reference axis is the
center of the grille.
Certifications and approvals
EN54-24 type B certification 1438/CPR/0299 with CDG
cover installed (Only available in select regions).
Ordering information
EVH-1152D/96-BLK
15" / 2-way Full-range Systems; SMX woofer & ND2B
driver or DH7N driver - 500 W cont.; 90° x 60°, EVCoat,
black SMX/DH7N
Order number EVH1152D96BLB
EVH-1152D/96-WHT
15" / 2-way Full-range Systems; SMX woofer & ND2B
driver or DH7N driver - 500 W cont.; 90° x 60°, EVCoat,
white SMX/DH7N
Order number EVH1152D96WLB
EVH-1152D/96-PIB
15" / 2-way Full-range Systems; SMX woofer & ND2B
driver or DH7N driver - 500 W cont.; 90° x 60°, PIweatherized, black SMX/DH7N
Order number EVH1152D96PBLB
EVH-1152D/96-PIW
15" / 2 Way Fullrange Systems; SMX woofer & ND2B
driver or DH7N driver - 500W cont.; 90 ° x 60°, PIweatherized, white SMX/DH7N
Order number EVH1152D96PWLB
EVH-1152D/96-FGB
15" / 2-way Full-range Systems; SMX woofer & ND2B
driver or DH7N driver - 500 W cont.; 90° x 60°,
Fiberglass, black SMX/DH7N
Order number EVH1152D96-FBLB
EVH-1152D/96-FGW
15" / 2-way Full-range Systems; SMX woofer & ND2B
driver or DH7N driver - 500 W cont.; 90° x 60°,
Fiberglass, white SMX/DH7N
Order number EVH1152D96-FWLB
EVH-1152D/96-BLK
15" / 2-way Full-range Systems; SMX woofer & ND2B
driver or DH7N driver - 500 W cont.; 90° x 60°, EVCoat,
black SMX/DH7N — EN54-24 certified
Order number EVH-1152D/96-BLKE
EVH-1152D/96-WHT
15" / 2-way Full-range Systems; SMX woofer & ND2B
driver or DH7N driver - 500 W cont.; 90° x 60°, EVCoat,
white SMX/DH7N — EN54-24 certified
Order number EVH-1152D/96-WHTE
EVH-1152D/96-PIB
15" / 2-way Full-range Systems; SMX woofer & ND2B
driver or DH7N driver - 500 W cont.; 90° x 60°, PIweatherized, black SMX/DH7N — EN54-24 certified
Order number EVH-1152D/96-PIBE
EVH-1152D/96-PIW
15" / 2-way Full-range Systems; SMX woofer & ND2B
driver or DH7N driver - 500W cont.; 90 ° x 60°, PIweatherized, white SMX/DH7N — EN54-24 certified
Order number EVH-1152D/96-PIWE
Accessories
CSG
Single gland nut cover kit for EVA, EVF & EVH
Order number CSG-LB
CDG
Dual gland nut cover kit for EVA, EVF & EVH
Order number CDG-LB
CDNL4
Dual NL4 cover kit for EVA, EVF & EVH
Order number CDNL4-LB
Page 6
6 | EVH-1152D/96
Represented by:
Germany:
Bosch Sicherheitssysteme GmbH
Robert-Bosch-Ring 5
85630 Grasbrunn
Germany
Bosch Security Systems, Inc.
12000 Portland Avenue South
Burnsville MN 55337
USA
www.electrovoice.com
© Bosch Security Systems 2014 | Data subject to change without notice
Document Number F.01U.196.274 | Vs04 | 06. Mar 2014
TK-150
Transformer kit for EVF & EVH, 150W / 70V
Order number TK-150
HRK-2B
Horizontal rigging kit for EVF & EVH full-range to EVF
sub, black
Order number HRK-2B-LB
HRK-2W
Horizontal rigging kit for EVF & EVH full-range to EVF
sub, white
Order number HRK-2W-LB
HRK-3B
Horizontal rigging kit for EVH, black
Order number HRK-3B-LB
HRK-3W
Horizontal rigging kit for EVH, white
Order number HRK-3W-LB
VRK-2B
Vertical rigging kit for EVF & EVH full-range to EVF
subs, black
Order number VRK-2B-LB
VRK-2W
Vertical rigging kit for EVF & EVH full-range to EVF
subs, white
Order number VRK-2W-LB
VRK-3B
Vertical rigging kit for EVH, black
Order number VRK-3B-LB
VRK-3W
Vertical rigging kit for EVH, white
Order number VRK-3W-LB
