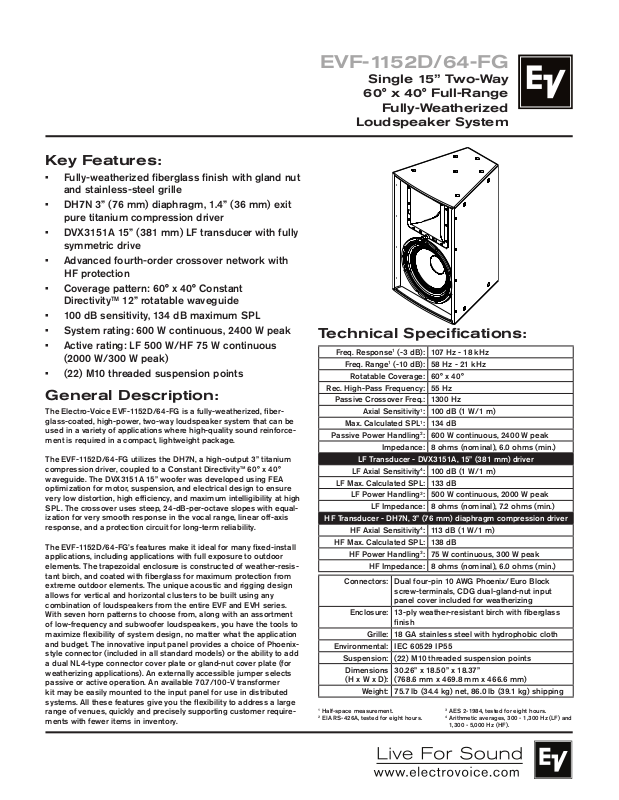

Electro-Voice EVF-1152D-64-FG User Manual
Key Features:
Fully-weatherized fiberglass finish with gland nut •
and stainless-steel grille
DH7N 3” (76 mm) diaphragm, 1.4” (36 mm) exit •
pure titanium compression driver
DVX3151A 15” (381 mm) LF transducer with fully •
symmetric drive
Advanced fourth-order crossover network with •
HF protection
Coverage pattern: 60° x 40° Constant •
DirectivityTM 12” rotatable waveguide
100 dB sensitivity, 134 dB maximum SPL•
System rating: 600 W continuous, 2400 W peak•
Active rating: LF 500 W/HF 75 W continuous •
(2000 W/300 W peak)
(22) M10 threaded suspension points•
General Description:
The Electro-Voice EVF-1152D/64-FG is a fully-weatherized, fiberglass-coated, high-power, two-way loudspeaker system that can be
used in a variety of applications where high-quality sound reinforcement is required in a compact, lightweight package.
The EVF-1152D/64-FG utilizes the DH7N, a high-output 3” titanium
compression driver, coupled to a Constant Directivity™ 60° x 40°
waveguide. The DVX3151A 15” woofer was developed using FEA
optimization for motor, suspension, and electrical design to ensure
very low distortion, high efficiency, and maximum intelligibility at high
SPL. The crossover uses steep, 24-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis
response, and a protection circuit for long-term reliability.
The EVF-1152D/64-FG’s features make it ideal for many fixed-install
applications, including applications with full exposure to outdoor
elements. The trapezoidal enclosure is constructed of weather-resistant birch, and coated with fiberglass for maximum protection from
extreme outdoor elements. The unique acoustic and rigging design
allows for vertical and horizontal clusters to be built using any
combination of loudspeakers from the entire EVF and EVH series.
With seven horn patterns to choose from, along with an assortment
of low-frequency and subwoofer loudspeakers, you have the tools to
maximize flexibility of system design, no matter what the application
and budget. The innovative input panel provides a choice of Phoenixstyle connector (included in all standard models) or the ability to add
a dual NL4-type connector cover plate or gland-nut cover plate (for
weatherizing applications). An externally accessible jumper selects
passive or active operation. An available 70.7/100-V transformer
kit may be easily mounted to the input panel for use in distributed
systems. All these features give you the flexibility to address a large
range of venues, quickly and precisely supporting customer requirements with fewer items in inventory.
EVF-1152D/64-FG
Single 15” Two-Way
60° x 40° Full-Range
Fully-Weatherized
Loudspeaker System
Technical Specifications:
Freq. Response1 (-3 dB): 107 Hz - 18 kHz
Freq. Range1 (-10 dB): 58 Hz - 21 kHz
Rotatable Coverage: 60° x 40°
Rec. High-Pass Frequency: 55 Hz
Passive Crossover Freq.: 1300 Hz
Axial Sensitivity1: 100 dB (1 W/1 m)
Max. Calculated SPL1: 134 dB
Passive Power Handling2: 600 W continuous, 2400 W peak
Impedance: 8 ohms (nominal), 6.0 ohms (min.)
LF Transducer - DVX3151A, 15” (381 mm) driver
LF Axial Sensitivity4: 100 dB (1 W/1 m)
LF Max. Calculated SPL: 133 dB
LF Power Handling3: 500 W continuous, 2000 W peak
LF Impedance: 8 ohms (nominal), 7.2 ohms (min.)
HF Transducer - DH7N, 3” (76 mm) diaphragm compression driver
HF Axial Sensitivity4: 113 dB (1 W/1 m)
HF Max. Calculated SPL: 138 dB
HF Power Handling3: 75 W continuous, 300 W peak
HF Impedance: 8 ohms (nominal), 6.0 ohms (min.)
Connectors: Dual four-pin 10 AWG Phoenix/Euro Block
Enclosure: 13-ply weather-resistant birch with fiberglass
Environmental: IEC 60529 IP55
Suspension: (22) M10 threaded suspension points
Dimensions
(H x W x D):
Weight: 75.7 lb (34.4 kg) net, 86.0 lb (39.1 kg) shipping
1
Half-space measurement.
2
EIA RS-426A, tested for eight hours.
screw-terminals, CDG dual-gland-nut input
panel cover included for weatherizing
finish
Grille: 18 GA stainless steel with hydrophobic cloth
30.26” x 18.50” x 18.37”
(768.6 mm x 469.8 mm x 466.6 mm)
3
AES 2-1984, tested for eight hours.
4
Arithmetic averages, 300 - 1,300 Hz (LF) and
1,300 - 5,000 Hz (HF).
20000
10000
1000
1005020
316
100
10
3.16
70
80
90
100
110
Frequency (Hz)
SPL (dB) 1W/1m
Impedance (Ohms)
Passive Mode, Half Space
Impedance, Passive Mode
2050100
1000
10000
20000
70
80
90
100
110
Frequency (Hz)
SPL (dB) 1W/1m
On Axis 10° Horizontal
20° Horizontal 30° Horizontal
2050100
1000
10000
20000
70
80
90
100
110
Frequency (Hz)
SPL (dB) 1W/1m
On Axis 10° Vertical Up
20° Vertical Up 30° Vertical Up
2050100
1000
10000
20000
70
80
90
100
110
Frequency (Hz)
SPL (dB) 1W/1m
On Axis 10° Vertical Down
20° Vertical Down 30° Vertical Down
20000
10000
1000
100
20
0
10
20
30
1
10
100
1000
Frequency (Hz)
Directivity Index (DI), dB
Directivity
Factor (Q)
20
100
1000
10000
20000
360
100
20
3.6
Horizontal
Vertical
Frequency (Hz)
-6dB Beamwidth (degrees)
50
EVF-1152D/64-FG Loudspeaker System
Frequency Response &
Impedance:
Vertical Off-Axis Frequency
Response (Up):
Horizontal Off-Axis Frequency
Response:
Vertical Off-Axis Frequency
Response (Down):
Beamwidth:
Block Diagram (biamp):
Directivity:
Block Diagram (passive):
