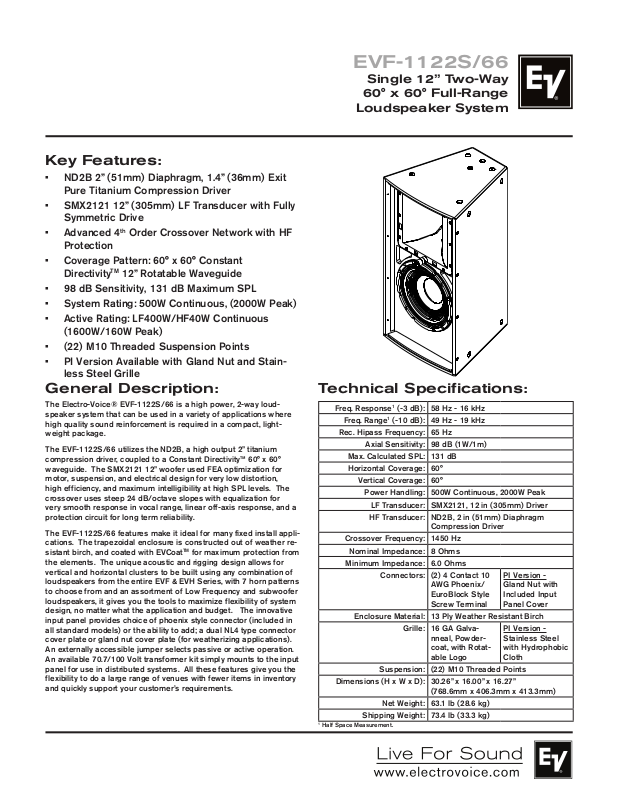

EVF-1122S/66
Single 12” Two-Way
60° x 60° Full-Range
Loudspeaker System
Key Features:
ND2B 2” (51mm) Diaphragm, 1.4” (36mm) Exit •
Pure Titanium Compression Driver
SMX2121 12” (305mm) LF Transducer with Fully •
Symmetric Drive
Advanced 4•
Protection
Coverage Pattern: 60° x 60° Constant •
DirectivityTM 12” Rotatable Waveguide
98 dB Sensitivity, 131 dB Maximum SPL•
System Rating: 500W Continuous, (2000W Peak)•
Active Rating: LF400W/HF40W Continuous •
(1600W/160W Peak)
(22) M10 Threaded Suspension Points•
PI Version Available with Gland Nut and Stain-•
less Steel Grille
General Description: Technical Specifications:
The Electro-Voice® EVF-1122S/66 is a high power, 2-way loudspeaker system that can be used in a variety of applications where
high quality sound reinforcement is required in a compact, lightweight package.
The EVF-1122S/66 utilizes the ND2B, a high output 2” titanium
compression driver, coupled to a Constant Directivity™ 60° x 60°
waveguide. The SMX2121 12” woofer used FEA optimization for
motor, suspension, and electrical design for very low distortion,
high efficiency, and maximum intelligibility at high SPL levels. The
crossover uses steep 24 dB/octave slopes with equalization for
very smooth response in vocal range, linear off-axis response, and a
protection circuit for long term reliability.
The EVF-1122S/66 features make it ideal for many fixed install applications. The trapezoidal enclosure is constructed out of weather resistant birch, and coated with EVCoatTM for maximum protection from
the elements. The unique acoustic and rigging design allows for
vertical and horizontal clusters to be built using any combination of
loudspeakers from the entire EVF & EVH Series, with 7 horn patterns
to choose from and an assortment of Low Frequency and subwoofer
loudspeakers, it gives you the tools to maximize flexibility of system
design, no matter what the application and budget. The innovative
input panel provides choice of phoenix style connector (included in
all standard models) or the ability to add; a dual NL4 type connector
cover plate or gland nut cover plate (for weatherizing applications).
An externally accessible jumper selects passive or active operation.
An available 70.7/100 Volt transformer kit simply mounts to the input
panel for use in distributed systems. All these features give you the
flexibility to do a large range of venues with fewer items in inventory
and quickly support your customer’s requirements.
th
Order Crossover Network with HF
Freq. Response1 (-3 dB): 58 Hz - 16 kHz
Freq. Range1 (-10 dB): 49 Hz - 19 kHz
Rec. Hipass Frequency: 65 Hz
Axial Sensitivity: 98 dB (1W/1m)
Max. Calculated SPL: 131 dB
Horizontal Coverage: 60°
Vertical Coverage: 60°
Power Handling: 500W Continuous, 2000W Peak
LF Transducer: SMX2121, 12 in (305mm) Driver
HF Transducer: ND2B, 2 in (51mm) Diaphragm
Crossover Frequency: 1450 Hz
Nominal Impedance: 8 Ohms
Minimum Impedance: 6.0 Ohms
Connectors: (2) 4 Contact 10
Enclosure Material: 13 Ply Weather Resistant Birch
Suspension: (22) M10 Threaded Points

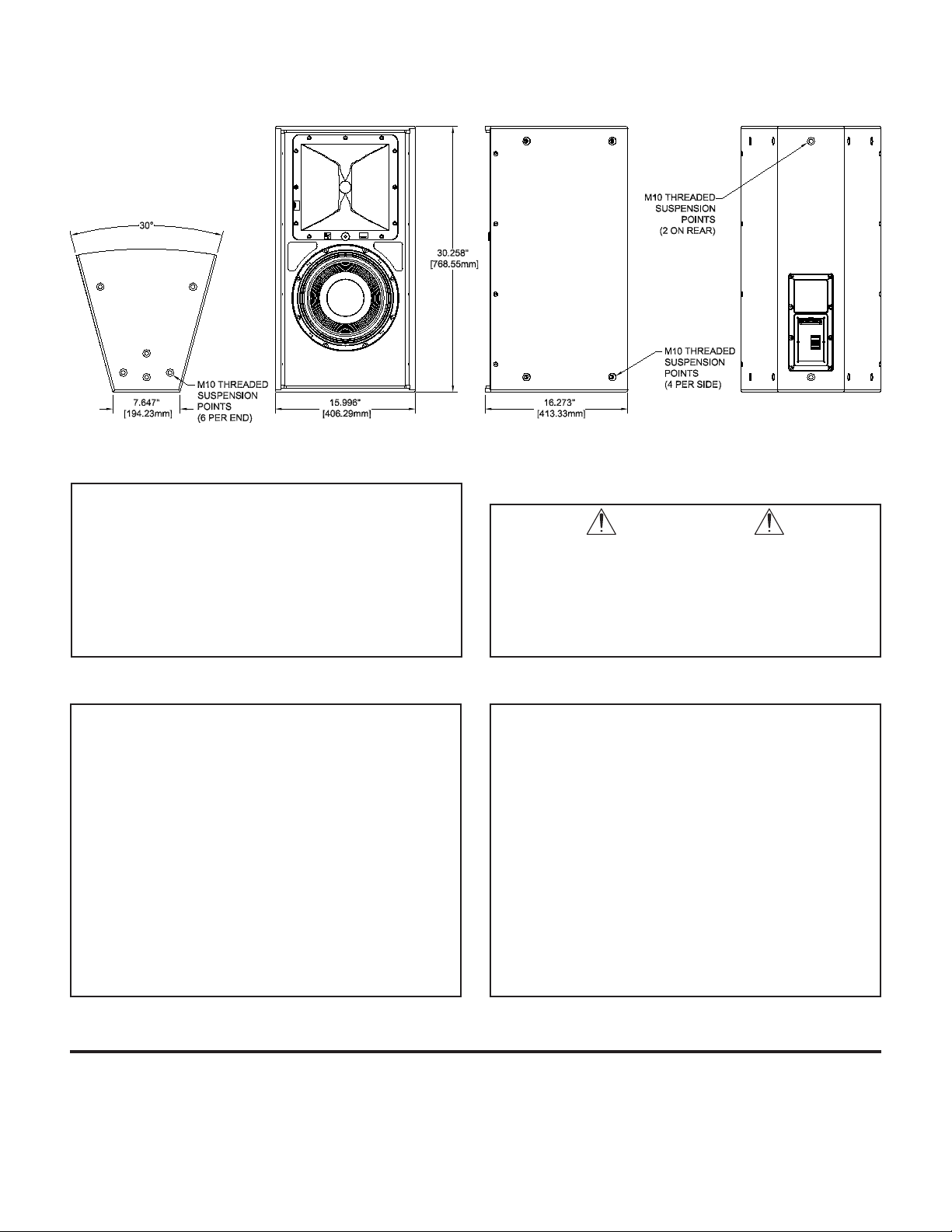

Dimensions (H x W x D): 30.26” x 16.00” x 16.27”
Net Weight: 63.1 lb (28.6 kg)
1
Half Space Measurement.
Shipping Weight: 73.4 lb (33.3 kg)
Compression Driver
AWG Phoenix/
EuroBlock Style
Screw Terminal
Grille: 16 GA Galva-
nneal, Powdercoat, with Rotatable Logo
(768.6mm x 406.3mm x 413.3mm)
PI Version Gland Nut with
Included Input
Panel Cover
PI Version Stainless Steel
with Hydrophobic
Cloth
20000
10000
1000
100
20
0
10
20
30
1
10
100
1000
Frequency (Hz)
Directivity Index (DI), dB
Directivity
Factor (Q)
20
100
1000
10000
20000
360
100
20
3.6
Horizontal
Vertical
Frequency (Hz)
-6dB Beamwidth (degrees)
50
20000
10000
1000
1005020
316
100
10
3.16
70
80
90
100
110
Frequency (Hz)
Sensitivity (dB)
Impedance (Ohms)
Passive Mode, Half Space
Impedance
2050100
1000
10000
20000
70
80
90
100
110
Frequency (Hz)
Sensitivity (dB)
On Axis 10° Vertical Down
20° Vertical Down 30° Vertical Down
2050100
1000
10000
20000
70
80
90
100
110
Frequency (Hz)
Sensitivity (dB)
On Axis 10° Vertical Up
20° Vertical Up 30° Vertical Up
2050100
1000
10000
20000
70
80
90
100
110
Frequency (Hz)
Sensitivity (dB)
On Axis 10° Horizontal
20° Horizontal 30° Horizontal

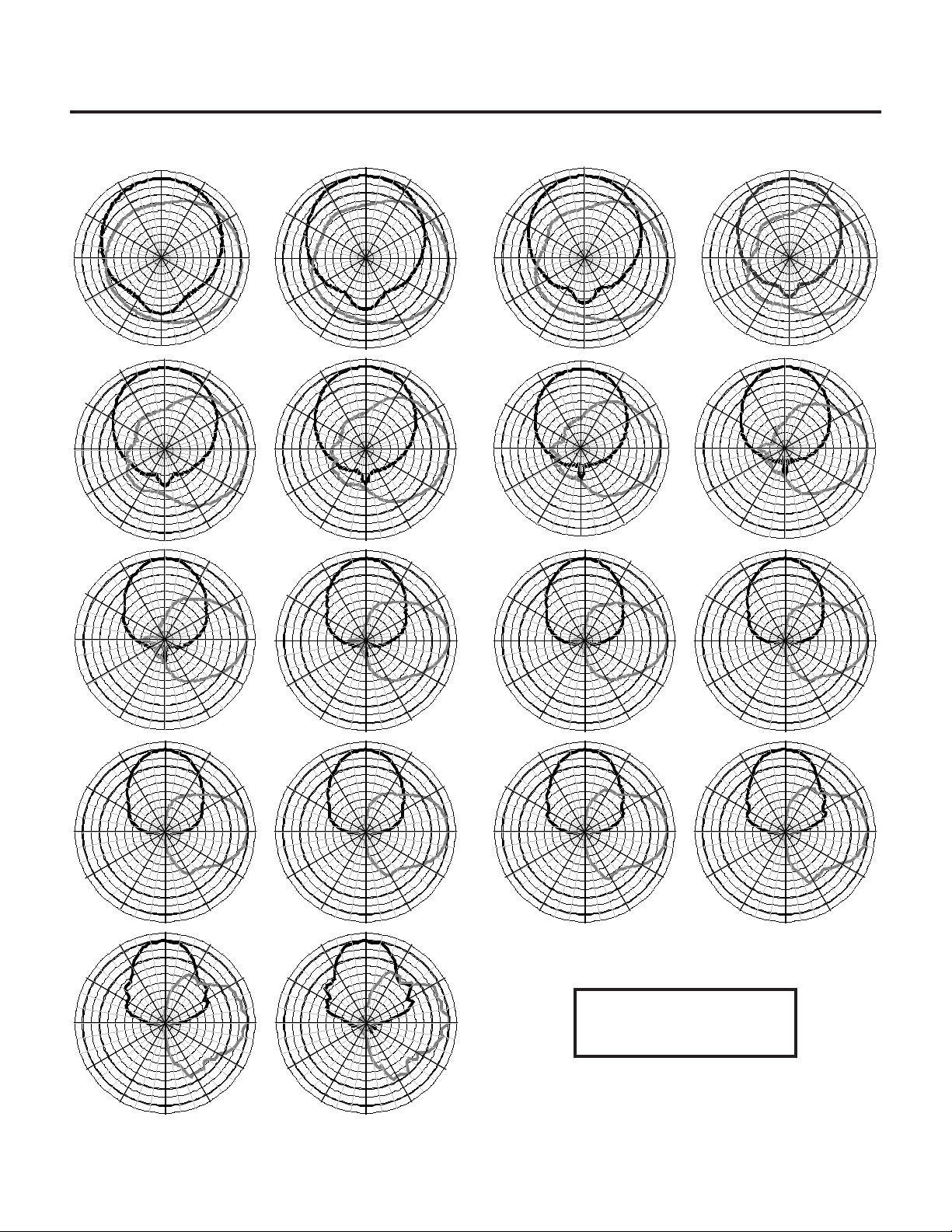

EVF-1122S/66 Loudspeaker System
Frequency Response &
Impedance:
Vertical Off Axis Frequency
Response (Up):
Horizontal Off Axis Frequency
Response:
Vertical Off Axis Frequency
Response (Down):
Beamwidth:
Block Diagram (Biamp):
Directivity:
Block Diagram (Passive):
