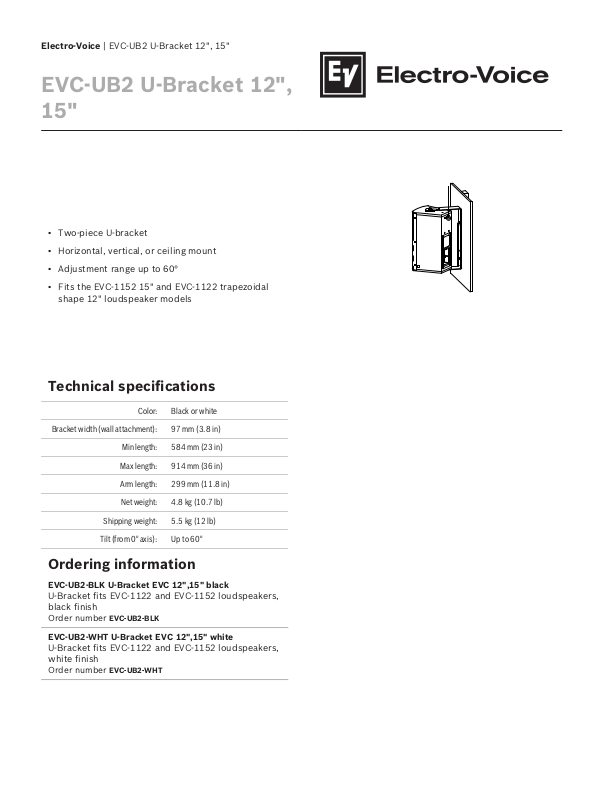

Electro-Voice EVC-UB2 Data Sheet

Electro-Voice | EVC-UB2 U-Bracket 12", 15"

EVC-UB2 U-Bracket 12",
15"

▪ Two-piece U-bracket

▪ Horizontal, vertical, or ceiling mount

▪ Adjustment range up to 60°

▪ Fits the EVC-1152 15" and EVC-1122 trapezoidal

shape 12" loudspeaker models

Technical specifications

Color: Black or white

Bracket width (wall attachment): 97 mm (3.8 in)

Min length: 584 mm (23 in)

Max length: 914 mm (36 in)

Arm length: 299 mm (11.8 in)

Net weight: 4.8 kg (10.7 lb)

Shipping weight: 5.5 kg (12 lb)

Tilt (from 0° axis): Up to 60°

Ordering information

EVC-UB2-BLK U-Bracket EVC 12",15" black

U-Bracket fits EVC-1122 and EVC-1152 loudspeakers,
black finish

Order number EVC-UB2-BLK

EVC-UB2-WHT U-Bracket EVC 12",15" white

U-Bracket fits EVC-1122 and EVC-1152 loudspeakers,
white finish

Order number EVC-UB2-WHT
