Electro-Voice ELX118, ELX112, ELX115, ELX215 User manual
Passive
Loudspeaker
Owner’s Manual
ELX112
ELX11 5
ELX118
ELX2 15
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
8. Only use attachments/accessories specified by
the manufacturer.
9. Do not expose this apparatus to dripping or
splashing and ensure that no objects filled with
liquids, such as vases, are placed on this apparatus.
Management of WEEE (waste electrical and electronic equipment) (applicable in Member States of the European
Union and other European countries with individual national policies on the management of WEEE) The symbol on the
product or on its packaging indicates that this product may not be treated as regular household waste, but has to be
disposed through returning it at an Electro-Voice dealer.
Precautions
• Do not use Live X loudspeakers in an environment where temperatures exceed +40°C (104°F).
The lightning flash with arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the appliance.
The asterisk within an equilateral triangle is intended to inform
the user to necessary installation or removal instructions regarding equipment or hardware use relating to the system.
• Never expose a Live X loudspeaker to rain, water, or high moisture.
• Electro-Voice Live X loudspeakers are easily capable of generating sound pressure levels suf-
cient to cause permanent hearing damage to anyone within normal coverage distance. Caution
should be taken to avoid prolonged exposure to sound pressure levels exceeding 90 dB.
Table of Contents
Important Safety Instructions ...........................................................................................................................................2
Precautions .........................................................................................................................................................................2
Description ...........................................................................................................................................................................3
System Features ................................................................................................................................................................3
Tripod and Floor Monitor Operation ...............................................................................................................................5

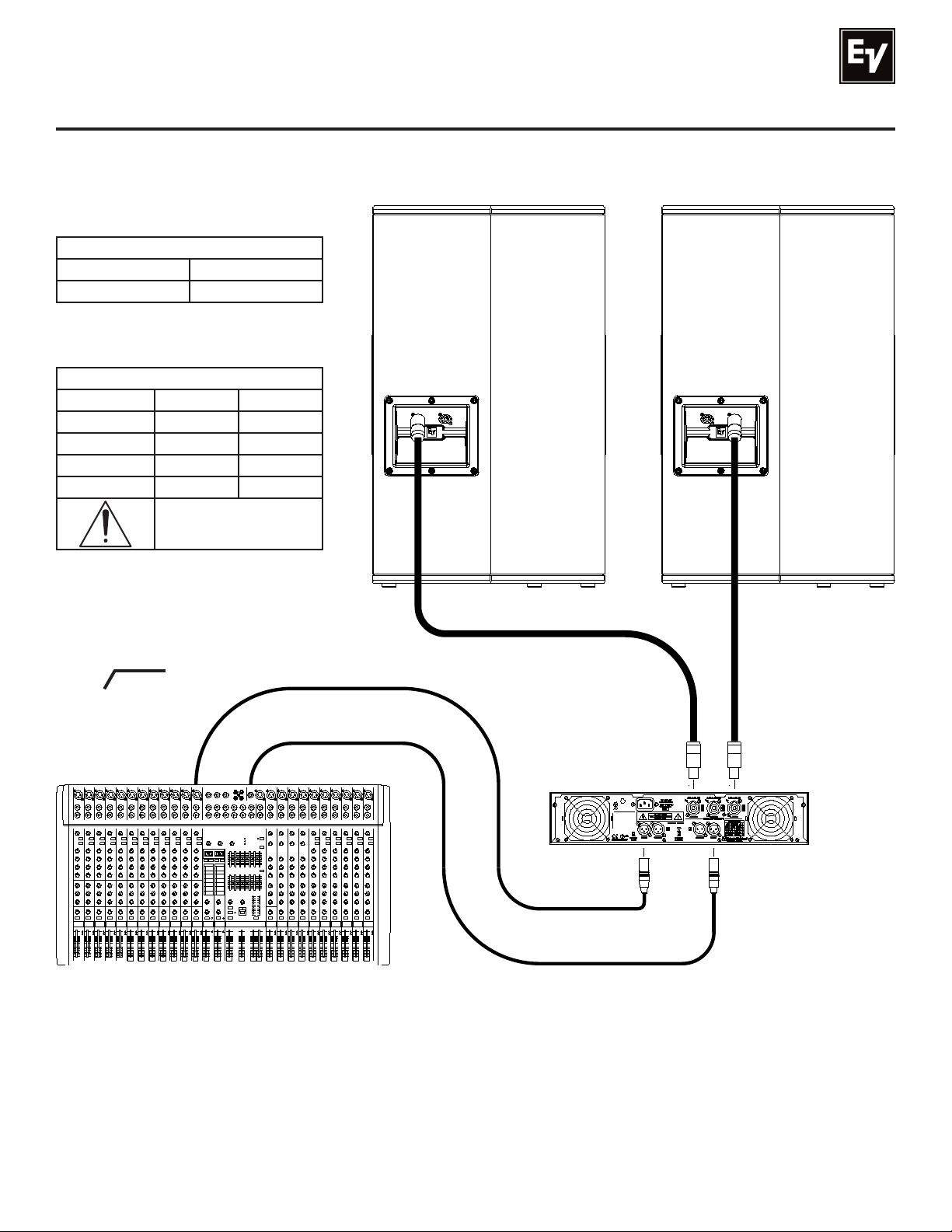

Recommended Configurations ........................................................................................................................................7
Specifications ................................................................................................................................................................... 11
Dimensions ........................................................................................................................................................................ 12
Frequency Response Graphs ....................................................................................................................................... 14
Live X Model Reference Table ...................................................................................................................................... 14
Warranty Information ....................................................................................................................................................... 14
Troubleshooting ................................................................................................................................................................ 15
2
Electro-Voice Live X Series Passive Owner’s Manual
Description
Thank you for choosing an Electro-Voice Live X passive loudspeaker system. Please take time to consult
this manual to understand all the features built into your Electro-Voice system and fully utilize its performance capabilities.
Clear, powerful and musical Electro-Voice loudspeakers command the stage at high-profile venues and
major events worldwide. Born stage-ready, the Live X series includes powered and passive models that
all feature EV-engineered components in solid wood cabinets. Wherever performance matters, Live X is
serious gear for serious sound.
System Features
ELX11 2 – 12” Two-Way Passive Loudspeaker
The versatile ELX112 loudspeaker is a compact, powerful choice with real stage presence, for sound reinforcement and stage monitoring applications.
• DH-1K 39mm (1.5”) Titanium Diaphragm Compression Driver
• EVS-12K 305mm (12”) Woofer
• 55 Hz – 20 kHz frequency range
• 94 dB SPL sensitivity; 132 dB max SPL
• 250 W continuous and 1000 W peak power handling
• Pole-mounts or stacks with Live X Subwoofers
• High Frequency Waveguide with 90° x 50° Coverage Pattern
• 60° Monitor Angle
• 15mm Plywood Enclosure, Internally Braced, with Textured Paint
ELX11 5 – 15” Two-Way Passive Loudspeaker
A powerful step up from the ELX112, the ELX115 features a 15” woofer that delivers extended low-frequency response for bigger sound in larger rooms.
• DH-1K 39mm (1.5”) Titanium Diaphragm Compression Driver
• EVS-15K 381mm (15”) Woofer
• 50 Hz – 20 kHz frequency range
• 95 dB SPL sensitivity; 134 dB max SPL
• 400 W continuous and 1600 W peak power handling
• Pole-mounts or stacks with Live X Subwoofers
• High Frequency Waveguide with 90° x 50° Coverage Pattern
• 60° Monitor Angle
• 15mm Plywood Enclosure, Internally Braced, with Textured Paint
Electro-Voice Live X Series Passive Owner’s Manual 3
System Features (cont’)
ELX2 15 – Dual 15” Two-Way Loudspeaker
This twin woofer configuration delivers real low-end punch — ideal for applications that demand highvolume output and an ultra-wide frequency response from a single cabinet.
• DH-1K 39mm (1.5”) Titanium Diaphragm Compression Driver
• Dual EVS-15K 381mm (15”) Woofers
• 38 Hz – 20 kHz frequency range
• 96 dB SPL sensitivity; 137 dB max SPL
• 600 W continuous and 2400 W peak power handling
• High Frequency Waveguide with 90° x 50° Coverage Pattern
• 15mm Plywood Enclosure, Internally Braced, with Textured Paint
ELX11 8 – 18” Passive Subwoofer
Optimized for performance with the ELX112 and ELX115, the ELX118 adds a full, deep, low-frequency
punch that you can hear and feel.
• EVS-18K 457mm (18”) Woofer provides extended low-frequency output
• 35 Hz – 200 Hz frequency range
• 96 dB SPL sensitivity; 134 dB max SPL
• 400 W continuous and 1600 W peak power handling
• Supports pole-mounted or stacked Live X Loudspeakers
• 15mm Plywood Enclosure, Internally Braced, with Textured Paint
Electro-Voice Live X Series Passive Owner’s Manual4
Tripod and Floor Monitor Operation
Floor Monitor
Electro-Voice ELX112 and ELX115 loudspeakers may be used as a floor monitor by placing the speaker
on the integral monitor angle. Make sure to:
• Place the speaker on a level, stable surface that is solid and secure.
• Route cables so that performers, production crew and audience members will not trip over the
cables. Secure cables with wire ties or tape whenever possible.
See Figures 1a and 1b for optimal coverage areas in front of the loudspeaker when in monitor position.
Figure 1a:
ELX112 / ELX115 Optimum Coverage
(Front View)
Electro-Voice Live X Series Passive Owner’s Manual 5
ELX112 / ELX115 Optimum Coverage
Figure 1b:
(Side View)
